Abstract Neuron output y net 0 10 ifotherwise

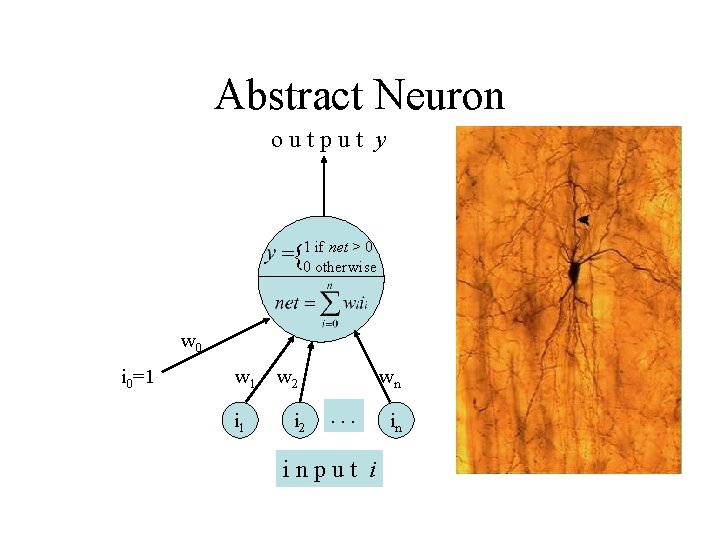

Abstract Neuron output y net > 0 {10 ifotherwise w 0 i 0=1 w 1 i 1 w 2 i 2 wn. . . input i in

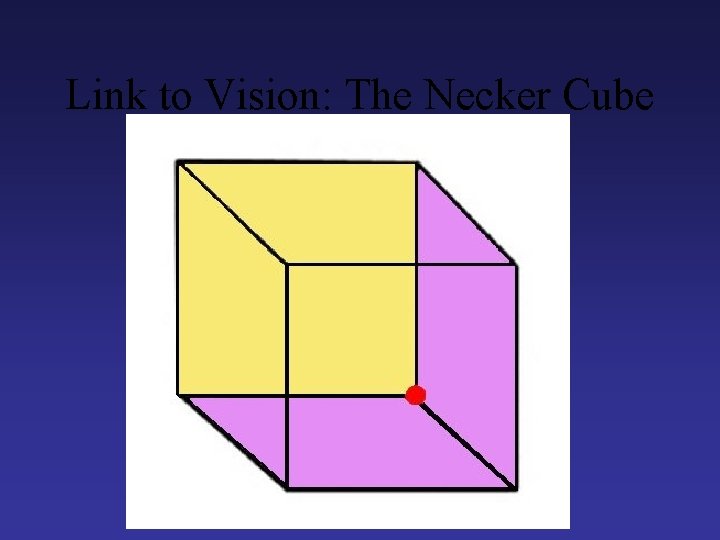

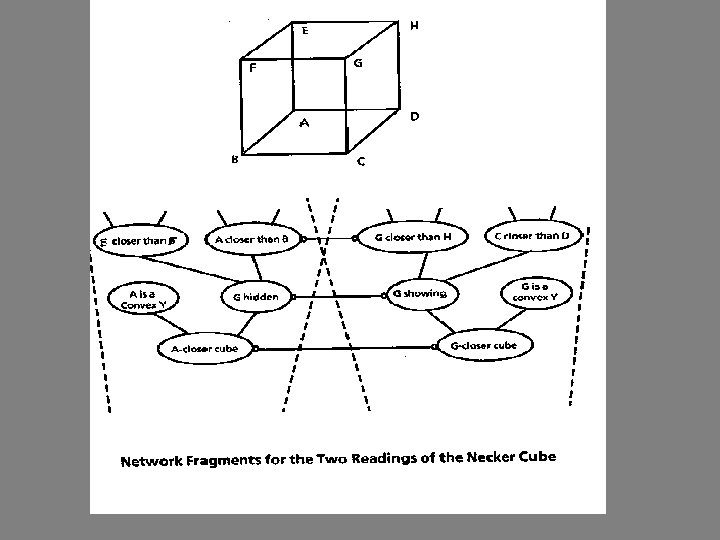

Link to Vision: The Necker Cube

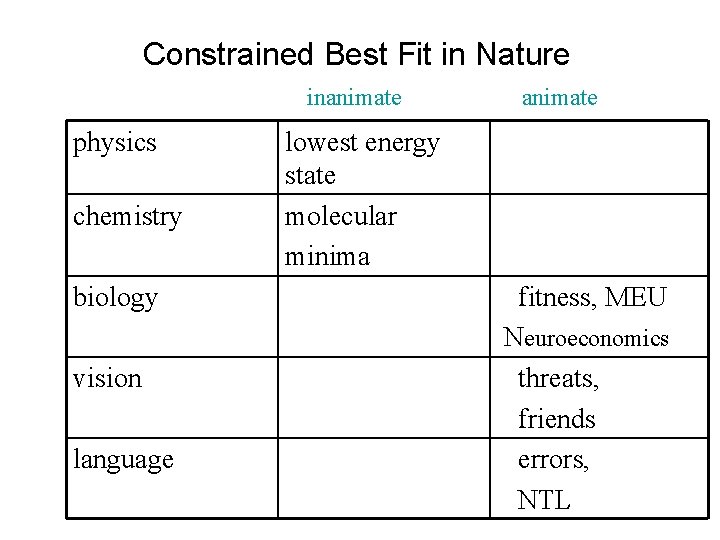

Constrained Best Fit in Nature inanimate physics chemistry biology vision language animate lowest energy state molecular minima fitness, MEU Neuroeconomics threats, friends errors, NTL

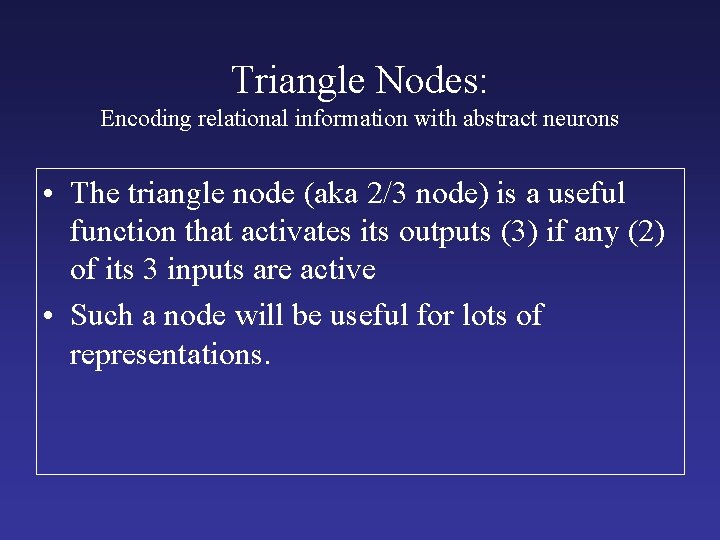

Triangle Nodes: Encoding relational information with abstract neurons • The triangle node (aka 2/3 node) is a useful function that activates its outputs (3) if any (2) of its 3 inputs are active • Such a node will be useful for lots of representations.

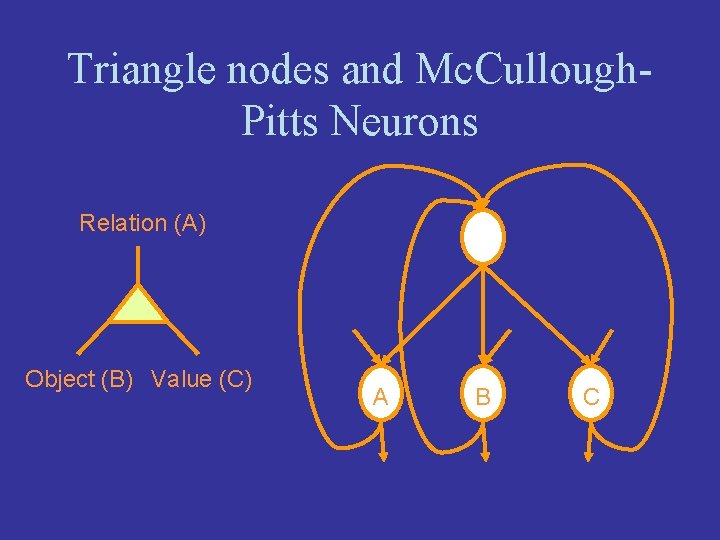

Triangle nodes and Mc. Cullough. Pitts Neurons Relation (A) Object (B) Value (C) A B C

Basic Ideas • Parallel activation streams. • Top down and bottom up activation combine to determine the best matching structure. • Triangle nodes bind features of objects to values • Mutual inhibition and competition between structures • Mental connections are active neural connections

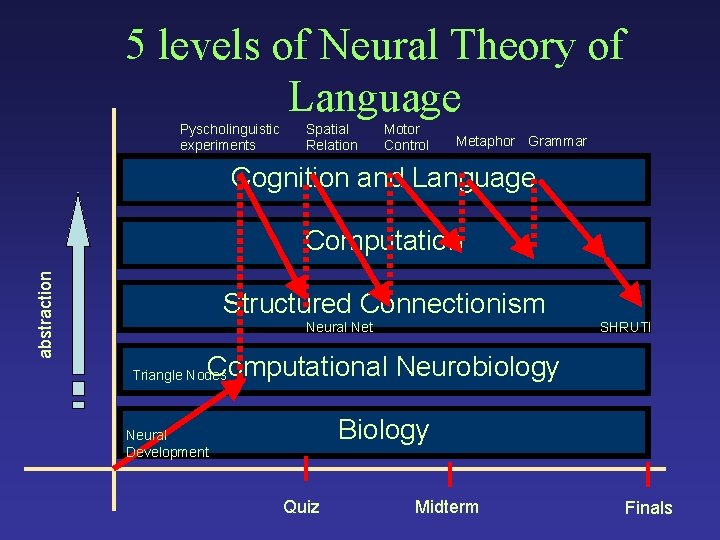

5 levels of Neural Theory of Language Pyscholinguistic experiments Spatial Relation Motor Control Metaphor Grammar Cognition and Language abstraction Computation Structured Connectionism Neural Net SHRUTI Computational Neurobiology Triangle Nodes Biology Neural Development Quiz Midterm Finals

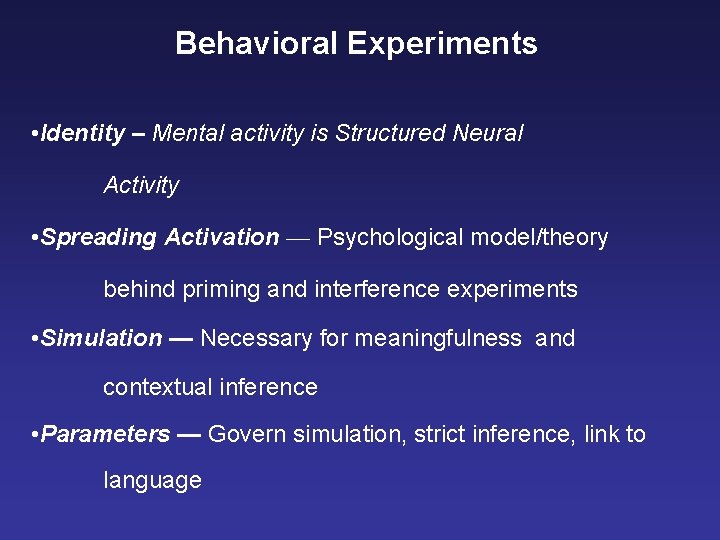

Behavioral Experiments • Identity – Mental activity is Structured Neural Activity • Spreading Activation — Psychological model/theory behind priming and interference experiments • Simulation — Necessary for meaningfulness and contextual inference • Parameters — Govern simulation, strict inference, link to language

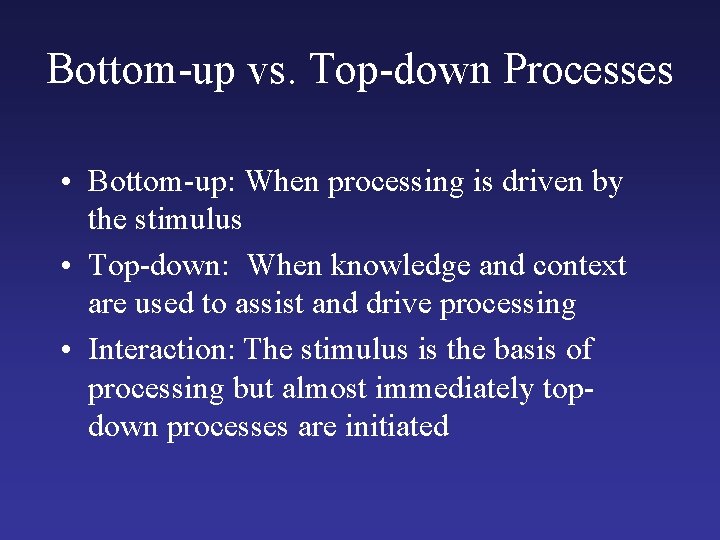

Bottom-up vs. Top-down Processes • Bottom-up: When processing is driven by the stimulus • Top-down: When knowledge and context are used to assist and drive processing • Interaction: The stimulus is the basis of processing but almost immediately topdown processes are initiated

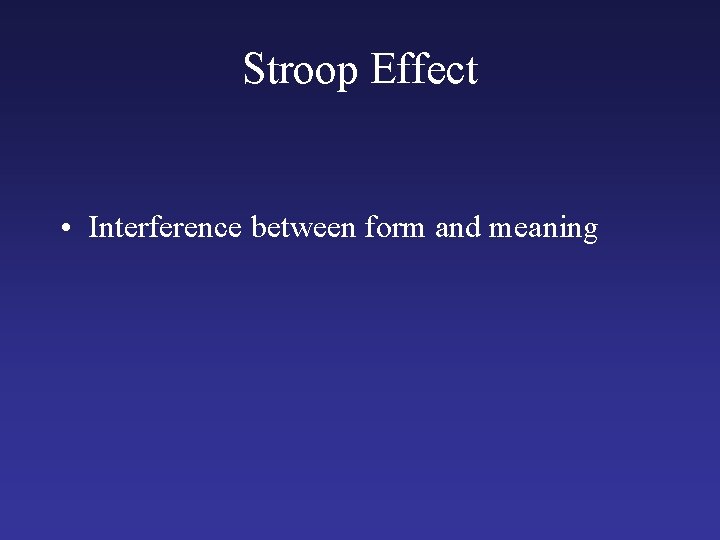

Stroop Effect • Interference between form and meaning

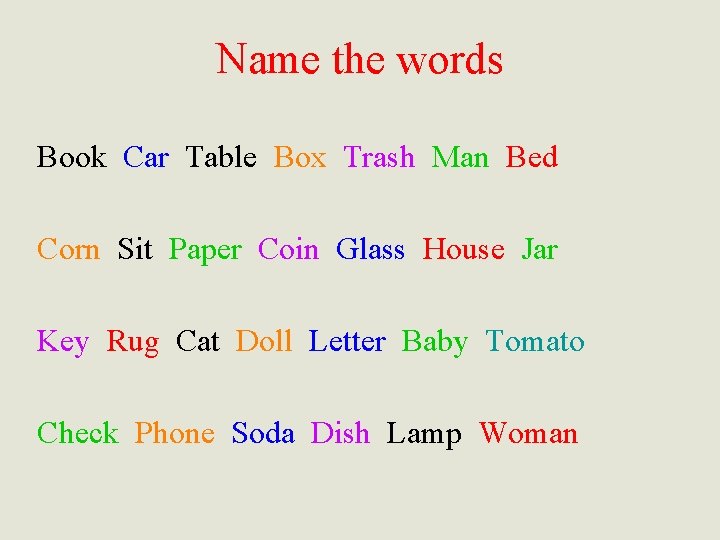

Name the words Book Car Table Box Trash Man Bed Corn Sit Paper Coin Glass House Jar Key Rug Cat Doll Letter Baby Tomato Check Phone Soda Dish Lamp Woman

Name the print color of the words Blue Green Red Yellow Orange Black Red Purple Green Red Blue Yellow Black Red Green White Blue Yellow Red Black Blue White Red Yellow Green Black Purple

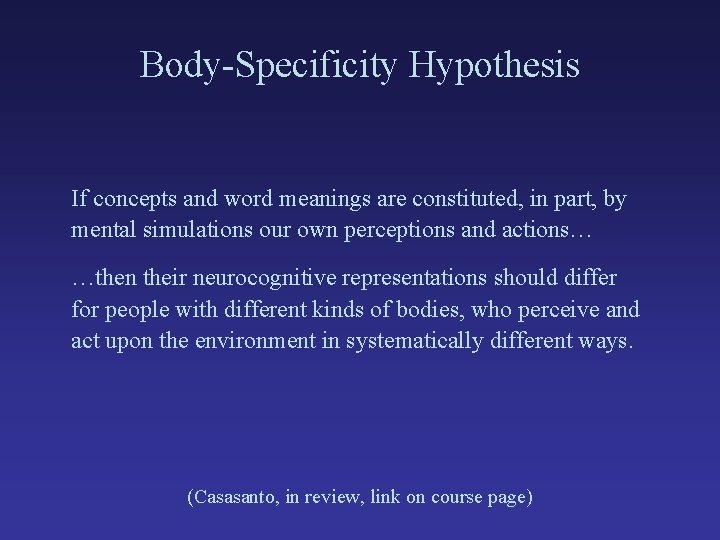

Body-Specificity Hypothesis If concepts and word meanings are constituted, in part, by mental simulations our own perceptions and actions… …then their neurocognitive representations should differ for people with different kinds of bodies, who perceive and act upon the environment in systematically different ways. (Casasanto, in review, link on course page)

Testing body-specificity pinch Manual Action chew Non-Manual Action

Testing body-specificity Left handed movements for one block of trials Right handed movements for the other block of trials

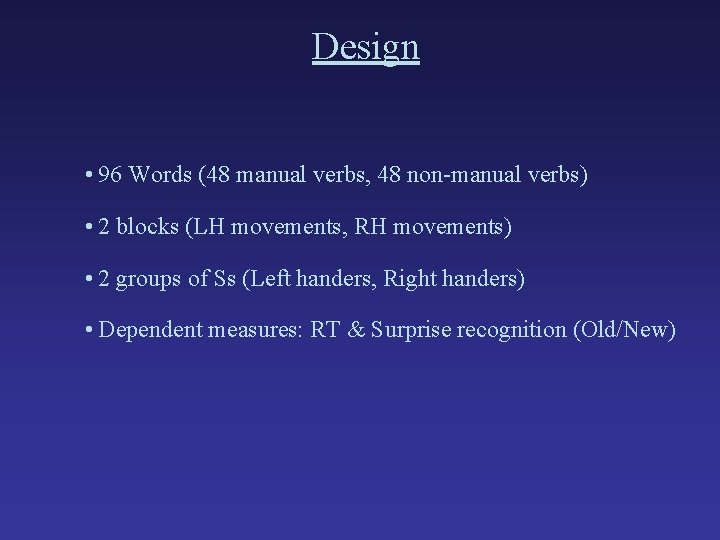

Design • 96 Words (48 manual verbs, 48 non-manual verbs) • 2 blocks (LH movements, RH movements) • 2 groups of Ss (Left handers, Right handers) • Dependent measures: RT & Surprise recognition (Old/New)

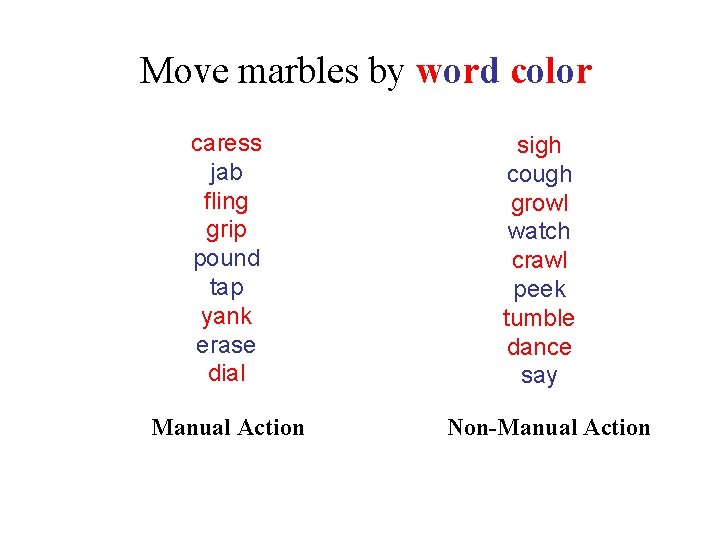

Move marbles by word color caress jab fling grip pound tap yank erase dial Manual Action sigh cough growl watch crawl peek tumble dance say Non-Manual Action

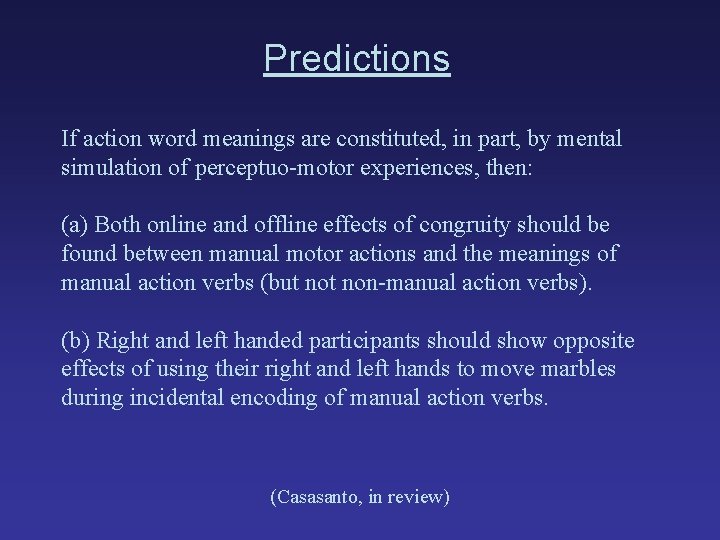

Predictions If action word meanings are constituted, in part, by mental simulation of perceptuo-motor experiences, then: (a) Both online and offline effects of congruity should be found between manual motor actions and the meanings of manual action verbs (but non-manual action verbs). (b) Right and left handed participants should show opposite effects of using their right and left hands to move marbles during incidental encoding of manual action verbs. (Casasanto, in review)

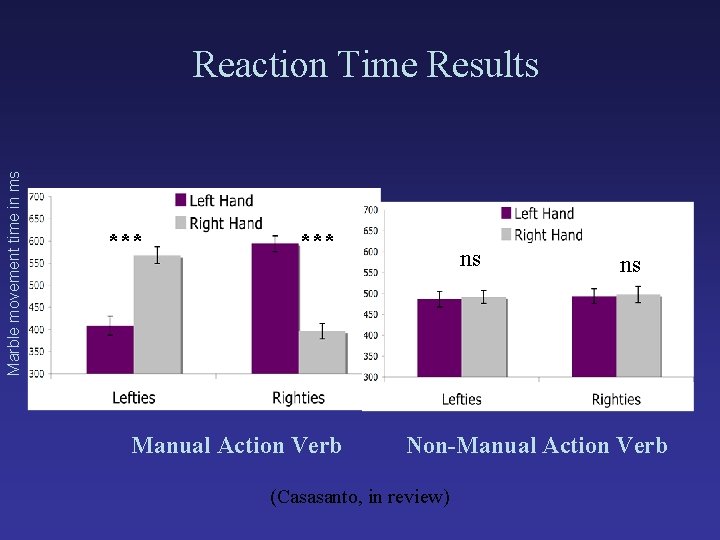

Marble movement time in ms Reaction Time Results *** Manual Action Verb ns ns Non-Manual Action Verb (Casasanto, in review)

Congruity effect in ms Handedness-ness predicts congruity effect ABS Laterality Quotient

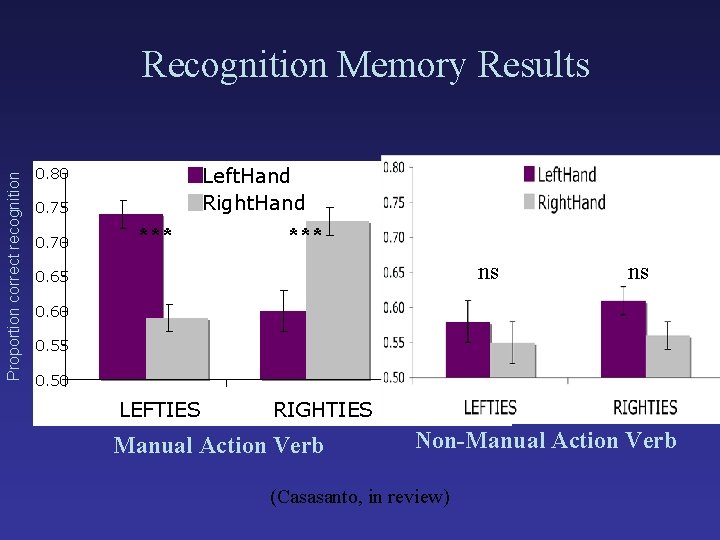

Proportion correct recognition Recognition Memory Results Left. Hand Right. Hand 0. 80 0. 75 0. 70 *** ns 0. 65 ns 0. 60 0. 55 0. 50 LEFTIES RIGHTIES Manual Action Verb Non-Manual Action Verb (Casasanto, in review)

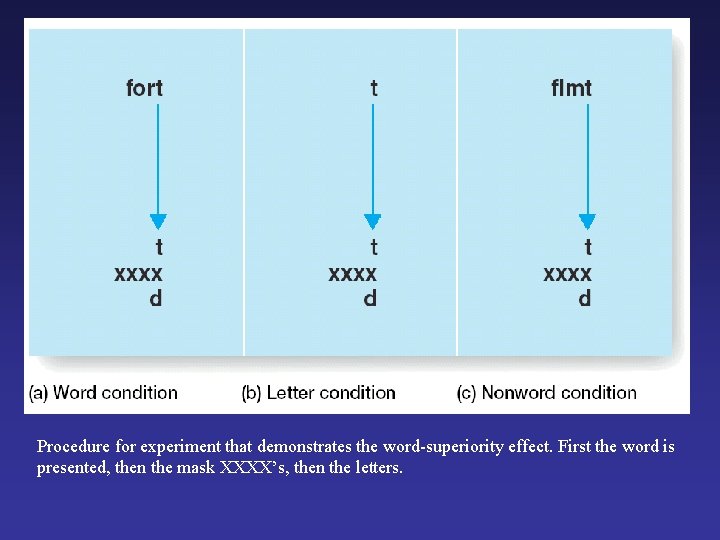

Procedure for experiment that demonstrates the word-superiority effect. First the word is presented, then the mask XXXX’s, then the letters.

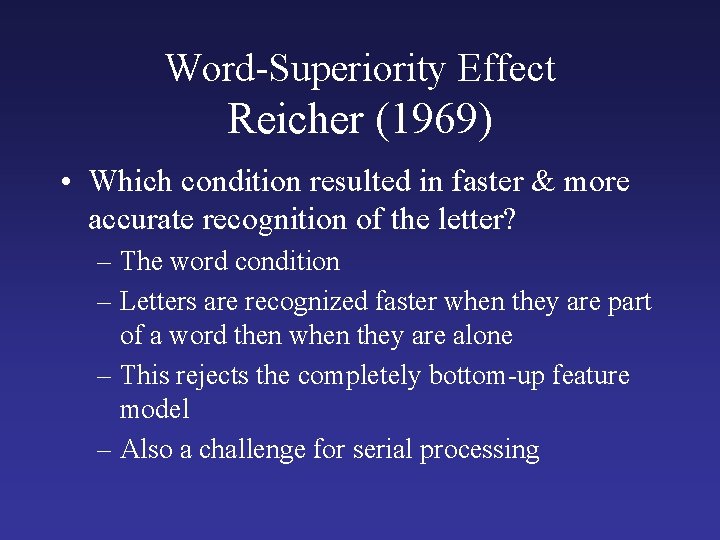

Word-Superiority Effect Reicher (1969) • Which condition resulted in faster & more accurate recognition of the letter? – The word condition – Letters are recognized faster when they are part of a word then when they are alone – This rejects the completely bottom-up feature model – Also a challenge for serial processing

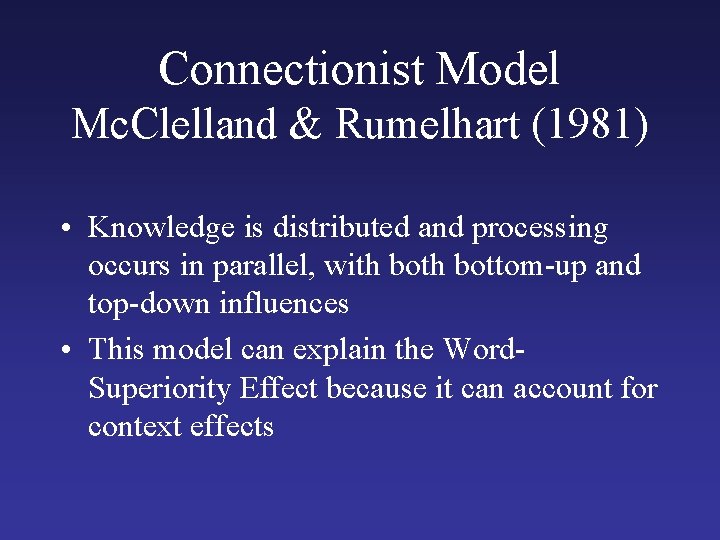

Connectionist Model Mc. Clelland & Rumelhart (1981) • Knowledge is distributed and processing occurs in parallel, with bottom-up and top-down influences • This model can explain the Word. Superiority Effect because it can account for context effects

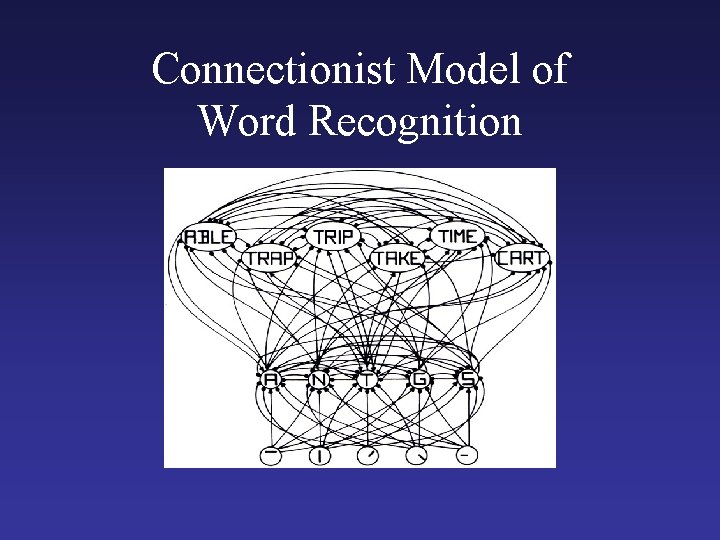

Connectionist Model of Word Recognition

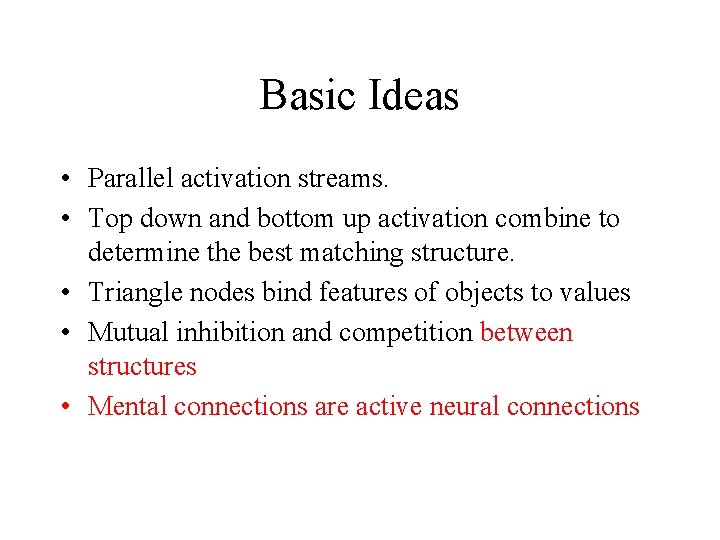

Basic Ideas • Parallel activation streams. • Top down and bottom up activation combine to determine the best matching structure. • Triangle nodes bind features of objects to values • Mutual inhibition and competition between structures • Mental connections are active neural connections

Interaction in language processing: Pragmatic constraints on lexical access Jim Magnuson Columbia University

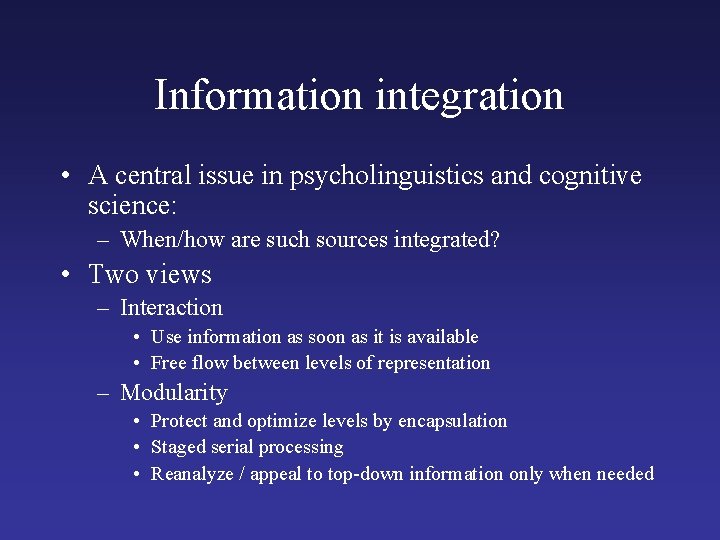

Information integration • A central issue in psycholinguistics and cognitive science: – When/how are such sources integrated? • Two views – Interaction • Use information as soon as it is available • Free flow between levels of representation – Modularity • Protect and optimize levels by encapsulation • Staged serial processing • Reanalyze / appeal to top-down information only when needed

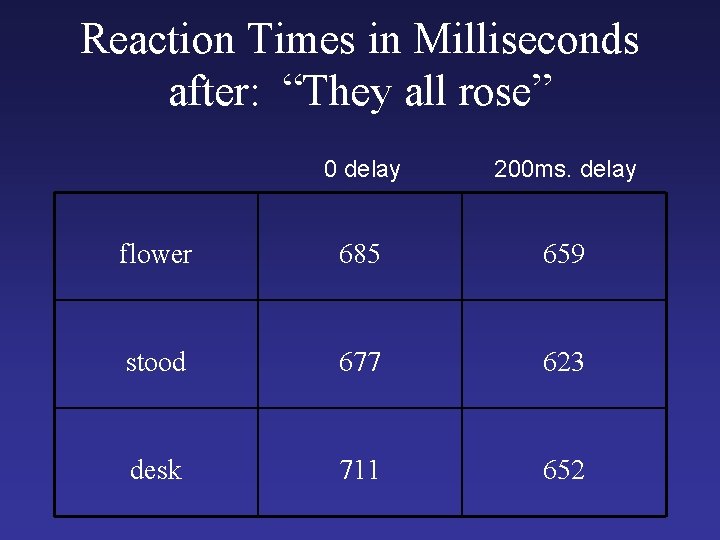

Reaction Times in Milliseconds after: “They all rose” 0 delay 200 ms. delay flower 685 659 stood 677 623 desk 711 652

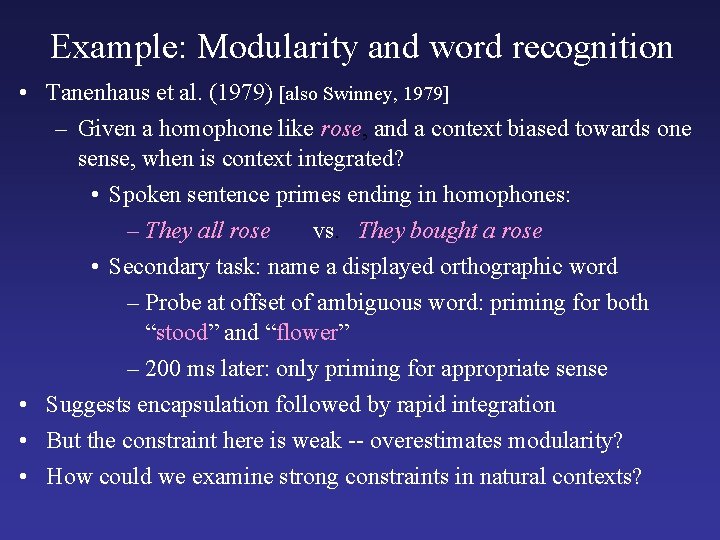

Example: Modularity and word recognition • Tanenhaus et al. (1979) [also Swinney, 1979] – Given a homophone like rose, and a context biased towards one sense, when is context integrated? • Spoken sentence primes ending in homophones: – They all rose vs. They bought a rose • Secondary task: name a displayed orthographic word – Probe at offset of ambiguous word: priming for both “stood” and “flower” – 200 ms later: only priming for appropriate sense • Suggests encapsulation followed by rapid integration • But the constraint here is weak -- overestimates modularity? • How could we examine strong constraints in natural contexts?

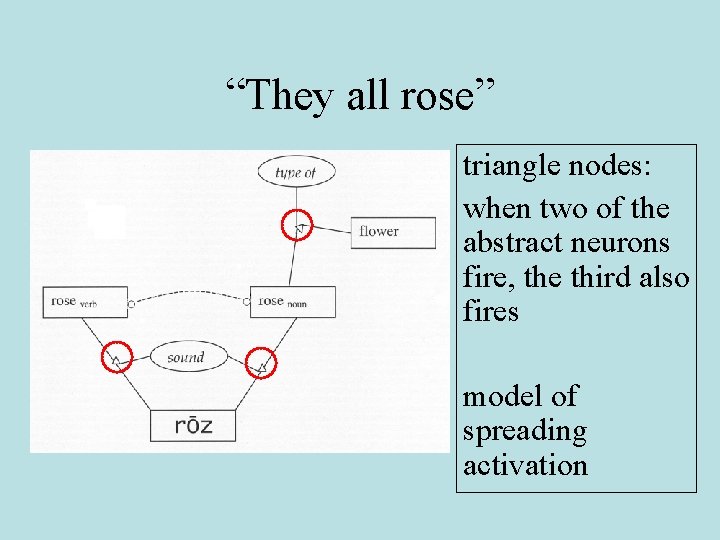

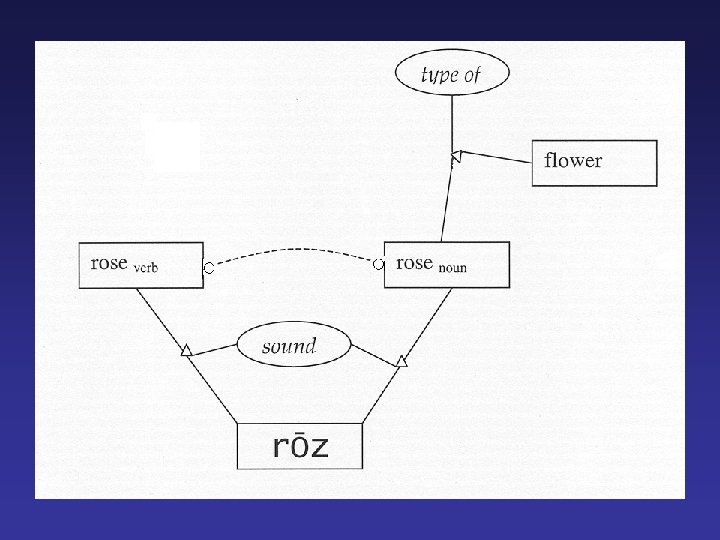

“They all rose” triangle nodes: when two of the abstract neurons fire, the third also fires model of spreading activation

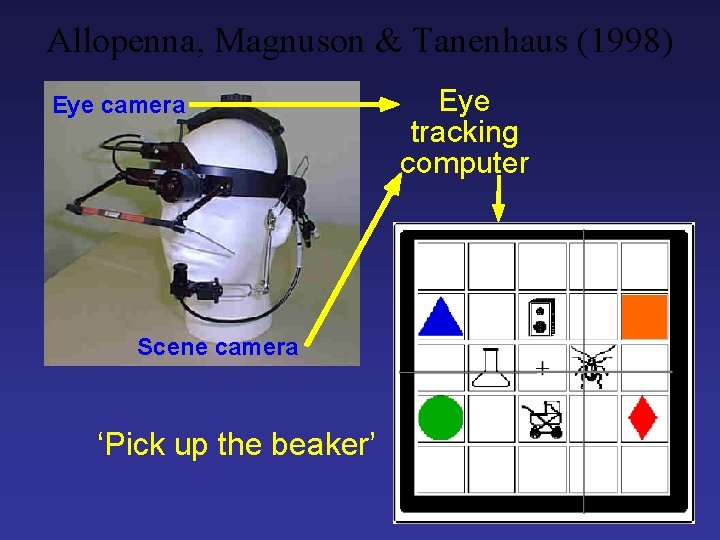

Allopenna, Magnuson & Tanenhaus (1998) Eye camera Scene camera ‘Pick up the beaker’ Eye tracking computer

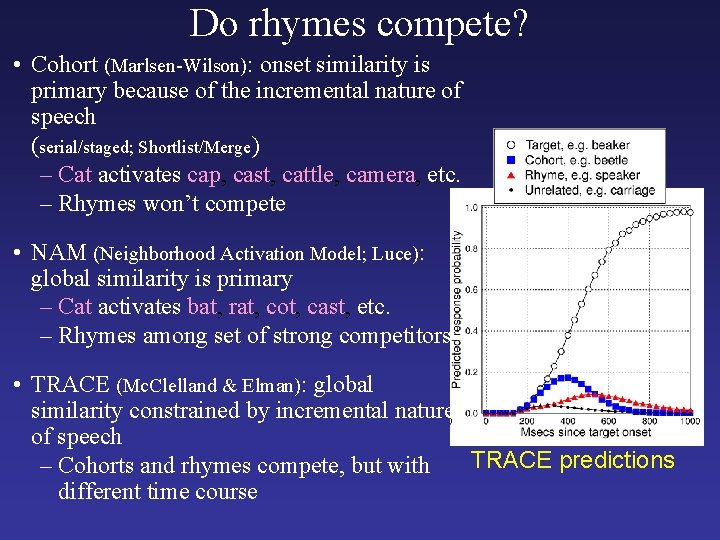

Do rhymes compete? • Cohort (Marlsen-Wilson): onset similarity is primary because of the incremental nature of speech (serial/staged; Shortlist/Merge) – Cat activates cap, cast, cattle, camera, etc. – Rhymes won’t compete • NAM (Neighborhood Activation Model; Luce): global similarity is primary – Cat activates bat, rat, cot, cast, etc. – Rhymes among set of strong competitors • TRACE (Mc. Clelland & Elman): global similarity constrained by incremental nature of speech TRACE predictions – Cohorts and rhymes compete, but with different time course

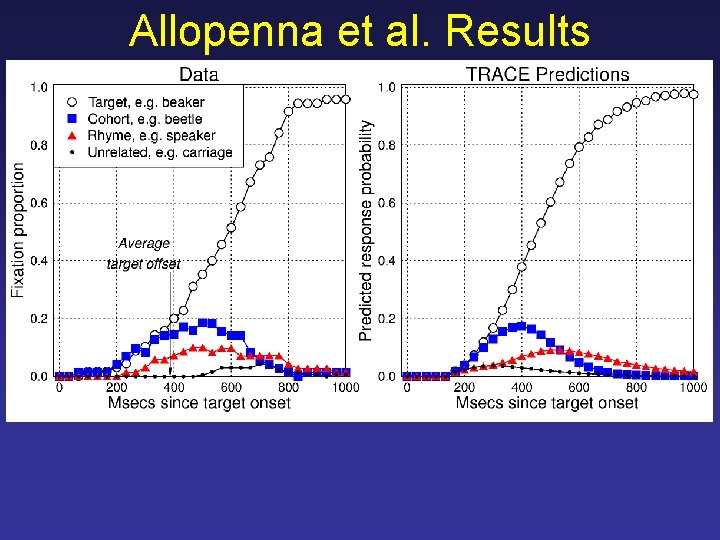

Allopenna et al. Results

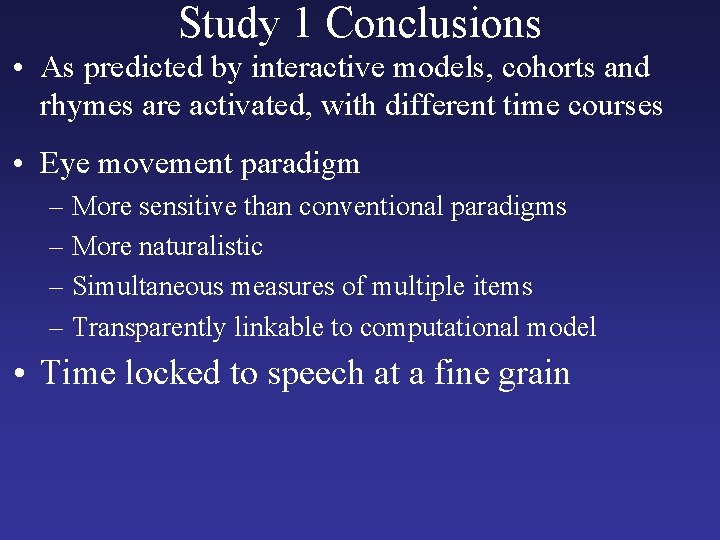

Study 1 Conclusions • As predicted by interactive models, cohorts and rhymes are activated, with different time courses • Eye movement paradigm – More sensitive than conventional paradigms – More naturalistic – Simultaneous measures of multiple items – Transparently linkable to computational model • Time locked to speech at a fine grain

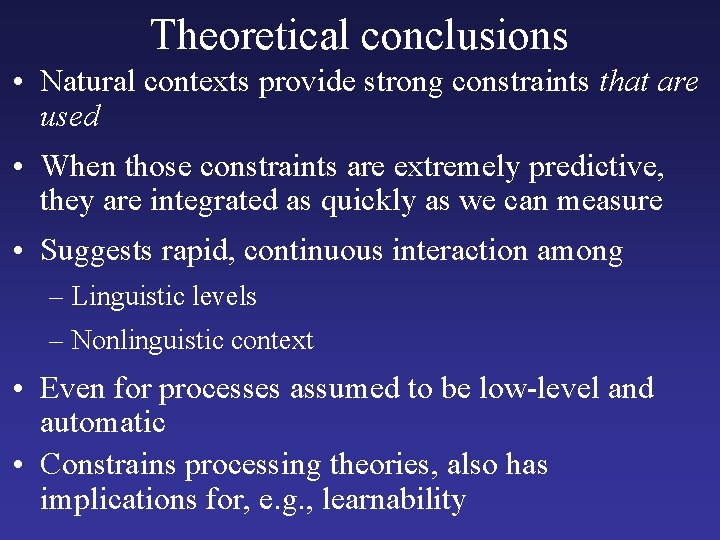

Theoretical conclusions • Natural contexts provide strong constraints that are used • When those constraints are extremely predictive, they are integrated as quickly as we can measure • Suggests rapid, continuous interaction among – Linguistic levels – Nonlinguistic context • Even for processes assumed to be low-level and automatic • Constrains processing theories, also has implications for, e. g. , learnability

Producing words from pictures or from other words: A comparison of aphasic lexical access from two different input modalities Gary Dell with Myrna Schwartz, Dan Foygel, Nadine Martin, Eleanor Saffran, Deborah Gagnon, Rick Hanley, Janice Kay, Susanne Gahl, Rachel Baron, Stefanie Abel, Walter Huber

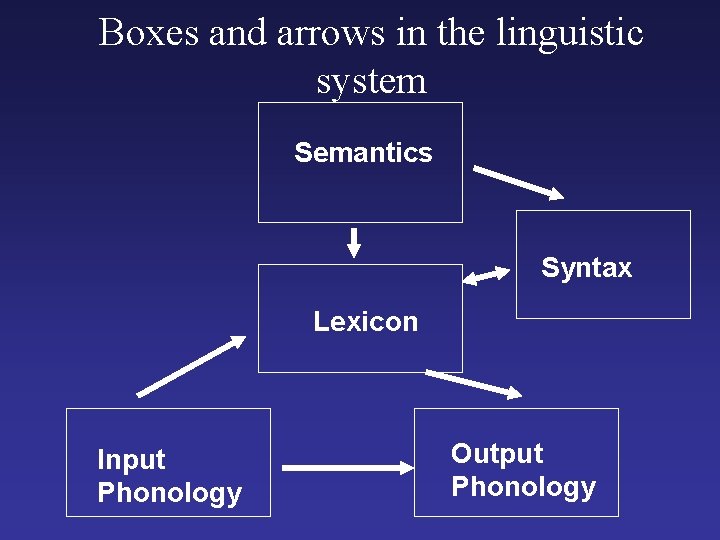

Boxes and arrows in the linguistic system Semantics Syntax Lexicon Input Phonology Output Phonology

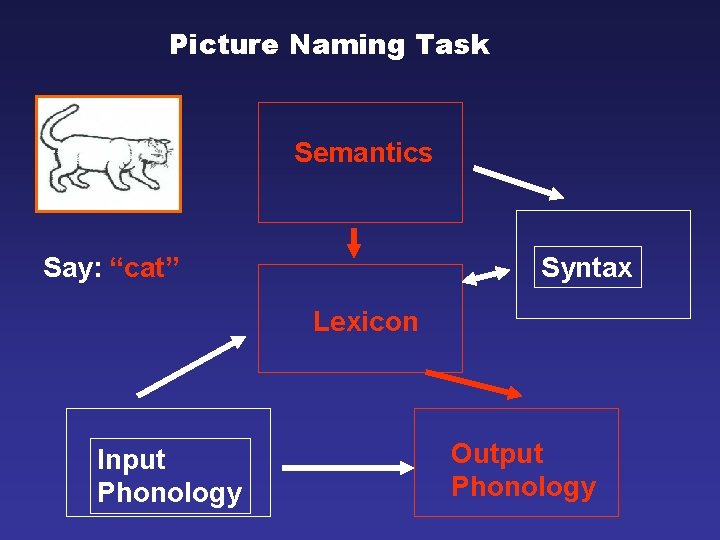

Picture Naming Task Semantics Say: “cat” Syntax Lexicon Input Phonology Output Phonology

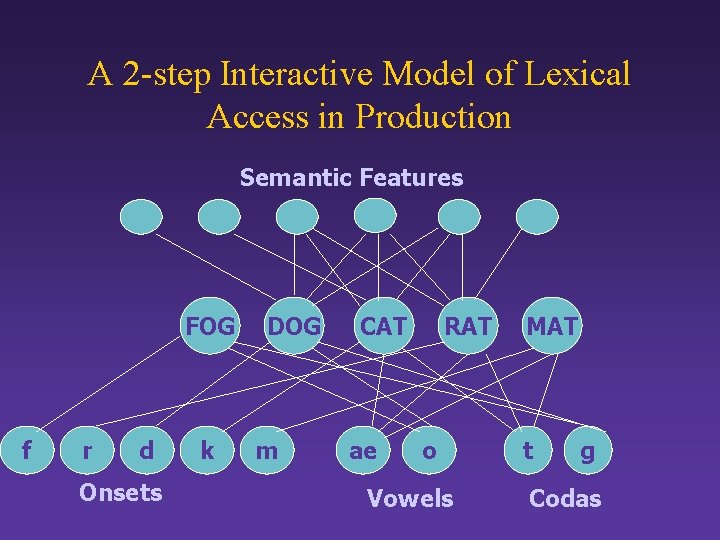

A 2 -step Interactive Model of Lexical Access in Production Semantic Features FOG f r d Onsets k DOG m CAT ae RAT o Vowels MAT t g Codas

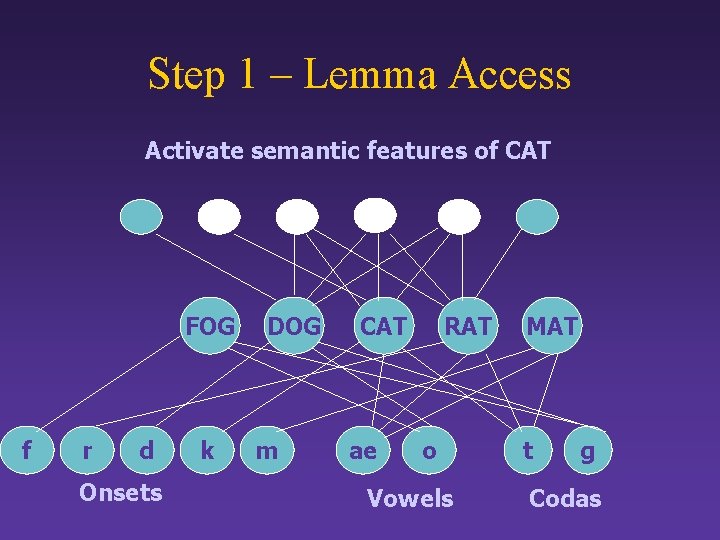

Step 1 – Lemma Access Activate semantic features of CAT FOG f r d Onsets k DOG m CAT ae RAT o Vowels MAT t g Codas

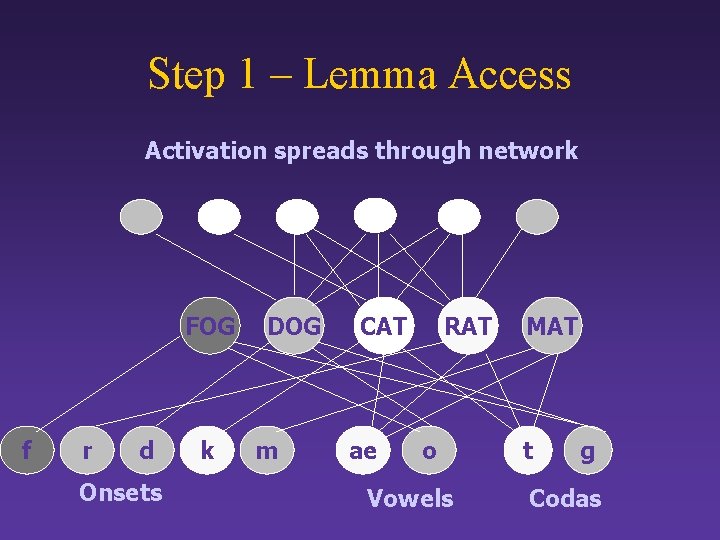

Step 1 – Lemma Access Activation spreads through network FOG f r d Onsets k DOG m CAT ae RAT o Vowels MAT t g Codas

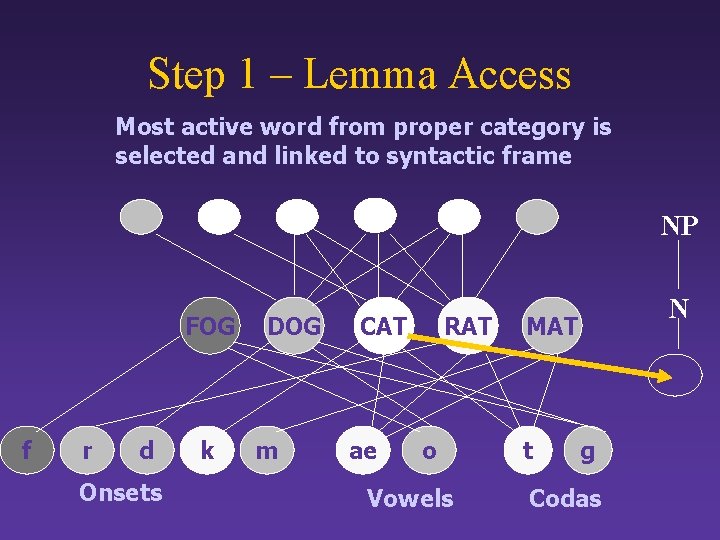

Step 1 – Lemma Access Most active word from proper category is selected and linked to syntactic frame NP FOG f r d Onsets k DOG m CAT ae RAT o Vowels N MAT t g Codas

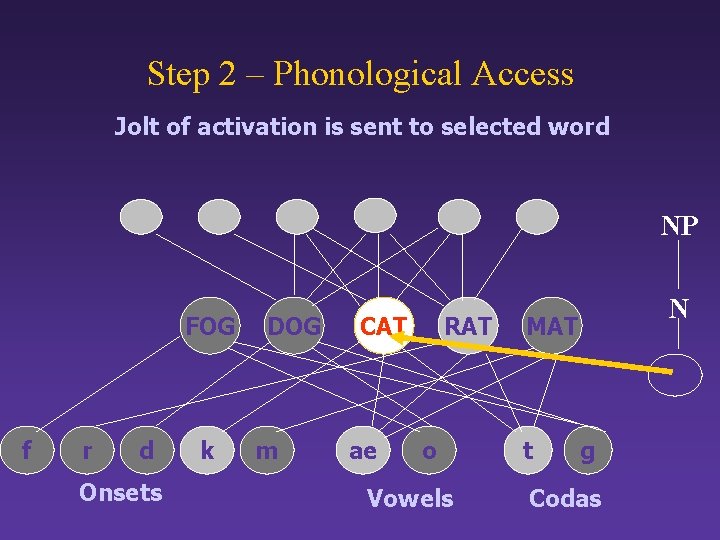

Step 2 – Phonological Access Jolt of activation is sent to selected word NP FOG f r d Onsets k DOG m CAT ae RAT o Vowels N MAT t g Codas

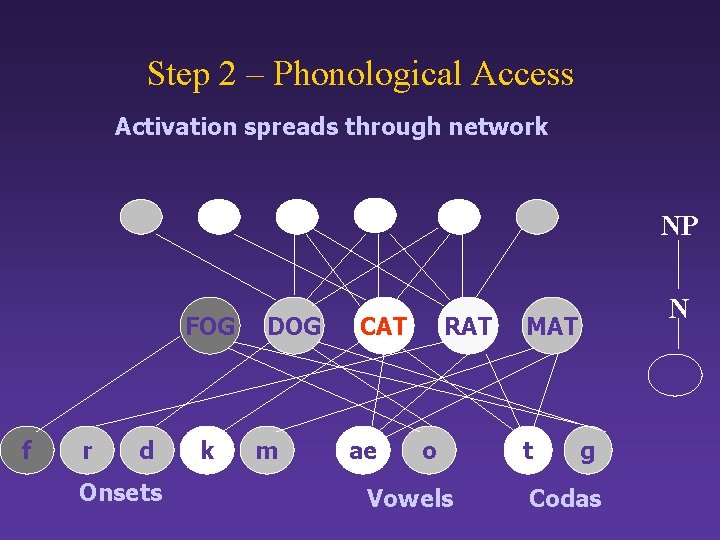

Step 2 – Phonological Access Activation spreads through network NP FOG f r d Onsets k DOG m CAT ae RAT o Vowels N MAT t g Codas

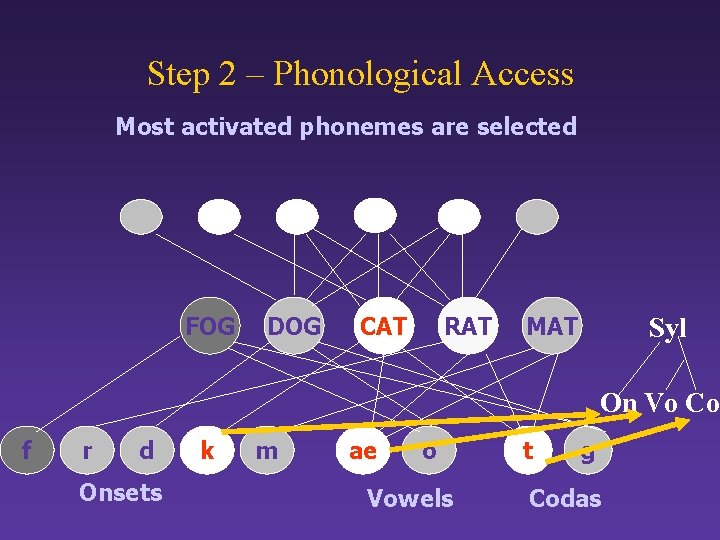

Step 2 – Phonological Access Most activated phonemes are selected FOG DOG CAT RAT MAT Syl On Vo Co f r d Onsets k m ae o Vowels t g Codas

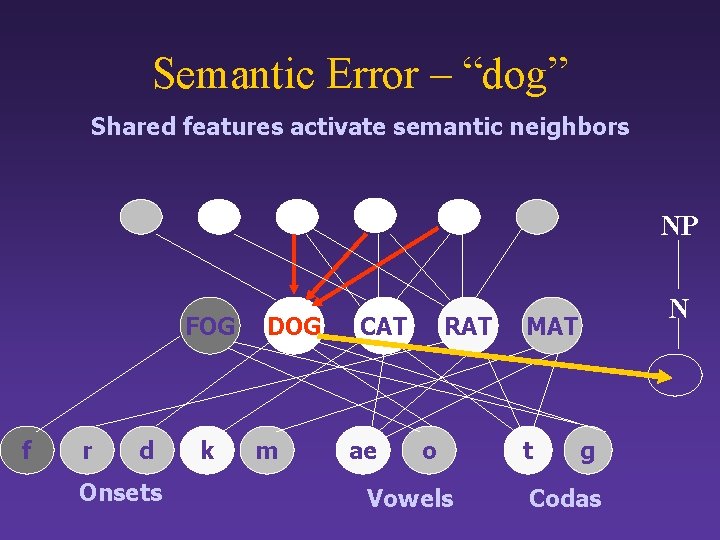

Semantic Error – “dog” Shared features activate semantic neighbors NP FOG f r d Onsets k DOG m CAT ae RAT o Vowels N MAT t g Codas

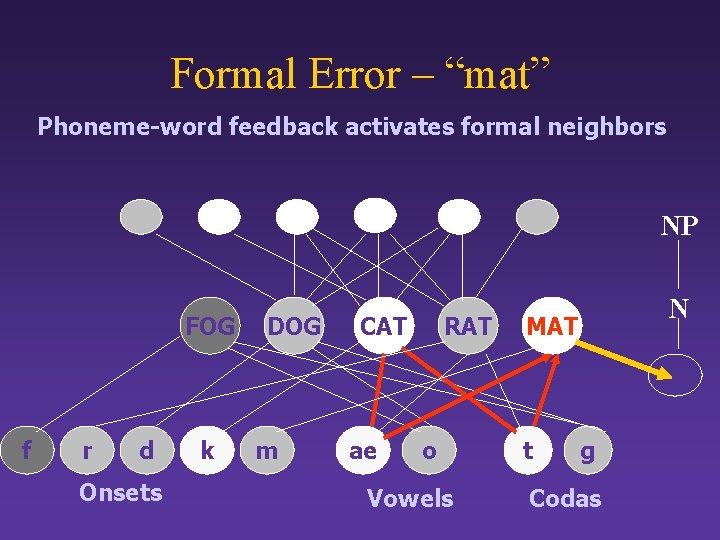

Formal Error – “mat” Phoneme-word feedback activates formal neighbors NP FOG f r d Onsets k DOG m CAT ae RAT o Vowels N MAT t g Codas

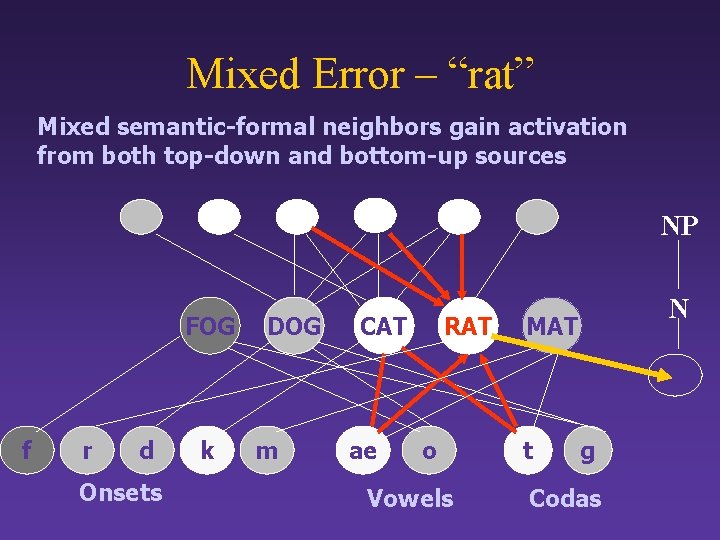

Mixed Error – “rat” Mixed semantic-formal neighbors gain activation from both top-down and bottom-up sources NP FOG f r d Onsets k DOG m CAT ae RAT o Vowels N MAT t g Codas

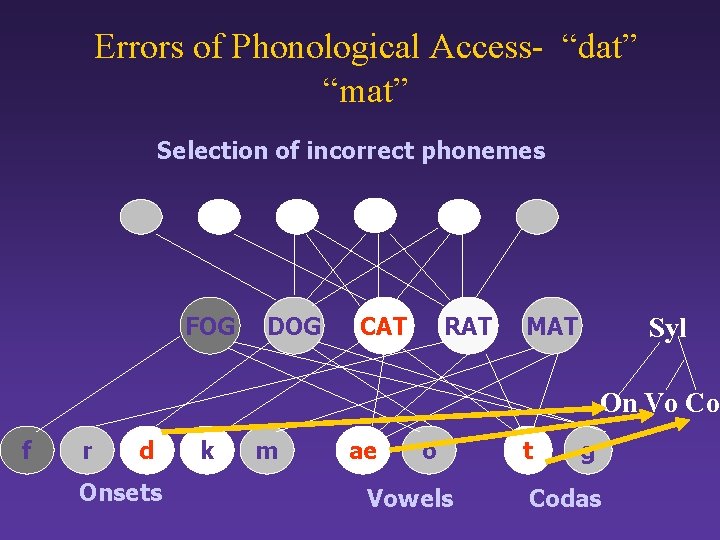

Errors of Phonological Access- “dat” “mat” Selection of incorrect phonemes FOG DOG CAT RAT MAT Syl On Vo Co f r d Onsets k m ae o Vowels t g Codas

A Test of the Model: Picture-naming Errors in Aphasia “cat” 175 pictures of concrete nouns–Philadelphia Naming Test 94 patients (Broca, Wernicke, anomic, conduction)

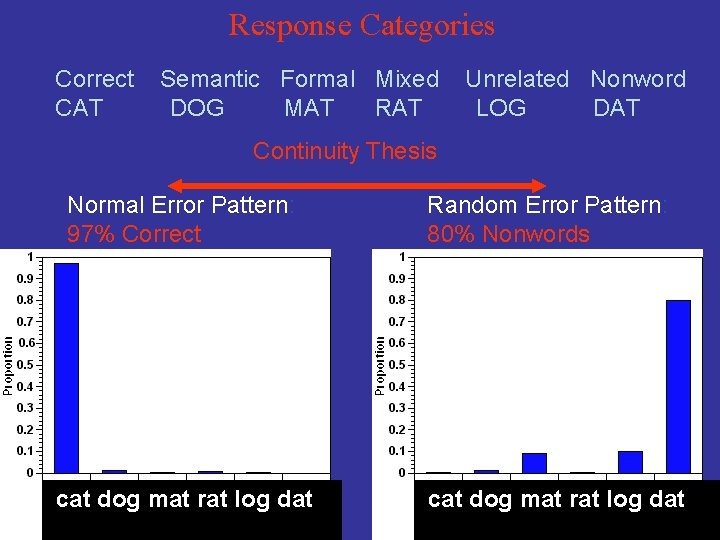

Response Categories Correct CAT Semantic Formal Mixed DOG MAT RAT Unrelated Nonword LOG DAT Continuity Thesis: Normal Error Pattern: 97% Correct cat dog mat rat log dat Random Error Pattern: 80% Nonwords cat dog mat rat log dat

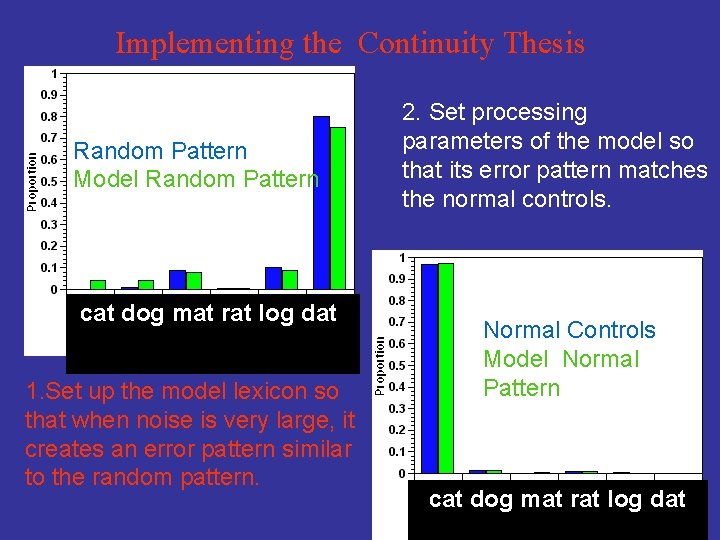

Implementing the Continuity Thesis Random Pattern Model Random Pattern cat dog mat rat log dat 1. Set up the model lexicon so that when noise is very large, it creates an error pattern similar to the random pattern. 2. Set processing parameters of the model so that its error pattern matches the normal controls. Normal Controls Model Normal Pattern cat dog mat rat log dat

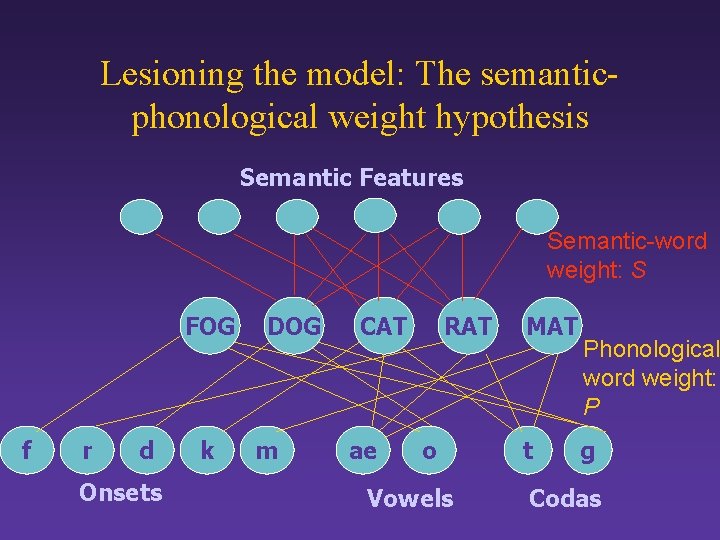

Lesioning the model: The semanticphonological weight hypothesis Semantic Features Semantic-word weight: S FOG f r d Onsets k DOG m CAT ae RAT o Vowels MAT t Phonological word weight: P g Codas

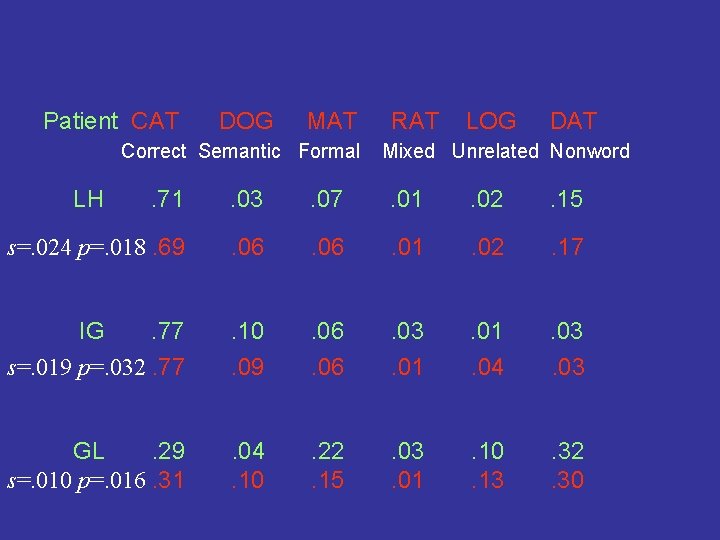

Patient CAT DOG MAT Correct Semantic Formal LH RAT LOG DAT Mixed Unrelated Nonword . 71 . 03 . 07 . 01 . 02 . 15 s=. 024 p=. 018. 69 . 06 . 01 . 02 . 17 IG. 77 s=. 019 p=. 032. 77 . 10. 09 . 06 . 03. 01. 04 . 03 GL. 29 s=. 010 p=. 016. 31 . 04. 10 . 22. 15 . 03. 01 . 10. 13 . 32. 30

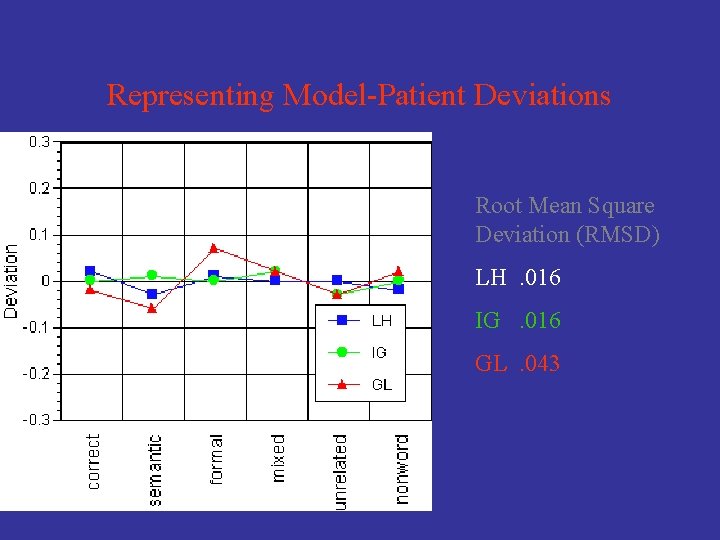

Representing Model-Patient Deviations Root Mean Square Deviation (RMSD) LH. 016 IG. 016 GL. 043

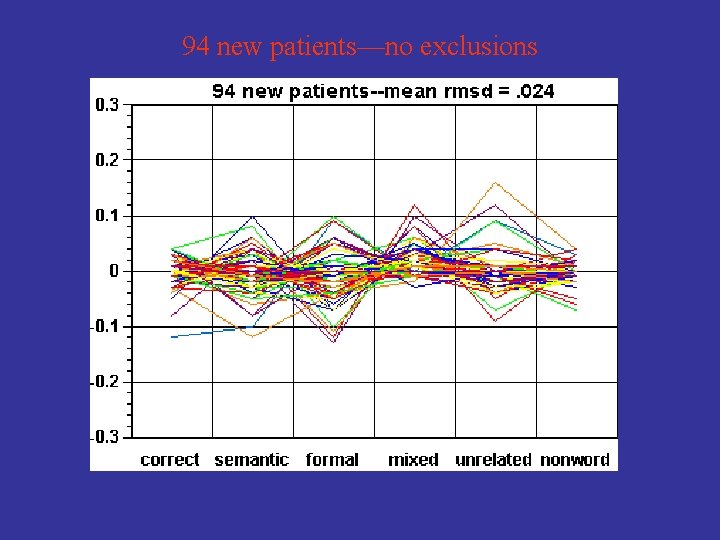

94 new patients—no exclusions 94. 5 % of variance accounted for

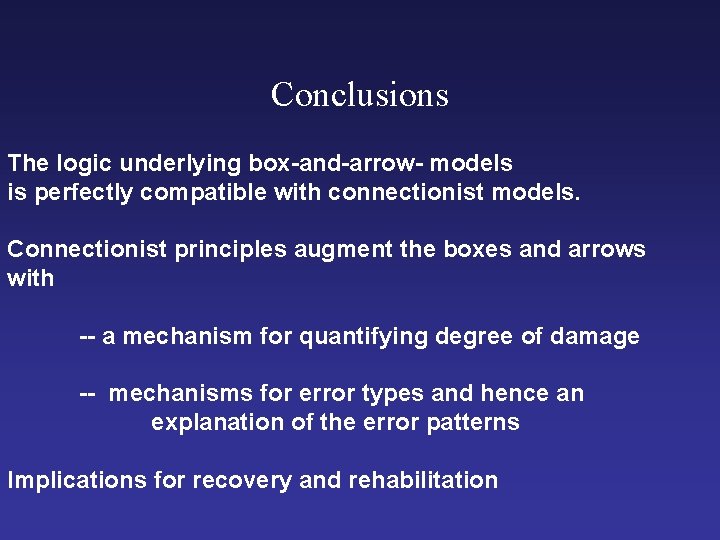

Conclusions The logic underlying box-and-arrow- models is perfectly compatible with connectionist models. Connectionist principles augment the boxes and arrows with -- a mechanism for quantifying degree of damage -- mechanisms for error types and hence an explanation of the error patterns Implications for recovery and rehabilitation

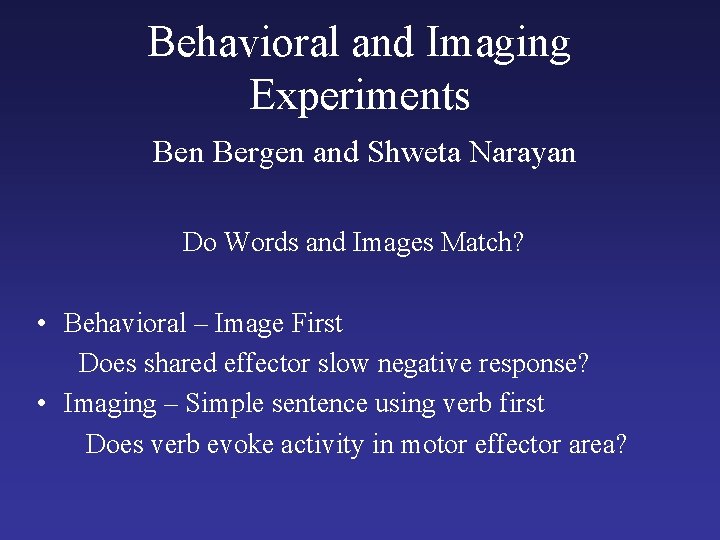

Behavioral and Imaging Experiments Ben Bergen and Shweta Narayan Do Words and Images Match? • Behavioral – Image First Does shared effector slow negative response? • Imaging – Simple sentence using verb first Does verb evoke activity in motor effector area?

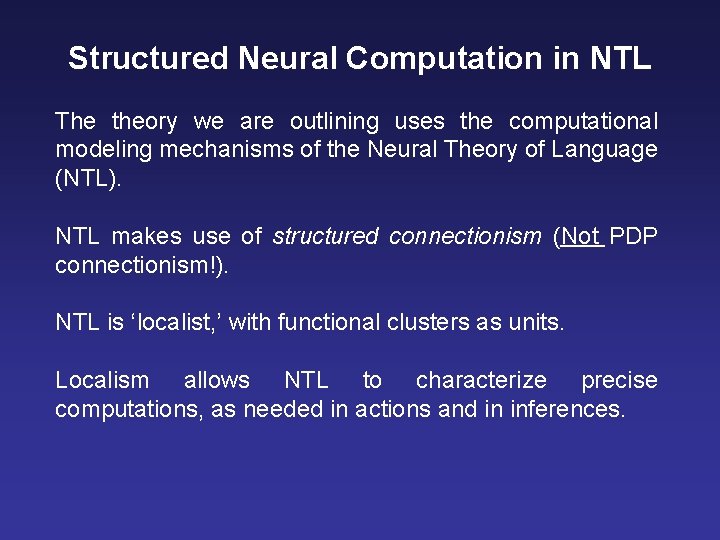

Structured Neural Computation in NTL The theory we are outlining uses the computational modeling mechanisms of the Neural Theory of Language (NTL). NTL makes use of structured connectionism (Not PDP connectionism!). NTL is ‘localist, ’ with functional clusters as units. Localism allows NTL to characterize precise computations, as needed in actions and in inferences.

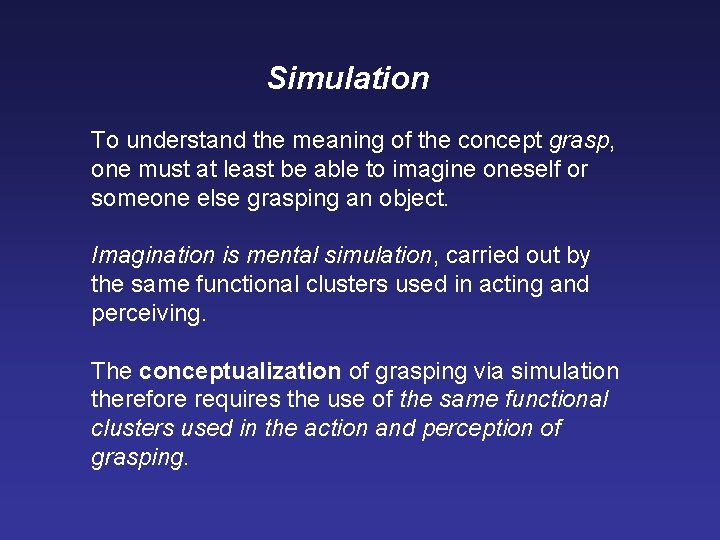

Simulation To understand the meaning of the concept grasp, one must at least be able to imagine oneself or someone else grasping an object. Imagination is mental simulation, carried out by the same functional clusters used in acting and perceiving. The conceptualization of grasping via simulation therefore requires the use of the same functional clusters used in the action and perception of grasping.

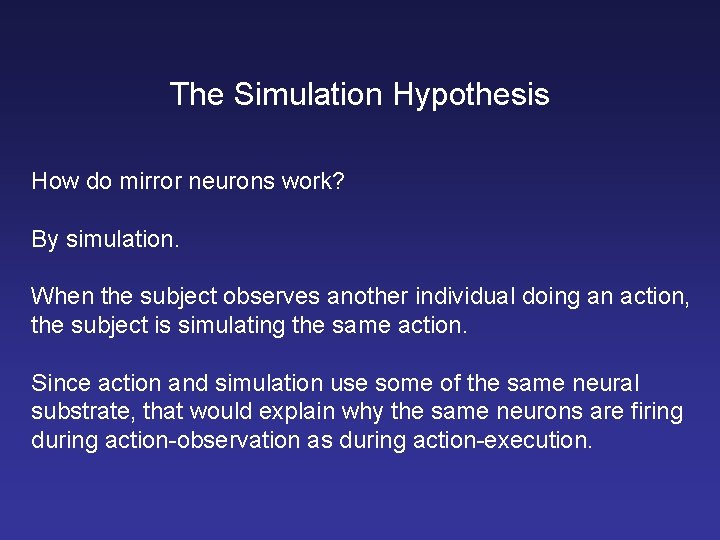

The Simulation Hypothesis How do mirror neurons work? By simulation. When the subject observes another individual doing an action, the subject is simulating the same action. Since action and simulation use some of the same neural substrate, that would explain why the same neurons are firing during action-observation as during action-execution.

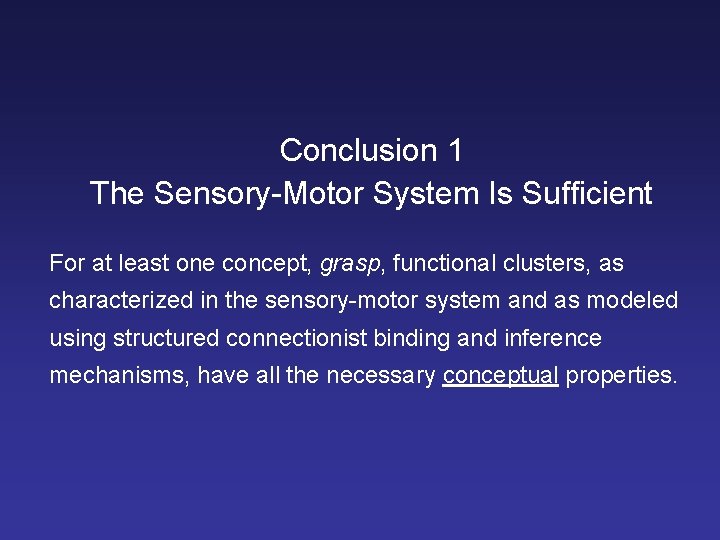

Conclusion 1 The Sensory-Motor System Is Sufficient For at least one concept, grasp, functional clusters, as characterized in the sensory-motor system and as modeled using structured connectionist binding and inference mechanisms, have all the necessary conceptual properties.

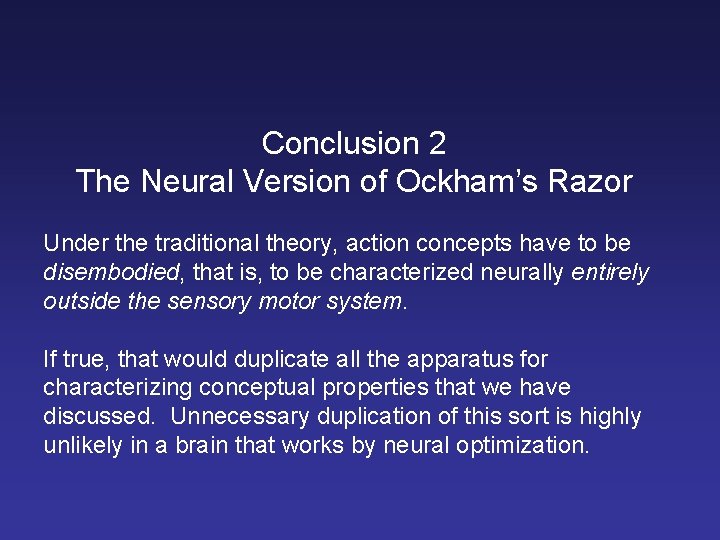

Conclusion 2 The Neural Version of Ockham’s Razor Under the traditional theory, action concepts have to be disembodied, that is, to be characterized neurally entirely outside the sensory motor system. If true, that would duplicate all the apparatus for characterizing conceptual properties that we have discussed. Unnecessary duplication of this sort is highly unlikely in a brain that works by neural optimization.

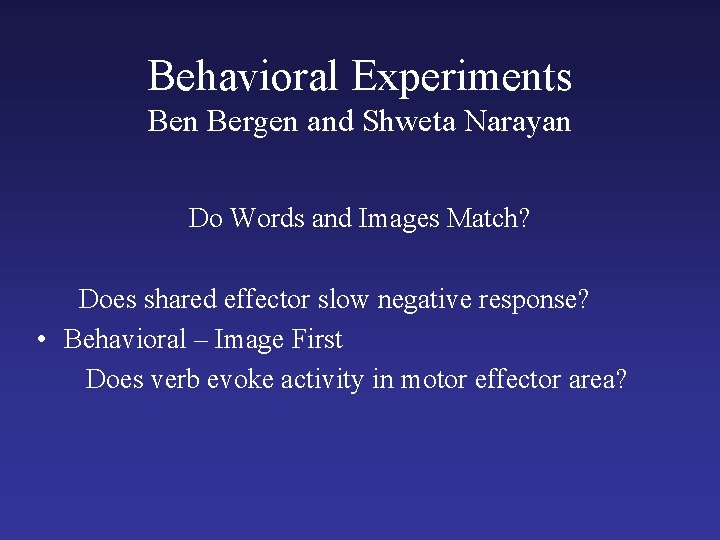

Behavioral Experiments Ben Bergen and Shweta Narayan Do Words and Images Match? Does shared effector slow negative response? • Behavioral – Image First Does verb evoke activity in motor effector area?

WALK

GRASP

WALK

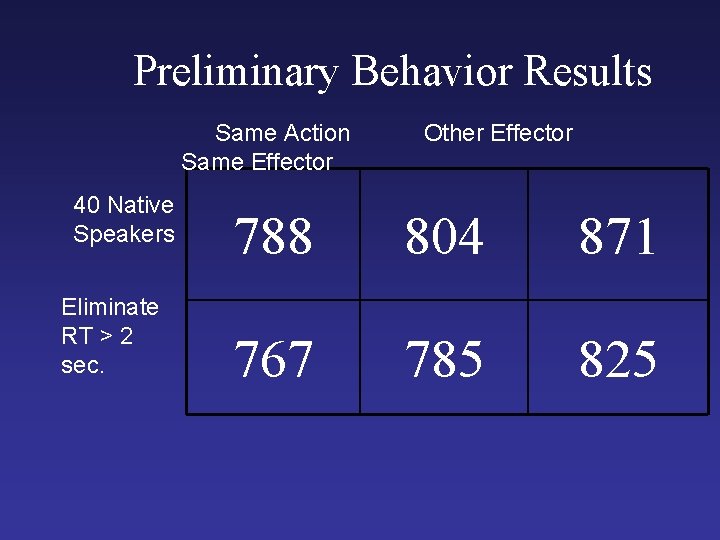

Preliminary Behavior Results Same Action Same Effector 40 Native Speakers Eliminate RT > 2 sec. Other Effector 788 804 871 767 785 825

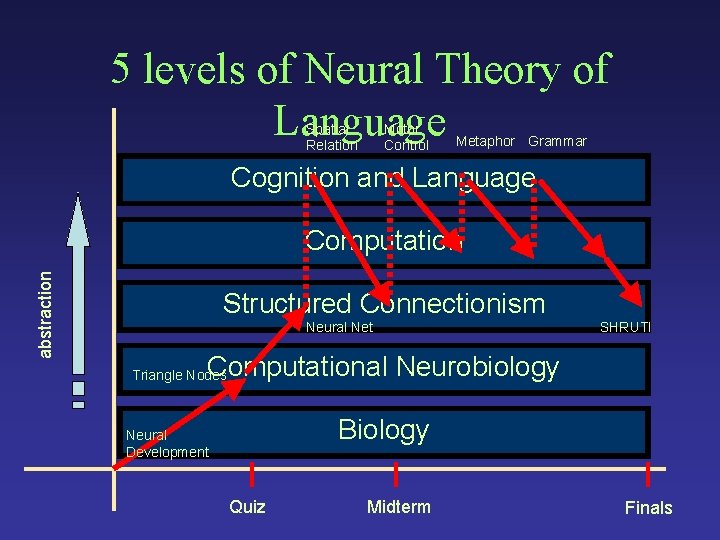

5 levels of Neural Theory of Language Spatial Relation Motor Control Metaphor Grammar Cognition and Language abstraction Computation Structured Connectionism Neural Net SHRUTI Computational Neurobiology Triangle Nodes Biology Neural Development Quiz Midterm Finals
