Abstract Data Types Data abstraction or abstract data
Abstract Data Types • Data abstraction, or abstract data types, is a programming methodology where one defines not only the data structure to be used, but the processes to manipulate the structure – like process abstraction, ADTs can be supported directly by programming languages • To support it, there needs to be mechanisms for – defining data structures – encapsulation of data structures and their routines to manipulate the structures into one unit • by placing all definitions in one unit, it can be compiled at one time – information hiding to protect the data structure from outside interference or manipulation • the data structure should only be accessible from code encapsulated with it so that the structure is hidden and protected from the outside • objects are one way to implement ADTs, but because objects have additional properties, we defer discussion of them until the next chapter
ADT Design Issues • Encapsulation: it must be possible to define a unit that contains a data structure and the subprograms that access (manipulate) it – design issues: • will ADT access be restricted through pointers? • can ADTs be parameterized (size and/or type of data being stored)? • Information hiding: controlling access to the data structure through some form of interface so that it cannot be directly manipulated by external code – often implemented via two sections of code • public part (interface) constitutes those elements that can be accessed externally (often limited to subprograms and constants) • private part, which remains secure because it is only accessible by subprograms of the ADT itself
Modula-2 ADTs • Unit for encapsulation called a module – modules can be combined to form libraries of ADTs • To define a module: – definition module: the interface containing a partial or complete type definition (data structure) and the subprogram headers and parameters – implementation module: the portion of the data structure that is to be hidden, along with all operation subprograms • If the complete type declaration is given in the definition module, the type is “transparent” otherwise it is “opaque” – opaque types represent true ADTs and must be accessed through pointers • this restriction allows the ADT to be entirely hidden from user programs since the user program need only define a pointer
ADTs in Ada • The encapsulation construct is the package • Packages consist of two parts: – specification package (the public or interface part) – body package (the hidden or private part) • The two packages can be compiled separately – but only if specification package is compiled first • The specification package must include details of the data structure itself – to preserve information hiding, the data structure’s definition can follow the word private denoting that the following is hidden • Ada offers three forms of ADTs – those without information hiding, and thus are not true ADTs – those that preserve information hiding by specifying that the data structure is private – those that specify that the data structure is limited private • all ADTs have built-in operations for assignment and equality except for limited private ADTs which have no built-in operations at all
Example Part I package Stack_Pack is The specification package type Stack_Type is limited private; for a stack ADT – see the next slide for the body package Max_Size : constant : = 100; function Empty(Stk : in Stack_Type) return Boolean; procedure Push(Stk : in out Stack_Type; Element : in Integer); procedure Pop(Stk : in out Stack_Type); function Top(Stk : in Stack_Type) return Integer; The actual ADT private definition must either type List_Type is array (1. . Max_Size) of Integer; appear in the open type Stack_Type is section (e. g. , the public record part) or in the private List : List_Type; section Topsub : Integer range 0. . Max_Size : = 0; end record; end Stack_Pack; An alternative implementation to this approach is to define a pointer in the private section of this package and define the actual Stack_Type ADT in the body package. This is discussed in more detail in the notes section of this slide.
Example Part II with Ada. Text_IO; use Ada. Text_IO; package body Stack_Pack is function Empty(Stk : in Stack_Type) return Boolean is begin return Stk. Topsub = 0; end Empty; procedure Push(Stk : in out Stack_Type; Element : in Integer) is begin if Stk. Topsub >= Max_Size then Put_Line(“ERROR – Stack overflow”); else Stk. Topsub : = Stk. Topsub +1; Stk. List(Topsub): =Element; end if; end Push; procedure Pop(Stk : in out Stack_Type) is begin … end Pop; function Top(Stk : in Stack_Type) return Integer is begin … end Top; The rest of the implementation is omitted end Stack_Pack;

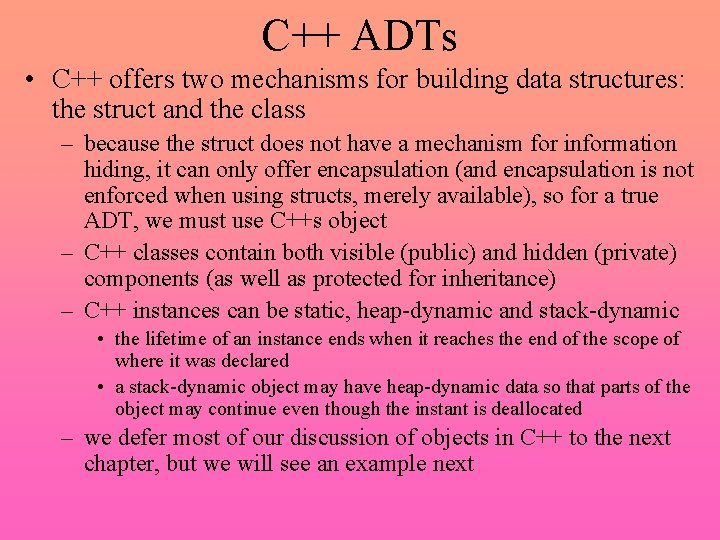

C++ ADTs • C++ offers two mechanisms for building data structures: the struct and the class – because the struct does not have a mechanism for information hiding, it can only offer encapsulation (and encapsulation is not enforced when using structs, merely available), so for a true ADT, we must use C++s object – C++ classes contain both visible (public) and hidden (private) components (as well as protected for inheritance) – C++ instances can be static, heap-dynamic and stack-dynamic • the lifetime of an instance ends when it reaches the end of the scope of where it was declared • a stack-dynamic object may have heap-dynamic data so that parts of the object may continue even though the instant is deallocated – we defer most of our discussion of objects in C++ to the next chapter, but we will see an example next
C++ Example Unlike the Ada example, in C++, the #include <iostream. h> entire definition is encapsulated in one class stack { location private: int *stack. Ptr; Information hiding is preserved through int max; the use of a private part with the interface int top. Ptr; being defined in the public part public: Any methods that are to be defined in this stack( ) { // constructor class but not accessible outside of the stack. Ptr = new int [100]; class would also be defined in the private max = 99; section top. Ptr = -1; } ~stack( ) {delete [ ] stack. Ptr; } // destructor void push(int number) {…} // details omitted void pop( ) {…} int top( ) {…} int empty( ) {…}
Java, C# and Ruby ADTs • All three languages support ADTs through classes – Java permits no stand-alone functions, only methods defined in class definitions and unlike C++, referenced through reference variables (pointers), therefore, in Java, every data structure is an ADT • it is up to the programmer as to whether information hiding is enforced or not – C# borrows from both C++ and Java but primarily from Java, where all objects are heap dynamic, modifiers are private, public, protected, but C# also offers • internal and protected internal modifiers which are used for assemblies (cross-platform objects), and methods that can serve as both accessors and mutators (see the example in section 11. 4) – Ruby requires that all class variables be private, and all methods default to being public (but the programmer can change this) • class variables do not have to be explicitly declared in Ruby, see the example in section 11. 4 • we look at Ruby in more detail in chapter 12
Parameterized ADTs • The ability to define an ADT where the type and/or size is specified generically so that a specific version can be generated later – a stack defined without specifying the element type (integer vs. string vs. float, etc) – a stack defined without a restriction on the size of the stack – Ada, C++, Java and C# all have this capability • The approach is to replace the type definition with a place holder that is filled in later In ADA: generic Max_Size : positive; type Element_Type is private; … rest of ADT as before except that Element_Type replaces Integer and Max_Size as a constant is removed now we instantiate our ADT: package Integer_Stack is new Generic_Stack(100, Integer);

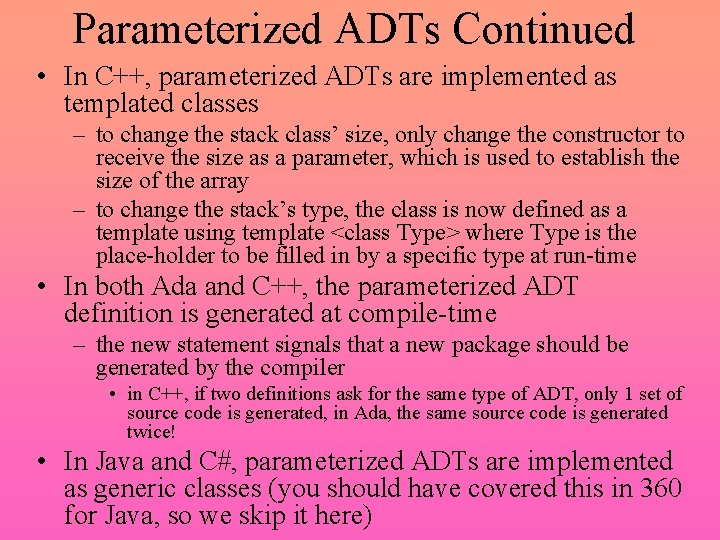

Parameterized ADTs Continued • In C++, parameterized ADTs are implemented as templated classes – to change the stack class’ size, only change the constructor to receive the size as a parameter, which is used to establish the size of the array – to change the stack’s type, the class is now defined as a template using template <class Type> where Type is the place-holder to be filled in by a specific type at run-time • In both Ada and C++, the parameterized ADT definition is generated at compile-time – the new statement signals that a new package should be generated by the compiler • in C++, if two definitions ask for the same type of ADT, only 1 set of source code is generated, in Ada, the same source code is generated twice! • In Java and C#, parameterized ADTs are implemented as generic classes (you should have covered this in 360 for Java, so we skip it here)
Encapsulation Constructs • For large programs, to avoid having to recompile all code when one section changes – code can be grouped into logically related chunks called encapsulations • using nested subprograms we can place logically related subprograms inside of the subprograms that commonly call them – approach not available in C-languages • use header files to place logically related functions’ prototypes in the same header, C++ also adds the “friend” (we look at this in chapter 12) • Ada packages (which can be compiled separately) can include any number of data and subprogram declarations so that they can contain interfaces for multiple ADTs • C# assemblies that can share code with other software written in the. NET environment • Each language has some technique for then using the named encapsulation, sometimes called a namespace
