ABSOLUTE PLATE MOTIONS

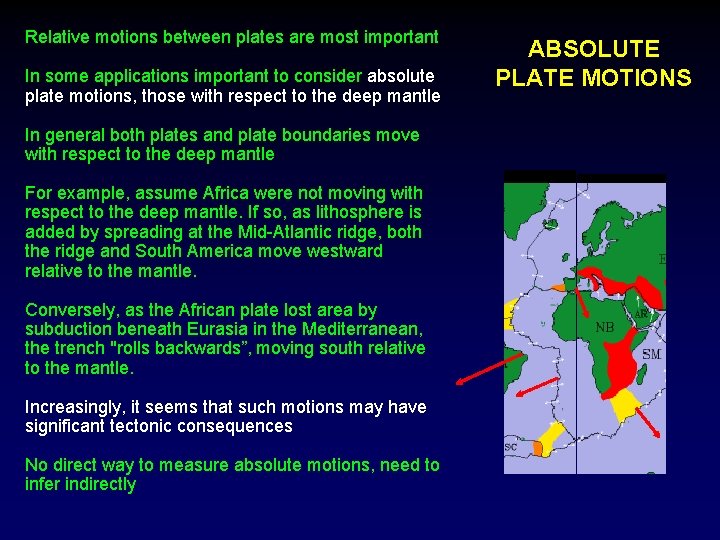

Relative motions between plates are most important In some applications important to consider absolute plate motions, those with respect to the deep mantle In general both plates and plate boundaries move with respect to the deep mantle For example, assume Africa were not moving with respect to the deep mantle. If so, as lithosphere is added by spreading at the Mid-Atlantic ridge, both the ridge and South America move westward relative to the mantle. Conversely, as the African plate lost area by subduction beneath Eurasia in the Mediterranean, the trench "rolls backwards”, moving south relative to the mantle. Increasingly, it seems that such motions may have significant tectonic consequences No direct way to measure absolute motions, need to infer indirectly ABSOLUTE PLATE MOTIONS

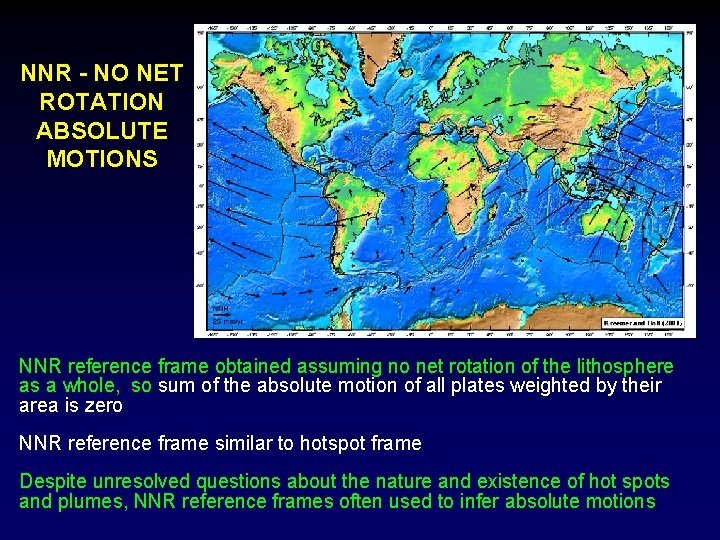

NNR - NO NET ROTATION ABSOLUTE MOTIONS NNR reference frame obtained assuming no net rotation of the lithosphere as a whole, so sum of the absolute motion of all plates weighted by their area is zero NNR reference frame similar to hotspot frame Despite unresolved questions about the nature and existence of hot spots and plumes, NNR reference frames often used to infer absolute motions

ABSOLUTE MOTION CALCULATION To compute absolute motions, recognize that motions in an absolute reference frame correspond to adding a rotation to all plates Use Euler vector formulation and treat absolute reference frame as mathematically equivalent to another plate For example, given NNR Euler vector relative to North America NNR-NA its negative NA-NNR is the absolute Euler vector ΩNA for North America in NUVEL-NNR reference frame Hence absolute and relative motions related by ij = ΩI - Ω j and linear velocity in absolute reference frame at point r on plate i is V i = Ωi x r

RIDGES TYPICALLY MIGRATE WITH RESPECT TO THE MANTLE May have effects on topography, spreading process, magma chemistry Stein et al, 1977

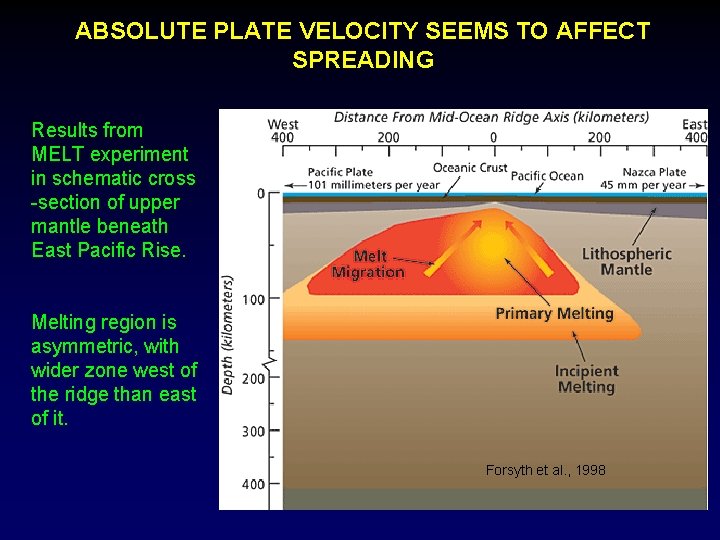

ABSOLUTE PLATE VELOCITY SEEMS TO AFFECT SPREADING Results from MELT experiment in schematic cross -section of upper mantle beneath East Pacific Rise. Melting region is asymmetric, with wider zone west of the ridge than east of it. Forsyth et al. , 1998

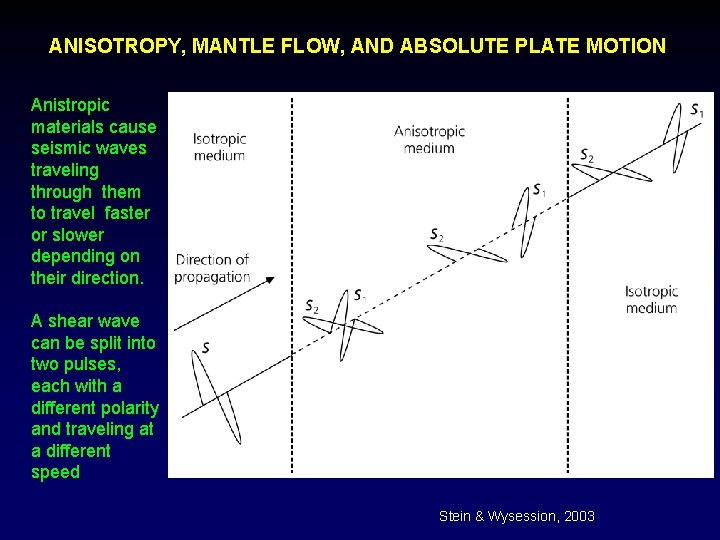

ANISOTROPY, MANTLE FLOW, AND ABSOLUTE PLATE MOTION Anistropic materials cause seismic waves traveling through them to travel faster or slower depending on their direction. A shear wave can be split into two pulses, each with a different polarity and traveling at a different speed Stein & Wysession, 2003

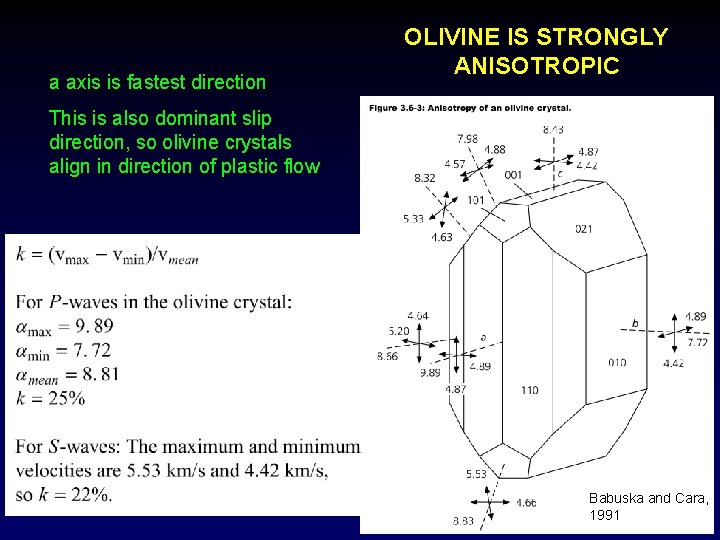

a axis is fastest direction OLIVINE IS STRONGLY ANISOTROPIC This is also dominant slip direction, so olivine crystals align in direction of plastic flow Babuska and Cara, 1991

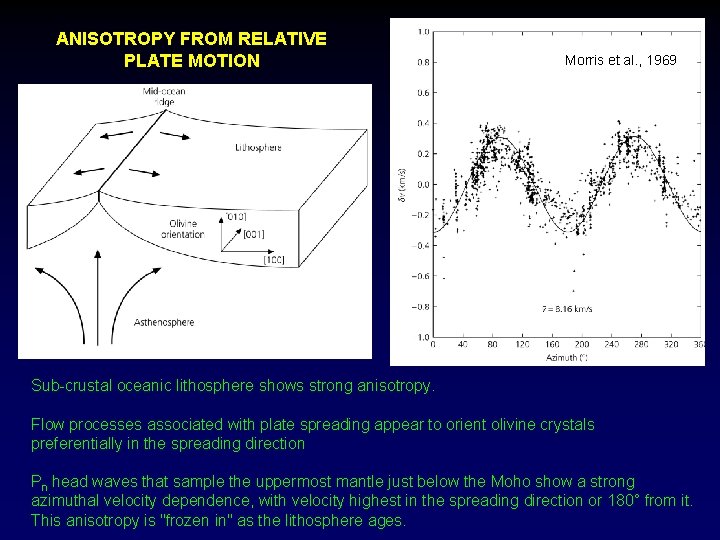

ANISOTROPY FROM RELATIVE PLATE MOTION Morris et al. , 1969 Sub-crustal oceanic lithosphere shows strong anisotropy. Flow processes associated with plate spreading appear to orient olivine crystals preferentially in the spreading direction Pn head waves that sample the uppermost mantle just below the Moho show a strong azimuthal velocity dependence, with velocity highest in the spreading direction or 180° from it. This anisotropy is "frozen in" as the lithosphere ages.

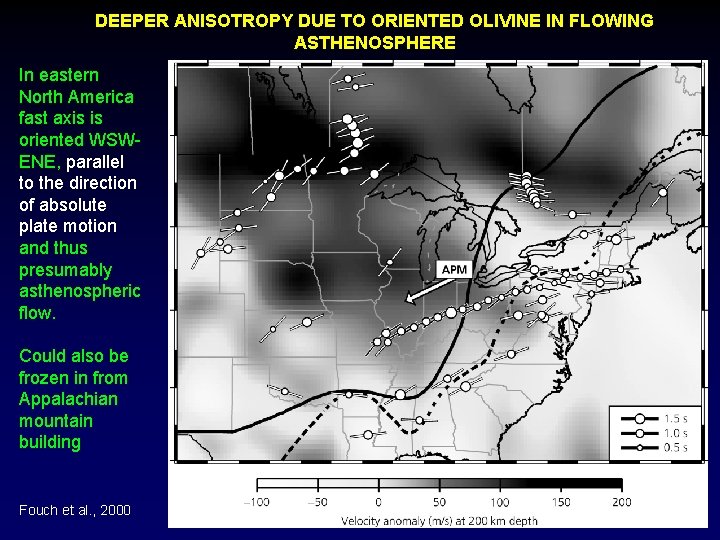

DEEPER ANISOTROPY DUE TO ORIENTED OLIVINE IN FLOWING ASTHENOSPHERE In eastern North America fast axis is oriented WSWENE, parallel to the direction of absolute plate motion and thus presumably asthenospheric flow. Could also be frozen in from Appalachian mountain building Fouch et al. , 2000

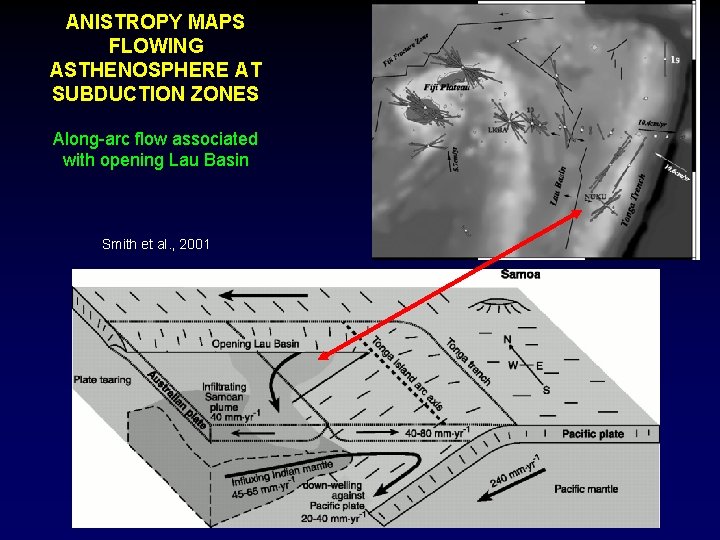

ANISTROPY MAPS FLOWING ASTHENOSPHERE AT SUBDUCTION ZONES Along-arc flow associated with opening Lau Basin Smith et al. , 2001

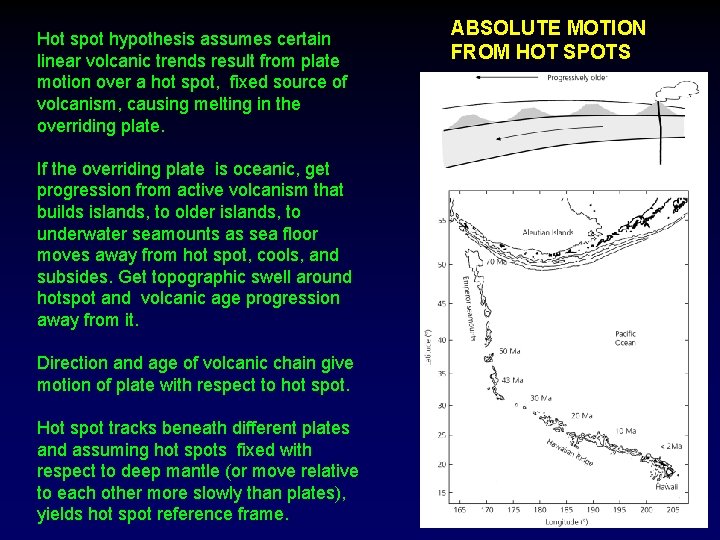

Hot spot hypothesis assumes certain linear volcanic trends result from plate motion over a hot spot, fixed source of volcanism, causing melting in the overriding plate. If the overriding plate is oceanic, get progression from active volcanism that builds islands, to older islands, to underwater seamounts as sea floor moves away from hot spot, cools, and subsides. Get topographic swell around hotspot and volcanic age progression away from it. Direction and age of volcanic chain give motion of plate with respect to hot spot. Hot spot tracks beneath different plates and assuming hot spots fixed with respect to deep mantle (or move relative to each other more slowly than plates), yields hot spot reference frame. ABSOLUTE MOTION FROM HOT SPOTS

Often assumed hot spots result from plumes of hot material rising from great depth, perhaps coremantle boundary Plumes would be secondary convection mode, ~ 5% of heat transfer, bringing up deep mantle material. Would be important in Earth’s thermal & chemical evolution. Would have tectonic significance - heads of new plume might cause continental breakup and flood basalts HOTSPOT / PLUME HYPOTHESIS

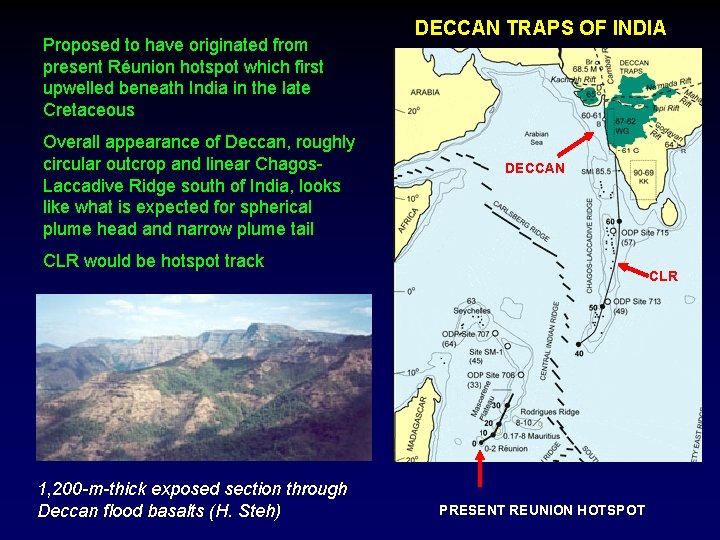

Proposed to have originated from present Réunion hotspot which first upwelled beneath India in the late Cretaceous Overall appearance of Deccan, roughly circular outcrop and linear Chagos. Laccadive Ridge south of India, looks like what is expected for spherical plume head and narrow plume tail DECCAN TRAPS OF INDIA DECCAN CLR would be hotspot track 1, 200 -m-thick exposed section through Deccan flood basalts (H. Steh) CLR PRESENT REUNION HOTSPOT

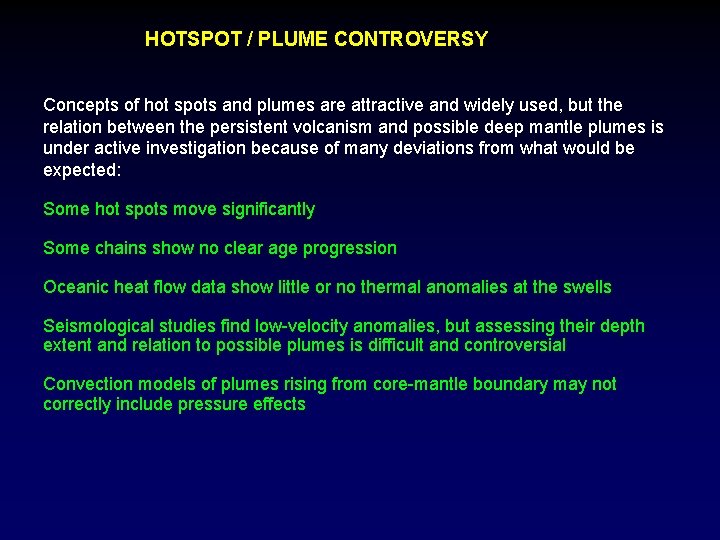

HOTSPOT / PLUME CONTROVERSY Concepts of hot spots and plumes are attractive and widely used, but the relation between the persistent volcanism and possible deep mantle plumes is under active investigation because of many deviations from what would be expected: Some hot spots move significantly Some chains show no clear age progression Oceanic heat flow data show little or no thermal anomalies at the swells Seismological studies find low-velocity anomalies, but assessing their depth extent and relation to possible plumes is difficult and controversial Convection models of plumes rising from core-mantle boundary may not correctly include pressure effects

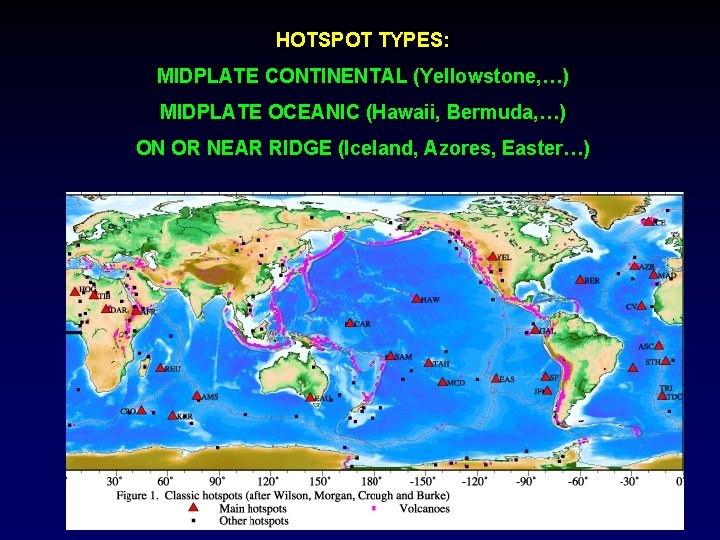

HOTSPOT TYPES: MIDPLATE CONTINENTAL (Yellowstone, …) MIDPLATE OCEANIC (Hawaii, Bermuda, …) ON OR NEAR RIDGE (Iceland, Azores, Easter…)

YELLOWSTONE NATIONAL PARK, WYOMING USA Type example of continental hot spot?

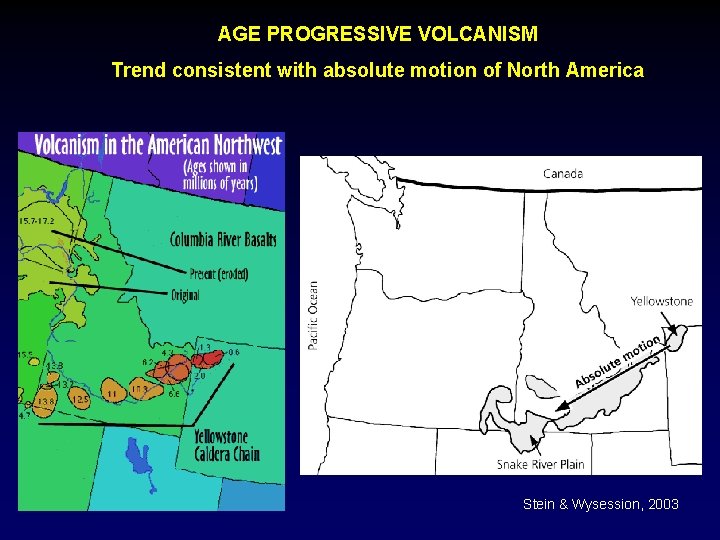

AGE PROGRESSIVE VOLCANISM Trend consistent with absolute motion of North America Stein & Wysession, 2003

SEISMIC VELOCITIES DO NOT SHOW EXPECTED DEEP MANTLE PLUME YELLOWSTONE Christiansen, et al. , 2002 Low velocity anomaly presumably associated with hot upwelling restricted to upper mantle, shallower than expected from plume model Upwarped 410 km discontinuity, indicative of relatively cool mantle at this depth Humphreys et al. , 2000

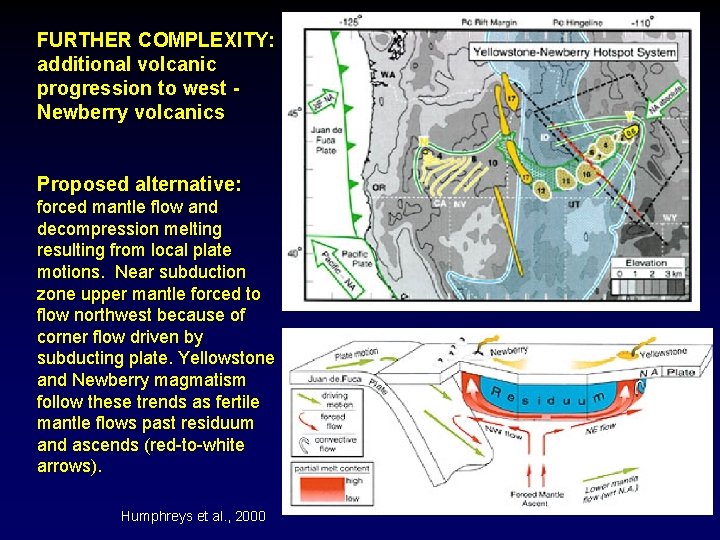

FURTHER COMPLEXITY: additional volcanic progression to west Newberry volcanics Proposed alternative: forced mantle flow and decompression melting resulting from local plate motions. Near subduction zone upper mantle forced to flow northwest because of corner flow driven by subducting plate. Yellowstone and Newberry magmatism follow these trends as fertile mantle flows past residuum and ascends (red-to-white arrows). Humphreys et al. , 2000

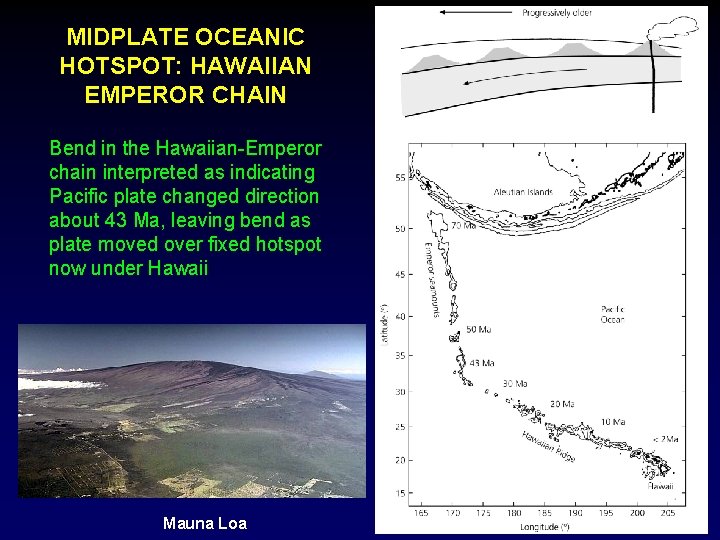

MIDPLATE OCEANIC HOTSPOT: HAWAIIAN EMPEROR CHAIN Bend in the Hawaiian-Emperor chain interpreted as indicating Pacific plate changed direction about 43 Ma, leaving bend as plate moved over fixed hotspot now under Hawaii Mauna Loa

HAWAIIAN-EMPEROR BEND - WHAT WE BELIEVED

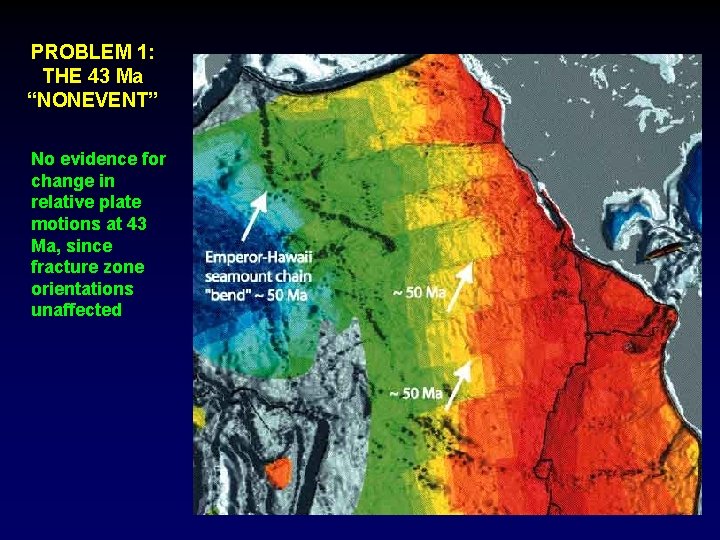

PROBLEM 1: THE 43 Ma “NONEVENT” No evidence for change in relative plate motions at 43 Ma, since fracture zone orientations unaffected

PROBLEM 2: HAWAIIAN HOTSPOT HAS NOT BEEN FIXED Fixed hotspot would cause all seamounts to have same paleolatitude Hawaiian hotspot actually drifted southward between 47 and 81 Ma Tarduno and Cottrell (1997)

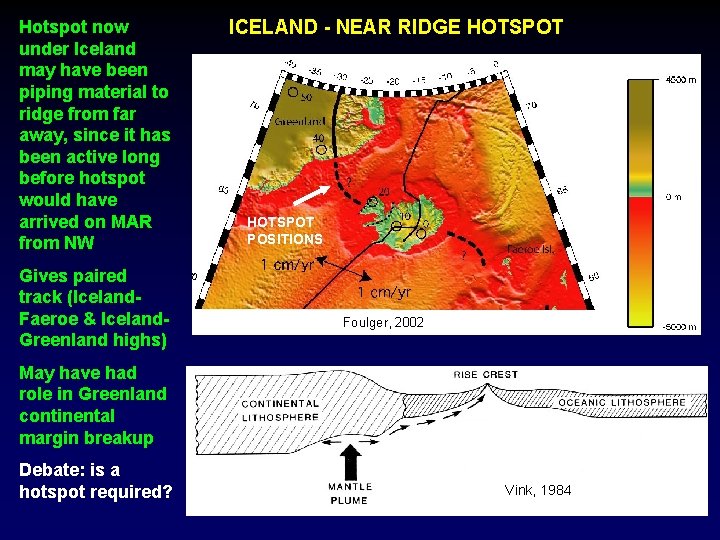

Hotspot now under Iceland may have been piping material to ridge from far away, since it has been active long before hotspot would have arrived on MAR from NW Gives paired track (Iceland. Faeroe & Iceland. Greenland highs) ICELAND - NEAR RIDGE HOTSPOT POSITIONS Foulger, 2002 May have had role in Greenland continental margin breakup Debate: is a hotspot required? Vink, 1984

ICELAND ISSUES Does excess volcanism causing thick crust and hence subariel nature reflect high temperature plume? Korenaga, 2003 Or is this a compositional effect due to the melting of unusual mantle?

ICELAND ISSUES Unusual mantle may be consequence of closing of Iapetus Ocean, leaving residuum from slab Korenaga, 2003 If process forming Iceland directly reflected continental breakup, its persistence under the ridge doesn’t require a hotspot or lateral mantle flow

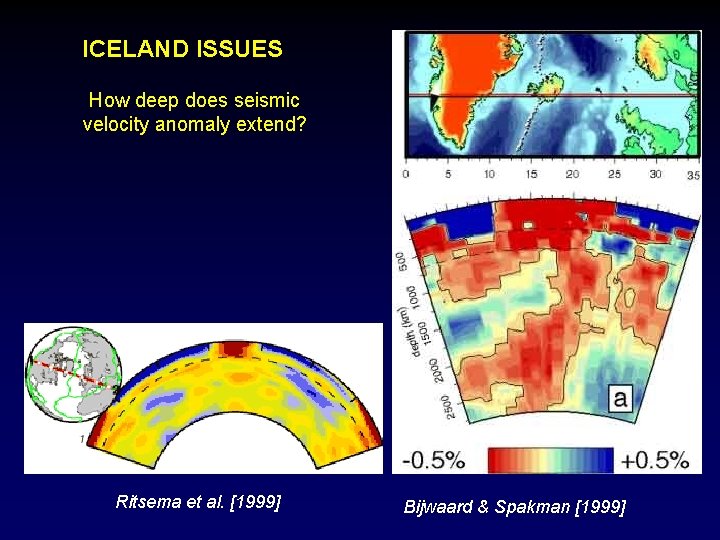

ICELAND ISSUES How deep does seismic velocity anomaly extend? Ritsema et al. [1999] Bijwaard & Spakman [1999]

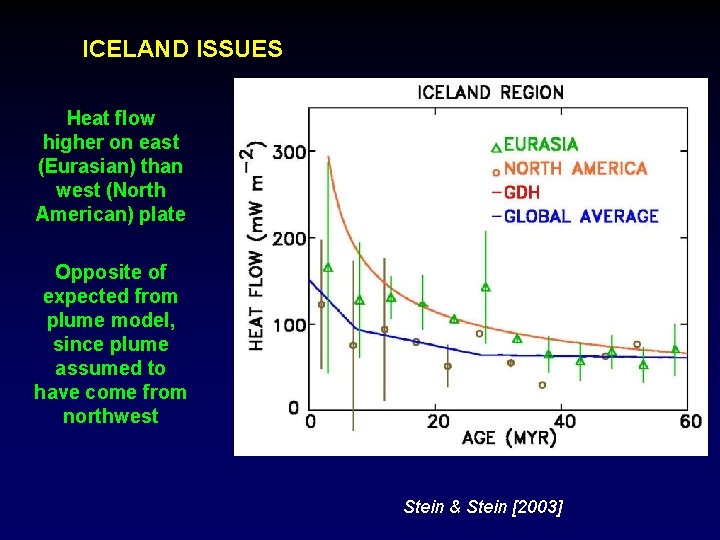

ICELAND ISSUES Heat flow higher on east (Eurasian) than west (North American) plate Opposite of expected from plume model, since plume assumed to have come from northwest Stein & Stein [2003]

SUMMARY Absolute motions can be defined relative to either No Net Rotation or Hotspot reference frames GPS data given in ITRF, designed to be like NUVEL-NNR Absolute motions may have roles in tectonics but details unclear Hotspot/plume model has major problems and may need to be discarded, but it’s not clear what the alternatives are
