Session Objectives Session Level 200 After attending this session, you will be able to: • Differentiate the Azure Backup solutions depending on the workloads to protect. • Describe the Azure Backup efficiency and security. • Identify the scenarios for Azure Backup service. • Describe the Pricing model and use the calculator.
Session Agenda Azure Backup • Azure Backup Solutions • Supported Platforms • Azure Backup Scenarios • Sample Architectures • Pricing

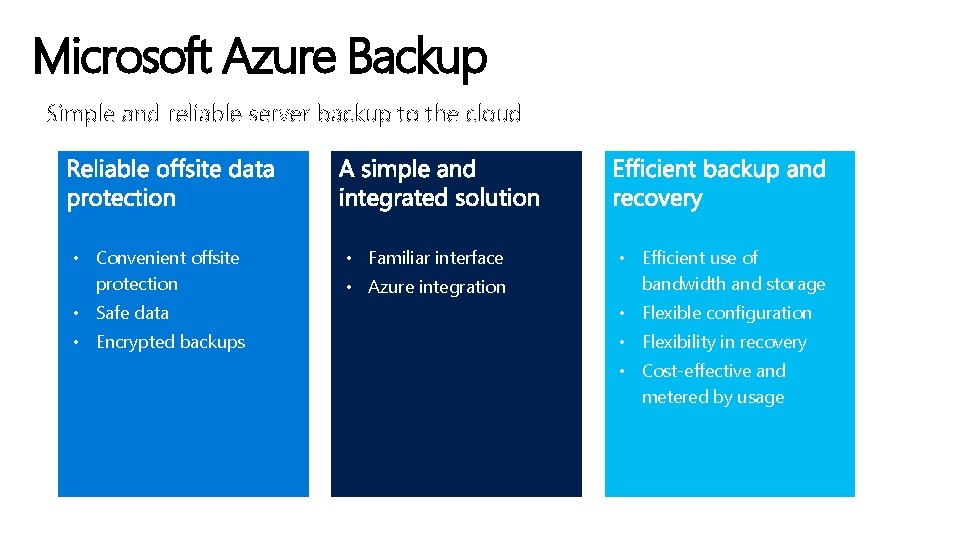

Microsoft Azure Backup Simple and reliable server backup to the cloud • Convenient offsite protection • Familiar interface • Azure integration • Efficient use of bandwidth and storage • Safe data • Flexible configuration • Encrypted backups • Flexibility in recovery • Cost-effective and metered by usage
Workload supported by Azure Backup § § Virtual machine Azure File Share SQL Server in Azure VM SAP HANA in Azure VM § § Files and folders Microsoft SQL server Microsoft Share. Point System State § § § § Files and folders Hyper-V Virtual Machines VMware Virtual Machines Microsoft SQL Server Microsoft Share. Point Microsoft Exchange System State Bare Metal Recovery
How Microsoft Azure Backup works Azure 1. Sign up 2. Install agent r te s i eg and re u g nfi co 3. R 4. Back up encrypted data Window Server 2016/2012 (R 2) 5. Recover to the same or a different server `
Microsoft Azure Backup Server – DPM Azure 1. Sign up 2. Install Backup Server r te s i eg and re u g nfi co 3. R 4. Back up encrypted data Azure Backup Server / DPM 5. Recover to the same or a different server
Backup Azure Iaa. S VM 1 2 4 3
Backup Azure Iaa. S VM (cont. ) How it works ? Azure Backup Vault Azure Iaa. S VM Backup Extension R 3 1 2 3 4 R 2 1 2 3 4 R 1 1 2 3 4 Recovery Points Snapshots Disks … 1 3 3 1 2 Data Blocks 3 4
Backup SQL Server in Azure Iaa. S VM
Azure Backup Network Efficiency 1. Identify changed blocks 2. Compress Efficient change tracking Transfer only changed content Compression for low bandwidth consumption Customer Premises
Azure Backup Security 1 Azure Backup Customer Premises 1. Identify changed blocks 2. Compress 3. Encrypt 256 -bit encryption In transit and at rest Admin owns and manages keys 4. Encrypted data in backup vault
Azure Backup Security 2 Only you have your key Data cannot be recovered without your key Microsoft does not have your key. Azure … and remains encrypted while stored. …encrypted on the network… Data is encrypted on-premises…

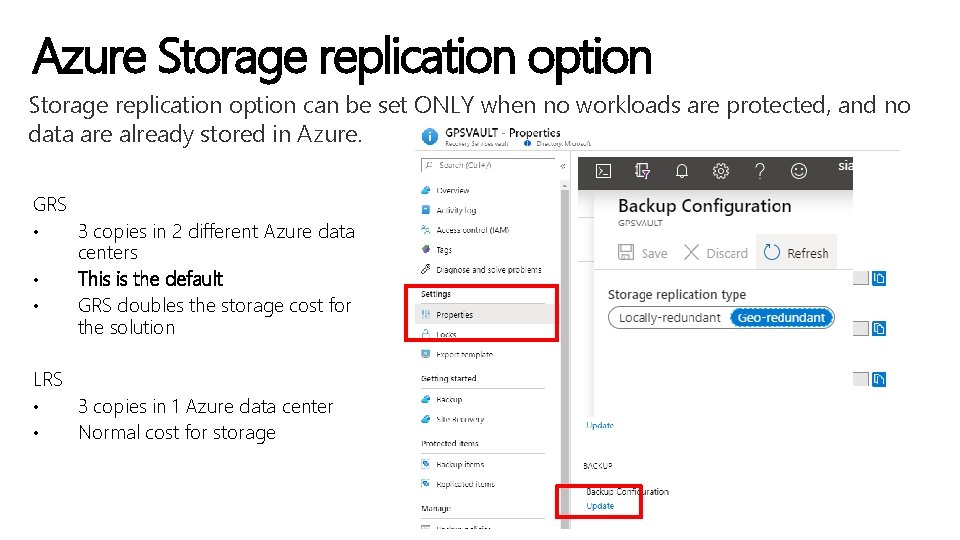

Azure Storage replication option can be set ONLY when no workloads are protected, and no data are already stored in Azure. GRS • • • LRS • • 3 copies in 2 different Azure data centers This is the default GRS doubles the storage cost for the solution 3 copies in 1 Azure data center Normal cost for storage
Azure backup: Supported Platforms Windows 10 64 bit Windows 8. 1 64 bit Windows 8 64 bit Windows 7 64 bit Windows Server 2019 64 bit Windows Server 2016 64 bit Windows Server 2012 R 2 64 bit Windows Server 2012 64 bit Windows Storage Server 2016 64 bit Windows Storage Server 2012 R 2 64 bit Windows Storage Server 2012 64 bit Windows Server 2008 R 2 SP 1 64 bit Windows Server 2008 64 bit Azure Backup doesn't support 32 -bit operating systems. Linux running as Hyper-V guest (Hyper-V running on Windows Server 2016/2019/2012 R 2/2012) can be protected with DPM/Azure Backup Server. Azure Backup Agent can’t protect Linux VMs/Physical machines. For Azure VM Linux backups, Azure Backup supports the list of distributions endorsed by Azure , except Core OS Linux and 32 -bit operating system Check the full support matrix for all the products: • General • MABS/DPM • MARS • Azure VM backup
Getting Started with Azure Backup On-Premises Get an Azure Subscription Create a Recovery Services Vault Download necessary files Install and register the Recovery Services agent Backup your data
Create Azure Backup 1. Go to Azure Management Portal, https: //portal. azure. com 2. Browse the “+New” icon , Select Management Tools > Backup and Site Recovery (OMS)
Download the Backup Agent & Vault Credentials 1. Configure Backup goal with answering below questions: Where is your workload running ? (Azure / Onpremises) What do you want to backup ? 2. Download Backup Agent and Vault Credentials for on -premises workloads.
Network Connectivity for Azure Backup Extension connectivity to Azure Public IP’s Network Security Groups – can use service tag for "Azure. Backup" HTTP Proxy

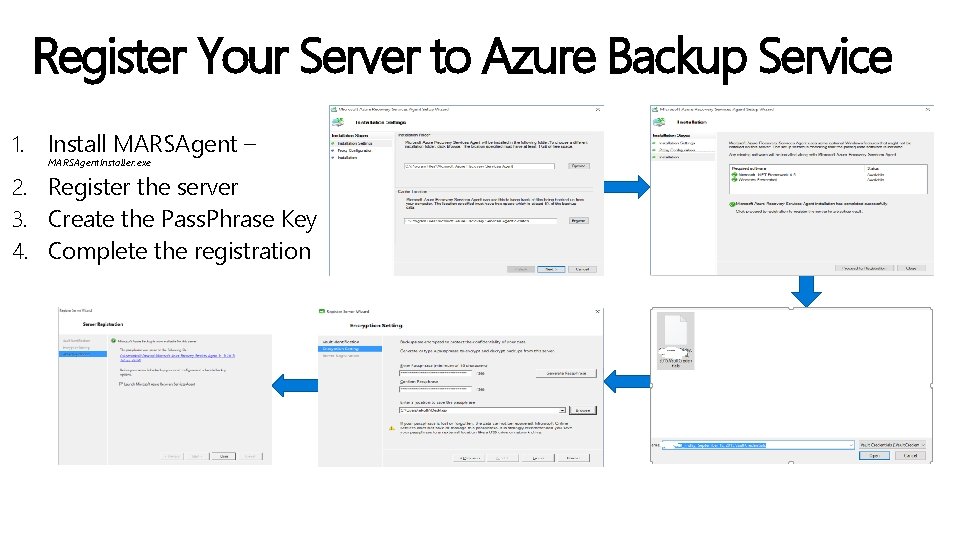

Register Your Server to Azure Backup Service 1. Install MARSAgent – MARSAgent. Installer. exe 2. Register the server 3. Create the Pass. Phrase Key 4. Complete the registration
Protect Your Server 1. 2. 3. 4. 5. 6. Start Azure Backup Select the items to back up Configure Exclusions Specify the Date and Time Specify Retention Choose Backup Type
Scenario #1, Enterprise and Branch Office Backup Microsoft Azure Solutions: • Cloud as tape replacement • Minimize local storage • Workload backup to Azure • Centralized management • Restore data to alternate server Azure Backup Data Protection Manager or Azure Backup Server Production Data
Scenario #2, On-premises to Azure Deployment Models Workload backup to Azure via System Center Data Protection Manager or Azure Backup Server (D-D-C) System Center Data Protection Manager or Azure Backup Server Microsoft Azure Backup Service File/Folder backup to Azure (D-C) Azure Backup Agent On-premises – built and managed infrastructure Cloud – flexible, and remote infrastructure
Scenario #3, Deployment Models within Cloud VM Extension Microsoft Azure Backup Azure Service Azure Backup Agent System Center Data Protection Manager or Azure Backup Server
Scenario #4, Backup of Azure Iaa. S VMs Microsoft Azure Virtual machines Cloud Data Backup • Application consistent backup for MS workloads File System Consistent for Linux workloads • Fabric level protection
Scenario #5, Backup of SQL Server in Azure Iaa. S VMs Microsoft Azure Virtual machines Cloud Data Backup SQL Server Database in Azure VM • Backup SQL Server databases on Windows Server • Enterprise scale, zero-infrastructure solution • One-click, point-in-time restores
Deployment Models Characteristics Disk to disk to cloud backup - Faster operational recovery from disk backups (D to C) Requires additional server and local disks Workload backup (File/Folder, SQL Server, Exchange Server, Share. Point, Client, Hyper-V VM, VMware VM) Only System Center Data Protection Manager server needs internet connectivity Flexible backup schedule Central Backup Policy Enforcement (backup policy or encryption keys) Licensing tied to System Center Requires Azure subscription only to backup to Azure System Center Data Protection Manager and Azure Backup • • Microsoft Azure Backup Server Works just like System Center Data Protection Manager and Azure Backup except: • Requires Azure subscription always • Pay as you go license - tied to Azure subscription (SQL Server License bundled with Azure backup server) • Cost effective for SMB • No tape backup support Note: Can perform disk to disk backup (or) disk to cloud backup - sending backup data to Azure is optional Microsoft Azure Backup Agent (MARS agent) • • No on-premises storage (D to C) No additional infrastructure needed File/folder protection only (no other workloads) Windows Servers require internet connectivity Self Service Backup and Recovery Maximum backups can be thrice a day and single backup policy per server No central enforcement of encryption keys or policy
Azure Backup Architectures: MARS Agent • Azure Backup Agent provides Internet bandwidth usage throttling • Azure Backup network throttling feature engages Qo. S on the local operating system.
Azure Backup Architectures: Azure Backup Server or DPM (On- Premise)
Azure Backup Architectures: Azure Iaa. S VMs Azure VM Backup prerequisites: • Recovery Services Vault must exist in the same region as the VM • Network connectivity between Azure public IP address and Azure Storage endpoint • VM Agent on the Azure VM
Azure Backup Architectures: SQL Server databases in Azure Iaa. S VMs SQL Server database Backup prerequisites: • Recovery Services Vault must exist in the same region as the SQL VM • Network connectivity between Azure public IP address and Azure Storage endpoint • SQL Server on Windows Server is supported Microsoft Azure Subscription Resource group SQL Azure Recovery Services Vault Azure backup SQL Server running in VM SQL Azure LRS or GRS Storage Virtual Network
Backup for Azure File shares Key features • Discover unprotected file shares • Backup multiple files at a time • Schedule and forget • Instant restore • Browse individual files/folders Core benefits • Zero infrastructure solution • Comprehensive backup solution • Directly recover files from the Azure portal
Start protecting an Azure File shares Configure backup for Azure file shares directly from the file share blade
Stop protecting an Azure File shares If you choose to stop protecting an Azure File share, you are asked if you want to retain the recovery points. There are two ways to stop protecting Azure File shares: • Stop all future backup jobs and delete or all recovery points • Stop all future backup jobs but leave the recovery points About Backup and Restore Azure File shares 1 2
Azure Backup for SQL Server running in VM • • • SQL Marketplace Azure VMs and non. Marketplace (SQL Server manually installed) VMs are supported. Up to 50 databases in one go Databases up to 2 TB in size Support for full, differential, and logs Backups Support for daily, weekly, monthly and yearly backups SQL on Linux currently not supported About SQL Server Backup in Azure VMs
SQL Server: back up to Azure without Azure Backup Managed backup • • Granular control of the backup schedule Local staging support for faster recovery and resiliency to transient network issues • Support for system databases • Support for simple recovery mode Back up to Azure block blobs • Cost savings on storage • Significantly improved restore performance • More granular control over Azure Storage snapshot backup • Fastest method for creating backups and running restores • SQL Server database files on Azure Blob storage Best practices and troubleshooting: https: //docs. microsoft. com/en-us/sql/relational-databases/backup-restore/sql-server-backup-to-url-bestpractices-and-troubleshooting? view=sql-server-2017
SAP HANA 15 -minute Recovery Point Objective (RPO) One-click, point-in-time restores Long-term retention Backup Management from Azure https: //azure. microsoft. com/en-us/blog/sap-hana-backup-using-azure-is-now-generally-available/
Azure Data Box Microsoft appliance for offline transfer of large datasets to the cloud Secure - Support 256 bit AES encryption on your data Tough - Built using the toughest materials to avoid bruises during transport Easy to use - Plugs into your network, stores approx. 100 TB with NAS protocols (SMB/CIFS) Simple - Order it, fill it up and return it - all tracked in the Azure Portal Partner Supported - Integrated with a global array of industry-leading Azure partners
Azure File Sync Supported versions of Windows Server Version Supported SKUs Supported deployment options Windows Server 2016 Datacenter and Standard Full (server with a UI) Windows Server 2012 R 2 Datacenter and Standard Full (server with a UI) Azure Fil e Sync ag ent File Share Windows Server 2012 R 2 Azure File Sync Windows Server 2016 agent • Centralize File Services in Azure Storage • Cache frequently accessed files for fast, local access • Utilize cloud-based backup and fast disaster recovery
Azure Monitor • A dedicated solution can be deployed in Log Analytics • Support for multiple recovery vaults in the same workspace • Data are pumped to the Log Analytics workspace and custom queries can be created • Logs can be downloaded as reports or CSV • Power Bi integration is available
Azure Portal • Alerts and messages can be seen in the Monitoring section of the Recovery Vault • Alerts can be trigged for backup failures, backup with warnings or for stop protection with delete data • Alerts can be sent via e-mail
Pricing Model for Azure Backup Key Principles • Aligning to how the Industry charges for backup Based on amount of Data & Instances being backed up • Providing customers with the flexibility to use the most economical storage in Azure Choice of Globally or Locally redundant storage https: //azure. microsoft. com/enus/pricing/details/backup/ Cost per Protected Instance Small Instance up to 50 GB $5/mo* Medium Instance 51 to 500 GB $10/mo* *Increments of $10/mo/500 GB Large Instances Cost of LRS Block Blob Storage Cost of LRS or GRS Storage No Or, Cost of GRS Block Blob Storage $0. 024 per GB/mo* $0. 048 per GB/mo* Charges for Restores Outbound Bandwidth Storage Transactions * Prices in USD, US West DC Region
Summary Azure Backup Agent System Center DPM Azure Backup Server Windows Server – files and folders, System State ✔ ✔ ✔ Windows client – files and folders ✔ ✔ ✔ On-premises Virtual machine (Windows) ✔ ✔ On-premises Virtual machine (Linux) ✔ ✔ Microsoft SQL Server ✔ ✔ Microsoft Share. Point Server ✔ ✔ Microsoft Exchange Server ✔ ✔ Azure Iaa. S VM Backup Azure Virtual machine (Windows) ✔ Azure Virtual machine (Linux) ✔
Azure Backup references Overview of the Features in Azure Backup Back up a virtual machine in Azure with Power. Shell Back up Azure file shares Offline-backup workflow in Azure Backup Configure Azure Backup reports Azure Resource Manager templates for Azure Backup Delete an Azure Backup Recovery Services vault Azure Backup - Frequently asked questions Azure Roadmap
Restoring unmanaged VMs and disks as managed • Restore unmanaged disks as managed disks • This feature isn't available for unmanaged encrypted VMs. https: //docs. microsoft. com/en-us/azure/backup-azure-arm-restore-vms#restoring-unmanaged-vms-and-disksas-managed
Selective disks backup for Azure Virtual Machines • • Users who have critical data to be backed up in only one or subset of disk(s) and don’t want backup for rest of the disks attached to a VM to minimize the backup storage costs. Users using other backup solutions for their databases and they want to backup only their OS disk to optimize backup cost.
