Prokaryotic Cell Structure & Function For additional resources on this lecture topic, see the Prokaryotic Cell Main Page on SPO. Image: Prokaryotic Cell Diagram: M. Ruiz

Two Basic Types of Cells ___________ From the Virtual Cell Biology Classroom on Science. Prof. Online. com ___________ Images: Prokaryotic Cell Diagram & Eukaryotic Cell Diagram, M. Ruiz

Size of Living Things 1 m = 100 cm = 1, 000 mm = 1, 000 µm = 1, 000, 000 nm 1 mm = 1000 µm = 1000000 nm 1 µm = 1000 nm From the Virtual Cell Biology Classroom on Science. Prof. Online. com Click link for an interactive “Size of Microscopic Things” animation on Cells Alive.

The Cellular Level of Organization • Living things are constructed of cells. • Living things may be unicellular or multicellular. • Cell structure is diverse but all cells share common characteristics. • Cells are small so they can exchange materials with their surroundings. - Surface area relative to the volume decreases as ______ of cell increases. - This limits the size of cells. • __________ states: 1. All organisms are composed of one or more cells. 2. Cells are the basic unit of structure and function in organisms. 3. All cells come only from other cells. From the Virtual Cell Biology Classroom on Science. Prof. Online. com

Prokaryotes _______ Tell me about Prokaryotes… From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Prokaryotic Cell Diagram, M. Ruiz, Binary Fission, JW Schmidt

Three Domains of Life From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Phylogenetic Tree, Eric Gaba, NASA Astrobiology institute.

Prokaryote Genetics ______ • Region of cytoplasm where prokaryotes genome is located. • Usually a singular, circular chromosome. ______ • Small extra piece of chromosome/genetic material. • 5 - 100 genes • Not critical to everyday functions. • Can provide genetic information for: - Antibiotic resistance - Virulence factors: Molecules produced by pathogen that help it cause disease & thrive. - Promoting conjugation: Transfer of genetic material between bacteria through cell-to-cell contact. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Prokaryotic Cell Diagram: M. Ruiz, Bacterial conjugation, Adenosine

Prokaryotes _______ • Also known as proto-plasm. • Gel-like matrix of water, enzymes, nutrients, wastes, and gases and contains cell structures. • Location of growth, metabolism, and replication. _______ • Bacteria’s way of storing nutrients. • Staining of some granules aids in identification. Image: Prokaryotic Cell Diagram: M. Ruiz, Granules, Source Unknown From the Virtual Cell Biology Classroom on Science. Prof. Online. com

Prokaryotes __________ • Found within cytoplasm or attached to plasma membrane. • Composed of two subunits. • Cell may contain thousands. • Q: What do they do? From the Virtual Cell Biology Classroom on Science. Prof. Online. com Click here for animation of ribosome building a protein. Animation: Ribosome translating protein, Xvazquez; Ribosome Structure, Vossman

Prokaryotes ________ • Cellular "scaffolding" or "skeleton" within cytoplasm. • Major recent advance in prokaryotic cell biology has been discovery of the prokaryotic cytoskeleton. • Up until recently, thought to be a feature only of eukaryotic cells. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Prokaryotic Cell: M. Ruiz

Prokaryotes - Plasma Membrane • Separates the cell from its environment. • Phospholipid molecules oriented so that _____ waterloving heads directed outward and _____ waterhating tails directed inward. • Proteins embedded in two layers of phospholipids (lipid bilayer). • Membrane is semi-permeable. Q: What does that mean? From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Cell Membrane diagram, Dhatfield

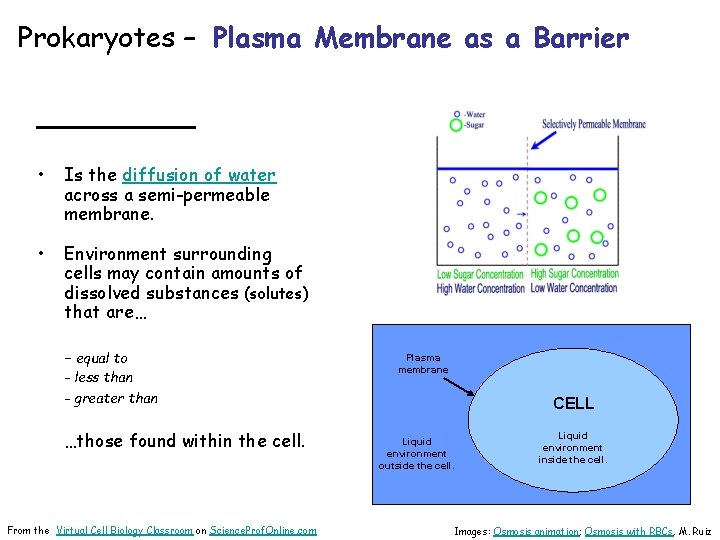

Prokaryotes – Plasma Membrane as a Barrier _____ • Is the diffusion of water across a semi-permeable membrane. • Environment surrounding cells may contain amounts of dissolved substances (solutes) that are… - equal to - less than - greater than …those found within the cell. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Plasma membrane CELL Liquid environment outside the cell. Liquid environment inside the cell. Images: Osmosis animation; Osmosis with RBCs, M. Ruiz

Prokaryotes – Plasma Membrane as a Barrier Tonicity and Osmosis _____: equal concentration of a solute inside and outside of cell. _____: a higher concentration of solute. _____: a lower concentration of solute. Water will always move toward a hypertonic environment!! From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Osmosis animation; Osmosis with RBCs, M. Ruiz

_____ Transport • How most molecules move across the plasma membrane. • Analogous to a pump moving water uphill. • Types of active transport are classified by type of energy used to drive molecules across membranes. ATP Driven Active Transport Energy from adenosine triphosphate (ATP) drives substances across the plasma membrane with the aid of carrier molecules. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Sodium-potassium pump, M. Ruiz

Prokaryotes – Cell Wall Peptidoglycan is a huge polymer of interlocking chains of identical peptidoglycan monomers. Provides rigid support while freely permeable to solutes. Backbone of peptidoglycan molecule composed of two derivatives of glucose: • N-acetylglucosamine (NAG) • N-acetlymuramic acid (NAM) NAG / NAM strands are connected by interpeptide bridges. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Bonding structure peptidoglycan, Mouagip; Other image Source unknown

Prokaryotes - Cell Wall From the peptidoglycan inwards all bacteria are very similar. Going further out, the bacterial world divides into two major classes These are: Gram ______ Learn more about the Gram+ bacterial cell wall. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Gram ______ Learn more about the Gram- bacterial cell wall. Images: Staph, Gram Stain, SPO Microbiology images, T. Port; E coli, Y tambe

Prokaryotes - Cell Wall Gram-Positive & Gram-Negative From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Sources Unknown

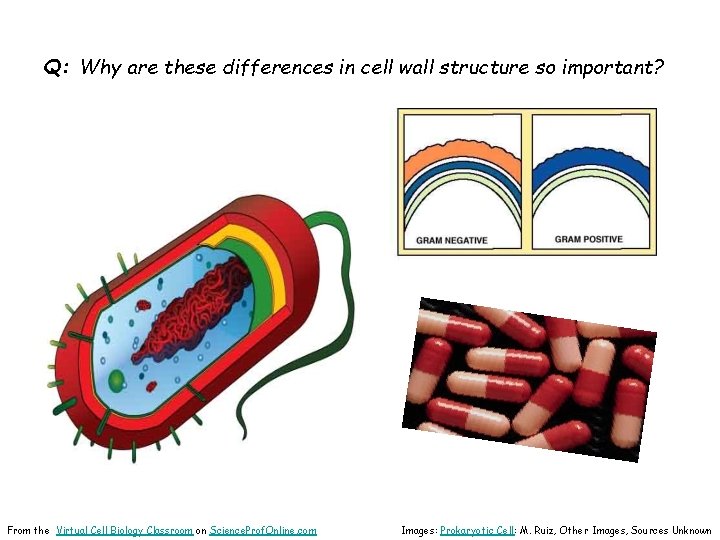

Q: Why are these differences in cell wall structure so important? From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Prokaryotic Cell: M. Ruiz, Other Images, Sources Unknown

Prokaryotes - Glycocalyx • Some bacteria have an additional layer outside of the cell wall called the glycocalyx. • This additional layer can come in one of two forms: 1. Slime Layer 2. Capsule From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Prokaryotic Cell: M. Ruiz

Prokaryotes - Glycocalyx Some bacteria have an additional layer outside of the cell wall called the glycocalyx. This additional layer can come in one of two forms: 1. ____________ • Glycoproteins loosely associated with the cell wall. • Slime layer causes bacteria to adhere to solid surfaces and helps prevent cell from drying out. • Streptococcus Slime layer of Gram+ Streptococcus mutans allows it to accumulate on tooth enamel (yuck mouth and the of cavities). Other bacteria in mouth become trapped in slime, form a biofilm & eventually a buildup of plaque. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Slime layer, Encyclopedia Britannica; Biofilm, PHIL # 11706

Prokaryotes - Glycocalyx 2. __________ • Polysaccharides firmly attached to the cell wall. • Capsules adhere to solid surfaces and to nutrients in the environment. • Adhesive power of capsules is a major factor in initiation of some bacterial diseases. • Capsule also protect bacteria from being phagocytized by cells of the host’s immune system. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Image: Prokaryotic Cell Diagram: M. Ruiz, Other Images Unknown Source

Prokaryotes - Endospores Ø Dormant, tough, non-reproductive structure produced by certain bacteria. Ø Q: What is the function of endospores? Ø Resistant to radiation, desiccation, lysozyme, temperature, starvation, and chemical disinfectants. Ø Endospores commonly found in soil and water, where they may survive for very long periods of time. An endospore stained bacterial smear of Bacillus subtilis showing endospores as green and vegetative cells as red. Bacteria Clostridium botulinum From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Bacillus subtilis, SPO Science Image Library, Clostridium botulinum, PHIL #2107

Meet the Microbe: _______ (Gram+) Ø The members of this genus have a couple of bacterial “superpowers” that make them particularly tough pathogens. Ø Q: Anyone know what those superpowers are? Ø All have a strictly fermentative mode of metabolism (Don’t’ use oxygen). Ø Vegetative cells are obligate anaerobes killed by exposure to O 2, but their endospores are able to survive long periods of exposure to air. Ø Clostridia are known to produce a variety of toxins, some of which are fatal. - Clostridium tetani = agent of tetanus - C. botulinum = agent of botulism - C. perfringens = one of the agents of gas gangrene - C. difficile = part of natural intestinal flora, but resistant strains can proliferate and cause pseudomembranous colitis. Images: Man with Tetanus, Sir Charles Bell; Clostridium botulinum, PHIL #2107; Wet Gangrene, Wiki From the Virtual Cell Biology Classroom on Science. Prof. Online. com

Prokaryotes – Surface Appendages Some prokaryotes have cell extensions that allow them to move about or adhere to solid surfaces. Consist of delicate stands of proteins. • ______ Long, thin extensions that allow some bacteria to move about freely in aqueous environments. • ______ (endoflagella) Wind around bacteria, causing movement in waves. • ______ Most Gram- bacteria have these short, fine appendages surrounding the cell. Gram+ bacteria do not have. No role in motility. Help bacteria adhere to solid surfaces. Major factor in virulence. • ______ Tubes that are longer than fimbriae, usually shorter than flagella. Use for movement, like grappling hooks, and also use conjugation pili (singular = pilus) to transfer plasmids. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Helicobacter pylori, E. coli fimbriae, Manu Forero

Meet the Microbe: ___________________ (Gram - ) Gonorrhea one of the most communicable disease in the US. 125 cases per 100, 000. Teens 15 -19 yo 634 cases per 100, 000. Young adults 20 -25 460 per 100, 000. From the Virtual Cell Biology Classroom on Science. Prof. Online. com Images: Neisseria photo, Textbook of Bacteriology

Confused? Here are some links to fun resources that further explain Cell Biology: • • • Prokaryotic Cells Main Page on the Virtual Cell Biology Classroom of Science Prof Online website. Prokaryotic Cell: Structures, Functions & Diagrams, article from SPO. Prokaryotic & Eukaryotic: Two Types of Biological Cells, an an article from SPO. • • • Prokaryotic Cell interactive diagram from Cells Alive website. “How big is a…” interactive diagram from Cells Alive website. Cell Structure tutorials and quizzes from Interactive Concepts in • • “Germs”. Music by Weird Al Yankovic. Video by Rev. Lucio. Evolution of the Three Domains Animated Science Tutorial. Biology 4 Kids – Cell Biology Main Page by Raders. “She Blinded Me With Science” music video Thomas Dolby. Biochemistry. (You must be in PPT slideshow view to click on links. ) From the Virtual Cell Biology Classroom on Science. Prof. Online. com

Assignment See the Science. Prof. Online Virtual Cell Biology Classroom: Prokaryotic Cells Lecture for a printable Word. doc of this assignment. Ø At the end of most lectures, I will give you some type of in-class assignment or homework to evaluate your understanding of that day’s topic. Ø This assignment will always be open-book. Ø Today, if assigned, you will be completing an activity on the topic of Prokaryotic Cell Structure. Image: Helicobacter pylori From the Virtual Cell Biology Classroom on Science. Prof. Online. com
