About ALA Industries A source for Yuken Kogyo

About ALA Industries A source for Yuken Kogyo products and hydraulic power unit, custom manifold assembly, and hydraulic system design Founded in 1993 as a Manufacturer’s Representative, with a strong focus on the Latin American market. Early work distributed two major international companies: n US Tsubaki, the world’s largest manufacturer of industrial, automotive, roller, and specialty chains n Asahi Seiko, Japan’s largest manufacturer of mounted ball bearings A subsidiary of Industria Engineering Products Ltd. , the UK’s largest distributor of power transmission products A partner of Yuken Kogyo Co. Ltd. , and the sales, marketing, service and support of Yuken products for the Americas since 1998

Who is Yuken Kogyo Co. Ltd. ? The Largest manufacturer of Industrial Hydraulics in Japan A continual developer of hydraulic product lines, as well as machinery dependent on hydraulic power A technology leader, Yuken was the first to develop On-Board Electronics in the early 1980’s. Yuken manufactures the fastest Servo Valve on the market. A world leader, Yuken has relationships, offices and factories across the globe, including United Kingdom, Hong Kong, China, Taiwan, India, and the USA. A quality leader, Yuken has been ISO 9001 since 1996 and most products conform to CE, UL, and CSA standards.

Yuken History 85 year heritage, began in auto repair in 1929, grew to machine tool builder by 1931. Introduced hydraulic honing machines in 1940, followed by development of hydraulic vane pumps and control valves. This led to today’s hydraulic equipment market. Went public on the Tokyo Stock Exchange in 1962 as a $2, 000 company, moved corporate headquarters to Fujisawa and sales office to Tokyo. Established joint venture in 1969 as Taiwan Hydraulics Mfg. Co. Ltd. Yuken employs 800 and exceeds 20, 000, 000 yen in sales.

Why Choose Yuken? Yuken’s name means Quality throughout the world. n Documented reliability of 99. 96% and 100% tested. n All products are designed to meet world standards. Product IN-STOCK. Over $2, 000 USD of Yuken product is Stocked in Valparaiso, Indiana. ALA Industries commitment. ALA Industries commits to its customers and works with them to assure short lead times. Full Product Offering. Yuken manufactures piston pumps, vane pumps, pressure and flow control valves, as well as solenoid operated, proportional, and servo valves. Solution provider. Yuken and ALA Industries work hard to develop solutions for our customers. We design special products to fit the customers special needs.

Yuken Product Range Standard offerings on ALL Yuken Products Threaded Ports: SAE, NPT, JIS, BSPP Sub-plate Patterns: NFPA standard with some exceptions * Pump Flange Mountings: SAE A, B, C & D, 2 and 4 Bolt patterns ** Shafts: SAE Keyed and Spline available some require special order Seals: Buna and Viton available * Subplate mounted Pressure, Flow Control and Check valves use none standard/ out of date patterns. (Modular versions use NFPA patterns) ** A 145 & PV 2 R 4 pumps have a NONE standard flange. (Adapters available)

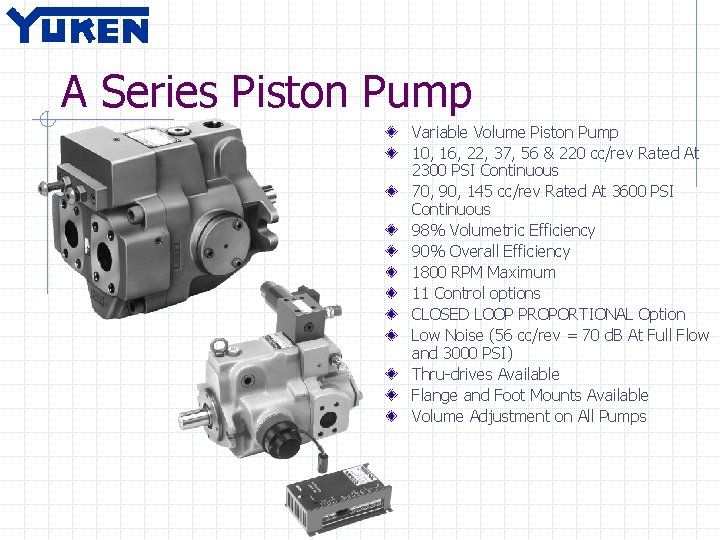

AR Series Piston Pump Variable Volume Piston Pump Aluminum Housing Very Small Foot Print 2300 PSI Max. / Continuous 16 & 22 cc/rev High Efficiency 1800 RPM Maximum Pressure or Remote Compensation Control Extremely Low Noise (65 d. B at Full Flow and Pressure) Foot or Flange Mounted Volume Adjustments on All Pumps

A Series Piston Pump Variable Volume Piston Pump 10, 16, 22, 37, 56 & 220 cc/rev Rated At 2300 PSI Continuous 70, 90, 145 cc/rev Rated At 3600 PSI Continuous 98% Volumetric Efficiency 90% Overall Efficiency 1800 RPM Maximum 11 Control options CLOSED LOOP PROPORTIONAL Option Low Noise (56 cc/rev = 70 d. B At Full Flow and 3000 PSI) Thru-drives Available Flange and Foot Mounts Available Volume Adjustment on All Pumps

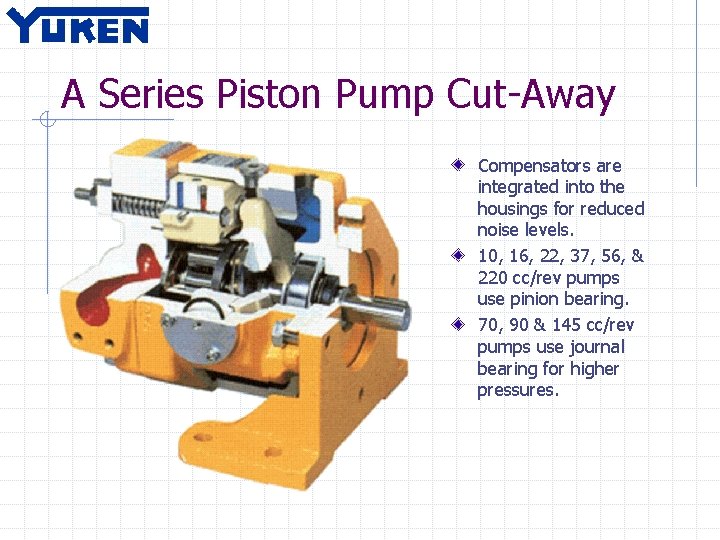

A Series Piston Pump Cut-Away Compensators are integrated into the housings for reduced noise levels. 10, 16, 22, 37, 56, & 220 cc/rev pumps use pinion bearing. 70, 90 & 145 cc/rev pumps use journal bearing for higher pressures.

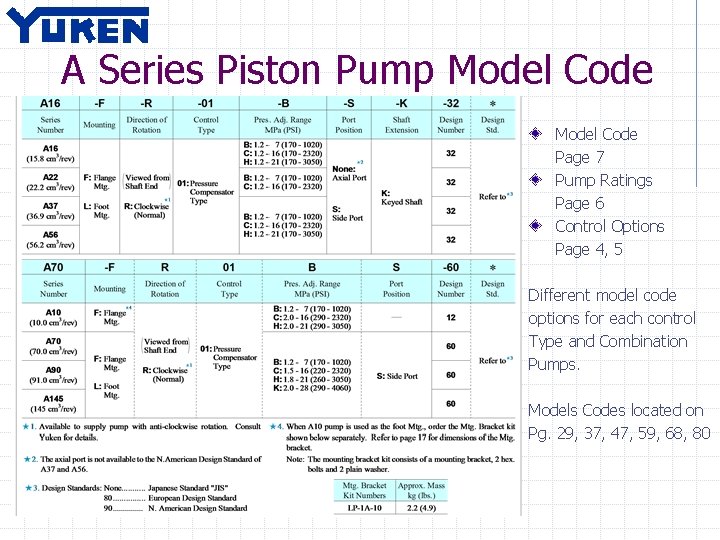

A Series Piston Pump Model Code Page 7 Pump Ratings Page 6 Control Options Page 4, 5 Different model code options for each control Type and Combination Pumps. Models Codes located on Pg. 29, 37, 47, 59, 68, 80

AH Series Piston Pump Variable Volume Piston Pump 3600 PSI Continuous 4500 PSI Maximum 16, 37 & 56 cc/rev High Efficiency 2500 RPM up to 3600 RPM Pressure Compensated Control Low Noise (56 cc/rev = 68 d. B at 1800 RPM and 3000 PSI) Flange and Foot Mounts Available Volume Adjustment on All Pumps

New A 3 H Series Piston Pump Variable Volume Piston Pump Small foot print 4000 PSI Continuous 5000 PSI Maximum 16, 37, 56, 70, 100, 145 & 180 cc/rev High Efficiency High Speed for Mobile Applications 5 Control Types (Including Load Sense & HP Control) Good Noise Thru Drive Option Available Volume Adjustment on All Pumps Stock Available October 2005 (145 & 180 cc/rev available first)

Piston Pump – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping PRODUCT RANGE n 10, 16, 22, 37, 56, 70, 90, 145 & 220 cc/rev n 11 Control Options n CLOSED LOOP Proportional Pump – Flow and Pressure “Includes the On Board Electronics (OBE) option” HIGH EFFICIENCY n 90% Mechanical Efficiency or better n 98% Volumetric Efficiency LOW NOISE n Typically 4 -8 d. B lower than Competition Continued

Piston Pump – Sales Scoop ISSUES n Pressure Capabilities – Must apply correctly n THRU Drive Pumps – Must order Pre-Assembled n n No Load Sense Control – We can simulate this for special customers Weak Flexibility of Design – Controls difficult to Interchange (Design based on concept of optimize efficiency and Noise) Point of Discussion n ALA STOCKS all “ 01” and “ 07” compensators n The NEW A 3 H pump should correct all these Issues

PVL & T Series Vane Pumps PVL 1 Series Pumps Low Pressure 730 PSI Max. 1. 5 up to 10. 6 cc/rev Extremely Low Noise (50 -55 d. B Max. ) Porting Rotates Keyed or Tanged Shafts 50 T, 150 T, 250 F Series Pumps Low Pressure 1020 PSI Max. 6. 8 up to 201. 0 cc/ rev Interchangeable With Former Vickers Round Pumps Dual Outlet and High-Low Options Available Keyed shafts

PV 2 R Series Vane Pumps Single Outlet Pumps 2320 and 3050 PSI Max. 5. 8 up to 237 cc/rev Cartridges Style Vane Groups Porting Rotates Low Noise Keyed Shafts Dual Outlet Pumps 2320 and 3050 PSI Max. Small Volume Outboard Pump ( 5. 8 up to 116 cc/rev ) Large Volume Inboard Pump ( 26 up to 237 cc/rev ) Higher Speeds Available

PV 2 R Vane Pump Model Code Double Vane Pump Model Code Shown Double Pump Model Code on Page 18 Double Pump Ratings Page 19 Single Pump Model Code on Page 4 Single Pump Ratings Page 5

PV 11 R Series Vane Pumps High Pressure Pump (4570 and 5800 PSI Maximum/ Continuous Rating) High Speeds 1800 up to 3000 RPM 2. 2 up to 22. 1 cc/rev Uses special control valve to maintain proper balance and lubrication of vane group. Porting Rotates Low Noise Keyed Shafts

Vane Pump – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping PRODUCT RANGE n 2 cc/rev up to 237 cc/rev n Single or Double Outlet available n High Pressure Model (Single Outlet Only) HIGH EFFICIENCY n Higher Efficiency than Competition LOW NOISE n Only Screw Pumps have lower noise per volume COST EFFECTIVE n Middle to Large frames are extremely competitive Continued

Vane Pump – Sales Scoop ISSUES n COST – The small frame are a little high at the OEM n No Thru Drive Option n Not Exact Drop-in to Vickers and Denison Point of Discussion n NEED MORE CUSTOMERS

D/ B/ S-BG/ BS/ S-BSG Relief Valves D Pilot Direct Acting Relief Valves Size: 0. 2 up to 4. 2 GPM Rating: 3000 or 3600 PSI Subplate or Inline w/ Panel Mounting Ideal for Remote Pilot Controls Change Pressure by removing Collars B/ S-BG/ BS/ S-BSG Pilot Operated Relief Valves Size: 2. 0 up to 106 GPM Rating: 3630 PSI Maximum Subplate and Inline mounted Options: Ventable, Low Noise, Solenoid Operated (1 or 2 pressure)

Relief Valve Model Codes REMOTE PILOT RELIEF VALVE (Direct Acting) Page 3 PILOT OPERATED RELIEF VALVE Page 9 PILOT OPERATED RELIEF VALVE with all OPTIONS n Low Noise n Solenoid Activated Page 31 Other Relief Valve options on Page 16, 20

H/HC Type Pressure Control & R/RBG Reducing/ Reducing Relieving Valves H/HC Sequence, Counter Bal. , Unloading Valves Size: 0. 5 up to 66 GPM Rating: 3050 PSI Maximum Setting: 2030 PSI Max. Setting Available Subplate and Inline Mounted Counter Balances Available with 8: 1 and 16: 1 Ratios Options: Bypass Check Valve, Remote Control Unloading Valves with Check for Accumulator and Hi-Low Circuits R/RBG Reducing and Reducing Relieving Valves Reducing Valve Size: 0. 5 up to 66 GPM Rating: 3050 PSI Maximum Reducing Relieving Valve Size: 0. 5 up to 33 GPM Rating: 3630 PSI Maximum Subplate and Inline (R Only) mounted Options: Bypass Check Valve, Remote Control

Pressure Controls – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping INLINE THREADED BODIES n Very Flexible Bodies (Gauge Ports, Vent Ports, Inline Porting for ease of mounting) FLEXIBLE n Some can easily convert into different models LOW NOISE n Low noise option COST EFFECTIVE n Very low cost in comparison to Equivalent Continued

Pressure Controls – Sales Scoop ISSUES n Subplate style is NOT as flexible as Cartridge Valves* n Space Savings – Some styles are large n Subplate mounting patterns are no longer standard n Counter Balances not available with 3: 1 Pilot Ratio Point of Discussion n * Our Inline Threaded Body type valve can be competitive (Relief Valves come with THRU ports – less fittings) n Our Counter Balance Valve have HIGH ratio’s 8: 1 and 16: 1 (Excellent for Dump circuits)

F(C)G/ FH(C)G/ FBG/ SR(C)G(T)/ G(C)T(R) Flow Control and Needle Valves F(C)G/ FH(C)G/ FBG Valves Pressure and Temperature Compensated Flow Control Valves Size: 0. 005 up to 132 GPM Rating: 3050 or 3630 PSI Maximum Restrictive and Relieving Compensation Bypass Check Valve Anti-Jumping Adjustment to Keep Cylinder from Jumping Initially Subplate Mounting Speed Indicator on Adjustment Knob Solenoid Activated Accel. & Decel. SR(C)G(T)/ G(C)T(R) Valves Flow Control and Needle Valves Size: Up to 132 GPM Rating: 3630 or 5080 PSI Maximum Subplate, Threaded Inline, Flanged, Bypass Checks

ZG(T)/ ZCG(T)/ UCF 1 G/ UCF 2 G Deceleration And Feed Control Valves ZG(T)/ ZCG(T) Deceleration Valves Size: Up to 52. 8 GPM Rating: 3050 PSI Maximum CAM Operated Accel/Decel/Flow Control Bypass Check Valve Subplate, Threaded Inline Mounting Normally Open or Normally Closed Needle Valve Option for Minimum Flow UCF 1 G/ UCF 2 G Feed Control Valves Size: 0. 03 up to 21. 1 GPM Rating: 2030 PSI Maximum CAM Operated: SGL or DBL Feed Control Pressure and Temperature Compensated Subplate Mounting Bypass Checks

Flow Controls – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping BROAD PRODUCT RANGE n Excellent Flow Range 0. 005 – 132 GPM n Restrictive and Relieving Pressure Temperature Compensation n CAM operated – Many BETTER CONTROL n Only Proportional Closed Loop speed control gives better accuracy and repeatability COST EFFECTIVE n Very Competitive with Equivalent Competition Continued

Flow Controls – Sales Scoop ISSUES n Subplate style is NOT as flexible as Cartridge Valves n Space Savings – Some styles are large n Subplate mounting patterns are no longer standard Point of Discussion n Lunge Protection on Press/Temp Compensated Valve (Keep Cylinders from an initial lunge before compensation takes control of cylinder speed) n CAM Operation can be cost effective – Alternative to Proportional (Mobile Market uses to control Acceleration and Deceleration)

DS(H)G Directional Solenoid Valves DS(H)G Solenoid Directional Spool Valves * NFPA Size: D 03, D 05 H, D 07, D 08, D 10 Max. Size: 291 GPM Rating: 5075 PSI and 4570 PSI Voltage: 12 V/24 V/48 V/96 V DC, 110 V/220 V AC (Rectified available), 24 V AC Special Voltage Range: +/- 10% and 50/60 Hz Connections: DIN, NPT Conduit Box, Wire Leads, 3/5 Pin Brad Harris Wet Pin Removable Coils on ALL Bolt Kits included with all valves* DIN connectors included* Conduit Box comes w/ lights & terminal strip* UL, CSA, CE Approval* OPTIONS AVAILABLE: n Slow Shift n Low Watt n Integrated Relay n Pilot Chokes on DSHG n Spool Stroke Adjuster on DSHG n Covered Overrides* Standard for ALL similar valves

Directional Valve Model Codes D 03 Directional Valve Model Code on Page 3 (60 Series) Ratings for valve on Pages 2 and 6 (60 Series) IMPORTANT – Reference Page 10 for Reversing Coils or Changing Neutral Position (60 Series)

G-DS(H)G Shockless Directional Solenoid Valves G-DS(H)G Shockless Solenoid Spool Valve Directional Valve with Ramping and Creep Speed On Board Controller with Pot Adjustments Size: D 03, D 05, D 07, D 08 Rating: 70+ GPM and 3630 PSI Voltage: 24 V DC Only Adjustable Shift Times ON & OFF = 1 sec. Max. Adjustable Creep Speed - Zero

DM/ DHG Manual & Hydraulic Operated Directional Valves DM Manually Operated Directional Valves Subplate Size: D 03, D 05, D 07, D 08, D 10 Subplate Flow Rating: 291 GPM Inline Threaded Rating: 132 GPM Rating: 3050, 3630, and 4570 PSI Lever Operated (Lever rotates 90°, 180°, 270°) 2 or 3 position Spring or Detent positioning Many spool options available Hydraulic Pilot Operated Valves Sizes: D 07, D 08, D 10 Rating: 291 GPM and 3630 PSI Options: n Pilot Choke Valves (Slow Shift) n Pilot Pistons for Fast Shift ON n Spool Stroke Adjustments n Pressure Centered

DSLG/ CDS/ DSP Direct Acting Poppet Directional Valves DSLG Solenoid Directional Poppet Valves D 03 size only Rating: 4. 2 GPM and 4570 PSI 2 Position 3 -Ways/ 3 Position 4 -Ways Electrical: 12/24 V DC, 100/200 V AC Rectified CDS Solenoid Poppet 2 -Way Valves Size: Cartridge Valve Metric Cavity Rating: 13. 2 GPM and 2030 PSI 2 -Way with Single Blocking Poppet Electrical: 12/24/48 V DC, 120/240 V AC (Rectified Available) DSP Solenoid Poppet 2 -Way Valves Size: D 03 and D 05 Rating: 21. 1 GPM and 1450 PSI 2 -Way with Double Blocking Poppet Electrical: 12/24 V DC, 120/220 V AC

DSLHG Pilot Operated Poppet Directional Valves - “Multi-Purpose Control Valve” DSLHG Solenoid Directional Poppet Valves Sizes: D 07, D 08, D 10 Rating: 132 GPM and 3630 PSI 3 and 4 Position 4 -Ways Configurations Regenerative Circuit in position 4 Voltage: 12 V/24 V/48 V/96 V DC, 110 V/220 V AC (Rectified available), 24 V AC* Voltage Range: +/- 10% and 50/60 Hz Connections: DIN, NPT Conduit Box, Wire Leads, 3/5 Pin Brad Harris Integral Flow Controls – Meter IN/OUT Options: n Integral Pilot Operated Check Valves n Integral Non-Pilot Counter Balances

DC CAM Operated/ DR Rotary Directional Valves DC CAM Operated Spool Directional Valves Size: D 03 and D 05 up to 26. 4 GPM Rating: 3050 or 3630 PSI Maximum 2 Position, 4 -Way Inline Threaded or Subplate mounting DR Rotary Type Directional Valves Size: 4. 2 GPM Rating: 1020 PSI 2 or 3 Position, 4 -Way Detented Inline Threaded with Flange mount

CI/ CR Check Valves and CP(D)/ PI*F Pilot Operated Check and In-line Pre. Fill Valves CI/CR Check Valves Size: 343 GPM Rating: 3630 PSI Inline Straight and Right Angle Threaded / Subplate / Flange mounting CP(D) Pilot Operated Check Valves Size: 159 GPM Rating: 3630 PSI Threaded / Subplate / Flange mounting Options: Decompression, External Drain PI*F In-line Prefill Valves (Pilot Operated) Size: 423 GPM Rating: 3625 PSI Sandwich mounted between flanges Decompression option available

Directional Controls – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping n Rated to over 10 million Cycles n CE, CSA, UL Approvals – UL testing is difficult/expensive n Warranty Return = 0. 04% BROAD PRODUCT RANGE n Excellent Flow Range up to 291 GPM n Many Styles – NFPA Spool/Poppet styles and Specialty designs and Manual Operated n Many Options – Slow/Adjustable Shift, Low Watt, Integrated Relay, Special Overrides n Electrical Capabilities – All Voltage ranges and most connection types BETTER PERFORMANCE n Extremely repeatable performance due to machining quality COST EFFECTIVE n Extremely Competitive in ALL markets n Upgrades Come Standard – Bolt Kits, Lights, DIN plugs, Terminal Strip Continued

Directional Controls – Sales Scoop ISSUES n DSG-03 – D 05 Valves and most of the older series valves are IP 64 standard – Seal upgrades available if need IP 65 rating n DMG-01 – D 03 Valves has a wide manual operator – Needs more space to mount Point of Discussion n Yuken’s most well rounded and competitive product n ALA Industries to STOCK all possibilities of NFPA solenoid valves – Only exception are the D 05 H and D 10 size valves n Forecasts are extremely helpful with these and all our products

D 03 Modular Control Valves D 03 Modular Valve Size: 9. 25 GPM and 15. 9 GPM (Flow Controls) Rating: 4570 PSI Maximum VALVE TYPES (Multiple configurations of each) : n Reliefs and Reducers n Integrated Pressure Switches n Flow Controls (Standard and Pressure and/or Temperature Compensated) n Counter Balance (No pilot asist) n Checks and PO Checks n Cover Plates and Tapping Plates “Stud” Kits available for mounting

D 05 Modular Control Valves D 05 Modular Valve Size: 18. 5 GPM and 31. 7 GPM (Flow Controls) Rating: 3630 PSI Maximum VALVE TYPES (Multiple configurations of each) : n Reliefs and Reducers n Integrated Pressure Switches n Flow Controls (Standard and Pressure and/or Temperature Compensated) n Counter Balances n Checks and PO Checks n Cover Plates and Tapping Plates “Stud” Kits available for mounting

D 08 and D 10 Modular Control Valves D 08 and D 10 Modular Valve Size: 132 GPM and 211 GPM Maximum (Respectively) Rating: 3630 PSI Maximum VALVE TYPES (Multiple configurations of each) : n Reducers n Flow Controls n P. O. Checks “Stud” Kits available for mounting

Modular Valve Model Codes Refer to MASTER list at front of catalog Choose Valve type and refer to page number for individual model code All sizes use this same format for choosing

Modular Controls – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping GOOD PRODUCT RANGE n D 03, D 05, D 08 and D 10 size modules n Pressure/Temperature Compensated Flow Control modules - D 03 & D 05 n Includes Cover Plates and Tapping Plates n “STUD” kits available BETTER PERFORMANCE n Extremely repeatable due to machining quality n LESS Leakage COST EFFECTIVE n Extremely Competitive

Modular Controls – Sales Scoop ISSUES n Limited offering of Crossover Relief Valves n Limited offering of Counter Balance Valves n NO - D 05 H and D 07 modular valves Point of Discussion n STOCK of Flow Controls and P. O. Checks and some other popular types n Forecasts are extremely helpful with these and all our products

E(H)DG Proportional Pilot Relief Valve Size: 0. 08 up to 0. 53 GPM Rating: 3550 PSI Performance: n n Hysteresis < 3% (< 1%*) Repeatability < 1% Options: n n Subplate Mounting Only Separate Amplifiers w Frequency: 12 Hz w 0 -10 V DC command w 24 V DC / 120 V AC / 220 V AC Power OBE (On Board Electronics) w Frequency: 10 up to 27* Hz w Closed Loop (OBE type only) w 0 -5 V DC command w 24 V DC Power Only n *Closed Loop (Integral Transducer) n Safety Valve (Integral Relief)

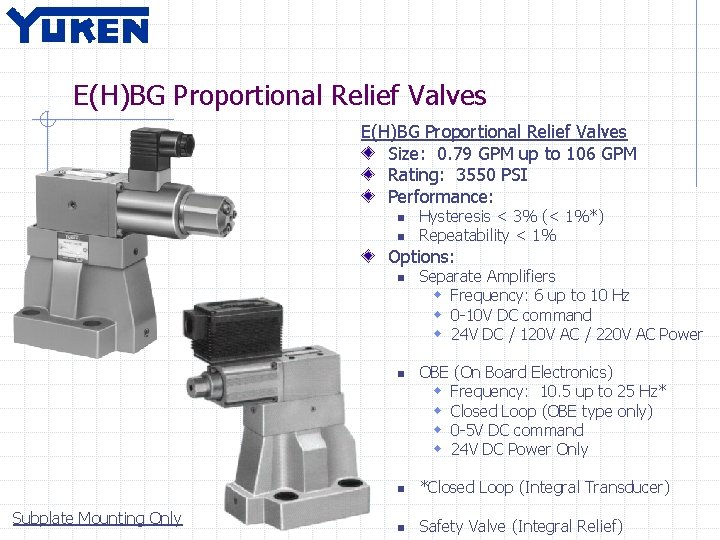

E(H)BG Proportional Relief Valves Size: 0. 79 GPM up to 106 GPM Rating: 3550 PSI Performance: n n Hysteresis < 3% (< 1%*) Repeatability < 1% Options: n n Subplate Mounting Only Separate Amplifiers w Frequency: 6 up to 10 Hz w 0 -10 V DC command w 24 V DC / 120 V AC / 220 V AC Power OBE (On Board Electronics) w Frequency: 10. 5 up to 25 Hz* w Closed Loop (OBE type only) w 0 -5 V DC command w 24 V DC Power Only n *Closed Loop (Integral Transducer) n Safety Valve (Integral Relief)

E(H)RB Proportional Reducing Relieving Valves Size: Up to 66 GPM Rating: 3550 PSI Maximum Performance: n n Hysteresis < 3% Repeatability < 1% Options: n n Subplate Mounting Only Separate Amplifiers w Frequency: 3 -4 Hz w 0 -10 V DC command w 24 V DC / 120 V AC / 220 V AC Power OBE (On Board Electronics) w Frequency: 3 -4 Hz w Integral Transducer (OBE type only) w 0 -5 V DC command w 24 V DC Power Only n Open Loop with Integral Transducer n Safety Valve (Integral Relief)

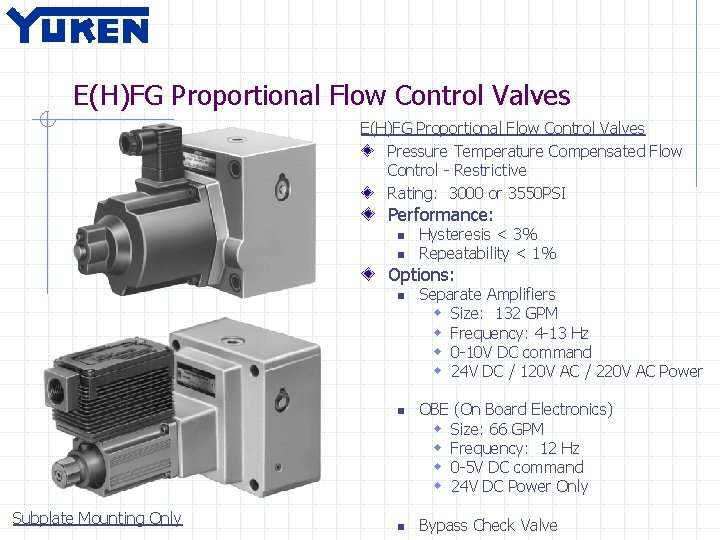

E(H)FG Proportional Flow Control Valves Pressure Temperature Compensated Flow Control - Restrictive Rating: 3000 or 3550 PSI Performance: n n Hysteresis < 3% Repeatability < 1% Options: n n Subplate Mounting Only n Separate Amplifiers w Size: 132 GPM w Frequency: 4 -13 Hz w 0 -10 V DC command w 24 V DC / 120 V AC / 220 V AC Power OBE (On Board Electronics) w Size: 66 GPM w Frequency: 12 Hz w 0 -5 V DC command w 24 V DC Power Only Bypass Check Valve

E(H)FBG Proportional Flow Control with Relief Valves E(H)FBG Prop. Flow Control and Relief Valves Pressure Temperature Compensated Flow Control – Relieving “Reduces Power Consumption” Size: 0. 26 up to 132 GPM Rating: 3550 PSI Manual or Proportional Relief Valve Flow Control Performance: n n Hysteresis <7% (< 3% with OBE) Repeatability < 1% Pressure Control Performance: n n Hysteresis <3% (< 2% with OBE) Repeatability < 1% Options: n n Subplate Mounting Only Separate Amplifiers w 0 -10 V DC command per Function w 24 V DC / 120 V AC / 220 V AC Power OBE (On Board Electronics) w 0 -5 V DC command per Function w 24 V DC Power Only w Optional Integrated Pressure Transducer w Separate Amplifiers n Safety Valve and External Pilot Control

EDF(H)G Proportional Directional/Flow Control Valves (Open Loop and Separate Amplifier) EDFG Proportional Directional/Flow Control Valves Size: D 03 up to 8 GPM at 500 PSI ΔP Rating: 3625 PSI Power: 24 V DC Command Signal: +/-10 V DC Performance: n n n Frequency: 20 Hz Hysteresis < 5% Repeatability < 1% EDFHG Proportional Directional/Flow Control Valves Size: D 05 H, D 07, D 08 Flow: 26. 4 / 37. 0 / 74. 0 GPM at 250 PSI ΔP Rating: 3550 PSI Power: 24 V DC Command Signal: +/-10 V DC Performance: n n n Frequency: 8 -11 Hz Hysteresis < 5% Repeatability < 1%

EHDFG Proportional Directional/Flow Control Valves (On Board Electronics) EHDFG Proportional Directional/Flow Control Valves Size: D 03, D 05 Rating: 7. 9 and 15. 9 GPM at ~300 PSI ΔP Rating: 3550 PSI Power: 24 V DC Command Signal: +/-5 V DC Performance: n n n Frequency: 17 -20 Hz Hysteresis < 5% Repeatability < 1% EHDFG Proportional Directional/Flow Control Valves Size: D 07, D 08 Rating: 34 and 74 GPM at 215 PSI ΔP Rating: 2275 PSI Power: 24 V DC Command Signal: +/-5 V DC Performance: (LVDT Spool Feedback) n n n Frequency: 45 -55 Hz Hysteresis < 1% Repeatability < 1%

New Proportional Control Valves ELDF(H)G High Speed Proportional Directional and Flow Controls Valve Size: D 03, D 05, D 07, D 08 up to 132 GPM Rating: 5082 or 4574 PSI Maximum LVDT on Spool for Position Control Voltage: 24 V DC Power Command Voltage: +/- 10 V DC – Separate Amplifier Performance: 35 -66 Hz, < 0. 5% Hysteresis, < 0. 5% Repeatability Options: Zero Lap Spool, OBE in Development LSV(H)G Linear Servo Directional and Flow Controls Valve Size: D 05, D 07, D 08, D 10 up to 396 GPM Rating: 5082 PSI Maximum LVDT on Spool for Position Control Voltage: 24 V DC Power Command Voltage: +/- 10 V DC – Separate Amplifier Performance: 450 or 100 Hz, < 0. 5% Hysteresis, < 0. 5% Repeatability Options: Zero Lap Spool, OBE in Development TO BE REVIEWED in NEW PRODUCT PRESENTATION

Proportional Controls – Sales Scoop QUALITY n Market Leader in Asian Machine Tool and Heavy Industry n 100% Tested before Shipping n Rated for over 10 million cycles GOOD PRODUCT RANGE n Proportional/ Servo Valve option for most applications n Proportional Pressure and Temperature Compensated Flow Controls n Combination Proportional Assemblies – Multiple Axis Control n Most Products come with OBE option BETTER PERFORMANCE n Extremely repeatable performance due to machining quality n One of the FASTEST Servo’s on the market (450 Hz/ 2 ms 0 -100%) COST EFFECTIVE n Extremely Competitive in ALL markets

Proportional Controls – Sales Scoop ISSUES n No 12 V DC power option n No 4 -20 m. A command signal option n No Modular proportional valves n Limited offering in Low End Directional/Flow controls n OBE for High End Directional/Flow controls NOT available yet n OBE Valves limited to 0 -5 V DC or +/-5 V DC command signal n Space Savings – Some styles are large n Subplate mounting patterns are no longer standard n All valves are only rated to IP 64 n Difficult to STOCK all options since line is so broad Point of Discussion n THINKING JAPANESE – The way they design a system and why!

Compact Power Units YF and YP Pack Power Units Size: 5. 0 up to 16 GPM Rating: 2320 PSI Continuous / 3050 PSI Intermittent (20% Duty) Power Range: 1. 0 - 7. 5 HP, 230 V AC, 3 -Phase, 50 -60 Hz Specifications: n n Compact Size Low Noise (as low as 53 d. B) Pressure Compensated, Variable Volume Adjustable Volume stop for Flow Control

ACT/ JT Pressure Switches ACT Pressure Switches Rating: 145 up to 11, 800 PSI Porting: 1/4 and 3/8 NPT Specifications: n Mechanical Adjustment n Accuracy +/-2% F. S. n 10 million + Cycles Rating n Water Resistance IP 66 JT Compact Pressure Switches Rating: 14. 5 up to 5082 PSI Porting: Rc 1/4 Male Specifications: n Pot Adjustment n 24 V DC Power n Repeatability 0. 5% F. S. n High Shock Resistance n Semi-Conductor Type

Manifolds, Subplates, and Flanges Material: Aluminum and Ductile Rating: 3000 and 3600 PSI Porting: As Required Subplates available for all valve types Manifolds in D 03 and D 05 only Flanges are Code 61 Stock Varies

Industry Specific O. E. M. Products Custom Valves, Valve Assemblies, Power Units Product Designed Specifically for O. E. M. ’s n n n Elevator valves – Accurate Positioning and Safety Elevator Power Units – Low Noise and Efficient Injection Molding Machines – P/Q proportional systems Drum Crusher Machines – Entire Design Servo Valve 450 Hz – Stamping Presses

MRO Only Products for the American Market MRO Only products Hydraulic Cylinders - Sold to MRO and Japanese O. E. M. ’s n All Metric Cylinder n Not competitive against American O. E. M. ’s n Not Stocked Logic Valves – Sold to MRO and Japanese O. E. M. ’s n Limited Product Range n Covers and Cartridges come Pre-Assembled n Not typically competitive against American O. E. M. ’s n Not Currently Stocked

Why Choose Yuken? Quality Reliability Availability Commitment Full Product Offering Innovation Solutions Questions and Discussion? Thank you
