ABLOY solutions for petroleum transportation 10 9 2020

ABLOY® solutions for petroleum transportation 10. 9. 2020 1

Leading the way in worldwide security 10. 9. 2020 2

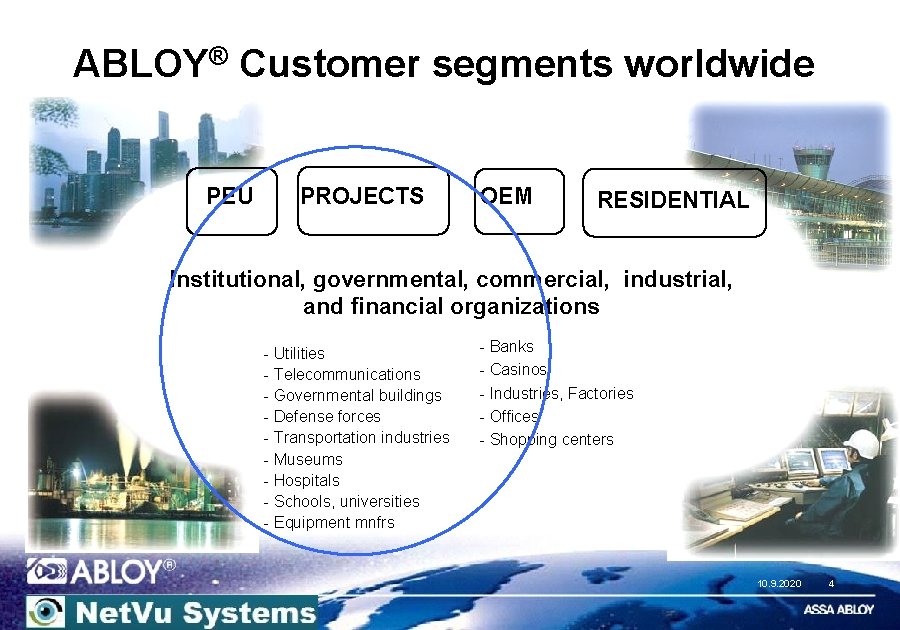

ABLOY® Customer segments worldwide PEU PROJECTS OEM RESIDENTIAL Institutional, governmental, commercial, industrial, and financial organizations - Utilities - Telecommunications - Governmental buildings - Defense forces - Transportation industries - Museums - Hospitals - Schools, universities - Equipment mnfrs - Banks - Casinos - Industries, Factories - Offices - Shopping centers 10. 9. 2020 4

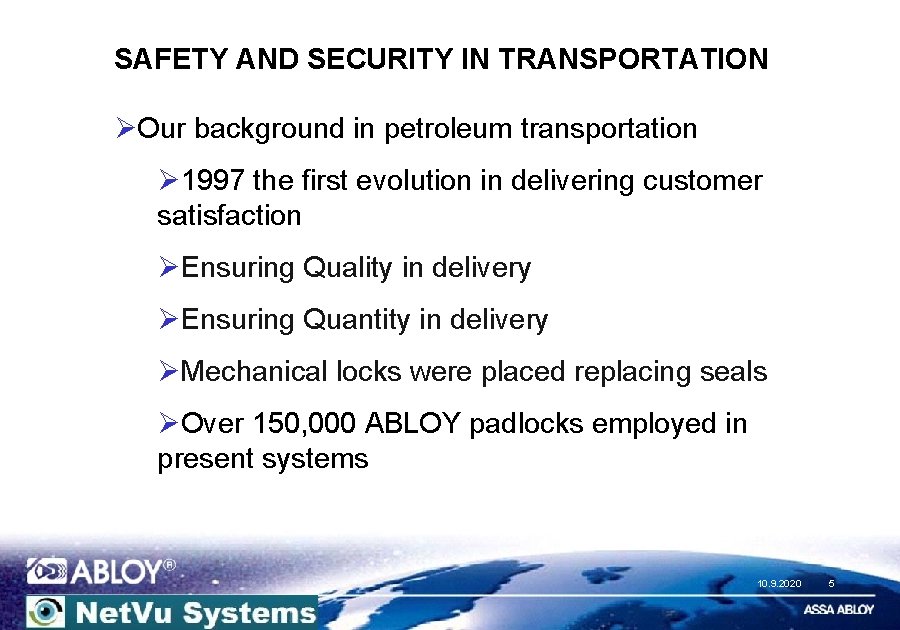

SAFETY AND SECURITY IN TRANSPORTATION ØOur background in petroleum transportation Ø 1997 the first evolution in delivering customer satisfaction ØEnsuring Quality in delivery ØEnsuring Quantity in delivery ØMechanical locks were placed replacing seals ØOver 150, 000 ABLOY padlocks employed in present systems 10. 9. 2020 5

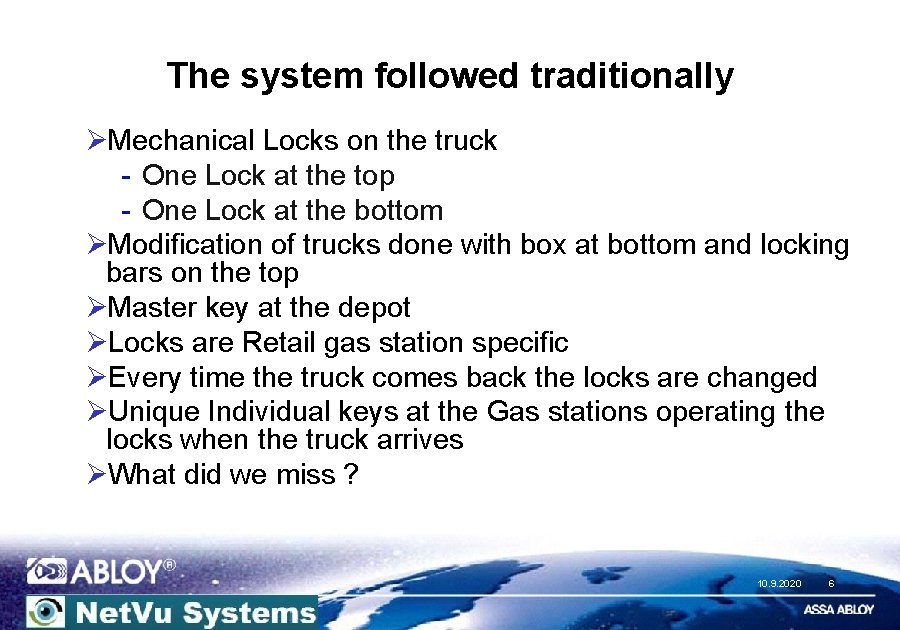

The system followed traditionally ØMechanical Locks on the truck - One Lock at the top - One Lock at the bottom ØModification of trucks done with box at bottom and locking bars on the top ØMaster key at the depot ØLocks are Retail gas station specific ØEvery time the truck comes back the locks are changed ØUnique Individual keys at the Gas stations operating the locks when the truck arrives ØWhat did we miss ? 10. 9. 2020 6

Drawbacks of the existing system ØEvery retail outlet has sets of locks assigned to it ØDiversion of trucks are not possible ØNo Usage or log trail ØLoss of locks and Master keys occurring nationwide ØControl over time zone not present ØKeys could be potentially handed over to truck operators or others not intended ØTruck fittings are the big challenge ØLarge groups where a challenge 10. 9. 2020 7

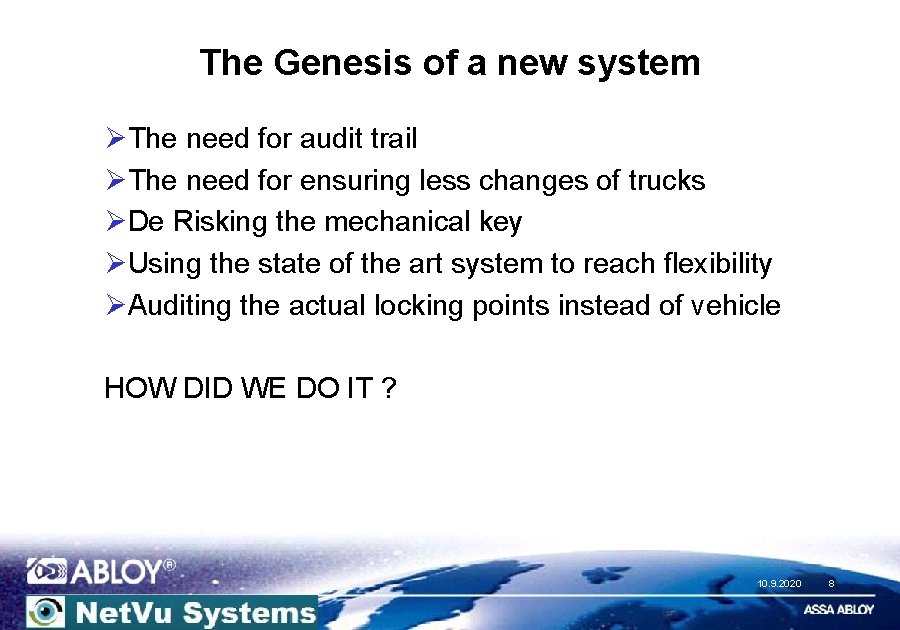

The Genesis of a new system ØThe need for audit trail ØThe need for ensuring less changes of trucks ØDe Risking the mechanical key ØUsing the state of the art system to reach flexibility ØAuditing the actual locking points instead of vehicle HOW DID WE DO IT ? 10. 9. 2020 8

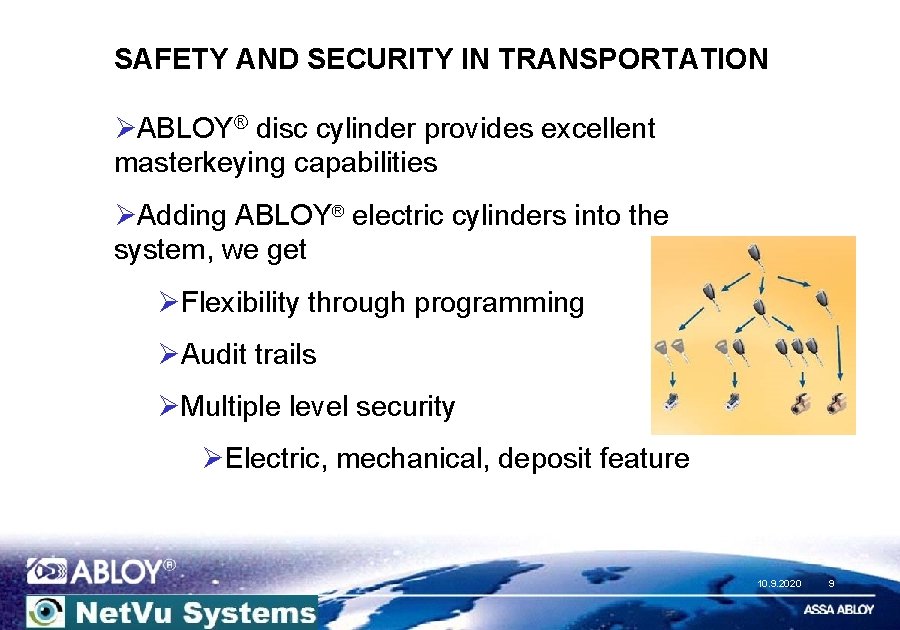

SAFETY AND SECURITY IN TRANSPORTATION ØABLOY® disc cylinder provides excellent masterkeying capabilities ØAdding ABLOY® electric cylinders into the system, we get ØFlexibility through programming ØAudit trails ØMultiple level security ØElectric, mechanical, deposit feature 10. 9. 2020 9

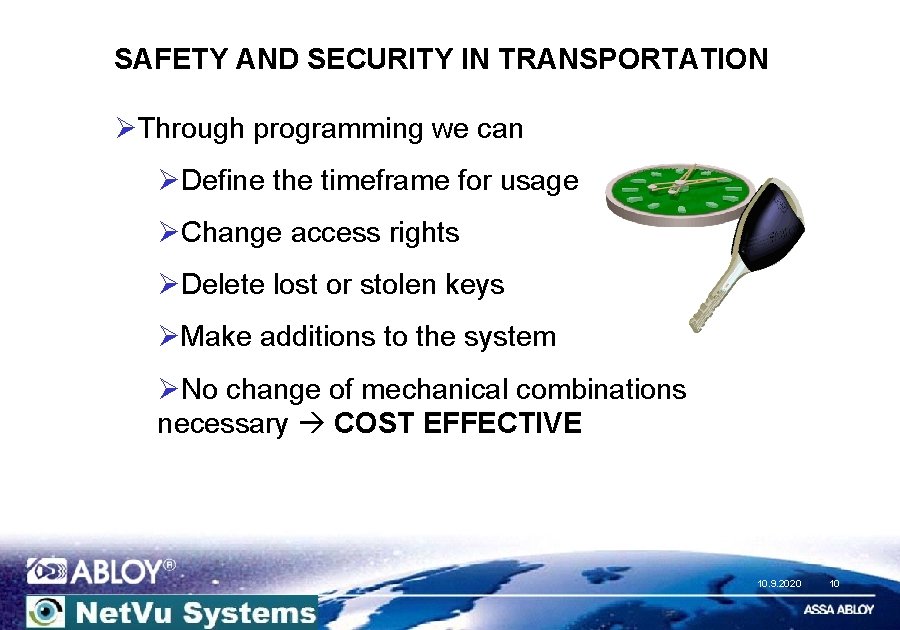

SAFETY AND SECURITY IN TRANSPORTATION ØThrough programming we can ØDefine the timeframe for usage ØChange access rights ØDelete lost or stolen keys ØMake additions to the system ØNo change of mechanical combinations necessary COST EFFECTIVE 10. 9. 2020 10

SAFETY AND SECURITY IN TRANSPORTATION ØFlexibility ØLocks can be truck specific or non-truck specific ØTrucks can use multiple depots ØMultiple drops are possible ØTrucks can be top loaded or bottom loaded ØEasy changes of access rights ØEasy additions 10. 9. 2020 11

SAFETY AND SECURITY IN TRANSPORTATION ØAudit trails ØFrom locks ØFrom keys ØDay, time & identity of key/ cylinder ØOperation ØAttempt ØDuration info will be added 10. 9. 2020 12

SAFETY AND SECURITY IN TRANSPORTATION ØMultiple level security ØMechanical coding ØDedicated key profile ØUnique electric identity for each electric component ØDES encrypted communication ØDepositing feature 10. 9. 2020 13

SAFETY AND SECURITY IN TRANSPORTATION ØAdvantages ØFor operation ØFor retailers ØFor administration ØFor public ØFor management 10. 9. 2020 14

SAFETY AND SECURITY IN TRANSPORTATION ØAdvantages for operation ØGives flexibility for the routing ØGives tools for planning the routing ØGives effectiveness for the usage of trucks ØSafety & security ØNo quality and quantity considerations 10. 9. 2020 15

SAFETY AND SECURITY IN TRANSPORTATION ØAdvantages for retailers ØEnsuring Quality ØEnsuring Quantity ØSolution for people’s safety ØNo considerations ØPositive public image creates acceptance 10. 9. 2020 16

SAFETY AND SECURITY IN TRANSPORTATION ØAdvantages for administration ØFlexibility ØPossibility to admit the access for certain time frame ØPossibility to delete lost or stolen keys w/o physical changes ØEasy to use ØPossiblity to track exceptions 10. 9. 2020 17

SAFETY AND SECURITY IN TRANSPORTATION ØAdvantages for public ØEnvironmental considerations are getting more and more important ØHigh profile image effects to the decision making ØProfessionalism creates reliablity 10. 9. 2020 18

SAFETY AND SECURITY IN TRANSPORTATION ØAdvantages for management ØConvinced mind ØBasic problems solved ØHSSE requirements met ØPublic image ØOperations secured ØReleases time for business development ØImproved effectiveness ØBetter parameters 10. 9. 2020 19

SAFETY AND SECURITY IN TRANSPORTATION ØABLOY® Solution ØMerge of the ABLOY® unique disc cylinder and ABLOY® electronic identification & communication ØEmploys proven technology ØRepresents long experience & track record ØOffers advantages over the operations 10. 9. 2020 20

â ABLOY CYLINDER TECHNOLOGY 10. 9. 2020 21

The unique ABLOYâ mechanism Ø The unique ABLOYâ detainer disc cylinder mechanism has been a symbol of high security and superior performance ever since its invention. 10. 9. 2020 22

cylinder · Patented key, key blank and cylinder · Meets EN 1303 requirements · Pick-proof, reliable and wear-resistant structure · Full metal key · Operates in both directions · Symmetric use of key · Disc controller · Master-keying capability: 1. 97 billion combinations · All ABLOY cylinder products are master-keyable with each other. 10. 9. 2020 23 2

cylinder Ø A true high security cylinder – Patent protected key blank, key and cylinder construction (=> 2019, over 50 countries) – Operation principle different from most of the other cylinders – Reliable operation in extreme conditions 10. 9. 2020 24 2

Ò ABLOY Disc Cylinder Technology 10. 9. 2020 25

cylinder Ø A true high security cylinder – Virtually pickproof – Bump proof – Excellent master keying possibilities – Combination setting and scrambling by hand force, not by springs – A long movement of the blocking system elements in the cylinder 10. 9. 2020 26 2

cylinder Ø A true high security cylinder - Good mechanical protection against burglary: – Hardened rotation drilling protection parts – Small keyway – Hardened cylinder housings possible 10. 9. 2020 27 2

ABLOY® PADLOCKS UNSURPASSED PERFORMANCE 10. 9. 2020 28 2

ABLOY® Padlocks Ø Reliable function in all conditions Ø Excellent resistance against physical attack Ø Meet the requirements of EN 12320 padlock standard and the additional Ø The unique cylinder mechanism offers Swedish requirements (attack with superior master-keying features hand tool) according to SSFN 014 Ø A model for every purpose certified by SBSC Ø Maximum resistance against corrosion 10. 9. 2020 29

ABLOY PADLOCKS ® ØAbloy Oy has decades of experience as manufacturer of high security products ØAll ABLOY® Padlocks employ technical solutions that provide superior performance in all conditions ØDurable materials provide excellent resistance against physical attack - Case-hardened boron steel shackles - Case-hardened steel bodies - Steel hardened protection plates ØPerformance exceeds the requirements of the CEN 12320 standard; internal test requirements are significantly higher ØMaximum resistance against corrosion 10. 9. 2020 30

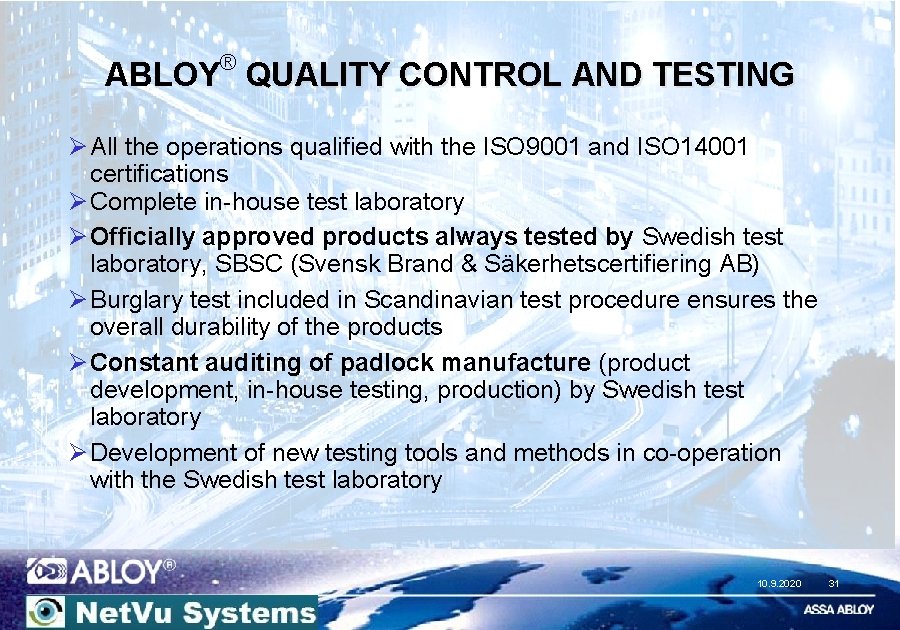

® ABLOY QUALITY CONTROL AND TESTING Ø All the operations qualified with the ISO 9001 and ISO 14001 certifications Ø Complete in-house test laboratory Ø Officially approved products always tested by Swedish test laboratory, SBSC (Svensk Brand & Säkerhetscertifiering AB) Ø Burglary test included in Scandinavian test procedure ensures the overall durability of the products Ø Constant auditing of padlock manufacture (product development, in-house testing, production) by Swedish test laboratory Ø Development of new testing tools and methods in co-operation with the Swedish test laboratory 10. 9. 2020 31

THE BASICS OF THE ELECTRONIC KEY SYSTEM 10. 9. 2020 32

What is CLIQ technolgy ? ØCLIQ micro electronics enables installing modern electronics into keys and cylinders Ø 264 different identifications Modern technology for locking ØDES encryption ØProgrammable High level encryption Classified security 10. 9. 2020 33

ABLOY and CLIQ technology Ò + + + Mechanical Ò ABLOY PROTEC = = ABLOYÒ PROTEC CLIQ = 10. 9. 2020 34

Connection and verify in millisecond! Wake up ! 1100101010001011001000100001. . . 00010001100100111000111101 Random number 11001010100100111000111101000101. . . Encrypted response . . . 0001000111001000100001 Decrypt Validity checking Register in audit trail Open if valid … Locking 10. 9. 2020 35

ABLOYÒ PROTEC CLIQ Key has the battery Cylinder doesn’t have battery communication Power from the key - no wires 10. 9. 2020 36

ABLOY PROTEC CLIQ system Ò Master Keyed System could include both mechanical ABLOYÒ PROTEC and ABLOYÒ PROTEC CLIQ keys and cylinders Mech. 10. 9. 2020 37

ABLOYÒ PROTEC CLIQ => Updated security Security Key lost Security level ØEasy to keep the targeted security level with ABLOY PROTEC CLIQ. Bu ildi ng pha se Key lost Building ready Time 10. 9. 2020 38

Ò ABLOY PROTEC CLIQ cylinder memory Ø Each cylinder memory holds Ø A list of up to 200 memory places for authorized groups Ø Each group could consist of maximum 65. 534 individual keys Ø A “black list” of up to 3. 000 individual keys e. g. Ø Adjust opening authorization of individual keys of any group Ø Delete lost or stolen keys 10. 9. 2020 39

ABLOY PROTEC CLIQ cylinder memory Ò Group 2, e. g. Sales persons Memory structure Authorization will Group 1, e. g. Clerks be groups Group 3, e. g. Trainers Black list for individual keys Audit trail shows individual keys, date and time Person 1, e. g. Vice President Person 2, e. g. Secretary Group 4, e. g. a family 10. 9. 2020 40

ABLOYÒ PROTEC CLIQ cylinder Audit Trail Ø Each time a key is used at a cylinder, a record of date, time and the key ID, is stored in the cylinder memory Ø The cylinder stores up to 1. 000 most recent access events Ø Audit Trail can be read by ABLOYÒ KEYCONTROL software 10. 9. 2020 41

ABLOYÒ PROTEC CLIQ cylinder Audit Trail Ø Cylinder records 20 most recent events when an unauthorized key attempted to open the lock ( key from Ò any other ABLOY PROTEC CLIQ system ) 10. 9. 2020 42

Ò ABLOY PROTEC CLIQ keys Master programming key Stamping 65535. * • • • For activating and administrating maintenance programming keys For importing data Not a user key! Maintenance programming key Stamping 1. *. 2. * … • Each system has at least one programming key • Max. 99 programming keys per locking system • Not a user key! User key (used in Oman and Thailand • User keys with timer • Authorization is written in lock • Time accuracy +/- 1 min per month Programmable User Key • User keys with timer • Final authorization is written in key 10. 9. 2020 43

Ò ABLOY PROTEC CLIQ key Audit Trail Ø Each time a user key is used at a cylinder, a record of date, time and the cylinder ID, is stored in the key memory Ø Each user key stores up to 100 most recent access events Ø User key records also 10 most recent events when the key is inserted into a cylinder from Ò any other ABLOY PROTEC CLIQ system 10. 9. 2020 44

ABLOY® CLIQ programmable user keys Key should be recognized by stamping! Ø Ø Key memory contains Time of the key Schedule settings (if set) Audit trail (1800 latest in own system, 20 latest if tried in other systems) Ø List of authorized locks (max 1000) Factory generated E-tag a unique identifier for a key on the other side Stamping on the side of the key 10. 9. 2020 45

ABLOY® PROTEC CLIQ time function Key valid until specified date Key with time function January 2005 Valid from October 2005 Valid until Week schedule: Key valid one period per day Time function of the key refers TO ALL LOCKS in the system Time Monday Tuesday Wednesday Thursday Friday Saturday Sunday 10. 9. 2020 46

Ò ABLOY PROTEC CLIQ programming key Ø To be used as an lock system ID for Ò programming unit and ABLOY KEYCONTROL software Ø To read Audit Trails from cylinders Ø Each key can read 1. 000 access events in one go Ø By ABLOYÒ KEYCONTROL software can be selected, how many most recent access events per cylinder one programming key will read Ø Programming locks Ø Each key can handle 385 programming transactions 10. 9. 2020 47

ABLOYÒ PROTEC CLIQ programming Programming key Ø ID to the locking system data base Ø Programming the cylinders and reading the audit trails Programming device ABLOYÒ KEYCONTROL software with locking system data base 10. 9. 2020 48

ABLOY PROTEC CLIQ features Ò Flexible Easy extensions Ease of changes Costs Price/ door Economy/ Life cycle Stand alone Secure Easy to update Classified - mechanical Can not be copied Easy Installing – no wires Locking planning Usage 10. 9. 2020 49

Revolutionary ABLOY PROTEC CLIQ ® 10. 9. 2020 50

SAFETY AND SECURITY IN TRANSPORTATION ØSolution petroleum transportation for trucks with ØTop loading ØBottom loading ØSingle drops ØMultiple drops 10. 9. 2020 51

SAFETY AND SECURITY IN TRANSPORTATION ØTop manholes opened only if ØThe trucks are top loaded ØIn case of emercency (still electronic key is needed) ØNo need/ not allowed to open by retail outlet ØNo need to open at all if the truck is bottom loaded (maybe needed to be chacked at the depot sometimes? ) 10. 9. 2020 52

SAFETY AND SECURITY IN TRANSPORTATION ØLower valves Øopened for bottom load at the depot Øopened for delivery at the retail outlet Øneed to open at the depot in top loading case must be checked to be empty before new loading Øthere are different options in case of multiple drop if individuality is needed for each compartment 10. 9. 2020 53

SAFETY AND SECURITY IN TRANSPORTATION Conctruction of the system ØComponents for trucks Ø 1 ABLOY® SMARTBOX/ truck including Ø 1 electronic key catch + 2 electronic keys (1 for depot, 1 for retail outlet) Ø 2 mechanical key catches + 2 mechanical keys attached into the key catches in the SMARTBOX Ø Key for the top manhole locks is sealed and can be seen if the seal has been broken as allowed to be used only in case of emergency Ø Key for delivery valves can be used normally by introduction of the electronic key 10. 9. 2020 54

ABLOY® SMARTBOX Electronic ABLOY® key catch ABLOY SMARTBOX installation is secured with a lockable rail Service lock Sealed key for top manhole ABLOY® Key catch for delivery valve used in emergency only 10. 9. 2020 55

Components for the truck Sealed ABLOY® Padlocks to be operated only under emergency (bottom loaded truck) ABLOY® SMARTBOX is palced in dreiver’s cabin ABLOY® SMARTBOX housing holds the mechanical keys that can be released only on depositing the electronic key ABLOY® Padlocks securing delivery valves. 10. 9. 2020 56

SAFETY AND SECURITY IN TRANSPORTATION ØFAQ ØCan one truck use multiple depots – yes inside one MK system ØCan one truck drop to multiple RO – yes inside one MK system ØWhat is the difference between the truck specific locks and nontruck specific locks – truck specific locks are allways opereated with the truck dedicated ABLOY® SMARTBOX. Non-truck specific locks can be operated by the keys of any ABLOY® SMARTBOX in the same system ØCan the trucks use multiple depots/RO belonging to separate MK systems – yes while multiple boxes are used/ truck ØCan the compartments be locked individually for multiple drops – yes while the compartment locks are keyed to differ and used with respective ABLOY® SMARTBOX dedicated for the compartment ØCustomisation 10. 9. 2020 57

ABLOY® – UNIQUE FEATURES AND BENEFITS Superior resistance against corrosion Reliable function in all conditions Excellent resistance against physical attack Virtually pickproof Bump proof Best possible resistance to non-forced entry Huge number of key combinations Easy maintenance Long lasting Free choice of key system A model for every purpose 10. 9. 2020 58

ABLOY® – UNIQUE FEATURES AND BENEFITS Patented security Minimal key wear Combination scrambling Authorised key duplication for maximum key security Superior master-keying features Keyed alike Unique design Tested World-wide security 10. 9. 2020 59

SAFETY AND SECURITY IN TRANSPORTATION ØABLOY offers ØGlobal footprint ØLocal service & support ØConsultation ØProven expertise amongst PEU and industrial High Security & High Quality Locking Solutions ØContinuous development ØFlexibility in solutions ØExcellent Master Keying possibilities 10. 9. 2020 60

Thank you for your attention! Additional information available from Website: http: //www. netvu-systems. com/Abloy-Protec-Cliq. html, Email: info@netvu-systems. com 10. 9. 2020 61
