ABLOY PADLOCKS PADLOCKS ABLOY Padlocks range meets and
ABLOY PADLOCKS

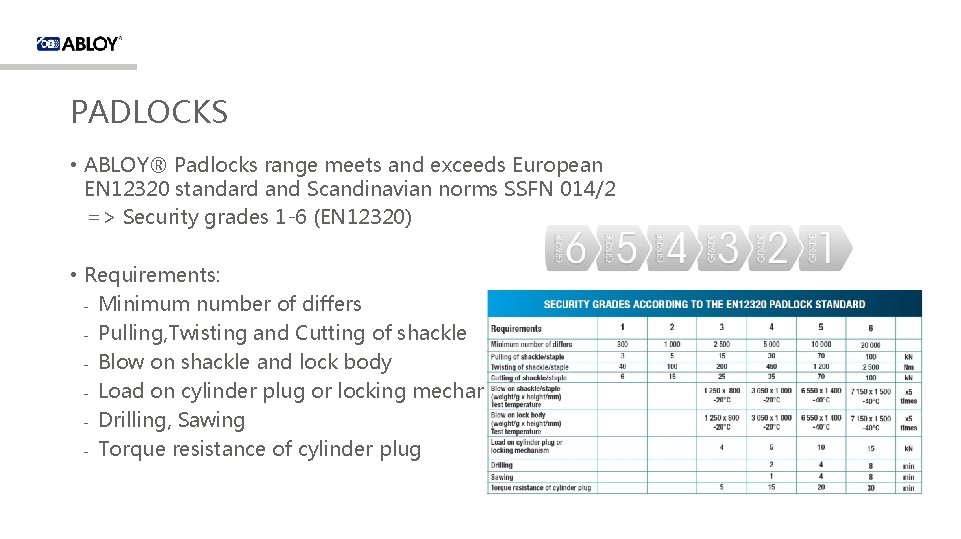

PADLOCKS • ABLOY® Padlocks range meets and exceeds European EN 12320 standard and Scandinavian norms SSFN 014/2 => Security grades 1 -6 (EN 12320) • Requirements: - Minimum number of differs - Pulling, Twisting and Cutting of shackle - Blow on shackle and lock body - Load on cylinder plug or locking mechanism - Drilling, Sawing - Torque resistance of cylinder plug

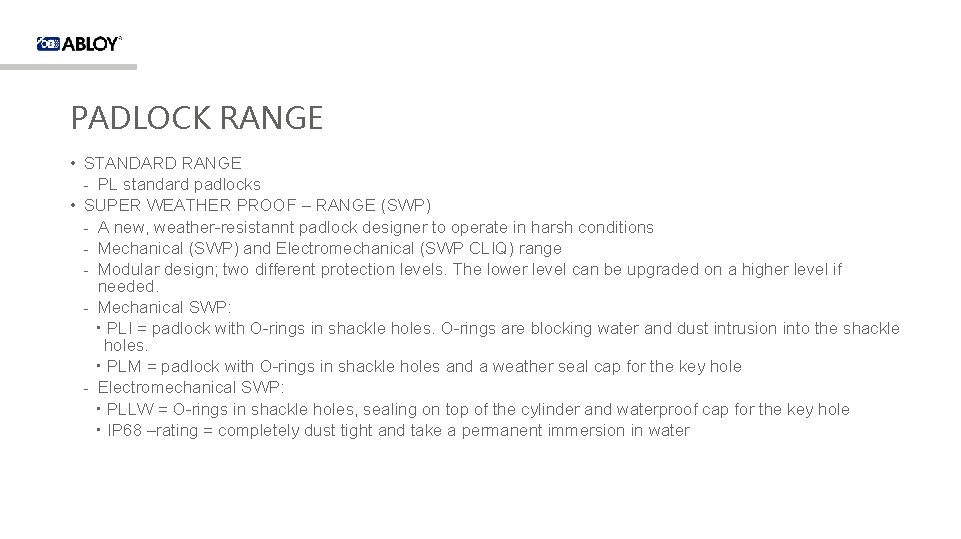

PADLOCK RANGE • STANDARD RANGE - PL standard padlocks • SUPER WEATHER PROOF – RANGE (SWP) - A new, weather-resistannt padlock designer to operate in harsh conditions - Mechanical (SWP) and Electromechanical (SWP CLIQ) range - Modular design; two different protection levels. The lower level can be upgraded on a higher level if needed. - Mechanical SWP: ・PLI = padlock with O-rings in shackle holes. O-rings are blocking water and dust intrusion into the shackle holes. ・PLM = padlock with O-rings in shackle holes and a weather seal cap for the key hole - Electromechanical SWP: ・PLLW = O-rings in shackle holes, sealing on top of the cylinder and waterproof cap for the key hole ・IP 68 –rating = completely dust tight and take a permanent immersion in water
PL RANGE – STEEL PADLOCKS Product number Number of discs Cylinder type Security grade EN PL 362 PL 342 11 11 B, N, T C, B, N, T 6 4 PL 350/50 11 C, B, N, T 5 PL 358 11 B, N, T Not tested PL 340/50 11 C, B, N, T 4 ABLOY CLASSIC = C, ABLOY SENTRY = B, ABLOY PROTEC = N, ABLOY PROTEC 2 = T Steel body with raised shoulders and top loaded cylinder Removable shackle, top loaded cylinder
PL RANGE – BRASS PADLOCKS Product number Number of discs Cylinder type Security grade EN PL 341/50 11 C, B, N, T 3 PL 330/50 PL 330/100 11 C, B, N, T 3 PL 321/50 11 B, N Not tested PL 320/50 9 C 2 Not tested Available also 25 mm brass shackle and steel shackle on all shackle length Can not master key with Construction Locking products ABLOY CLASSIC = C, ABLOY SENTRY = B, ABLOY PROTEC = N, ABLOY PROTEC 2 = T
PL RANGE – BRASS PADLOCKS Product number Number of discs Cylinder type Security grade EN 3020 3021 11 11 C 2 Not tested Shackle 35 mm Shackle 76 mm PL 318 9 C Not tested Can not master key with Construction Locking products ABLOY CLASSIC = C
SWP RANGE - MECHANICAL Product number Number of discs Cylinder type Security grade EN PLM 350 PLI 350 11 B, T 5 25 mm and 50 mm shackle lengths PLM 340 PLI 340 11 B, T 4 25 mm and 50 mm shackle lengths PLM 330 PLI 330 11 B, T 3 25 mm and 50 mm shackle lengths ABLOY SENTRY = B, ABLOY PROTEC 2 = T PLI = O-rings in shackle holes PLM = O-rings in shackle holes and weather seal cap on the key way
STRUCTURE OF PLI / PLM O-rings in shackle holes Weather seal cap on the key way
12. 3. 2021 WWW. ABLOY. COM An ASSA ABLOY Group brand
