Abdominal wall hernias Abdominal wall hernia Hernia is

Abdominal wall hernias

Abdominal wall hernia • Hernia is an abnormal protrusion of the whole or a part of viscus through an opening in the wall of the cavity. • Types: – External – Internal

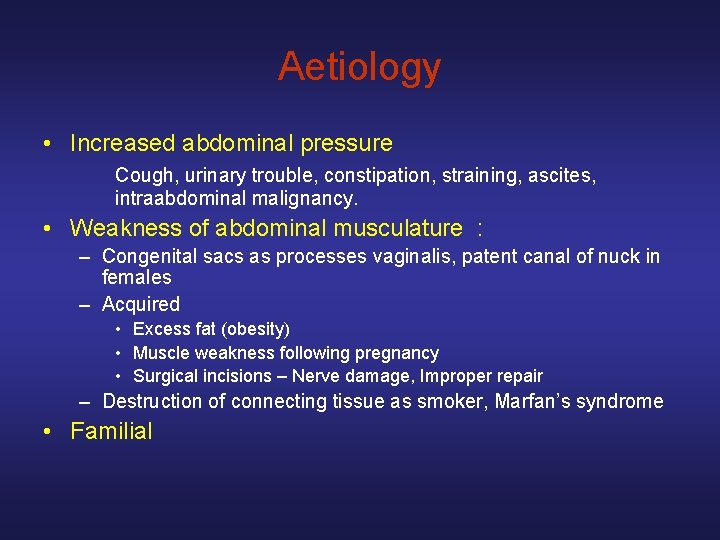

Aetiology • Increased abdominal pressure Cough, urinary trouble, constipation, straining, ascites, intraabdominal malignancy. • Weakness of abdominal musculature : – Congenital sacs as processes vaginalis, patent canal of nuck in females – Acquired • Excess fat (obesity) • Muscle weakness following pregnancy • Surgical incisions – Nerve damage, Improper repair – Destruction of connecting tissue as smoker, Marfan’s syndrome • Familial

INTRODUCTION high insertion of the internal oblique muscle widening of the internal inguinal ring persistency of the vaginal peritoneum conduct anatomical abnormalities + intra-abdominal pressure ETIOPATHOGENY Rev Col Bras Cir 1976; 3(2): 66 -80. Clin North Am 1998; 78: 953 -72.

INTRODUCTION COLLAGEN proportion HERNIOGENESE FASCIA TRANSVERSALIS COLLAGEN quantity COLLAGEN type I and III deficiency Ann Surg 1993; 218: 754 -60. Eur J Clin Invest 1997; 27: 863 -8.

Parts of the hernia 3 parts • Sac • Contents • Covering of sac mouth neck Body Fundus

Contents • • • Omentum - Omentocoel / epiplocele Intestine Enterocoel Bladder Cystocoel Part of Intestine Richter’s W type intestine Maydl’s Hernia Meckel’s diverticulum Littre’s hernia

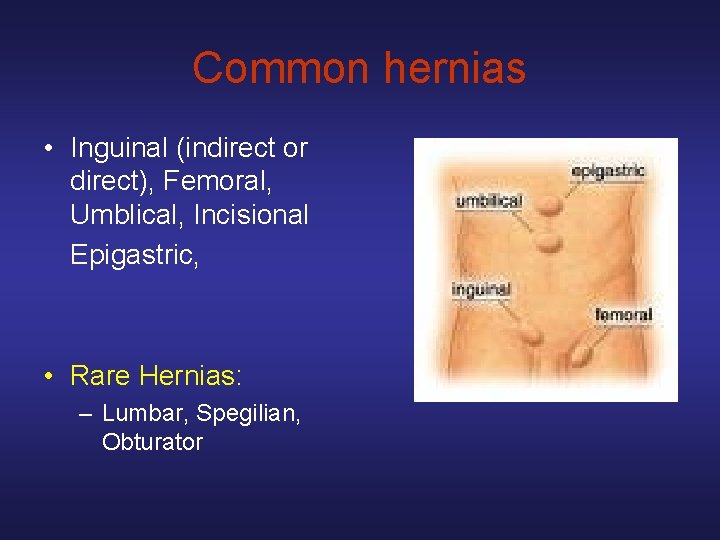

Common hernias • Inguinal (indirect or direct), Femoral, Umblical, Incisional Epigastric, • Rare Hernias: – Lumbar, Spegilian, Obturator

Hernia sites

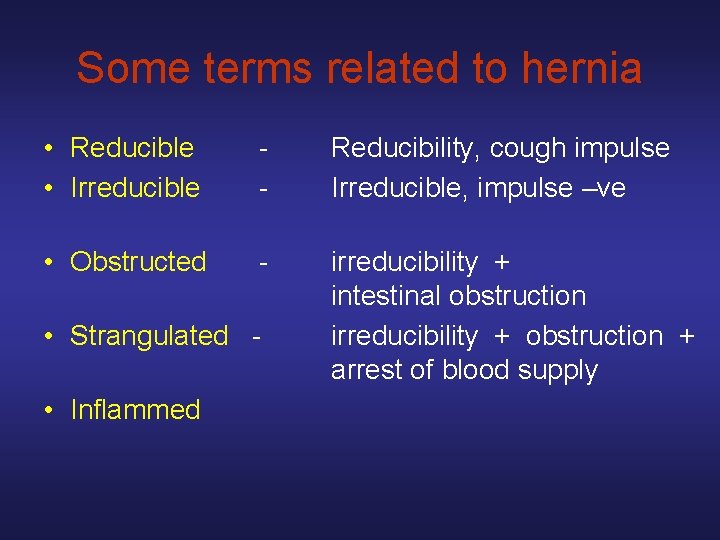

Some terms related to hernia • Reducible • Irreducible - Reducibility, cough impulse Irreducible, impulse –ve • Obstructed - irreducibility + intestinal obstruction irreducibility + obstruction + arrest of blood supply • Strangulated • Inflammed

Causes of irreducibility • • adhesions of content to each other adhesions of content with the sac adhesions of one part of sac to other part narrowed neck of sac

INGUINAL HERNIA

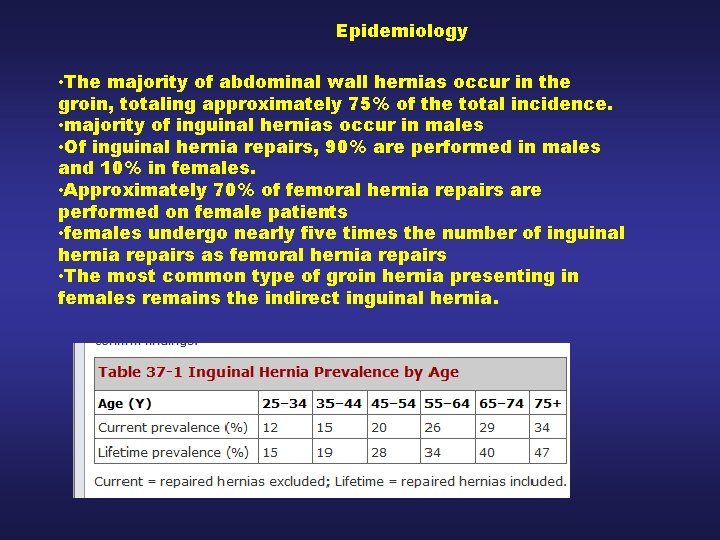

Epidemiology • The majority of abdominal wall hernias occur in the groin, totaling approximately 75% of the total incidence. • majority of inguinal hernias occur in males • Of inguinal hernia repairs, 90% are performed in males and 10% in females. • Approximately 70% of femoral hernia repairs are performed on female patients • females undergo nearly five times the number of inguinal hernia repairs as femoral hernia repairs • The most common type of groin hernia presenting in females remains the indirect inguinal hernia.

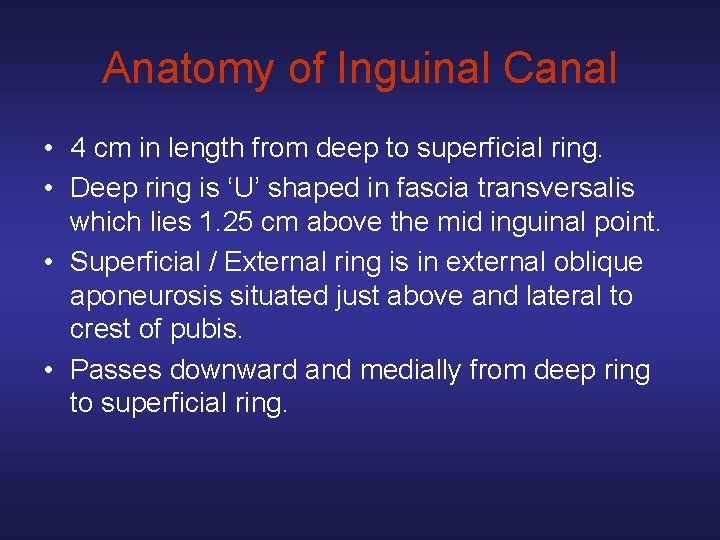

Anatomy of Inguinal Canal • 4 cm in length from deep to superficial ring. • Deep ring is ‘U’ shaped in fascia transversalis which lies 1. 25 cm above the mid inguinal point. • Superficial / External ring is in external oblique aponeurosis situated just above and lateral to crest of pubis. • Passes downward and medially from deep ring to superficial ring.

Anatomy of inguinal canal Boundaries of inguinal canal • Ant : External oblique aponeurosis and few fibres of internal oblique laterally • Post : Fascia transversalis and conjoined tendon • Superior : Arched fibres of conjoined tendon • Inferior : Inguinal ligament

Anatomy Contents of inguinal canal • Spermatic cord, ilioinguinal nerve, genital br. of genitofemoral nerve. • Round ligament in females. • Vestigial remnant of processes vaginalis.

HASSELBACH TRIANGLE inferior epigastric vessels abdominal rectus muscle Hasselbach triangle inguinal ligament internal inguinal ring

INGUINAL HERNIA • Types: – Indirect – Direct – Combined (Pantaloon)

Classification

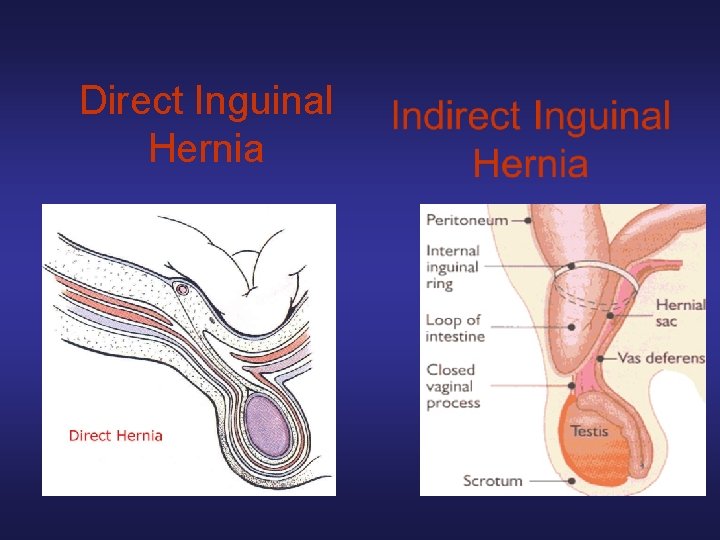

Direct Inguinal Hernia

Clinical Features • Swelling • Dragging pain • Features of complication • H/o increased abdominal pressure • Symptomless discovered accidentally

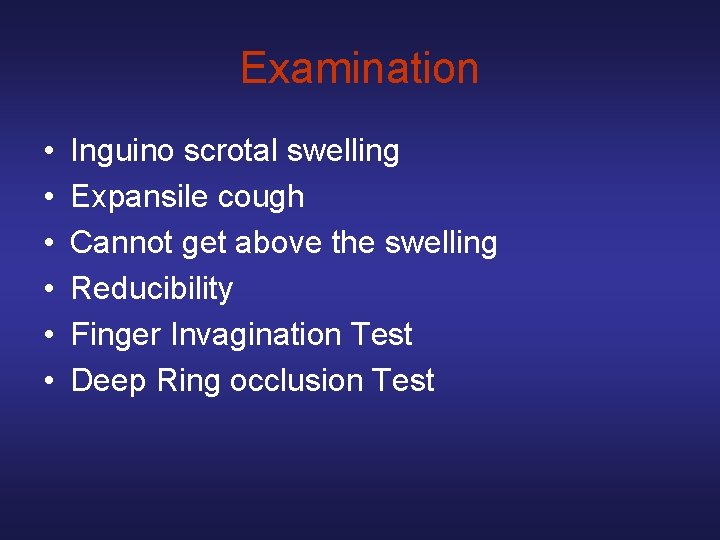

Examination • • • Inguino scrotal swelling Expansile cough Cannot get above the swelling Reducibility Finger Invagination Test Deep Ring occlusion Test

Inguinal hernia External ring test (finger Invagination test)

Enterocoel vs. Omentocoel • • • Visible peristalsis Consistency Reduction of contents Percussion Note Bowel sounds

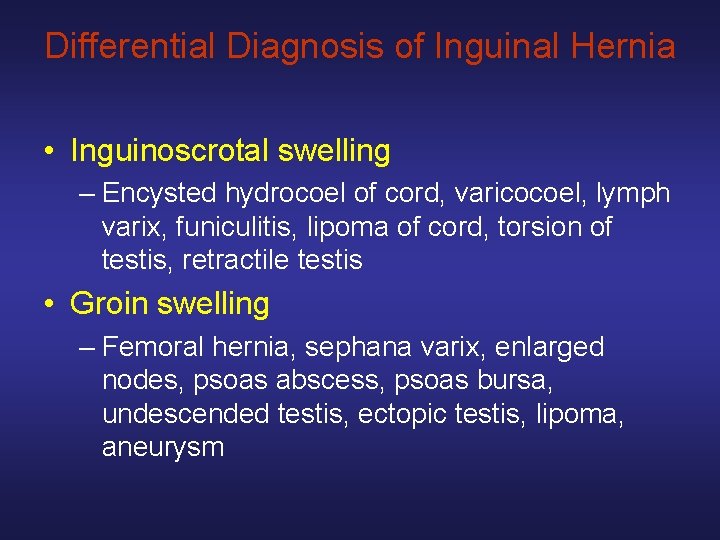

Differential Diagnosis of Inguinal Hernia • Inguinoscrotal swelling – Encysted hydrocoel of cord, varicocoel, lymph varix, funiculitis, lipoma of cord, torsion of testis, retractile testis • Groin swelling – Femoral hernia, sephana varix, enlarged nodes, psoas abscess, psoas bursa, undescended testis, ectopic testis, lipoma, aneurysm

Diagnosis • History • Physical Examination • Imaging (US, CT, Herniography)

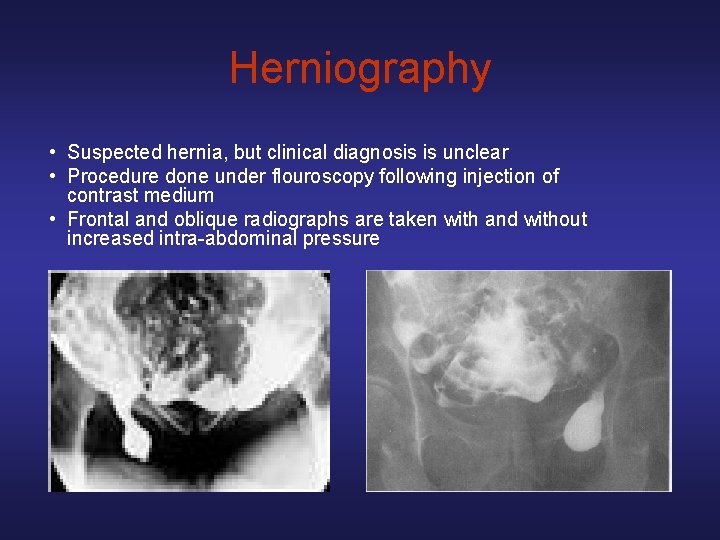

Herniography • Suspected hernia, but clinical diagnosis is unclear • Procedure done under flouroscopy following injection of contrast medium • Frontal and oblique radiographs are taken with and without increased intra-abdominal pressure

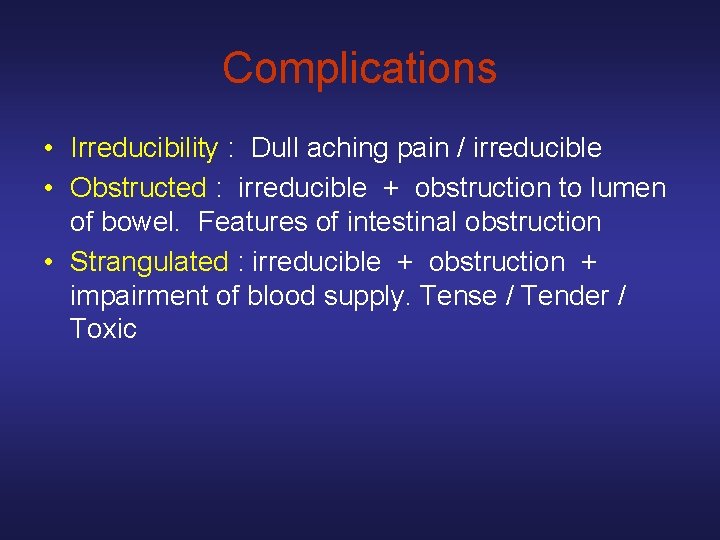

Complications • Irreducibility : Dull aching pain / irreducible • Obstructed : irreducible + obstruction to lumen of bowel. Features of intestinal obstruction • Strangulated : irreducible + obstruction + impairment of blood supply. Tense / Tender / Toxic

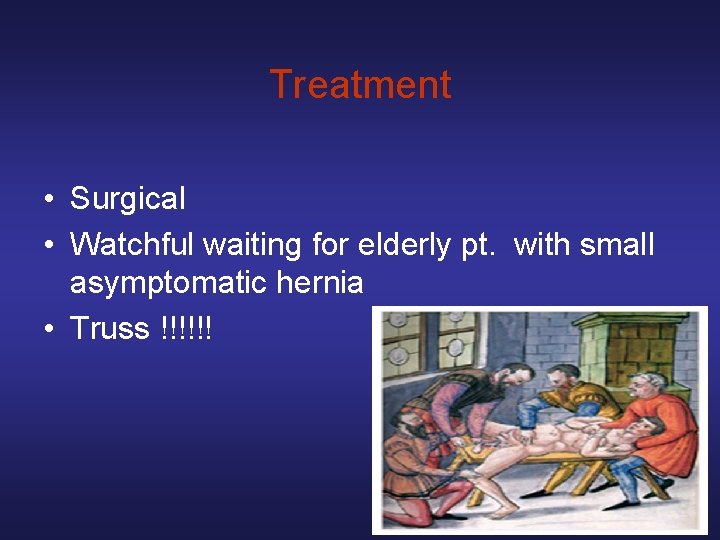

Treatment • Surgical • Watchful waiting for elderly pt. with small asymptomatic hernia • Truss !!!!!!

Surgery • Herniotomy: Excision of hernia sac, sufficient in children • Herniorrhaphy: – – Bassini’s Repair Shouldice Repair Mc Vay Preperitoneal • Hernioplasty : Lichtenstein, Mesh graft application Laparoscopic Repair – TEP / TAPP

Bassini’s repair Bassini (early 20 th Century) Transversus abdominis and internal oblique musculoaponeurotic arches or conjoined tendon to the inguinal ligament EDUARDO BASSINI

Shouldice repair Shouldice (1930 s) Multilayer imbricated repair of the posterior wall of the inguinal canal

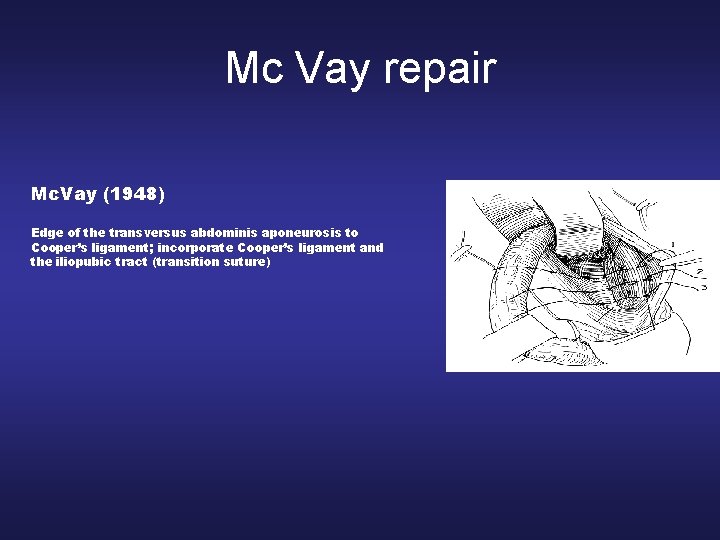

Mc Vay repair Mc. Vay (1948) Edge of the transversus abdominis aponeurosis to Cooper’s ligament; incorporate Cooper’s ligament and the iliopubic tract (transition suture)

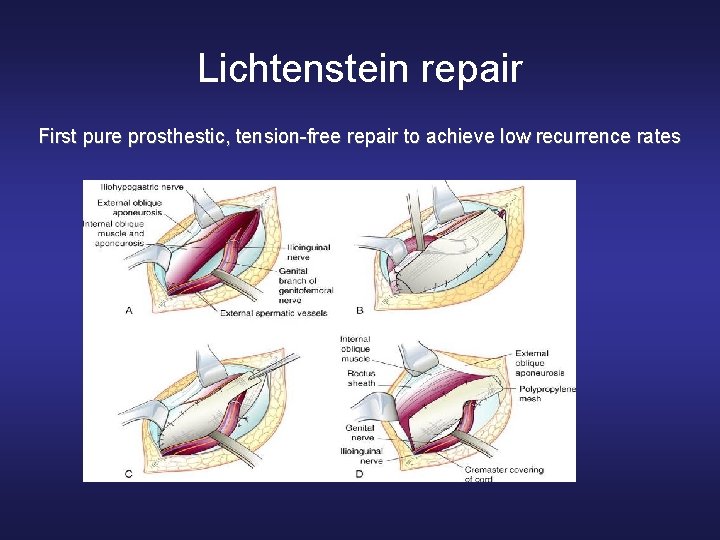

Lichtenstein repair First pure prosthestic, tension-free repair to achieve low recurrence rates

Types of Prosthesis • Polypropylene mesh most common and preferred – allows for a fibrotic reaction to occur between the inguinal floor and the posterior surface of the mesh, thereby forming scar and strengthening the closure of the hernia defect • Polytetrafluoroethylene (PTFE) mesh – often used for repair of ventral or incision hernias in which the fibrotic reaction with the underlying serosal surface of the bowel is best avoided

Hernia mesh

Laparoscopic repair

Conservative treatment Trusses can provide symptomatic relief

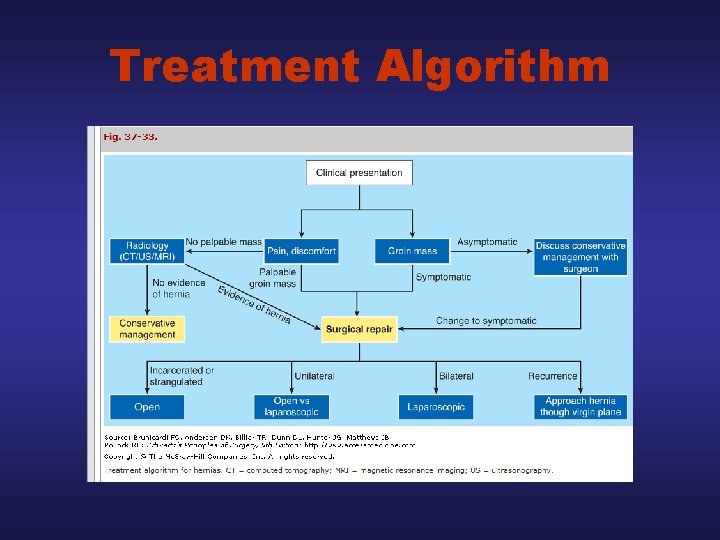

Treatment Algorithm

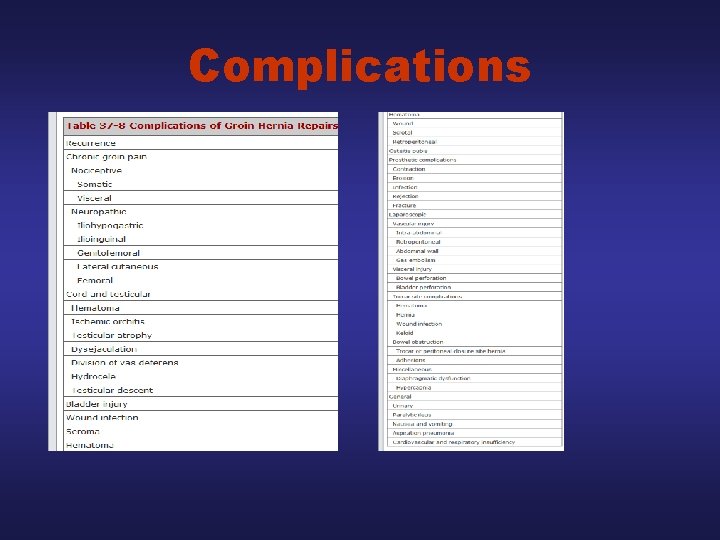

Complications

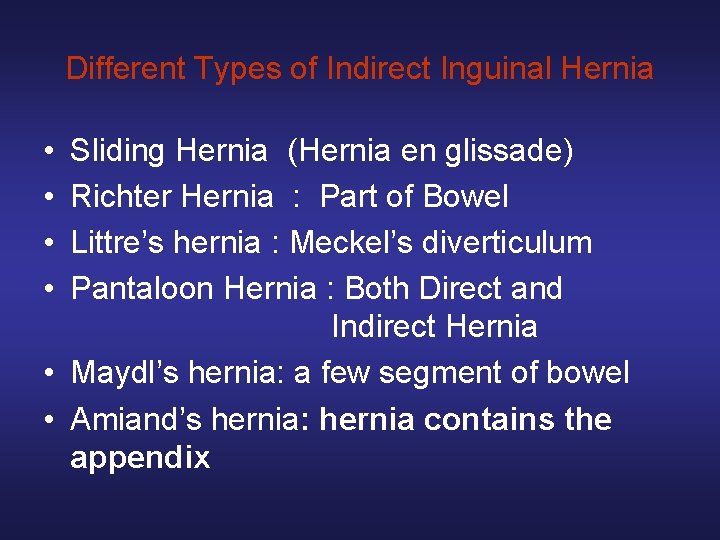

Different Types of Indirect Inguinal Hernia • • Sliding Hernia (Hernia en glissade) Richter Hernia : Part of Bowel Littre’s hernia : Meckel’s diverticulum Pantaloon Hernia : Both Direct and Indirect Hernia • Maydl’s hernia: a few segment of bowel • Amiand’s hernia: hernia contains the appendix

Spigelian Hernias • Lateral ventral hernia – Junction of vertical semilunar line and horizontal semicircular line (arcuate line) • This rare hernia occurs along the edge of the rectus abdominus muscle, which is several inches to the side of the middle of the abdomen. • 90% located 0 - 6 cm above anterior superior iliac spine – Sharp pain, swelling, easily reducible – 20% present with incarceration – median age = 50 years – more common in males and on (R) – Rare • PE – Difficult to diagnose – U/S or CT can aid in diagnosis Treatment: – Repair primarily or with mesh

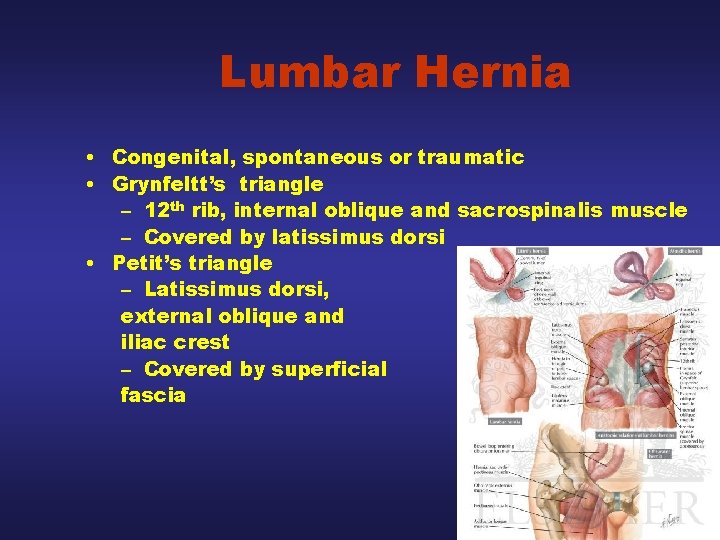

Lumbar Hernia • Congenital, spontaneous or traumatic • Grynfeltt’s triangle – 12 th rib, internal oblique and sacrospinalis muscle – Covered by latissimus dorsi • Petit’s triangle – Latissimus dorsi, external oblique and iliac crest – Covered by superficial fascia

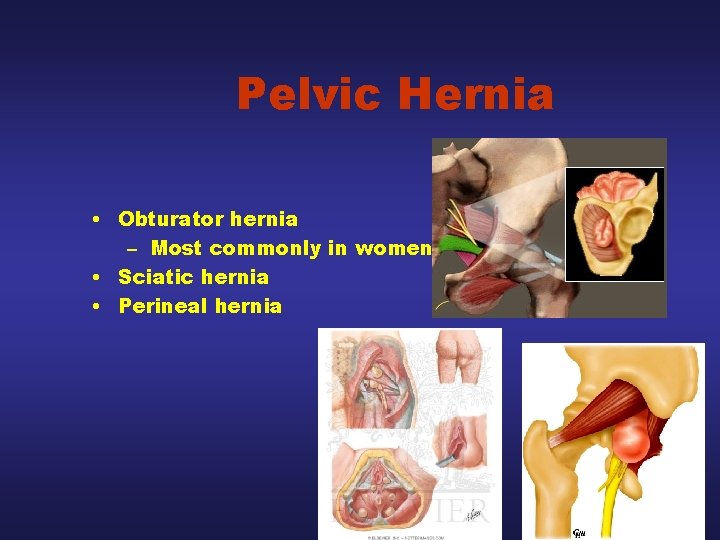

Pelvic Hernia • Obturator hernia – Most commonly in women • Sciatic hernia • Perineal hernia

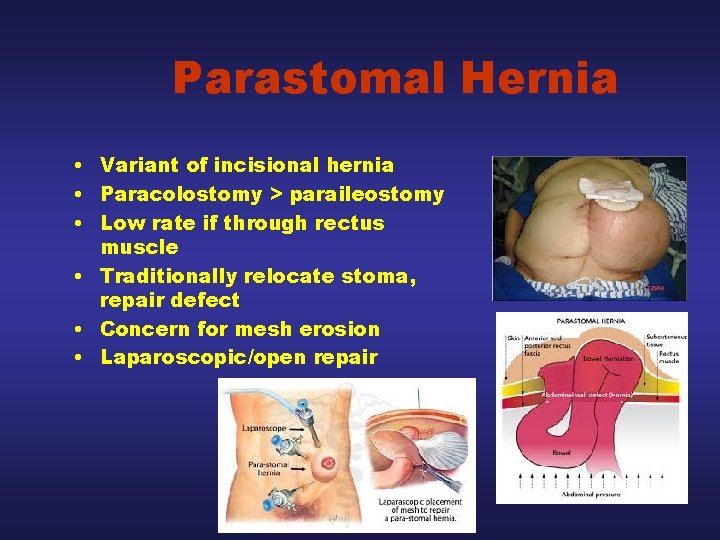

Parastomal Hernia • Variant of incisional hernia • Paracolostomy > paraileostomy • Low rate if through rectus muscle • Traditionally relocate stoma, repair defect • Concern for mesh erosion • Laparoscopic/open repair

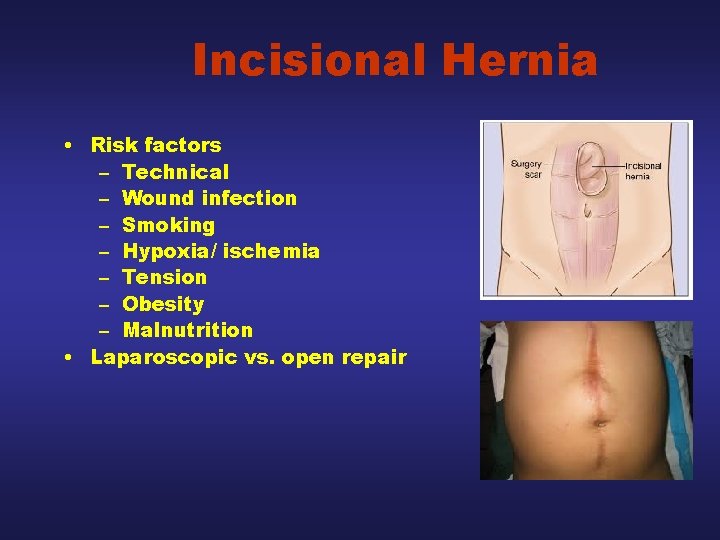

Incisional Hernia • Risk factors – Technical – Wound infection – Smoking – Hypoxia/ ischemia – Tension – Obesity – Malnutrition • Laparoscopic vs. open repair

Epigastric Hernia • Incidence 1 -5% • Men> women • Pre-peritoneal fat protrusion through decussating fibers at linea alba • Between xiphoid and umbilicus • 20% multiple • Repair primarily

Femoral Hernia

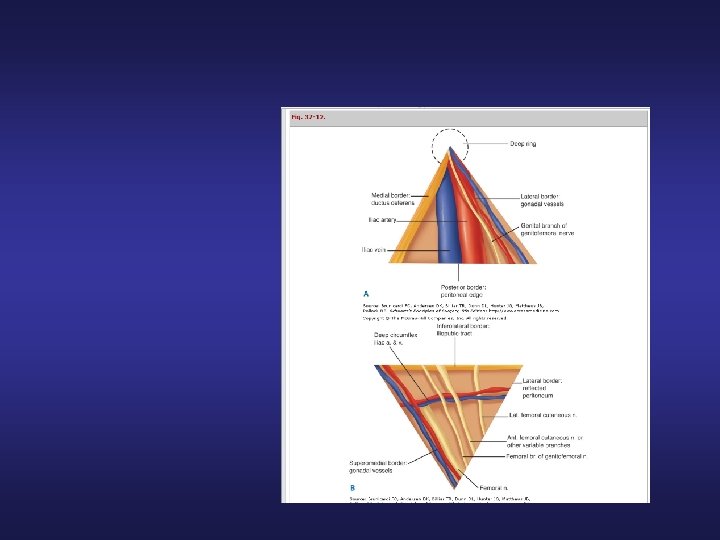

Anatomy of femoral triangle Anatomy of Femoral Canal • • • Closed above by femoral septum and on lower side – cribriform fascia Most medial compartment of femoral sheath Extends from femoral ring to sephanous opening below 1. 25 cm long and 1. 25 cm wide at base Contents : fat, lymphatic, lymph node of Cloquet Oval opening ½” in diameter bounded Anteriorly Inguinal ligament Posteriorly. Iliopectineal ligament, pubic bone and fascia over pectineus muscle Medially Lacunar ligament Laterally Septum separating form femoral vein

Femoral Hernia • Clinical features : More in females, age >50, Rt. Side 70%, bilateral 20% • Covering of femoral hernia : – Skin, superficial fascia, cribriform fascia, anterior layer of femoral sheath, fatty contents of femoral canal, femoral septum, peritoneum

Differential diagnosis of Femoral Hernia • Inguinal hernia, sephano varix, lymph • node, lipoma, Aneurysm, Psoas abscess, • psoas bursa, Ruptured adductor longus

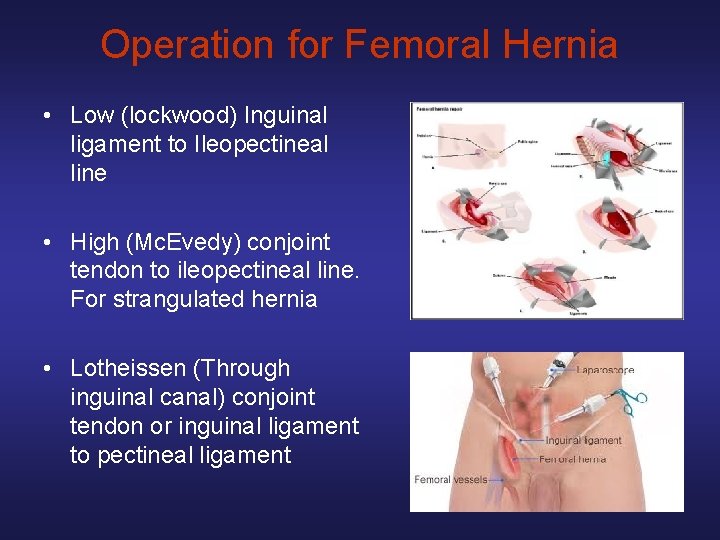

Operation for Femoral Hernia • Low (lockwood) Inguinal ligament to Ileopectineal line • High (Mc. Evedy) conjoint tendon to ileopectineal line. For strangulated hernia • Lotheissen (Through inguinal canal) conjoint tendon or inguinal ligament to pectineal ligament

Umbilical Hernia

Umbilical Hernia in adults • May be supraumbilical or infraumbilical. • Contents are usually omentum / small bowel / Transverse colon • Seldom reducible • C/F : Mostly in females, obesity, usually >40 years, flabby abdominal muscles, repeated pregnancy • Pain, swelling, GI symptoms • Treatment : Surgery (Reduction of wt. ) – Mayo’s op. Transverse elliptical incision. Double breasting of linea alba.

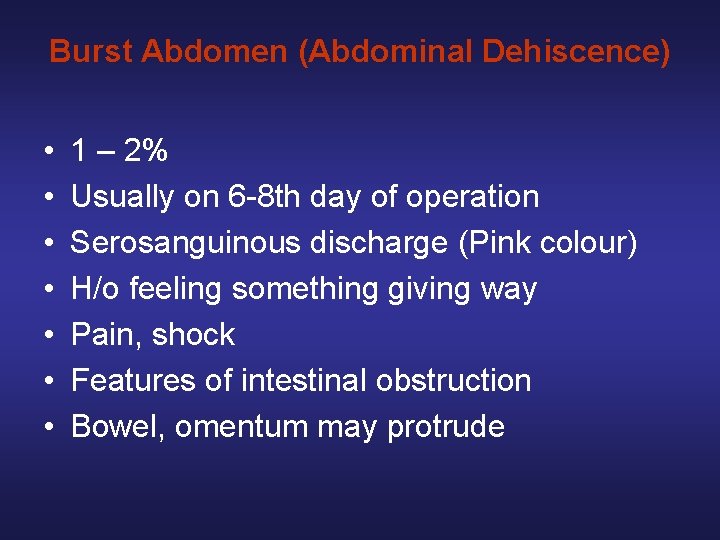

Burst Abdomen (Abdominal Dehiscence) • • 1 – 2% Usually on 6 -8 th day of operation Serosanguinous discharge (Pink colour) H/o feeling something giving way Pain, shock Features of intestinal obstruction Bowel, omentum may protrude

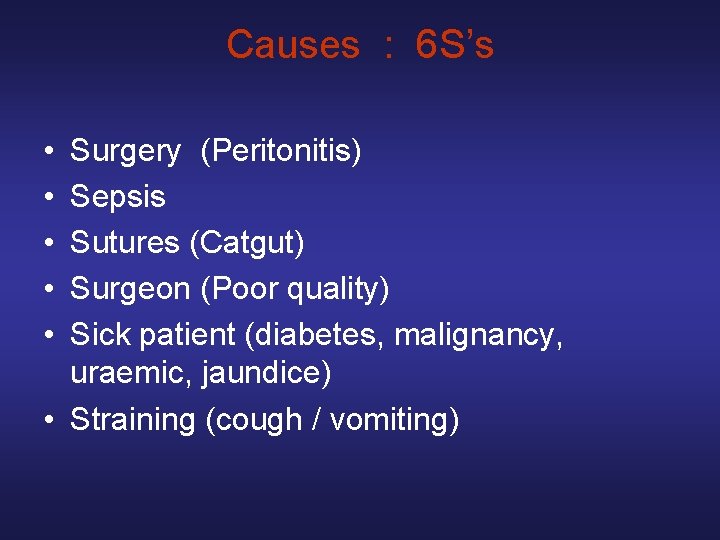

Causes : 6 S’s • • • Surgery (Peritonitis) Sepsis Sutures (Catgut) Surgeon (Poor quality) Sick patient (diabetes, malignancy, uraemic, jaundice) • Straining (cough / vomiting)

Take Home Points • Hernias can involve the small bowel, appendix, a Meckel’s diverticulum, ureter • Incarceration with frank pain or strangulation are operative emergencies and bowel can be saved if done within 4 -6 hours • An attempt at reduction should be made with a hernia, but operative reduction is the only definitive treatment • Femoral hernias have a high rate of incarceration and should be repaired, but other inguinal hernias may be watched if asymptomatic • With abdominal incisions, try not to put excessive tension or damage the suture in any way as it can promote incisional hernias
