Abbreviations

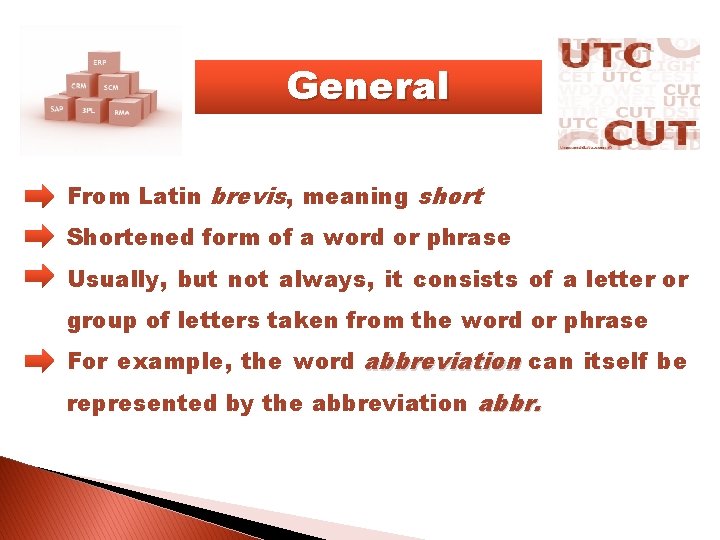

General From Latin brevis, meaning short Shortened form of a word or phrase Usually, but not always, it consists of a letter or group of letters taken from the word or phrase For example, the word abbreviation can itself be represented by the abbreviation abbr.

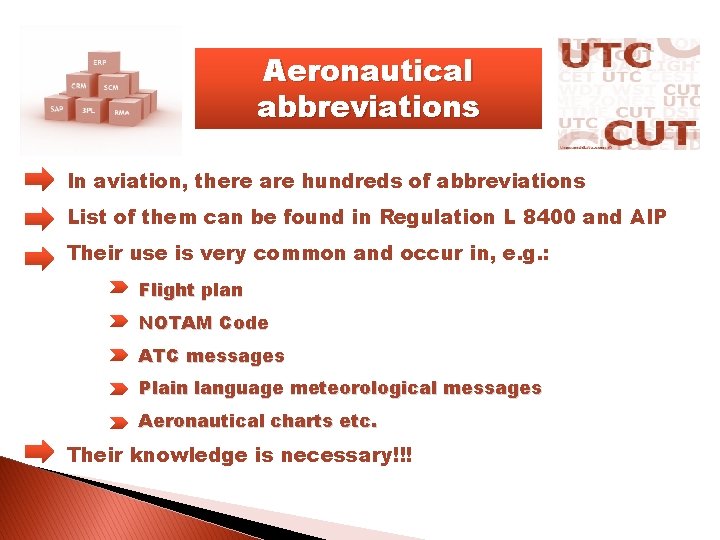

Aeronautical abbreviations In aviation, there are hundreds of abbreviations List of them can be found in Regulation L 8400 and AIP Their use is very common and occur in, e. g. : Flight plan NOTAM Code ATC messages Plain language meteorological messages Aeronautical charts etc. Their knowledge is necessary!!!

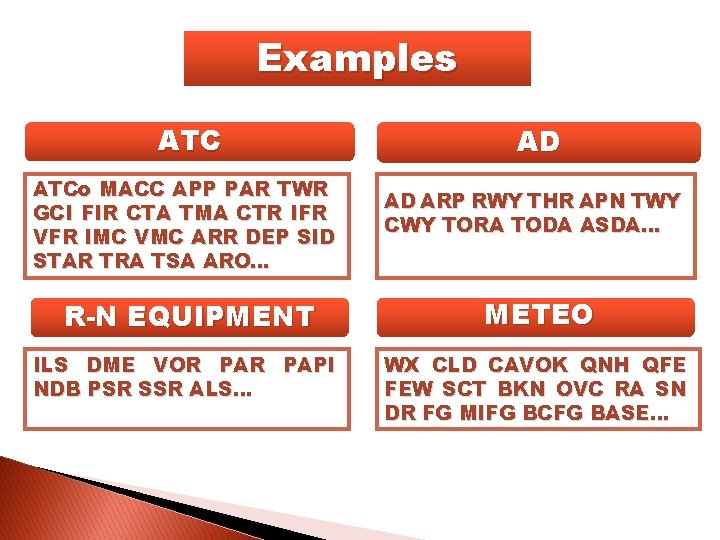

Examples ATCo MACC APP PAR TWR GCI FIR CTA TMA CTR IFR VFR IMC VMC ARR DEP SID STAR TRA TSA ARO… R-N EQUIPMENT ILS DME VOR PAPI NDB PSR SSR ALS… AD AD ARP RWY THR APN TWY CWY TORA TODA ASDA… METEO WX CLD CAVOK QNH QFE FEW SCT BKN OVC RA SN DR FG MIFG BCFG BASE…

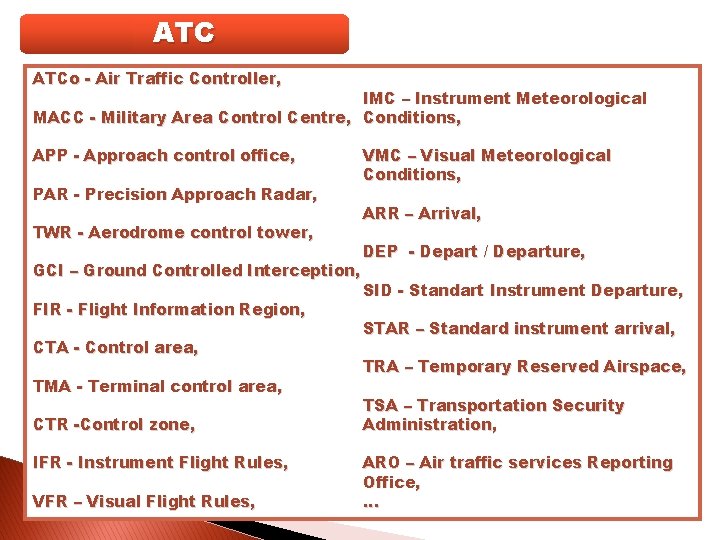

ATC ATCo - Air Traffic Controller, IMC – Instrument Meteorological MACC - Military Area Control Centre, Conditions, APP - Approach control office, PAR - Precision Approach Radar, TWR - Aerodrome control tower, GCI – Ground Controlled Interception, FIR - Flight Information Region, CTA - Control area, TMA - Terminal control area, CTR -Control zone, IFR - Instrument Flight Rules, VFR – Visual Flight Rules, VMC – Visual Meteorological Conditions, ARR – Arrival, DEP - Depart / Departure, SID - Standart Instrument Departure, STAR – Standard instrument arrival, TRA – Temporary Reserved Airspace, TSA – Transportation Security Administration, ARO – Air traffic services Reporting Office, …

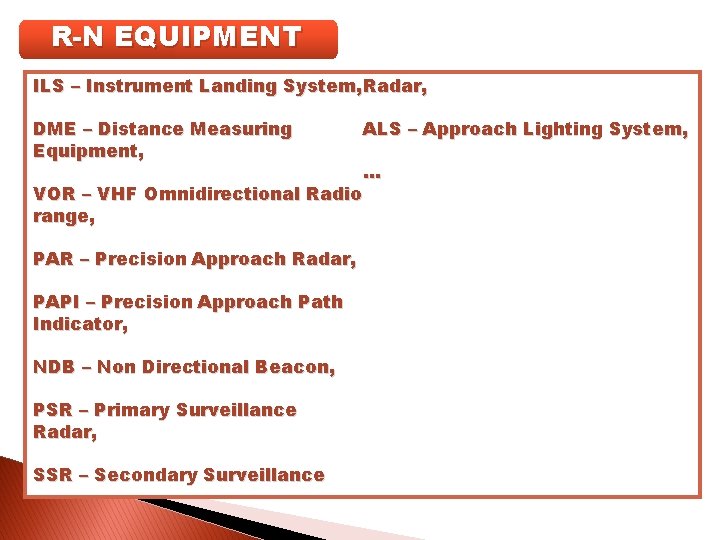

R-N EQUIPMENT ILS – Instrument Landing System, Radar, DME – Distance Measuring Equipment, ALS – Approach Lighting System, … VOR – VHF Omnidirectional Radio range, PAR – Precision Approach Radar, PAPI – Precision Approach Path Indicator, NDB – Non Directional Beacon, PSR – Primary Surveillance Radar, SSR – Secondary Surveillance

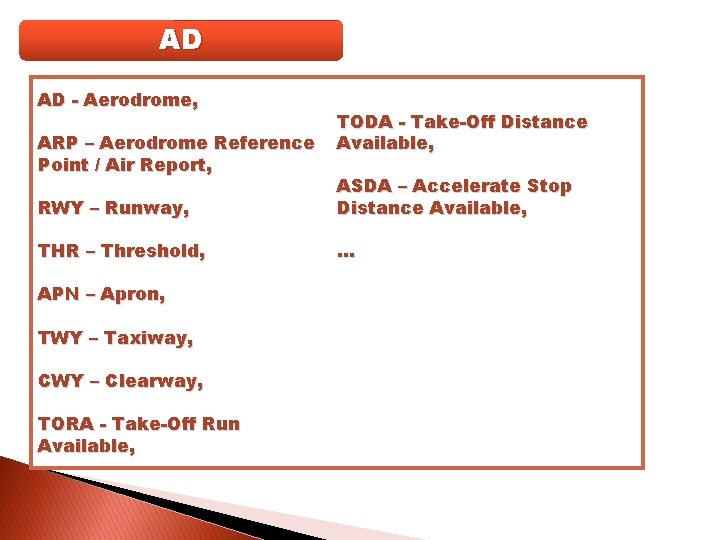

AD AD - Aerodrome, ARP – Aerodrome Reference Point / Air Report, TODA - Take-Off Distance Available, RWY – Runway, ASDA – Accelerate Stop Distance Available, THR – Threshold, … APN – Apron, TWY – Taxiway, CWY – Clearway, TORA - Take-Off Run Available,

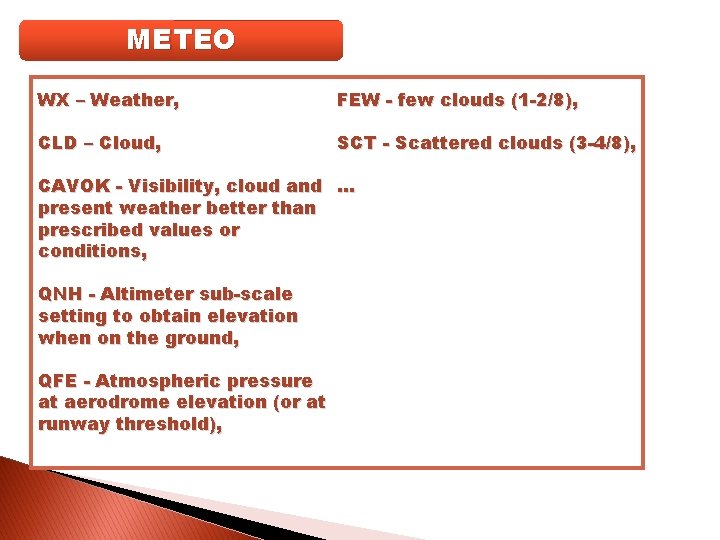

METEO WX – Weather, FEW - few clouds (1 -2/8), CLD – Cloud, SCT - Scattered clouds (3 -4/8), CAVOK - Visibility, cloud and … present weather better than prescribed values or conditions, QNH - Altimeter sub-scale setting to obtain elevation when on the ground, QFE - Atmospheric pressure at aerodrome elevation (or at runway threshold),

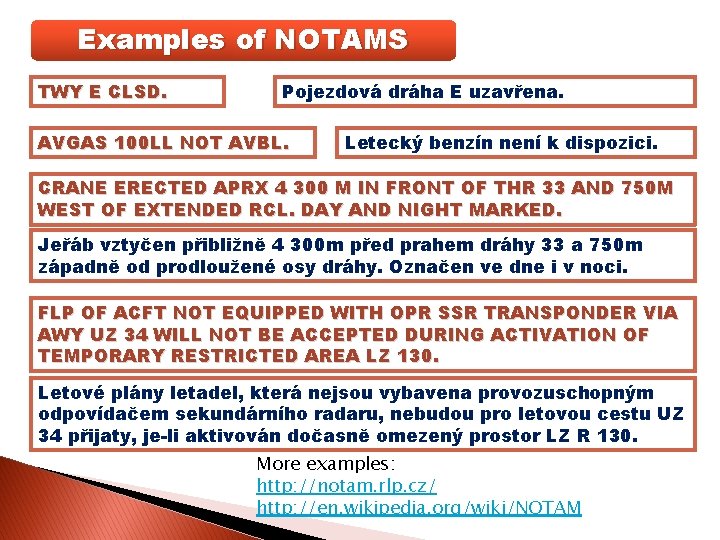

Examples of NOTAMS TWY E CLSD. Pojezdová dráha E uzavřena. AVGAS 100 LL NOT AVBL. Letecký benzín není k dispozici. CRANE ERECTED APRX 4 300 M IN FRONT OF THR 33 AND 750 M WEST OF EXTENDED RCL. DAY AND NIGHT MARKED. Jeřáb vztyčen přibližně 4 300 m před prahem dráhy 33 a 750 m západně od prodloužené osy dráhy. Označen ve dne i v noci. FLP OF ACFT NOT EQUIPPED WITH OPR SSR TRANSPONDER VIA AWY UZ 34 WILL NOT BE ACCEPTED DURING ACTIVATION OF TEMPORARY RESTRICTED AREA LZ 130. Letové plány letadel, která nejsou vybavena provozuschopným odpovídačem sekundárního radaru, nebudou pro letovou cestu UZ 34 přijaty, je-li aktivován dočasně omezený prostor LZ R 130. More examples: http: //notam. rlp. cz/ http: //en. wikipedia. org/wiki/NOTAM

Thank you!
