ABB Upstream Oil & Gas Solutions Chemical inventory management and control solution © ABB September 29, 2020 | Slide 1

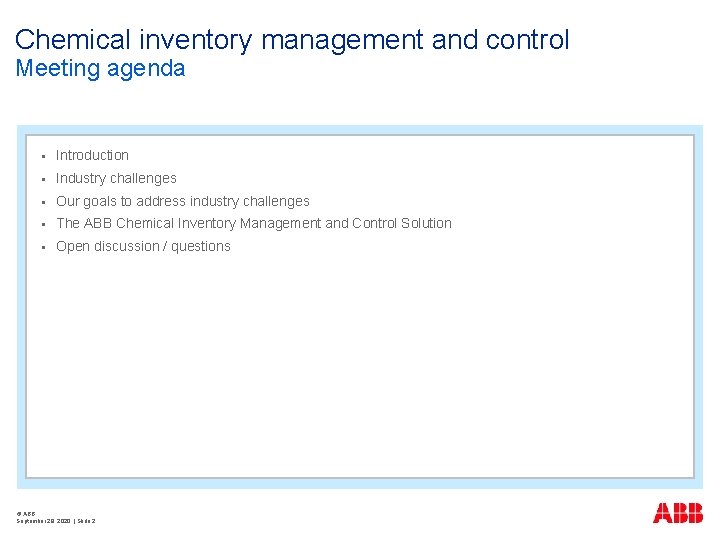

Chemical inventory management and control Meeting agenda § Introduction § Industry challenges § Our goals to address industry challenges § The ABB Chemical Inventory Management and Control Solution § Open discussion / questions © ABB September 29, 2020 | Slide 2

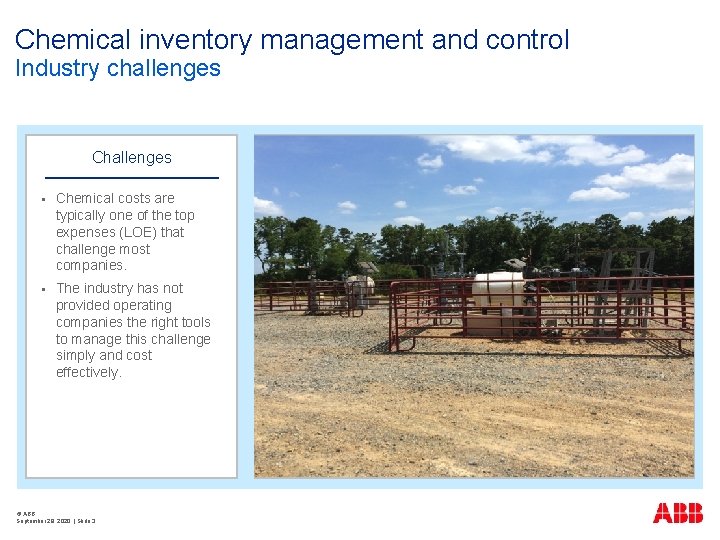

Chemical inventory management and control Industry challenges Challenges § Chemical costs are typically one of the top expenses (LOE) that challenge most companies. § The industry has not provided operating companies the right tools to manage this challenge simply and cost effectively. © ABB September 29, 2020 | Slide 3
Chemical inventory management and control Our goals towards addressing industry challenges § Our goal is to provide operating companies simple to use tools they need in order to be more efficient in day to day operation of managing and controlling their chemical inventory and usage. § A built for purpose system with options for expansion. § A system that optimizes production, integrity and safety. § Provide companies cost savings, operational efficiency and a return on investment through a solid collaborative automation approach. © ABB September 29, 2020 | Slide 4
Chemical inventory management and control The ABB Solution § Our solution is a purpose built modular management and control system designed to provide operational efficiency in chemical usage and inventory. § The value of this solution: - Designed install packages modular to fit any system - Multiple control schemes bridging a variety of chemical types - Real time inventory and meaningful alarms - Custom data retention and event logging for usage analysis © ABB September 29, 2020 | Slide 5
Solution modes of operations Manual mode Mode: Manual – Typical Use: More accurate than timer Flow rate: MCF/D Chem rate: Qts/D 900 40 850 38 36 800 34 750 32 700 30 Chem target 650 28 Flow rate 26 600 © ABB September 29, 2020 | Slide 6 24 550 22 500 20 0 3 0 0 0 7 8 9 10 11 12 13 14 15 16 17 18 19 20 01 2 4 05 6 0 0 0 0
Solution modes of operations Ascending mode (corrosives) Inject mode: Auto scale – Type: Ascending injection – Typical Use: Inhibitors Flow rate: MCF/D Chem rate: Qts/D Flow rate max: 1200 Chem rate max: 40 1500 45 1300 40 1100 35 tes ra asing Incre 900 700 500 300 Flow rate min: 600 Chem rate min: 20 © ABB September 29, 2020 | Slide 7 Lo flow target 25 Hi flow target 20 Flow rate 15 10 0 0 0 100 -100 30 0 0 0 5 0 Hi chem flow Low chem flow Chem rate
Solution modes of operations Descending mode (foamer) Inject mode: Auto scale – Type: Descending injection – Typical Use: Foamer agents Flow rate: MCF/D Chem rate: Qts/D 1400 Flow rate max: 1200 Chem rate max: 40 1200 1000 ing creas n i e t low ra 800 F Chem rate d ecrea s ing © ABB September 29, 2020 | Slide 8 44 42 Flow rate min: 600 Chem rate min: 20 40 200 0 48 46 600 400 50 0 0 0 0 0 38 Lo flow target Hi flow target Flow rate Hi chem flow Low chem flow Chem rate
Solution modes of operations Methanol mode Inject mode: Auto scale – Type: Methanol injection – Typical Use: Freeze off prevention Flow rate: MCF/D Chem rate: Qts/D 1400 Flow rate max: 1200 Chem rate max: 40 1200 1000 ing creas n i e t low ra 800 F Chem rate d ecrea s ing © ABB September 29, 2020 | Slide 9 44 42 Flow rate min: 600 Chem rate min: 20 40 200 0 48 46 600 400 50 0 0 0 0 0 38 Lo flow target Hi flow target Flow rate Hi chem flow Low chem flow Chem rate
