© ABB STOTZ-KONTAKT Gmb. H - Folie 1 Security Module, MDRC SCM/S 1. 1 n Provides alarm logic functions for EIB-installations n Controls - setting / unsetting - alarming - evaluation of alarm sensors n For small to medium buildings in the private and commercial sector n Universal handling concept with plain text messages n Relais output, LEDs and buzzer for direct signalling n MDRC device (2 modules) to be mounted in distribution panel
Security Module, MDRC SCM/S 1. 1 The Device floating relay contact, 6 A, freely programmable red LED: alarm yellow LED: set / unset © ABB STOTZ-KONTAKT Gmb. H - Folie 2 green LED: operation / fault push button and LED for programming the physical address bus connection terminal
Security Module, MDRC SCM/S 1. 1 © ABB STOTZ-KONTAKT Gmb. H - Folie 3 System Overview: Normal Mode
Security Module, MDRC SCM/S 1. 1 © ABB STOTZ-KONTAKT Gmb. H - Folie 4 System Overview: Master-Slave Mode More than 500 Zones possible!
Security Module, MDRC SCM/S 1. 1 Functions I: Supervision and Evaluation of Detectors © ABB STOTZ-KONTAKT Gmb. H - Folie 5 n 64 Detectors can be evaluated and distinguished: - Intrusion - Personal attack - Tamper / sabotage - Technical alarm - Fault / error n Cyclical surveillance of detector states is possible n Detectors can be deactivated n Interne und externe Scharfschaltung n Ein Scharfschaltbereich je Sicherheitsmodul
Security Module, MDRC SCM/S 1. 1 Functions II: Setting and Unsetting set internally © ABB STOTZ-KONTAKT Gmb. H - Folie 6 set externally n Also automatic setting (by time delay) is possible

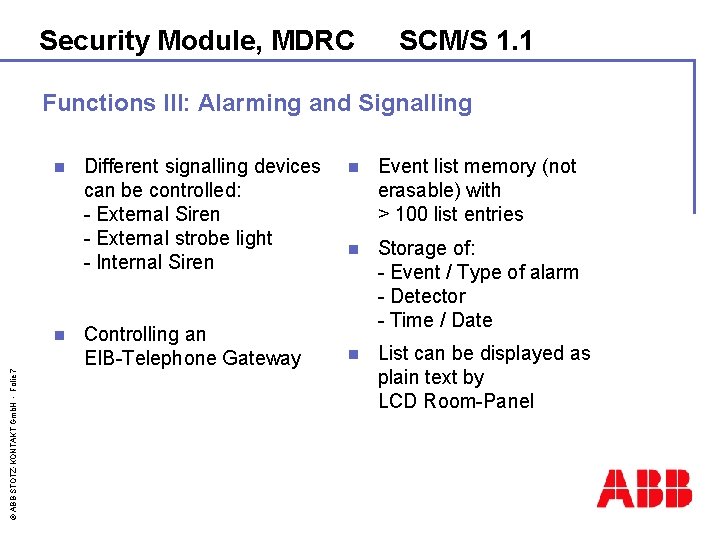

Security Module, MDRC SCM/S 1. 1 Functions III: Alarming and Signalling n © ABB STOTZ-KONTAKT Gmb. H - Folie 7 n Different signalling devices can be controlled: - External Siren - External strobe light - Internal Siren Controlling an EIB-Telephone Gateway n Event list memory (not erasable) with > 100 list entries n Storage of: - Event / Type of alarm - Detector - Time / Date n List can be displayed as plain text by LCD Room-Panel
Security Module, MDRC SCM/S 1. 1 Funktionen IV: Display of System Status © ABB STOTZ-KONTAKT Gmb. H - Folie 8 Sates displayed as 1 bit (yes/no); States also displayed as plain text: n Detector states n Setting state n Set/Unset n n Alarm Type of alarm, associated detector n Type of Alarm n n Fault Currently triggered detectors (list display) Event memory (list display) n Detectors switched off n n . . .
