ABB STOTZKONTAKT Gmb H ABB ibus KNX Room
ABB STOTZ-KONTAKT Gmb. H ABB i-bus® KNX Room Master, Basic, RM/S 1. 1 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 1
New Innovation Room Master § Innovation features § § © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 2 Room Scenarios § Recall with one group-address § All function in the room (e. g. lighting, fan coil, sockets and thermostat) are setting § Recall internal (e. g. binary inputs) § Recall external (e. g. reception) Device connection internal § between in- and outputs § without group-address
Second Step - Overview Room: Commands External commands from the Reception § Check In – Room occupied § Check Out – Room vacant § Standby – Room free for Servicing Device internal commands from the binary inputs § Keycard on the entrance § Emergency call in the bathroom Room internal commands (via bus) © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 3 § Sensor inputs switch device outputs § Change the operating mode of the Room Thermostat (RT) § Integration of further KNX-devices
Room Scenario Overview § Altogether 10 Room Scenario are configurable § § Room Scenario are grouped in pairs § Keycard move § Keycard remove Each Room Scenario § can be activated on receipt of an externally 1 byte telegram or device internally via a binary input § can control up to 7 communication objects § © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 4 these controls can be used to control the Room Master itself, external KNX-device in the room or in the building, e. g. the reception
Room Scenario (RS) Allocation (Default settings) § § § RS 3 Standby RS 4 Emergency Call § § § RS 7 free RS 8 free RS 9 free RS 10 free § RS 5 Keycard remove RS 6 Keycard move § All Room Scenario are freely configurable § © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 5 RS 1 Check In RS 2 Check Out
Room Scenario Overview: Events A Room Scenario consists of two control events § one can be sent immediately § other can be sent immediately or with a delay Per control event it can configured whether © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 6 § a KNX Scene is trigged internally or via the bus § two 1 bit values are sent § the Room Temperature is switched on/off § a certain operation mode in the Room Thermostat is set § the automatic function for the shutters is activated § the internal blocking of the inputs is activated
Room Scenario KNX Scene § § © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 7 On activation of a Room Scenario via a only KNX Scene This has clear advantages: § Simple integration of further sensors and actors in the room § Clear separation to other rooms by use of one “room-group address” § No unnecessary bus load by internal Room Scenario (internal used) § Flexible configuration of the functionality
Room Scenario How does it work? Consumer Fan Coil KNX Sensor Inputs Room Thermostat Reception © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 8 Commands - internal control - direct connection - via bus
Floor plan Complete § Hotel Room (1 ½ Room) TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 9
Check In – Room occupied Reception activates Room Scenario 1 § Sockets switch on § Room Thermostat change the operating mode to Comfort § specified inputs are blocked TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 10 Commands - internal control - direct connection - via bus
Check Out – Room vacant Reception activates Room scenario 2 § lights and sockets switch off complete § Room Thermostat change the operating mode to Standby § specified inputs are blocked TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 11 Commands - internal control - direct connection - via bus
Standby – Room free for Servicing Reception activates Room scenario 3 § lights and sockets switch off complete § Room Thermostat switch off and change the operating mode to Building protection TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 12 Commands - internal control - direct connection - via bus
Emergency call operates Emergency call activates Room scenario 4 § lights switch on complete § message to the reception TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 13 Commands - internal control - direct connection - via bus
Keycard remove Keycard activates room condition 5 § Complete lights switch off with a delay, sockets immediately § change Room Thermostat the operating mode to Building protection § specified inputs are blocked TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 14 Commands - internal control - direct connection - via bus
Keycard move Keycard activates room condition 6 § Complete lights and sockets switch on § Room Thermostat change the operating mode to Comfort § specified inputs are enable TV Content area © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 15 Commands - internal control - direct connection - via bus
Fan Coil-Unit Window Contact / Drip Tray © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 16 § connect window contact via group address to the Room Thermostat § connect drip tray via group address to the Room Thermostat Commands - internal control - direct connection - via bus

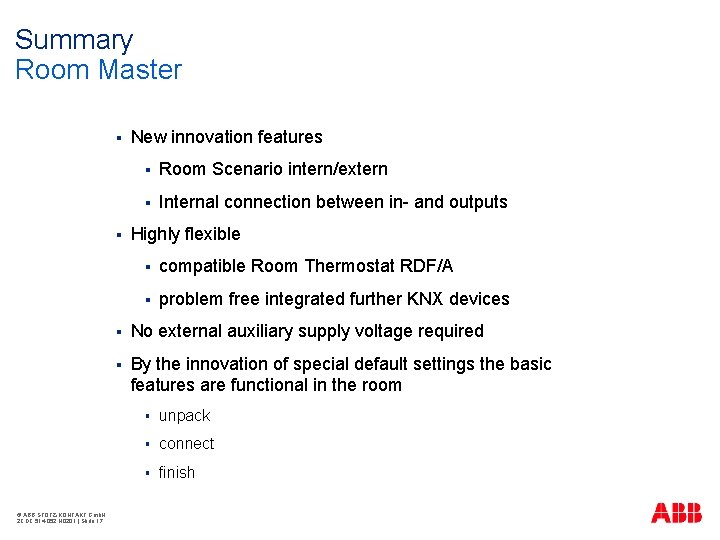

Summary Room Master § § © ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 17 New innovation features § Room Scenario intern/extern § Internal connection between in- and outputs Highly flexible § compatible Room Thermostat RDF/A § problem free integrated further KNX devices § No external auxiliary supply voltage required § By the innovation of special default settings the basic features are functional in the room § unpack § connect § finish
© ABB STOTZ-KONTAKT Gmb. H 2 CDC 514 052 N 0201 | Slide 18
