ABB standard drive Enhanced ACS 550 ACS 550
ABB standard drive Enhanced ACS 550
ACS 550, Standard Drive ABB Standard Drive n ACS 550 © ABB Oy. - 2 n Part of the family - The ABB Drive n Reliable quality product n Global support Convenient with all the aspects n Simple selection n Excellence in connectivity n Intuitive drive n All inside as standard n Proven Performance
ACS 550, Standard Drive ACS 550 © ABB Oy. - 3 n Complete power range n 0. 75 - 355 k. W, 1 - 500 HP n 3 phase 230 V (up to 75 k. W) and 400 V series n IP 21 / UL Type 1 n IP 54 / UL Type 12 (R 1 -R 6 only) 0, 75 to up to 5, 5 k. W 11 k. W up to 22 k. W up to 45 k. W up to 55 k. W up to 132 k. W up to 160 k. W up to 355 k. W
ACS 550, Standard Drive Installation ACS 550 © ABB Oy. - 4 n 550 -01 Mounting options n 550 -02 Mounting options n Wall n Free standing n Side-by-Side n Side-by side n Flange
ACS 550 © ABB Oy. - 5 Convenience with all the aspects

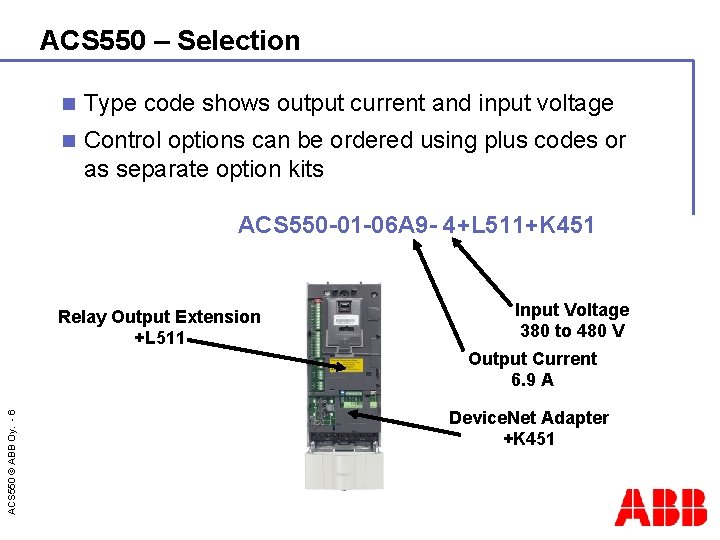

ACS 550 – Selection n Type code shows output current and input voltage n Control options can be ordered using plus codes or as separate option kits ACS 550 -01 -06 A 9 - 4+L 511+K 451 Relay Output Extension +L 511 Input Voltage 380 to 480 V ACS 550 © ABB Oy. - 6 Output Current 6. 9 A Device. Net Adapter +K 451

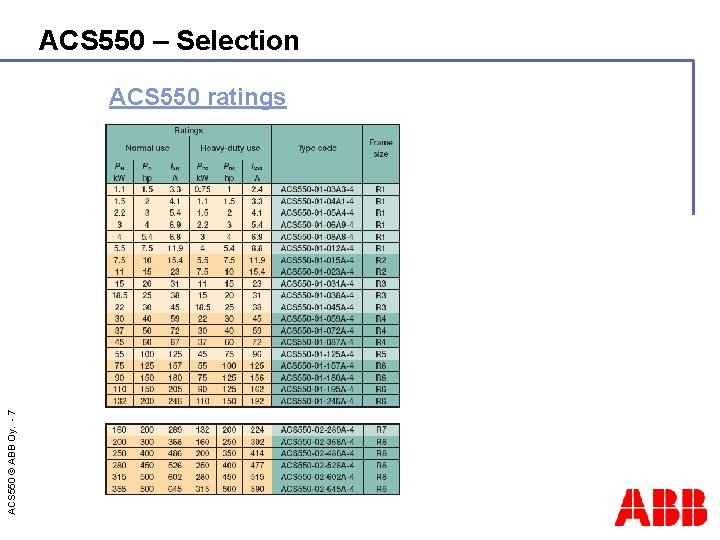

ACS 550 – Selection ACS 550 © ABB Oy. - 7 ACS 550 ratings

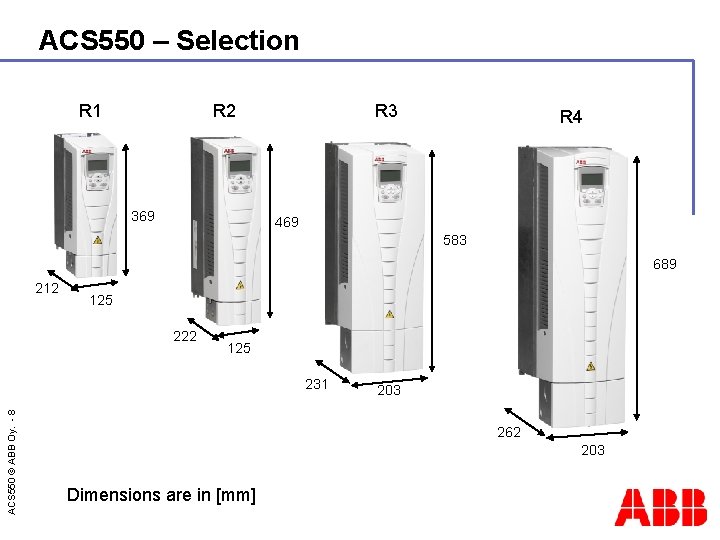

ACS 550 – Selection R 1 R 2 369 R 3 R 4 469 583 689 212 125 222 125 ACS 550 © ABB Oy. - 8 231 203 262 203 Dimensions are in [mm]
ACS 550 – Selection R 5 R 6 739 R 8 R 7 880 1507 ACS 550 © ABB Oy. - 9 286 265 400 2024 300 250 520 617 Dimensions are in [mm] 347
ACS 550 - Connectivity n Easy connection to factory automation systems through multiple I/Os and plug-in options Extensive I/O - 2 x AI - 2 x AO - 6 x DI - 3 x RO Inbuilt Modbus ACS 550 © ABB Oy. - 10 Plug-in Fieldbus Modules Relay Output Extension (3 x RO)
ACS 550 - Connectivity n IO is galvanic isolated as groups AI / AO DI ACS 550 © ABB Oy. - 11 RO
ACS 550 - Connectivity n 550 supports the new parameterization tool Flash. Drop n For selecting and setting parameters n Parameter set for non-connected drive n In warehouse or during mechanical installation n Possibility to hide selected parameters Machine protection n Only essential parameters are shown ACS 550 © ABB Oy. - 12 n n Flash. Drop connection behind the control panel - protection class will remain

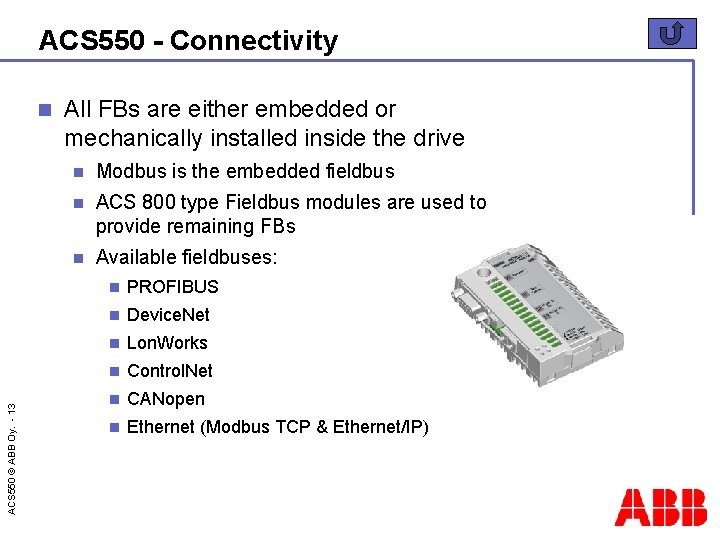

ACS 550 - Connectivity ACS 550 © ABB Oy. - 13 n All FBs are either embedded or mechanically installed inside the drive n Modbus is the embedded fieldbus n ACS 800 type Fieldbus modules are used to provide remaining FBs n Available fieldbuses: n PROFIBUS n Device. Net n Lon. Works n Control. Net n CANopen n Ethernet (Modbus TCP & Ethernet/IP)
ACS 550 - Intuitive n Assistant control panel functions n n n ACS 550 © ABB Oy. - 14 n Run the assistants in conjunction with drive software Has help button giving manual information List of changed parameters Real time clock Fault Logger 15 languages supported in one panel

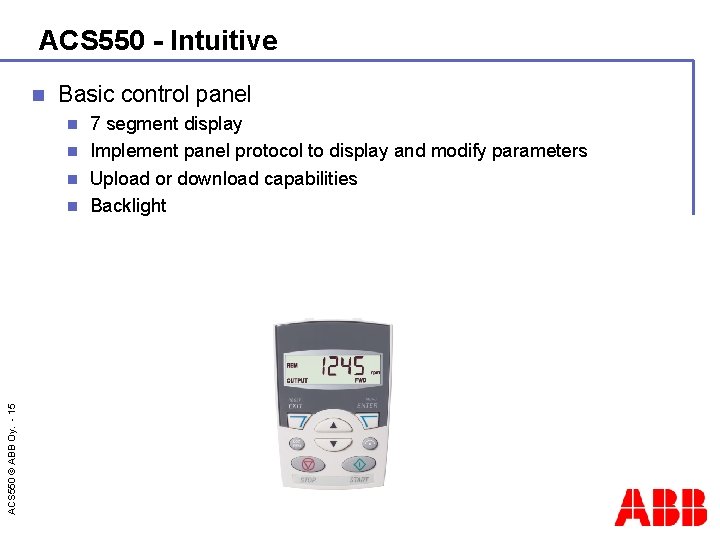

ACS 550 - Intuitive n Basic control panel 7 segment display n Implement panel protocol to display and modify parameters n Upload or download capabilities n Backlight ACS 550 © ABB Oy. - 15 n

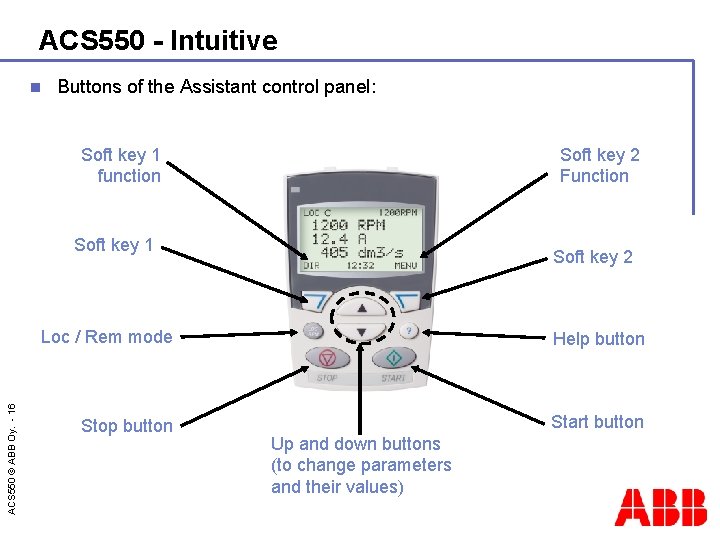

ACS 550 - Intuitive n Buttons of the Assistant control panel: Soft key 1 function Soft key 2 Function ACS 550 © ABB Oy. - 16 Soft key 1 Soft key 2 Loc / Rem mode Help button Stop button Start button Up and down buttons (to change parameters and their values)

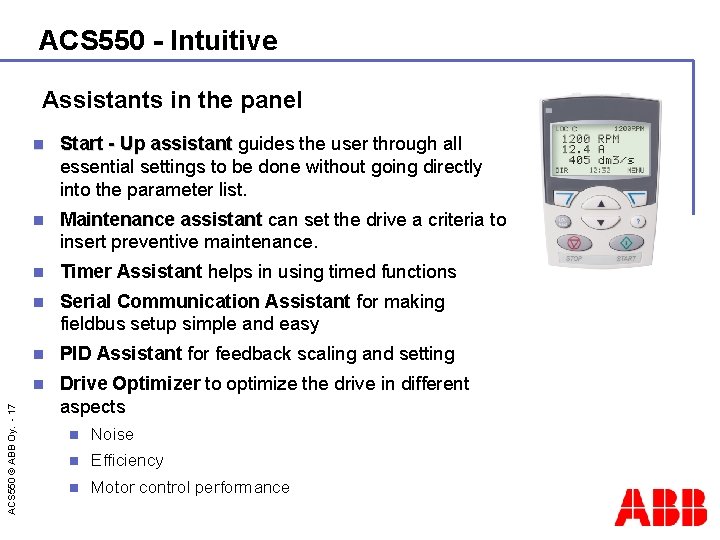

ACS 550 - Intuitive ACS 550 © ABB Oy. - 17 Assistants in the panel n Start - Up assistant guides the user through all essential settings to be done without going directly into the parameter list. n Maintenance assistant can set the drive a criteria to insert preventive maintenance. n Timer Assistant helps in using timed functions n Serial Communication Assistant for making fieldbus setup simple and easy n PID Assistant for feedback scaling and setting n Drive Optimizer to optimize the drive in different aspects n Noise n Efficiency n Motor control performance
ACS 550 - Intuitive Fault Logger (Assistant panel only) Easy way to find out n n What happened n When happened Tells drive status at the point of time the fault occurred n n Example: Panel Loss – fault 10 n ACS 550 © ABB Oy. - 18 Frequency, speed, torque, current, voltage etc… Panel tells the operator to “check: comm lines and connections, parameter 3002, parameters in groups 10 and 11”
ACS 550 © ABB Oy. - 19 ACS 550 - Intuitive
ACS 550 - Intuitive ACS 550 © ABB Oy. - 20 n Drive. Window Light 2 n For commissioning the drive n Possibility to monitor the drive n Assistant to create direct configuration of the drive n Remains compatible to other Low Voltage AC Drive products

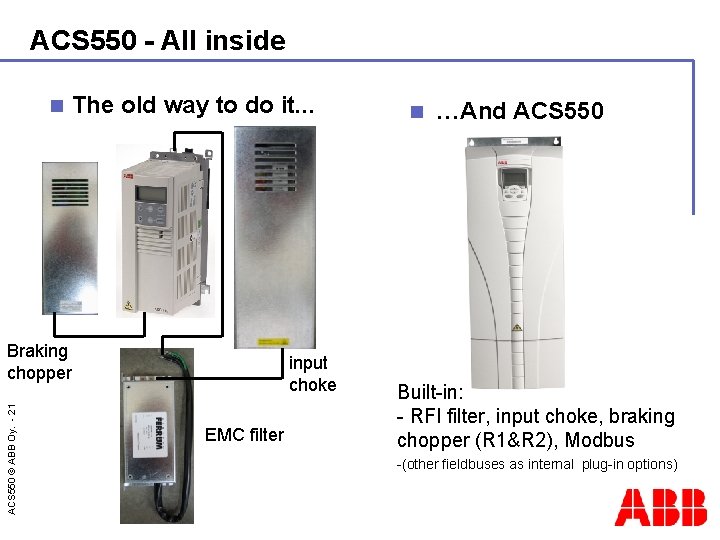

ACS 550 - All inside n The old way to do it. . . ACS 550 © ABB Oy. - 21 Braking chopper input choke EMC filter n …And ACS 550 Built-in: - RFI filter, input choke, braking chopper (R 1&R 2), Modbus -(other fieldbuses as internal plug-in options)

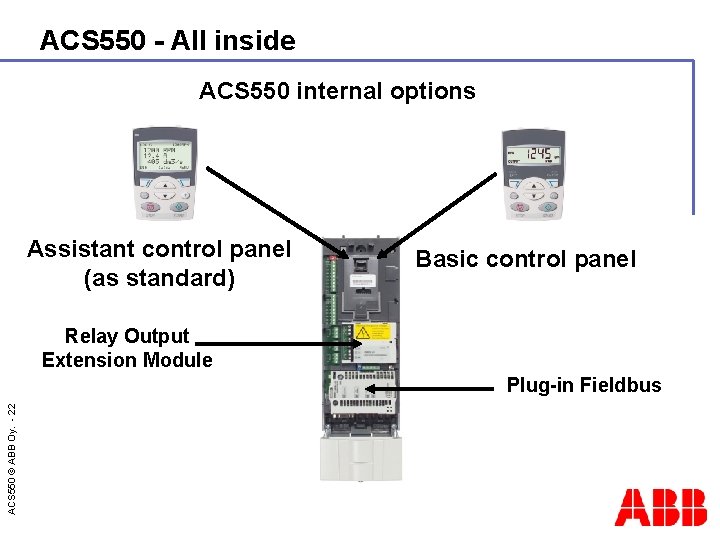

ACS 550 - All inside ACS 550 internal options Assistant control panel (as standard) Basic control panel Relay Output Extension Module ACS 550 © ABB Oy. - 22 Plug-in Fieldbus

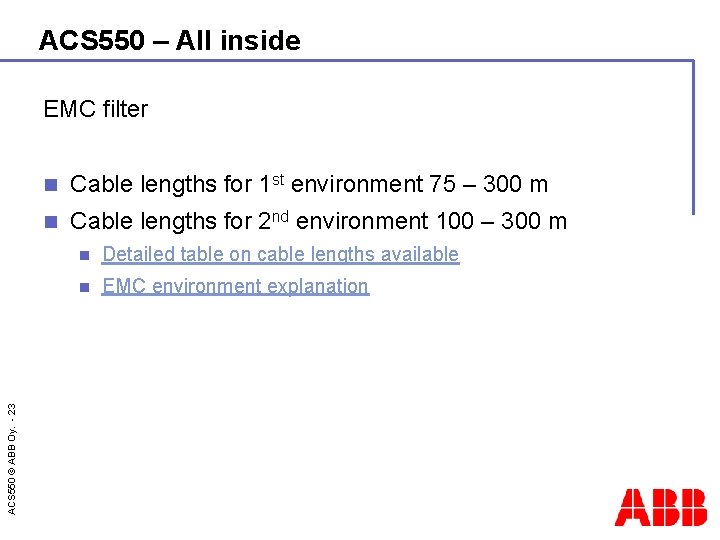

ACS 550 – All inside ACS 550 © ABB Oy. - 23 EMC filter n Cable lengths for 1 st environment 75 – 300 m n Cable lengths for 2 nd environment 100 – 300 m n Detailed table on cable lengths available n EMC environment explanation

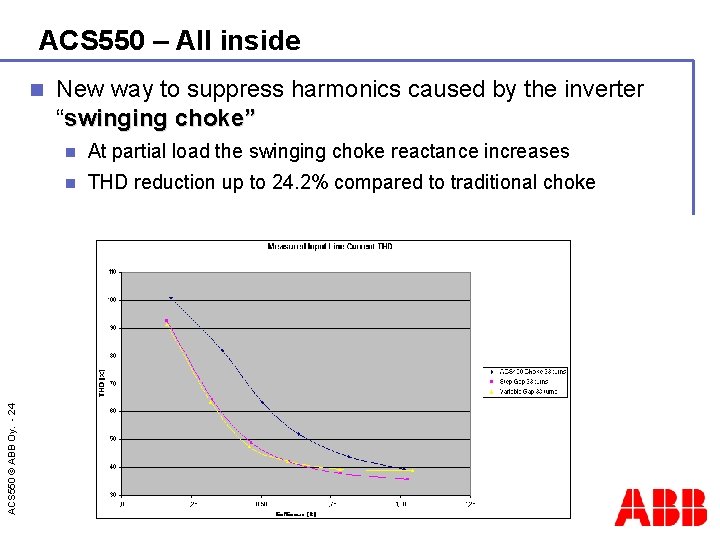

ACS 550 – All inside ACS 550 © ABB Oy. - 24 n New way to suppress harmonics caused by the inverter “swinging choke” n At partial load the swinging choke reactance increases n THD reduction up to 24. 2% compared to traditional choke

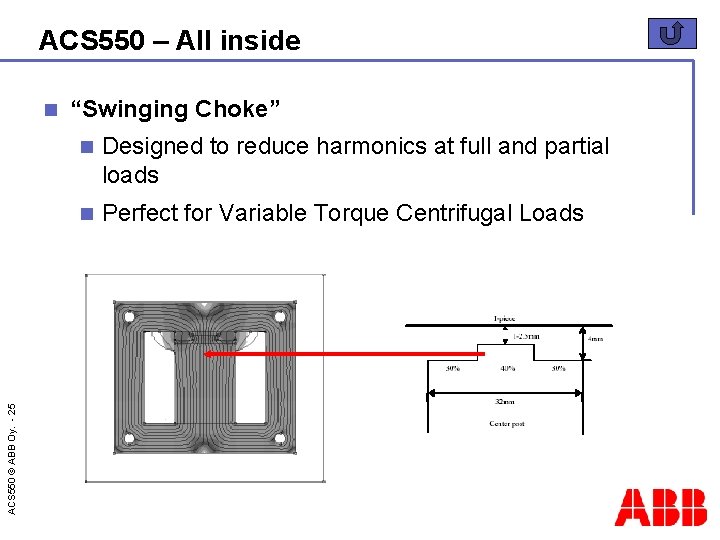

ACS 550 – All inside ACS 550 © ABB Oy. - 25 n “Swinging Choke” n Designed to reduce harmonics at full and partial loads n Perfect for Variable Torque Centrifugal Loads

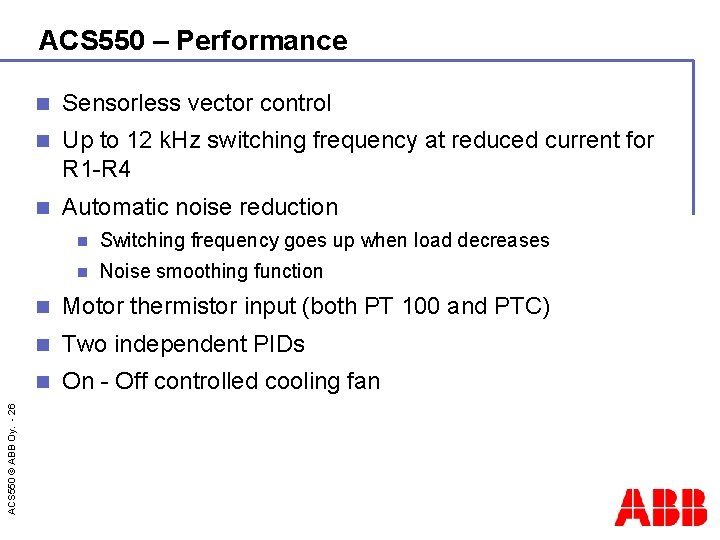

ACS 550 © ABB Oy. - 26 ACS 550 – Performance n Sensorless vector control n Up to 12 k. Hz switching frequency at reduced current for R 1 -R 4 n Automatic noise reduction n Switching frequency goes up when load decreases n Noise smoothing function n Motor thermistor input (both PT 100 and PTC) n Two independent PIDs n On - Off controlled cooling fan

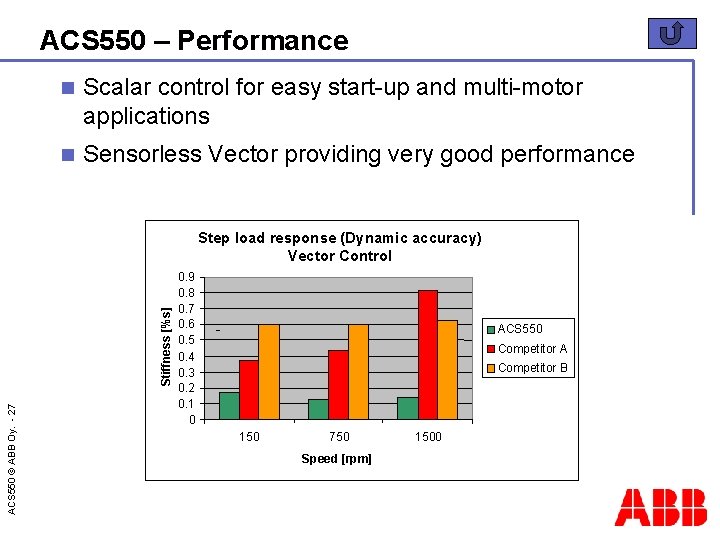

ACS 550 – Performance n Scalar control for easy start-up and multi-motor applications n Sensorless Vector providing very good performance ACS 550 © ABB Oy. - 27 Stiffness [%s] Step load response (Dynamic accuracy) Vector Control 0. 9 0. 8 0. 7 0. 6 0. 5 0. 4 0. 3 0. 2 0. 1 0 ACS 550 Competitor A Competitor B 150 750 Speed [rpm] 1500
ACS 550 © ABB Oy. - 28 Convenience with all the aspects
ACS 550 © ABB Oy. - 29
