ABB Lake Mary Florida OVR1 Single Phase Recloser

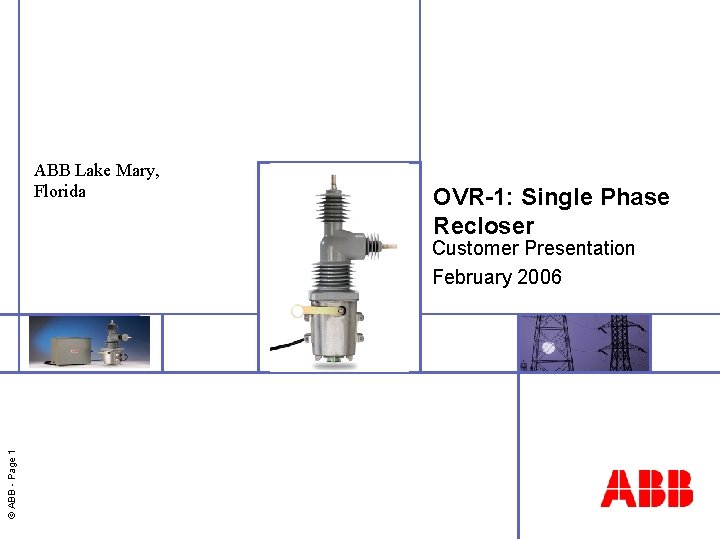

ABB Lake Mary, Florida OVR-1: Single Phase Recloser © ABB - Page 1 Customer Presentation February 2006

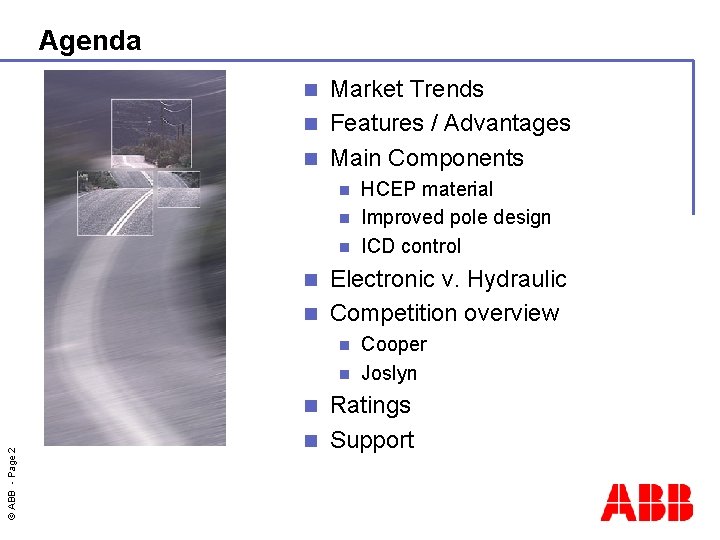

Agenda Market Trends n Features / Advantages n Main Components n HCEP material n Improved pole design n ICD control n Electronic v. Hydraulic n Competition overview n Cooper n Joslyn n Ratings n Support © ABB - Page 2 n

Recloser status 1997 – 2003: VR-3 S Solid Dielectric recloser with PCD Control n Manufactured over 6, 000 units n Single Phase Trip option added in 2000 n Loop Control option added in 2001 n Utilizing the same control and upgradeable to all users n 2003: OVR-3, 15/27 k. V 3 -PH Recloser with PCD Control n 2004: OVR-3, 38 k. V 3 -PH Recloser with PCD Control n 2006: OVR-1, 1 -PH Recloser with ICD Control © ABB - Page 3 n

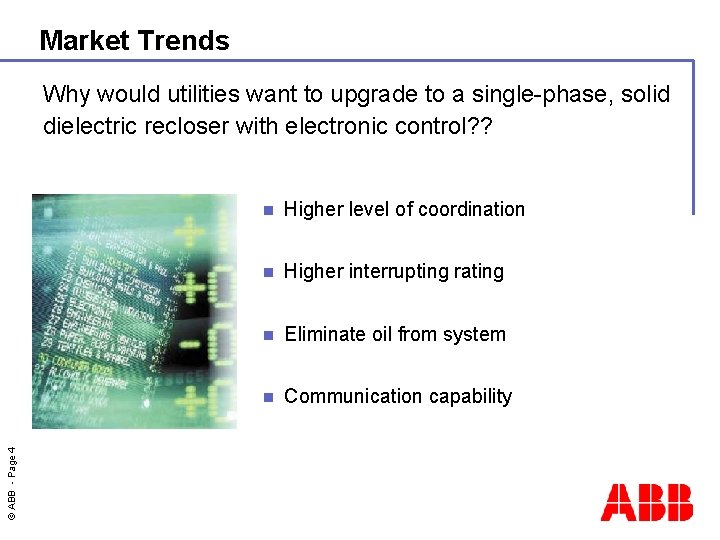

Market Trends © ABB - Page 4 Why would utilities want to upgrade to a single-phase, solid dielectric recloser with electronic control? ? n Higher level of coordination n Higher interrupting rating n Eliminate oil from system n Communication capability

Features n Vacuum recloser with 2 nd generation magnetic actuators n n n © ABB - Page 5 n 10, 000 mechanical/load operations Integrated current sensor Near maintenance free design Advanced insulation technology Integrated control device Solid dielectric HCEP insulation medium n Compact / Lightweight n Environmentally friendly – no oil or SF 6

© ABB - Page 6 OVR-1 advantages n Integrated single pole design n Tripping and lockout can be done with hookstick from ground level, or from control panel (mechanical trip, electrical isolation) n Recloser can be shipped with potential transformer mounted on the pole frame n Can be utilized with one lift installation n Faster operation for better fuse saving n Higher creepage design than strictest IEC/ANSI standards n Modbus-DNP converter available for remote communications

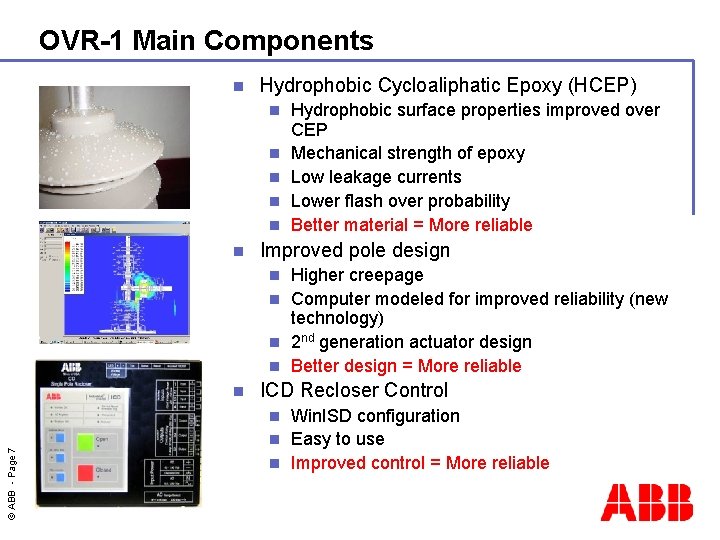

OVR-1 Main Components n Hydrophobic Cycloaliphatic Epoxy (HCEP) n n n Hydrophobic surface properties improved over CEP Mechanical strength of epoxy Low leakage currents Lower flash over probability Better material = More reliable Improved pole design Higher creepage n Computer modeled for improved reliability (new technology) n 2 nd generation actuator design n Better design = More reliable n n ICD Recloser Control Win. ISD configuration n Easy to use n Improved control = More reliable © ABB - Page 7 n

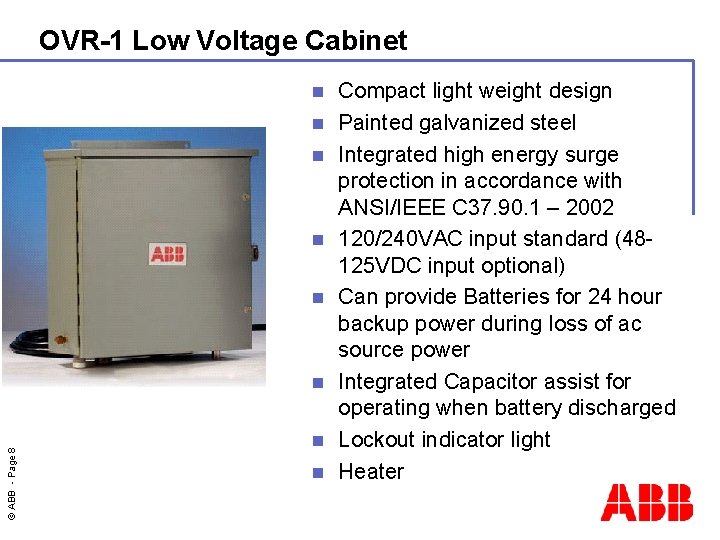

OVR-1 Low Voltage Cabinet n n n © ABB - Page 8 n n n Compact light weight design Painted galvanized steel Integrated high energy surge protection in accordance with ANSI/IEEE C 37. 90. 1 – 2002 120/240 VAC input standard (48125 VDC input optional) Can provide Batteries for 24 hour backup power during loss of ac source power Integrated Capacitor assist for operating when battery discharged Lockout indicator light Heater

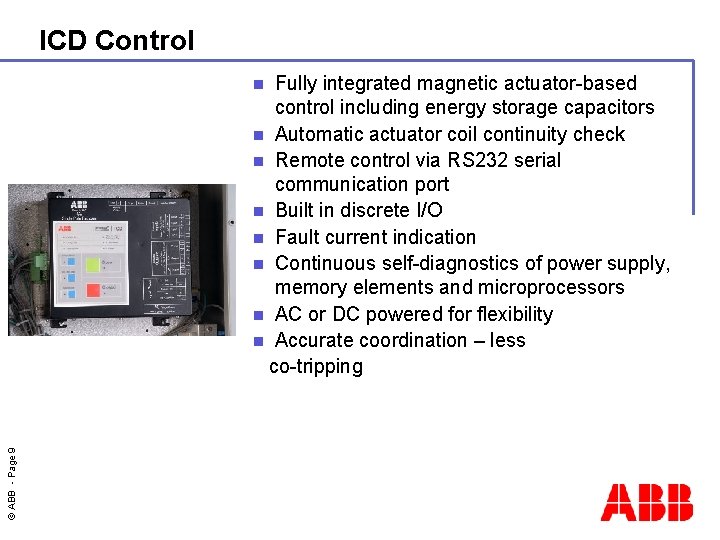

ICD Control Fully integrated magnetic actuator-based control including energy storage capacitors n Automatic actuator coil continuity check n Remote control via RS 232 serial communication port n Built in discrete I/O n Fault current indication n Continuous self-diagnostics of power supply, memory elements and microprocessors n AC or DC powered for flexibility n Accurate coordination – less co-tripping © ABB - Page 9 n

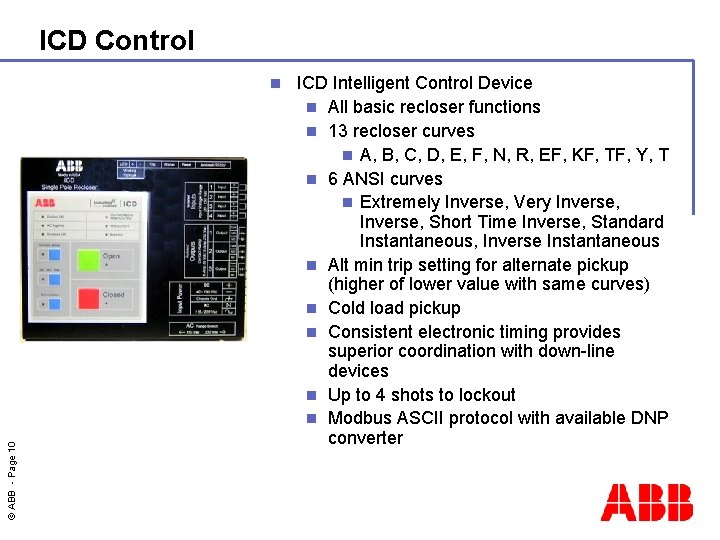

ICD Control © ABB - Page 10 n ICD Intelligent Control Device n All basic recloser functions n 13 recloser curves n A, B, C, D, E, F, N, R, EF, KF, TF, Y, T n 6 ANSI curves n Extremely Inverse, Very Inverse, Short Time Inverse, Standard Instantaneous, Inverse Instantaneous n Alt min trip setting for alternate pickup (higher of lower value with same curves) n Cold load pickup n Consistent electronic timing provides superior coordination with down-line devices n Up to 4 shots to lockout n Modbus ASCII protocol with available DNP converter

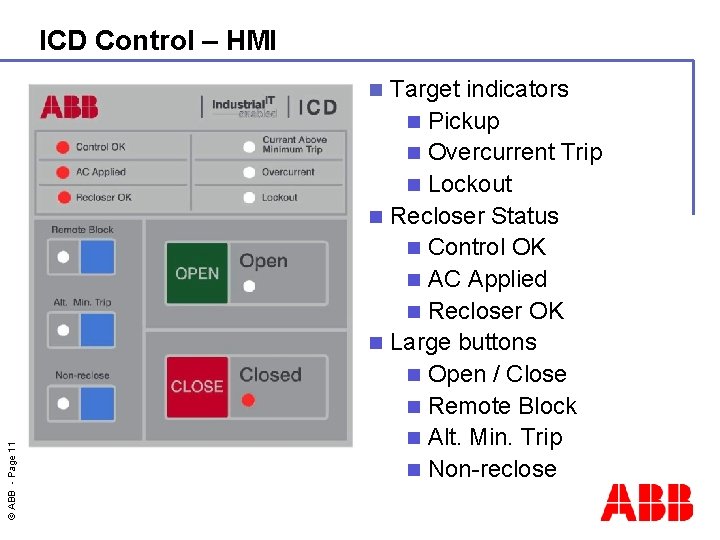

ICD Control – HMI Target indicators n Pickup n Overcurrent Trip n Lockout n Recloser Status n Control OK n AC Applied n Recloser OK n Large buttons n Open / Close n Remote Block n Alt. Min. Trip n Non-reclose © ABB - Page 11 n

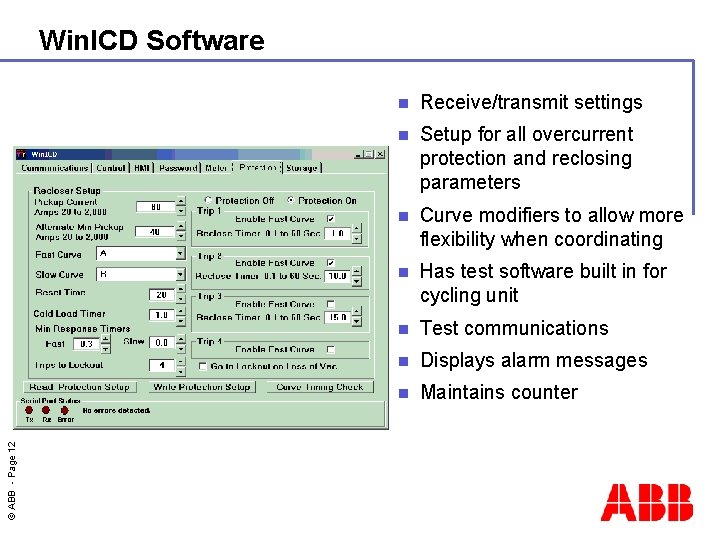

© ABB - Page 12 Win. ICD Software n Receive/transmit settings n Setup for all overcurrent protection and reclosing parameters n Curve modifiers to allow more flexibility when coordinating n Has test software built in for cycling unit n Test communications n Displays alarm messages n Maintains counter

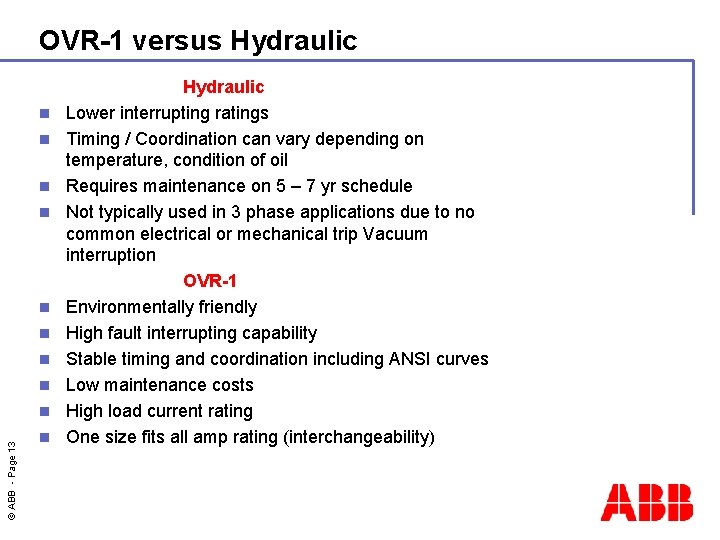

OVR-1 versus Hydraulic n n n n © ABB - Page 13 n n Hydraulic Lower interrupting ratings Timing / Coordination can vary depending on temperature, condition of oil Requires maintenance on 5 – 7 yr schedule Not typically used in 3 phase applications due to no common electrical or mechanical trip Vacuum interruption OVR-1 Environmentally friendly High fault interrupting capability Stable timing and coordination including ANSI curves Low maintenance costs High load current rating One size fits all amp rating (interchangeability)

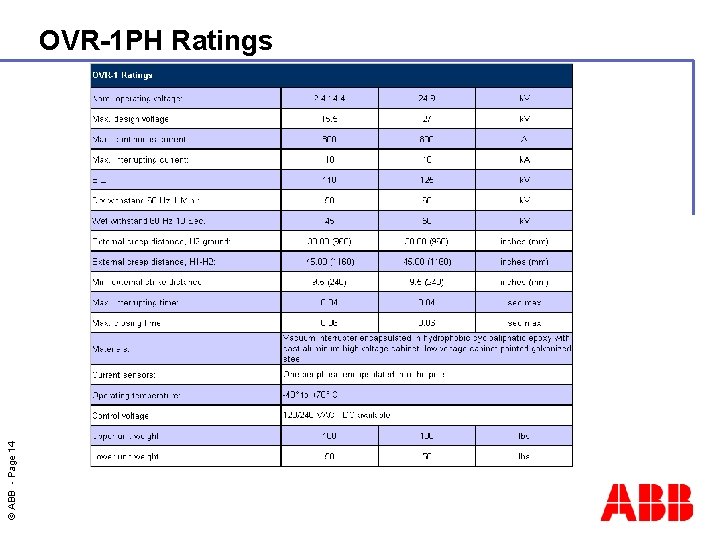

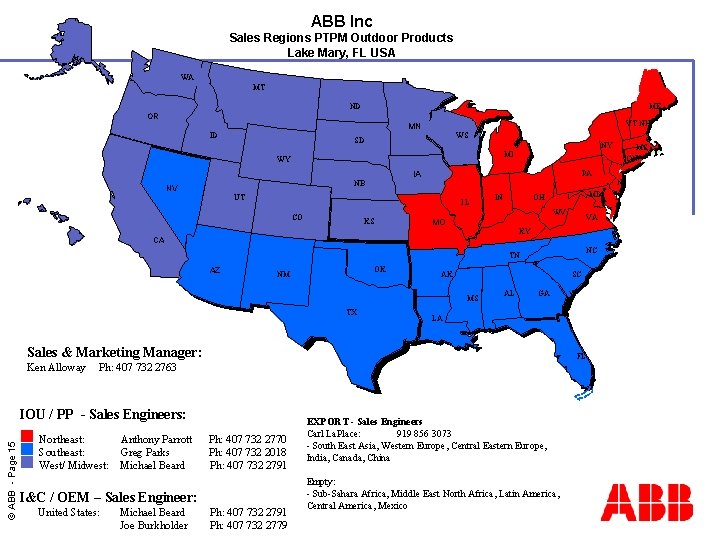

ABB Inc Sales Regions PTPM Outdoor Products Lake Mary, FL USA WA MT ND ME OR VT NH MN ID WS SD NY WY IA PA NJ NB NV UT IL IN MD OH WV CO KS VA MO KY CA NC TN AZ OK NM AK SC MS TX AL GA LA Sales & Marketing Manager: Ken Alloway FL Ph: 407 732 2763 © ABB - Page 15 IOU / PP - Sales Engineers: n Northeast: n Southeast: n West/ Midwest: Anthony Parrott Greg Parks Michael Beard Ph: 407 732 2770 Ph: 407 732 2018 Ph: 407 732 2791 I&C / OEM – Sales Engineer: United States: Michael Beard Joe Burkholder Ph: 407 732 2791 Ph: 407 732 2779 MS CN MI EXPORT - Sales Engineers Carl La. Place: 919 856 3073 - South East Asia, Western Europe, Central Eastern Europe, India, Canada, China Empty: - Sub-Sahara Africa, Middle East North Africa, Latin America, Central America, Mexico D
