© ABB Industry Oy - 1 2/24/2021 Drive. Ware® Drive. AP 1. 2 & 2. 1
© ABB Industry Oy - 2 - Drive. AP key features n Extremely easy to use n Upload, edit, download program n Possibility to monitor signals on-line n Print documentation n Includes 3 operating modes: n n Stand alone (no drive connected) n On-line (all changes are written immediately to the drive) n Off-line (upload from drive, edit off-line, download to drive) Uses DDCS communication

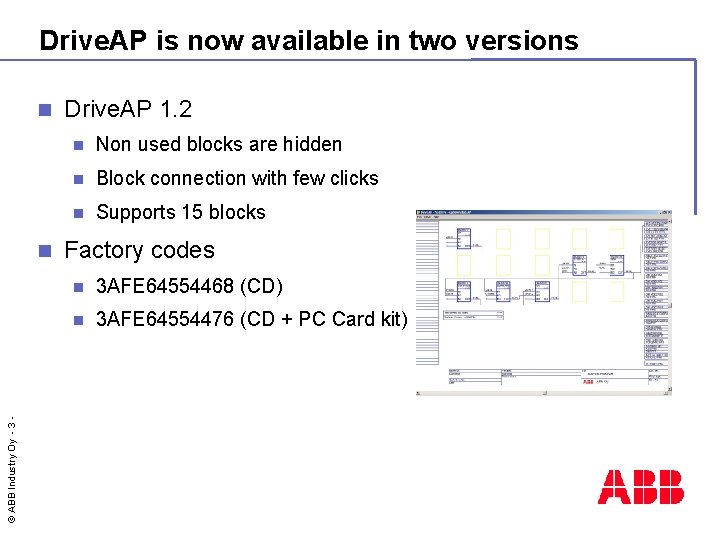

Drive. AP is now available in two versions n © ABB Industry Oy - 3 - n Drive. AP 1. 2 n Non used blocks are hidden n Block connection with few clicks n Supports 15 blocks Factory codes n 3 AFE 64554468 (CD) n 3 AFE 64554476 (CD + PC Card kit)
Drive. AP example 1 © ABB Industry Oy - 4 - n User can easily make small changes to basic software n Relay output selection list does not contain required setting. RO 1 needs to be energized when “Encoder err” warning is given. n No function blocks are required, just use the pointer.

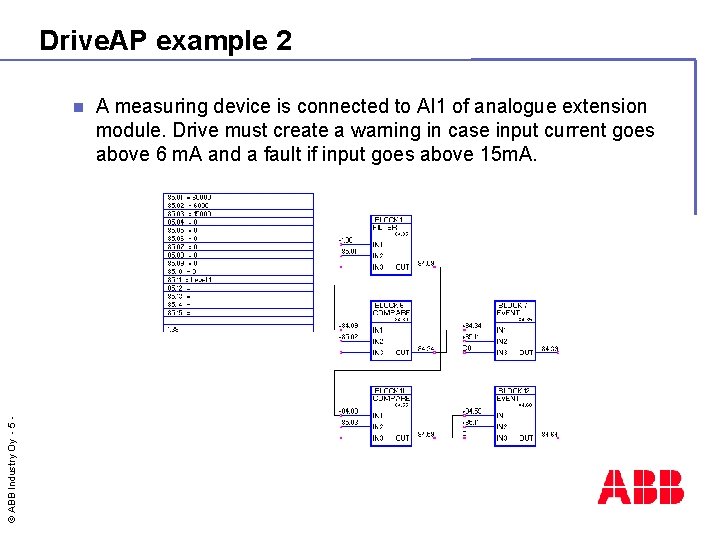

Drive. AP example 2 © ABB Industry Oy - 5 - n A measuring device is connected to AI 1 of analogue extension module. Drive must create a warning in case input current goes above 6 m. A and a fault if input goes above 15 m. A.
Drive. AP example 3 n Create a function that doesn’t exist in a PC tool © ABB Industry Oy - 6 - n Enable Drive. Window to monitor alarm bit from drives status word. Add following block to e. g. 12 ms cycle time and monitor parameter 84. 09 instead of 3. 02 (status word).
© ABB Industry Oy - 7 - Drive. AP 2 n Totally new block programming tool n All data stored to drives flash memory including block location, comments, symbols etc
Drive. AP 2 © ABB Industry Oy - 8 - n With Multi Block Programming Application one is able to locate freely over 200 blocks including n I/O blocks (AI, AO, DI, DO, EXT AI, …) n Functions blocks (ABS, ADD, AND, BSET, COMPARE, COUNT, …) n Communication blocks (Profibus, Master/Follower) n Comment blocks n 5 pages / time level available n Separate info page describes block functionality n Factory codes n 3 AFE 68299195 (CD) n 3 AFE 68299209 (CD + PC card kit)
