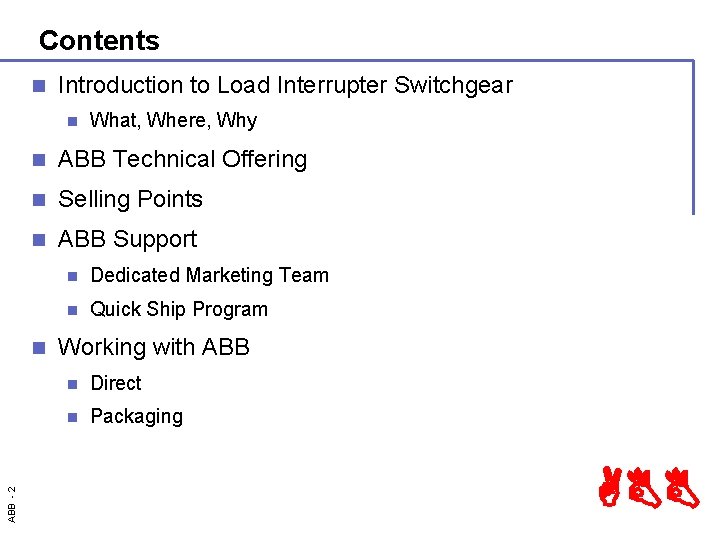

Contents n Introduction to Load Interrupter Switchgear n n ABB Technical Offering n Selling Points n ABB Support n ABB - 2 What, Where, Why n Dedicated Marketing Team n Quick Ship Program Working with ABB n Direct n Packaging ABB

ABB - 3 Load Interrupter Switchgear – What? n Load Interrupter Switchgear is a cost effective solution for distribution equipment when infrequent switching and protective relaying is not required n It can be used to interrupt load, sectionalize, isolate and provide short circuit protection via fuses ABB

ABB - 4 Load Interrupter Switchgear – Where? n Load Interrupter Switchgear is generally used as secondary distribution equipment in an industrial or commercial setting n Examples of product placement: n Shopping center n Hospitals n Airports n Industrial plant that requires power transformer ABB

ABB - 5 Load Interrupter Switchgear – Who & Why? n Customers that are looking for an inexpensive product that will be used to isolate downstream equipment or that will provide basic short circuit protection with fuses n Customers that need a quick, temporary solution for their distribution needs n Customers that are buying a power transformer that requires protection or regular maintenance ABB

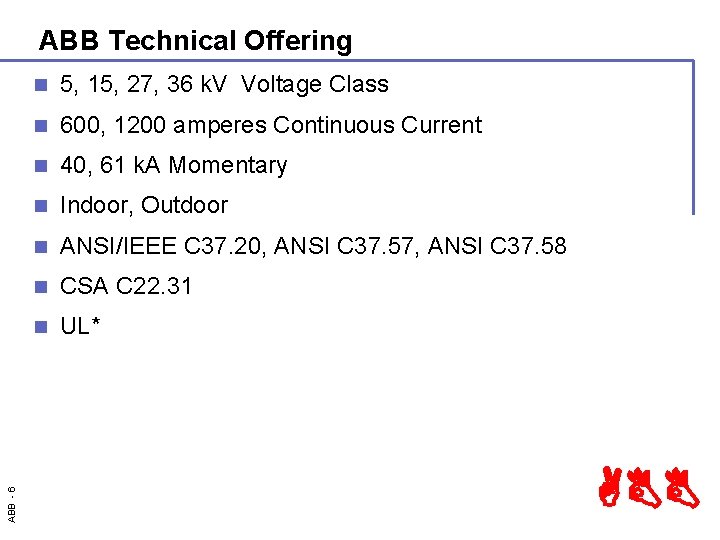

ABB - 6 ABB Technical Offering n 5, 15, 27, 36 k. V Voltage Class n 600, 1200 amperes Continuous Current n 40, 61 k. A Momentary n Indoor, Outdoor n ANSI/IEEE C 37. 20, ANSI C 37. 57, ANSI C 37. 58 n CSA C 22. 31 n UL* ABB

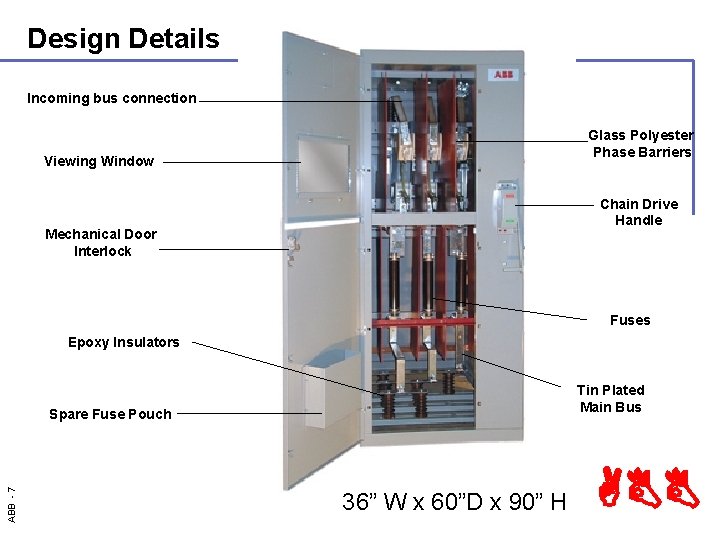

Design Details Incoming bus connection Glass Polyester Phase Barriers Viewing Window Chain Drive Handle Mechanical Door Interlock Fuses Epoxy Insulators Tin Plated Main Bus ABB - 7 Spare Fuse Pouch 36” W x 60”D x 90” H ABB

Technical Offering Options n Pre-engineered designs n Options: ABB - 8 n n Cable connection or main bus n Silver plated bus, Insulated bus with boots. n Mimic Bus n Porcelain insulators n Light for Indoor equipment n Roof bushings n Rear Compartment cable termination/connection Customized designs ABB

Technical Offering – Load Break Switch ABB - 9 n Versa. Rupter Ratings n 5 k. V, 15 k. V, 25 k. V and 36 k. V n 600 A, 1200 A for 5 k. V to 25 k. V 600 A & 800 A for 36 k. V. n Momentary (asym) / Fault-closing (asym) / Short time (sym) 40 k. A / 25 k. A for 5 k. V and 15 k. V 61 k. A / 40 k. A for 5 k. V and 15 k. V 30 k. A / 20 k. A for 25 k. V 40 k. A / 30 k. A / 25 k. A for 36 k. V ABB

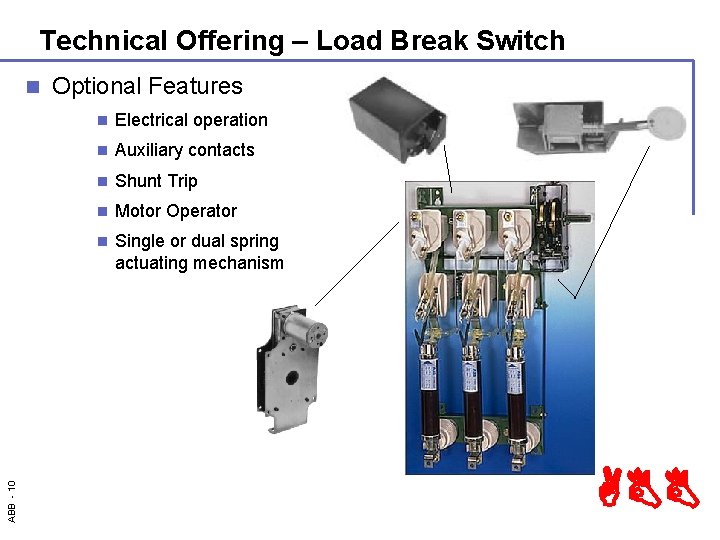

Technical Offering – Load Break Switch ABB - 10 n Optional Features n Electrical operation n Auxiliary contacts n Shunt Trip n Motor Operator n Single or dual spring actuating mechanism ABB

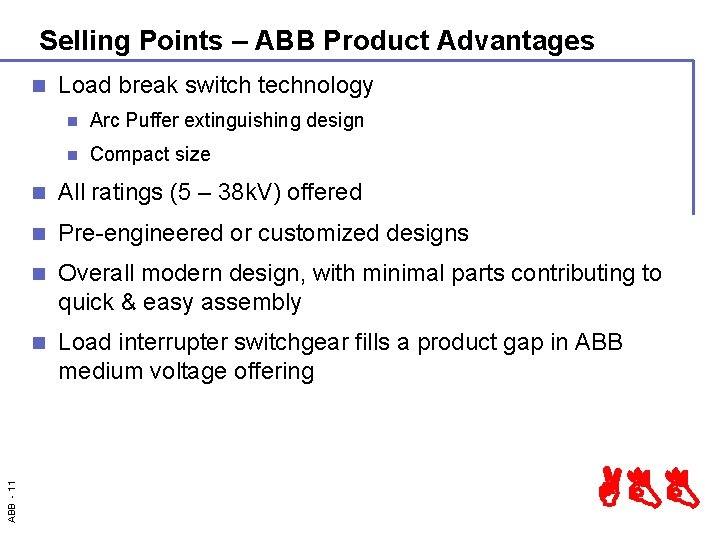

Selling Points – ABB Product Advantages ABB - 11 n Load break switch technology n Arc Puffer extinguishing design n Compact size n All ratings (5 – 38 k. V) offered n Pre-engineered or customized designs n Overall modern design, with minimal parts contributing to quick & easy assembly n Load interrupter switchgear fills a product gap in ABB medium voltage offering ABB

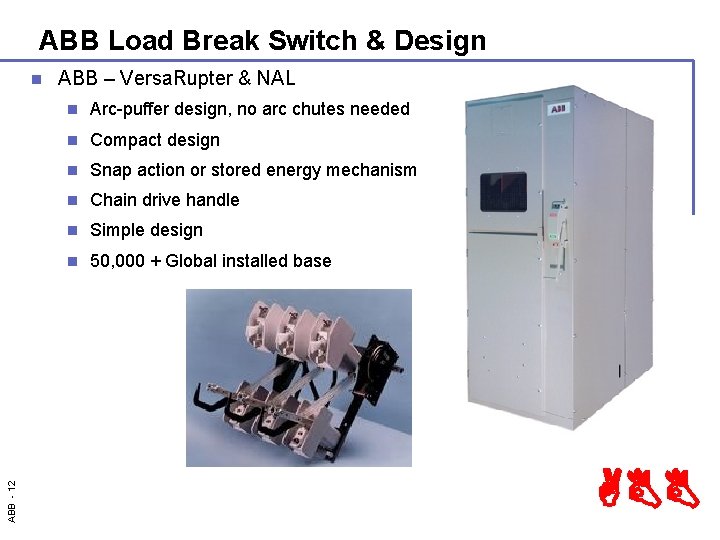

ABB Load Break Switch & Design ABB - 12 n ABB – Versa. Rupter & NAL n Arc-puffer design, no arc chutes needed n Compact design n Snap action or stored energy mechanism n Chain drive handle n Simple design n 50, 000 + Global installed base ABB

Selling Points - Load Break Switches S&C Mini. Rupter Cutler Hammer WLI Schneider HVL ABB - 13 Powercon GE Federal Pacific ABB

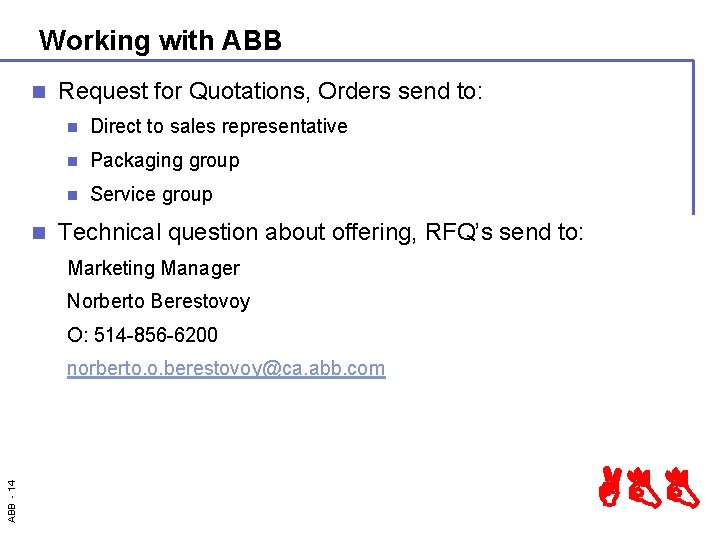

Working with ABB n n Request for Quotations, Orders send to: n Direct to sales representative n Packaging group n Service group Technical question about offering, RFQ’s send to: Marketing Manager Norberto Berestovoy O: 514 -856 -6200 ABB - 14 norberto. o. berestovoy@ca. abb. com ABB
