ABAQUS I Summary Program Capability Components of an

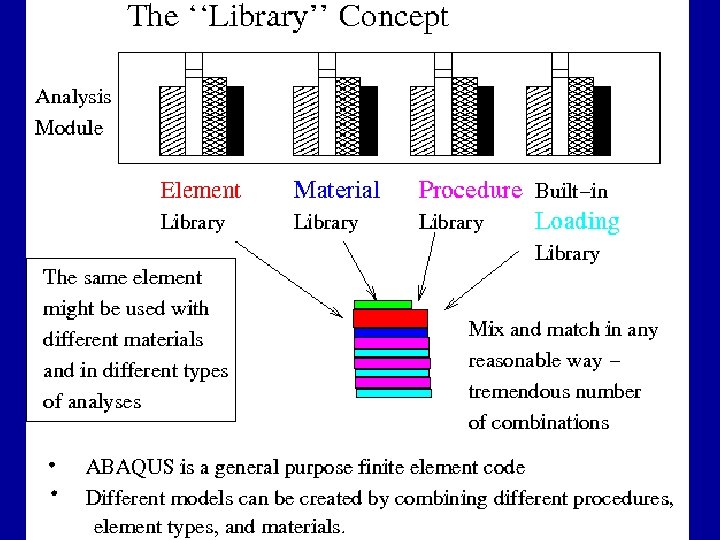

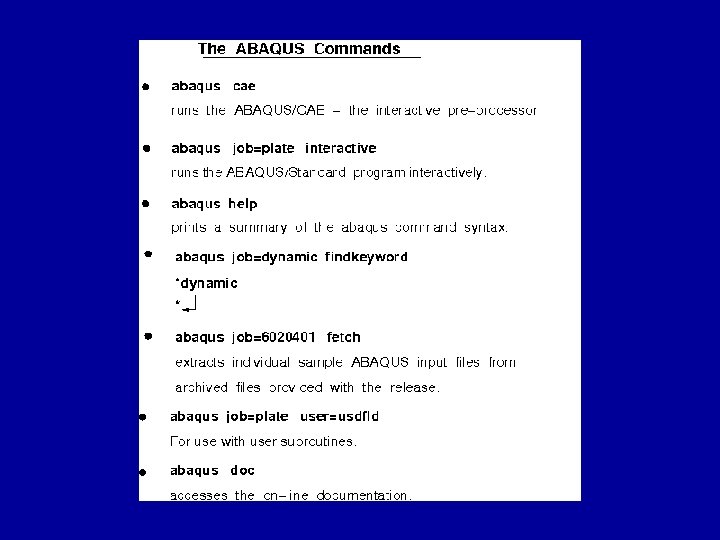

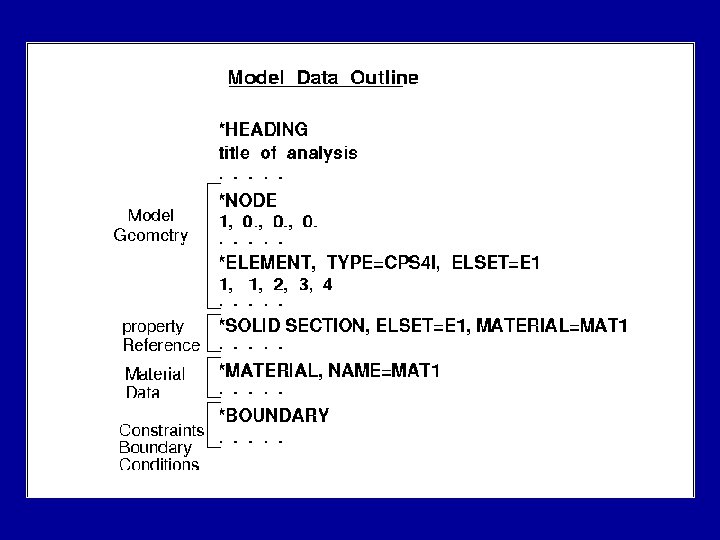

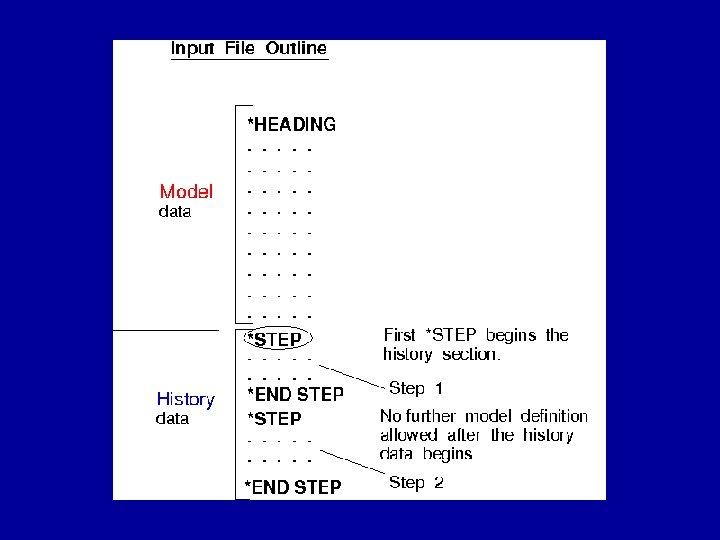

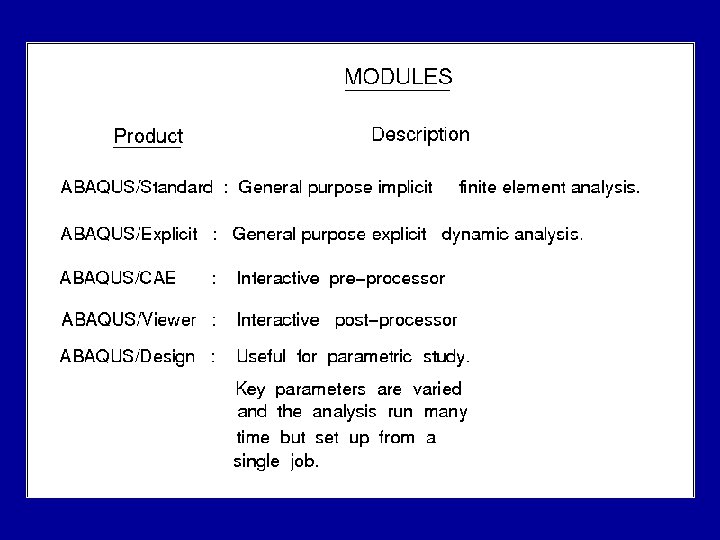

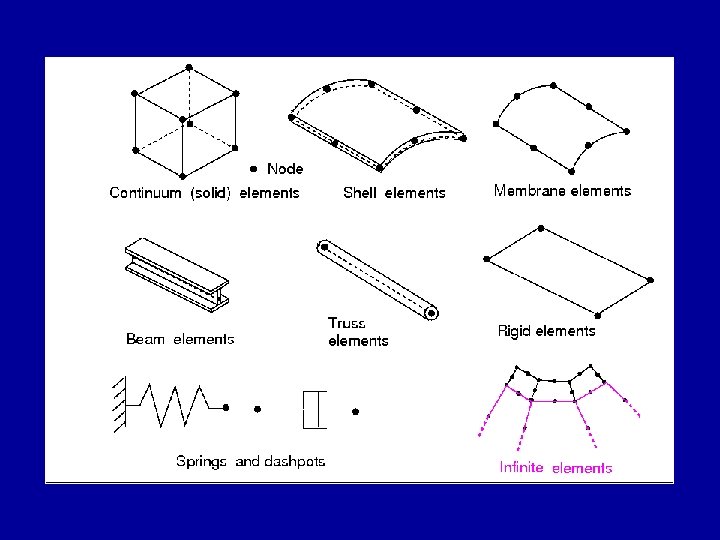

ABAQUS I • • Summary Program Capability Components of an ABAQUS Model Elements, Materials and Procedures Modules (analysis, pre and post processing) Input File Outline, Example Basic Pre and Post Processing Commands to run ABAQUS Documentation

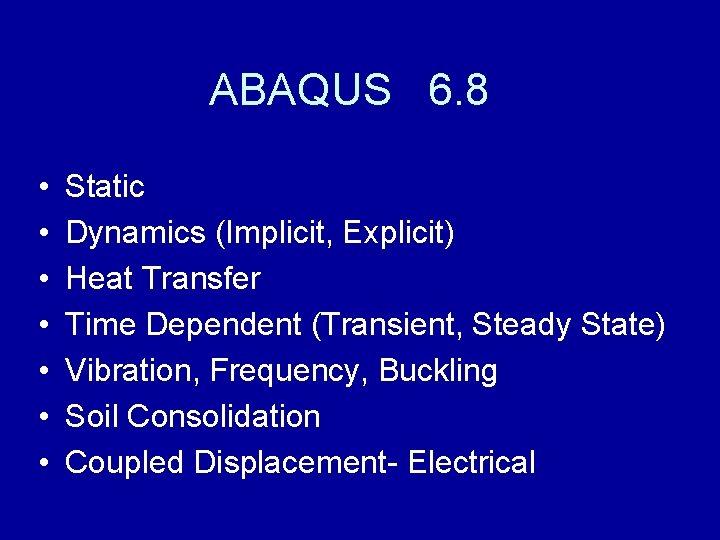

ABAQUS 6. 8 • • Static Dynamics (Implicit, Explicit) Heat Transfer Time Dependent (Transient, Steady State) Vibration, Frequency, Buckling Soil Consolidation Coupled Displacement- Electrical

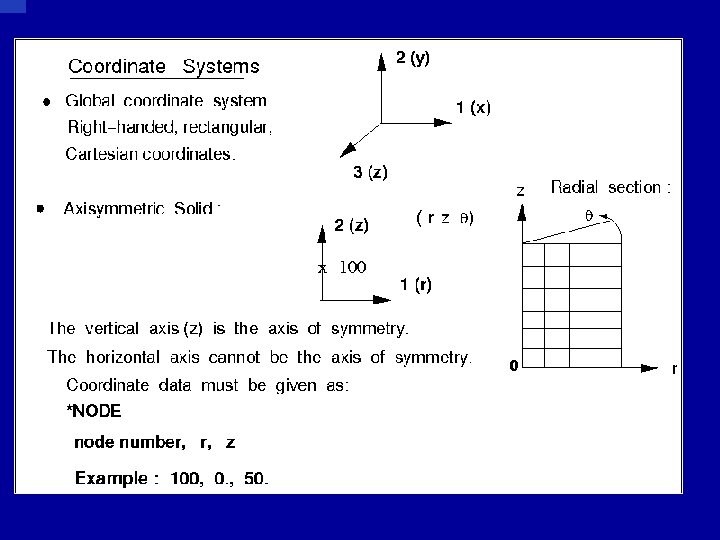

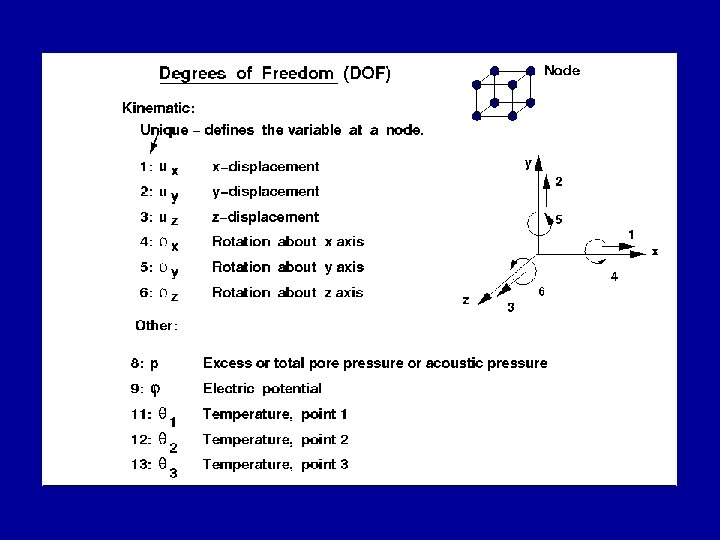

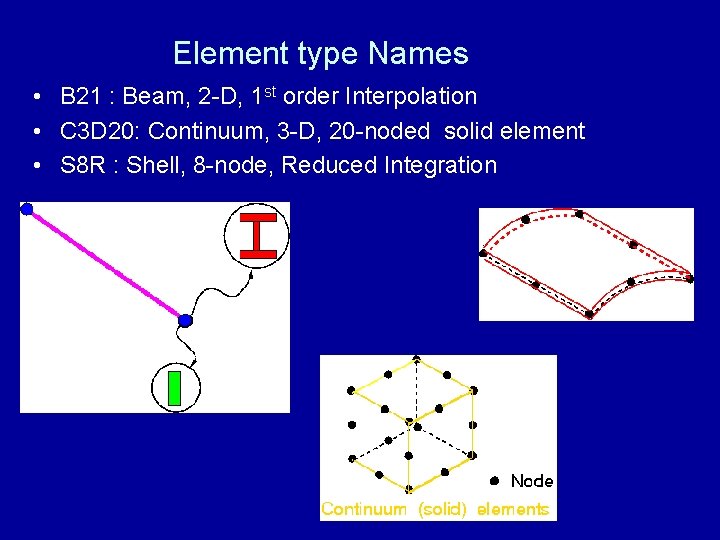

Element type Names • B 21 : Beam, 2 -D, 1 st order Interpolation • C 3 D 20: Continuum, 3 -D, 20 -noded solid element • S 8 R : Shell, 8 -node, Reduced Integration

Element Type Names • CPE 8 : Continuum Plane Strain 8 noded • CPS 8 : Continuum Plane Stress 8 noded

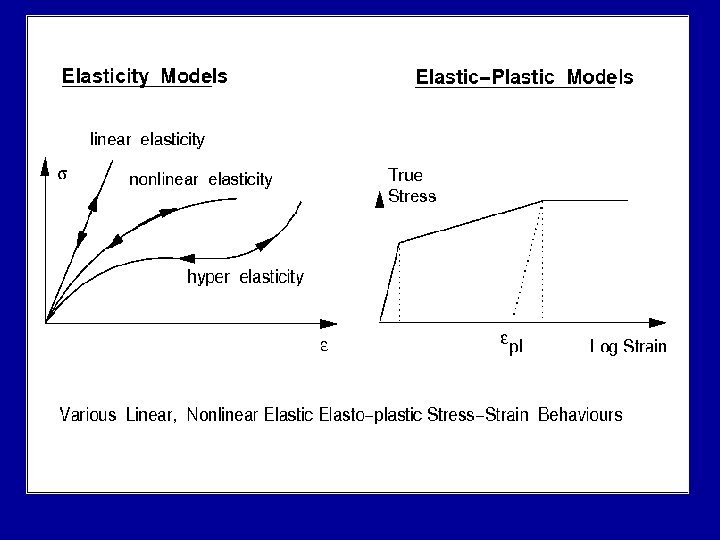

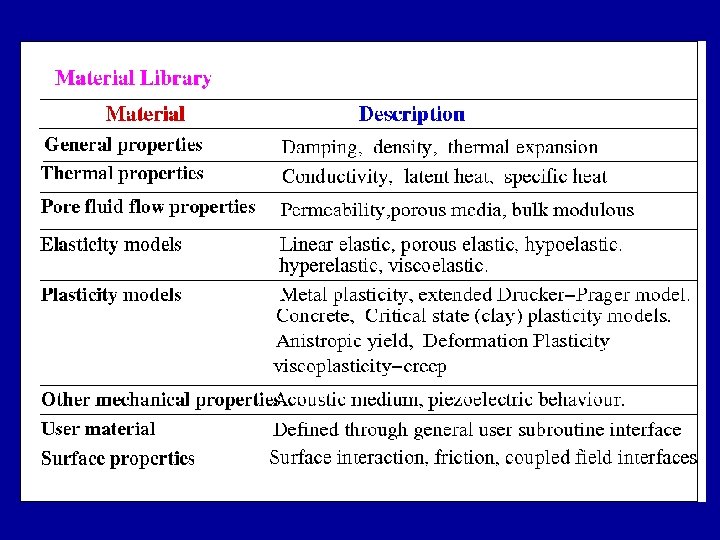

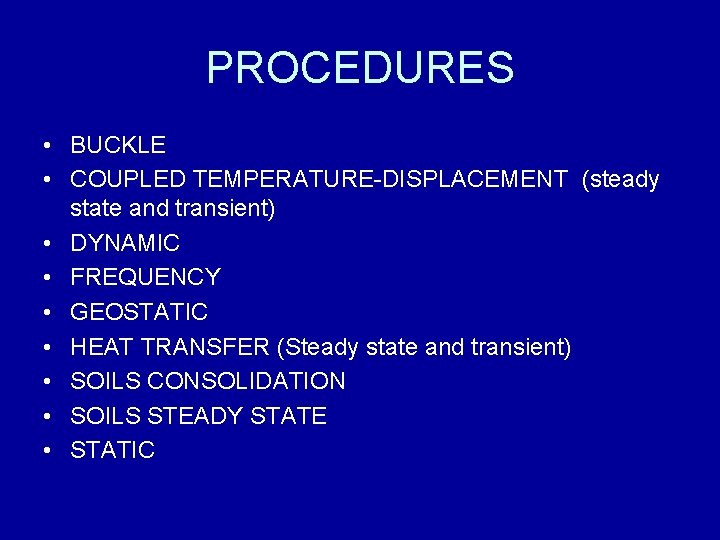

PROCEDURES • BUCKLE • COUPLED TEMPERATURE-DISPLACEMENT (steady state and transient) • DYNAMIC • FREQUENCY • GEOSTATIC • HEAT TRANSFER (Steady state and transient) • SOILS CONSOLIDATION • SOILS STEADY STATE • STATIC

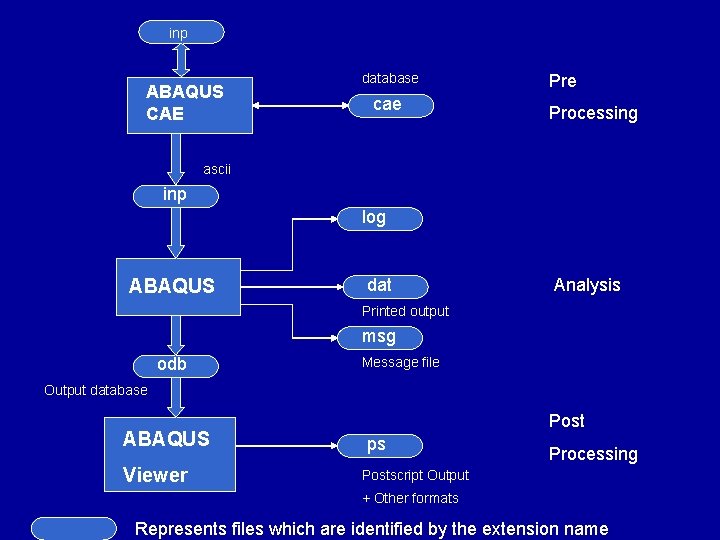

inp ABAQUS CAE database cae Processing ascii inp log ABAQUS dat Analysis Printed output msg odb Message file Output database ABAQUS Viewer Post ps Processing Postscript Output + Other formats Represents files which are identified by the extension name

• (steady state and transient)

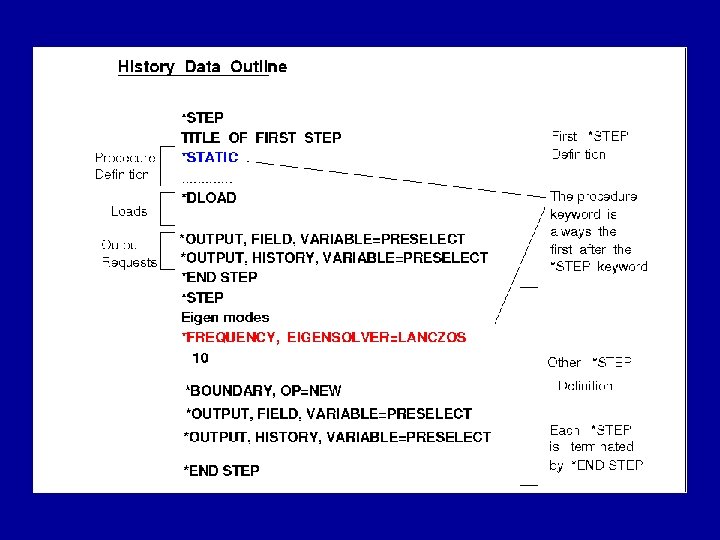

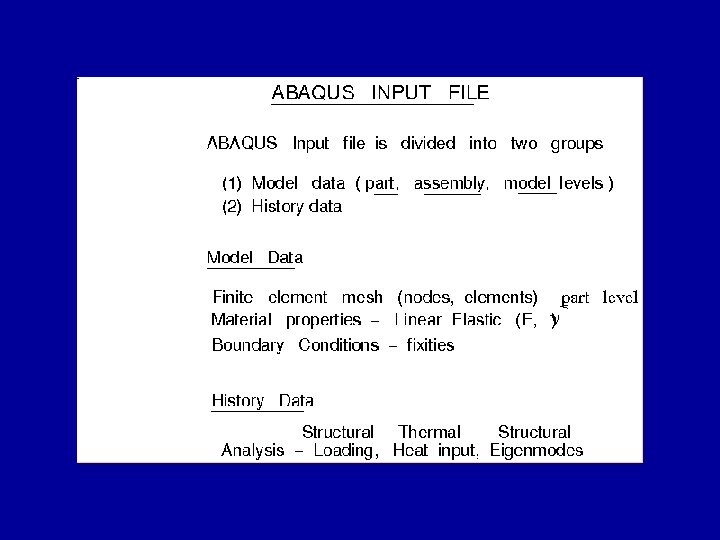

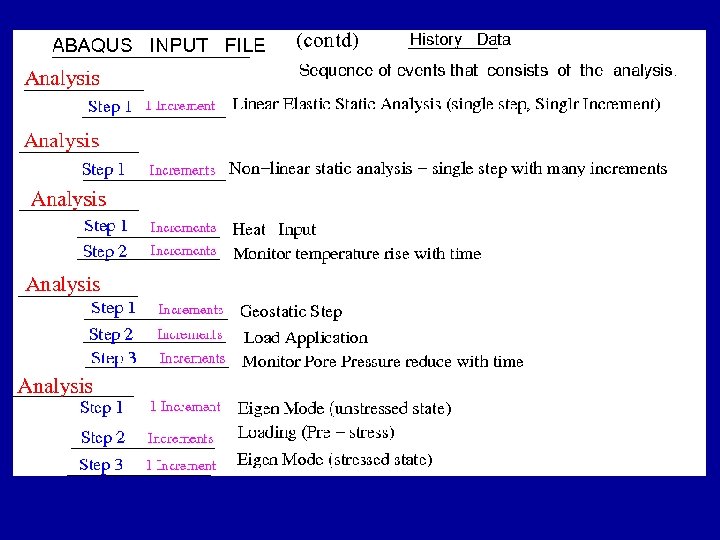

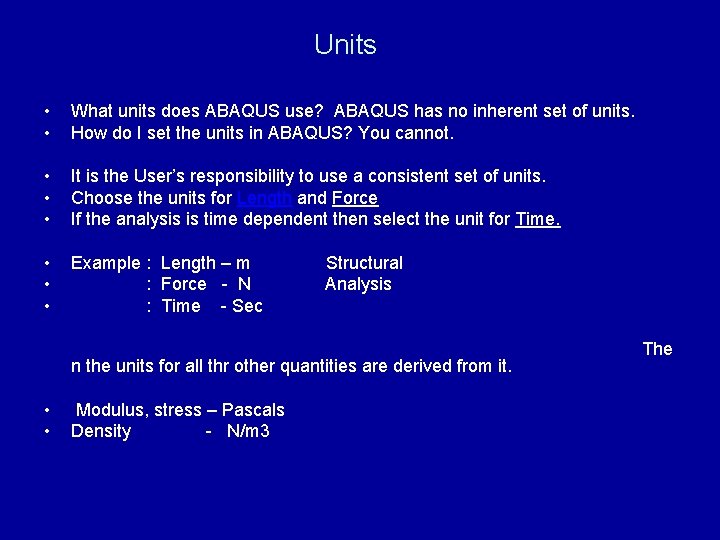

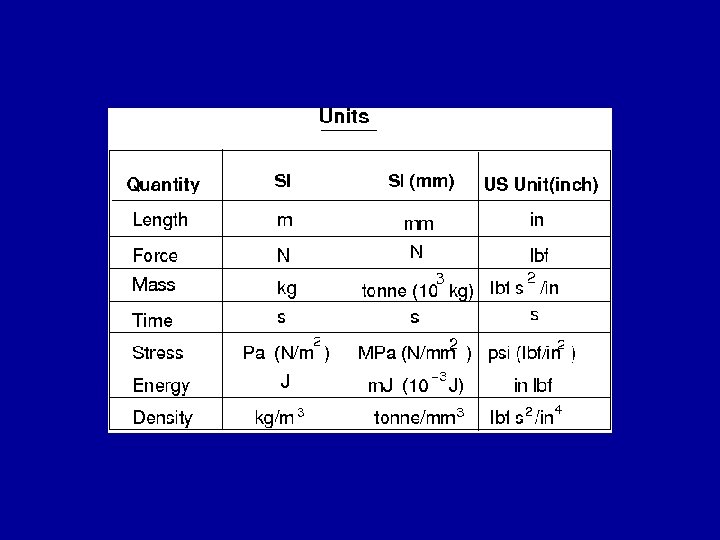

Units • • What units does ABAQUS use? ABAQUS has no inherent set of units. How do I set the units in ABAQUS? You cannot. • • • It is the User’s responsibility to use a consistent set of units. Choose the units for Length and Force If the analysis is time dependent then select the unit for Time. • • • Example : Length – m : Force - N : Time - Sec Structural Analysis n the units for all thr other quantities are derived from it. • • Modulus, stress – Pascals Density - N/m 3 The

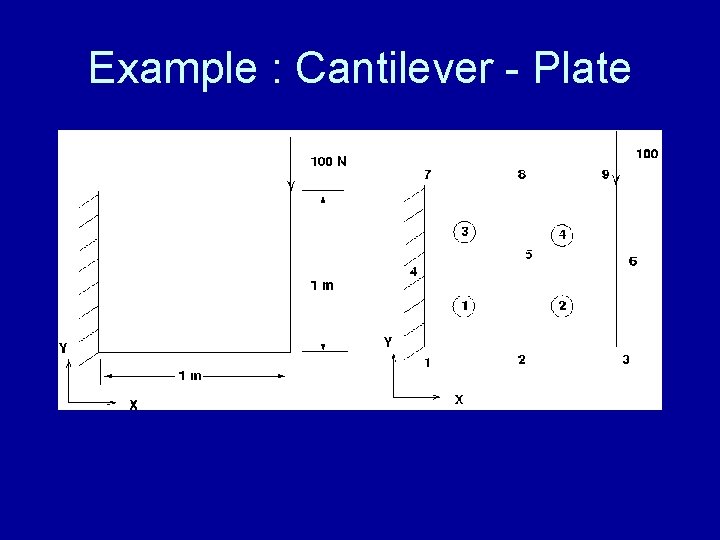

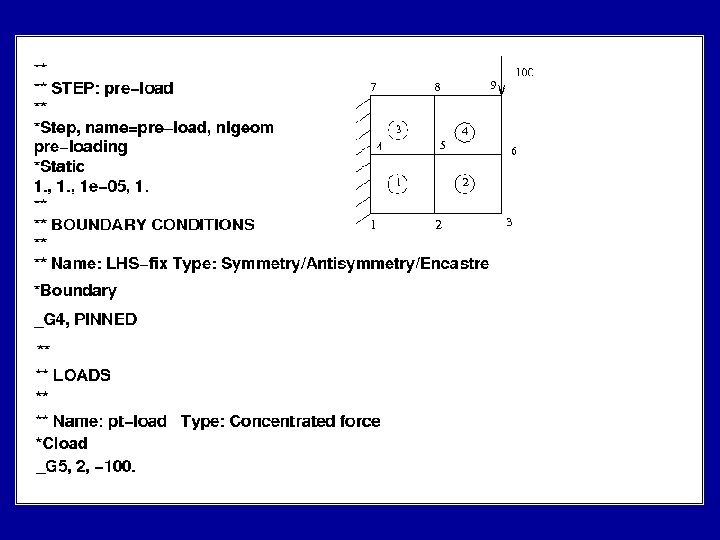

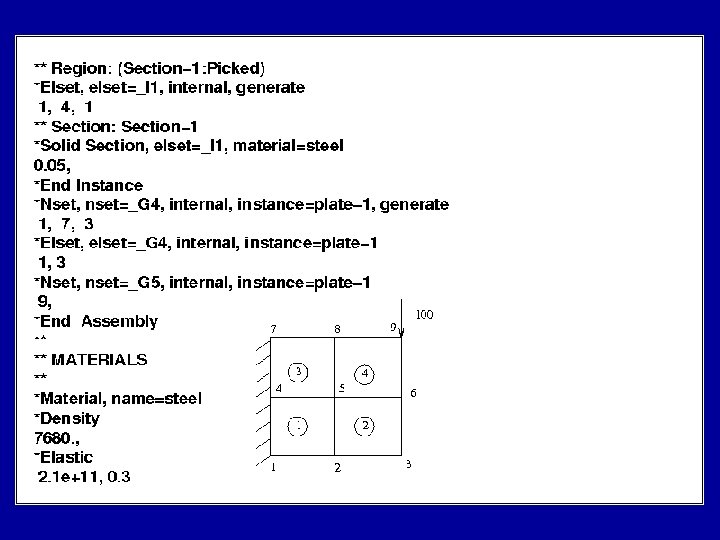

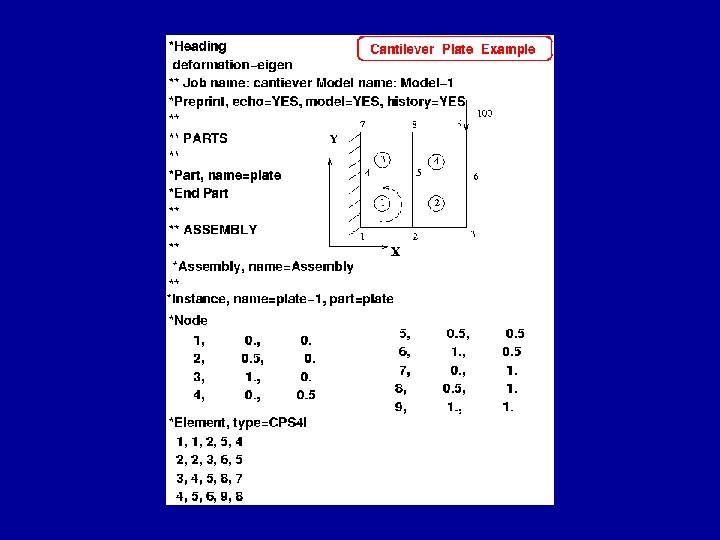

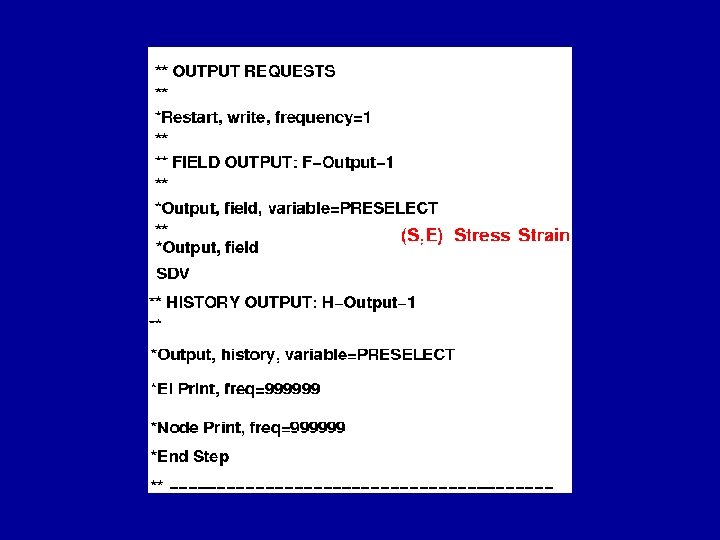

Example : Cantilever - Plate

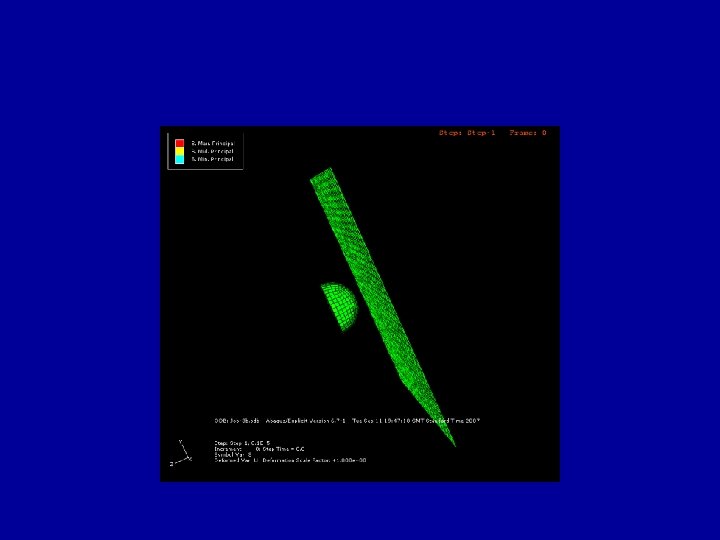

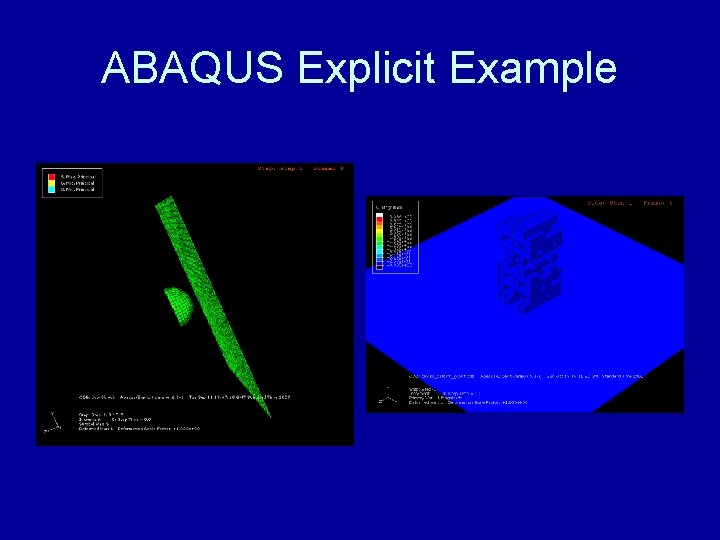

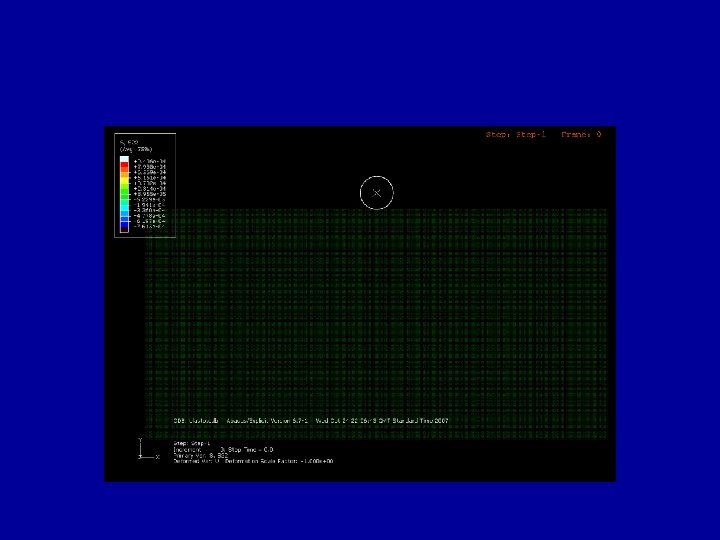

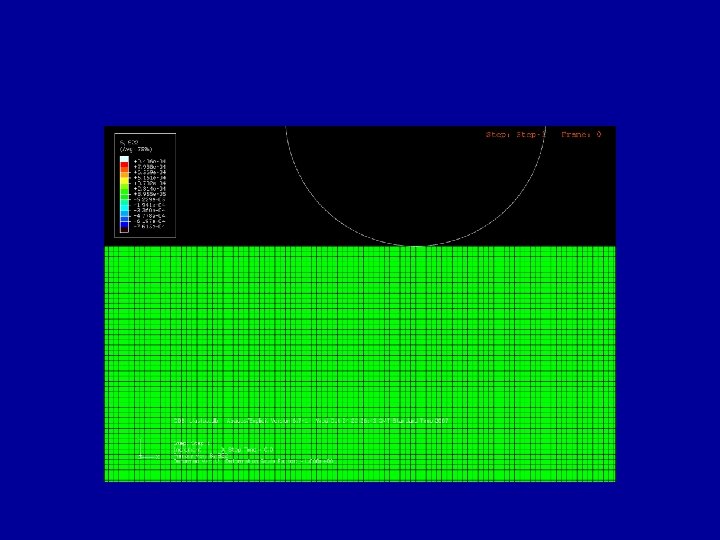

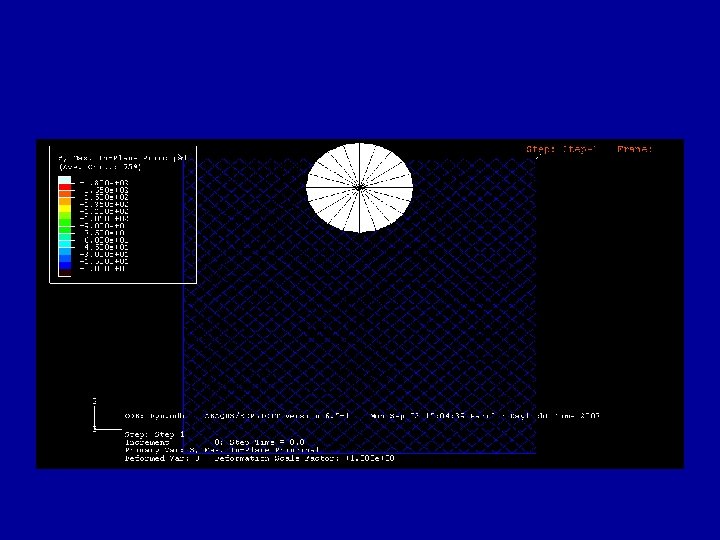

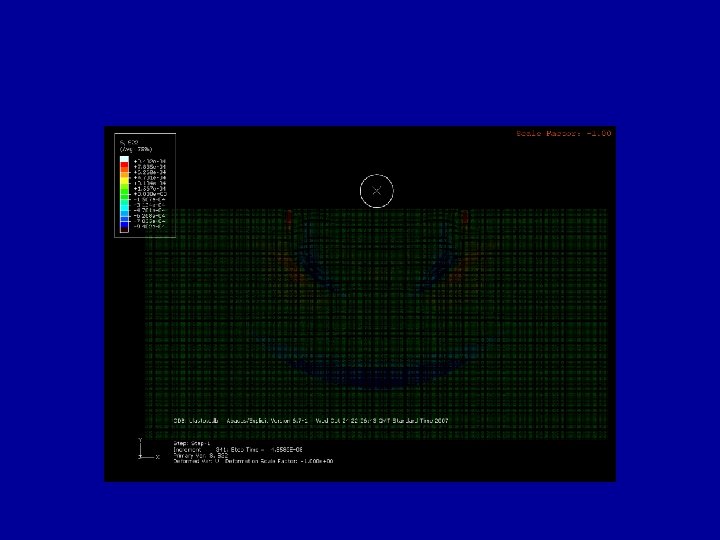

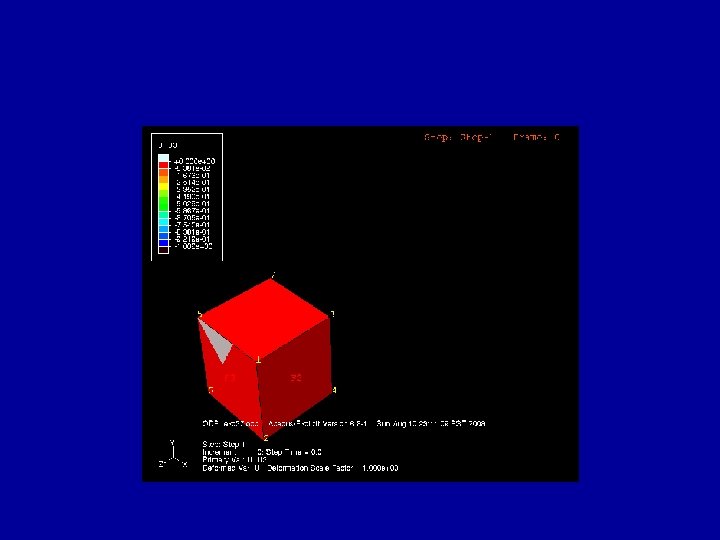

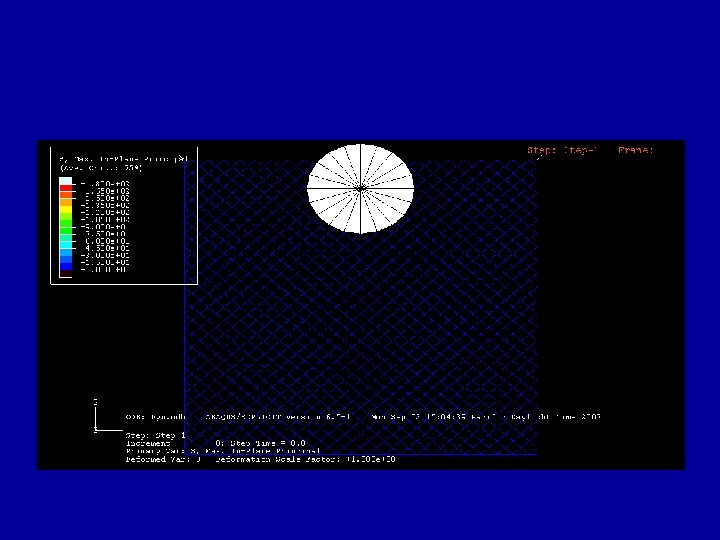

ABAQUS Explicit Example

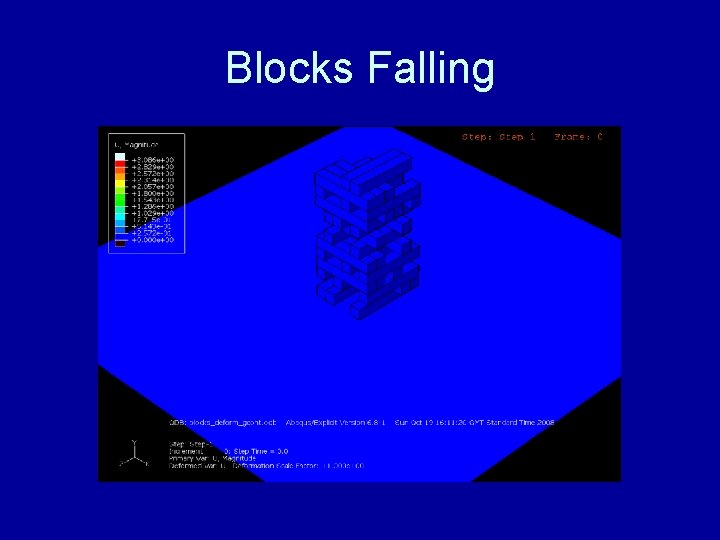

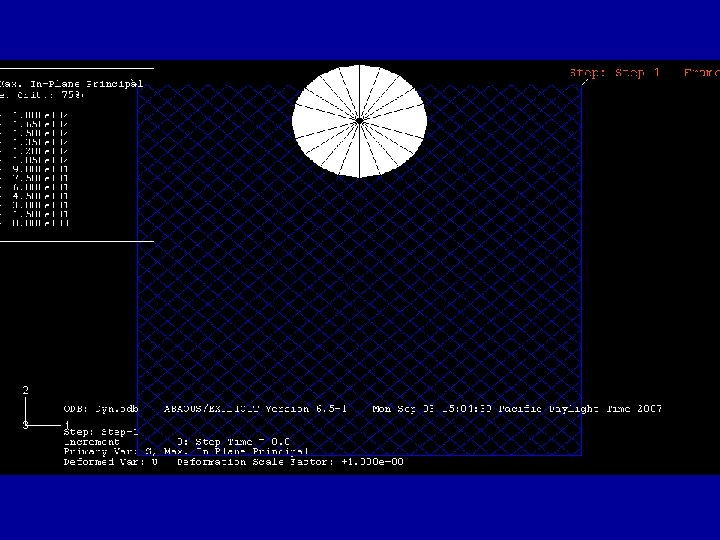

Blocks Falling

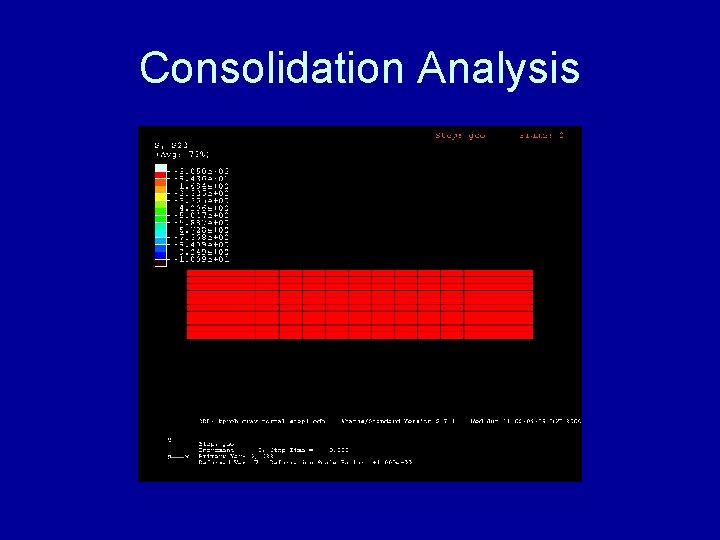

Consolidation Analysis

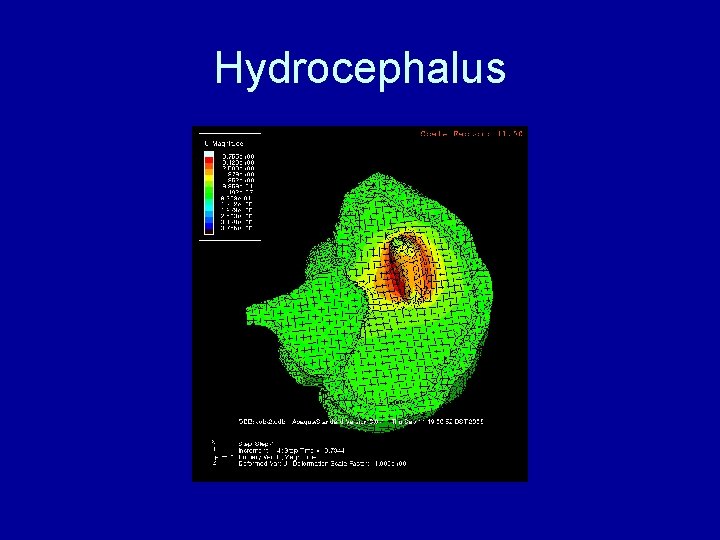

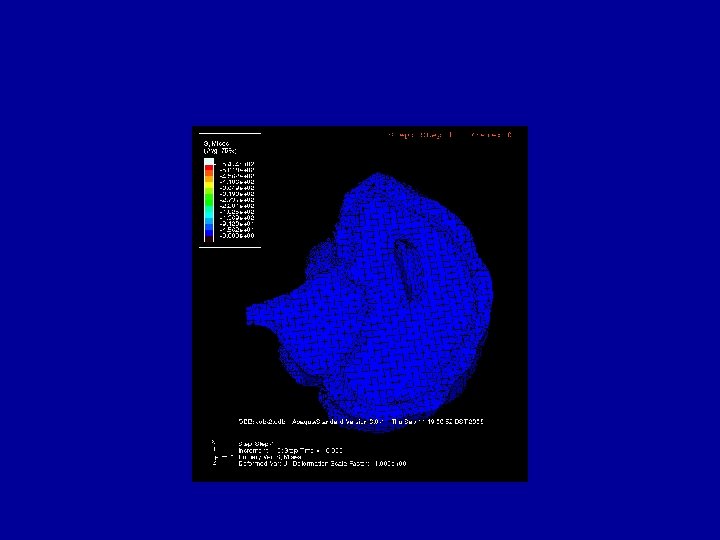

Hydrocephalus

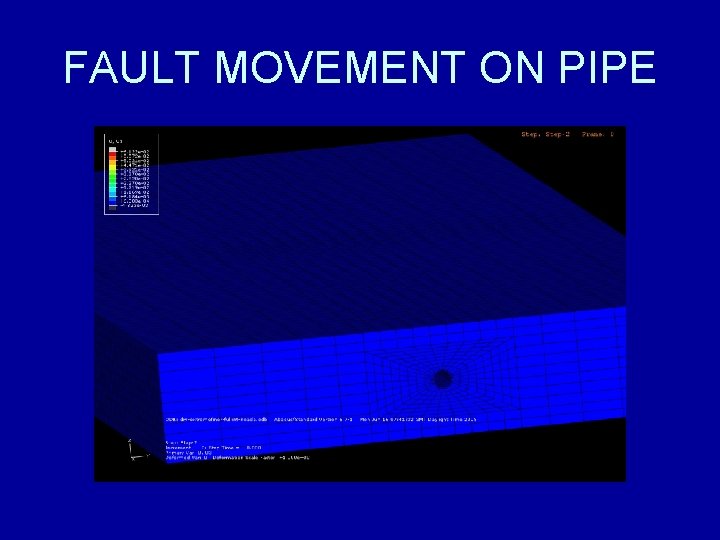

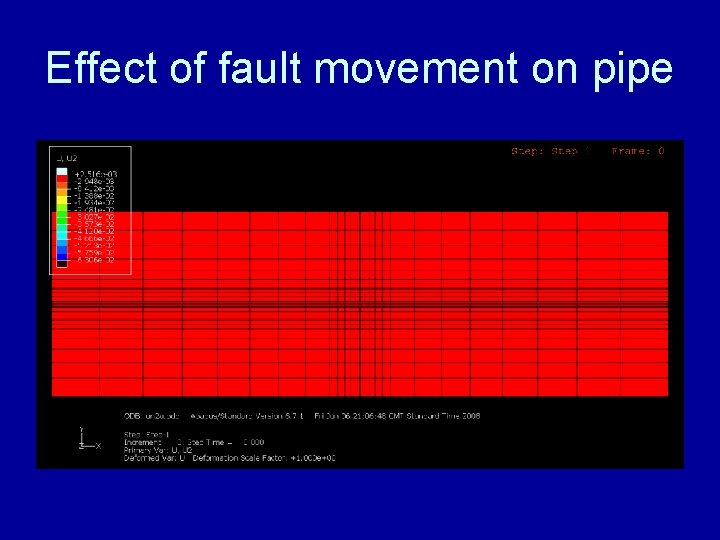

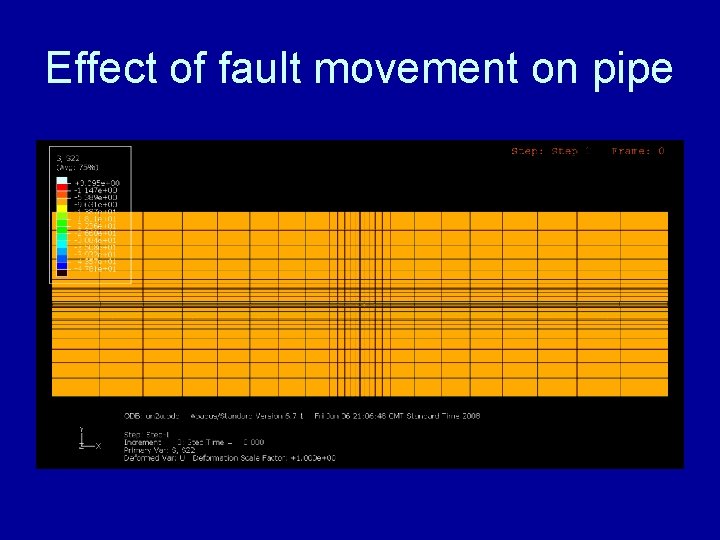

Effect of fault movement on pipe

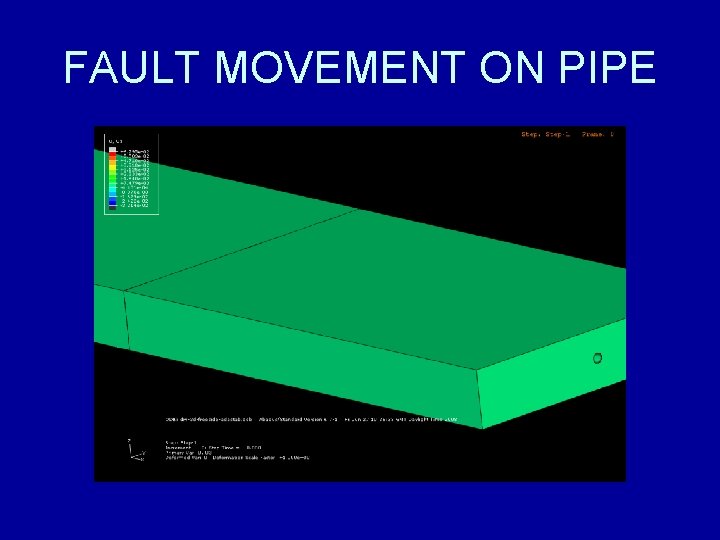

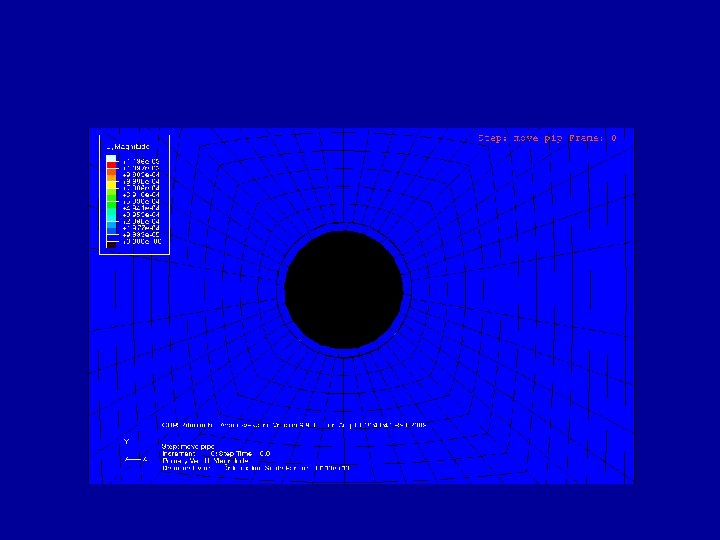

FAULT MOVEMENT ON PIPE
