AASHTO LRFD Section 11 Abutments Piers and Walls

AASHTO LRFD Section 11 Abutments, Piers, and Walls

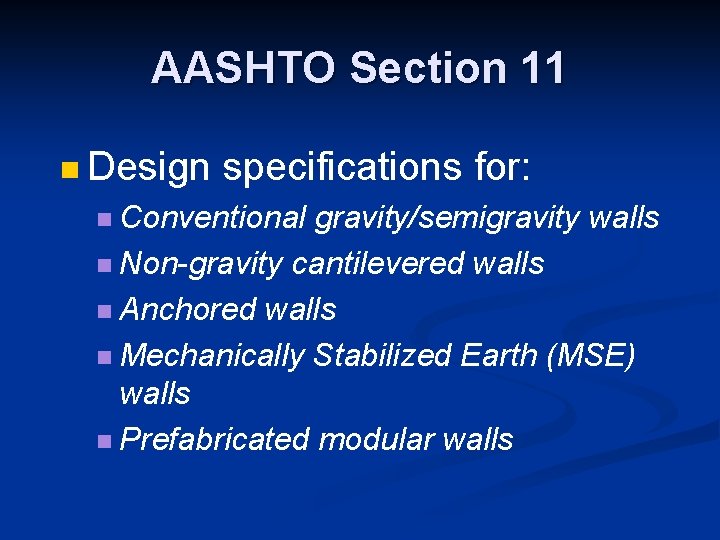

AASHTO Section 11 n Design specifications for: n Conventional gravity/semigravity walls n Non-gravity cantilevered walls n Anchored walls n Mechanically Stabilized Earth (MSE) walls n Prefabricated modular walls

Common Load Groups for Walls g. DC g. EV g. EH (Active) g. ES g. LS 0. 90 1. 00 1. 50 1. 75 Strength Ib 1. 25 1. 35 1. 50 1. 75 Service I 1. 00 Group Strength Ia 1. 00

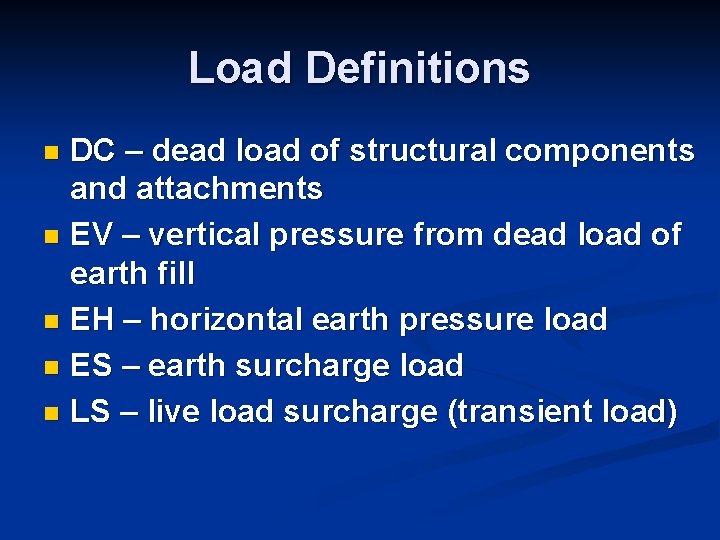

Load Definitions DC – dead load of structural components and attachments n EV – vertical pressure from dead load of earth fill n EH – horizontal earth pressure load n ES – earth surcharge load n LS – live load surcharge (transient load) n

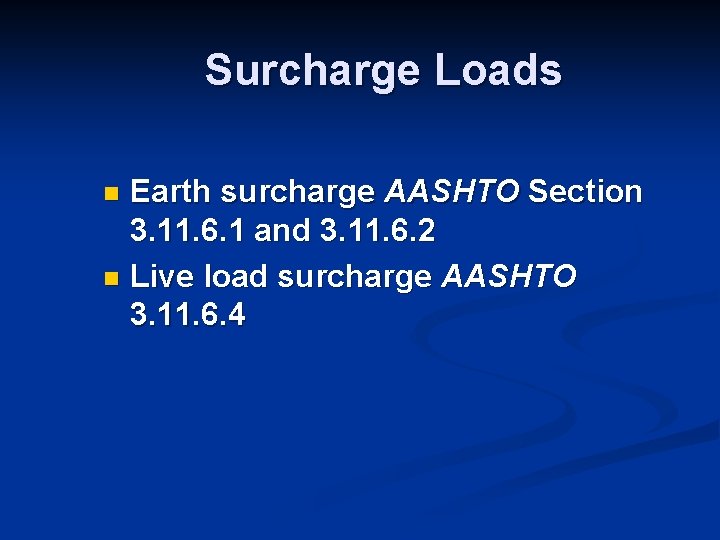

Surcharge Loads Earth surcharge AASHTO Section 3. 11. 6. 1 and 3. 11. 6. 2 n Live load surcharge AASHTO 3. 11. 6. 4 n

Conventional Retaining Walls n Strength Limit States n n Sliding Bearing resistance Eccentricity Service Limit States n n n Vertical settlement Lateral wall movement Overall stability

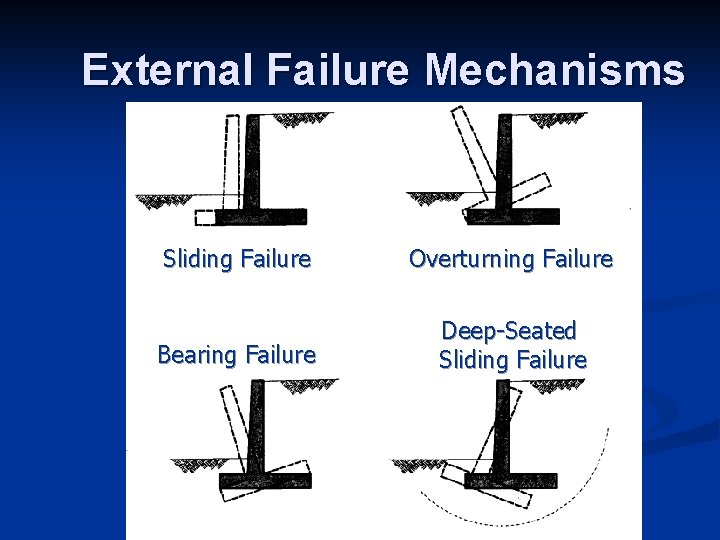

External Failure Mechanisms Sliding Failure Overturning Failure Bearing Failure Deep-Seated Sliding Failure

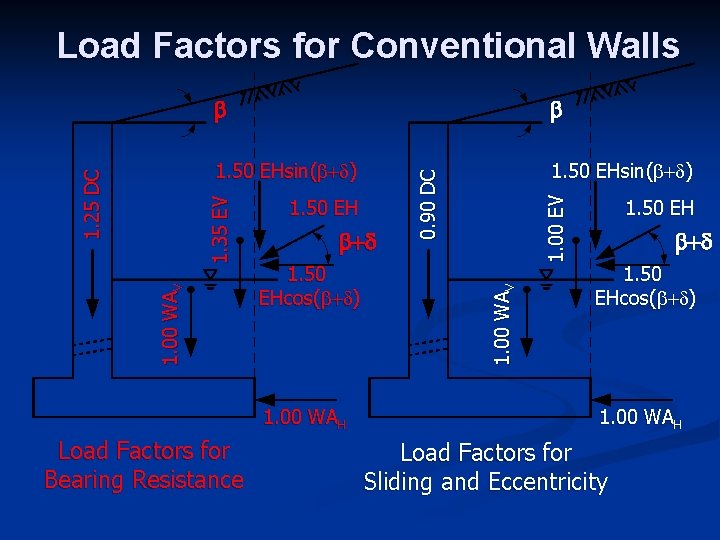

b 1. 50 EHsin(b+d) 1. 50 EHcos(b+d) 1. 00 WAH Load Factors for Bearing Resistance 1. 00 EV b+d 1. 00 WAV 1. 50 EH 0. 90 DC b 1. 35 EV 1. 25 DC Load Factors for Conventional Walls 1. 50 EH b+d 1. 50 EHcos(b+d) 1. 00 WAH Load Factors for Sliding and Eccentricity

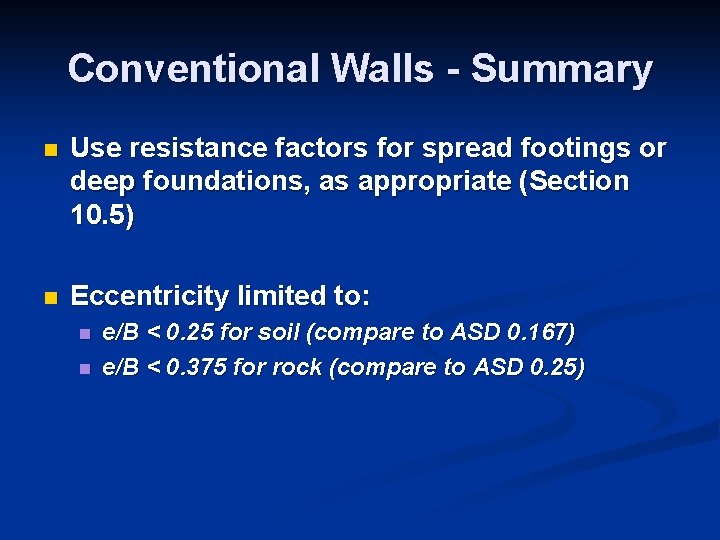

Conventional Walls - Summary n Use resistance factors for spread footings or deep foundations, as appropriate (Section 10. 5) n Eccentricity limited to: n n e/B < 0. 25 for soil (compare to ASD 0. 167) e/B < 0. 375 for rock (compare to ASD 0. 25)

Non-gravity Cantilevered Walls n Strength Limit States n n Bearing resistance of embedded portion of wall Passive resistance of embedded portion of wall Flexural resistance of wall/facing elements Service Limit States n n n Vertical wall movement Lateral wall movement Overall stability

Resistance Factors Bearing Resistance Passive Resistance Flexural Resistance n Section 10. 5 1. 00 0. 90 Code allows increase in Resistance Factors for temporary walls but specific guidance is not provided

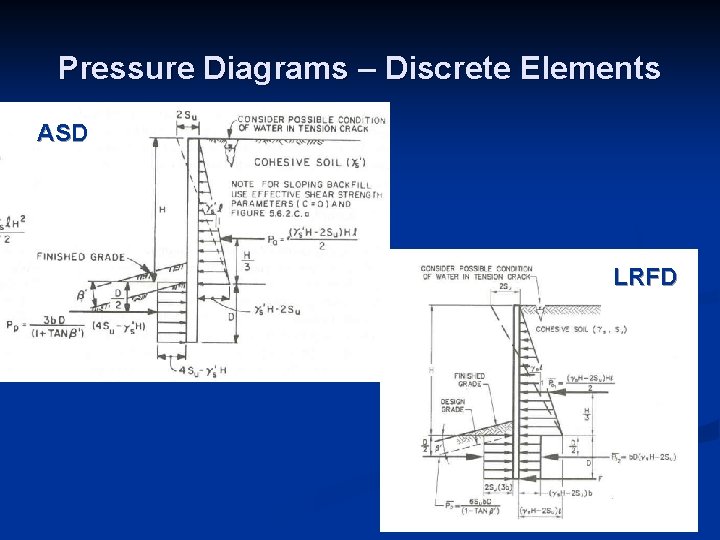

Pressure Diagrams – Discrete Elements ASD LRFD

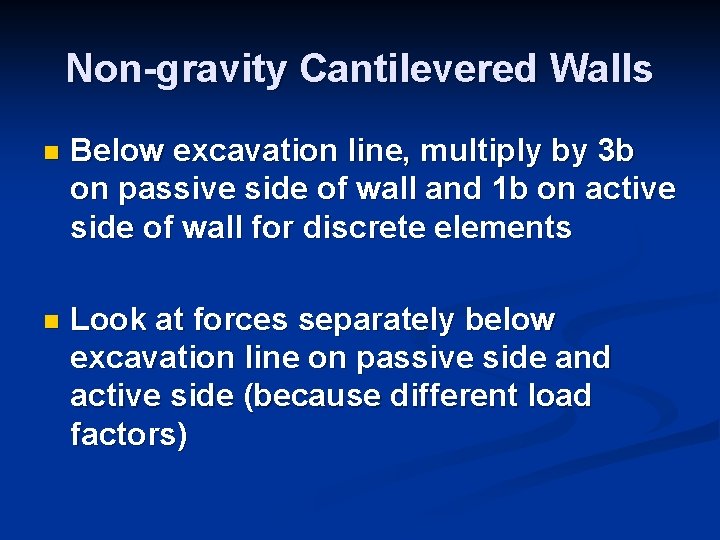

Non-gravity Cantilevered Walls n Below excavation line, multiply by 3 b on passive side of wall and 1 b on active side of wall for discrete elements n Look at forces separately below excavation line on passive side and active side (because different load factors)

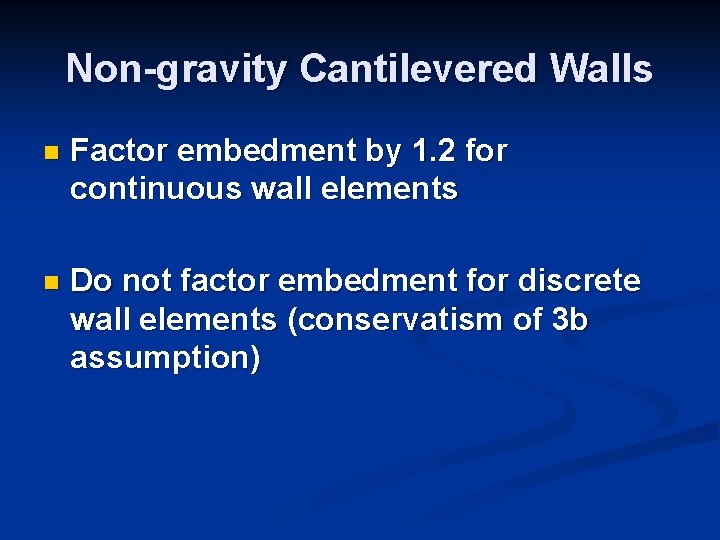

Non-gravity Cantilevered Walls n Factor embedment by 1. 2 for continuous wall elements n Do not factor embedment for discrete wall elements (conservatism of 3 b assumption)

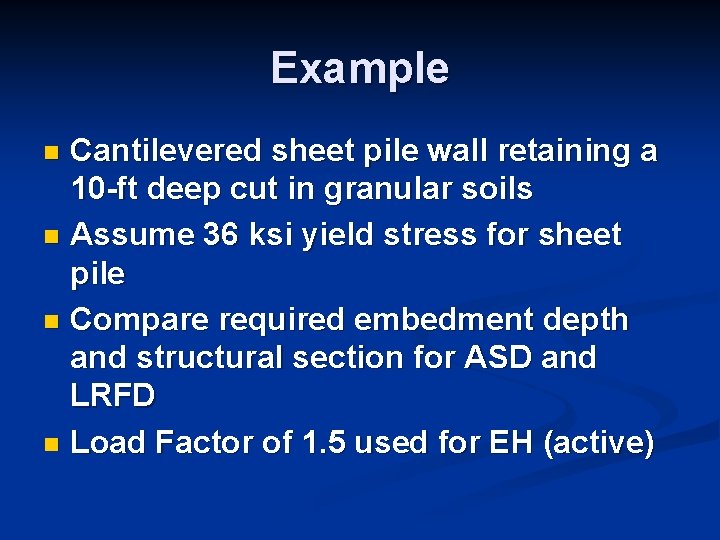

Example Cantilevered sheet pile wall retaining a 10 -ft deep cut in granular soils n Assume 36 ksi yield stress for sheet pile n Compare required embedment depth and structural section for ASD and LRFD n Load Factor of 1. 5 used for EH (active) n

Example Geometry

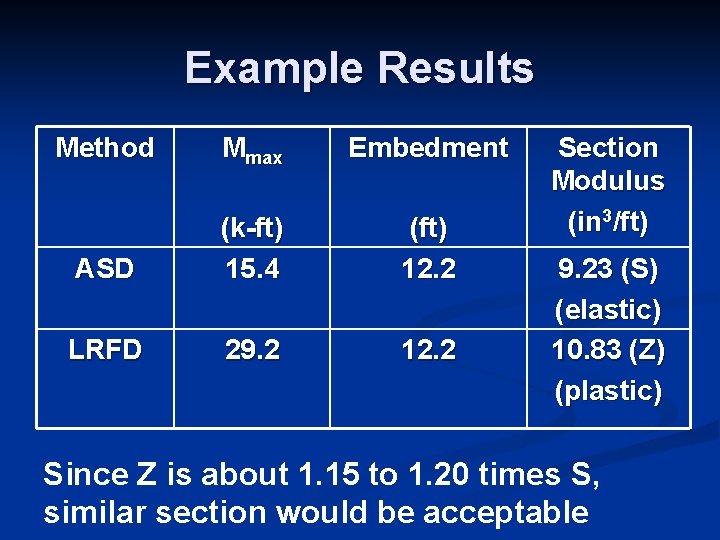

Example Results Method Mmax Embedment ASD (k-ft) 15. 4 (ft) 12. 2 LRFD 29. 2 12. 2 Section Modulus (in 3/ft) 9. 23 (S) (elastic) 10. 83 (Z) (plastic) Since Z is about 1. 15 to 1. 20 times S, similar section would be acceptable

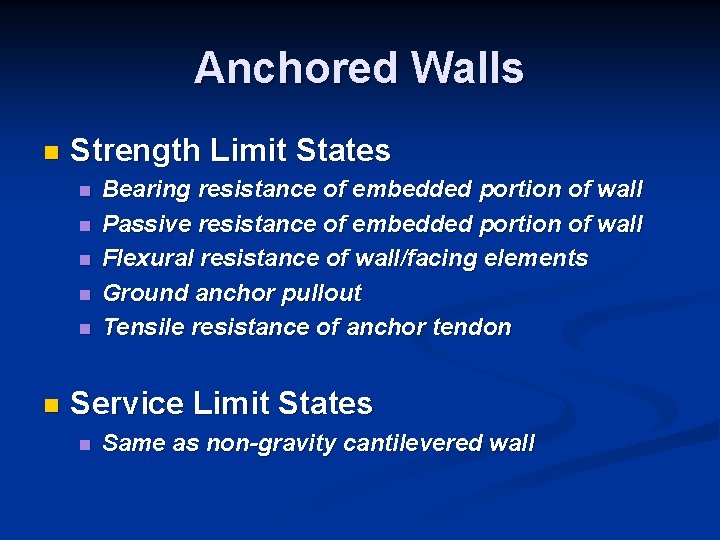

Anchored Walls n Strength Limit States n n n Bearing resistance of embedded portion of wall Passive resistance of embedded portion of wall Flexural resistance of wall/facing elements Ground anchor pullout Tensile resistance of anchor tendon Service Limit States n Same as non-gravity cantilevered wall

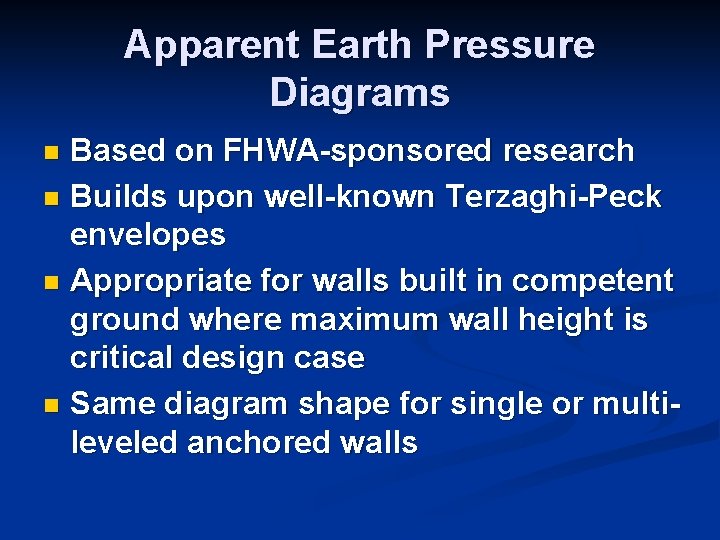

Apparent Earth Pressure Diagrams Based on FHWA-sponsored research n Builds upon well-known Terzaghi-Peck envelopes n Appropriate for walls built in competent ground where maximum wall height is critical design case n Same diagram shape for single or multileveled anchored walls n

R (a) Walls with one level of ground anchors H 1 H 2 2/ 3 H 1 Th 1 p Thn 2/ 3 Hn+1 Hn Th 2 Hn+1 H 2/ 3 (H-H 1) H Th 1 p 1/ 3 H 1 2/ 3 H 1 Recommended AEP for Sands R (b) Walls with multiple levels of ground anchors

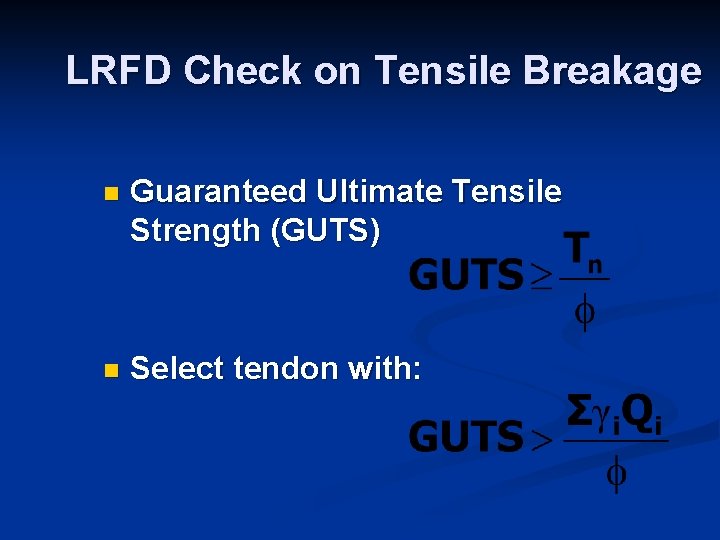

LRFD Check on Tensile Breakage n Guaranteed Ultimate Tensile Strength (GUTS) n Select tendon with:

Resistance Factors for Ground Anchors – Tensile Rupture Mild Steel High Strength Steel 0. 90 0. 80 Resistance factors are applied to maximum proof test load n For high strength steel, apply resistance factor to GUTS n

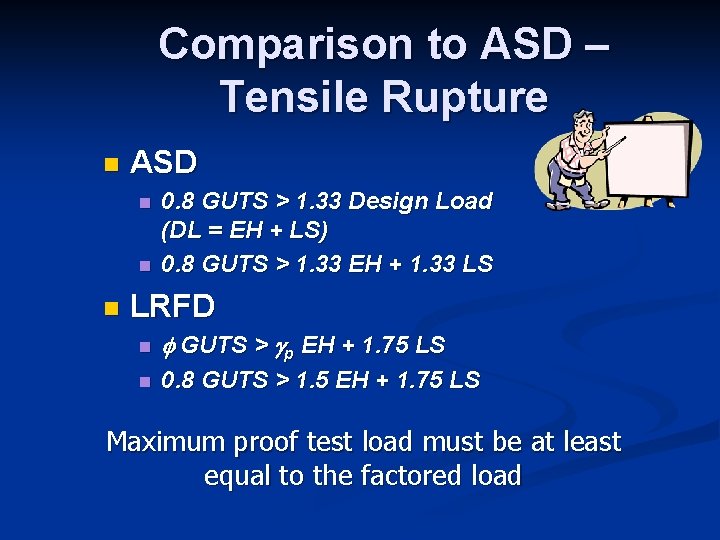

Comparison to ASD – Tensile Rupture n ASD n n n 0. 8 GUTS > 1. 33 Design Load (DL = EH + LS) 0. 8 GUTS > 1. 33 EH + 1. 33 LS LRFD n f GUTS > gp EH + 1. 75 LS n 0. 8 GUTS > 1. 5 EH + 1. 75 LS Maximum proof test load must be at least equal to the factored load

Anchor Bond Length n n n Lb = anchor bond length Tn = factored anchor load Qa = nominal anchor pullout resistance

Nominal Anchor Pullout Resistance n n Qa = nominal anchor pullout capacity d = anchor hole diameter ta = nominal anchor bond stress Lb = anchor bond length

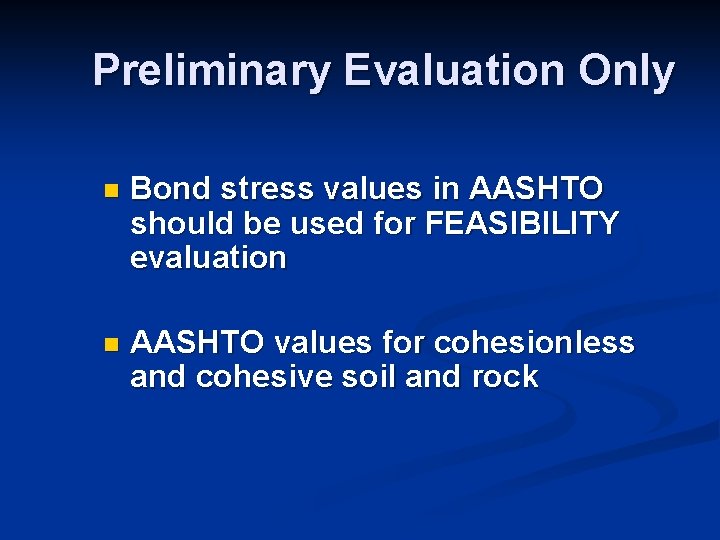

Preliminary Evaluation Only n Bond stress values in AASHTO should be used for FEASIBILITY evaluation n AASHTO values for cohesionless and cohesive soil and rock

Presumptive Nominal Bond Stress in Cohesionless Soils Anchor/Soil Type (Grout Pressure) Soil Compactness or SPT Resistance Presumptive Ultimate Bond Stress, n (ksf) Gravity Grouted Anchors (<50 psi) Sand or Sand-Gravel Mixtures Medium Dense to Dense 11 -50 1. 5 to 2. 9 Medium Dense to Dense 11 -50 Medium Dense 11 -30 Dense to Very Dense 30 -50 1. 7 to 7. 9 2. 3 to 14 5. 2 to 20 Silty Sands ----- 3. 5 to 8. 5 Sandy Gravel Medium Dense to Dense 11 -40 Dense to Very Dense 40 -50+ Dense 31 -50 4. 4 to 29 5. 8 to 29 6. 3 to 11 Pressure Grouted Anchors (50 to 400 psi) Fine to Medium Sand Medium to Coarse Sand w/Gravel Glacial Till

Resistance Factors – Anchor Pullout Cohesionless (Granular) Soils Cohesive Soils Rock Where Proof Tests Preformed 1) 2) 0. 65(1) 0. 70(1) 0. 50(1) 1. 00(2) Using presumptive values for preliminary design only Where proof tests conducted to at least 1. 0 times the factored anchor load

Comparison to ASD – Anchor Pullout 1. 1 LRFD/ASD 1. 05 1. 0 Rock (FS = 3. 0, f = 0. 50) 0. 95 Sand (FS = 2. 5, f = 0. 65) 0. 9 0. 85 0. 8 Clay (FS = 2. 5, f = 0. 70) 0 5 10 Dead Load / Live Load 15 20

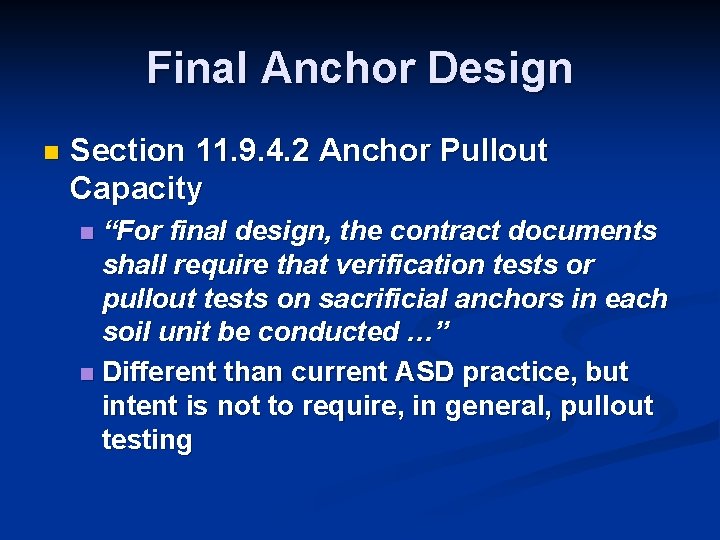

Final Anchor Design n Section 11. 9. 4. 2 Anchor Pullout Capacity “For final design, the contract documents shall require that verification tests or pullout tests on sacrificial anchors in each soil unit be conducted …” n Different than current ASD practice, but intent is not to require, in general, pullout testing n

Bearing Resistance of Wall Element n n Assume all vertical loads carried by portion of wall below excavation level Code refers designer to section on spread or deep foundations for analysis methods Resistance factors used are for static capacity evaluation of piles or shafts (i. e. , = 0. 3 to 0. 5 FS ~ 3. 0 to 4. 5) Resistance factors should be modified to correlate to FS = 2. 0 to 2. 5 for bearing resistance evaluation

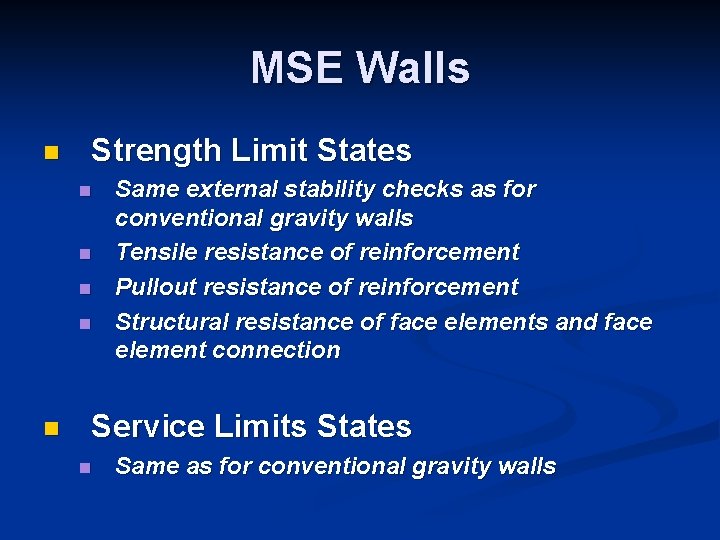

MSE Walls n Strength Limit States n n n Same external stability checks as for conventional gravity walls Tensile resistance of reinforcement Pullout resistance of reinforcement Structural resistance of face elements and face element connection Service Limits States n Same as for conventional gravity walls

MSE Walls – External Stability

MSE Walls – Internal Stability n Check pullout and tensile resistance at each reinforcement level and compare to maximum factored load, Tmax

Maximum Factored Load n Apply factored load to the reinforcements s. H = factored horizontal soil stress at reinforcement (ksf) n Sv = vertical spacing of reinforcement n AASHTO 11. 10. 6. 2. 1 -2

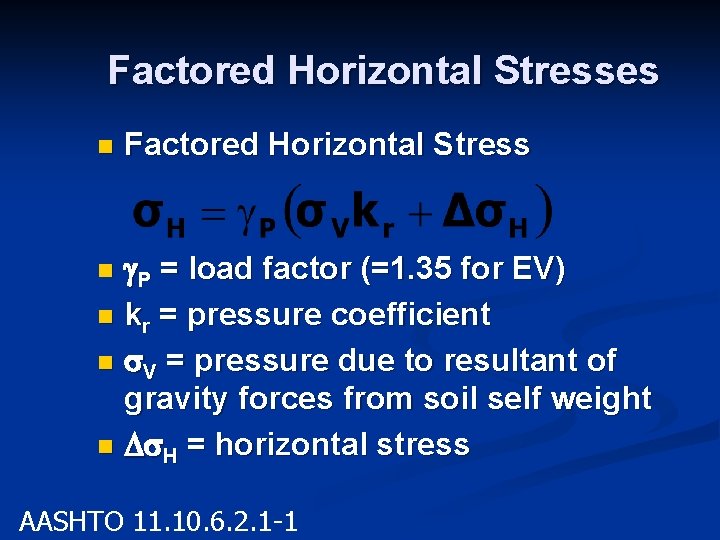

Factored Horizontal Stresses n Factored Horizontal Stress n g. P = load factor (=1. 35 for EV) n kr = pressure coefficient n s. V = pressure due to resultant of gravity forces from soil self weight n Ds. H = horizontal stress AASHTO 11. 10. 6. 2. 1 -1

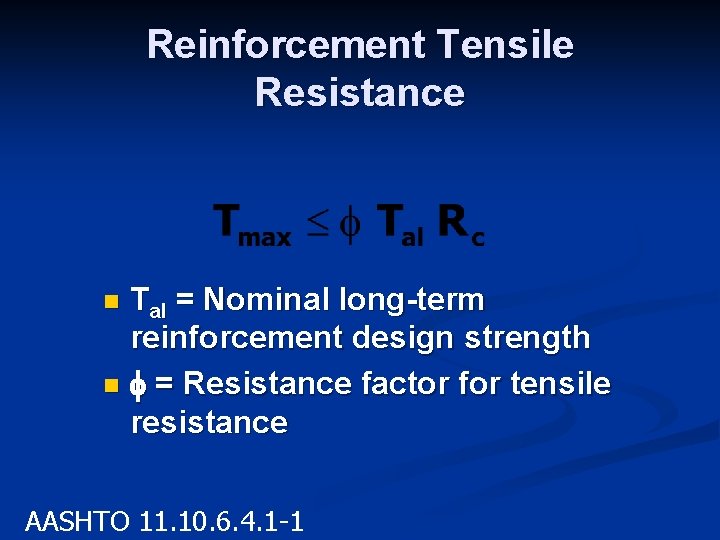

Reinforcement Tensile Resistance Tal = Nominal long-term reinforcement design strength n = Resistance factor for tensile resistance n AASHTO 11. 10. 6. 4. 1 -1

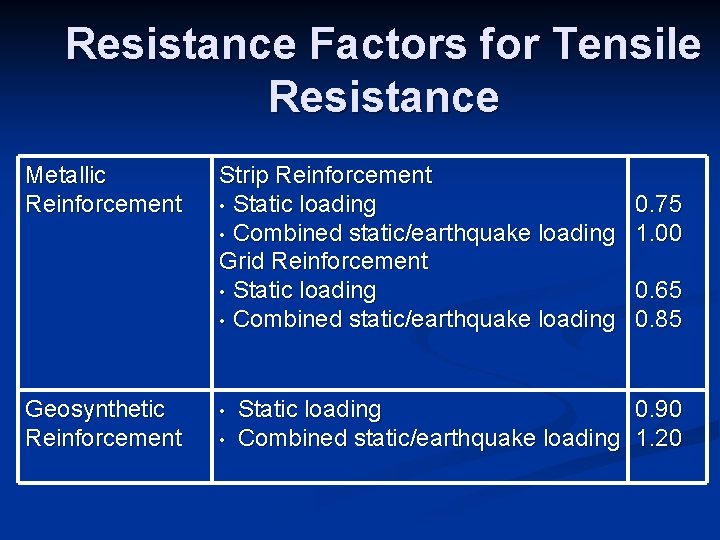

Resistance Factors for Tensile Resistance Metallic Reinforcement Geosynthetic Reinforcement Strip Reinforcement • Static loading • Combined static/earthquake loading Grid Reinforcement • Static loading • Combined static/earthquake loading • • 0. 75 1. 00 0. 65 0. 85 Static loading 0. 90 Combined static/earthquake loading 1. 20

ASD/LRFD Tensile Breakage Example of Steel Strip Reinforcement

Other Developments n LRFD for Soil Nails – NCHRP 24 -21 n Draft LRFD Design and Construction Specification for Micropiles

? The End
