AA277 Instability and transition to turbulence Andr V
AA-277 Instability and transition to turbulence André V. G. Cavalieri Peter Jordan (Visiting researcher, Ciência Sem Fronteiras)
Instability and transition to instability Laminar flows Turbulent flows turbulence ❑ ❑ ❑ Lower skin friction and heat transfer Prone to flow separation Steady flows, no noise generation ❑ Increased skin friction and heat transfer ■ ❑ ❑ Turbulent mixing Less prone to separation Aerodynamic noise Challenges: 1 – Predict transition to turbulence 2 – Understand mechanisms of transition 3 – Flow control: delay, or simply avoid turbulence
Instability and transition to Are there steady (laminar) solutions to the Navier-Stokes turbulence equations? ■ ❑ Yes! ■ ■ Are there small (or sometimes not so small) disturbances in the environment? ❑ Yes! ■ ■ ■ ■ Example: zero-pressure-gradient boundary layer (Blasius): solution for arbitrary Re Surface roughness Vibration Sound waves Incoming vorticity A mosquito flying nearby Are the steady solutions stable to these disturbances? ❑ Answer: it depends. . . strongly on Re (but also on M) Unstable laminar solutions will not prevail on nature
This course ■ Theory ❑ Suggested literature: ■ ■ Criminale, Jackson & Joslin, Theory and computation of hydrodynamic stability, Cambridge University Press, 2003 Schmid & Henningson, Stability and transition in shear flows, Springer, 2001 + various articles to be provided during the course Computation ❑ Matlab programming ■ ■ Trefethen, Spectral methods in Matlab Boyd, Chebyshev and Fourier spectral methods Lectures with assignments Goals: ❑ Build a toolbox to solve some canonical stability problems ❑ Learn with examples Grades: ❑ Theoretical and computational assignments ❑ ■ ■ ■ Material can be found in ftp: //161. 24. 15. 247/Andre/AA 277
Videos! Rayleigh-Taylor instability http: //www. youtube. com/watch? v=NI 85 o. C-3 m. J 0 Pipe flow: Reynolds experiment (1883) http: //www. youtube. com/watch? v=xi. X 5 Pf. Fxm. Is Boundary-layer transition: Tollmien-Schlichting waves http: //www. youtube. com/watch? v=nb 22 g 6 ky 2 XE Kelvin-Helmholtz instability http: //www. youtube. com/watch? v=Ub. Afvca. Yr 00 Rayleigh-Bénard convection http: //www. youtube. com/watch? v=Uh. Im. CA 5 Ds. Q 0
Videos! Rayleigh-Taylor instability http: //www. youtube. com/watch? v=NI 85 o. C-3 m. J 0 Pipe flow: Reynolds experiment (1883) http: //www. youtube. com/watch? v=xi. X 5 Pf. Fxm. Is Boundary-layer transition: Tollmien-Schlichting waves http: //www. youtube. com/watch? v=nb 22 g 6 ky 2 XE WAVES!!! Kelvin-Helmholtz instability http: //www. youtube. com/watch? v=Ub. Afvca. Yr 00 Rayleigh-Bénard convection http: //www. youtube. com/watch? v=Uh. Im. CA 5 Ds. Q 0 Fourier
Basic equations: Rayleigh and Orr-Sommerfeld equations
Basic equations: Rayleigh and Orr-Sommerfeld equations Basic equations for two-dimensional incompressible flow with constant viscosity Mass conservation Navier-Stoles equation

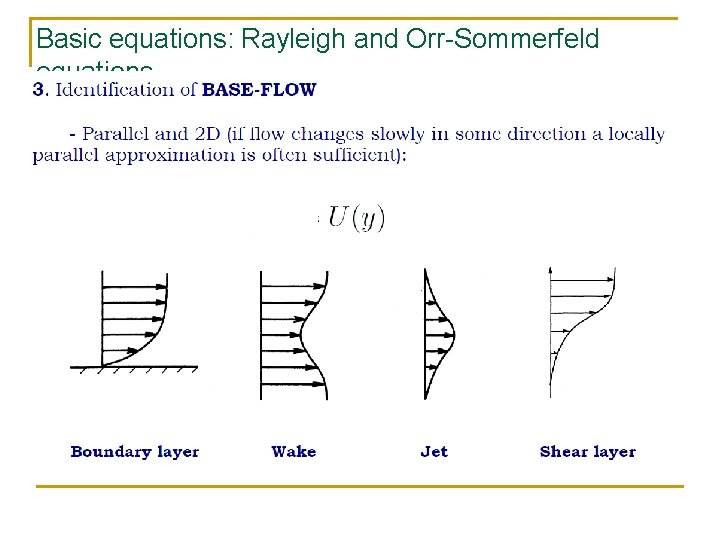

Basic equations: Rayleigh and Orr-Sommerfeld equations
Basic equations: Rayleigh and Orr-Sommerfeld equations Mass conservation, non-dimensional Navier-Stoles equation, non-dimensional
Basic equations: Rayleigh and Orr-Sommerfeld equations
Basic equations: Rayleigh and Orr-Sommerfeld equations
Basic equations: Rayleigh and Orr-Sommerfeld equations
Basic equations: Rayleigh and Orr-Sommerfeld equations
Basic equations: Rayleigh and Orr-Sommerfeld equations We consider infinitesimal disturbances to the base flow, such that << << Linearisation is formally justified (but only for initial stages of transition) Tools for linear PDEs: Superposition of solutions Fourier transforms Linear is simpler! Linear algebra
Basic equations: Rayleigh and Orr-Sommerfeld equations tedious but straightforward algebra
Basic equations: Rayleigh and Orr-Sommerfeld equations Other variables:
Basic equations: Rayleigh and Orr-Sommerfeld equations Coefficients are • constant in x and t • variable in y Normal mode Ansatz: Wave propagating in x, with: • phase velocity c • wavenumber α • frequency ω=αc All complex-valued!
Basic equations: Rayleigh and Orr-Sommerfeld equations Coefficients are • constant in x and t • variable in y Normal mode Ansatz:
Basic equations: Rayleigh and Orr-Sommerfeld equations Coefficients are • constant in x and t • variable in y Normal mode Ansatz: Neglect viscous effects:
Basic equations: Rayleigh and Orr-Sommerfeld equations Normal mode Ansatz: 4 th order, 4 BCs 2 nd order, 2 BCs Boundary conditions: Rigid wall: v = 0 (normal velocity is zero) – Rayleigh & Orr-Sommerfeld dv/dy = 0 (since u=0 and du/dx=0, no-slip condition) – only O-S Infinity: bounded v, dv/dy
Basic equations: Rayleigh and Orr-Sommerfeld equations Normal mode Ansatz: Temporal stability: • wavenumber α is real-valued • frequency ω= ωR + ωI (=αc) is complex-valued Space-periodic disturbances are added to the base-flow Will they grow or decay in time?
Basic equations: Rayleigh and Orr-Sommerfeld equations Normal mode Ansatz: Spatial stability: • frequency ω is real-valued • wavenumber α=αR+iαI is complex-valued Time-periodic disturbances are added to the base-flow Will they grow or decay in space? (see Matlab demo)
Temporal stability Real-valued wavenumber is given Base-flow U is given Reynolds number is given c and v are unknowns Rearrange O-S equation as or
Temporal stability Rearrange O-S equation as or or Generalised eigenvalue problem with linear operators L and F c is the eigenvalue Numerics: discretise operators as matrices, then eig(L, F)
A simpler eigenvalue problem or Let’s first look at a simpler eigenvalue problem with BC: v=0 for y=-1 and y=1 This problem appears in: • Linear acoustics • Vibration of membranes • Heat transfer etc
A simpler eigenvalue problem or Let’s first look at a simpler eigenvalue problem with BC: v=0 for y=-1 and y=1 Analytical solution:
A simpler eigenvalue problem Let’s first look at a simpler eigenvalue problem with BC: v=0 for y=-1 and y=1 Analytical solution: Numerical solution: needs discretization of derivative in matrix form i. e. a differentiation matrix Choices to build differentiation matrices: • Finite differences (example: EVPExample_Finite. Differences. m) • Spectral method (example: EVPExample_Chebyshev. m )
Finite differences v is sampled at N gridpoints, spacing=Δx interior points: centered differences boundary: forward or backward differences (less accurate) Derivative is estimated from values of function on the neighbourhood of xi Differentiation matrix is sparse Freedom to choose the grid
Pseudo-spectral method – Chebyshev polynomials Tn(x) Orthogonal basis in [-1, 1] Functions in [-1, 1] can be expanded in Chebyshev polynomials Derivatives:
Pseudo-spectral method v is sampled at N+1 Chebyshev gridponts (clustered near boundaries) 1. 2. 3. 4. Find the coefficients of N+1 Chebyshev polynomials from N+1 values of v Calculate derivatives of Chebyshev polynomials Calculate values of dv/dy at the gridpoints Gather everything inside a single matrix Trefethen 2001 Derivative is estimated from polynomial fit applied to N+1 samples Differentiation matrix is full Grid must be of Chebyshev points See chebyshev_introduction. m
Finite differences x pseudo-spectral method Error in the calculation of the derivative Finite differences: algebraic convergence Spectral: exponential convergence machine precision
Finite differences x pseudo-spectral method 2 nd-order finite differences Pseudo-spectral 0. 01 error • Some eigenvalues (and eigenfunctions) well converged, but some (at least half) should not be trusted! • Pseudo-spectral method better suited for accurate predictions • But: revival of finite differences due to sparse-matrix algorithms (compensate with higher N) – see Gennaro et al. 2013
Exercise – numerical solution of Rayleigh equation (temporal stability) Rayleigh equation, rearranged for temporal stability or Exercise: #1: Adapt the code to solve the temporal stability problem for the Rayleigh equation for a mixing layer (U=0. 5(1+tanh(y))), with BC: v 0 for y ±∞ (numerically: v=0 for y= ± H, H>>1) Start with α=0. 1. Compare with Michalke (1964).
Exercise – numerical solution of Rayleigh equation (temporal stability) Useful Matlab commands (help can be obtained with comands “help” and “doc”): diag(U): diagonal matrix, main diagonal = vector U II = eye(size(D)): identity matrix, same size as matrix D ZZ = zeros(size(D)): matrix of zeros, same size as matrix D H = 20; y = y*H; D = D/H; D 2 = D 2/(H^2); : stretches domain from [-1: 1] to [-H: H] A*B is the standard matrix multiplication (number of lines of A should be equal to number of columns of B) A. *B is an element-to-element multiplication (dimensions of A and B shoud be equal) A^2 is A*A (A should be a square matrix) A. ^2 is A. *A (A can have any size; could be a vector) A(1, : ) means all elements in line 1 of matrix A A(: , 5) means all elements in column 5 of matrix A
Expected results Kelvin-Helmholtz (K-H) mode Conjugate of K-H
Expected results If the c, v pair is a solution (eigenvalue-eigenfuncion) of the Rayleigh equation the c*, v* pair is also a solution. Is this true for the Orr-Sommerfeld equation?
Expected results, α=0. 1, absolute value of eigenfunction exponential decay Kelvin-Helmholtz (K-H) mode artificial boundary condition (v=0)
Expected results, α=0. 1 In the region where U is constant, Rayleigh equation reduces to If c ≠ U then Plus or minus signs are chosen such that solution be bounded at infinity.
Expected results, absolute value of eigenfunction α=0. 1 α=0. 4 Artificial boundary condition is more problematic at low α. • Domain size should be large compared to the wavelength
Expected results, absolute value of eigenfunction α=0. 1 α=0. 4 Solution: mapping from infinite (z) to finite domain (y) See appendix E of Boyd for expressions of derivatives
Expected results Kelvin-Helmholtz (K-H) mode Temporal growth rate: ωi=αci What is the fastest growing wavenumber? What is the wavelength of fastest growing disturbances?
Expected results Temporal growth rate of Kelvin-Helmholtz mode This result shows: • Wavenumber of most amplified disturbances • Growth rate of each amplified wavenumber • Range of amplified wavenumbers
Expected results What is the “preferred” wavelength?
Expected results Kelvin-Helmholtz (K-H) mode Phase speed of disturbances: cr What is the phase speed (convection velocity) of the amplified disturbances?
Expected results Phase speed of Kelvin-Helmholtz mode For temporal stability, phase speed = ½ • Average speed between two streams What happens for U(y)=tanh(y)? (check the average phase speeds and growths, observe that the nondimensionalization changes)
Expected results
Expected results Eigenfunctions allow study of shapes of growing disturbances (streamlines, vorticity, etc. . . ) Vorticity Streamlines (Michalke 1964) Initial stages of roll-up of shear layer into “vortices”
Expected results Eigenfunctions allow study of shapes of growing disturbances (streamlines, vorticity, etc. . . ) Vorticity Experiment (Winant & Browand 1974) Obs: faster stream for negative y (Michalke 1964) Initial stages of roll-up of shear layer into “vortices”
Expected results Eigenfunctions allow study of shapes of growing disturbances (streamlines, vorticity, etc. . . ) Vorticity Experiment (Winant & Browand 1974) Obs: faster stream for negative y (Michalke 1964) Initial stages of roll-up of shear layer into “vortices”
Expected results Eigenfunctions allow study of shapes of growing disturbances (streamlines, vorticity, etc. . . ) Vorticity Experiment (Winant & Browand 1974) Obs: faster stream for negative y (Michalke 1964) Initial stages of roll-up of shear layer into “vortices”
Discussion ■ In unsteady, turbulent flows, clear understanding is exception rather than rule ❑ Nonlinear ■ system of PDEs, 4 dimensions, 5 dependent variables. . . Linear stability allows identification of a well-defined flow feature: an instability wave ❑ Appropriate ■ for initial stages of transition Eigenfunctions of the linearised stability problem form a complete basis (Salwen & Grosch 1981) ❑ It is possible to project flow data (from calculations or experiments) onto the eigenfunctions to obtain amplitudes of each mode ■ Problem is much cheaper to solve numerically than a DNS or an LES ❑ Simplicity through linearisation and use of normal modes - PDE becomes an ODE
Further remarks ■ Rayleigh equation neglects viscous effects ❑ ❑ ❑ ■ No information on the critical Reynolds number Asymptotic behaviour for Re → ∞ Predicts initial stage of transition for sufficiently high Re Rayleigh equation becomes singular for c=U ❑ ❑ Critical layer Special care to treat singularity ■ Easy way out: account for viscous effects This branch should not be trusted!
Critical layer modes in Couette flow
Critical layer modes in Couette flow
Critical layer modes in Couette flow Discontinuity in dv/dy, discontinuity in u
Critical layer modes in Couette flow Phase opposition in u across the critical layer
Exercise – numerical solution of Orr-Sommerfeld equation (temporal stability) or Orr-Sommerfeld equation, rearranged for temporal stability Exercise: #2: Write a code to solve the temporal stability problem for the Orr. Sommerfeld equation for plane Poiseuille flow (U=1 - y 2). Start with α=1. 0 and Re=10000. Compare with Orszag (1971).
Some further numerical tricks If v 1=0 and v. N+1 = 0 (homogeneous Dirichlet boundary conditions), the easiest way to impose BCs is L=L(2: N); F=F(2: N); Trefethen 2001 Implicitly, we take only Chebyshev polynomials satisfying the boundary conditions
Some further numerical tricks Orr-Sommerfeld: we need to impose v 1=0 and v. N+1 = 0 (homogeneous Dirichlet boundary conditions) dv 1/dy=0 and dv. N+1/dy=0 (homogeneous Neumann boundary conditions) Here is the trick: If q(-1)=q(1)=0, then: v(-1)=v(1)=0 AND dv/dy(-1)=dv/dy(1)=0 Write a problem with q as the unknown, and impose q(-1)=q(1)=0.
Exercise #2, expected results Exercise: #2: Write a code to solve the temporal stability problem for the Orr. Sommerfeld equation for plane Poiseuille flow (U=1 - y 2). Start with α=1. 0 and Re=10000. Compare with Orszag (1971). Eigenspectrum ? ? ?
Exercise #2, expected results Recall that not all eigenvalues are converged Orr-Sommerfeld: no analytical solutions How to decide which eigenvalues are accurate?
Exercise #2, expected results Recall that not all eigenvalues are converged Compare results for different discretisations
Exercise #2, expected results Recall that not all eigenvalues are converged Compare results for different discretisations
Exercise #2, expected results Boyd, section 6. 14: Checking
Exercise #2, expected results Recall that not all eigenvalues are converged Compare results for different discretisations Some errors still present; region of high sensitivity of the O-S operator (see Reddy, Schmid & Henningson 1993)
Exercise #2, expected results The Orr-Sommerfeld operator is non-normal • Adjoint Orr-Sommerfeld ≠ Direct Orr-Sommerfeld • Matrix L is not Hermitian (i. e. L*T ≠ L) • High sensitivity of some eigenvalues to numerical errors More on that later!
Exercise #2, expected results Convergence of most unstable mode, α=1, Re=10000 Orszag 1971:
Exercise #2, expected results Growth rate of most unstable mode: Effect of Reynolds number
Exercise #2, expected results Growth rate of most unstable mode: Effect of Reynolds number Low Re is stabilising (effect of viscosity) Below a certain Re, all modes are stable Above a certain Re, one mode becomes unstable (and that is enough for transition!)
Exercise #2, expected results Temporal growth rate of most unstable mode of Poiseuille flow Green, yellow, red: unstable Cyan, blue, white: stable
Exercise #2, expected results Stable Critical Reynolds number (Recr): Unstable Stable Above these value a range of wavenumbers will grow exponentially with time Initial stage of transition to turbulence
Exercise #2, expected results Instability waves are dispersive: different wavenumbers travel at different speeds Most unstable mode in plane Poiseuille fow Each mode has a dispersion relationship
Experimental results Nishioka, Iida & Ichikawa 1975 – channel flow, background turbulence=0. 05%
Experimental results Nishioka, Iida & Ichikawa 1975 – channel flow, background turbulence=0. 05% Note: other experiments report transition at lower Re Patel & Head 1969: Recr = 2500 Karnitz, Potter & Smith 1974: Recr = 5000 (background turbulence: 0. 3%) Subcritical transition More on that later!
Further exercises ■ Exercise #3: Evaluate the Reynolds number effect on the temporal growth rate for a mixing layer (tanh profile, Michalke 1964). Is it possible to determine the critical Reynolds number? ❑ Note: to normalise the Reynolds number with the momentum thickness of the mixing layer, it is preferrable to use U=0. 5(1+tanh(y/2)) – unit momentum thickness ■ Exercise #4: Study the temporal stability of the Blasius boundary layer. ■ Exercise #5: Study the effect of favourable and adverse pressure gradients in the stability of boundary layers using the Falkner-Skan family of velocity profiles ❑ The code in “OS_Falkner_Skan. m” may help in the last two exercises.
Expected results ■ Exercise #3: Evaluate the Reynolds number effect on the temporal growth rate for a mixing layer (tanh profile, Michalke 1964). Is it possible to determine the critical Reynolds number? Recrit ≈ 2!!! Does this make sense?
Expected results Recrit ≈ 2!!! Does this make sense? Recall: from boundary layer theory but we assume U = U(y) Parallel flow hypothesis only applicable for Re>>1
Plane channel flow x Mixing layer Plane Poiseuille flow High Recrit Small range of unstable α Stable for Re → ∞ (check numerically) Low Recrit Greater range of unstable α Unstable for Re → ∞ (Michalke 1964) WHY?
Expected results Blasius boundary layer β=0 ■ Exercise #4: Study the temporal stability of the Blasius boundary layer. ■ Exercise #5: Study the effect of favourable and adverse pressure gradients in the stability of boundary layers using the Falkner-Skan family of velocity profiles Tollmien 1931, 1936 Schlichting 1932, 1933, 1935 Tollmien-Schlichting (T-S)waves
Expected results Visualisation of Tollmien-Schlichting waves
Historical note: Schubauer & Skramstad 1943 Note: Reynolds number based on displacement thickness
Historical note: Schubauer & Skramstad 1943 Eigenfunctions Full lines: experiment Dashed lines: theory (Schlichting) All this with only vibrating ribbons and hot wires. . .
Historical note: Schubauer & Skramstad 1943 Hans W. Liepmann memories, 1997 “Sometime in 1941 with the war in Europe in its second year, I came up the narrow substandard stairs in the Guggenheim laboratory. At the top of the stairs I met Clark Millikan handing a sheaf of papers to von Kármán with the words, ‘It’s a complete German victory!’ I was stunned. Fortunately, however, the victory was not another one won by Hitler but referred to the experimental verification of the [German] theory. . . by Schubauer and Skramstad. . . I still vividly remember the impact these experiments had on me; they forcefully demonstrated. . . the beginning of a new area in transition research. ”
The effect of pressure gradient Blasius boundary layer β=0 Favourable pressure gradient β = 0. 1
Expected results Blasius boundary layer β=0 Adverse pressure gradient β = -0. 1 Reynolds number defined using δ (boundary layer thickness).
Expected results Blasius boundary layer β=0 Adverse pressure gradient β = -0. 15 WHY?

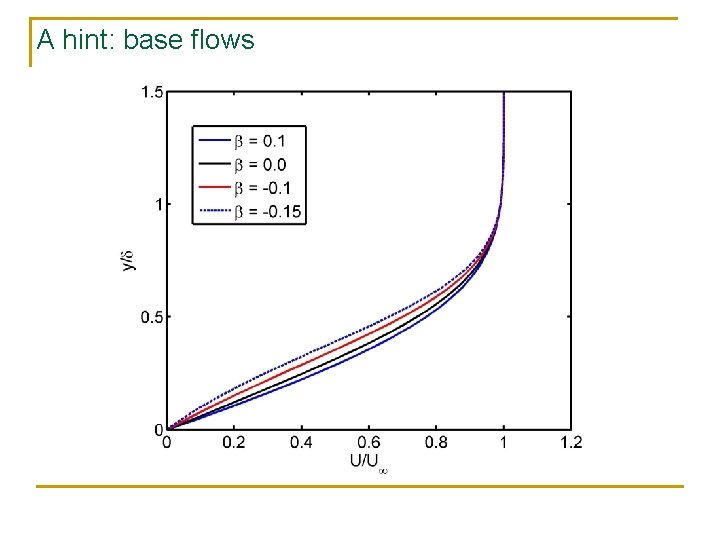

A hint: base flows
A hint: base flows
A hint: base flows
Three-dimensionality: Squire transformation and Squire equation Consider a parallel base-flow U(y), with small disturbances u, v, w(x, y, z, t), p(x, y, z, t) Which are the homogeneous directions? What is the appropriate Ansatz?
Three-dimensionality: Squire transformation and Squire equation Which are the homogeneous directions? What is the appropriate Ansatz?
Three-dimensionality: Squire transformation and Squire equation Orr-Sommerfeld equation, three-dimensional disturbances Eigenvalue problem: given Re, α, β, find non-trivial eigenfunction v(y) and eigenvalue ω, as previously.
The Squire equation Besides Orr-Sommerfeld, from linearised Navier-Stokes we can derive an equation for the normal vorticity called Squire equation
The Orr-Sommerfeld-Squire system O-S Squire B. C. : η=0 on a wall Note that O-S is decoupled from Squire and can be solved separately. Two sets of modes: • Orr-Sommerfeld modes: solve eigenvalue problem for v (O-S), then solve ODE for η • Squire modes: take v=0 and solve Exercise: obtain the Squire eigenvalues for plane Poiseuille flow. Can you find an unstable Squire mode?
The Orr-Sommerfeld-Squire system All Squire modes are stable (see demonstration) • this is why Orr. Sommerfeld alone is sufficient to look for unstable modes The Squire equation will become important later in this course.
