A Visual Approach to LSAR Project Management Omega

A Visual Approach to LSAR Project Management Omega. PS and Analyzer North American User Group Meeting November 12 -13, 2013 Anmarie Flamingo LSA Software Administrator Omega. PS and Analyzer User Group Meeting 2013 Company Confidential Insert photo here. Crop to maintain shape and size of photo box.

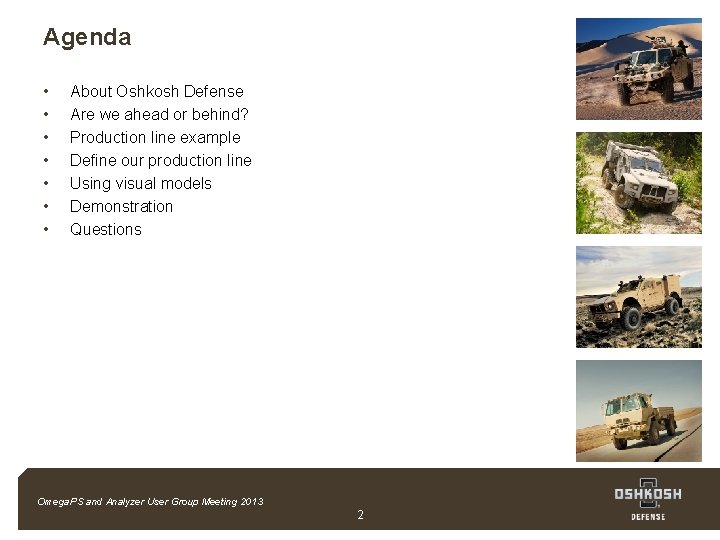

Agenda • • About Oshkosh Defense Are we ahead or behind? Production line example Define our production line Using visual models Demonstration Questions Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 2

About Oshkosh Defense Heavy Equipment Transporter (HET) Palletized Load System (PLS) Logistics Vehicle System Replacement (LVSR) Heavy Expanded Mobility Tactical Truck (HEMTT) Heavy Family of Medium Tactical Vehicles (FMTV) Medium Tactical Vehicle Replacement (MTVR) MRAP All-Terrain Vehicle (M -ATV) Base Variant M-ATV Special Forces Variant HMMWV Modernization Solutions Special Purpose All. Terrain Vehicle (S-ATV) Sand. Cat Tactical Protector Vehicle (TPV) Medium & MRAP Light Combat Tactical All. Terrain Vehicle (L-ATV) Light Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 3

Logistics Product Data Collection • • • Several users create data at one time Data is often “hidden” in database software Data is not made visual until a report or technical manual is published LSA-019 LSAR Are we ahead or behind? Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 4 ical n h c Te ual Man

Production Line Example Station 1 Station 2 Omega. PS and Analyzer User Group Meeting 2013 Company Confidential Station 3 5 Station 4

Ahead or Behind? Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 6

Define the steps XH XB BF HA BA HB CA BH BI HG HD Parts CB BD BK Structure Omega. PS and Analyzer User Group Meeting 2013 Company Confidential FMEA & RCM Reliability 7 CD Task Analysis LORA

Omega. PS Progress Manager • Track LSA Activities in an Omega. PS Project by Candidate Item – Actions were used as the assembly line – Progress marks were used as the stations Are we ahead or behind? Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 8

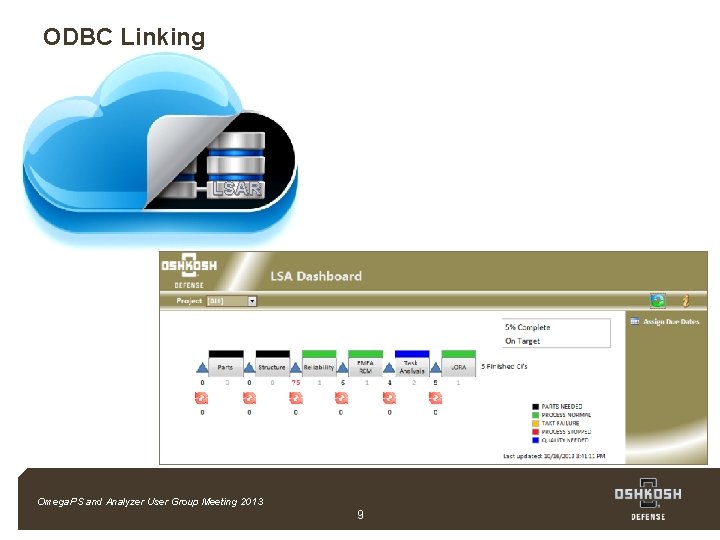

ODBC Linking LSAR ODBC Link Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 9

Demonstration Omega. PS and Analyzer User Group Meeting 2013 Company Confidential 10

Questions? Anmarie Flamingo LSA Software Administrator 920 -235 -9151 x 26369 aflamingo@defense. oshkoshcorp. com oshkoshdefense. com Omega. PS and Analyzer User Group Meeting 2013 Company Confidential
