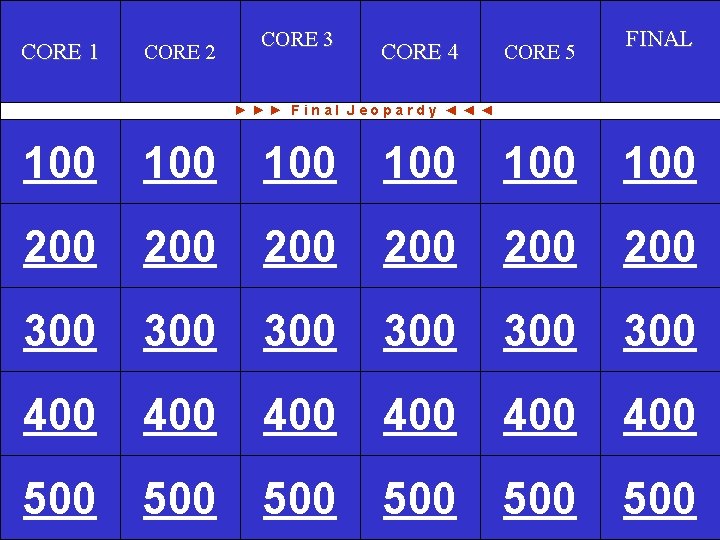

Router CORE 1 Modes WAN CORE 3 WAN Router FINAL CORE 5 CORE 4 Encapsulation Services Basics Commands CORE 2 ►►► Final Jeopardy ◄◄◄ 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500 CCNA 1 v 3 Module 9

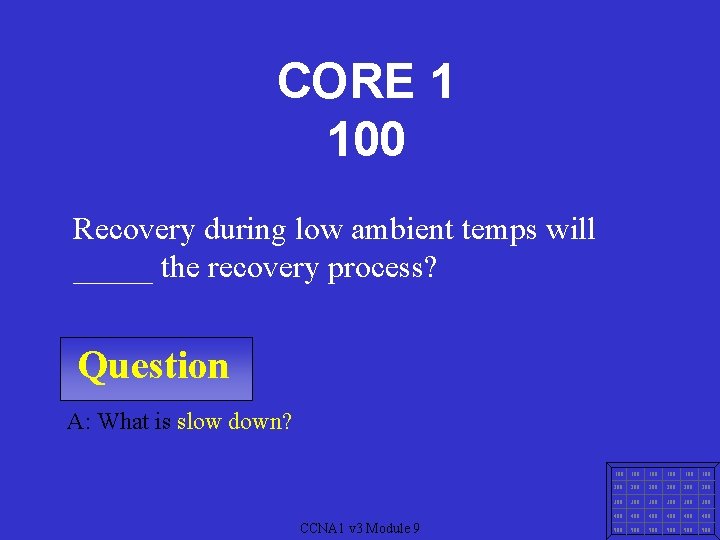

CORE 1 100 Recovery during low ambient temps will _____ the recovery process? Question A: What is slow down? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 1 200 Ozone depletion in the stratosphere is what type of problem? Question A: What is Global? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 1 300 Which refrigerant contains CFC’s. (Choices: R-500, R-22, R-134 a, R-123) Question A: What is R-500? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 1 400 Refrigerant vapors or mist in high concentrations should not be inhaled since…. Question A: What is they may cause heart irregularities or unconsciousness? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 1 500 Recovery equipment that relies upon the compressor in the appliance and/or the pressure of the refrigerant in the appliance would be considered? Question A: What is system-dependent? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 2 100 Whenever working with any solvents, chemicals, and refrigerants, the technician should review…. Question A: What is material safety data sheets (MSDS)? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

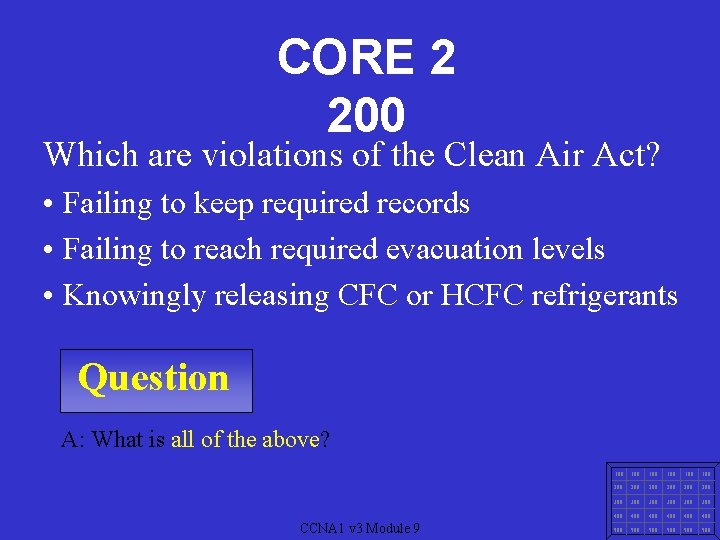

CORE 2 200 Which are violations of the Clean Air Act? • Failing to keep required records • Failing to reach required evacuation levels • Knowingly releasing CFC or HCFC refrigerants Question A: What is all of the above? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 2 300 All devices used for refrigerant recovery must? Question A: What is the meet EPA standards? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

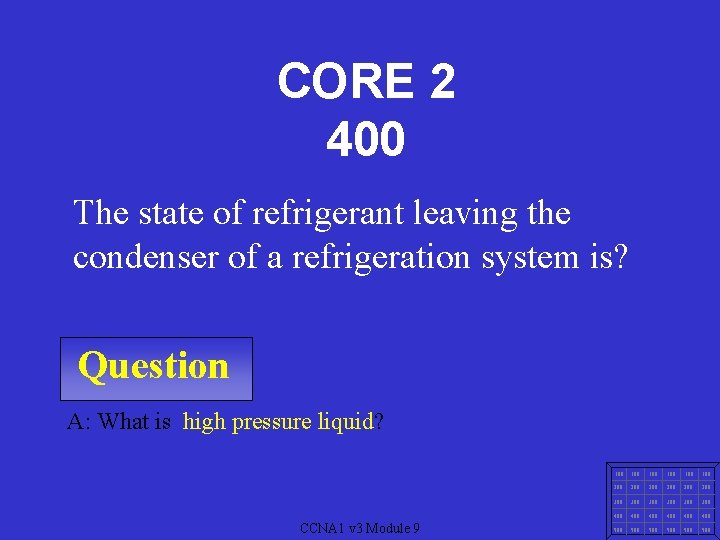

CORE 2 400 The state of refrigerant leaving the condenser of a refrigeration system is? Question A: What is high pressure liquid? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 2 500 Hydrofluorocarbon (HFC) refrigerants contain: Question A: What is hydrogen, fluorine and carbon? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 3 100 Ozone in the stratosphere above the earth consist of? Question A: What is molecules containing 3 oxygen atoms? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

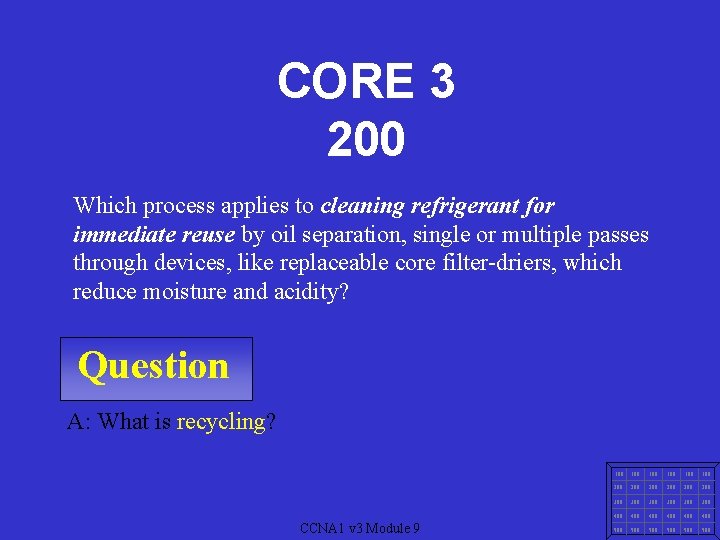

CORE 3 200 Which process applies to cleaning refrigerant for immediate reuse by oil separation, single or multiple passes through devices, like replaceable core filter-driers, which reduce moisture and acidity? Question A: What is recycling? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 3 300 Refrigerant entering the compressor of a refrigeration system is a ? Question A: What is superheated vapor? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 3 400 The term used to describe the fact that a refrigerant blend has a range of boiling or condensing points at a constant pressure is? Question A: What is temperature glide? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 3 500 If a system will not hold a vacuum after it has been evacuated, it may: 4 Question A: What is be leaking? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

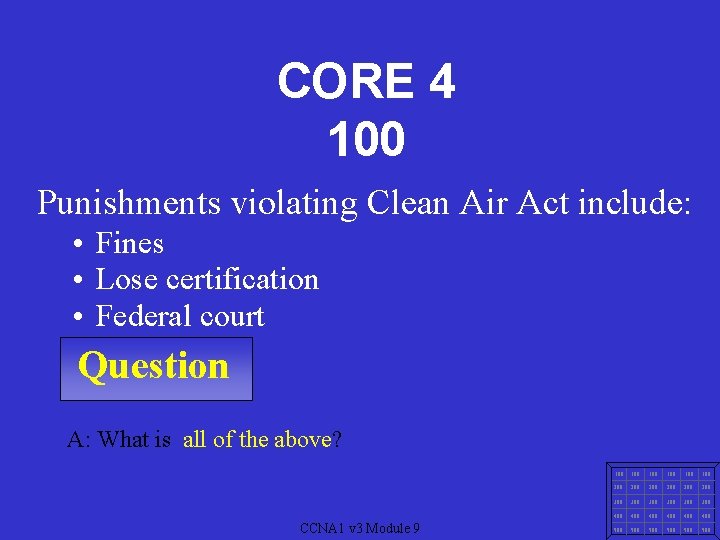

CORE 4 100 Punishments violating Clean Air Act include: • Fines • Lose certification • Federal court Question A: What is all of the above? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

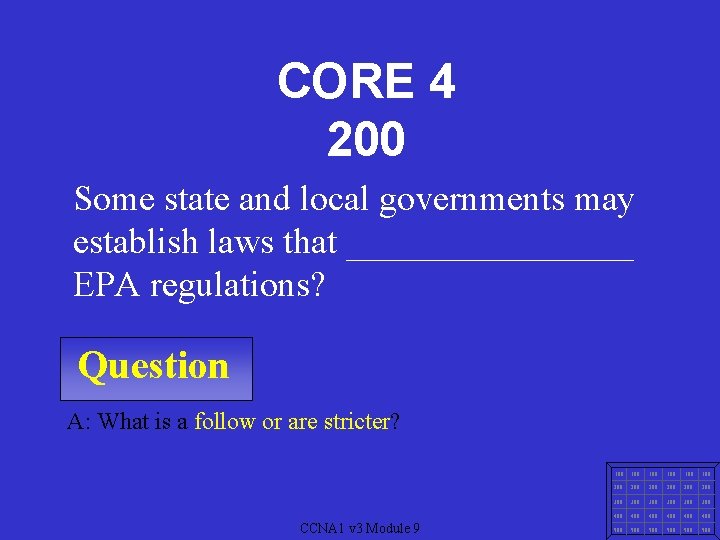

CORE 4 200 Some state and local governments may establish laws that ________ EPA regulations? Question A: What is a follow or are stricter? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

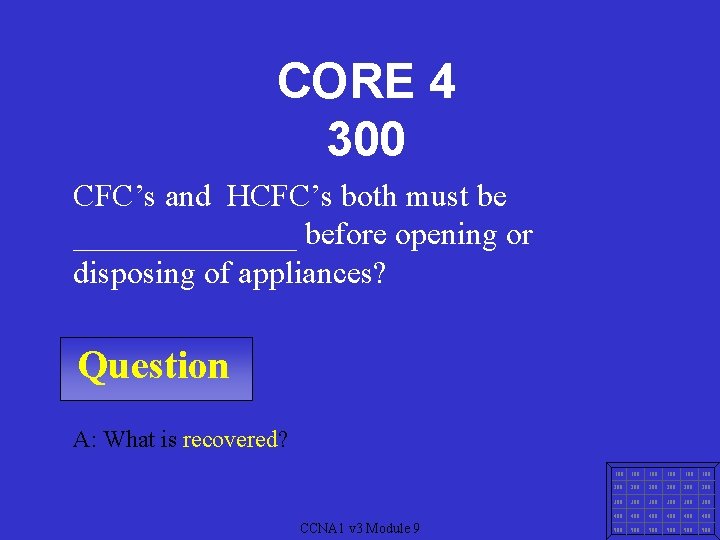

CORE 4 300 CFC’s and HCFC’s both must be _______ before opening or disposing of appliances? Question A: What is recovered? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 4 400 After 1995, supplies of CFC refrigerant of equipment servicing will come from? Question A: What is recovery and recycling? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 4 500 Blended refrigerants leak from a system at _____ rates. Question A: What is a uneven? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 5 100 Which atom of the CFC molecule causes ozone depletion? Question A: What is chlorine? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

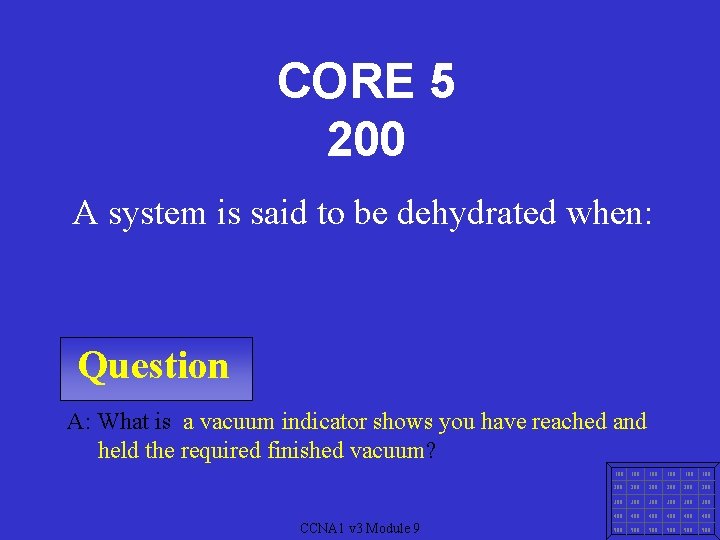

CORE 5 200 A system is said to be dehydrated when: Question A: What is a vacuum indicator shows you have reached and held the required finished vacuum? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 5 300 HCFC refrigerants are _____ harmful to stratospheric ozone than CFC’s. Question A: What is less harmful? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 5 400 These compounds have the highest ozone depletion potential (ODP): Question A: What is a CFC’s? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

CORE 5 500 How should refrigerant cylinders be positioned when they are shipped? Question A: What is upright? CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500

Final Jeopardy CCNA 1 v 3 Module 9 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500
