A Tour of the Cell AP Biology Crosby

A Tour of the Cell AP Biology Crosby High School

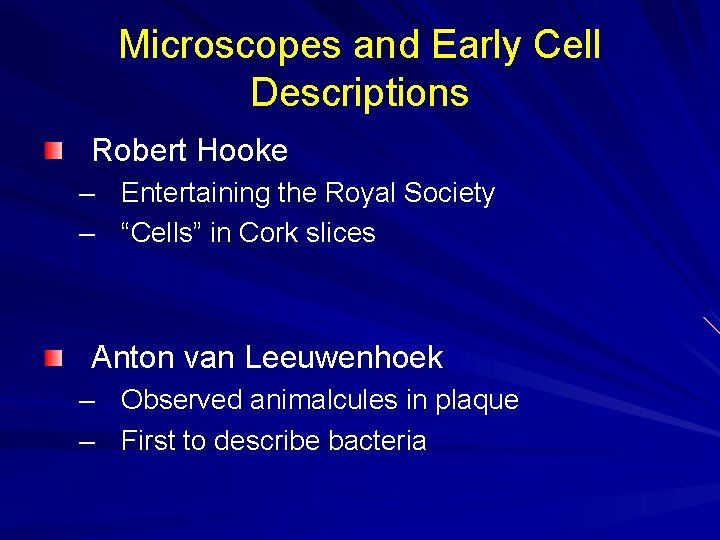

Microscopes and Early Cell Descriptions Robert Hooke – Entertaining the Royal Society – “Cells” in Cork slices Anton van Leeuwenhoek – Observed animalcules in plaque – First to describe bacteria

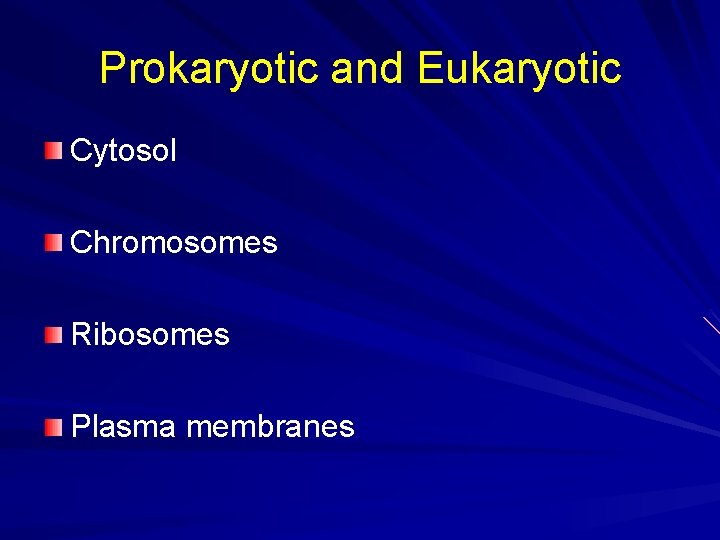

Prokaryotic and Eukaryotic Cytosol Chromosomes Ribosomes Plasma membranes

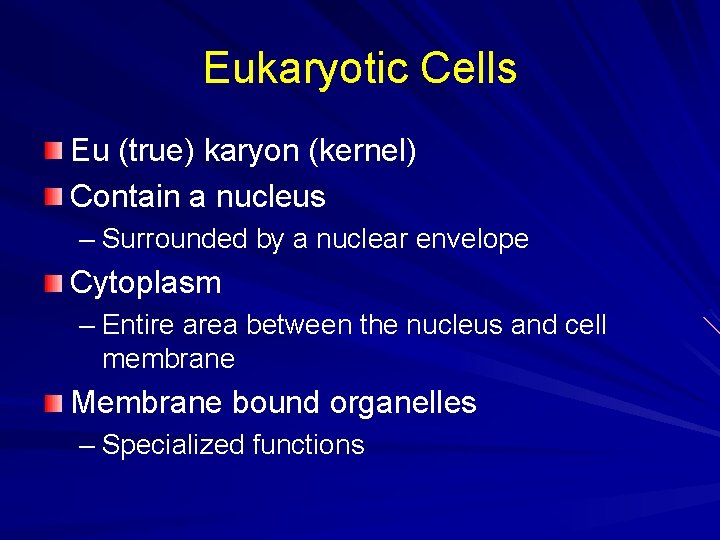

Eukaryotic Cells Eu (true) karyon (kernel) Contain a nucleus – Surrounded by a nuclear envelope Cytoplasm – Entire area between the nucleus and cell membrane Membrane bound organelles – Specialized functions

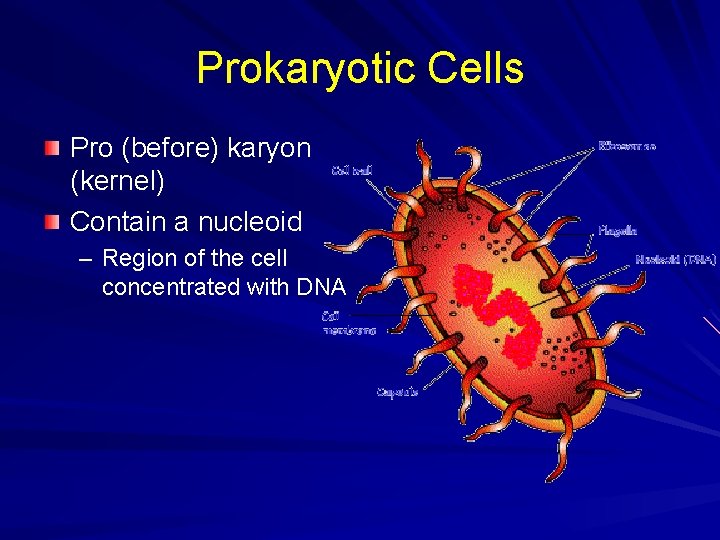

Prokaryotic Cells Pro (before) karyon (kernel) Contain a nucleoid – Region of the cell concentrated with DNA

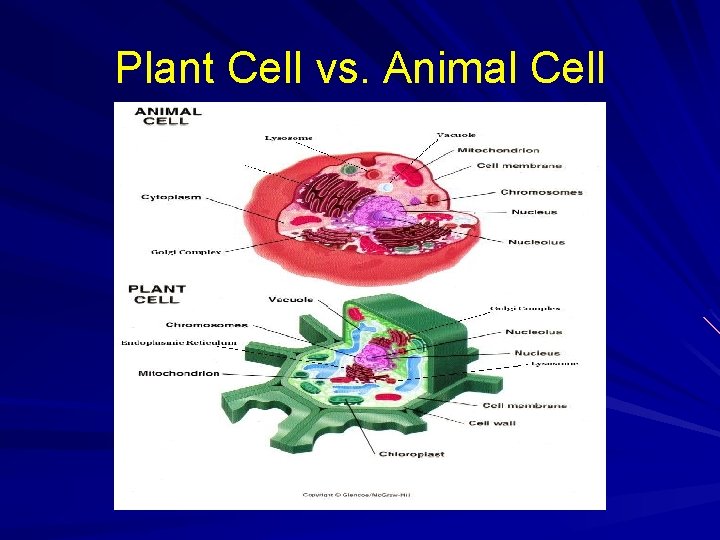

Plant Cell vs. Animal Cell

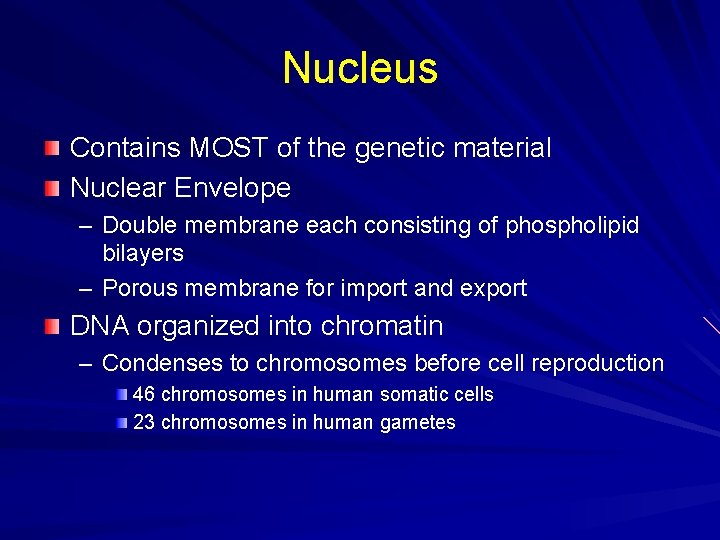

Nucleus Contains MOST of the genetic material Nuclear Envelope – Double membrane each consisting of phospholipid bilayers – Porous membrane for import and export DNA organized into chromatin – Condenses to chromosomes before cell reproduction 46 chromosomes in human somatic cells 23 chromosomes in human gametes

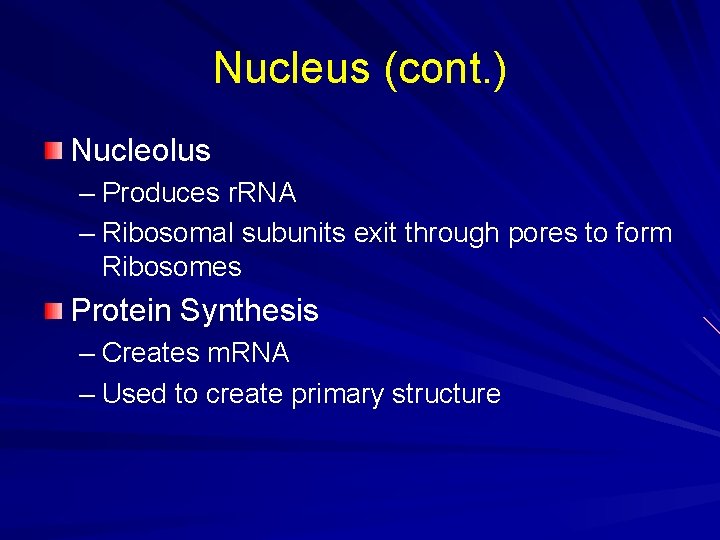

Nucleus (cont. ) Nucleolus – Produces r. RNA – Ribosomal subunits exit through pores to form Ribosomes Protein Synthesis – Creates m. RNA – Used to create primary structure

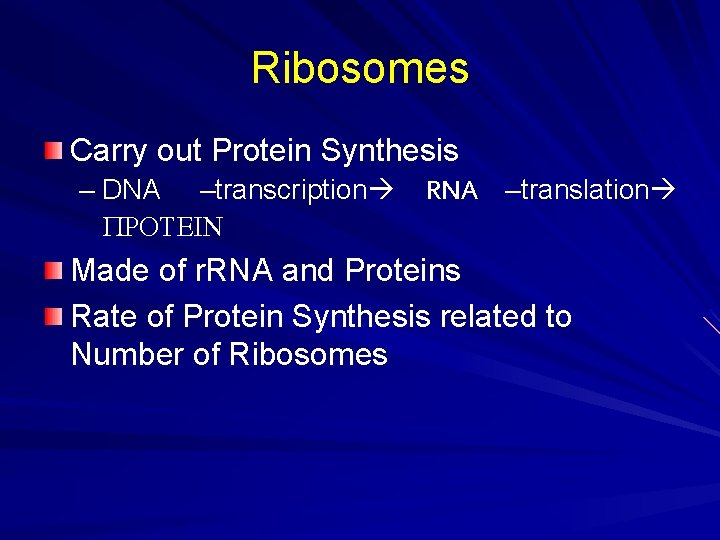

Ribosomes Carry out Protein Synthesis – DNA –transcription PROTEIN RNA –translation Made of r. RNA and Proteins Rate of Protein Synthesis related to Number of Ribosomes

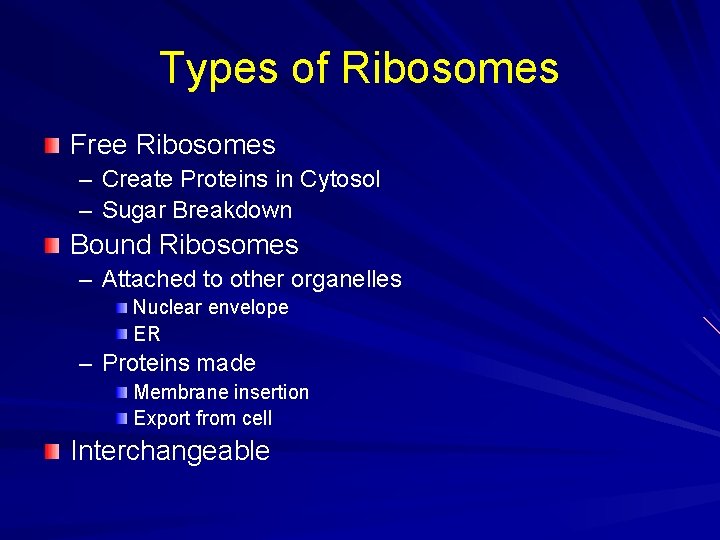

Types of Ribosomes Free Ribosomes – Create Proteins in Cytosol – Sugar Breakdown Bound Ribosomes – Attached to other organelles Nuclear envelope ER – Proteins made Membrane insertion Export from cell Interchangeable

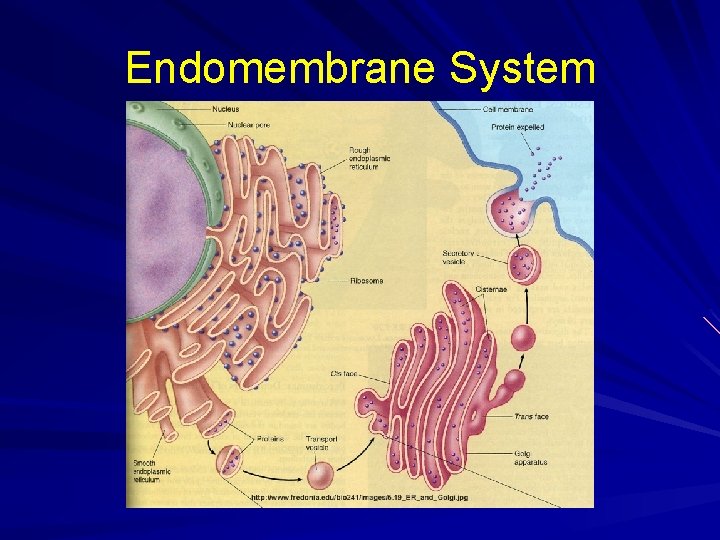

Endomembrane System

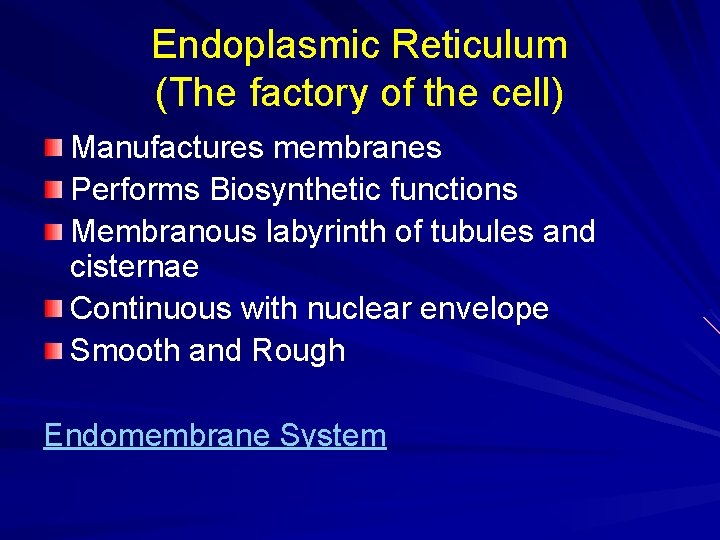

Endoplasmic Reticulum (The factory of the cell) Manufactures membranes Performs Biosynthetic functions Membranous labyrinth of tubules and cisternae Continuous with nuclear envelope Smooth and Rough Endomembrane System

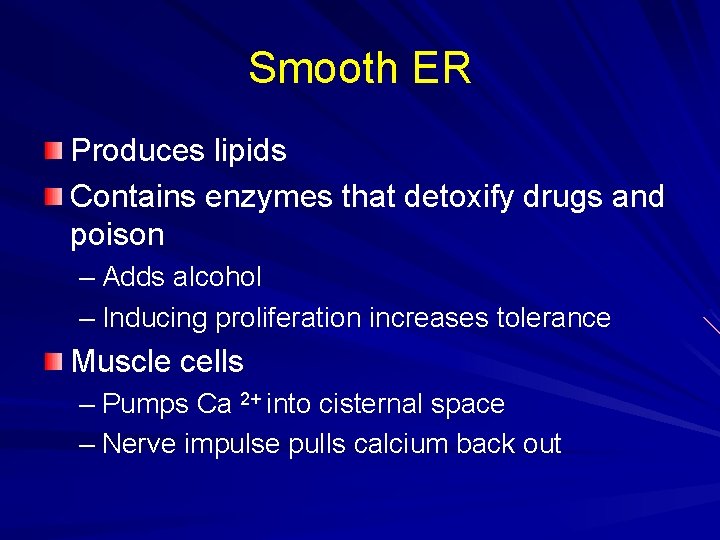

Smooth ER Produces lipids Contains enzymes that detoxify drugs and poison – Adds alcohol – Inducing proliferation increases tolerance Muscle cells – Pumps Ca 2+ into cisternal space – Nerve impulse pulls calcium back out

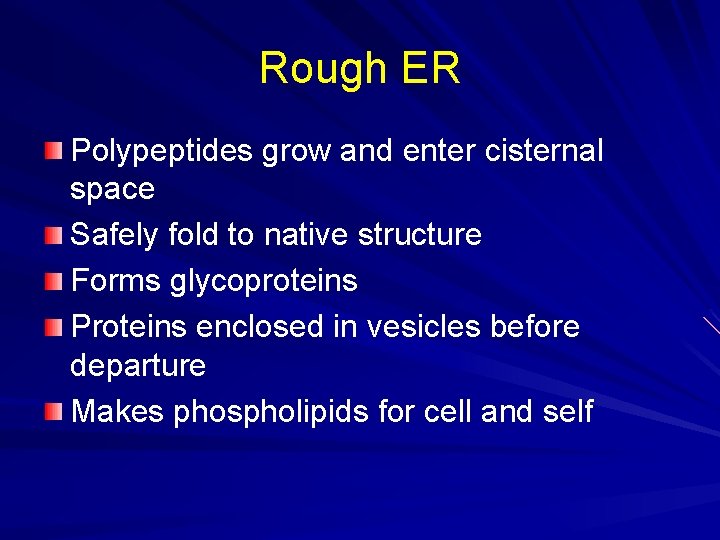

Rough ER Polypeptides grow and enter cisternal space Safely fold to native structure Forms glycoproteins Proteins enclosed in vesicles before departure Makes phospholipids for cell and self

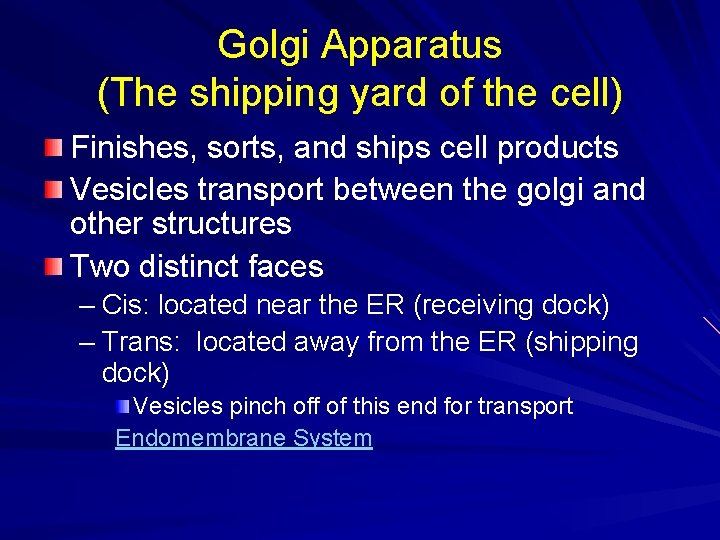

Golgi Apparatus (The shipping yard of the cell) Finishes, sorts, and ships cell products Vesicles transport between the golgi and other structures Two distinct faces – Cis: located near the ER (receiving dock) – Trans: located away from the ER (shipping dock) Vesicles pinch off of this end for transport Endomembrane System

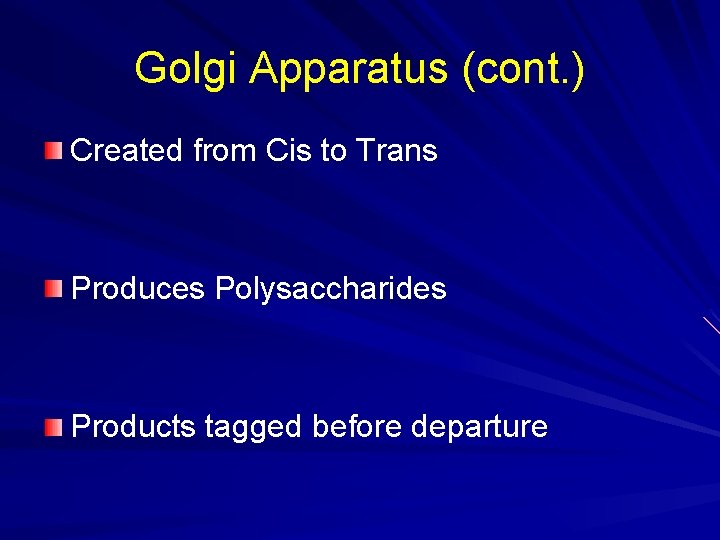

Golgi Apparatus (cont. ) Created from Cis to Trans Produces Polysaccharides Products tagged before departure

Lysosomes Membrane bound sacs digest macromolecules – Enzymes function @ p. H 5 – Ruptured lysosomes Amoebas and Macrophages – Phagocytosis (“phagein” (to eat); “kytos” (vessel)) – Vacuole fuses with lysosome Autophagy: Lysosomes as recycling centers Apoptosis: programmed cell death

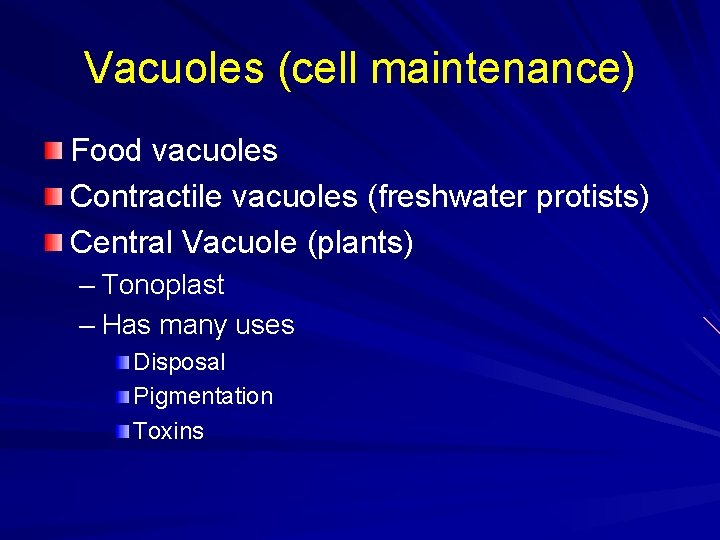

Vacuoles (cell maintenance) Food vacuoles Contractile vacuoles (freshwater protists) Central Vacuole (plants) – Tonoplast – Has many uses Disposal Pigmentation Toxins

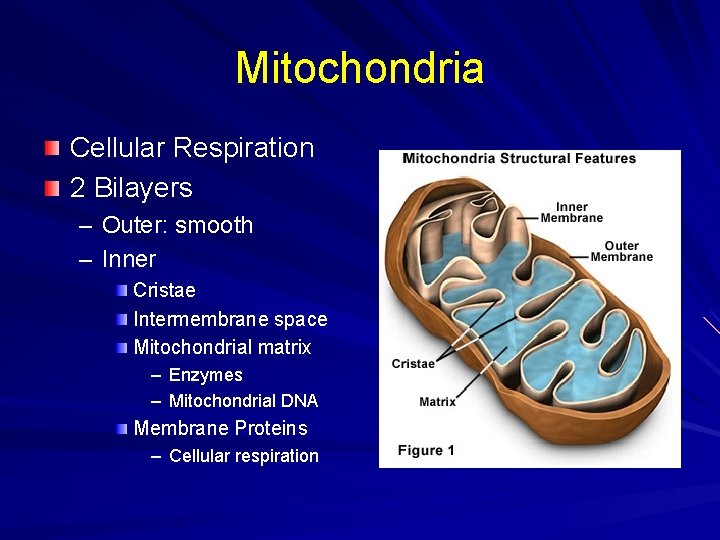

Mitochondria Cellular Respiration 2 Bilayers – Outer: smooth – Inner Cristae Intermembrane space Mitochondrial matrix – Enzymes – Mitochondrial DNA Membrane Proteins – Cellular respiration

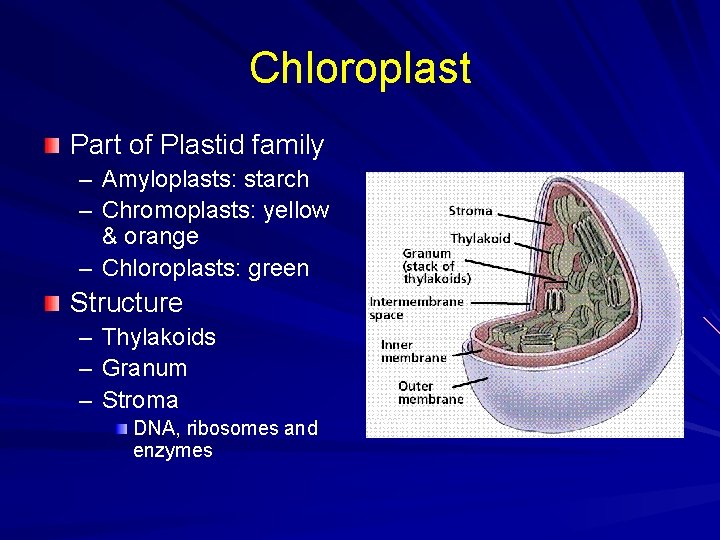

Chloroplast Part of Plastid family – Amyloplasts: starch – Chromoplasts: yellow & orange – Chloroplasts: green Structure – – – Thylakoids Granum Stroma DNA, ribosomes and enzymes

Peroxisomes Transfer H to O creating H 2 O 2 – O breaks fatty acids into smaller molecules – Detoxification – H 2 O 2 is turned into water Grow from proteins and lipids from cytosol Glyoxisomes – Fatty acids converted to sugar (seeds)

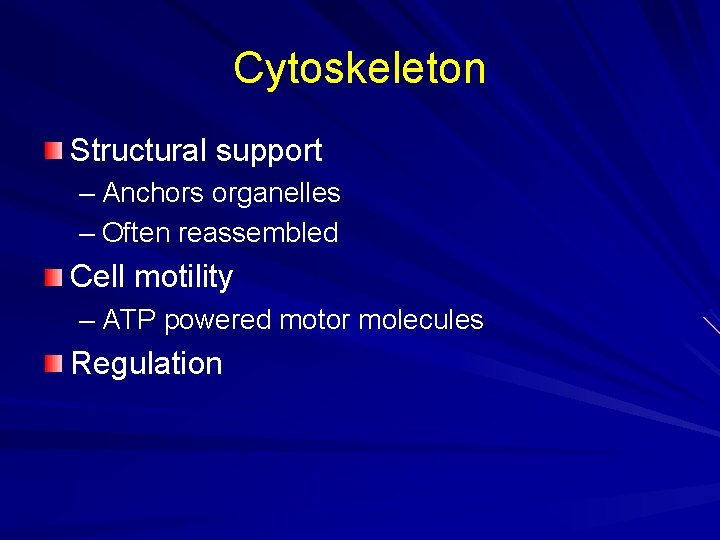

Cytoskeleton Structural support – Anchors organelles – Often reassembled Cell motility – ATP powered motor molecules Regulation

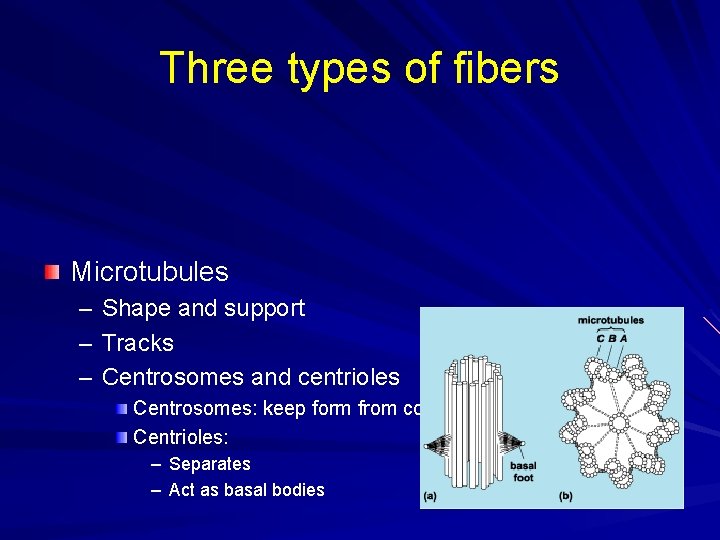

Three types of fibers Microtubules – Shape and support – Tracks – Centrosomes and centrioles Centrosomes: keep form from compressing Centrioles: – Separates – Act as basal bodies

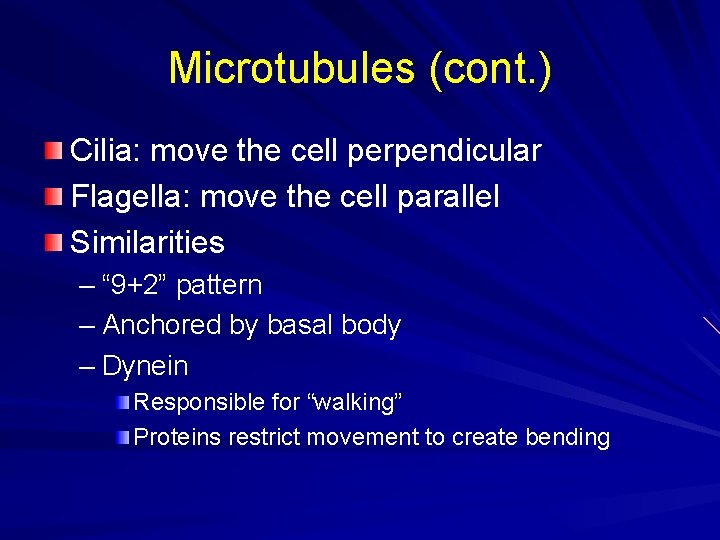

Microtubules (cont. ) Cilia: move the cell perpendicular Flagella: move the cell parallel Similarities – “ 9+2” pattern – Anchored by basal body – Dynein Responsible for “walking” Proteins restrict movement to create bending

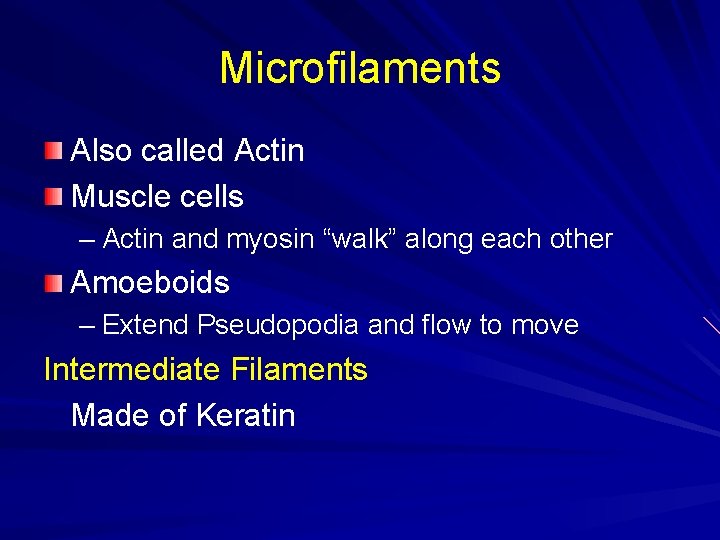

Microfilaments Also called Actin Muscle cells – Actin and myosin “walk” along each other Amoeboids – Extend Pseudopodia and flow to move Intermediate Filaments Made of Keratin

Cell Membrane
