A SUMMER TRAINING PRESENTATION ON BOILER Training Centre: IFFCO, Phulpur Unit Training Area: Plant Area Project Topic: Boilers Presented By: Sandeep Kumar yadav Roll no. -272 Branch-MEE(2 k 12) UIETCSJMU KANPUR

Layout of IFFCO plant 1. Two Power plants. 2. Two Furnaces & Two Chimneys. 3. Water Treatment System & Brick making unit. 4. Single ECU System. 5. Packaging & Transportation Division.

Process of Urea Production �Natural gas is taken from GAIL through pipe lines and stored in gas reservoirs. �Natural gas is dissociated at high temperature & pressure into a furnace. �Hydrogen, Nitrogen and Carbon dioxide gases are obtained after dissociation. �Hydrogen & nitrogen is send to ammonia plant while Carbon dioxide is stored separately. � 3 H 2 + N 2 = 2 NH 3

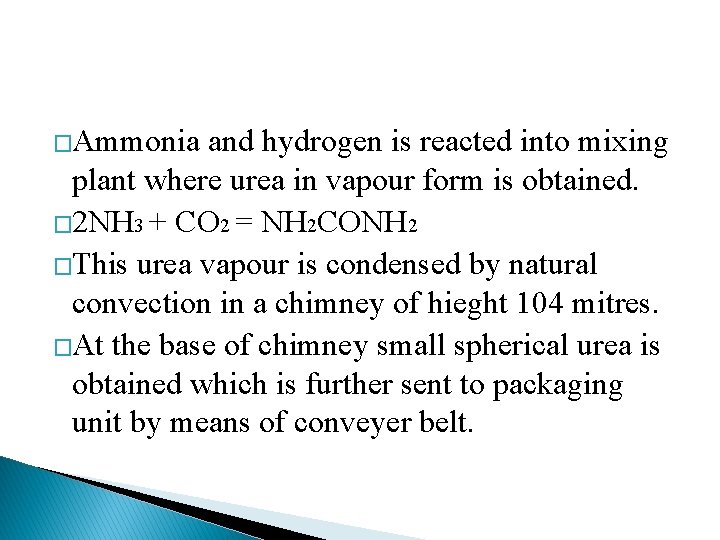

�Ammonia and hydrogen is reacted into mixing plant where urea in vapour form is obtained. � 2 NH 3 + CO 2 = NH 2 CONH 2 �This urea vapour is condensed by natural convection in a chimney of hieght 104 mitres. �At the base of chimney small spherical urea is obtained which is further sent to packaging unit by means of conveyer belt.

BOILERS Boiler is an apparatus to produce steam. Thermal energy released by combustion of fuel is used to make steam at the desired temperature and pressure. The steam produced is used for: �(i) Producing mechanical work by expanding it in steam engine or steam turbine. �(ii) Heating the residential and industrial buildings �(iii) Performing certain processes in the sugar mills, chemical and textile industries.

LAYOUT OF BOILER

BOILER SPECIFICATION Boiler Make & Year : XYZ & 2003 MCR(Maximum Continuous Rating) : 10 TPH (F & A 100 o. C) Rated Working Pressure : 10. 54 kg/cm 2(g) Type of Boiler: 3 Pass Fire tube Fuel Fired: Oil

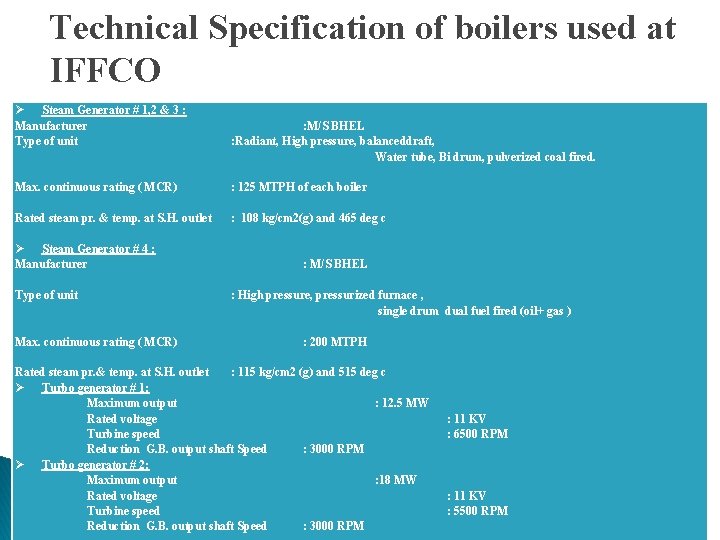

Technical Specification of boilers used at IFFCO Steam Generator # 1, 2 & 3 : Manufacturer Type of unit Max. continuous rating ( MCR) Rated steam pr. & temp. at S. H. outlet Steam Generator # 4 : Manufacturer Type of unit : M/S BHEL : Radiant, High pressure, balanceddraft, Water tube, Bi drum, pulverized coal fired. : 125 MTPH of each boiler : 108 kg/cm 2(g) and 465 deg c : M/S BHEL : High pressure, pressurized furnace , single drum dual fuel fired (oil+ gas ) Max. continuous rating ( MCR) : 200 MTPH Rated steam pr. & temp. at S. H. outlet : 115 kg/cm 2 (g) and 515 deg c Turbo generator # 1: Maximum output : 12. 5 MW Rated voltage Turbine speed Reduction G. B. output shaft Speed : 3000 RPM Turbo generator # 2: Maximum output : 18 MW Rated voltage Turbine speed Reduction G. B. output shaft Speed : 3000 RPM : 11 KV : 6500 RPM : 11 KV : 5500 RPM

Efficiency of boiler � the ratio between thermal energy actually absorbed by water and thermal energy available in fuel (80 – 90 %). Efficiency= mw(h-hf)/mf. C Where mw =mass of steam kg/h mf =mass of fuel kg/h C = calorific value of fuel kcal. /kg

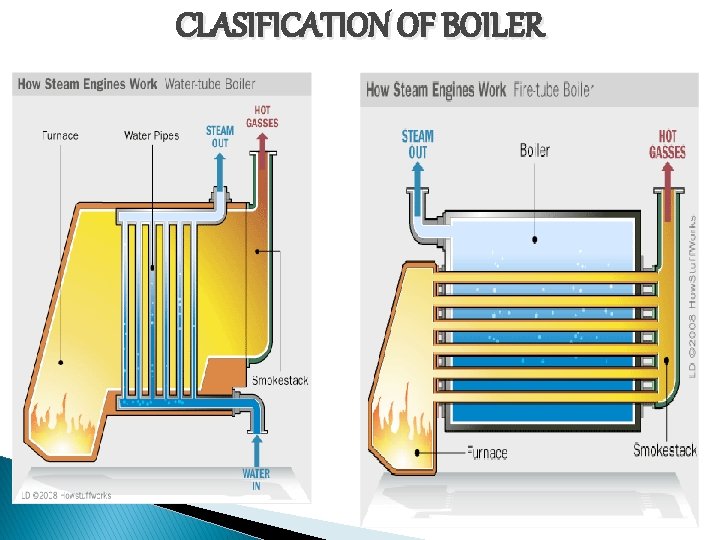

CLASIFICATION OF BOILER

Steam Cycle: Saturated steam generated in boiler is further superheated in primary super heaters & final super heaters so as to achieve design steam temperature to 465 C at 105 kg/cm 2(g)& 515 C at 115 kg/cm 2(g) in P-1 & P-2 header respectively for use in process and Turbines. Different type of steam & its uses : 1) 115 Ata steam: Oil & gas fired boiler generates to supply it ammonia-2 / urea-2 plant and to Turbo generator-2 for power generation. 2) 105 Ata steam: The All three coal fired Boilers generate steam at this pressure & supply steam to ammonia-1, urea-1 and turbo gen-1. 3) 13 Ata steam: This steam is used for feed water heating in HP heaters , soot blowing, driving BFP turbine & FD fan turbine, steam coil air pre heater, steam jet air ejectors of condenser, LSHS drive turbine. .
