A Study in TCPBGP Session Security By Ilias

A Study in TCP/BGP Session Security By Ilias Pallikarakis

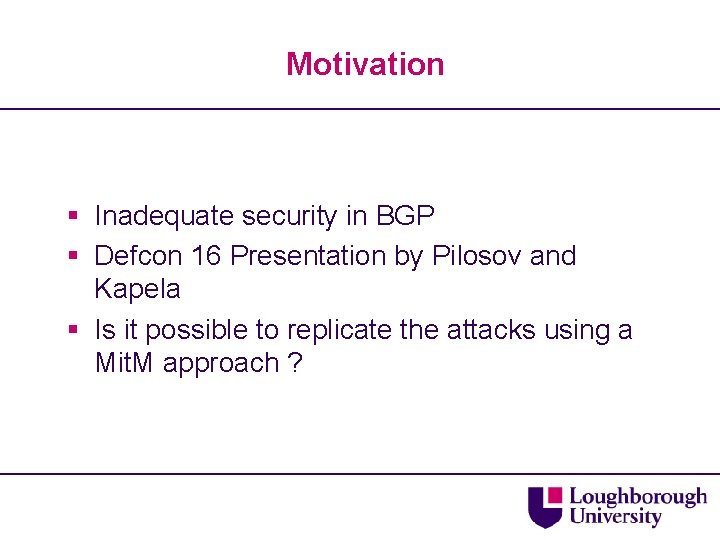

Motivation § Inadequate security in BGP § Defcon 16 Presentation by Pilosov and Kapela § Is it possible to replicate the attacks using a Mit. M approach ?

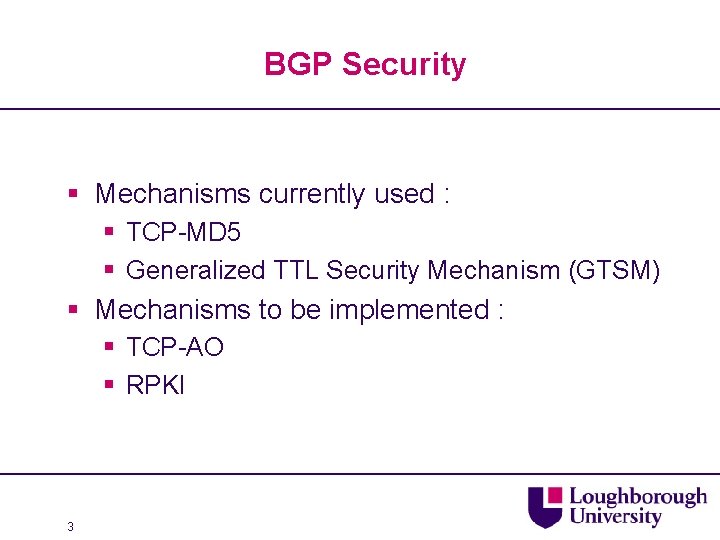

BGP Security § Mechanisms currently used : § TCP-MD 5 § Generalized TTL Security Mechanism (GTSM) § Mechanisms to be implemented : § TCP-AO § RPKI 3

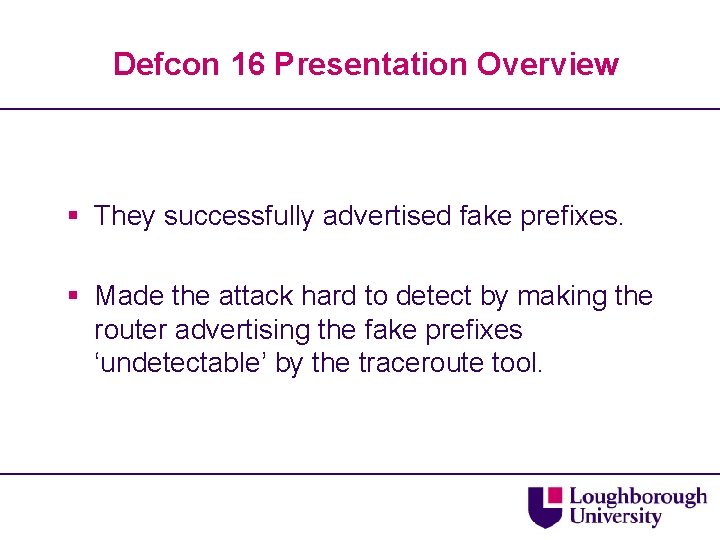

Defcon 16 Presentation Overview § They successfully advertised fake prefixes. § Made the attack hard to detect by making the router advertising the fake prefixes ‘undetectable’ by the traceroute tool.

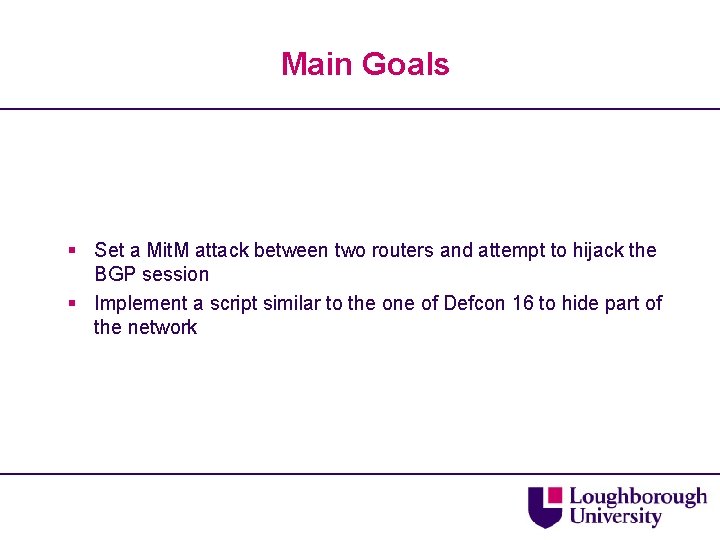

Main Goals § Set a Mit. M attack between two routers and attempt to hijack the BGP session § Implement a script similar to the one of Defcon 16 to hide part of the network

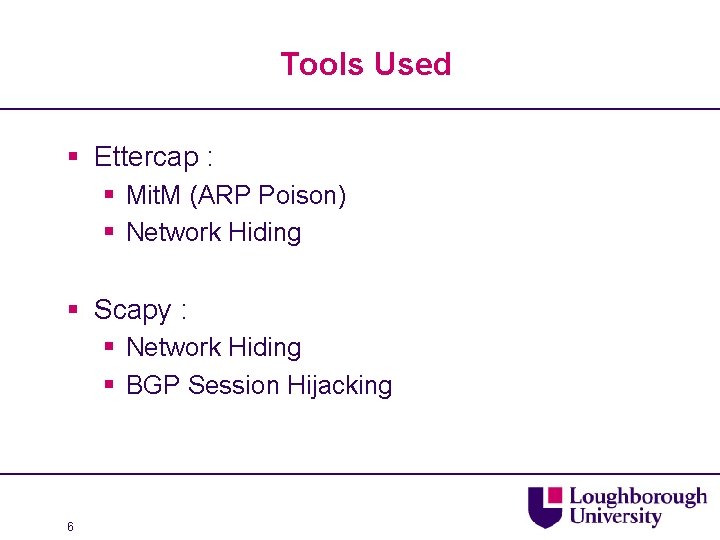

Tools Used § Ettercap : § Mit. M (ARP Poison) § Network Hiding § Scapy : § Network Hiding § BGP Session Hijacking 6

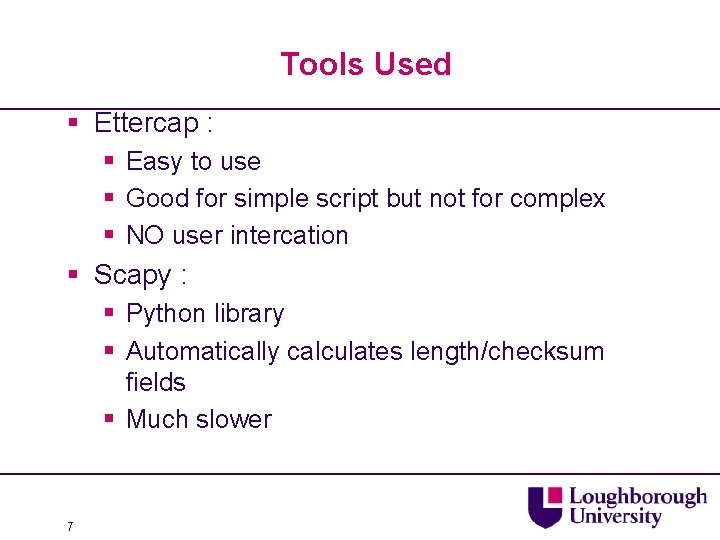

Tools Used § Ettercap : § Easy to use § Good for simple script but not for complex § NO user intercation § Scapy : § Python library § Automatically calculates length/checksum fields § Much slower 7

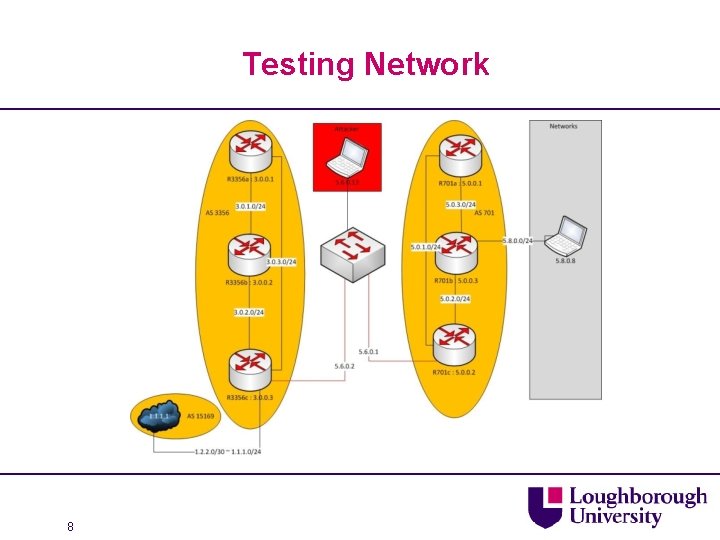

Testing Network 8

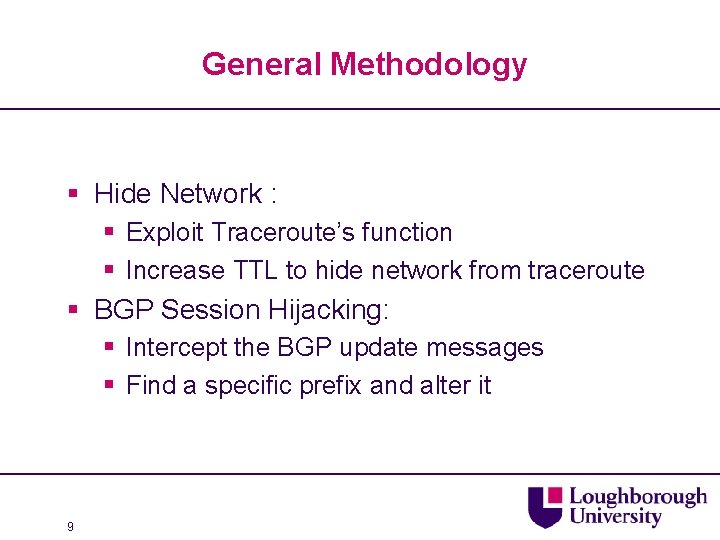

General Methodology § Hide Network : § Exploit Traceroute’s function § Increase TTL to hide network from traceroute § BGP Session Hijacking: § Intercept the BGP update messages § Find a specific prefix and alter it 9

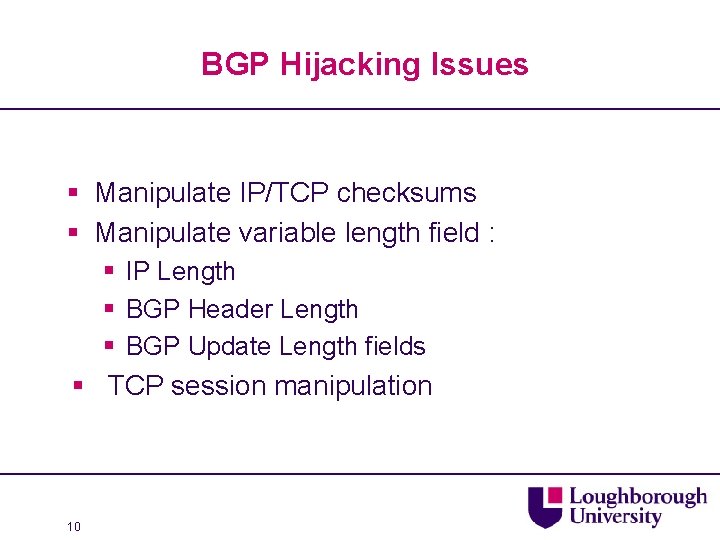

BGP Hijacking Issues § Manipulate IP/TCP checksums § Manipulate variable length field : § IP Length § BGP Header Length § BGP Update Length fields § TCP session manipulation 10

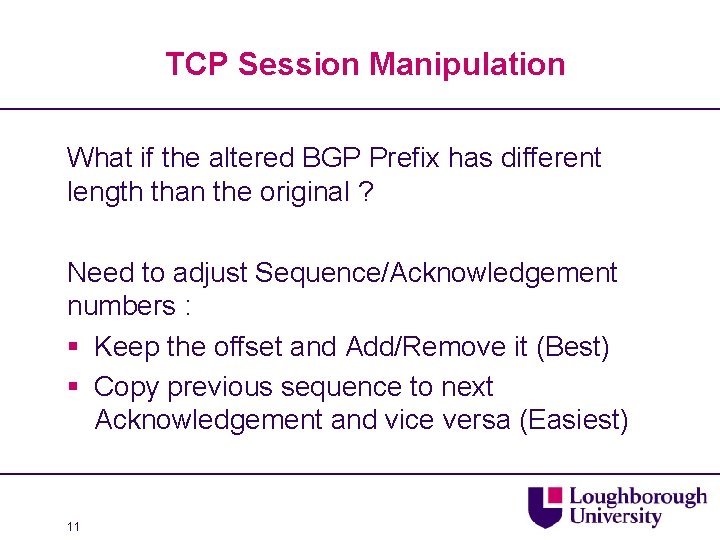

TCP Session Manipulation What if the altered BGP Prefix has different length than the original ? Need to adjust Sequence/Acknowledgement numbers : § Keep the offset and Add/Remove it (Best) § Copy previous sequence to next Acknowledgement and vice versa (Easiest) 11

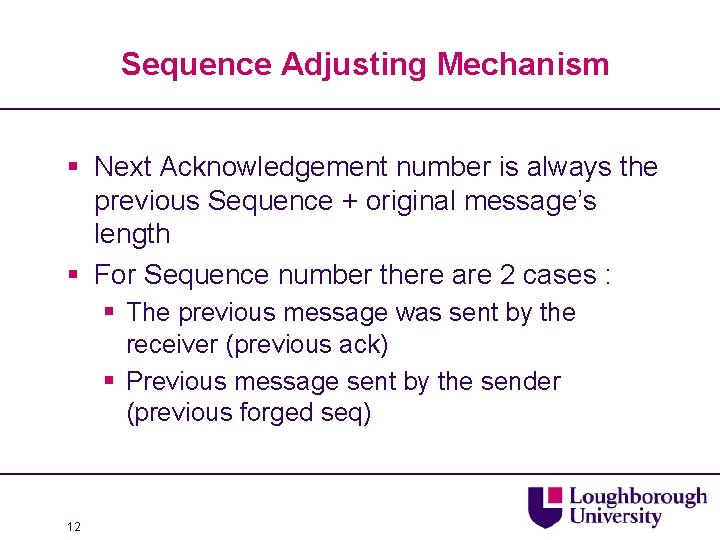

Sequence Adjusting Mechanism § Next Acknowledgement number is always the previous Sequence + original message’s length § For Sequence number there are 2 cases : § The previous message was sent by the receiver (previous ack) § Previous message sent by the sender (previous forged seq) 12

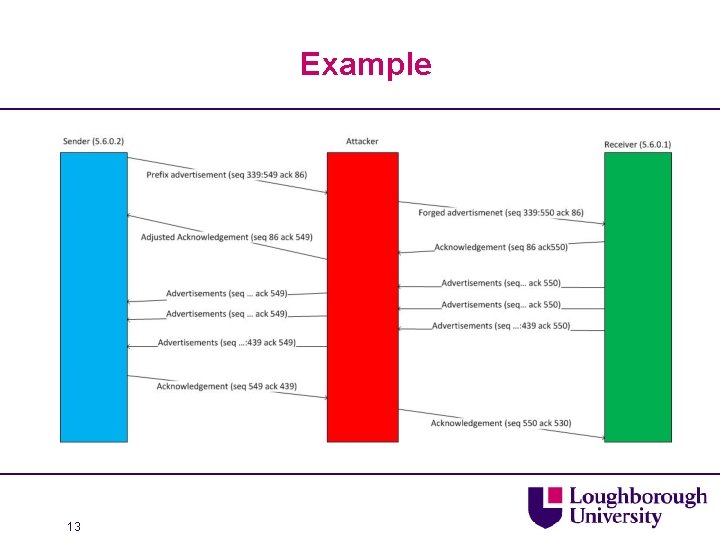

Example 13

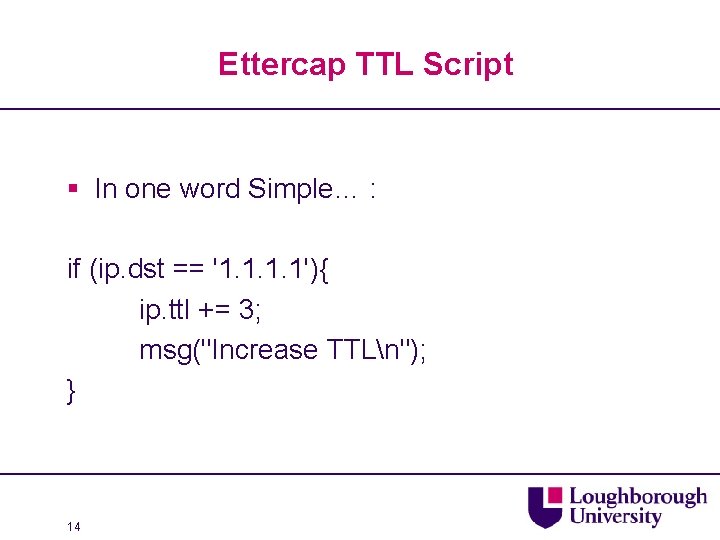

Ettercap TTL Script § In one word Simple… : if (ip. dst == '1. 1'){ ip. ttl += 3; msg("Increase TTLn"); } 14

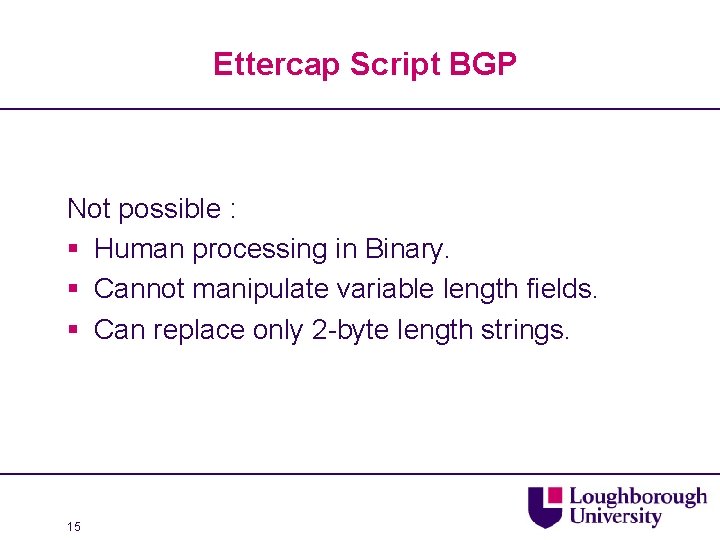

Ettercap Script BGP Not possible : § Human processing in Binary. § Cannot manipulate variable length fields. § Can replace only 2 -byte length strings. 15

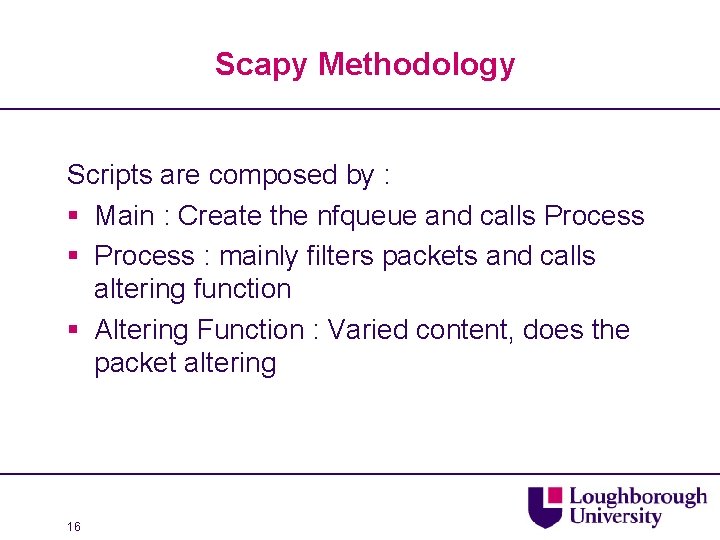

Scapy Methodology Scripts are composed by : § Main : Create the nfqueue and calls Process § Process : mainly filters packets and calls altering function § Altering Function : Varied content, does the packet altering 16

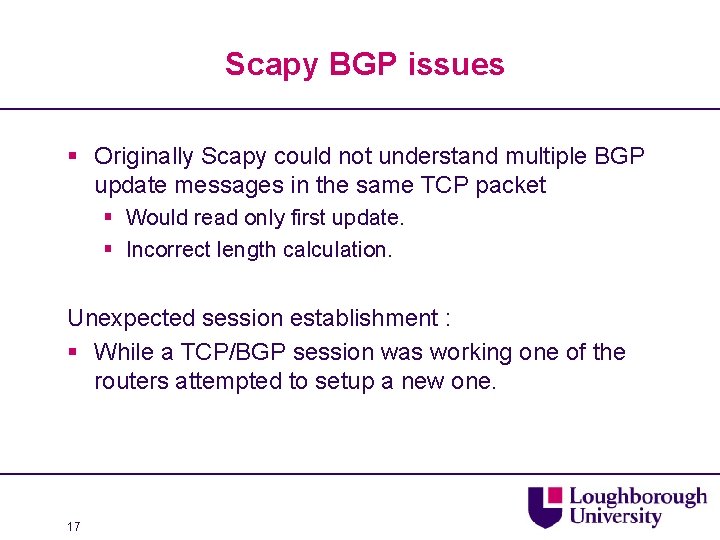

Scapy BGP issues § Originally Scapy could not understand multiple BGP update messages in the same TCP packet § Would read only first update. § Incorrect length calculation. Unexpected session establishment : § While a TCP/BGP session was working one of the routers attempted to setup a new one. 17

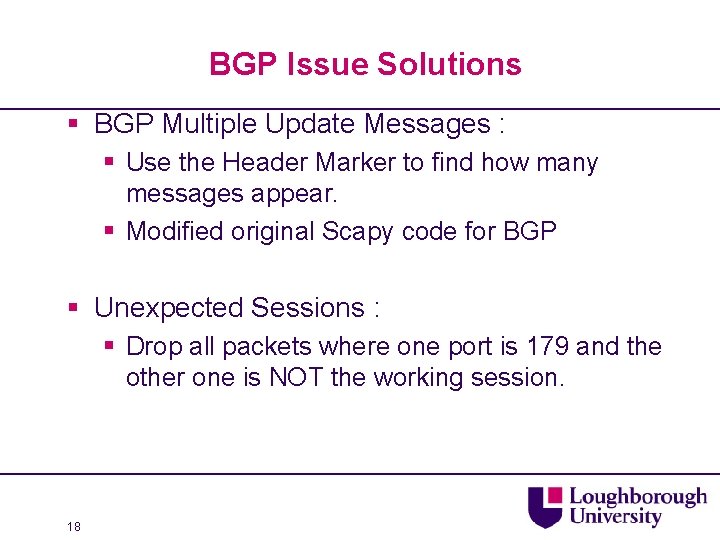

BGP Issue Solutions § BGP Multiple Update Messages : § Use the Header Marker to find how many messages appear. § Modified original Scapy code for BGP § Unexpected Sessions : § Drop all packets where one port is 179 and the other one is NOT the working session. 18

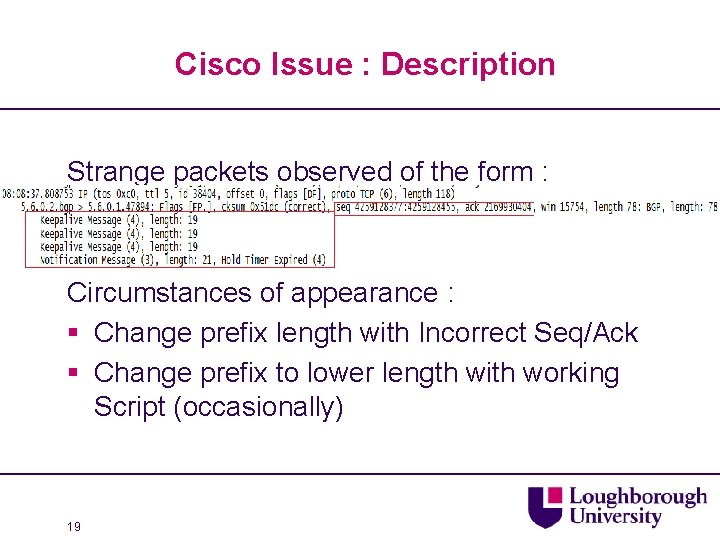

Cisco Issue : Description Strange packets observed of the form : Circumstances of appearance : § Change prefix length with Incorrect Seq/Ack § Change prefix to lower length with working Script (occasionally) 19

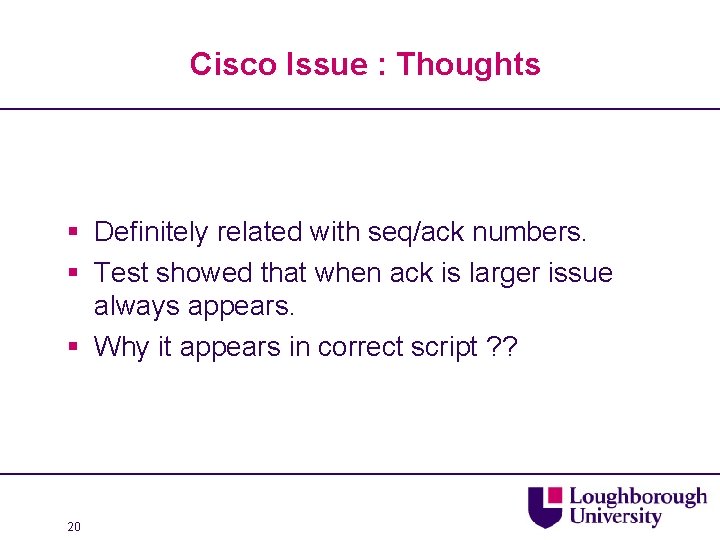

Cisco Issue : Thoughts § Definitely related with seq/ack numbers. § Test showed that when ack is larger issue always appears. § Why it appears in correct script ? ? 20

Cisco Issue : Thoughts § Test correct script for potential mistake § Thoroughly check the TCP flags before the strange packets. § Check strange traffic message by message in contrast to the same traffic sent by router. 21

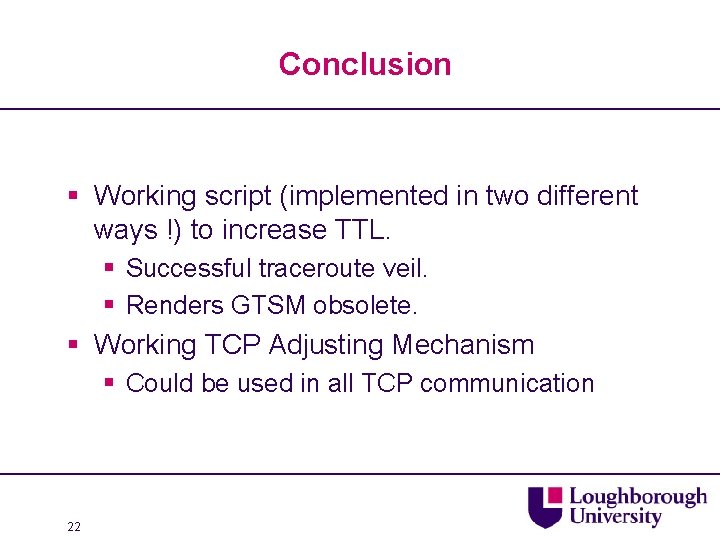

Conclusion § Working script (implemented in two different ways !) to increase TTL. § Successful traceroute veil. § Renders GTSM obsolete. § Working TCP Adjusting Mechanism § Could be used in all TCP communication 22

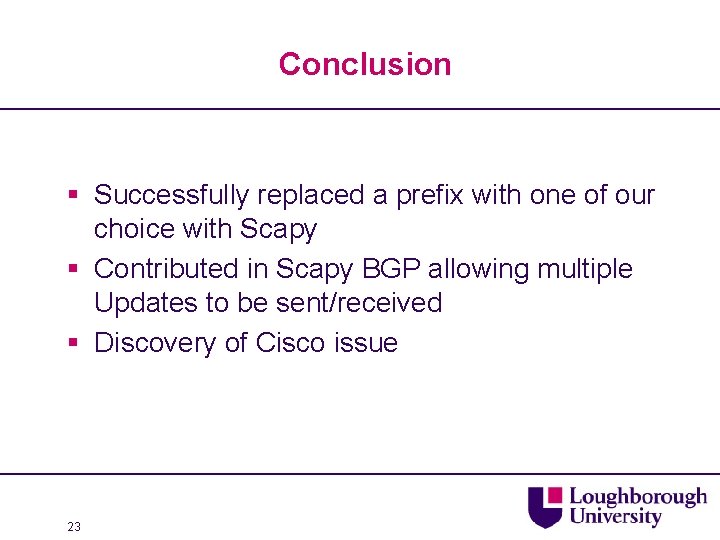

Conclusion § Successfully replaced a prefix with one of our choice with Scapy § Contributed in Scapy BGP allowing multiple Updates to be sent/received § Discovery of Cisco issue 23

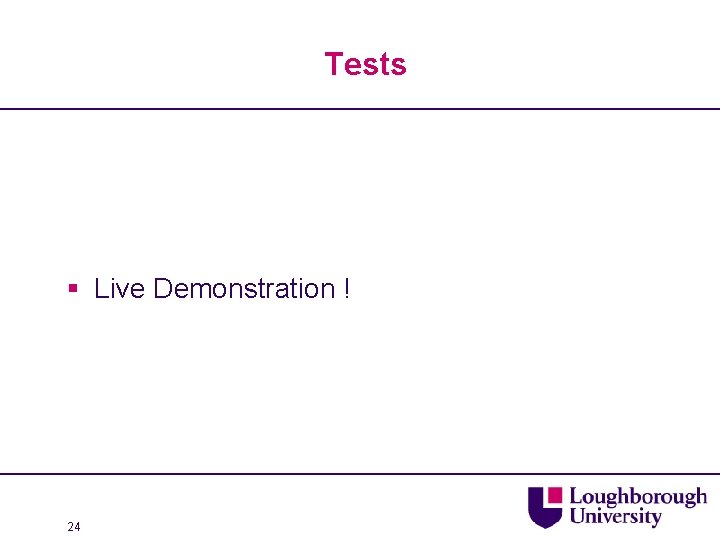

Tests § Live Demonstration ! 24

Thank You !
