A StepByStep Guide to Field Calibration for Gilian

A Step-By-Step Guide to Field Calibration for Gilian Air Sampling Pump

Items required • Sampling Pump • Collection Media • Gilibrator Calibrator

Field Calibration • A Field Calibration Consists of Two Parts – The Pre-Calibration (Pre-Cal) is done before the sample is taken – The Post-Calibration (Post Cal) is done after the sample is taken

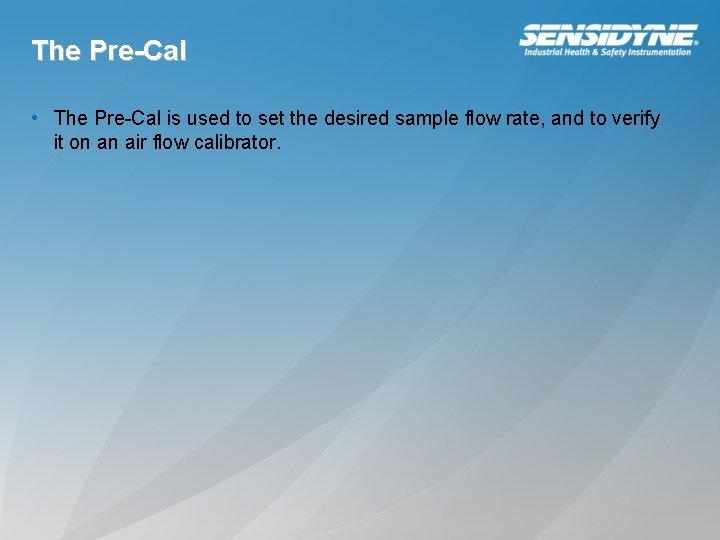

The Pre-Cal • The Pre-Cal is used to set the desired sample flow rate, and to verify it on an air flow calibrator.

Conducting the Pre-Calibration

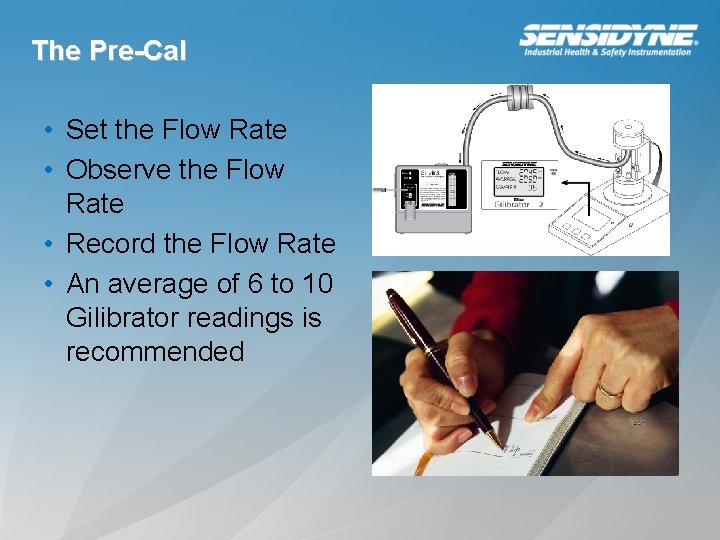

The Pre-Cal • Set the Flow Rate • Observe the Flow Rate • Record the Flow Rate • An average of 6 to 10 Gilibrator readings is recommended

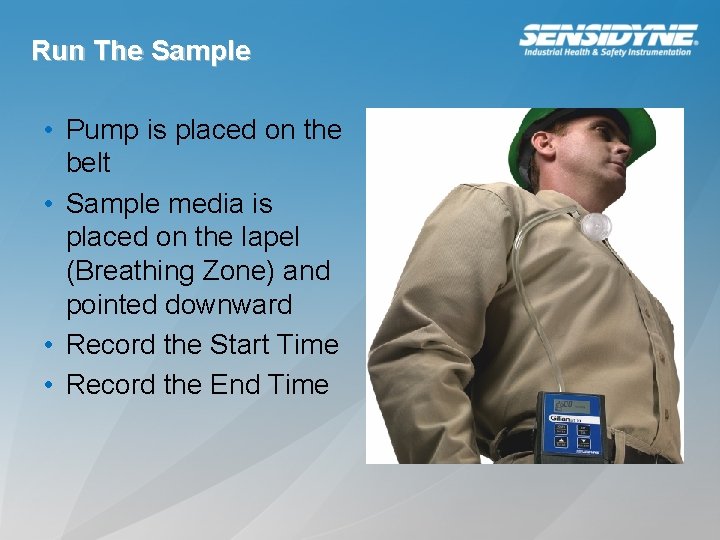

Run The Sample • Pump is placed on the belt • Sample media is placed on the lapel (Breathing Zone) and pointed downward • Record the Start Time • Record the End Time

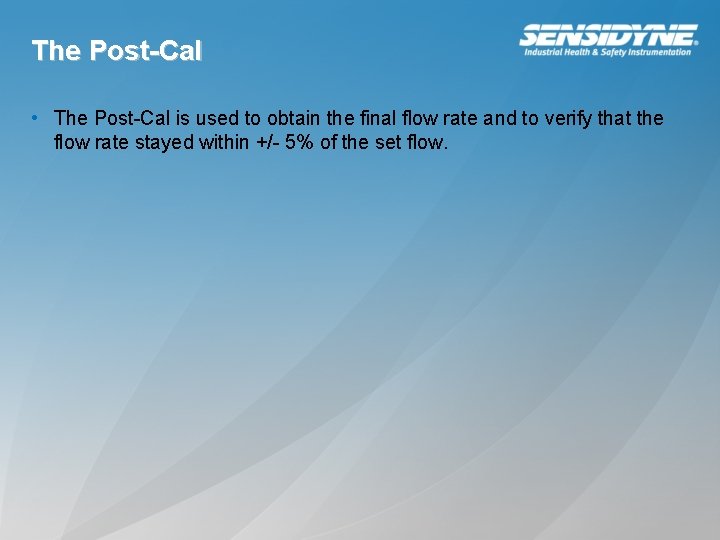

The Post-Cal • The Post-Cal is used to obtain the final flow rate and to verify that the flow rate stayed within +/- 5% of the set flow.

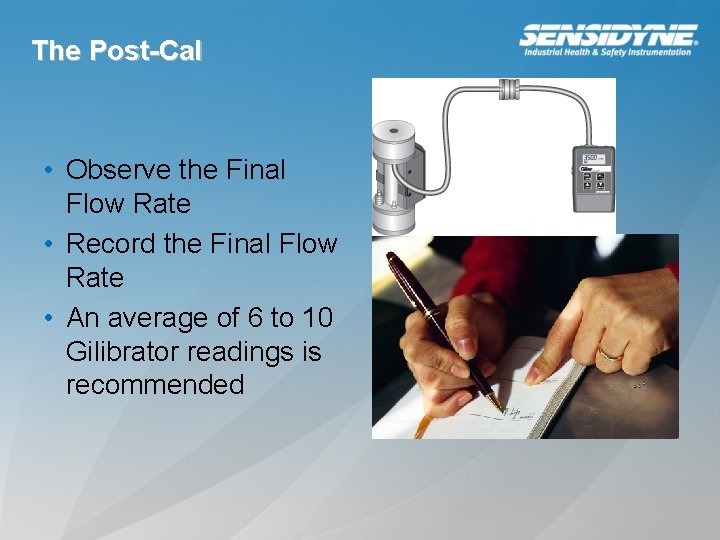

The Post-Cal • Observe the Final Flow Rate • Record the Final Flow Rate • An average of 6 to 10 Gilibrator readings is recommended

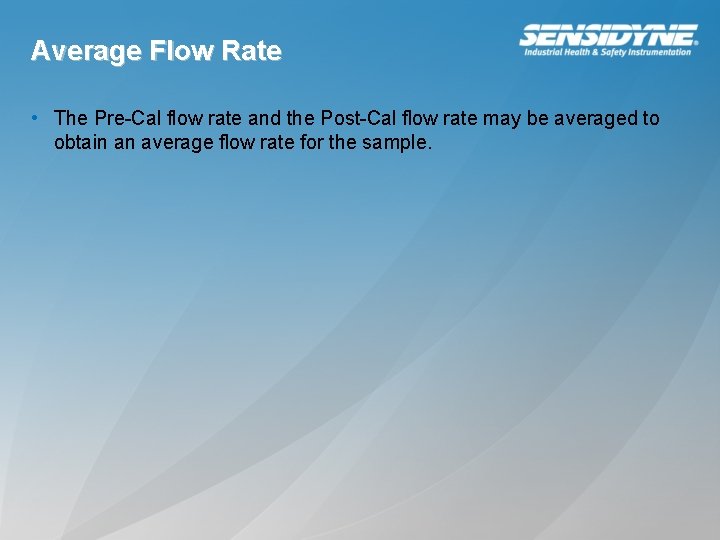

Average Flow Rate • The Pre-Cal flow rate and the Post-Cal flow rate may be averaged to obtain an average flow rate for the sample.

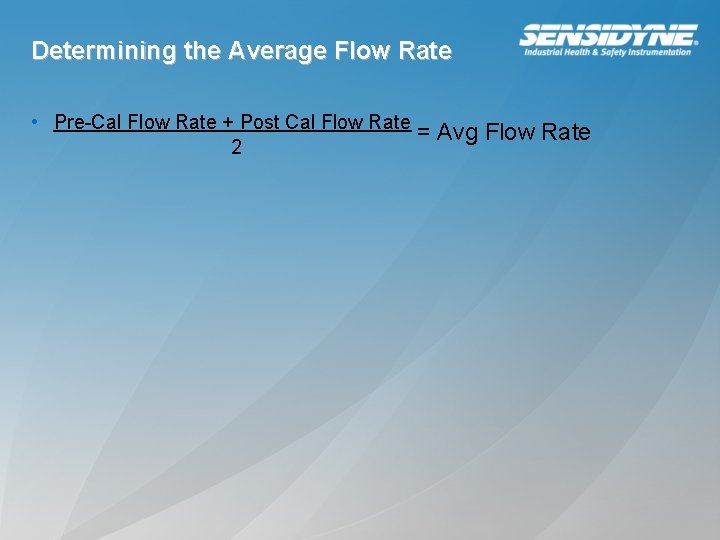

Determining the Average Flow Rate • Pre-Cal Flow Rate + Post Cal Flow Rate = Avg Flow Rate 2

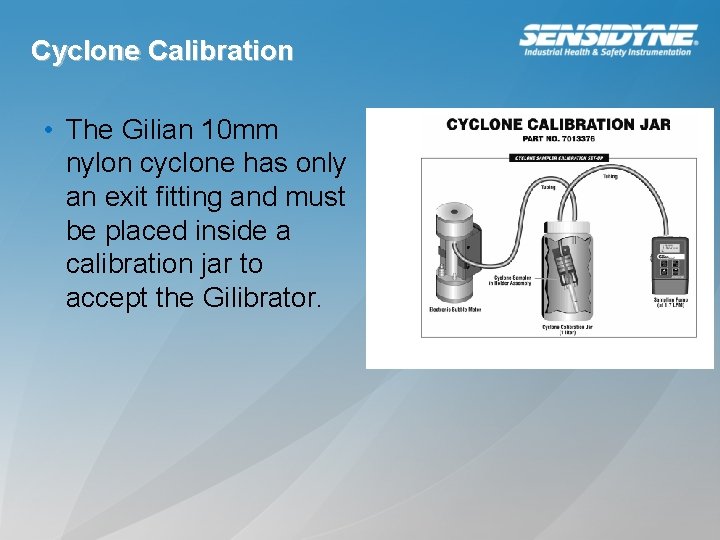

Cyclone Calibration • The Gilian 10 mm nylon cyclone has only an exit fitting and must be placed inside a calibration jar to accept the Gilibrator.

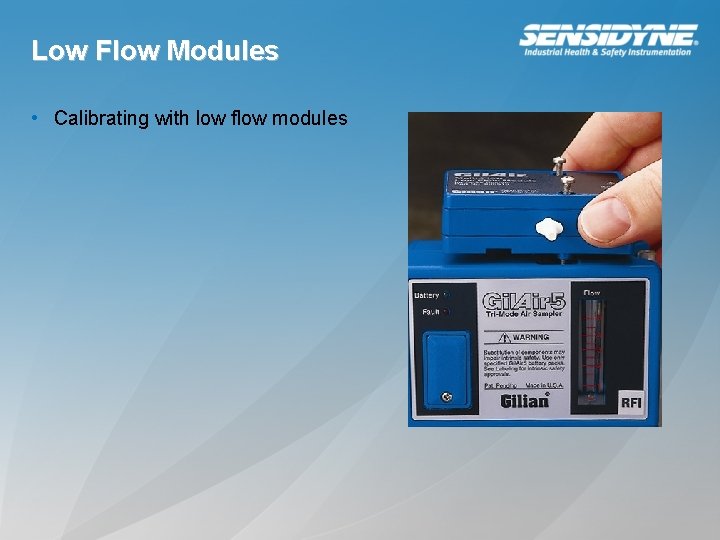

Low Flow Modules • Calibrating with low flow modules

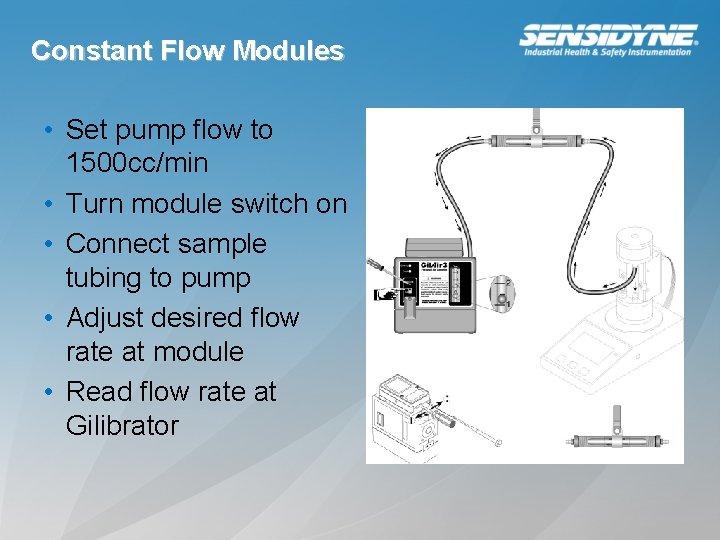

Constant Flow Modules • Set pump flow to 1500 cc/min • Turn module switch on • Connect sample tubing to pump • Adjust desired flow rate at module • Read flow rate at Gilibrator

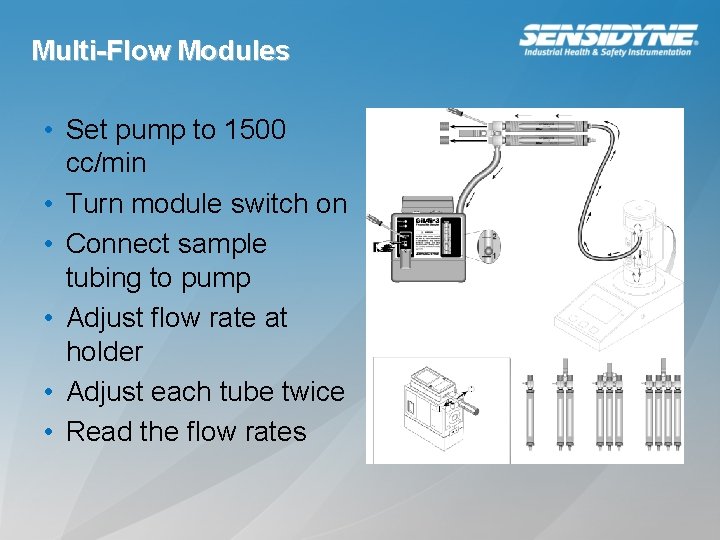

Multi-Flow Modules • Set pump to 1500 cc/min • Turn module switch on • Connect sample tubing to pump • Adjust flow rate at holder • Adjust each tube twice • Read the flow rates

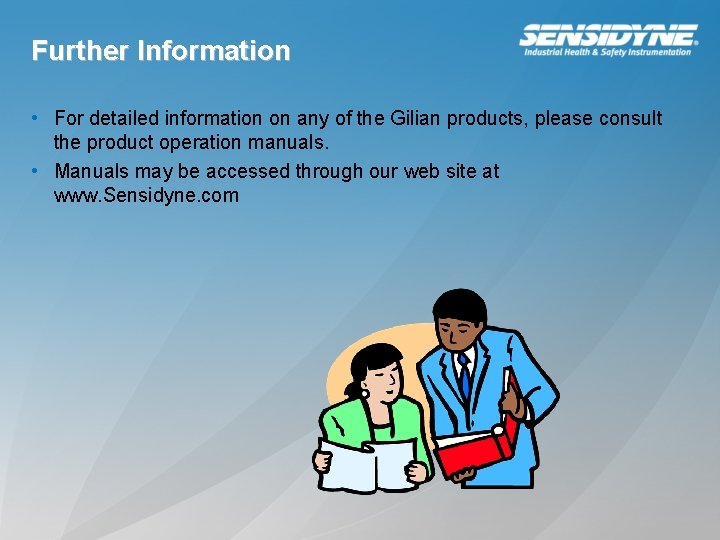

Further Information • For detailed information on any of the Gilian products, please consult the product operation manuals. • Manuals may be accessed through our web site at www. Sensidyne. com
