A Scalable Content Addressable Network Sigcomm 2001 Authors
A Scalable Content Addressable Network (Sigcomm 2001) Authors: Sylvia Ratsanamy, Mark Handley, Paul Francis Richard Karp, Scott Shenker Ehsan Foroughi
Outline • Introduction • Design – Logical Environment – Find and Insert Operations – Departure and Recovery • Improvements
Introduction • Large Scale Addressing/Storage Management • Key Features: – Distributable/Scalable – Fault Tolerance – Fast Access vs. Low Overhead • Hash Tables: How to distribute them?
Basic Design • Logical Hash Space • Keys hash to a d-dimensional Cartesian coordinate space on a d-torus • The space is partitioned into distinct zones • Zones are d-dimensional rectangles • Zones are neighbor if share in (d-1) dimention

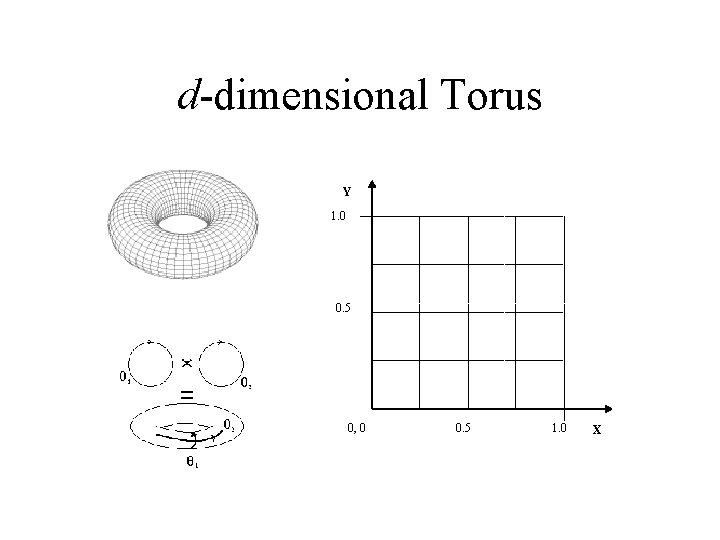

d-dimensional Torus Y 1. 0 0. 5 0, 0 0. 5 1. 0 X
Routing • Queries are hashed to the space, then routed to the node that handles the destination point on the virtual space • Each node maintains information about its neighbors • Routing is greedy, i. e. the query is forwarded to the neighbor with least distance to destination
Example of Routing
Insertion • Find an arbitrary node of the system • Pick a random key and hash it to some point • Find the owner of the zone using the routing mechanism Split Start to Join ·P
Insertion cont’d • Split the destination zone • Take over a half of the new zone • Update the neighbor information lists both on new zones and all neighbors of the old zone New Zone
Operation Cost • Average path length is (d/2)(n 1/d) hops • Average neighbor list is 2 d • Letting d=log n both average path length and neighbor list will be O( log n )
Departure & Recovery • Departure can be – With previous warning – Sudden death • In case of normal departure, the node will explicitly hand out the zone to one of its neighbors and the depart • Under normal conditions, nodes transmit update message so that neighbors will know when someone is dead using a timeout timer and ping!
Recovery • In case of abnormal departure, the neighbors decide who should TAKEOVER the zone (node with smallest zone) • In both case, some nodes may handle more than one zone temporarily • Massive cluster failures can bring CAN to an inconsistent state! (not very probable)
Zone Reassignment • Fragmentation problem due to departure of nodes • A background algorithm reassigns zone and tries to merge-up zones to reduce the number of zones each node handles
Improvements • • Multi-Dimension Metrics Multi-Coordinate Spaces Overloading the Zones Multiple Hash Functions Topologically Sensitive Construction Uniform Partitioning Caching
Conclusion • Drawbacks – Not possible to increase dimension – Physical neighboring vs. logical neighboring • Applications – P 2 P File Sharing – DNS –…
