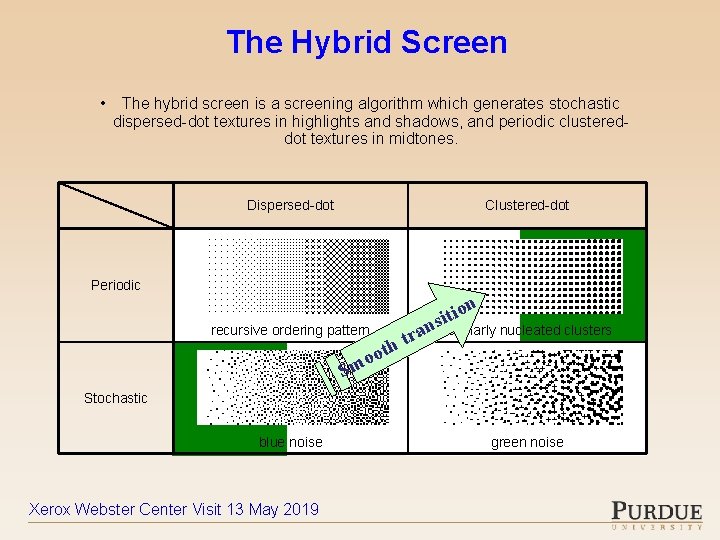

The Hybrid Screen • The hybrid screen is a screening algorithm which generates stochastic dispersed-dot textures in highlights and shadows, and periodic clustereddot textures in midtones. Dispersed-dot Clustered-dot Periodic n recursive ordering pattern ra t h tio i s n ot o m regularly nucleated clusters S Stochastic blue noise Xerox Webster Center Visit 13 May 2019 green noise

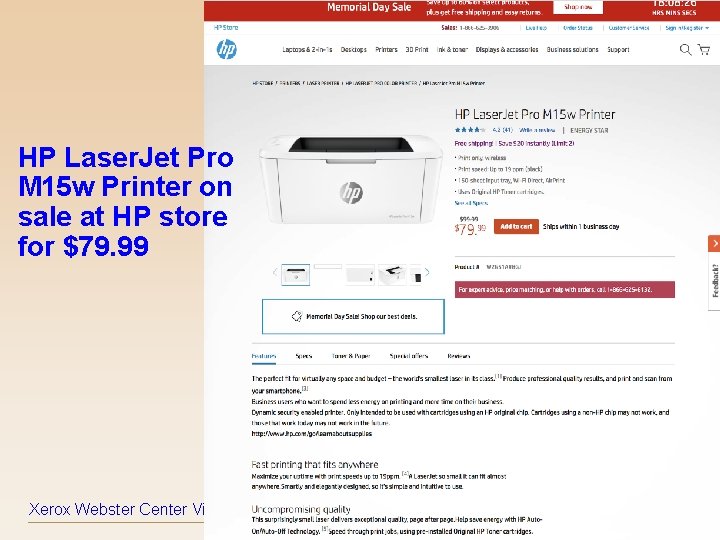

HP Laser. Jet Pro M 15 w Printer on sale at HP store for $79. 99 Xerox Webster Center Visit 13 May 2019

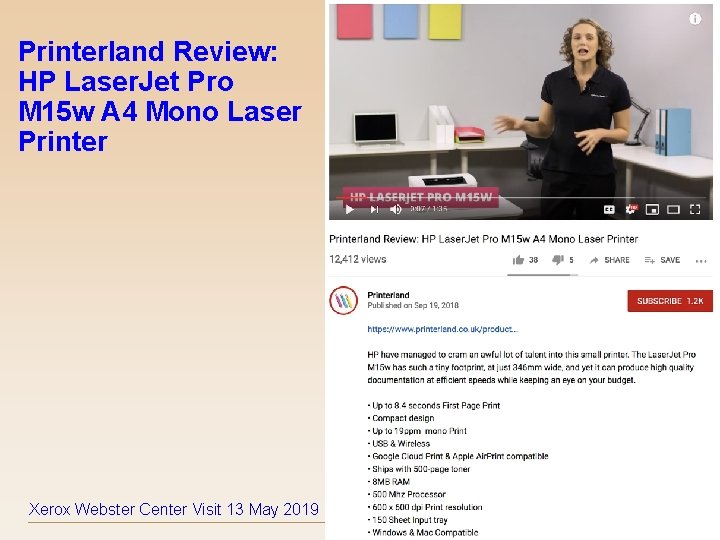

Printerland Review: HP Laser. Jet Pro M 15 w A 4 Mono Laser Printer Xerox Webster Center Visit 13 May 2019
Recent work with hybrid screens l Monochrome hybrid, multilevel, halftone screen with unequal spatial resolution for a low-cost electrophotographic printer w Hybrid screen method w Clustered-dot periodic screen w Supercell w DBS w Unequal resolution printing model w Multilevel output W. Huang, T. Liu, K. Bengston, and J. Allebach, “Monochrome Hybrid, Multilevel Halftone Screen with Unequal Resolution for a Low-Cost Electrophotographic Printer, ” Color Imaging XXIII: Displaying, Processing, Hardcopy, and Applications, (Part of IS&T Electronic Imaging 2018), R. Eschbach, G. Marcu, and A. Rizzi, Eds. San Francisco, CA, 29 January -2 February 2018. Unequal spatial resolution Xerox Webster Center Visit 13 May 2019 *Research supported by HP, Inc.
Xerox Webster Center Visit 13 May 2019

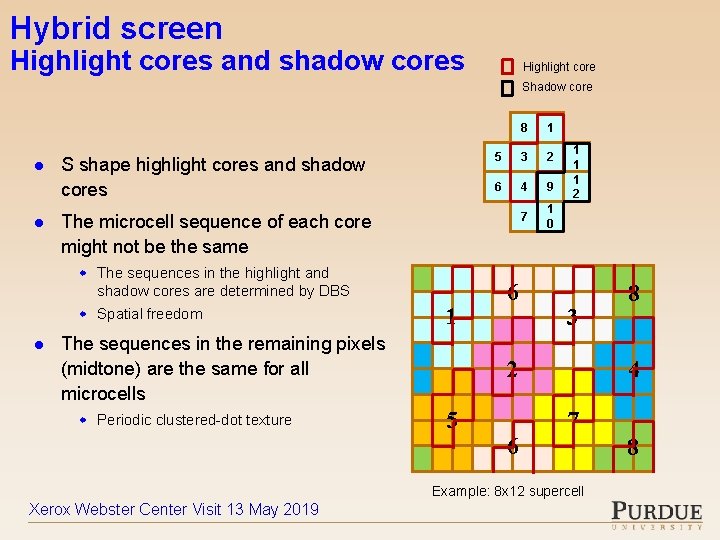

Hybrid screen Highlight cores and shadow cores Highlight core Shadow core l l S shape highlight cores and shadow cores 1 5 3 2 6 4 9 7 1 0 The microcell sequence of each core might not be the same w The sequences in the highlight and shadow cores are determined by DBS w Spatial freedom l 8 1 The sequences in the remaining pixels (midtone) are the same for all microcells w Periodic clustered-dot texture 6 1 1 1 2 3 2 5 6 4 7 Example: 8 x 12 supercell Xerox Webster Center Visit 13 May 2019 8 8
