A Pulse EPR Primer FIDs and Echoes Applications
- Slides: 53
A Pulse EPR Primer FIDs and Echoes
Applications ESEEM Relaxation Time Measurement 2 + 1, DEER, ELDOR Structural Elucidation Dynamics, Distances EXSY Measurement of Slow Inter & Intra-molecular Chemical Exchange and Molecular Motions Measurement of Long Distances
Topics The Rotating Frame The Effect of B 1 FIDs (Free Induction Decays) FT (Fourier Transform) Theory Spin Echoes Relaxation Times
Rotating Frame The Axis System
Rotating Frame The Larmor Frequency w. L = -g B 0
Rotating Frame Linearly and Circularly Polarized Light
Rotating Frame The Rotating Frame
Rotating Frame B 1 in both Frames
Rotating Frame Tip Angles a = -g |B 1| tp
Rotating Frame Pulse Phases
Rotating Frame Transverse Magnetization in Both Frames
Rotating Frame Generation of Microwaves
Rotating Frame Off-resonance Effects
Rotating Frame The Effective Field
Rotating Frame Sin(x)/x Behavior
Rotating Frame Excitation Bandwidth

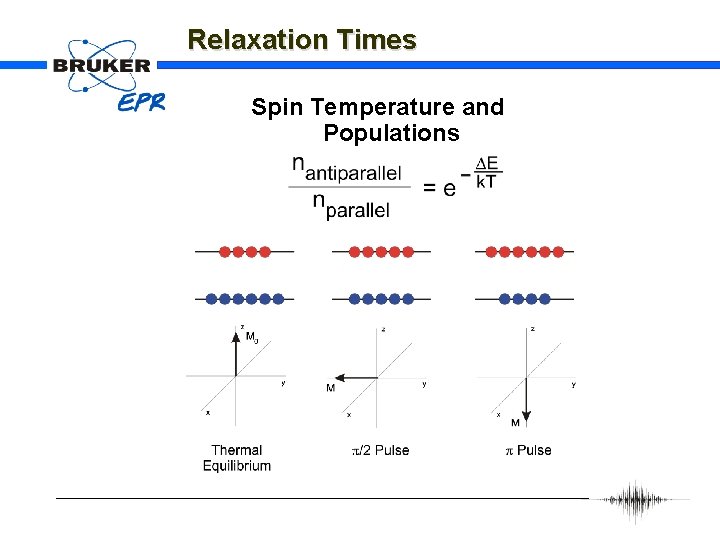

Relaxation Times Spin Temperature and Populations
Relaxation Times Longitudinal Magnetization Recovery
Relaxation Times Effect of Excessive Repetition Times
Relaxation Times Homogeneous & Inhomogeneous Broadening Homogeneous Broadening The lineshape is determined by the relaxation time. The spectrum is the sum of a large number of lines each having the same Larmor frequency and linewidth. Lorentzian Lineshapes Inhomogeneous Broadening The lineshape is determined by the unresolved couplings. The spectrum is the sum of a large number of narrower homogeneously broadened lines each having the different Larmor frequencies. Gaussian Lineshapes
Relaxation Times A FID (Free Induction Decay)
Fourier Theory Fourier transforms convert time domain signals into frequency domain signals and vice versa.
Fourier Theory Time Behavior of Magnetization
Fourier Theory The Complex Axis System
Fourier Theory The Fourier Transform
Fourier Theory Some Fourier Facts Even functions (f(-t) = f(t) or symmetric) have purely real Fourier transforms. Odd functions (f(-t) = -f(t) or anti-symmetric) have purely imaginary Fourier transforms.
Fourier Theory Some Fourier Facts An exponential decay in the time domain is a lorentzian in the frequency domain. A gaussian decay in the time domain is a gaussian in the frequency domain.
Fourier Theory Some Fourier Facts Quickly decaying signals in the time domain are broad in the frequency domain. Slowly decaying signals in the time domain are narrow in the frequency domain.
Fourier Theory A Simple Fourier Transform
Fourier Theory
Fourier Theory
Fourier Theory Addition Properties
Fourier Theory Shift Properties
Fourier Theory Convolution Properties
Fourier Theory Convolution Theorem
Fourier Theory A Practical Example
Fourier Theory A Practical Example Use Convolution
Fourier Theory A Practical Example Use Addition
Fourier Theory A Practical Example Use the Convolution Theorem
Fourier Theory Linewidth Effects
Fourier Theory Splitting Effects
Fourier Theory Field Effects
Fourier Theory Field vs Frequency
Fourier Theory Field vs Frequency
Echoes Spin Echoes
Echoes Spin Echoes
Echoes Spin Echoes with Inhomogeneous Broadening
Echoes Phase Memory Time, TM
Echoes Spectral Diffusion
Echoes Spin Lattice Relaxation
Echoes ESEEM
Echoes Stimulated Echo
Echoes Effect of Pulse Lengths with Two Equal Pulses
