INTRODUCTION ~WHAT IS AN E NOSE? ~ WHY E NOSE? ~ WHAT IS ODOUR? ~ WHAT ARE VOC’S? ~ WHAT ARE RECEPTORS?

ELECTRONIC NOSE ~Electronic nose or (e nose) is a device that identifies the specific Components of an odour and analyzes its chemical makeup to Identify it. ~An e nose consists of mechanism for identification of chemical detection such as an array of electronic sensors and a mechanism for pattern recognition

ODOUR ~odour in a substance is due to VOC’S or volatile Organic compounds which evaporate and get carried Away by air RECOGNITION ~receptors in human nose act as binding sites for VOC’S these voc’s are then processed by brain and We recognise the smell.

MAIN COMPONENTS OF E NOSE Ø SENSING SYSTEM Ø PATTERN RECOGNITION SYSTEM ØSUB COMPONENTS Ø SAMPLE DELIVERY SYSTEM Ø DETECTION SYSTEM Ø COMPUTING SYSTEM

More on working ØThe sample delivery system enables the generation of the headspace (volatile compounds) of a sample. ØThe detection system, which consists of a sensor set, is the “reactive” part of the instrument. When in contact with volatile compounds, the sensors experience a change of electrical properties. Each sensor is sensitive to all volatile molecules but each in their specific way. ØThe computing system works to combine the responses of all the sensors which represent the Input for the data treatment , it then performs global finger print analysis and provides results

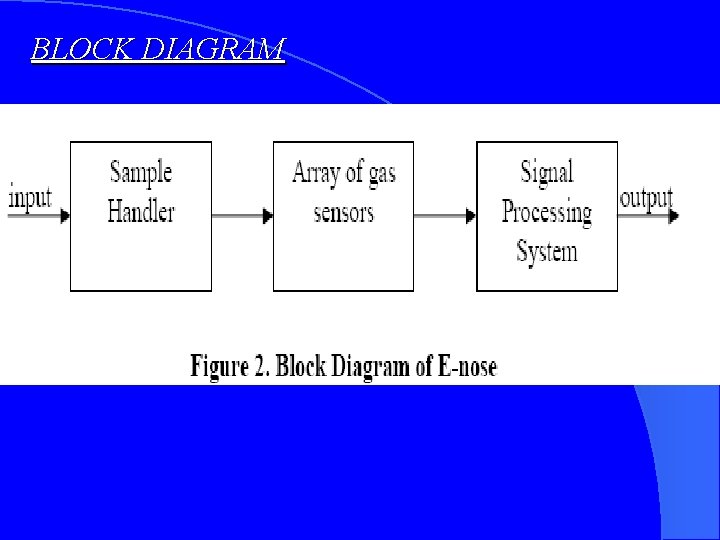

BLOCK DIAGRAM

SCHEMATIC DIAGRAM

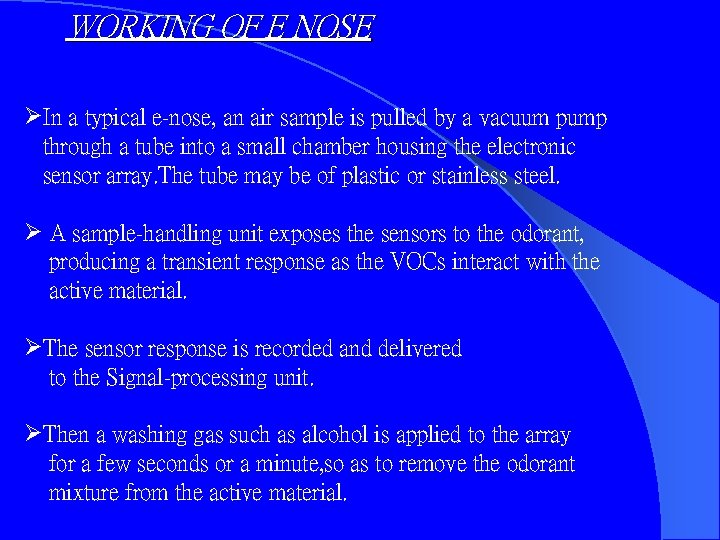

WORKING OF E NOSE ØIn a typical e-nose, an air sample is pulled by a vacuum pump through a tube into a small chamber housing the electronic sensor array. The tube may be of plastic or stainless steel. Ø A sample-handling unit exposes the sensors to the odorant, producing a transient response as the VOCs interact with the active material. ØThe sensor response is recorded and delivered to the Signal-processing unit. ØThen a washing gas such as alcohol is applied to the array for a few seconds or a minute, so as to remove the odorant mixture from the active material.

INTRODUCTION TO SENSORS A sensor is a device which can respond to some properties of the environment and transform the response into an electric signal. The general working mechanism of a sensor is illustrated by the following scheme : In the field of sensors, the correct definition of parameters is of paramount importance because of these parameters: ~allow the diffusion of more reliable information among researchers or sensor operators, ~allow a better comprehension of the intrinsic behavior of the sensors help to propose new standards, give fundamental criteria for a sound evaluation of different sensor performances. The output signal is the response of the sensor when the sensitive material undergoes modification

TYPES OF SENSORS E-nose is classified based on the type of sensors used. 1. 2. 3. 4. Conductivity Sensors Piezoelectric Sensors FET gas Sensors Optical Sensors

Conductivity sensors ØMetal oxide type ØPolymer type ü Both of which exhibit a change in resistance when exposed to volatile organic compounds. Ø Metal oxide gas sensors can be subdivided into: � Thick film devices (depositing a paste of material between two electrodes) � Thin film devices: they use vapor deposition technologies in order to obtain a very thin film of metal oxide between two electrodes. ØPolymer Sensors Here the active material is a conducting polymer from such families as the polypyroles, thiophenes, indoles or furans. Changes in the conductivity of these materials occur as they are exposed to various types of chemicals, which bond with the polymer backbone.

BASELINE RESISTANCE . All of the polymer films on a set of electrodes (sensors) start out at a measured resistance, their baseline resistance. If there has been no change in the composition of the air, the films stay at the baseline resistance and the percent change is zero e- e- e-

THE ELECTRONIC NOSE SMELLS SOMETHING Each polymer changes its size, and therefore its resistance, by a different amount, making a pattern of the change e- e- If a different compound had caused the air to change, the pattern of the polymer films' change would have been different: e- e-

Optical Fiber Sensors ØThese utilize glass fibers with a thin chemically active material coating on their sides or ends. ØA light source at a single frequency is used to interrogate the active materials which responds with the change in colour to the presence of VOCs. ØThe active material contains chemically active fluorescent dyes immobilized in an Organic polymer matrix. As VOCs interact with it, the polarity of the fluorescent emission spectrum changes. Advantages: Cheap and easy to fabricate. Arrays of fiber sensors have wide range of sensitivities. Differential measurement is possible to avoid common mode noise. Disadvantages: Complexity of the measuring system.

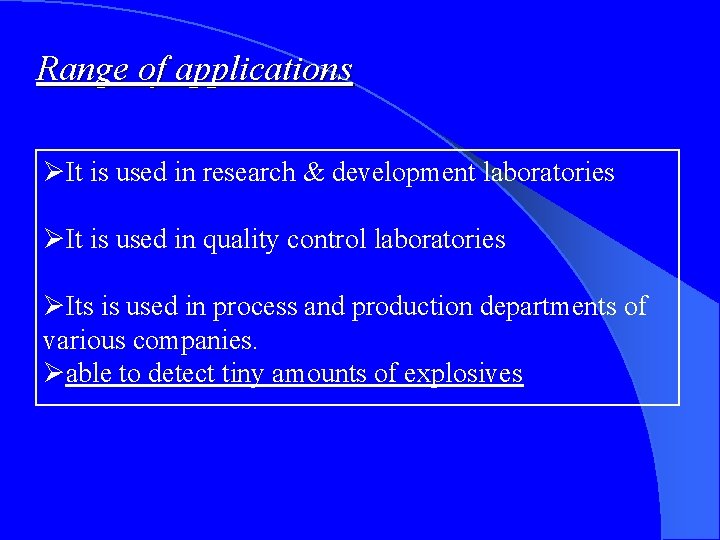

Range of applications ØIt is used in research & development laboratories ØIt is used in quality control laboratories ØIts is used in process and production departments of various companies. Øable to detect tiny amounts of explosives

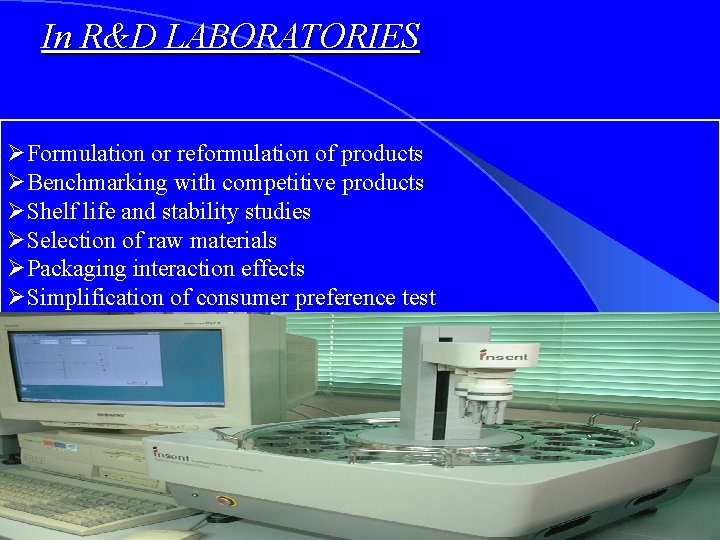

In R&D LABORATORIES ØFormulation or reformulation of products ØBenchmarking with competitive products ØShelf life and stability studies ØSelection of raw materials ØPackaging interaction effects ØSimplification of consumer preference test

In Quality Control laboratories : ØConformity of raw materials, intermediate and final products ØBatch to batch consistency ØDetection of contamination, spoilage, adulteration ØOrigin or vendor selection ØMonitoring of storage conditions.

In process and production departments for: ØMeasurement and comparison of the effects of manufacturing process on products ØFollowing-up cleaning in place process efficiency ØScale-up monitoring ØManaging raw material variability ØComparison with a reference product ØCleaning in place monitoring.
