A Practical Overview of Antiarrhythmic Drugs Commonly Used in Atrial Fibrillation RESOURCE SESSION Olavo Fernandes, Pharm. D. Pharmacy Practice Leader, Toronto General Hospital, UHN Assistant Professor, University of Toronto October 2002

Cardiac Conduction System SA node – primary pacemaker (60100 bpm) – autonomic nervous system – vagus nerve (parasym. ) – catacholamines (sym) AV node – filter (40 -60 bpm) – controls number of impulses reaching the ventricle from atria Bundle of His – conducts impulses to bundle branches Perkinje system – < 40 bpm – bifarcates into several bundle brunches

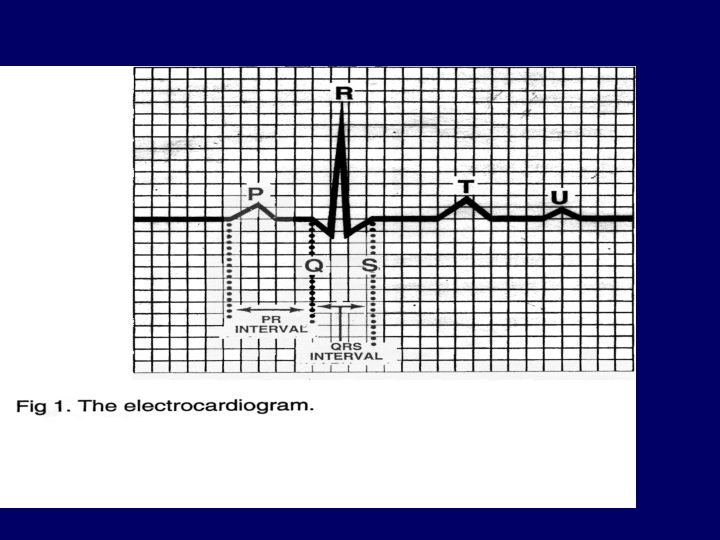

Electrocardiogram (ECG) u. P wave u – repolarization of ventricle – depolarization of atria u QRS Complex – depolarization of ventricle – QRS interval normally < 0. 12 secs. – widened QRS: prolonged conduction – QRS > 0. 12 secs: conduction from ventricle or supraventricular T wave u U wave – uncertain u PR interval – < 0. 2 seconds – conduction velocity – beginning of P wave to onset of QRS u QTc interval – < 0. 4 seconds – refractory period – beginning of Q to end of T

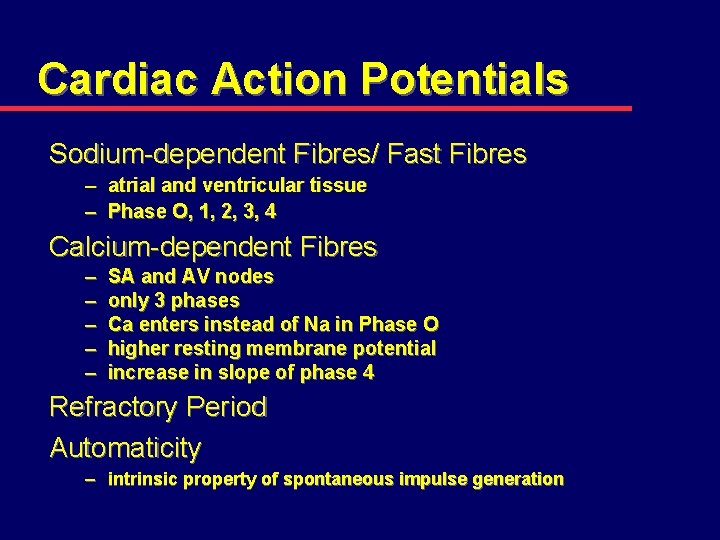

Cardiac Action Potentials Sodium-dependent Fibres/ Fast Fibres – atrial and ventricular tissue – Phase O, 1, 2, 3, 4 Calcium-dependent Fibres – – – SA and AV nodes only 3 phases Ca enters instead of Na in Phase O higher resting membrane potential increase in slope of phase 4 Refractory Period Automaticity – intrinsic property of spontaneous impulse generation

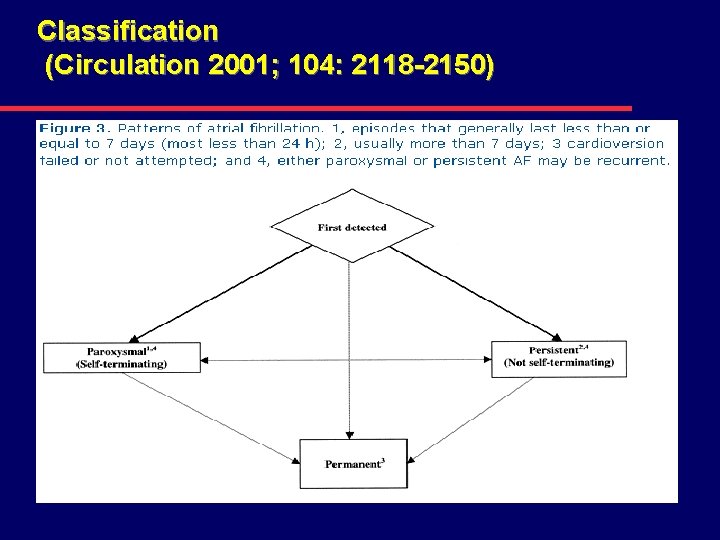

Classification (Circulation 2001; 104: 2118 -2150)

Atrial Arrhythmias Goals of Therapy u convert to sinus rhythm u control ventricular response rate u relieve associated symptoms (palpitations, fatigue, dyspnea, syncope, angina, heart failure) u prevent recurrence u prevent complications: life threatening arrhythmias, stroke, MI, tachycardia

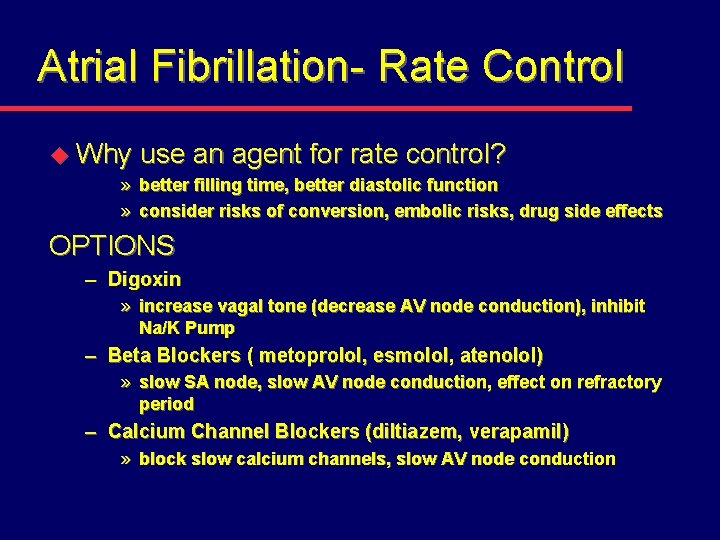

Atrial Fibrillation- Rate Control u Why use an agent for rate control? » better filling time, better diastolic function » consider risks of conversion, embolic risks, drug side effects OPTIONS – Digoxin » increase vagal tone (decrease AV node conduction), inhibit Na/K Pump – Beta Blockers ( metoprolol, esmolol, atenolol) » slow SA node, slow AV node conduction, effect on refractory period – Calcium Channel Blockers (diltiazem, verapamil) » block slow calcium channels, slow AV node conduction

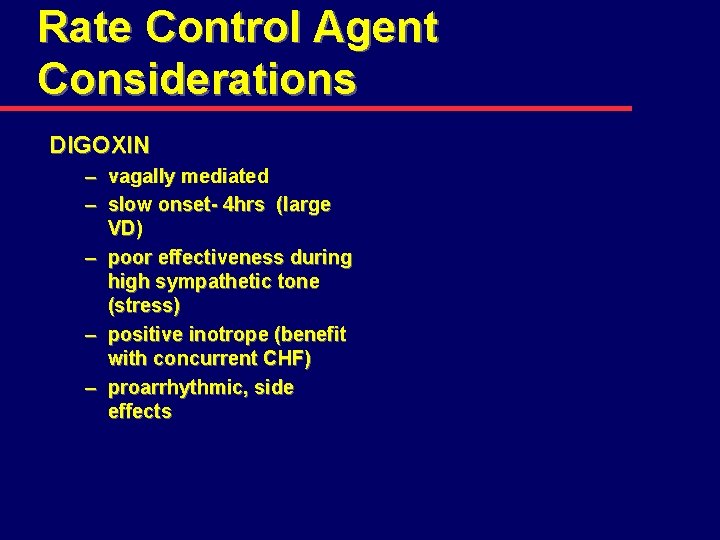

Rate Control Agent Considerations DIGOXIN – vagally mediated – slow onset- 4 hrs (large VD) – poor effectiveness during high sympathetic tone (stress) – positive inotrope (benefit with concurrent CHF) – proarrhythmic, side effects

Rate Control Agent Considerations BETA BLOCKERS – faster onset (minutes) – directly effect on AV node (effective during stress) – negative inotrope (concern in CHF) – may be useful with concurrent CAD/Post MI patients – bronchospasm (asthma) – effect on blood sugar (DM) – main SE: hypotension CALCIUM CHANNEL BLOCKERS – faster onset (minutes) – directly effect on AV node (effective during stress) – negative inotrope (concern in CHF) verapamil > diltiazem – may be useful with concurrent CAD/Post MI patients – main side effect: hypotension – cost diltiazem > verapamil

Conversion of Atrial Fibrillation u Considerations – better cardiac function, more times in A Fib harder to convert to NSR, emboli and anticoagulation, may need rate control during conversion u Direct Current Conversion – 100 J, 200 J, 360 J – burns, relapse, sedation, worsened arrhythmias u Pharmacological Options – Amiodarone (least proarrhythmic, some AVN block, least negative inotropy, very costly IV) – Procainamide, Sotalol – Quinidine – Ibutilide

Management of newly discovered AF (Circulation 2001; 104: 2118 -2150)

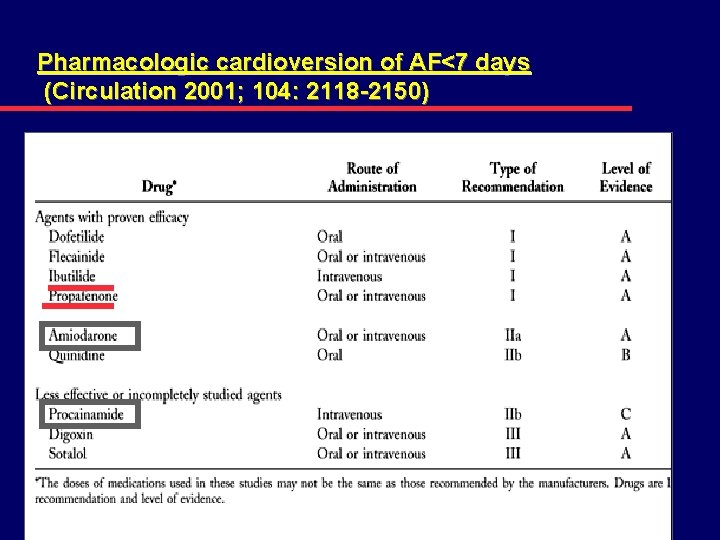

Pharmacologic cardioversion of AF<7 days (Circulation 2001; 104: 2118 -2150)

Pharmacologic cardioversion of AF>7 days (Circulation 2001; 104: 2118 -2150

Pharmacological management of patients with recurrent AF (Circulation 2001; 1104: 2118 -2150)

Drug Profile: Digoxin u – binds and inhibits Na/K ATPase – slows AV node conduction (vagus nerve) u – time to steady state: 5 -7 days (2 -3 wks in RF) – elimination half life: 35 -40 hrs (2 -5 days in RF) Mechanism u – CHF, AF- rate control Kinetics – dist: wide 7 -8 L/kg (skeletal muscle, myocardium, kidneys) – ptn binding : 20 -40% – elimination: renal 70 -80%; hepatic (up to 30%) – time to peak: 1 -4 hr (IV); 2 -6 hr (po) Indications u Dosing – load: 0. 250 mg IV over 15 min repeat in 6 hr; 0. 250 mg po q 6 h x 4 (total 1 mg) – renal dysfunction load 0. 125 mg q 6 h (total 0. 5 -0. 75 mg) – initial mx dose: 0. 125 - 0. 250 mg po

Drug Profile: Digoxin u Adverse Effects – GI: N, V, A, D – CNS: disorientation, confusion – Ocular: colour vision disturbances (yellow-green), halos, photophobia – CV: bradycardia, heart block, VT – more prone to toxicity with hypokalemia (sensitizes myocardium to digoxin effect) – toxicity: hyperkalemia, ventricular arrhythmias, visual disturbances – DIGIBIND u Drug Interactions – physically adsorption (antacids, sucralfate, resins) – antibiotics (digoxin metabolized by gut bacteria) – increased serum level (quinidine, amiodarone, verapamil) – assay interference (spironolactone) u Monitoring – ECG, HR, renal function, potassium, digoxin levels

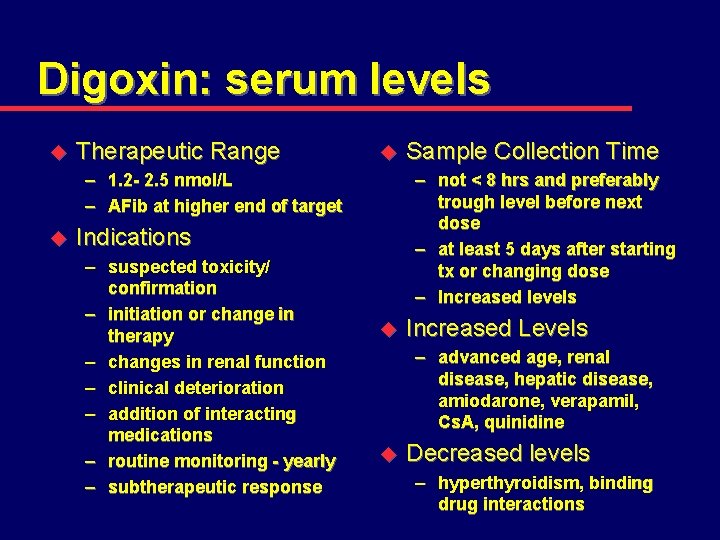

Digoxin: serum levels u Therapeutic Range u – 1. 2 - 2. 5 nmol/L – AFib at higher end of target u – not < 8 hrs and preferably trough level before next dose – at least 5 days after starting tx or changing dose – Increased levels Indications – suspected toxicity/ confirmation – initiation or change in therapy – changes in renal function – clinical deterioration – addition of interacting medications – routine monitoring - yearly – subtherapeutic response Sample Collection Time u Increased Levels – advanced age, renal disease, hepatic disease, amiodarone, verapamil, Cs. A, quinidine u Decreased levels – hyperthyroidism, binding drug interactions

Drug Profile: Digoxin ADVANTAGES LIMITATIONS u Positive inotrope u Limited to atrial arrhythmias u Maybe useful in patients with concurrent AF / u Limited efficacy CHF u Pro-arrhythmic u Narrow therapeutic range u Limited efficacy during high sympathetic tone u Caution with adverse effects/ drug interactions

Drug Profile: Diltiazem u Mechanism: u – blocks slow calcium channels – slows AV node conduction – vasodilatation u – IV: hypotension, bradycardia – worsening CHF symptoms – heart block Administration/Dosing – bolus and continuous infusion – 0. 25 mg/kg over 2 minutes, after 15 minutes can give 0. 35 mg/kg over 2 minutes – continuous infusion 10 mg/hr (up to 15 mg/hr) x 24 hr – D 5 W, NSS, 2/3 -1/3 – refrigerated for storage Adverse Effects u Drug Interactions – AV node blocking agents (BB, CCB, digoxin) – hypotensive agents – negative inotropes u Monitor – ECG, BP, HR – CHF symptoms

Drug Profile: Metoprolol u Mechanism: – competitive block agonist effect of sympathetic neurotransmitters – block adrenergic stimulation of cardiac action potentials – Beta-1 selective agent – slows AV node conduction u u – IV: hypotension, bradycardia – worsening CHF symptoms – bronchospasm in asthma – heart block u Drug Interactions – AV node blocking agents ( CCB, digoxin) – hypotensive agents – negative inotropes Administration/Dosing – 12. 5 - 100 mg po bid – 5 mg IV push for acute management ( if necessary 10 -15 mg IV q 6 h) Adverse Effects u Monitor – ECG, BP, HR – CHF symptoms

Drug Profile: Amiodarone u – complex pcl profile: actions of all classes – conduction slowing (class I) – BB activity (class II) – prolong APD and refractory period (class III) – AVN conduction slowing (IV) – blocks cellular K channels u – elimination: primarily hepatic metabolism / biliary excretion – active metabolite: desethylamiodarone Mechanism: Kinetics – – – bioavailability: 35 -65% half life: mean 52 days volume of distribution: 5000 L u Kinetic Implications » » » loading doses delayed AA effect delayed elimination if drug stopped » compliance » role of levels

Drug Profile: Amiodarone Indications u IV – suppression of recurrent sustained VT, ongoing VT/VF, acute conversion of AF u u – CAMIAT and EMIAT – showed amio. - low incidence of proarrhythmia; safe in LV dysfunction u Primary prevention of SCD – RFs for SCD: LV dysfunction, frequent or complex ectopics – GESICSA and CHF STAT – MADIT (ICD) Atrial Fibrillation/Flutter – slow VRR (AVN block) – convert to NSR – maintain NSR after conversion – dose lower in atrial arrhythmias Post MI u Secondary prevention -SCD – – – CASCADE, AVID ICD preferred amio. second line

Drug Profile: Amiodarone u Administration/Dosing u – 150 -300 mg IV over 10 minutes followed by 0. 5 - 2 mg/kg minute infusion (1000 mg / 24 hrs) – See handout – continue oral load over several weeks – Ventricular arrhythmias » 1200 -1800 mg/d x 1 -2 wks; 800 mg/d x 2 wks; 600 mg/d x 4 wks; then 200 -400 mg/d – Atrial arrhythmias » 600 -800 mg/d x 4 wks; 400 mg/d x 2 -4 wks; 200 mg/d thereafter Adverse Effects (IV) – hypotension (related to vehicle) – peripheral vein phlebitis (run at < 2 mg/ml) – IV infusions > 2 hrs administer in glass bottles of D 5 W – proarrhythmia : rare – 100% liver metabolism u Monitor – vitals, ECG, BP, HR – vein site for phlebitis

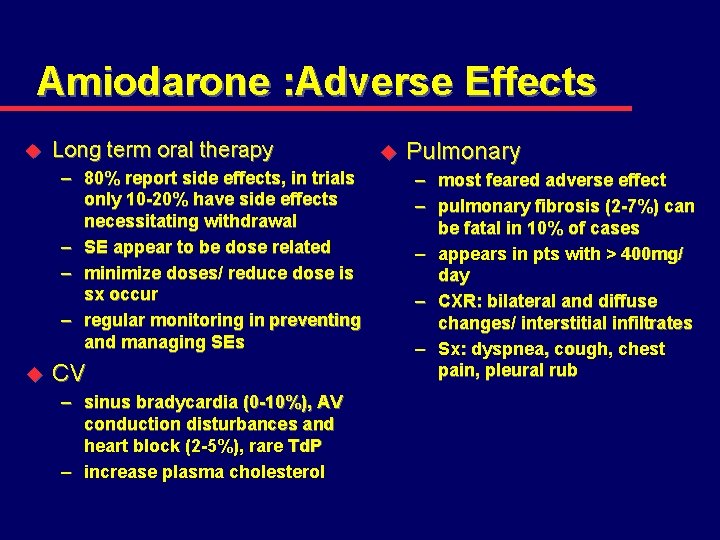

Amiodarone : Adverse Effects u Long term oral therapy – 80% report side effects, in trials only 10 -20% have side effects necessitating withdrawal – SE appear to be dose related – minimize doses/ reduce dose is sx occur – regular monitoring in preventing and managing SEs u CV – sinus bradycardia (0 -10%), AV conduction disturbances and heart block (2 -5%), rare Td. P – increase plasma cholesterol u Pulmonary – most feared adverse effect – pulmonary fibrosis (2 -7%) can be fatal in 10% of cases – appears in pts with > 400 mg/ day – CXR: bilateral and diffuse changes/ interstitial infiltrates – Sx: dyspnea, cough, chest pain, pleural rub

Amiodarone : Adverse Effects Pulmonary – type 1: hypersensitivity (after first few weeks) with development of fever, SOB, cough; tx : stop amio. – type 2: interstitial / alveolar pneumonitis (7 mos - 2 yrs); insidious onset of nonproductive cough, fatigue, SOB, pleuritic CP, fever; infiltrates and pulmonary fibrosis on CXR; tx: stop amio u GI – increase in AST/ALT/ ALP (25%) – hepatitis, hepatic failure – N, V, A common u Thyroid – inhibits conversion T 4 to T 3 – hypo (3%) or hyperthyroidism (2%) – hypothyroidism: » rare after first 18 months » responds to thyroid replacement – hyperthyroidism » occur at any time, difficult to manage (thyroidectomy)

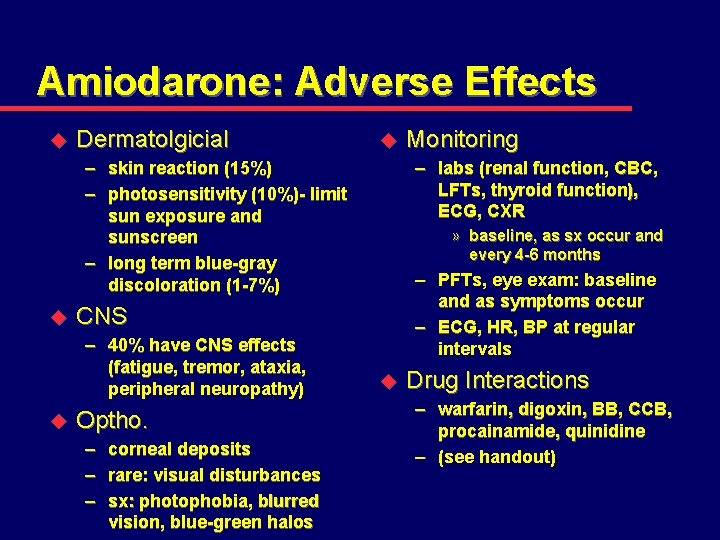

Amiodarone: Adverse Effects u Dermatolgicial u – skin reaction (15%) – photosensitivity (10%)- limit sun exposure and sunscreen – long term blue-gray discoloration (1 -7%) u u – labs (renal function, CBC, LFTs, thyroid function), ECG, CXR » baseline, as sx occur and every 4 -6 months – PFTs, eye exam: baseline and as symptoms occur – ECG, HR, BP at regular intervals CNS – 40% have CNS effects (fatigue, tremor, ataxia, peripheral neuropathy) Optho. – corneal deposits – rare: visual disturbances – sx: photophobia, blurred vision, blue-green halos Monitoring u Drug Interactions – warfarin, digoxin, BB, CCB, procainamide, quinidine – (see handout)

Drug Profile: Amiodarone ADVANTAGES u effective in a wide range of arrhythmias u neutral effects on inotropy (CHF patients) u safety in CAD and LV dysfunction u low incidence of proarrhythmia u some rate control properties in AF LIMITATIONS u many chronic side effects u drug interactions u IV amiodarone - very expensive

Drug Profile: Procainamide u – Class 1 a AA- blocks Na channels – prolongs refractory period and decreases conduction velocity u u Kinetic Implications – active metabolite- NAPA Adverse Effects – – – Administration/Dosing – IV and PO regimens – depends on indication and renal function – paradoxical initial increase in HR u – levels to prevent toxicity (drug and NAPA) Mechanism: u hypotension, bradycardia proarrhythmic (Td. P) drug-induced lupus (SLE) GI: nausea, vomiting CNS: disorientation Drug Interactions – amiodarone, Septra (TMP/SMX) u Monitor – ECG, BP, HR
