A Pattern Language for Firewalls Eduardo B. Fernandez, Maria M. Petrie, Naeem Seliya, Nelly Delessy, and Angela Herzberg

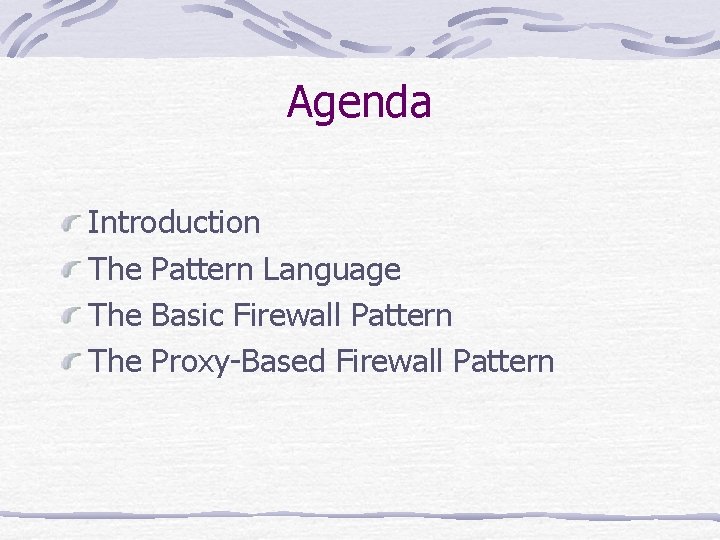

Agenda Introduction The Pattern Language The Basic Firewall Pattern The Proxy-Based Firewall Pattern

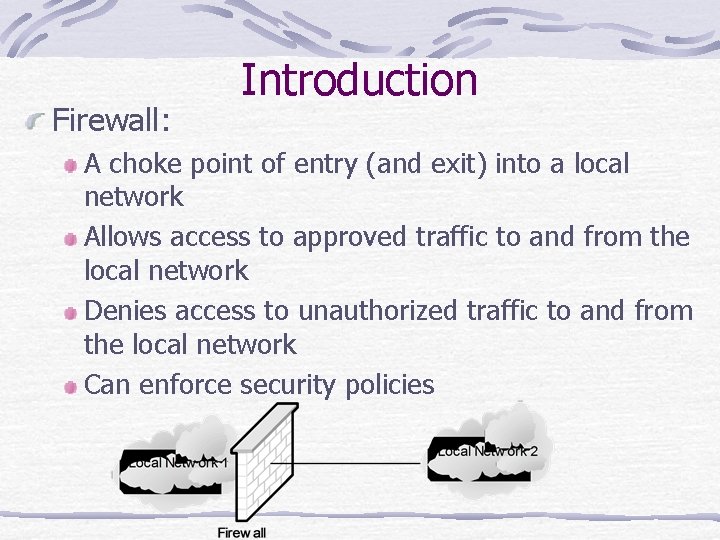

Firewall: Introduction A choke point of entry (and exit) into a local network Allows access to approved traffic to and from the local network Denies access to unauthorized traffic to and from the local network Can enforce security policies

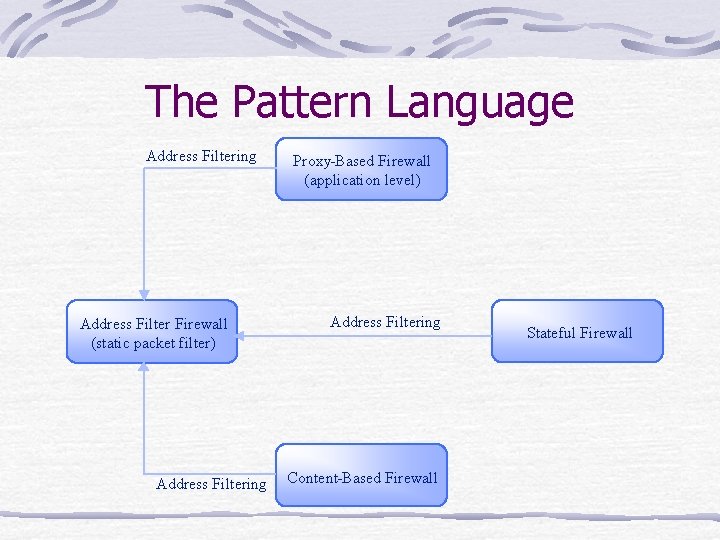

The Pattern Language Address Filtering Address Filter Firewall (static packet filter) Address Filtering Proxy-Based Firewall (application level) Address Filtering Content-Based Firewall Stateful Firewall

The Basic Firewall Pattern Intent To filter incoming and outgoing network traffic in a computer system, based on network addresses. Context Computer systems on a local network connected to the Internet and to external networks. Problem A local network is usually attacked from the outside The local network may be partitioned and attacks may come from other local networks The private information should be maintained within the local network.

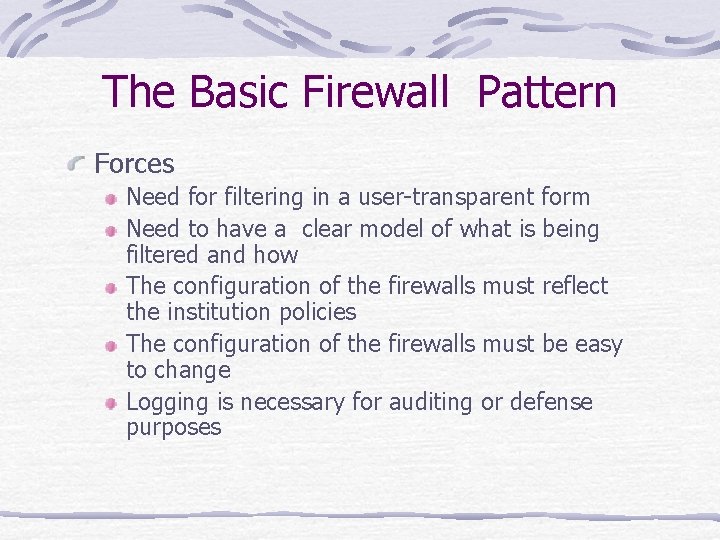

The Basic Firewall Pattern Forces Need for filtering in a user-transparent form Need to have a clear model of what is being filtered and how The configuration of the firewalls must reflect the institution policies The configuration of the firewalls must be easy to change Logging is necessary for auditing or defense purposes

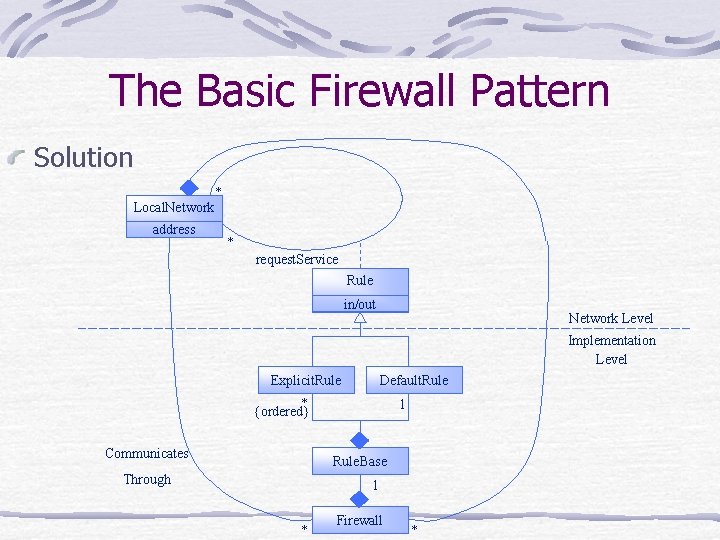

The Basic Firewall Pattern Solution Local. Network address * * request. Service Rule in/out Network Level Implementation Level Explicit. Rule Default. Rule * {ordered} Communicates 1 Rule. Base Through 1 * Firewall *

The Basic Firewall Pattern Dynamics Filtering a Local Network’s Request Use Case. LN 2 : Local Network LN 1 : Local Network : Firewall : Rule. Base : Rule request. Service filter. Request verify check. Rule request. Accepted

The Basic Firewall Pattern Dynamics Defining a Rule Use Case. : Administrator <<actor>> : Firewall : Rule. Base add. Rule(rule, location) add. Rule(rule) rule. Added

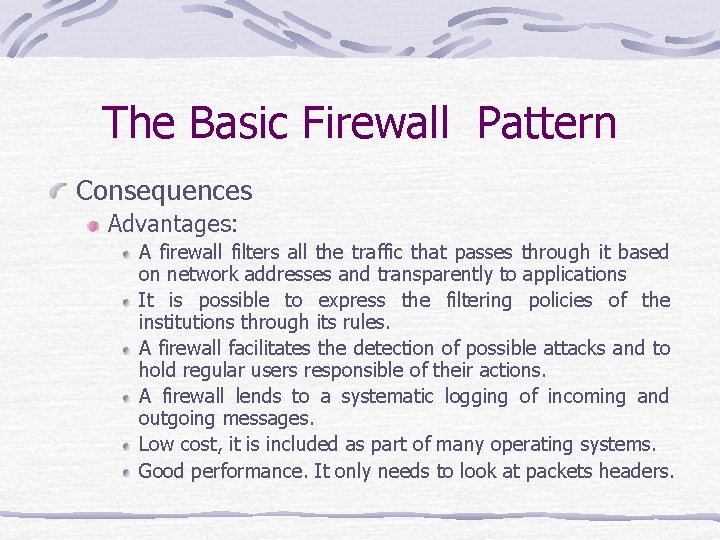

The Basic Firewall Pattern Consequences Advantages: A firewall filters all the traffic that passes through it based on network addresses and transparently to applications It is possible to express the filtering policies of the institutions through its rules. A firewall facilitates the detection of possible attacks and to hold regular users responsible of their actions. A firewall lends to a systematic logging of incoming and outgoing messages. Low cost, it is included as part of many operating systems. Good performance. It only needs to look at packets headers.

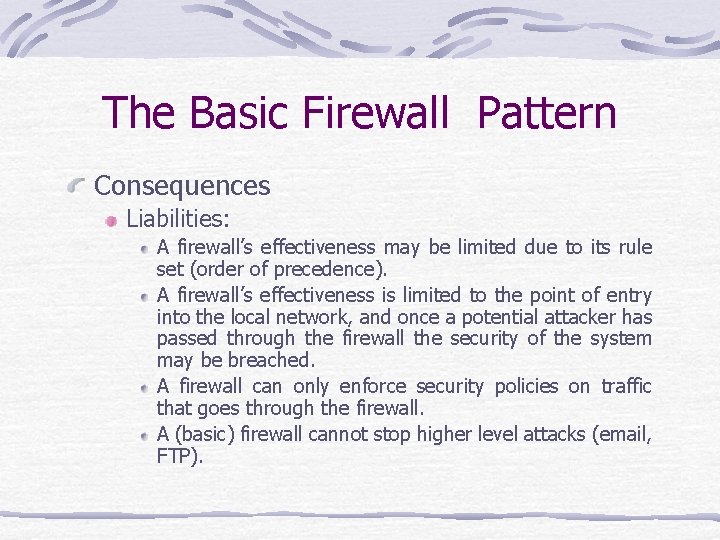

The Basic Firewall Pattern Consequences Liabilities: A firewall’s effectiveness may be limited due to its rule set (order of precedence). A firewall’s effectiveness is limited to the point of entry into the local network, and once a potential attacker has passed through the firewall the security of the system may be breached. A firewall can only enforce security policies on traffic that goes through the firewall. A (basic) firewall cannot stop higher level attacks (email, FTP).

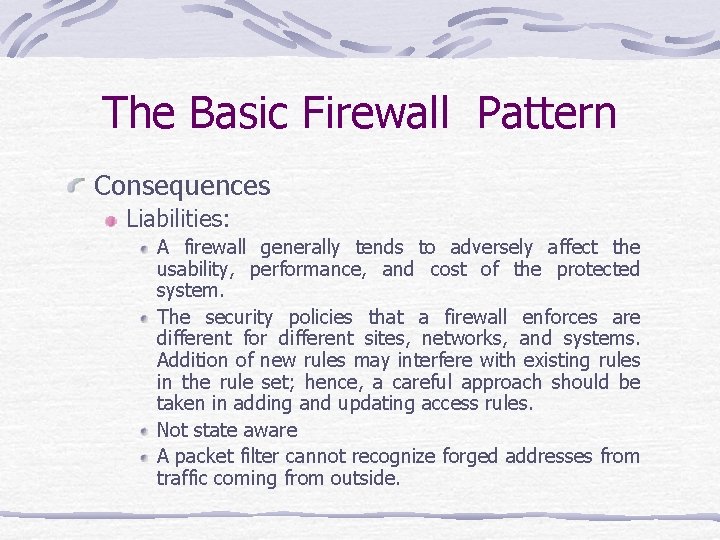

The Basic Firewall Pattern Consequences Liabilities: A firewall generally tends to adversely affect the usability, performance, and cost of the protected system. The security policies that a firewall enforces are different for different sites, networks, and systems. Addition of new rules may interfere with existing rules in the rule set; hence, a careful approach should be taken in adding and updating access rules. Not state aware A packet filter cannot recognize forged addresses from traffic coming from outside.

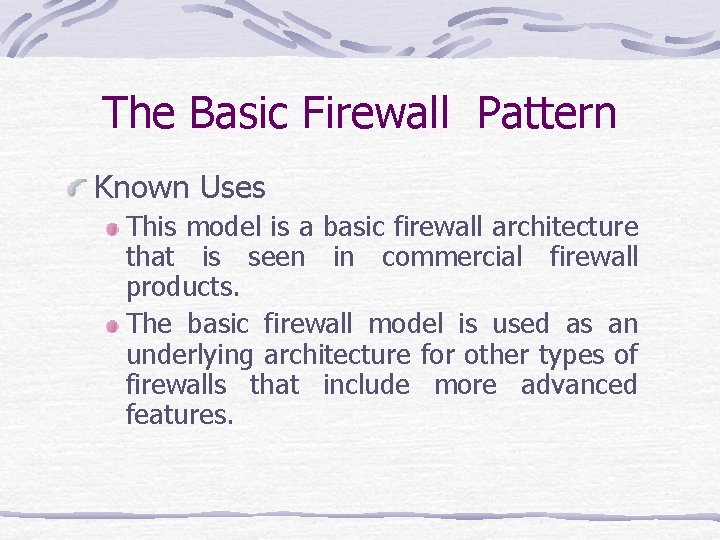

The Basic Firewall Pattern Known Uses This model is a basic firewall architecture that is seen in commercial firewall products. The basic firewall model is used as an underlying architecture for other types of firewalls that include more advanced features.

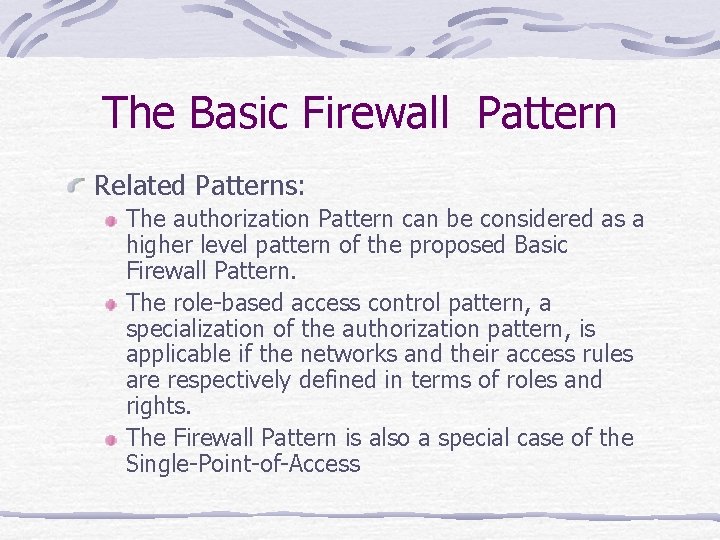

The Basic Firewall Pattern Related Patterns: The authorization Pattern can be considered as a higher level pattern of the proposed Basic Firewall Pattern. The role-based access control pattern, a specialization of the authorization pattern, is applicable if the networks and their access rules are respectively defined in terms of roles and rights. The Firewall Pattern is also a special case of the Single-Point-of-Access

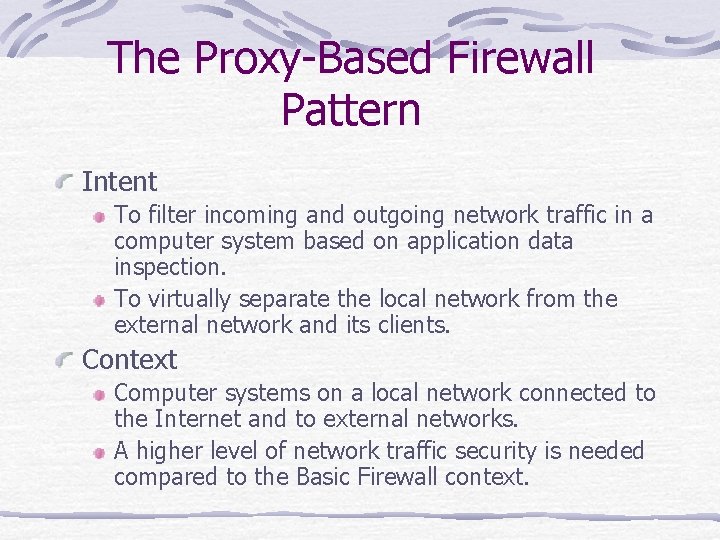

The Proxy-Based Firewall Pattern Intent To filter incoming and outgoing network traffic in a computer system based on application data inspection. To virtually separate the local network from the external network and its clients. Context Computer systems on a local network connected to the Internet and to external networks. A higher level of network traffic security is needed compared to the Basic Firewall context.

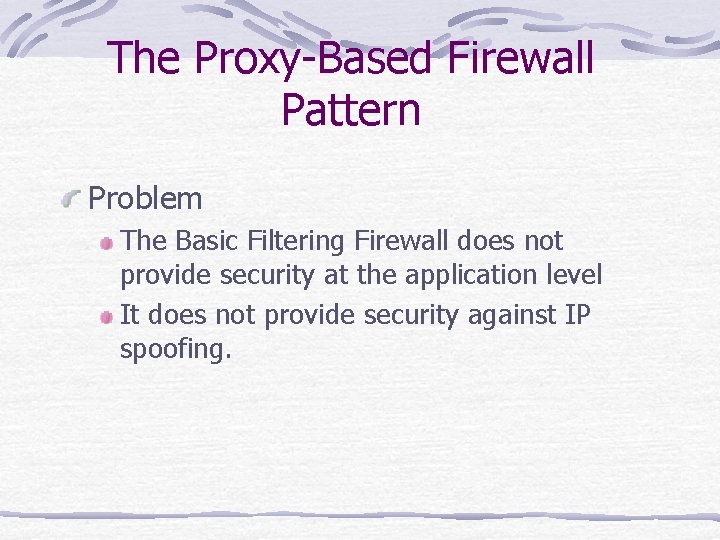

The Proxy-Based Firewall Pattern Problem The Basic Filtering Firewall does not provide security at the application level It does not provide security against IP spoofing.

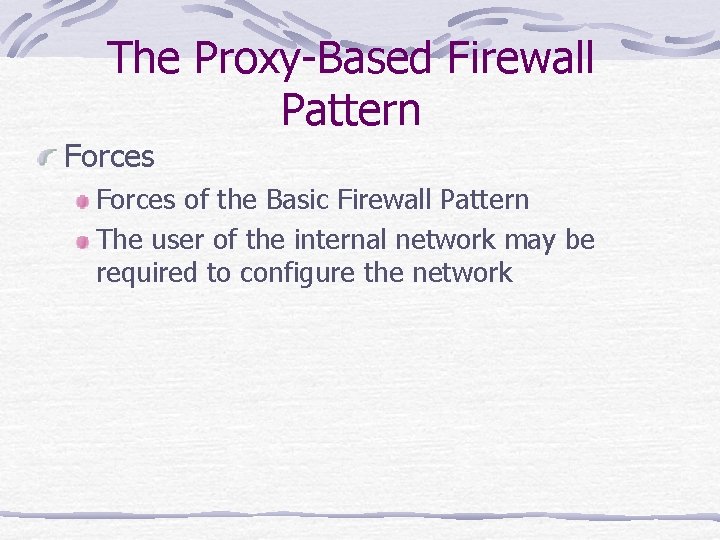

The Proxy-Based Firewall Pattern Forces of the Basic Firewall Pattern The user of the internal network may be required to configure the network

The Proxy-Based Firewall Pattern Solution 1 Service port * * Local. Network address service access. Service * 1 Rule represents in/out Application Level Network Level Explicit. Rule Default. Rule * {ordered} request Service 1 Rule. Base 1 1 Proxy * * Application. Level * Firewall

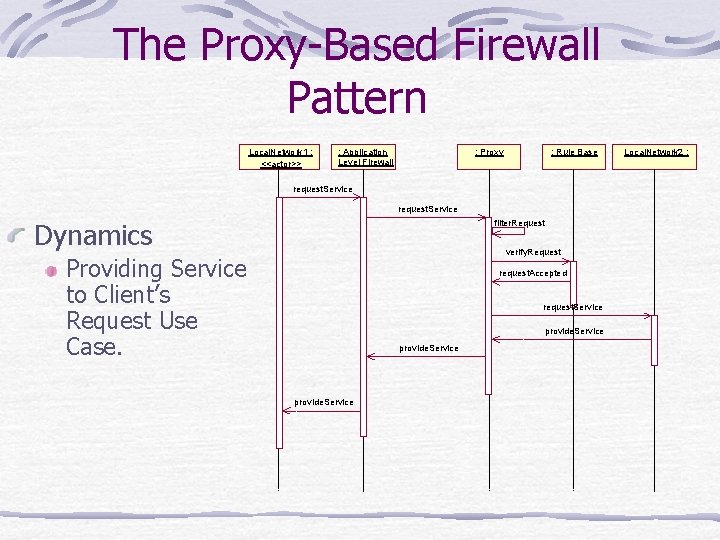

The Proxy-Based Firewall Pattern Local. Network 1 : <<actor>> : Application Level Firewall : Proxy : Rule Base request. Service Dynamics filter. Request verify. Request Providing Service to Client’s Request Use Case. request. Accepted request. Service provide. Service Local. Network 2 :

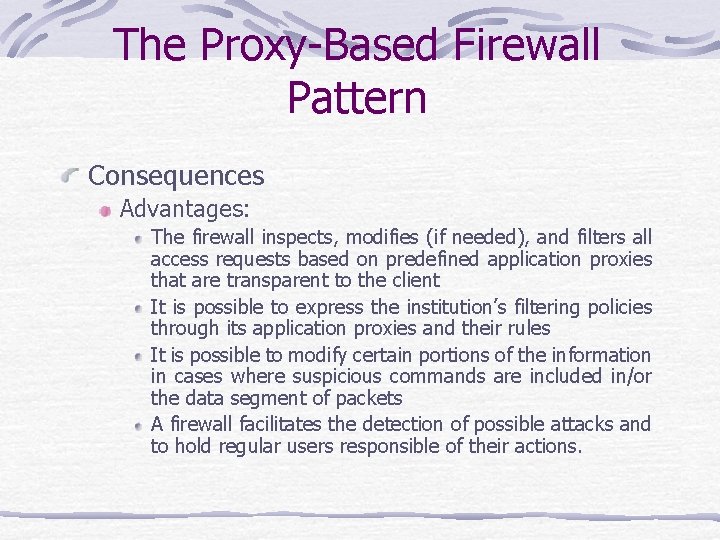

The Proxy-Based Firewall Pattern Consequences Advantages: The firewall inspects, modifies (if needed), and filters all access requests based on predefined application proxies that are transparent to the client It is possible to express the institution’s filtering policies through its application proxies and their rules It is possible to modify certain portions of the information in cases where suspicious commands are included in/or the data segment of packets A firewall facilitates the detection of possible attacks and to hold regular users responsible of their actions.

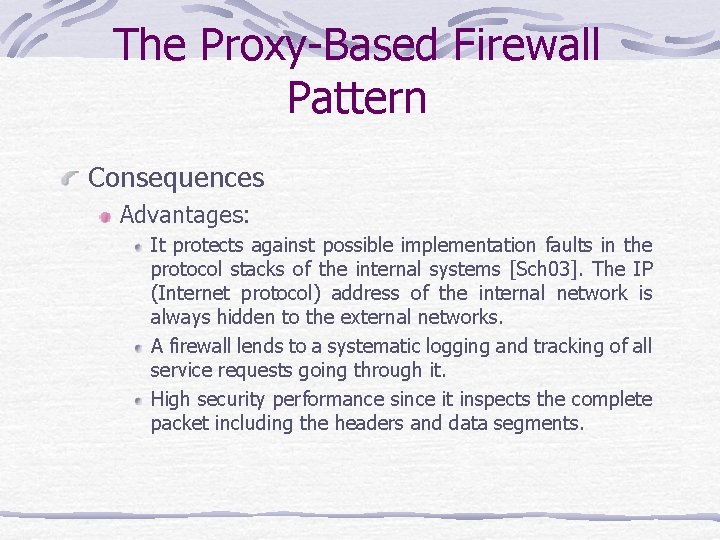

The Proxy-Based Firewall Pattern Consequences Advantages: It protects against possible implementation faults in the protocol stacks of the internal systems [Sch 03]. The IP (Internet protocol) address of the internal network is always hidden to the external networks. A firewall lends to a systematic logging and tracking of all service requests going through it. High security performance since it inspects the complete packet including the headers and data segments.

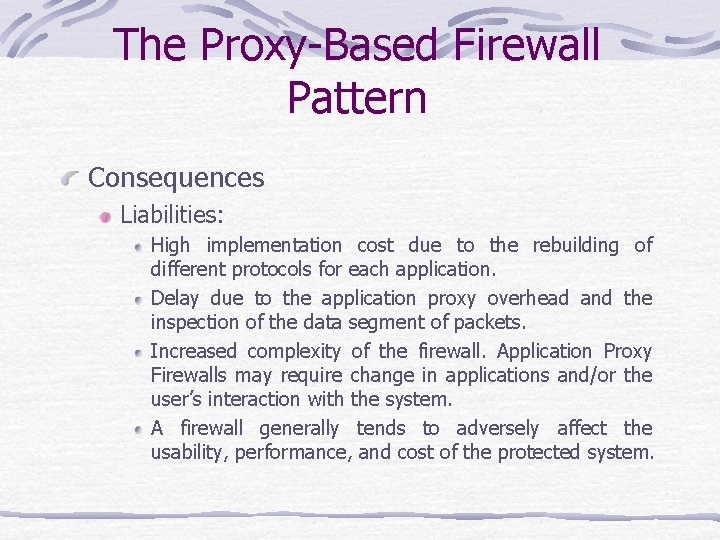

The Proxy-Based Firewall Pattern Consequences Liabilities: High implementation cost due to the rebuilding of different protocols for each application. Delay due to the application proxy overhead and the inspection of the data segment of packets. Increased complexity of the firewall. Application Proxy Firewalls may require change in applications and/or the user’s interaction with the system. A firewall generally tends to adversely affect the usability, performance, and cost of the protected system.

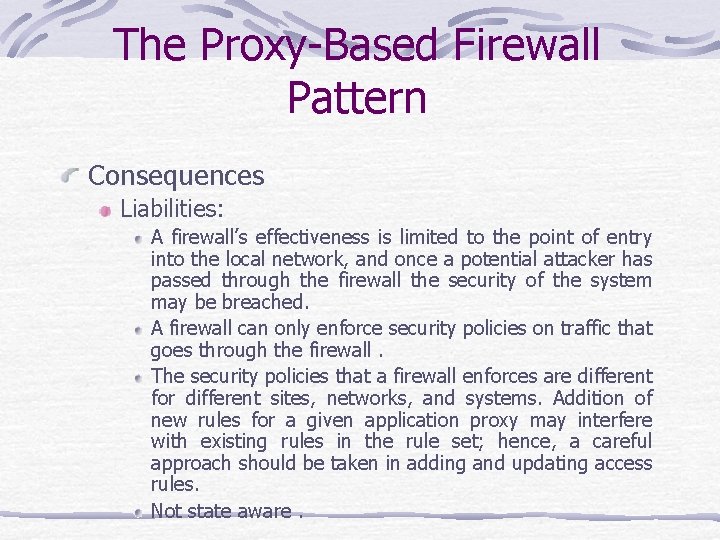

The Proxy-Based Firewall Pattern Consequences Liabilities: A firewall’s effectiveness is limited to the point of entry into the local network, and once a potential attacker has passed through the firewall the security of the system may be breached. A firewall can only enforce security policies on traffic that goes through the firewall. The security policies that a firewall enforces are different for different sites, networks, and systems. Addition of new rules for a given application proxy may interfere with existing rules in the rule set; hence, a careful approach should be taken in adding and updating access rules. Not state aware.

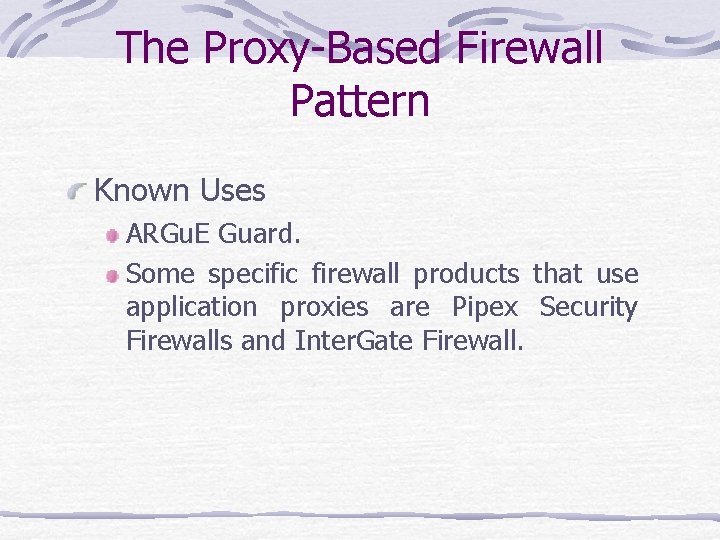

The Proxy-Based Firewall Pattern Known Uses ARGu. E Guard. Some specific firewall products that use application proxies are Pipex Security Firewalls and Inter. Gate Firewall.

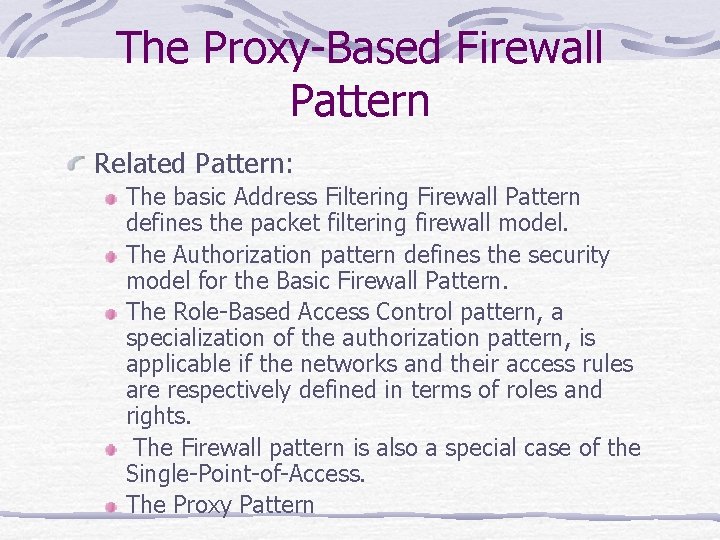

The Proxy-Based Firewall Pattern Related Pattern: The basic Address Filtering Firewall Pattern defines the packet filtering firewall model. The Authorization pattern defines the security model for the Basic Firewall Pattern. The Role-Based Access Control pattern, a specialization of the authorization pattern, is applicable if the networks and their access rules are respectively defined in terms of roles and rights. The Firewall pattern is also a special case of the Single-Point-of-Access. The Proxy Pattern
