A NEW GENERATION OF RECORDER 8440 Oscillographic Recorder

A NEW GENERATION OF RECORDER 8440 : Oscillographic Recorder with Thermal Printer Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 1

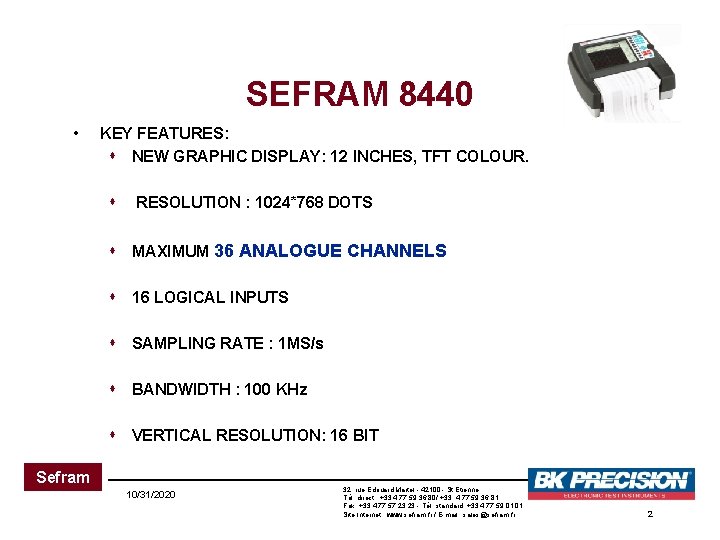

SEFRAM 8440 • KEY FEATURES: s NEW GRAPHIC DISPLAY: 12 INCHES, TFT COLOUR. s RESOLUTION : 1024*768 DOTS s MAXIMUM 36 ANALOGUE CHANNELS s 16 LOGICAL INPUTS s SAMPLING RATE : 1 MS/s s BANDWIDTH : 100 KHz s VERTICAL RESOLUTION: 16 BIT Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 2

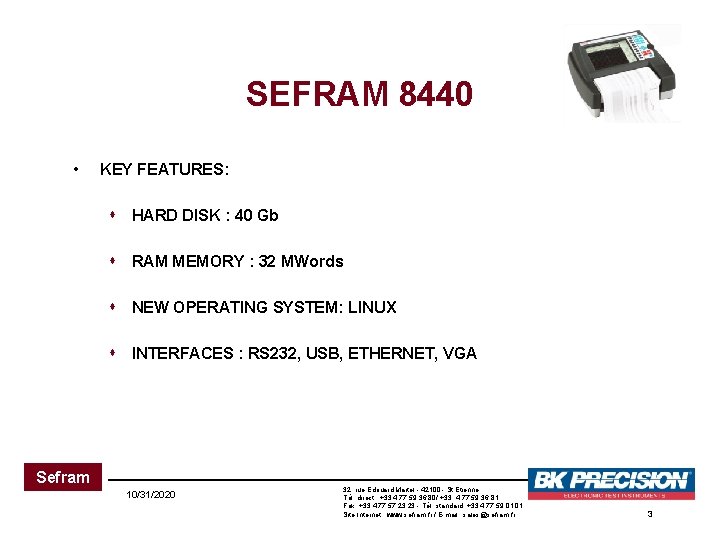

SEFRAM 8440 • KEY FEATURES: s HARD DISK : 40 Gb s RAM MEMORY : 32 MWords s NEW OPERATING SYSTEM: LINUX s INTERFACES : RS 232, USB, ETHERNET, VGA Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 3

MECHANICAL DRAWING Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 4

SEFRAM 8440 s NEW ANALOGUE INPUTS • ONE BOARD OF 6 ISOLATED ANALOGUE CHANNELS • MODULAR SYSTEM : 6/12/16 CHANNELS 4 UNIVERSAL INPUTS: • VDC: 1 m. V - 1000 V (AC or DC coupling) • VAC: 200 m. V - 500 V RMS. • THERMOCOUPLES J , K , S , T , B , E , N , W 5. • FREQUENCY MEASUREMENT. • SAMPLING RATE : 1 MS/S. • DIRECT MEMORY ON HARD DISK (Max speed 100 KHz on 6 Channels). Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 5

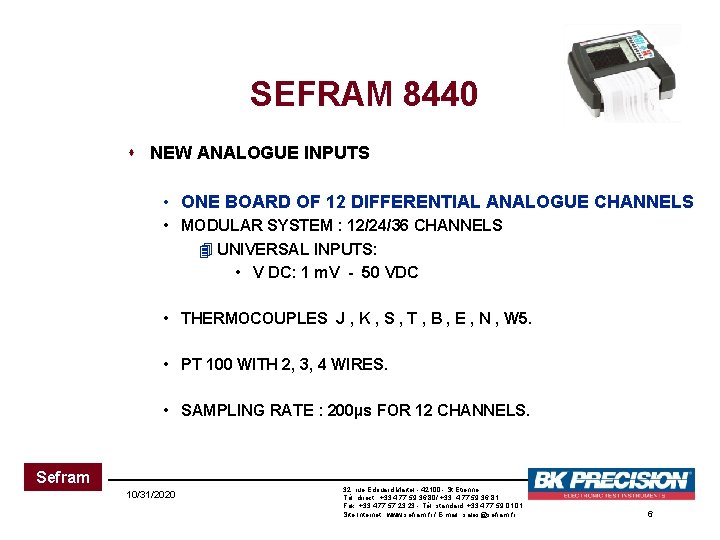

SEFRAM 8440 s NEW ANALOGUE INPUTS • ONE BOARD OF 12 DIFFERENTIAL ANALOGUE CHANNELS • MODULAR SYSTEM : 12/24/36 CHANNELS 4 UNIVERSAL INPUTS: • V DC: 1 m. V - 50 VDC • THERMOCOUPLES J , K , S , T , B , E , N , W 5. • PT 100 WITH 2, 3, 4 WIRES. • SAMPLING RATE : 200µs FOR 12 CHANNELS. Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 6

SEFRAM 8440 s LINUX OPERATING SYSTEM s EASY TO USE INTERFACE s USB PORT s COMPATIBLE WITH ALL PRINTERS Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 7

SEFRAM 8440 • TRIGGER MODE • Slope + and • Windows • Slew rate + and • GO-NO-GO MODE • DATE, LOGICAL INPUTS • ACQUISITION / MEMORY • 32 MWORDS RAM MEMORY SELECTABLE IN 128 BLOCKS. Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 8

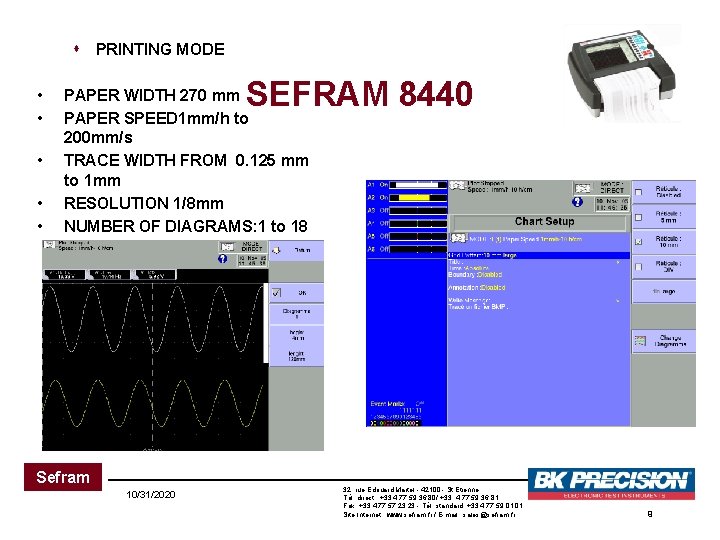

s PRINTING MODE • • • SEFRAM 8440 PAPER WIDTH 270 mm PAPER SPEED 1 mm/h to 200 mm/s TRACE WIDTH FROM 0. 125 mm to 1 mm RESOLUTION 1/8 mm NUMBER OF DIAGRAMS: 1 to 18 Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 9

s ANALYSIS: • • • SEFRAM 8440 AUTOMATIC MEASUREMENT CURSORS MODE ZOOM IN. Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 10

SEFRAM 8440 EXAMPLE OF DISPLAY DATA Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 11

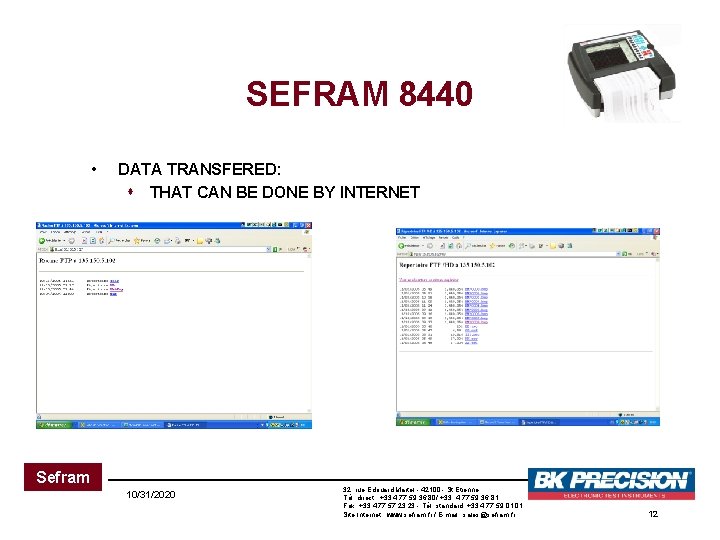

SEFRAM 8440 • DATA TRANSFERED: s THAT CAN BE DONE BY INTERNET Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 12

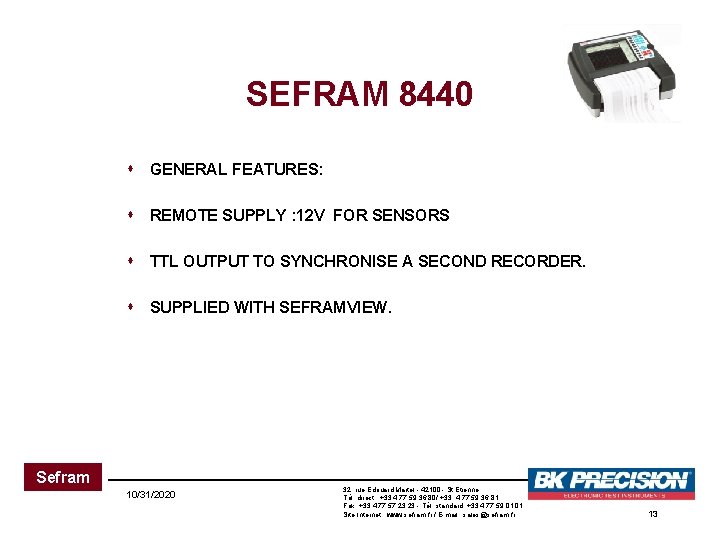

SEFRAM 8440 s GENERAL FEATURES: s REMOTE SUPPLY : 12 V FOR SENSORS s TTL OUTPUT TO SYNCHRONISE A SECOND RECORDER. s SUPPLIED WITH SEFRAMVIEW. Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 13

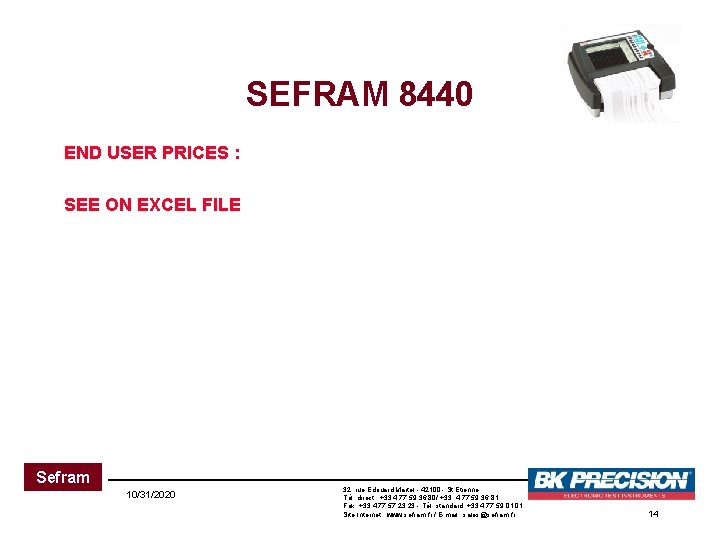

SEFRAM 8440 END USER PRICES : SEE ON EXCEL FILE Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 14

SEFRAM 8440 • OFFICIAL LAUNCHING MARCH 2006 • DAS 1400 FAMILY : PAPERLESS VERSION OFFICIAL LAUNCHING JUNE 2006 s NEW DESIGN Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 15

DAS 1400 Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 16

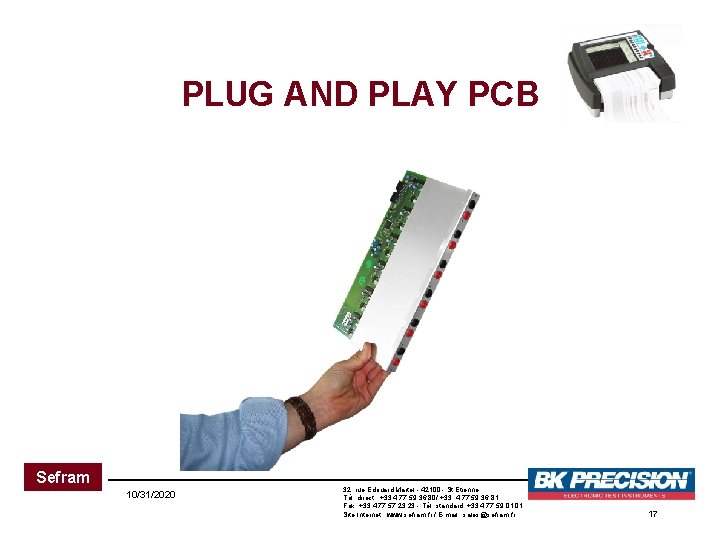

PLUG AND PLAY PCB Sefram 10/31/2020 32, rue Edouard Martel - 42100 - St Etienne Tél. direct : +33. 4 77 59 36 80/ +33. 4 77 59 36 81 Fax. +33 4 77 57 23 23 - Tél. standard: +33 4 77 59 01 01 Site Internet : www. sefram. fr / E-mail : sales@sefram. fr 17
