A Multi-Layered Display with Water Drops Peter Barnum Srinivasa Narasimhan Takeo Kanade Robotics Institute, Carnegie Mellon University SIGGRAPH 2010 July 27, 2010

Types of Displays 2 D with an LCD monitor 3 D with an etched glass cube Nayar 2007 3 D with Anaglyph glasses 3 D with auto-stereoscopy 2 Sony 2009

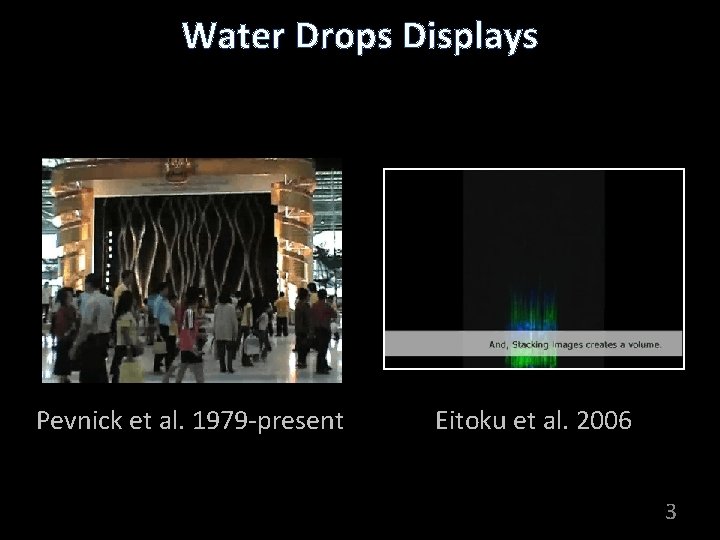

Water Drops Displays Pevnick et al. 1979 -present Eitoku et al. 2006 3

Applications of Water Drop Displays Car show advertising Interactive games Art exhibits 3 D touchable display 4

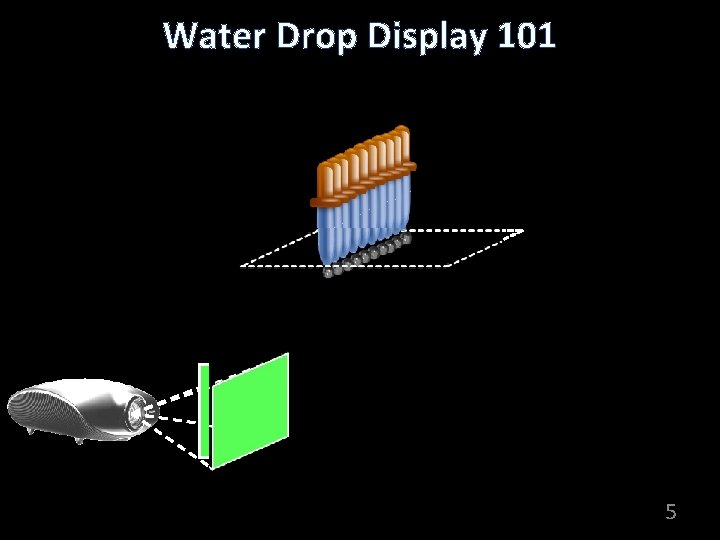

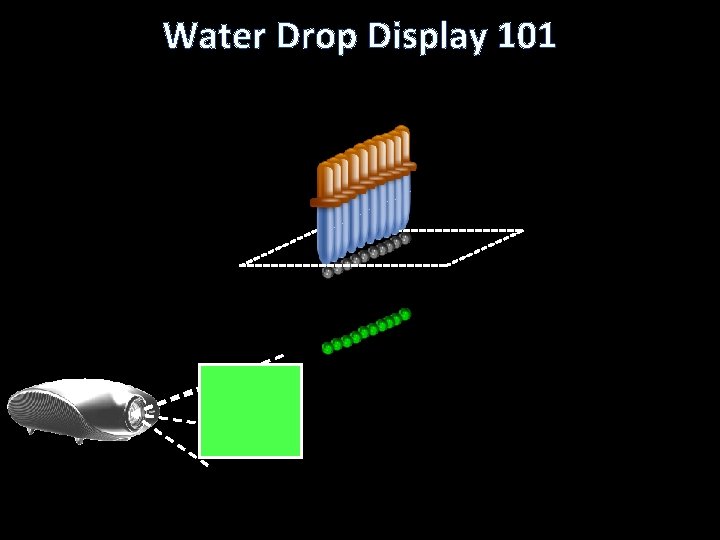

Water Drop Display 101 5

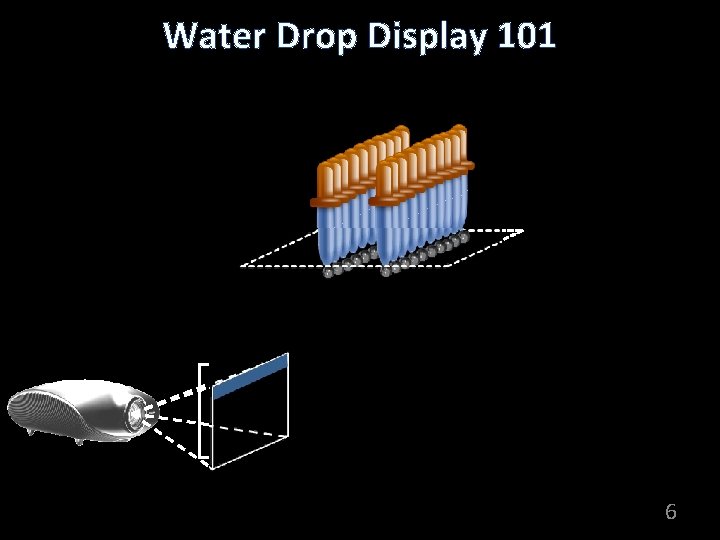

Water Drop Display 101 6

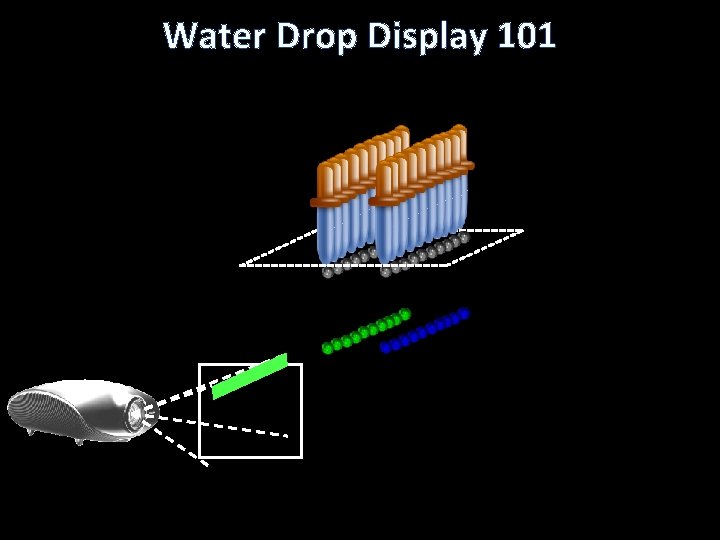

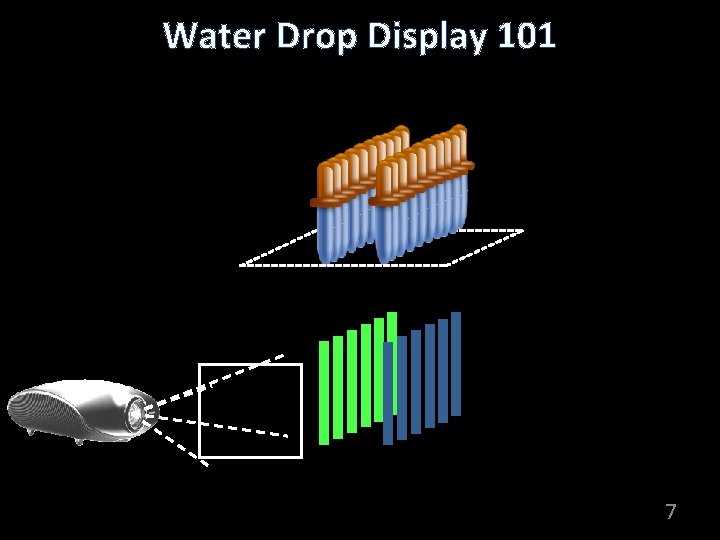

Water Drop Display 101 7

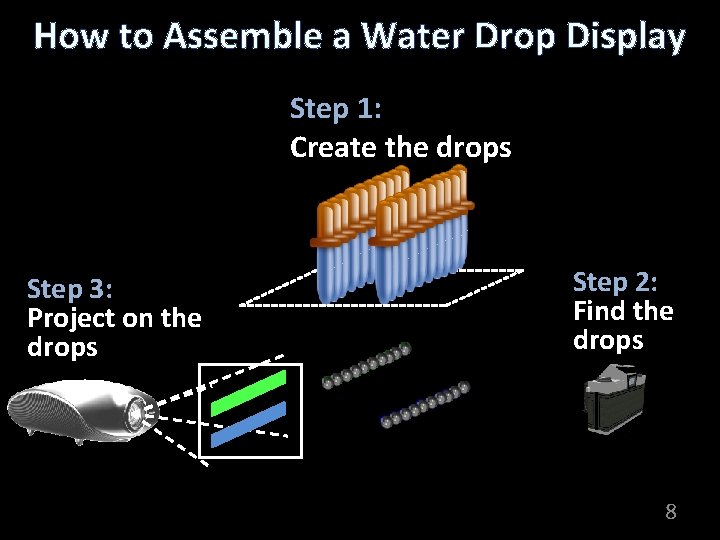

How to Assemble a Water Drop Display Step 1: Create the drops Step 3: Project on the drops Step 2: Find the drops 8

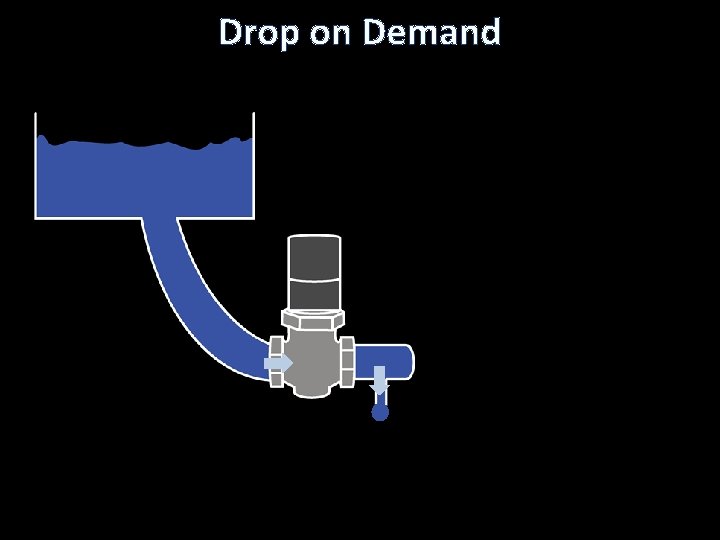

Drop on Demand 9

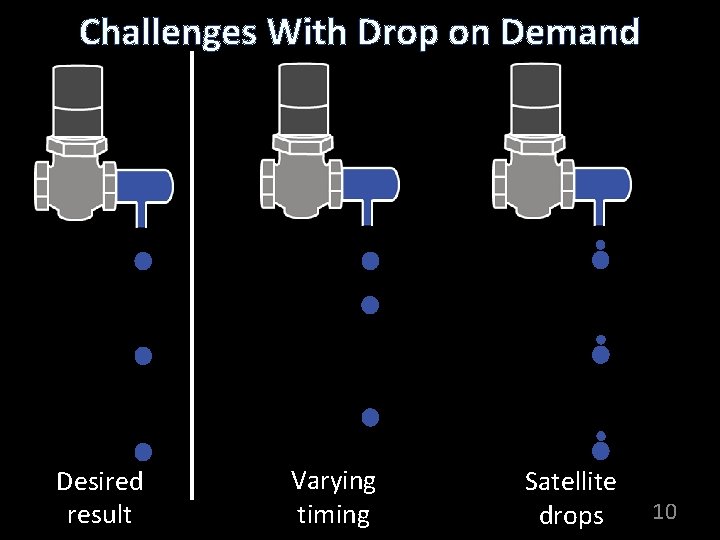

Challenges With Drop on Demand Desired result Varying timing Satellite drops 10

Fluid Mechanics of Drop on Demand Feed 1. The emitter diameter: 1 mm 2. The pressure differential: 10 k. Pa Emitter 3. The feed diameter: 19 mm Ambravaneswaran et al. 2002 Munson et al. 2009 11

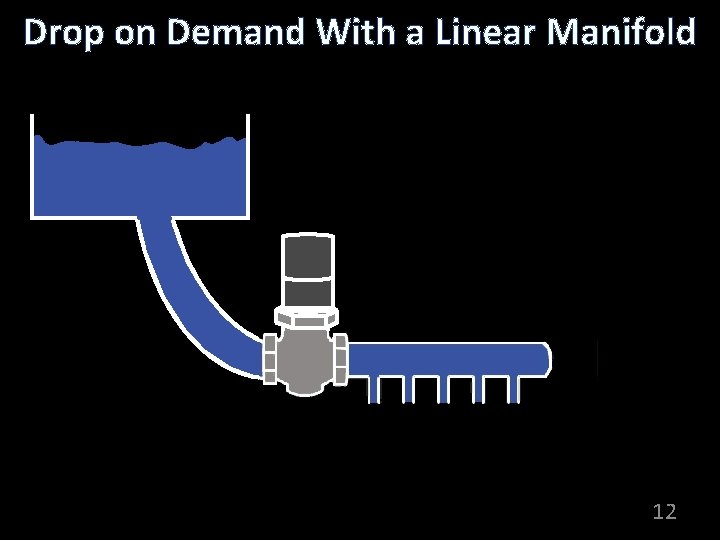

Drop on Demand With a Linear Manifold 12

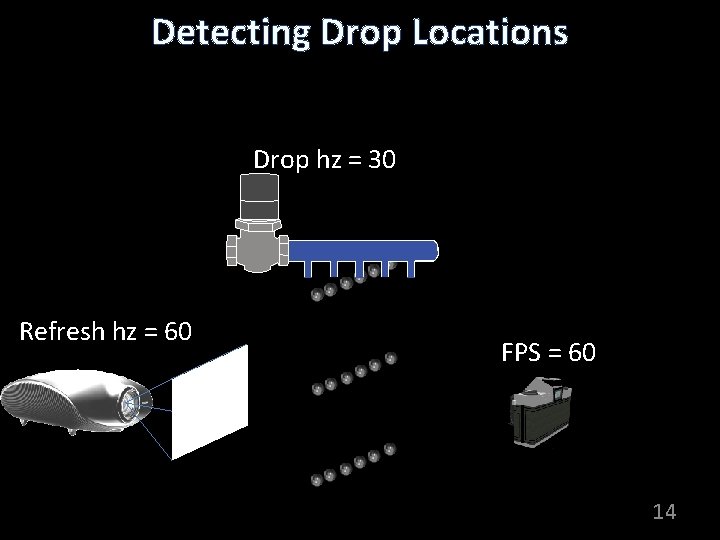

Detecting Drop Locations Drop hz = 30 Refresh hz = 60 FPS = 60 13

Detecting Drop Locations Drop hz = 30 Refresh hz = 60 FPS = 60 14

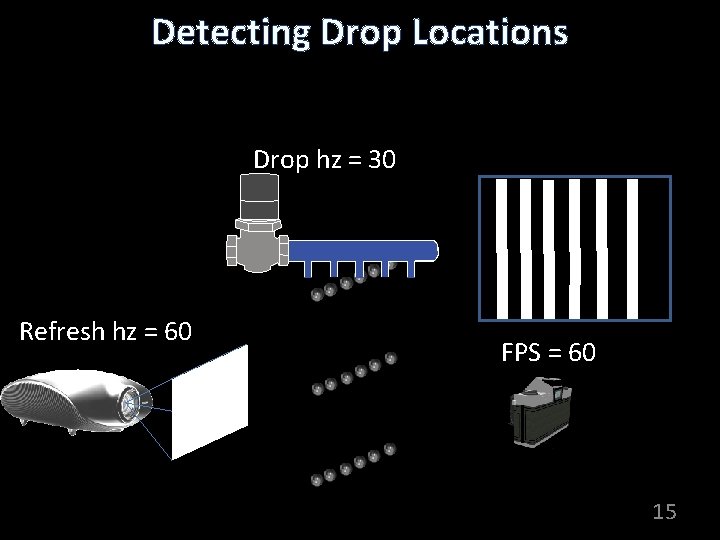

Detecting Drop Locations Drop hz = 30 Refresh hz = 60 FPS = 60 15

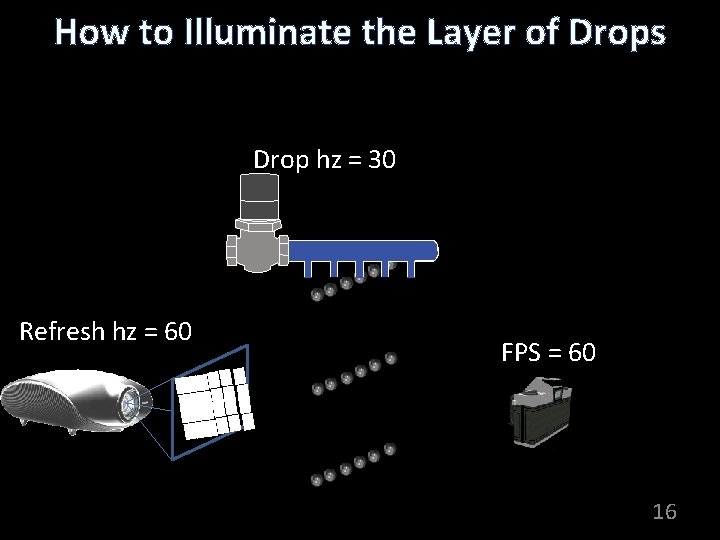

How to Illuminate the Layer of Drops Drop hz = 30 Refresh hz = 60 FPS = 60 16

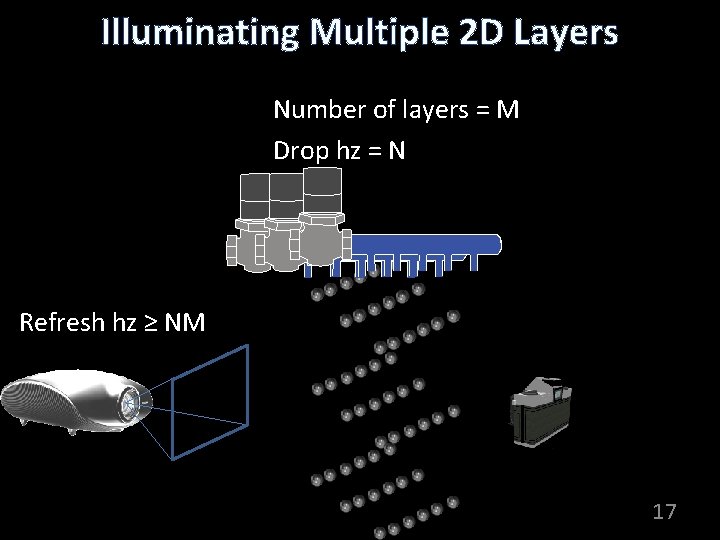

Illuminating Multiple 2 D Layers Number of layers = M Drop hz = N Refresh hz ≥ NM 17

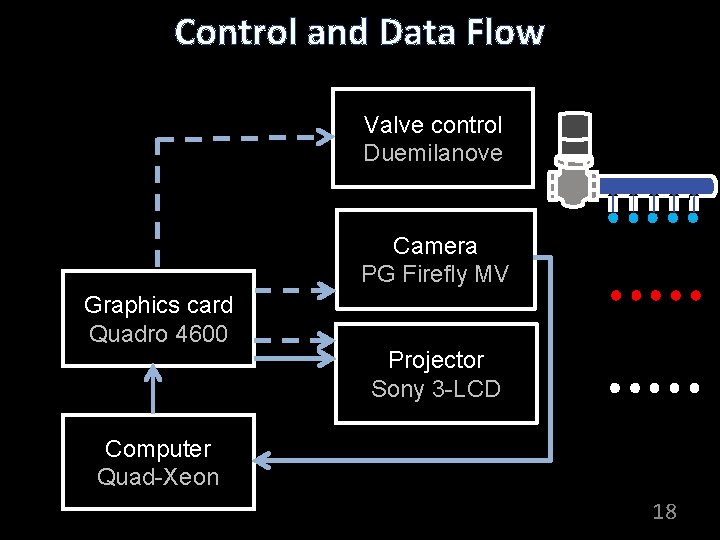

Control and Data Flow Valve control Duemilanove Camera PG Firefly MV Graphics card Quadro 4600 Projector Sony 3 -LCD Computer Quad-Xeon 18

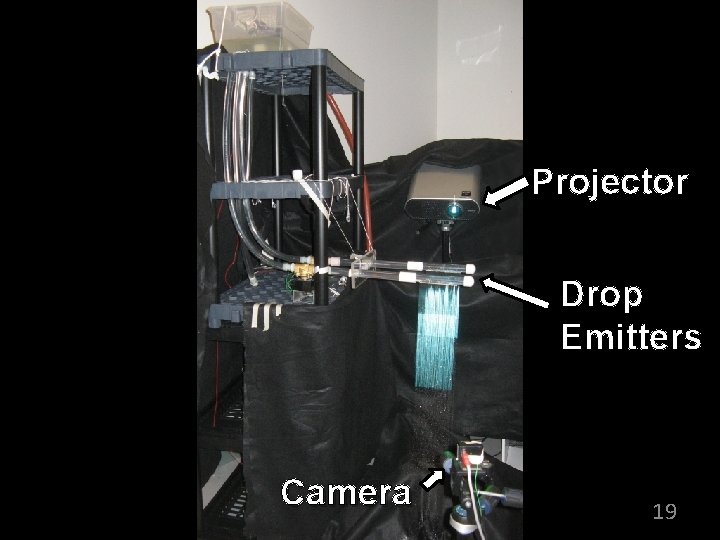

Projector Drop Emitters Camera 19

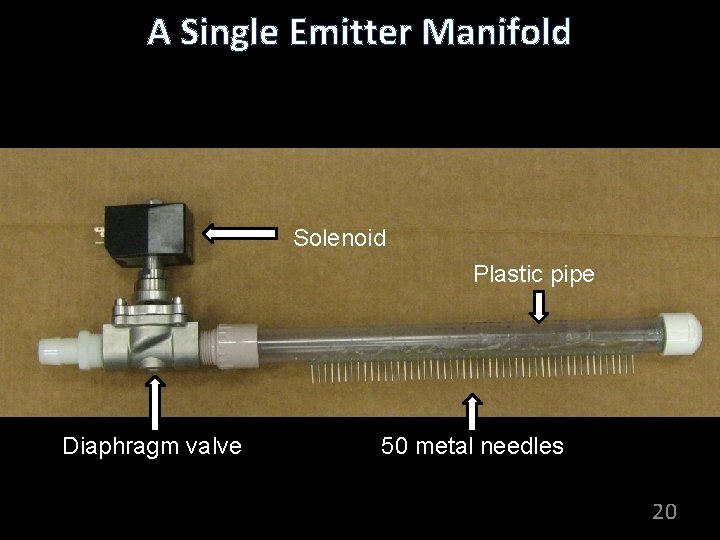

A Single Emitter Manifold Solenoid Plastic pipe Diaphragm valve 50 metal needles 20

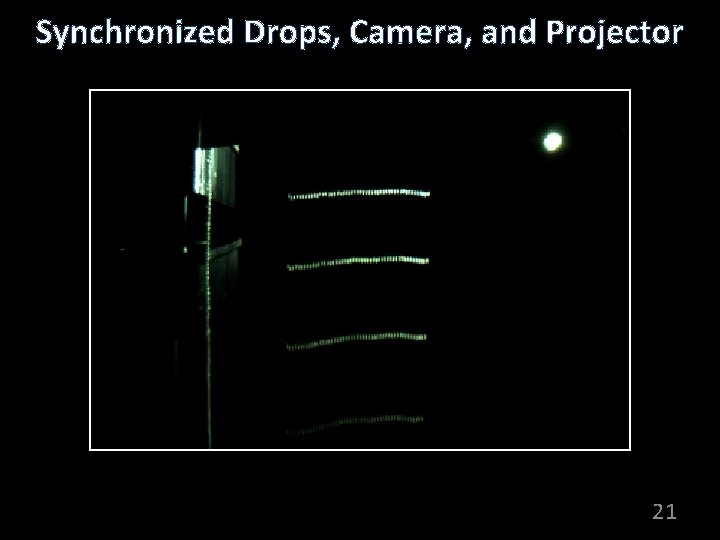

Synchronized Drops, Camera, and Projector 21

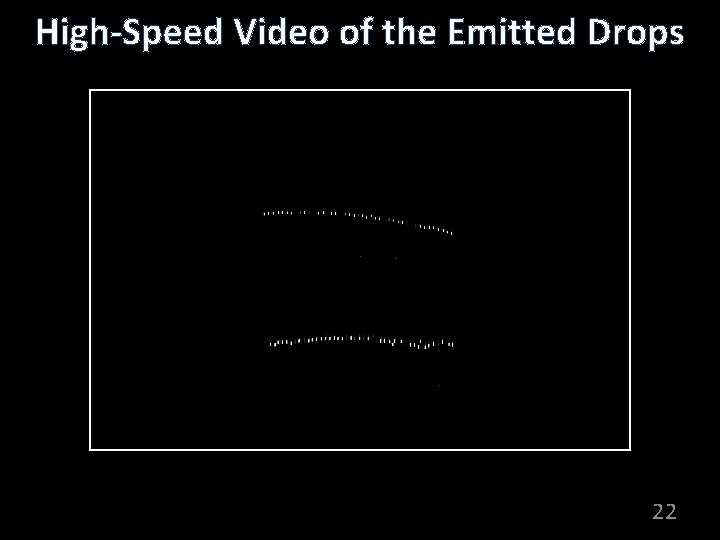

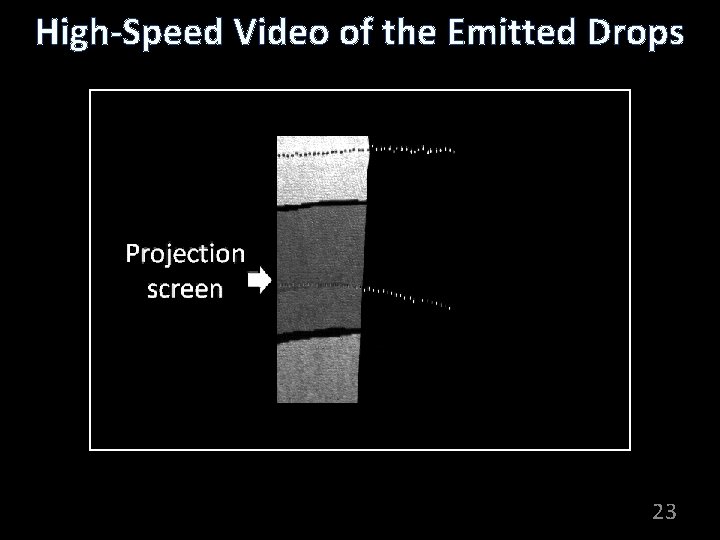

High-Speed Video of the Emitted Drops 22

High-Speed Video of the Emitted Drops 23

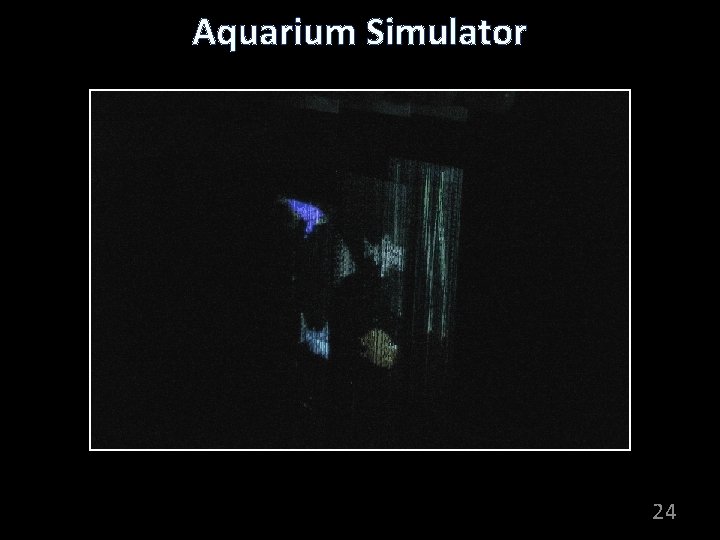

Aquarium Simulator 24

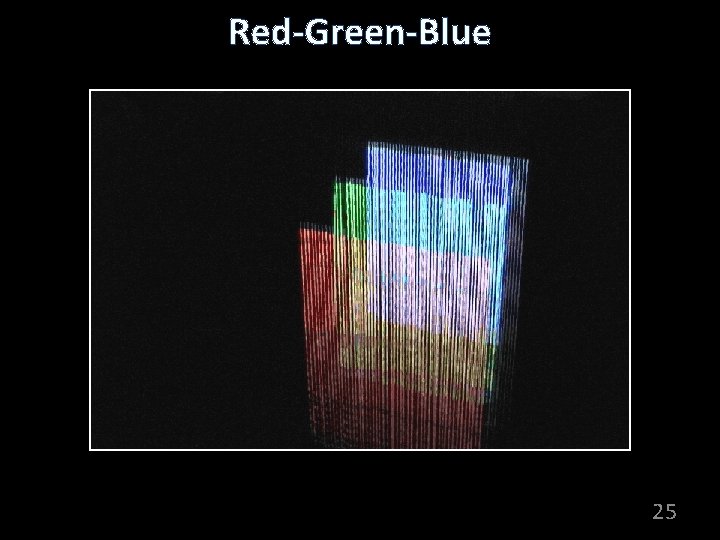

Red-Green-Blue 25

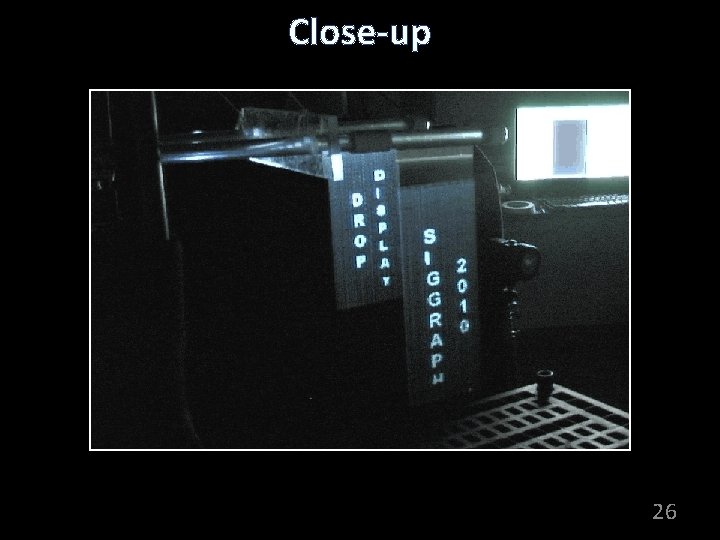

Close-up 26

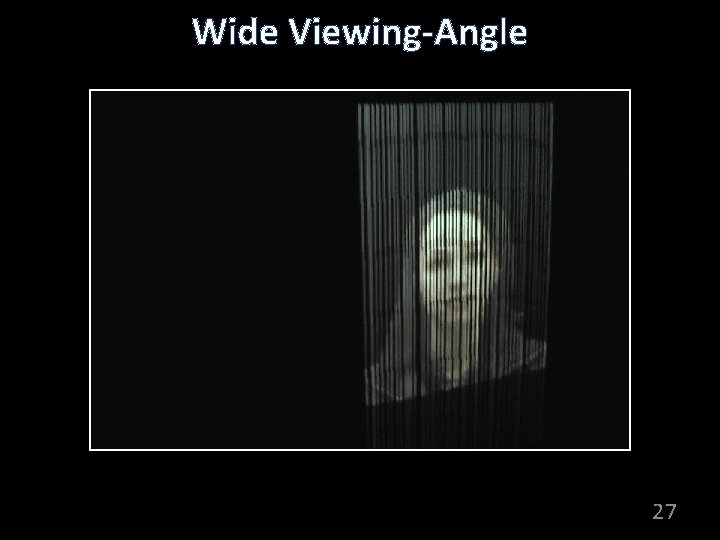

Wide Viewing-Angle 27

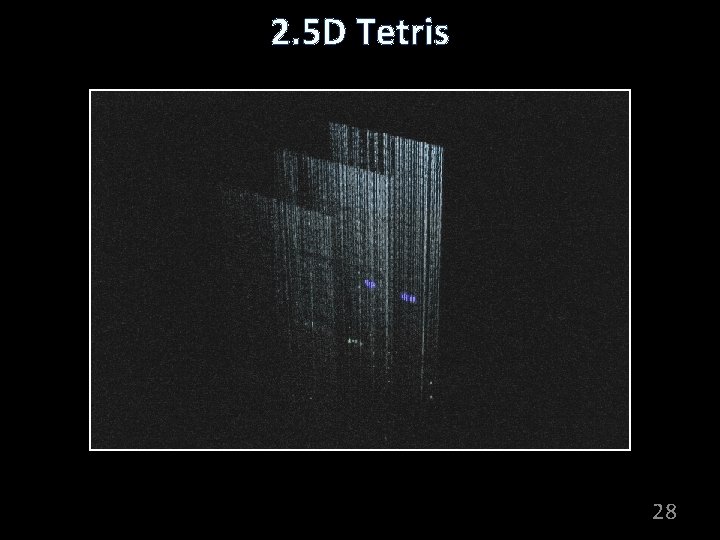

2. 5 D Tetris 28

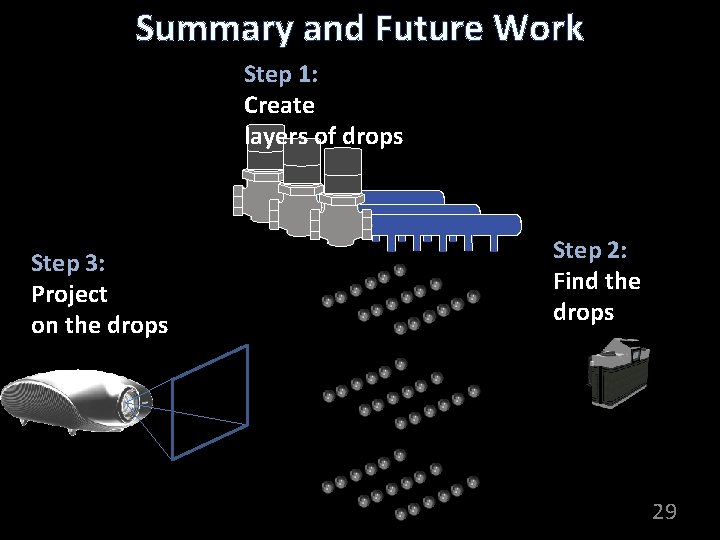

Summary and Future Work Step 1: Create layers of drops Step 3: Project on the drops Step 2: Find the drops 29

Summary and Future Work Step 1: Create more layers of drops Step 3: Project on the drops Step 2: Find the drops 30

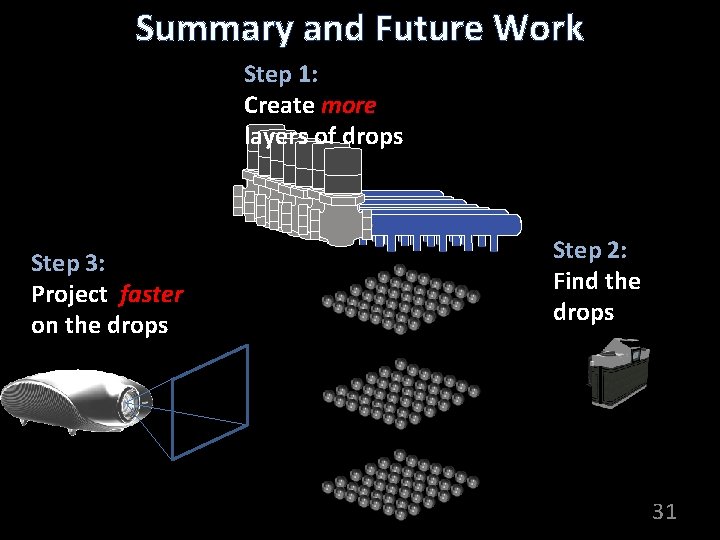

Summary and Future Work Step 1: Create more layers of drops Step 3: Project faster on the drops Step 2: Find the drops 31

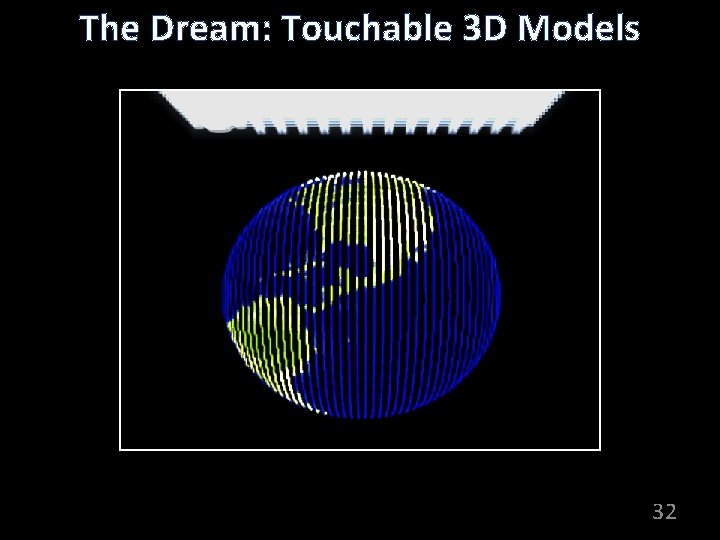

The Dream: Touchable 3 D Models 32

Acknowledgements Shelley Anna Larry Hayhurst Scott Satkin Yaser Sheikh Prasanna Velagapudi Lynn Walker Lee Weiss CMU and Georgia Tech graphics groups 33
