A Hybrid Approach to Effort Limited Fair ELF

A Hybrid Approach to Effort. Limited Fair (ELF) Scheduling for 802. 11 By David Matsumoto June 20 th, 2003

Agenda • Introduction • Effort-Limited Fair (ELF) Scheduling • Thesis • Integrate ELF into 802. 11 • Hybridize ELF • Simulation setup & results • Possible future research & recommendations • Conclusion

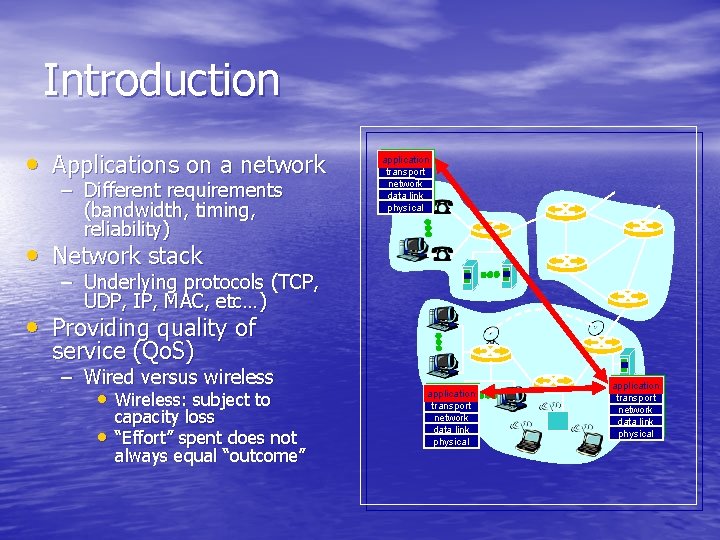

Introduction • Applications on a network – Different requirements (bandwidth, timing, reliability) application transport network data link physical • Network stack – Underlying protocols (TCP, UDP, IP, MAC, etc…) • Providing quality of service (Qo. S) – Wired versus wireless • Wireless: subject to • capacity loss “Effort” spent does not always equal “outcome” application transport network data link physical

Earlier Work: Effort-Limited Fair (ELF) Scheduling • Motivation – Applications have poor performance due to link errors – Link errors reduce useful link throughput • Solutions introduced: Swapping time slots, Adaptive forward error control • Capacity loss is a fundamental reality for wireless schedulers. • Questions – – Can we support reservations amidst capacity loss? How should we redistribute the remaining capacity among flows?

Example: 50% Packet Loss • Wireless cell capacity: 800 kilobits/second • WFQ scheduler serves two guaranteed flows & Client Expected two best-effort flows Rate (kbit/s) Audio 8 Video 350 FTP 1 221 FTP 2 221 Effort-fair Preferable rate (kbit/s) 4 175 110 × 8 × 350 21 21 √ √

Challenges in Qo. S • Capacity loss should result in throughput loss according to administrative controls • What about location dependent errors? – How should we regulate air-time? • Conclusion: – We must have a way to balance fidelity with efficiency.

ELF Scheduling – Design Principles • Wireless scheduler should be equivalent to wireline • • scheduler in error-free environment Capacity loss suffered per flow should be administratively configurable Administratively bound capacity lost due to locationdependent errors Unless configured otherwise, flows with the same error rate should experience the same capacity loss Capacity unused by one flow should be distributed “fairly” among other flows

The ELF Scheduler User Requests Administrative Controls Application Protocols Admission Control Power factors weights Packet Scheduler Effort/outcome “next packet” Link Layer

ELF Power factor • Main Idea: – Extend transmission time in a controlled fashion – Allot a flow extra effort to meet its reservations, up to some administrative bound Power factor • Adjusted Weight (Ai) – Ai = min (Wi/1 – Ei , Pi X Wi) • Effective throughput (Ti) – Ti = ((Ai/∑j Aj) X B) x (1 – Ei) • This effectively balances fidelity with efficiency.

The Thesis It is possible to integrate an Effort-Limited Fair scheduler (ELF) into a standard 802. 11 implementation, and thus ensure sensible outcomes for flows in response to unrecoverable capacity loss. Moreover, it is possible to improve on the efficiency of ELF within an 802. 11 MAC by using a hybrid approach to regulate stations within both a DCF & a PCF.

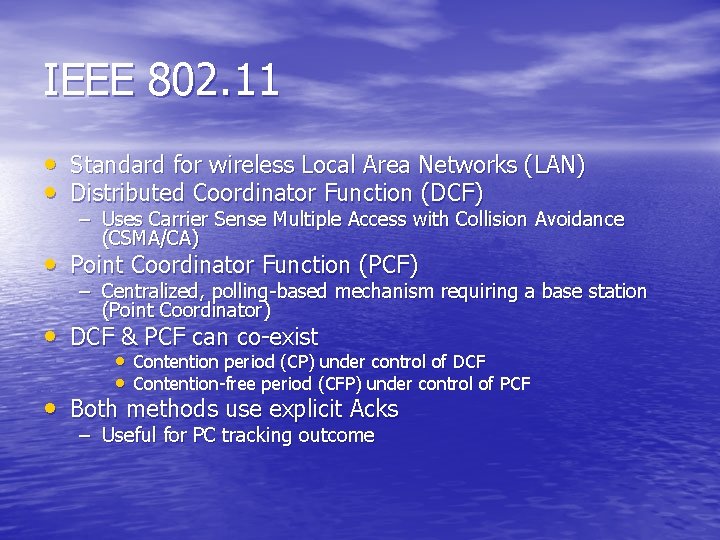

IEEE 802. 11 • Standard for wireless Local Area Networks (LAN) • Distributed Coordinator Function (DCF) – Uses Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) • Point Coordinator Function (PCF) – Centralized, polling-based mechanism requiring a base station (Point Coordinator) • DCF & PCF can co-exist • Contention period (CP) under control of DCF • Contention-free period (CFP) under control of PCF • Both methods use explicit Acks – Useful for PC tracking outcome

802. 11 PCF/DCF Alternation

Integration of ELF scheduling into 802. 11 • Core ELF algorithm remains the same – Choose “most deserving” flow – Flow is allocated effort as a function of its power factor • Must have “effort” allocated to be chosen – Separate best-effort flows from guaranteed flows • Update each flow per clock “tick” • ELF scheduling becomes the policy for the PCF • • – Departs from existing protocol specifications Records “outcome” via returned Acks (or NULL frames) Charge a station for “effort” each time it is polled. – Station charged even if packets are corrupted.

Extending ELF for DCF • Motivation – DCF is more efficient in general, when traffic load isn’t high. – Ideal: PCF could interject only when necessary to bring flows into conformance with reservations. • Design Principles – DCF must remain completely distributed – ELF-DCF should adhere to original ELF design principles. – Integration of ELF-DCF/PCF should be seamless

ELF-DCF: Implementation Design • Continue using both “deserve” • • & “effort” to (self) regulate flows “Deserve” carries over from CFP “Effort” allocated based on past CP history – Cannot force station to expend effort – Make use of power factor – “Effort” is conserved (unused effort plugged into CFP) • No distinction between best- effort versus guaranteed flows – Reduce overhead in beacon ELF Scheduler (PC) Collect statistics /Start CFP Send Beacon with ELF data Mobile Nodes

Implementation for ns-2 • Build on top of CMU Monarch group’s work – Basic mobile node functionality with 802. 11 DCF • Add semi-complete implementation of PCF. – Beacon timer – Bi-directional polling – Poll list – integrated with ELF • Implement Weighted Round Robin (WRR) instead of WFQ – Measure throughput in frame slots (done for simplicity) – Not concerned with complex based service characterizations (e. g. delay, jitter guarantees) • Administratively configure breakdown of superframe – I. E. Percentage CFP/CP • Assume admissions control module exists that can set appropriate per-flow power factors.

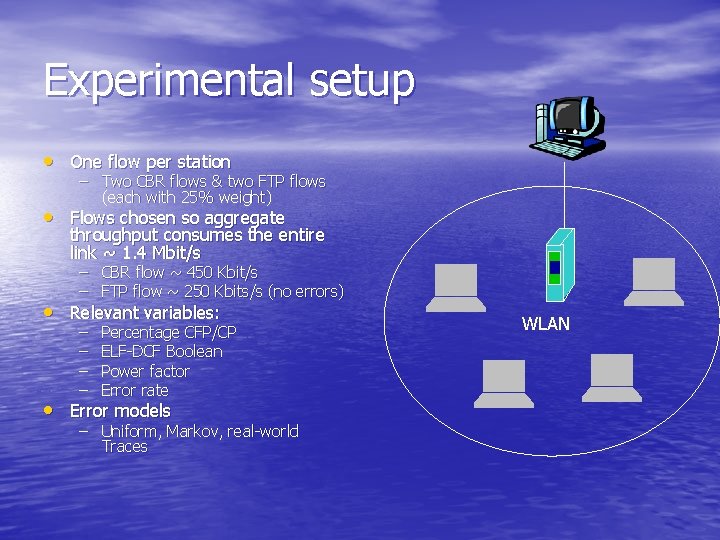

Experimental setup • One flow per station – Two CBR flows & two FTP flows (each with 25% weight) • Flows chosen so aggregate throughput consumes the entire link ~ 1. 4 Mbit/s – CBR flow ~ 450 Kbit/s – FTP flow ~ 250 Kbits/s (no errors) • Relevant variables: – – Percentage CFP/CP ELF-DCF Boolean Power factor Error rate • Error models – Uniform, Markov, real-world Traces WLAN

Uniform – 50% (CBR-1 Error prone) • CBR-1 performs poorly while other stations operate normally • No ELF intervention here.

Uniform – 50% (CBR-1 Error prone) • ELF-PCF effectively restores throughput to CBR-1 at the expense of best-effort flows

Uniform – 50% (CBR-1 Error prone) • ELF-PCF is only partially effective at restoring throughput

Uniform – 50% (CBR-1 Error prone) • ELF-DCF effectively works with ELF-PCF to meet ELF design principles

Walls trace – (CBR-1 Error prone) • No ELF intervention – other flows gain throughput as CBR-1 decreases

Walls trace – (CBR-1 Error prone) • ELF-PCF/DCF work together • Other flows share throughput loss, up to administrative bound • Capping (“deserve”) mechanism needed

Future Work & Recommendations • Future work – Provide a capping mechanism for flows that accumulate large “deserve” values – Can we “encourage” stations to spend effort during a DCF (rather than just limiting the effort allotted)? • Recommendations – Incorporate a “policing” mechanism into beacons – Change 802. 11 specifications on how stations are polled – Allow polling of individual flows

Conclusions • ELF scheduling can be implemented as the policy for a PCF in 802. 11 • ELF-DCF/PCF provides a hybrid mechanism through we can achieve ELF’s design principles
