A Green Chemistry Module Petretec Duponts Technology for

A Green Chemistry Module Petretec – Dupont’s Technology for Polyester Regeneration Presidential Green Chemistry Challenge Award

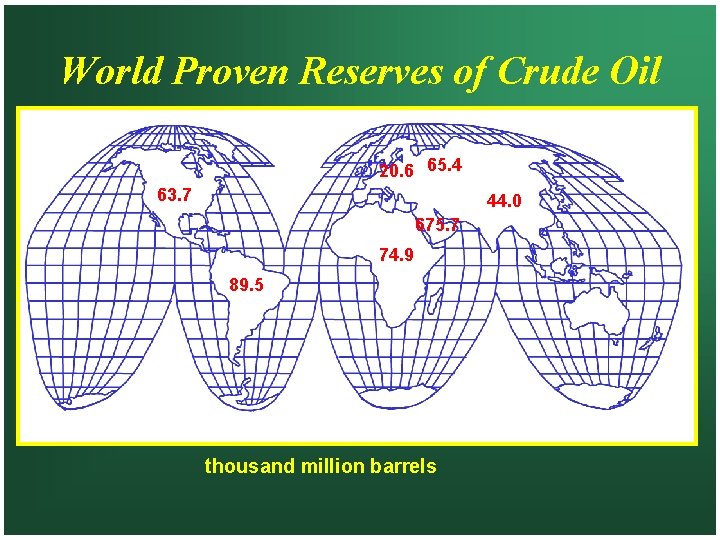

World Proven Reserves of Crude Oil 20. 6 65. 4 63. 7 44. 0 675. 7 74. 9 89. 5 thousand million barrels

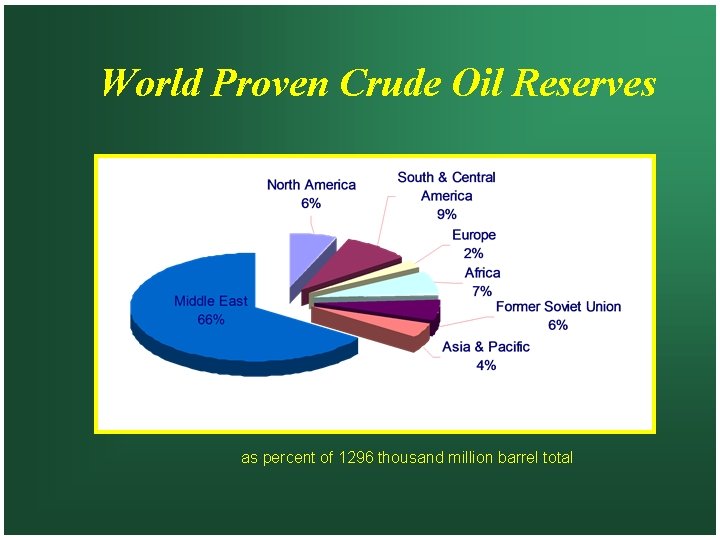

World Proven Crude Oil Reserves as percent of 1296 thousand million barrel total

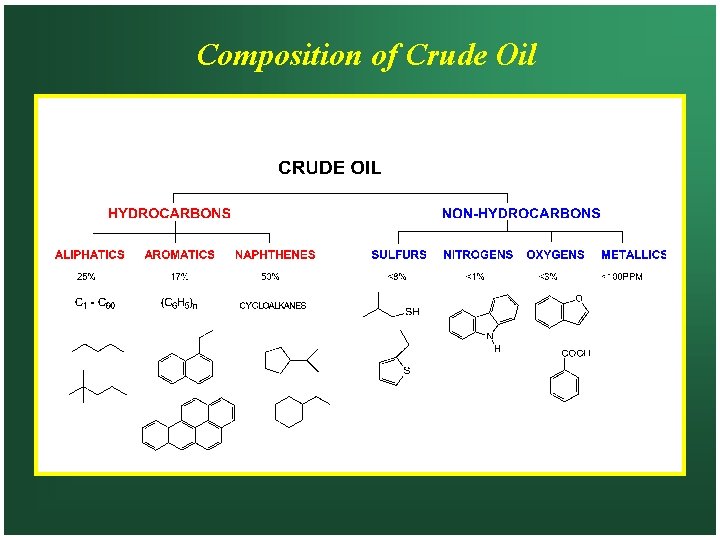

Composition of Crude Oil

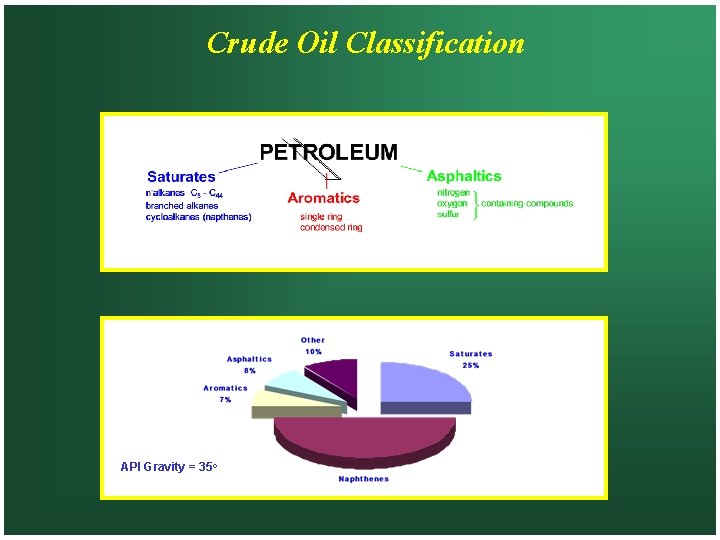

Crude Oil Classification API Gravity = 35 o

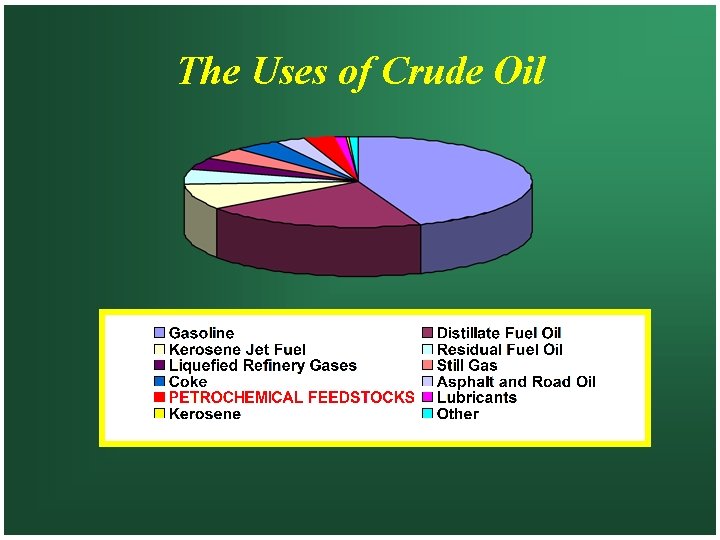

The Uses of Crude Oil

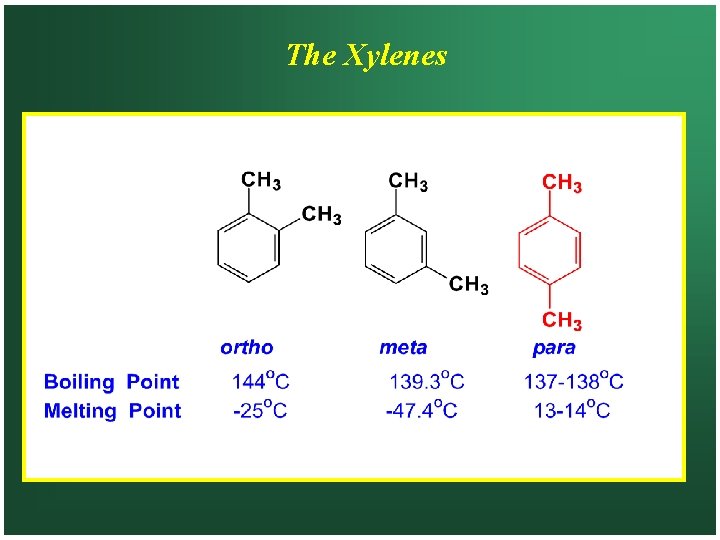

The Xylenes

Petroleum delivered from well field Water washing to remove impurities Distillation to separate by boiling point ranges Conversion reactions to alter molecular structures Mixing to obtain maximum commercial characteristics

Petroleum Refining Distillation – separation by boiling point

Petroleum Reforming

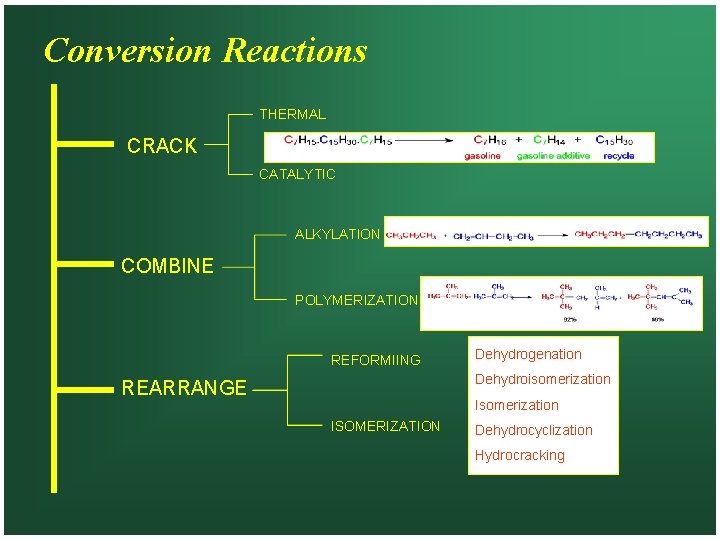

Conversion Reactions THERMAL CRACK CATALYTIC ALKYLATION COMBINE POLYMERIZATION REFORMIING Dehydrogenation Dehydroisomerization REARRANGE Isomerization ISOMERIZATION Dehydrocyclization Hydrocracking

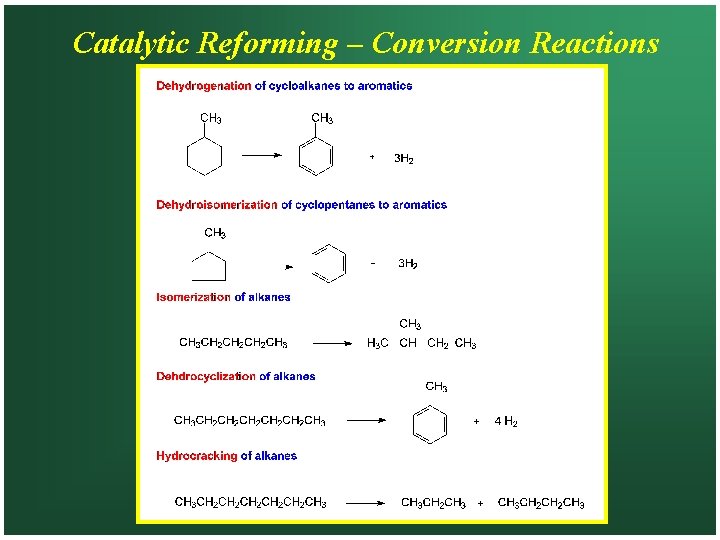

Catalytic Reforming – Conversion Reactions

Preparation of PET monomers Formation of ethylene glycol Formation of TA and DMT

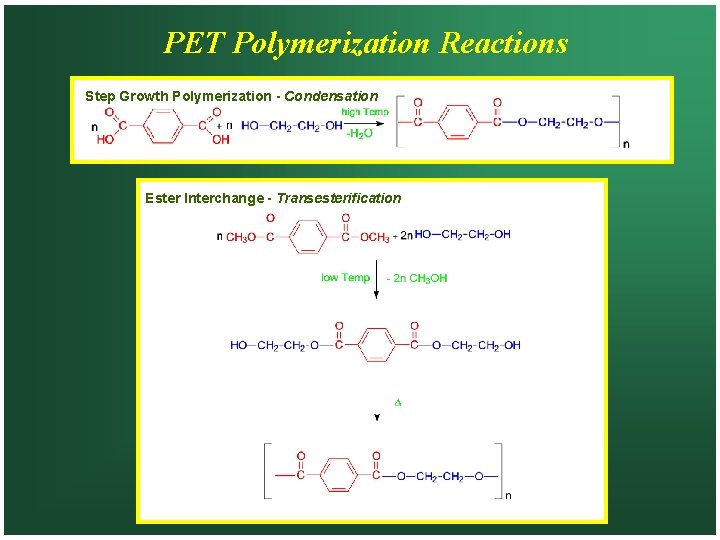

PET Polymerization Reactions Step Growth Polymerization - Condensation Ester Interchange - Transesterification

The Dupont Petretec Process For Polyester Regeneration

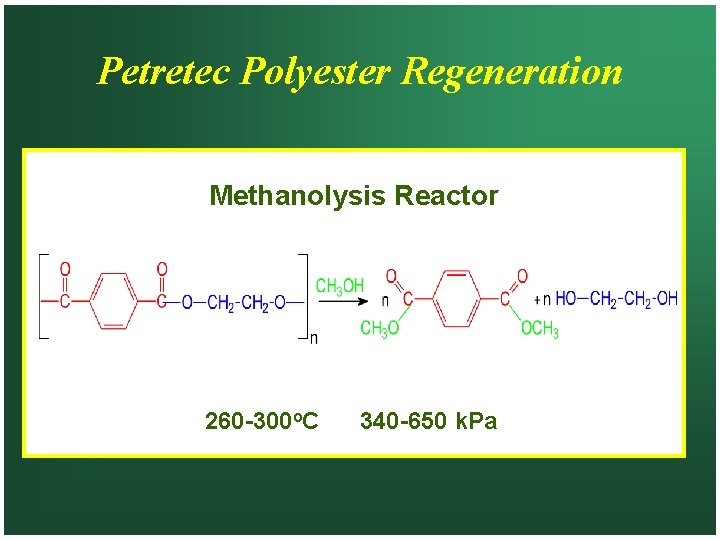

Petretec Polyester Regeneration Methanolysis Reactor 260 -300 o. C 340 -650 k. Pa
