A global approach for Introducing airground data communications
A global approach for Introducing air/ground data communications at ATC A 131 2104971/1 PPT 11/21/2020 ATN 99 conference René Esser European ATS data link programme manager THOMFANS
Content A 131 2104971/1 PPT 11/21/2020 l Who is Airsys ATM ? l The data link technologies n The recognised ones n The data link accommodation approach l Integrating ATS data link at an ATC site THOMFANS
11/21/2020 A 131 2104971/1 PPT Airsys ATM THOMFANS
Airsys ATM ’s complete range of products A 131 2104971/1 PPT 11/21/2020 l Complete portfolio, harnessing the modern ATM technologies l ATC centres (en-route and approach) l Airport l Communications l Navaids l Surveillance THOMFANS
l Thomfans, a dedicated FANS (real CNS/ATM) entity, combining the strengths of : n Thomson-CSF ä Airsys ATM : Ground ATM systems ä Comsys : Communication networks ä Sextant Avionique : Avionics n Alcatel Space Industries : Satellites Space Industries l Facing the market evolution in CNS/ATM & CDM: local, regional, and worldwide 11/21/2020 A 131 2104971/1 PPT Airsys ATM & Thomfans THOMFANS
Airsys ATM ADS/CPDLC references Communication thru: Satellite Links Radio VHF Enhanced Surveillance Paris FMS routine communication EOLIA 2 - CAUTRA Iran Uzbekistan ADS navigational data Egypt CPDLC Myanmar Laos Sri Lanka Singapore ATS Tahiti RSA Fiji Mauritius islands TAAATS 11/21/2020 A 131 2104971/1 PPT INCA FANS 1/A ATN THOMFANS

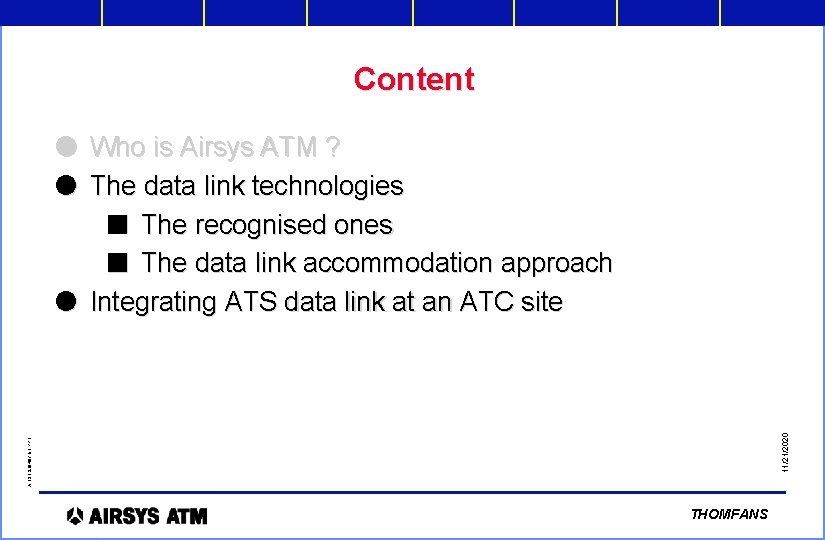

Content A 131 2104971/1 PPT 11/21/2020 l Who is Airsys ATM ? l The data link technologies n The recognised ones n The data link accommodation approach l Integrating ATS data link at an ATC site THOMFANS

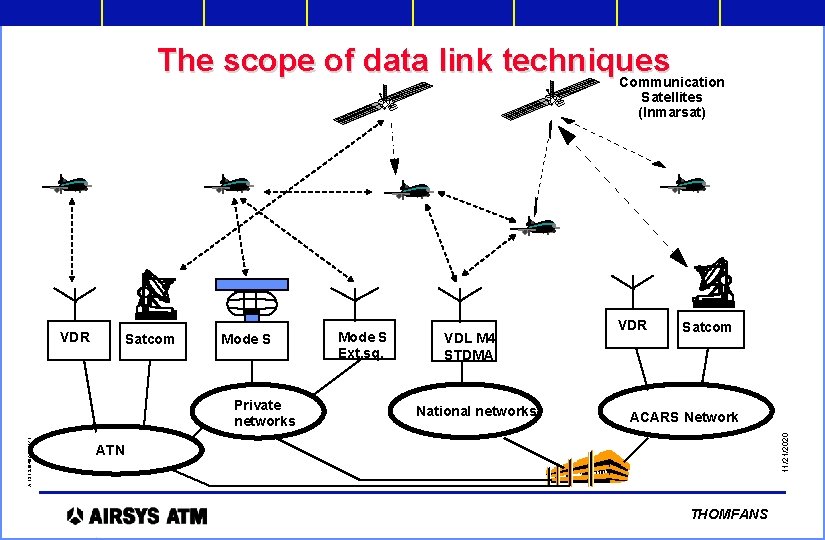

The scope of data link techniques Communication Satellites (Inmarsat) Satcom Mode S A 131 2104971/1 PPT Private networks Mode S Ext. sq. VDL M 4 STDMA National networks VDR Satcom ACARS Network 11/21/2020 VDR ATN THOMFANS
l The key to success is air/ground cooperation : n At standardisation level : ICAO ATNP, EUROCONTROL ODIAC OR and Design Teams, RTCA/EUROCAE WG 53, etc. n At development and validation level, thru air/ground integration programmes ä Collaboration with End users, Aircraft manufacturers, Avionics suppliers & communication service providers ä Example : EOLIA / Pro. ATN : ñ Cooperative demo at Le Bourget, June 1999 THOMFANS 11/21/2020 A 131 2104971/1 PPT Airsys ATM’s air/ground data link approach

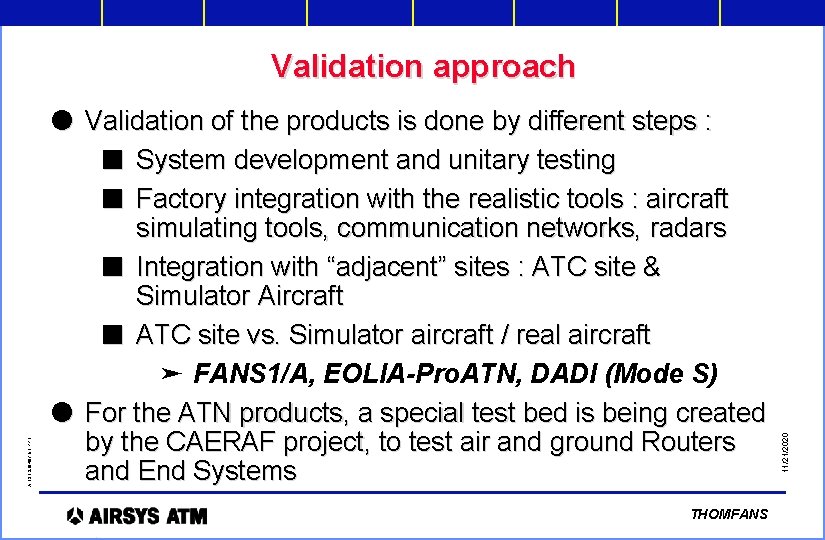

l Validation of the products is done by different steps : n System development and unitary testing n Factory integration with the realistic tools : aircraft simulating tools, communication networks, radars n Integration with “adjacent” sites : ATC site & Simulator Aircraft n ATC site vs. Simulator aircraft / real aircraft ä FANS 1/A, EOLIA-Pro. ATN, DADI (Mode S) l For the ATN products, a special test bed is being created by the CAERAF project, to test air and ground Routers and End Systems THOMFANS 11/21/2020 A 131 2104971/1 PPT Validation approach
CAERAF Functional configuration overview CAERAF Platform A 131 2104971/1 PPT ES BIS MSE/STM LAPB Bridge LAPB/A 429 W X. 25 Switch WAN AMSS VDL Mode-S Airborne Combined BIS/ES CAERAF A/G BIS 11/21/2020 CAERAF A/G BIS SUT CAERAF is supported by EUROCONTROL & the FAA Aircraft Certification Service THOMFANS

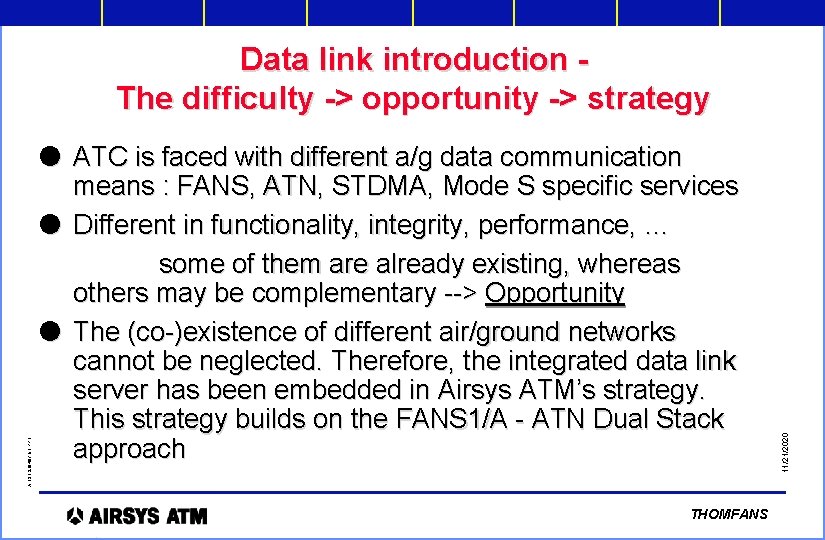

l ATC is faced with different a/g data communication means : FANS, ATN, STDMA, Mode S specific services l Different in functionality, integrity, performance, … some of them are already existing, whereas others may be complementary --> Opportunity l The (co-)existence of different air/ground networks cannot be neglected. Therefore, the integrated data link server has been embedded in Airsys ATM’s strategy. This strategy builds on the FANS 1/A - ATN Dual Stack approach THOMFANS 11/21/2020 A 131 2104971/1 PPT Data link introduction The difficulty -> opportunity -> strategy
The integrated data link server Satcom Ext. sq. Mode S Radarnet ATN VDR Nat. networks Cat 18 Cat 48 ATN MSSS ES A/C data request handling A 131 2104971/1 PPT VDL M 4 A/c d-base Satcom ACARS Network STDMA ACARS AGDLC CPDLC handling Centre access HMI / FDPS RDPS 11/21/2020 VDR THOMFANS
l Minimises impact of data link introduction in ATC system, as the server takes care of part of the End User Application functionality, e. g. n managing the necessary Logon procedures n controlling the outstanding messages n acting as Aircraft Information Server for the ATC site l Optimises the air/ground data link medium to be used, taking advantage of the equipage of the aircraft l It offers a transparent interface. Any type of air/ground data communication means can be supported, whilst kept to the maximum extent transparent to the controller / ATC system l It can be connected to any type of ATC system 11/21/2020 A 131 2104971/1 PPT The data link server benefits THOMFANS
Airsys ATM data link server strategy 98 99 00 01 03 02 Airsys ATM ’s EASY - EUROCAT ATM CAUTRA (ODS France) / Any kind of ATC centre ARTAS-2 & e. FDP FANS D/L server Operational ATN D/L server Integrated D/L server EOLIA/Pro. ATN proto PIT proto V 1 (RRI) (ATN, FANS, Mode S, . . ) Mode S DL server ATN D/L server Integrated D/L server (ATN, FANS, Mode S, . . ) Corba proto - Follow-up AVENUE Corba 11/21/2020 A 131 2104971/1 PPT D/L server proto & product AVENUE DADI proto THOMFANS
Content A 131 2104971/1 PPT 11/21/2020 l Who is Airsys ATM ? l The data link technologies n The recognised ones n The data link accommodation approach (the data link server) l Integrating ATS data link at an ATC site THOMFANS
Integrating ATS data link at an ATC site l Data link server allow connection to any type of ATC site: CWP HMI FDPS RDPS Data link server 11/21/2020 A 131 2104971/1 PPT Comm. Netw THOMFANS

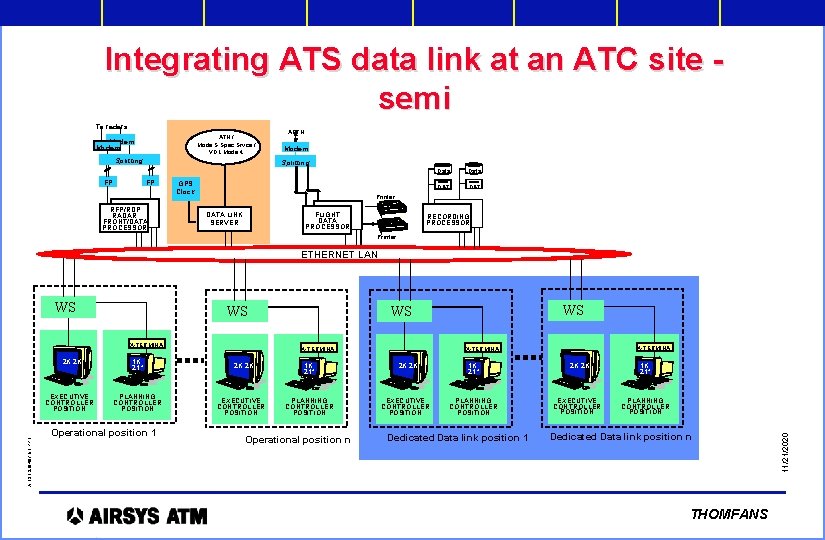

Integrating ATS data link at an ATC site - semi To radars ATN / Mode S Spec. Srvcs / VDL Mode 4 Modem Splitting FP FP AFTN RFP/RDP RADAR FRONT/DATA PROCESSOR GPS Clock Data DAT Printer DATA LINK SERVER FLIGHT DATA PROCESSOR RECORDING PROCESSOR Printer ETHERNET LAN WS X-TERMINAL 2 K. 2 K A 131 2104971/1 PPT EXECUTIVE CONTROLLER POSITION 1 K 21" PLANNING CONTROLLER POSITION Operational position 1 X-TERMINAL 2 K. 2 K EXECUTIVE CONTROLLER POSITION WS WS 1 K 21" PLANNING CONTROLLER POSITION Operational position n X-TERMINAL 2 K. 2 K EXECUTIVE CONTROLLER POSITION 1 K 21" PLANNING CONTROLLER POSITION Dedicated Data link position 1 2 K. 2 K EXECUTIVE CONTROLLER POSITION 1 K 21" PLANNING CONTROLLER POSITION Dedicated Data link position n THOMFANS 11/21/2020 WS

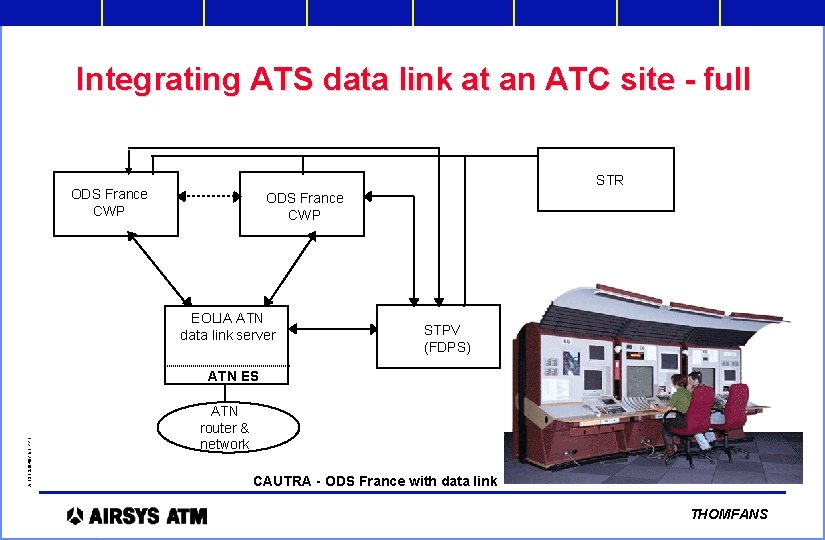

Integrating ATS data link at an ATC site - full STR ODS France CWP EOLIA ATN data link server STPV (FDPS) ATN router & network 11/21/2020 A 131 2104971/1 PPT ATN ES CAUTRA - ODS France with data link THOMFANS

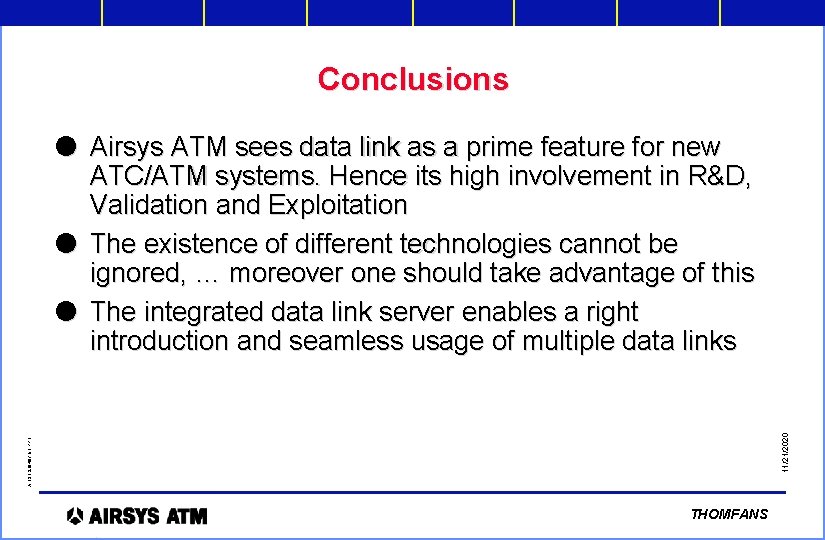

Conclusions A 131 2104971/1 PPT 11/21/2020 l Airsys ATM sees data link as a prime feature for new ATC/ATM systems. Hence its high involvement in R&D, Validation and Exploitation l The existence of different technologies cannot be ignored, … moreover one should take advantage of this l The integrated data link server enables a right introduction and seamless usage of multiple data links THOMFANS
