A FPD FPD Flat Panel Display 3 FPD
- Slides: 40
(A). FPD產業概述 FPD : Flat Panel Display (平面顯示器) 3

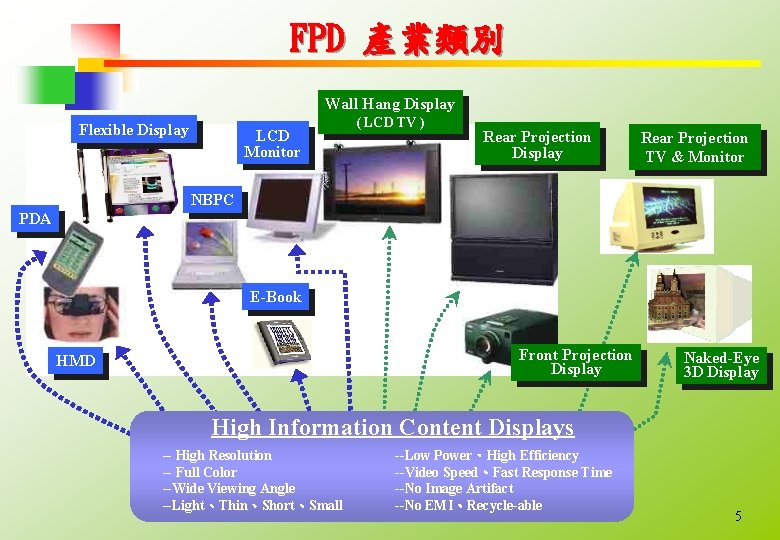

FPD 產業類別 Wall Hang Display Flexible Display LCD Monitor ( LCD TV ) Rear Projection Display Rear Projection TV & Monitor NBPC PDA E-Book Front Projection Display HMD Naked-Eye 3 D Display High Information Content Displays -- High Resolution -- Full Color --Wide Viewing Angle --Light、Thin、Short、Small --Low Power、High Efficiency --Video Speed、Fast Response Time --No Image Artifact --No EMI、Recycle-able 5

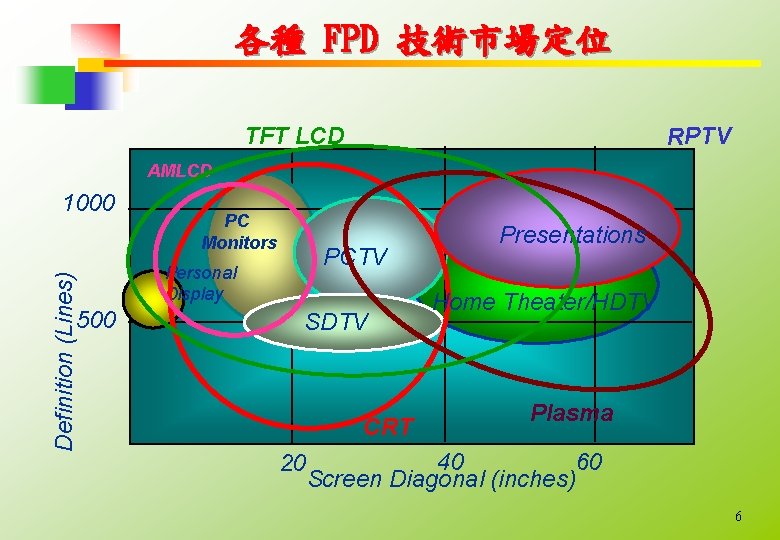

各種 FPD 技術市場定位 RPTV TFT LCD AMLCD Definition (Lines) 1000 500 PC Monitors Personal Display PCTV SDTV CRT Presentations Home Theater/HDTV Plasma 40 60 20 Screen Diagonal (inches) 6
全球 FPD 產品應用市場規模與趨勢 (百萬美元) 65062 2001~2006 年 CAGR:FPD ( 25. 0% ) -PDP-TV: 36. 8% -LCD Monitor: 36. 4% -LCD-TV: 76. 5% -Mini-NB: 29. 8% -Mobile : 25. 0% -PDA: 24. 3% -Projection-TV: 44. 3% 53364 43153 33892 28648 23414 23. 7% 28. 1% 17. 6% 21344 -9. 2% 34. 2% OLED 1. 5% 2001年 21. 8% Microdisplay 3. 2% TN/STN LCD 5. 8% LTPS-TFT LCD 8. 1% a-TFT LCD (<10") 8. 7% VFD 1. 4% Others 0. 3% PDP 10. 0% 2006年 a-TFT LCD (>10") 61% 資料來源: 研院經資中心ITIS計畫(2002/11) 9
(C). FPD 產業之代表 : TFT-LCD : Thin film transistor-Liquid Crystal Display (薄膜電晶體液晶顯示器) 10

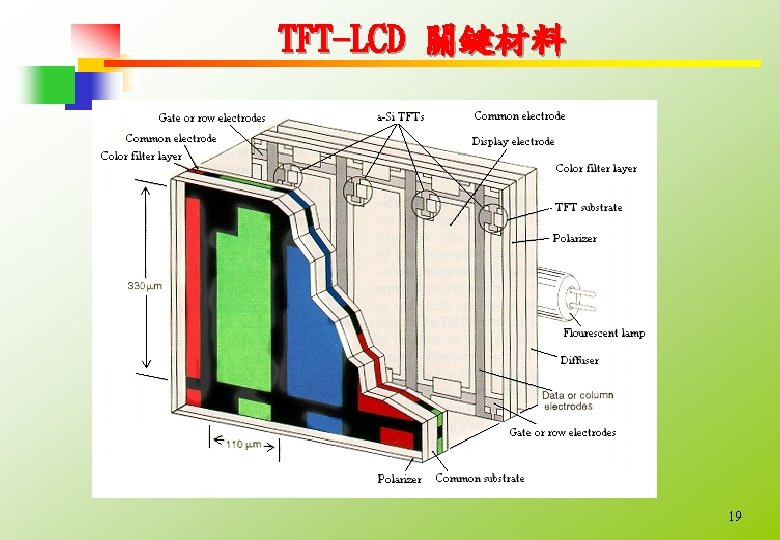

TFT-LCD 關鍵材料 19
縮寫對照 LCD:Liquid Crystal Display PDP:Plasma Display Panel OLED:Organic Light Emitting Diode CF:Color Filter BL:Backlight LVDS:Low Voltage Differential Signaling RSDS :Reduced Swing Differential Signaling CMADS :Current Mode Advanced Differential Signaling RPTV : Rear Projection TV: 39
THE END Thank You Very 40
