A Comparative Evaluation of Deep and Shallow Approaches to the Automatic Detection of Common Grammatical Errors Joachim Wagner, Jennifer Foster, and Josef van Genabith 2007 -07 -26 National Centre for Language Technology School of Computing, Dublin City University 1

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 2

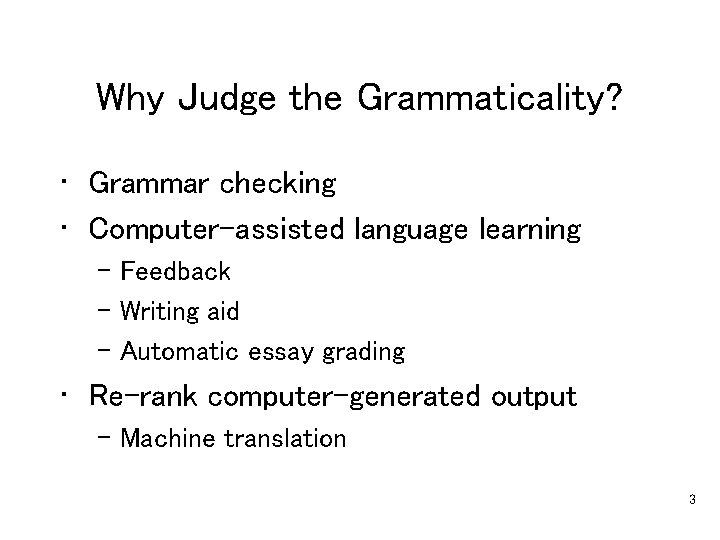

Why Judge the Grammaticality? • Grammar checking • Computer-assisted language learning – Feedback – Writing aid – Automatic essay grading • Re-rank computer-generated output – Machine translation 3

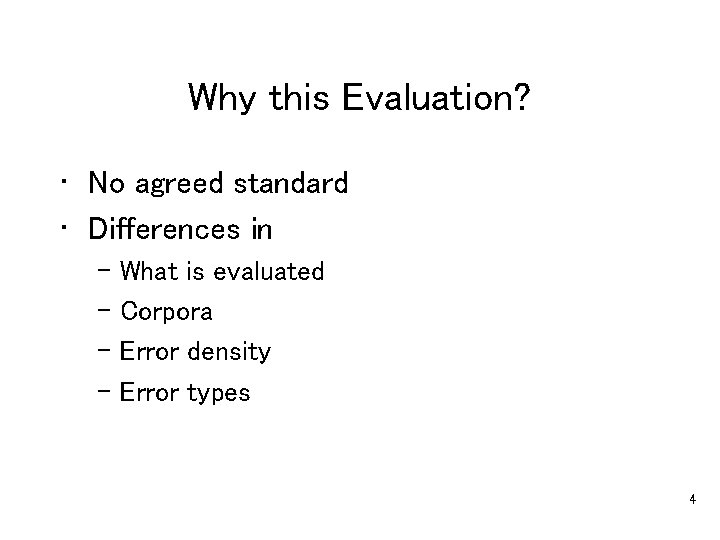

Why this Evaluation? • No agreed standard • Differences in – What is evaluated – Corpora – Error density – Error types 4

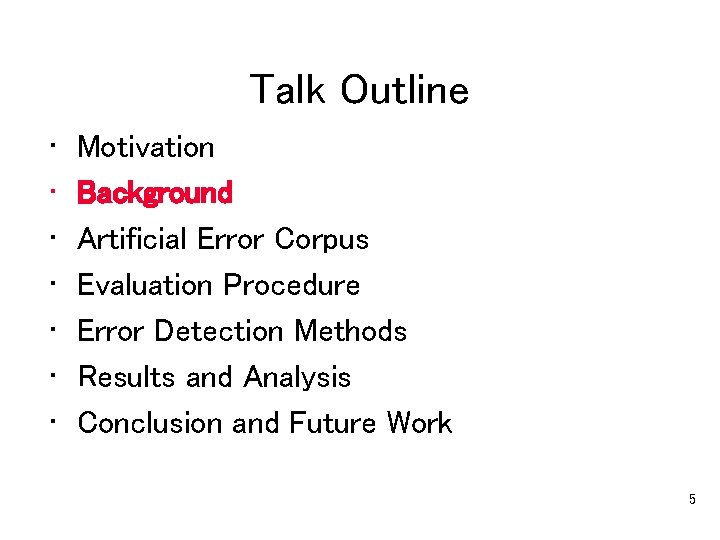

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 5

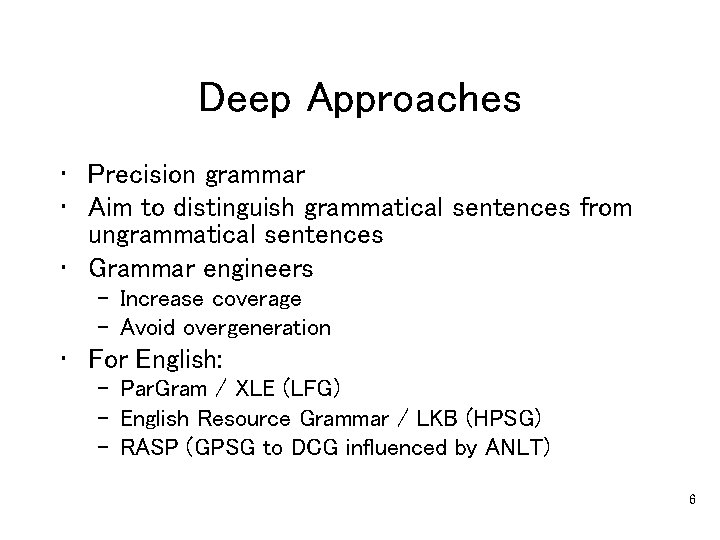

Deep Approaches • Precision grammar • Aim to distinguish grammatical sentences from ungrammatical sentences • Grammar engineers – Increase coverage – Avoid overgeneration • For English: – Par. Gram / XLE (LFG) – English Resource Grammar / LKB (HPSG) – RASP (GPSG to DCG influenced by ANLT) 6

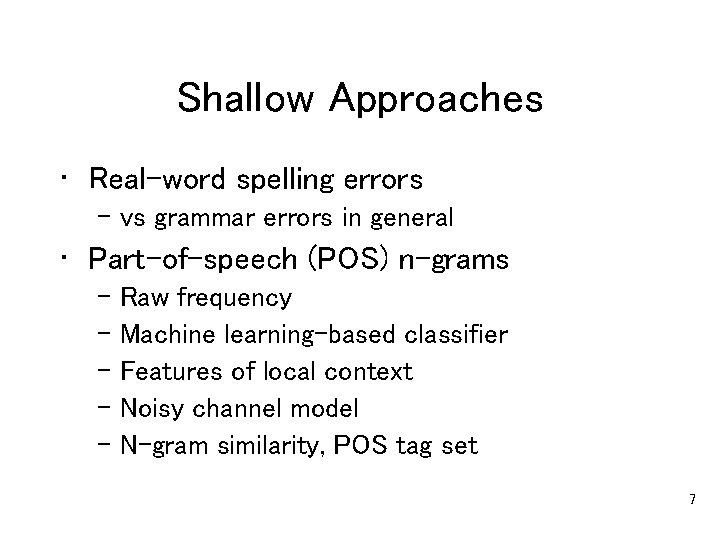

Shallow Approaches • Real-word spelling errors – vs grammar errors in general • Part-of-speech (POS) n-grams – Raw frequency – Machine learning-based classifier – Features of local context – Noisy channel model – N-gram similarity, POS tag set 7

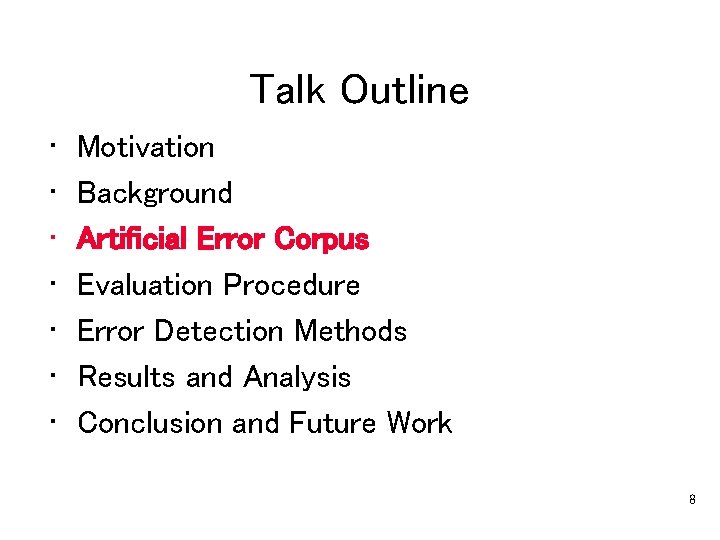

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 8

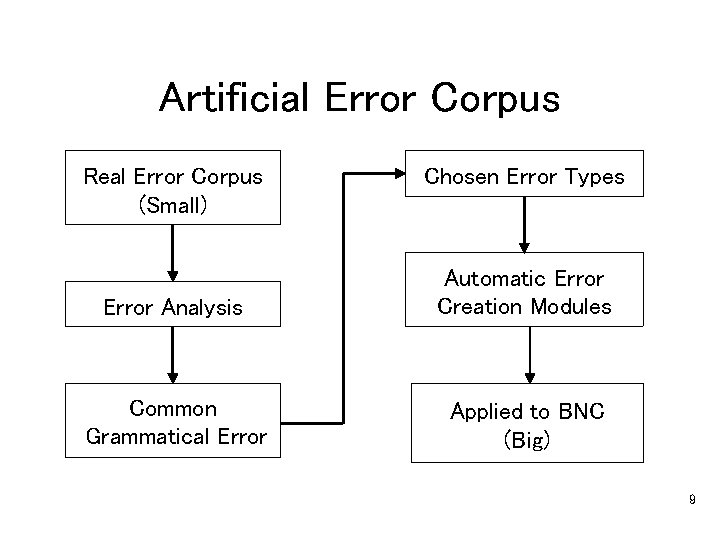

Artificial Error Corpus Real Error Corpus (Small) Chosen Error Types Error Analysis Automatic Error Creation Modules Common Grammatical Error Applied to BNC (Big) 9

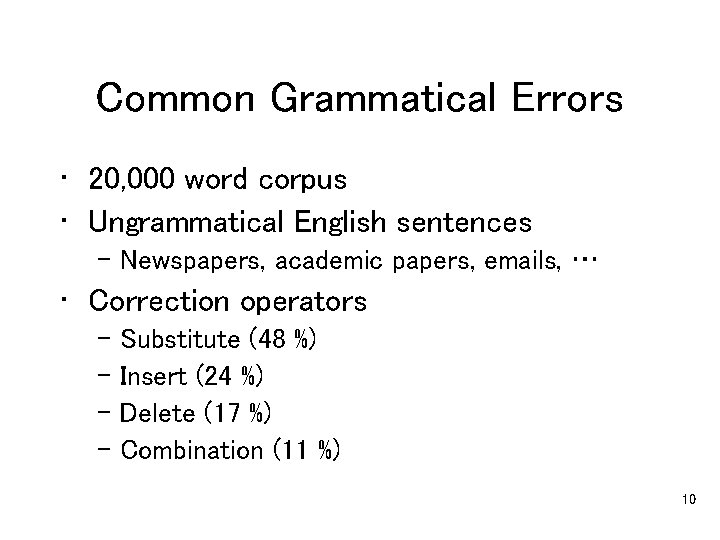

Common Grammatical Errors • 20, 000 word corpus • Ungrammatical English sentences – Newspapers, academic papers, emails, … • Correction operators – Substitute (48 %) – Insert (24 %) – Delete (17 %) – Combination (11 %) 10

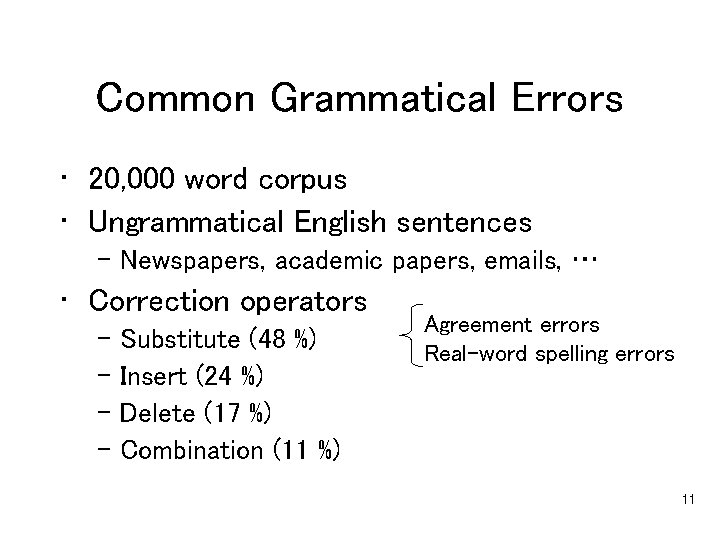

Common Grammatical Errors • 20, 000 word corpus • Ungrammatical English sentences – Newspapers, academic papers, emails, … • Correction operators – Substitute (48 %) – Insert (24 %) – Delete (17 %) – Combination (11 %) Agreement errors Real-word spelling errors 11

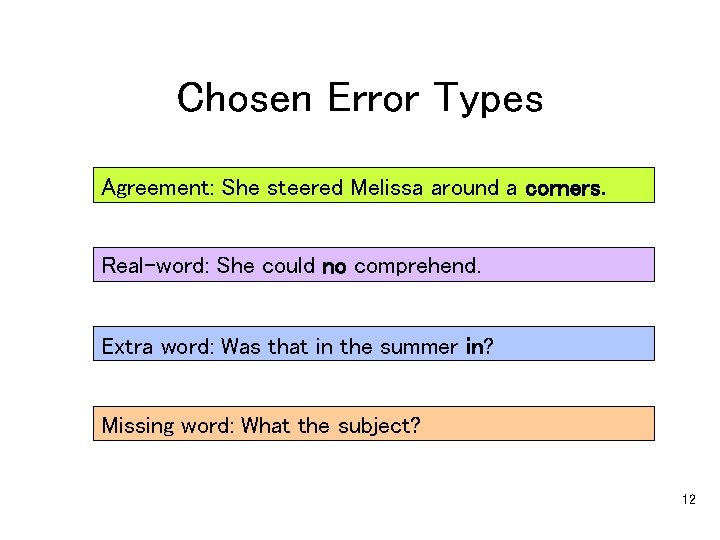

Chosen Error Types Agreement: She steered Melissa around a corners. Real-word: She could no comprehend. Extra word: Was that in the summer in? Missing word: What the subject? 12

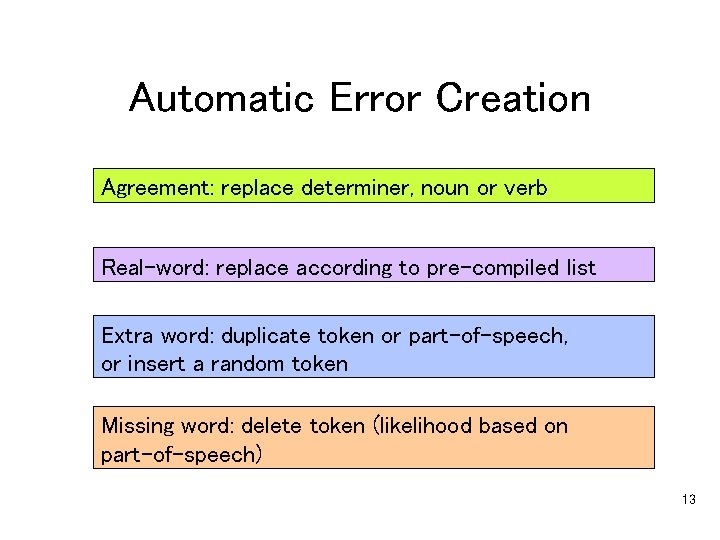

Automatic Error Creation Agreement: replace determiner, noun or verb Real-word: replace according to pre-compiled list Extra word: duplicate token or part-of-speech, or insert a random token Missing word: delete token (likelihood based on part-of-speech) 13

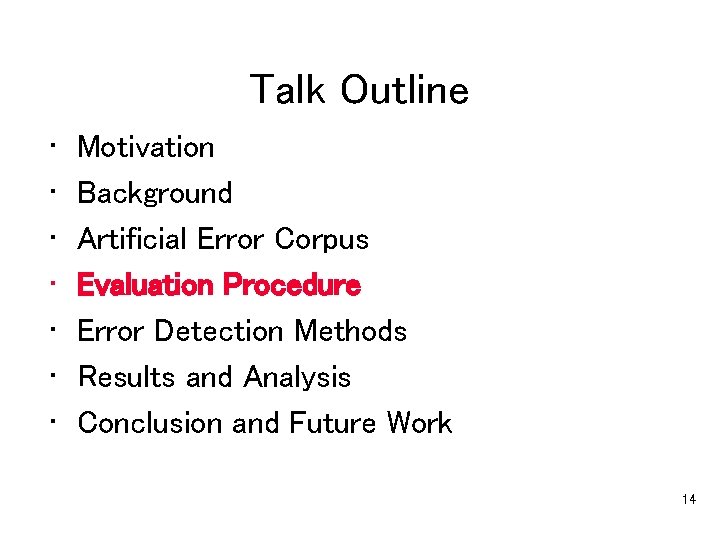

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 14

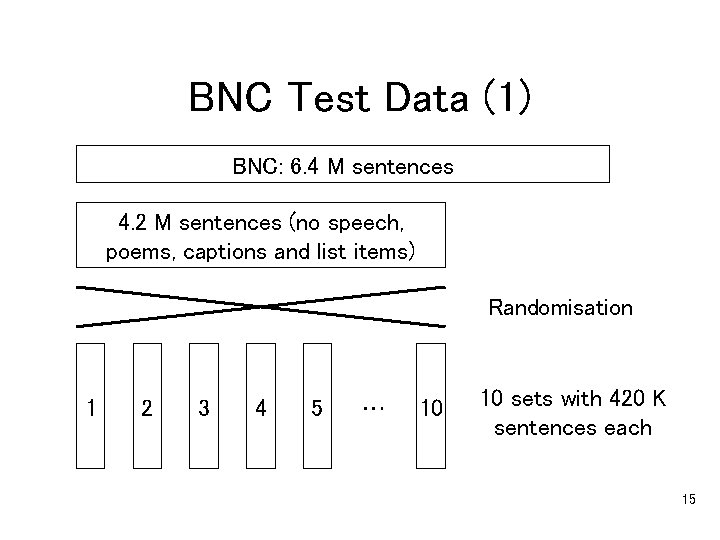

BNC Test Data (1) BNC: 6. 4 M sentences 4. 2 M sentences (no speech, poems, captions and list items) Randomisation 1 2 3 4 5 … 10 10 sets with 420 K sentences each 15

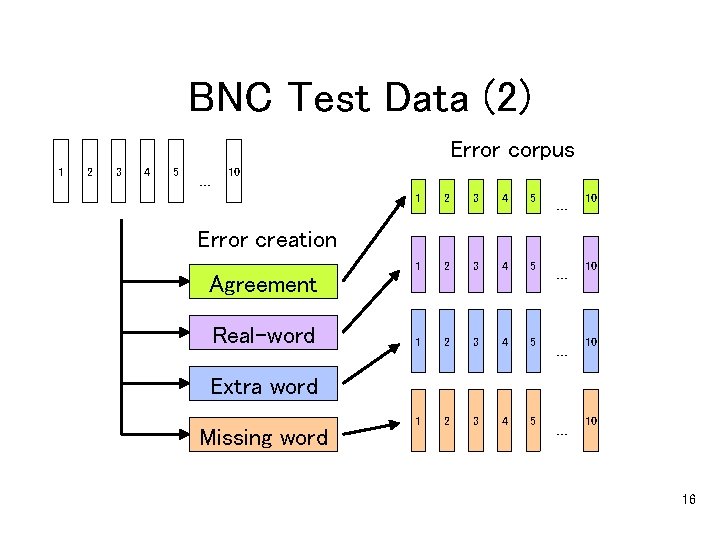

BNC Test Data (2) Error corpus 1 2 3 4 5 10 … Error creation Agreement Real-word 1 2 3 4 5 10 … Extra word Missing word 1 2 3 4 5 10 … 16

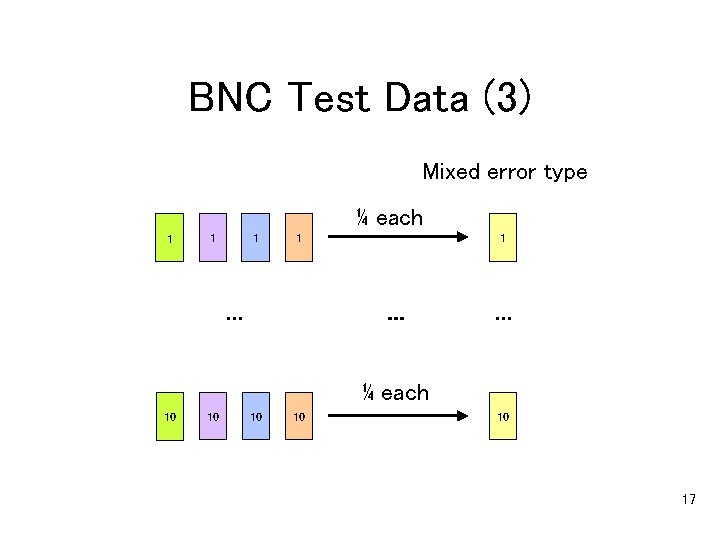

BNC Test Data (3) Mixed error type ¼ each 1 1 … 1 … … ¼ each 10 10 10 17

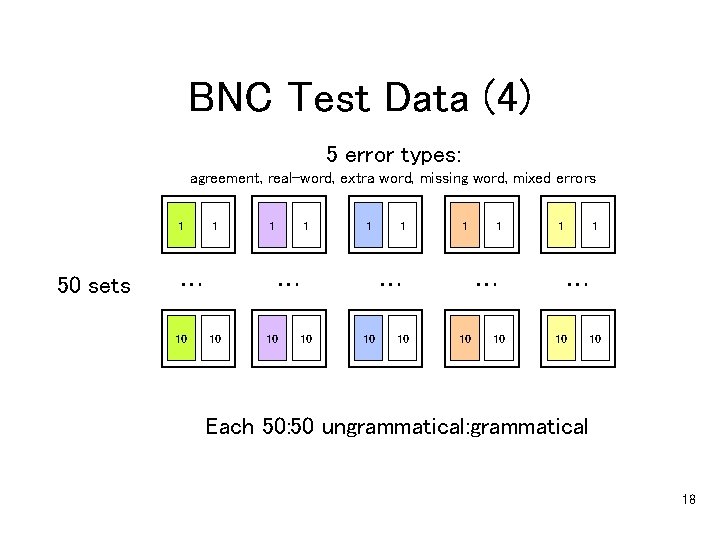

BNC Test Data (4) 5 error types: agreement, real-word, extra word, missing word, mixed errors 1 50 sets 1 … 10 1 1 1 … 10 10 10 1 1 … 10 10 Each 50: 50 ungrammatical: grammatical 18

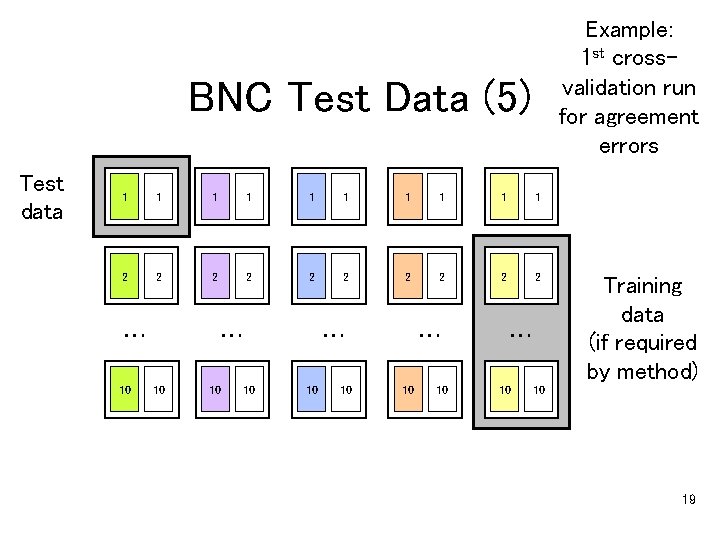

Example: 1 st crossvalidation run for agreement errors BNC Test Data (5) Test data 1 1 1 1 1 2 2 2 2 2 … 10 10 10 … 10 Training data (if required by method) 10 19

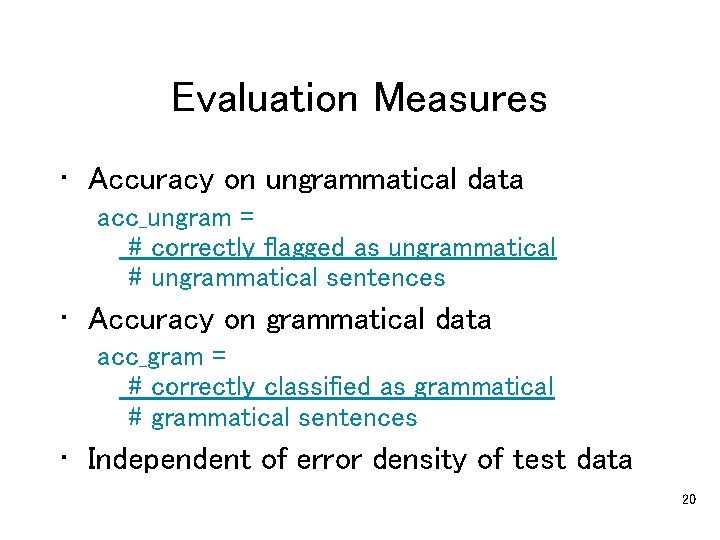

Evaluation Measures • Accuracy on ungrammatical data acc_ungram = # correctly flagged as ungrammatical # ungrammatical sentences • Accuracy on grammatical data acc_gram = # correctly classified as grammatical # grammatical sentences • Independent of error density of test data 20

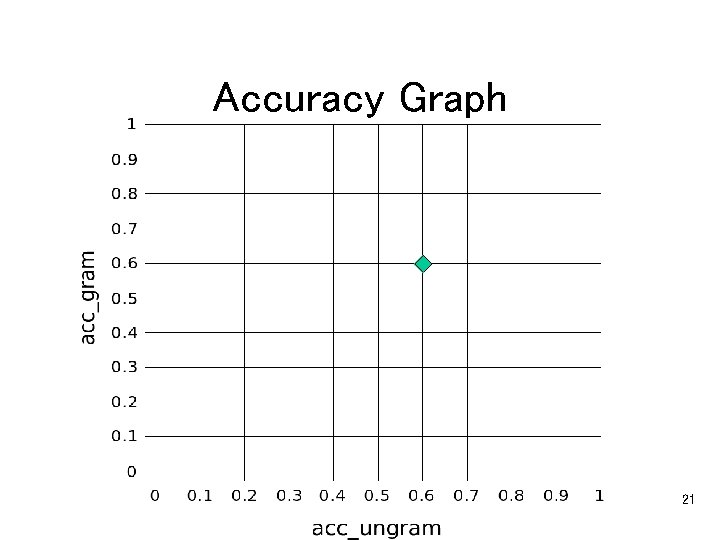

Accuracy Graph 21

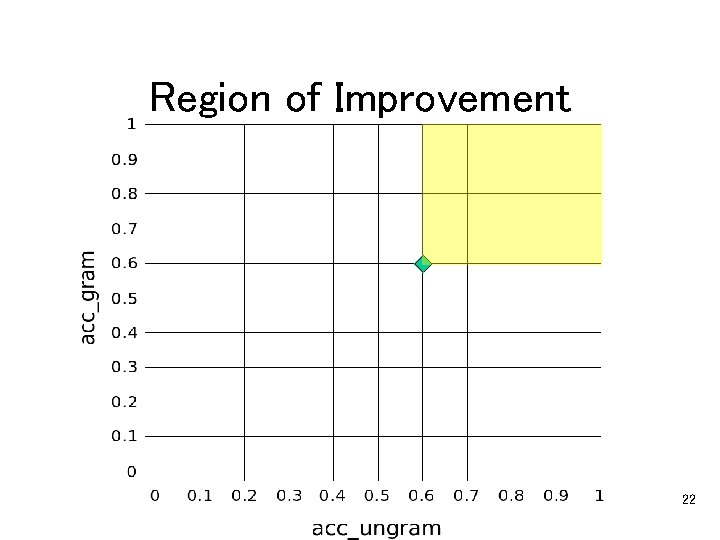

Region of Improvement 22

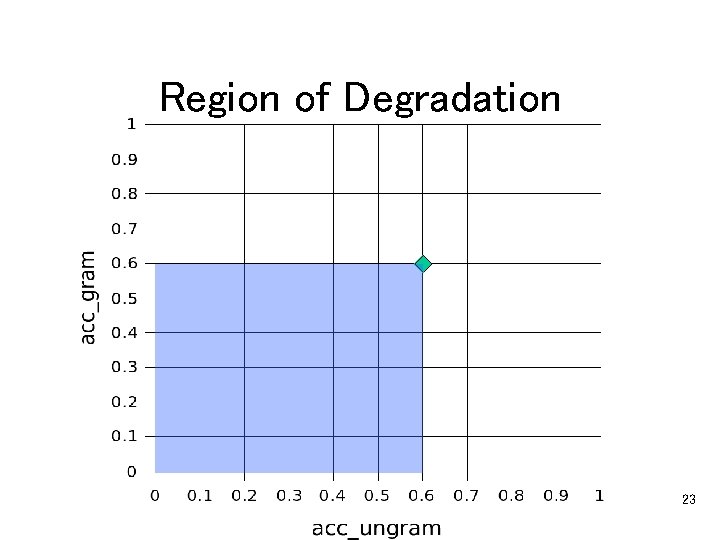

Region of Degradation 23

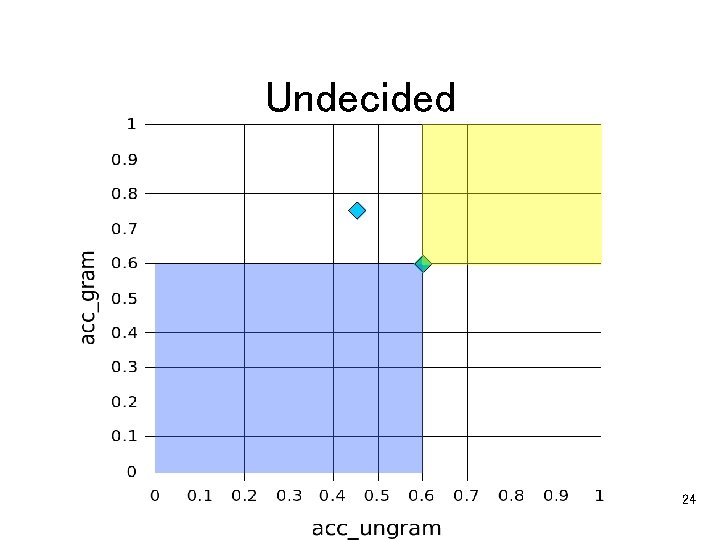

Undecided 24

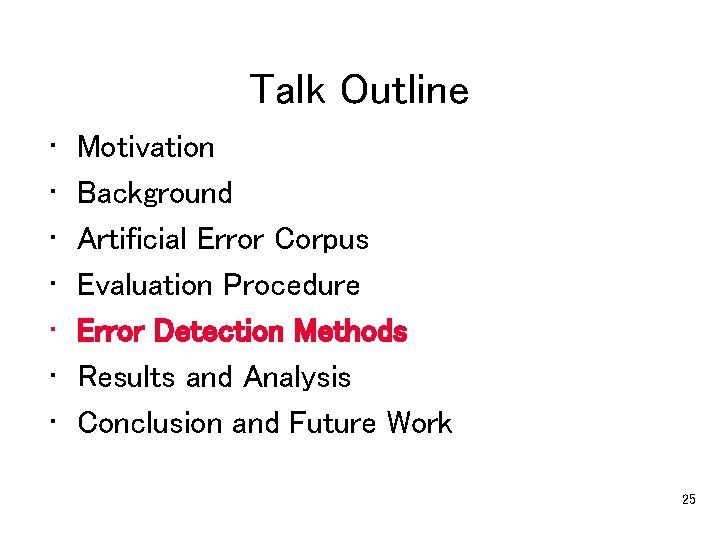

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 25

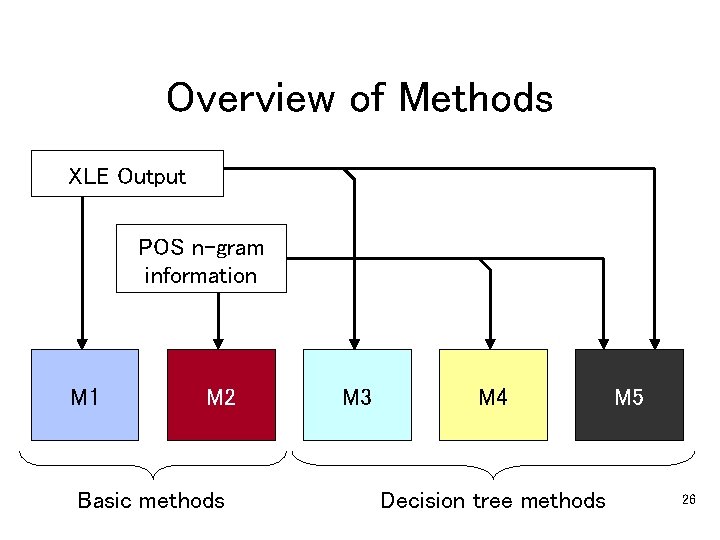

Overview of Methods XLE Output POS n-gram information M 1 M 2 Basic methods M 3 M 4 Decision tree methods M 5 26

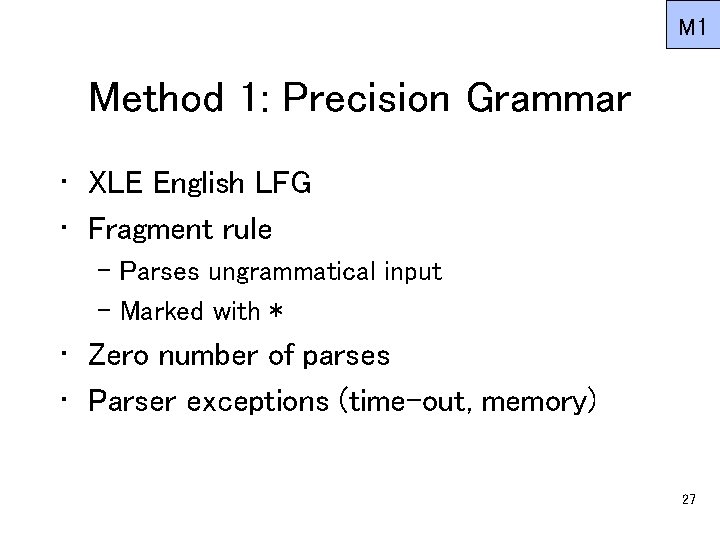

M 1 Method 1: Precision Grammar • XLE English LFG • Fragment rule – Parses ungrammatical input – Marked with * • Zero number of parses • Parser exceptions (time-out, memory) 27

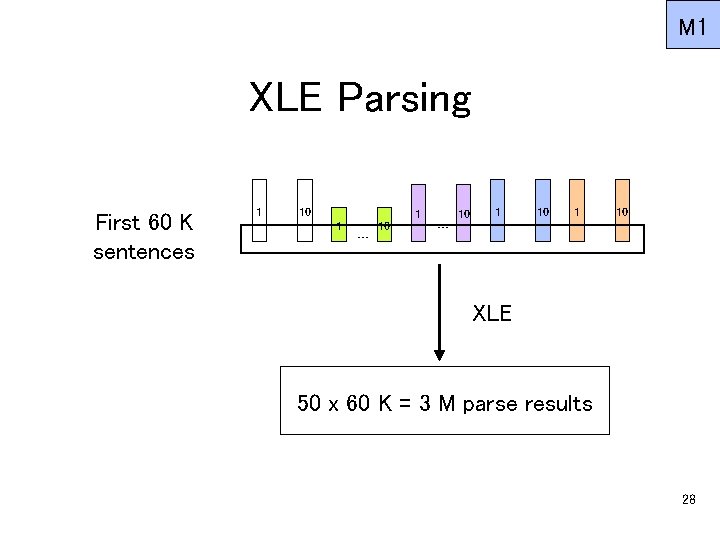

M 1 XLE Parsing First 60 K sentences 1 10 … 1 10 1 … … 10 … XLE 50 x 60 K = 3 M parse results 28

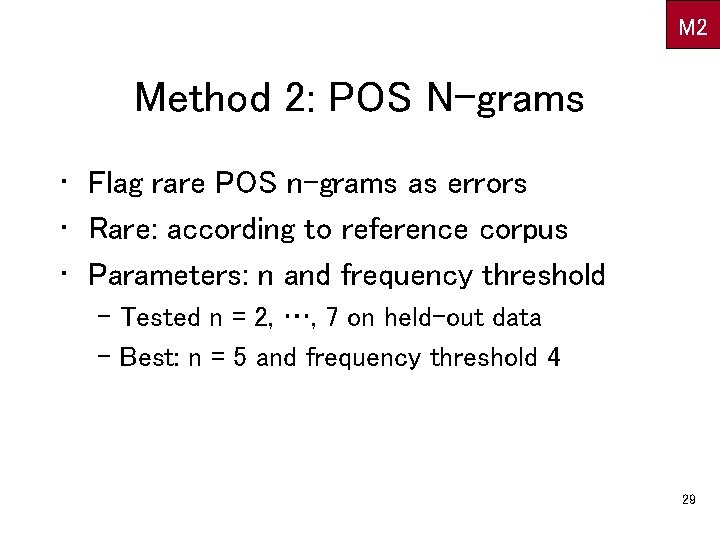

M 2 Method 2: POS N-grams • Flag rare POS n-grams as errors • Rare: according to reference corpus • Parameters: n and frequency threshold – Tested n = 2, …, 7 on held-out data – Best: n = 5 and frequency threshold 4 29

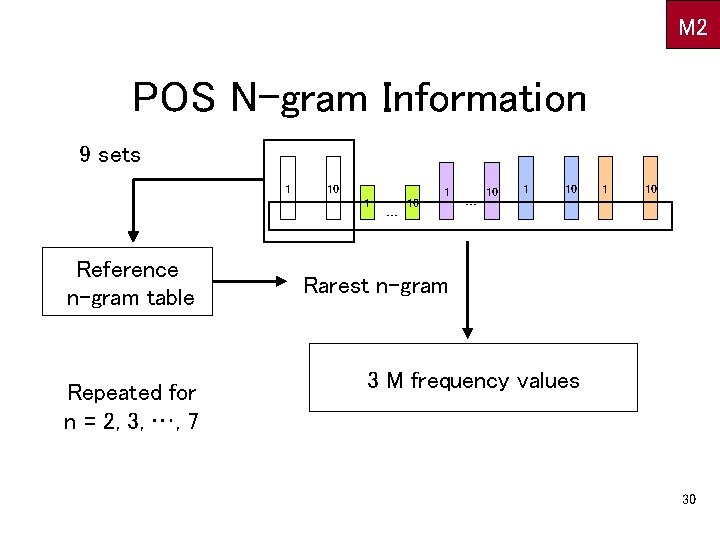

M 2 POS N-gram Information 9 sets 1 10 … 1 10 1 … Reference n-gram table Repeated for n = 2, 3, …, 7 10 … 1 10 … Rarest n-gram 3 M frequency values 30

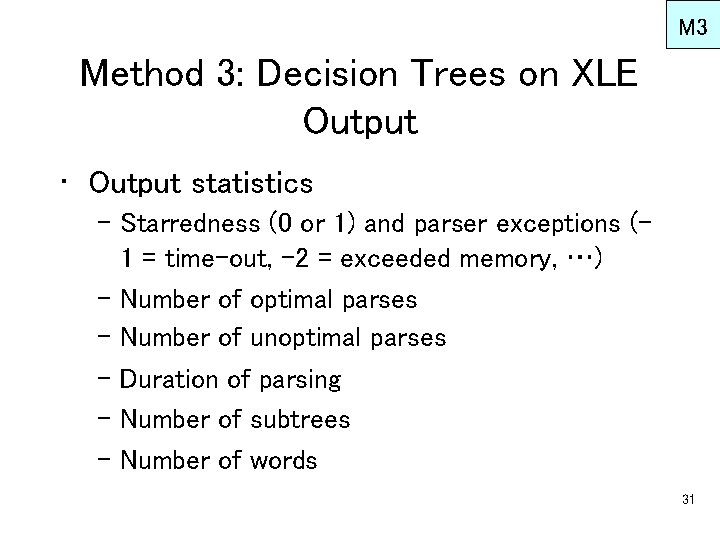

M 3 Method 3: Decision Trees on XLE Output • Output statistics – Starredness (0 or 1) and parser exceptions (1 = time-out, -2 = exceeded memory, …) – Number of optimal parses – Number of unoptimal parses – Duration of parsing – Number of subtrees – Number of words 31

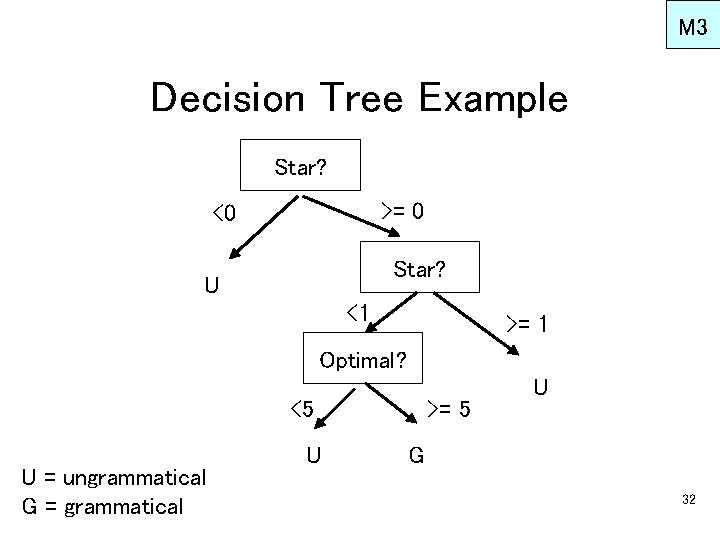

M 3 Decision Tree Example Star? >= 0 <0 Star? U <1 >= 1 Optimal? <5 U = ungrammatical G = grammatical U >= 5 U G 32

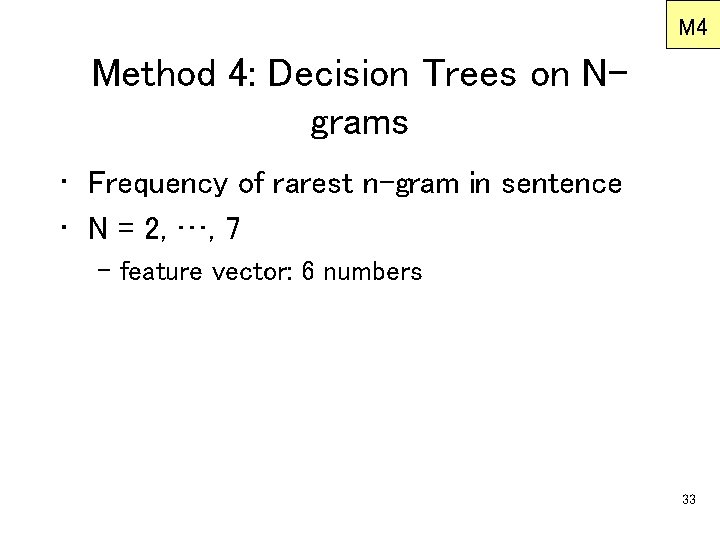

M 4 Method 4: Decision Trees on Ngrams • Frequency of rarest n-gram in sentence • N = 2, …, 7 – feature vector: 6 numbers 33

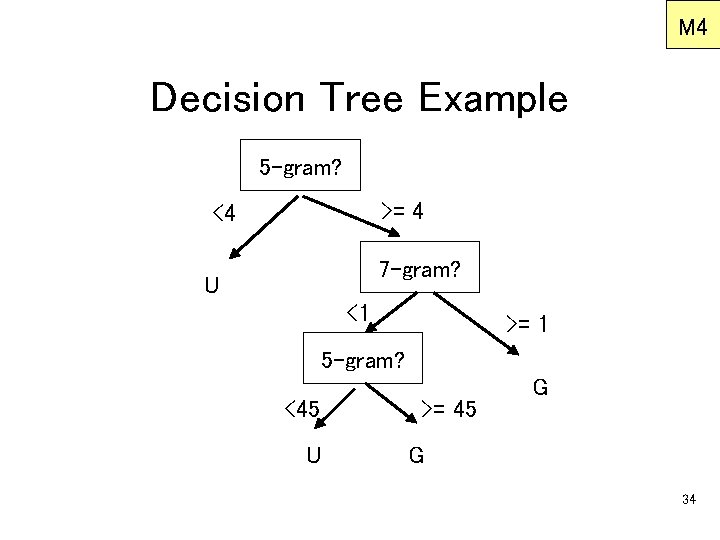

M 4 Decision Tree Example 5 -gram? >= 4 <4 7 -gram? U <1 >= 1 5 -gram? <45 U >= 45 G G 34

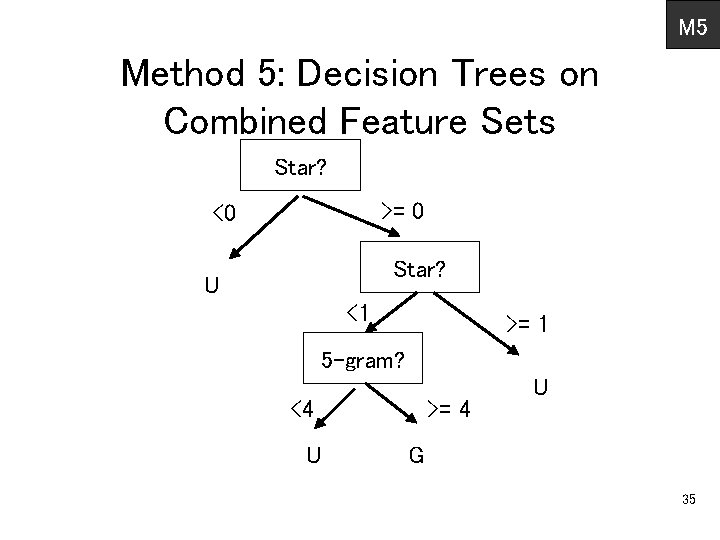

M 5 Method 5: Decision Trees on Combined Feature Sets Star? >= 0 <0 Star? U <1 >= 1 5 -gram? <4 U >= 4 U G 35

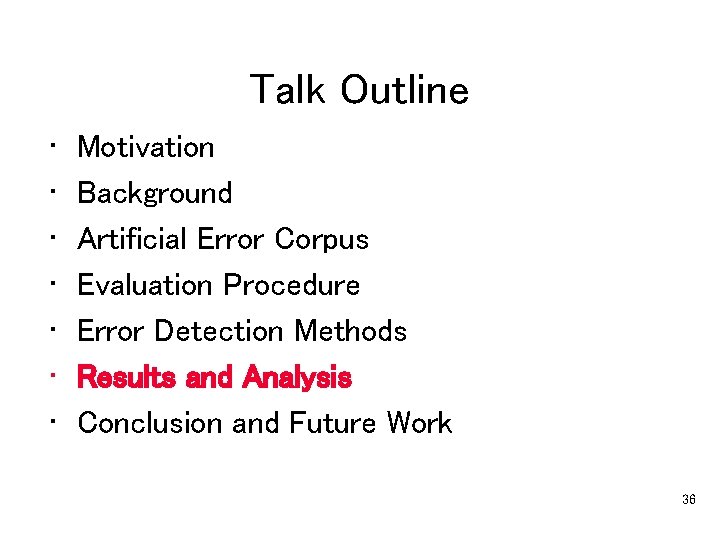

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 36

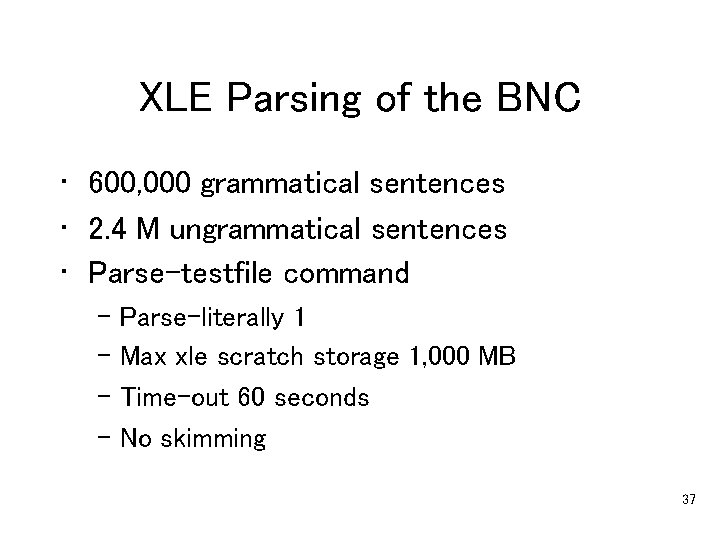

XLE Parsing of the BNC • 600, 000 grammatical sentences • 2. 4 M ungrammatical sentences • Parse-testfile command – Parse-literally 1 – Max xle scratch storage 1, 000 MB – Time-out 60 seconds – No skimming 37

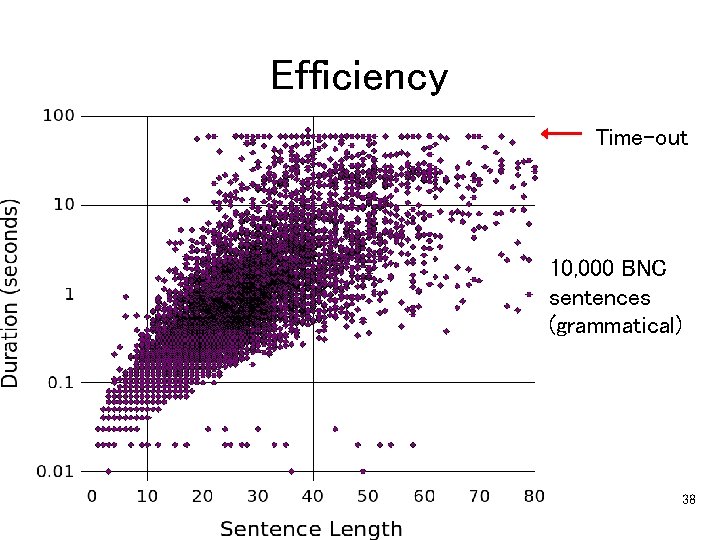

Efficiency Time-out 10, 000 BNC sentences (grammatical) 38

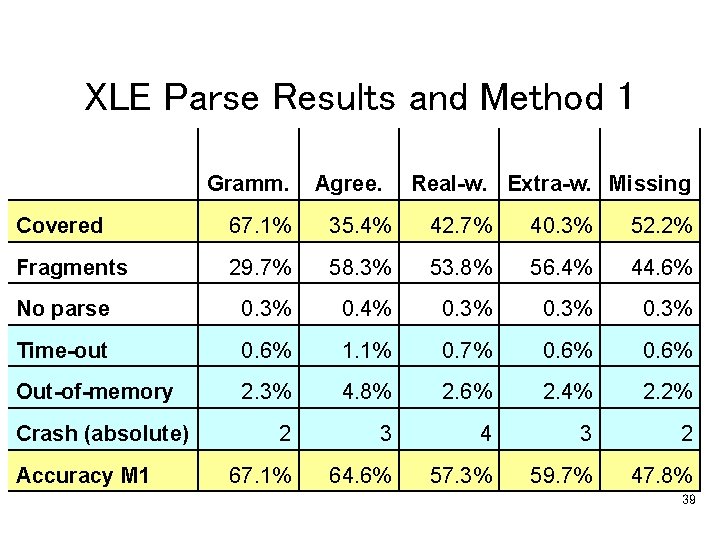

XLE Parse Results and Method 1 Gramm. Agree. Real-w. Extra-w. Missing Covered 67. 1% 35. 4% 42. 7% 40. 3% 52. 2% Fragments 29. 7% 58. 3% 53. 8% 56. 4% 44. 6% No parse 0. 3% 0. 4% 0. 3% Time-out 0. 6% 1. 1% 0. 7% 0. 6% Out-of-memory 2. 3% 4. 8% 2. 6% 2. 4% 2. 2% 2 3 4 3 2 67. 1% 64. 6% 57. 3% 59. 7% 47. 8% Crash (absolute) Accuracy M 1 39

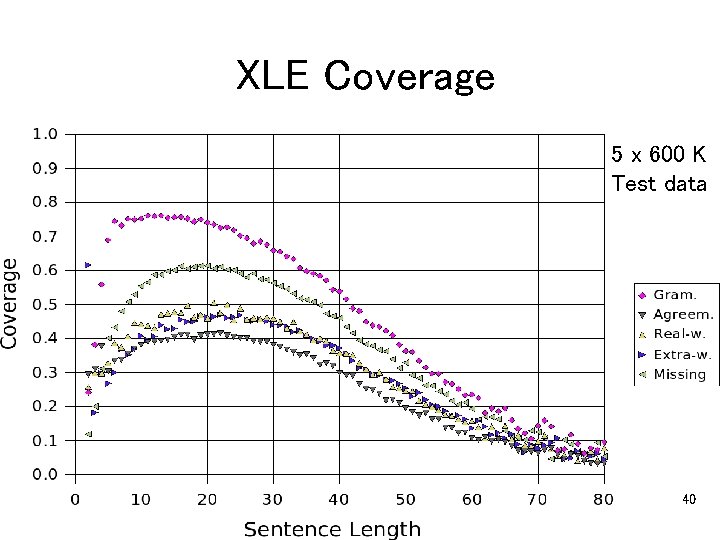

XLE Coverage 5 x 600 K Test data 40

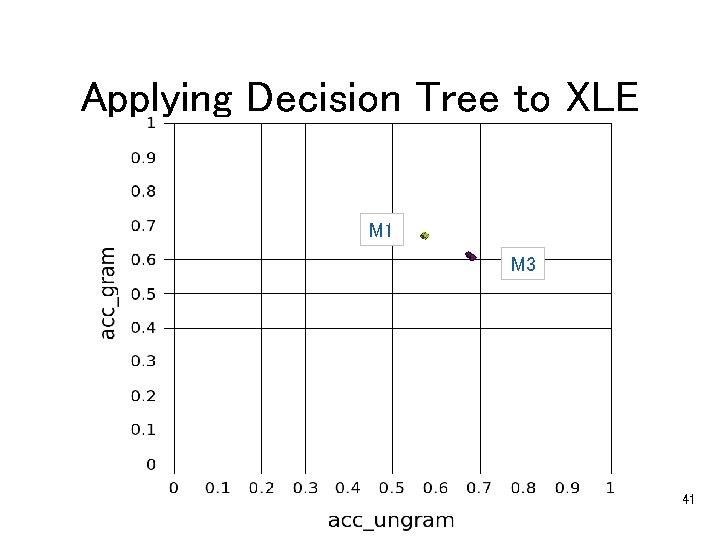

Applying Decision Tree to XLE M 1 M 3 41

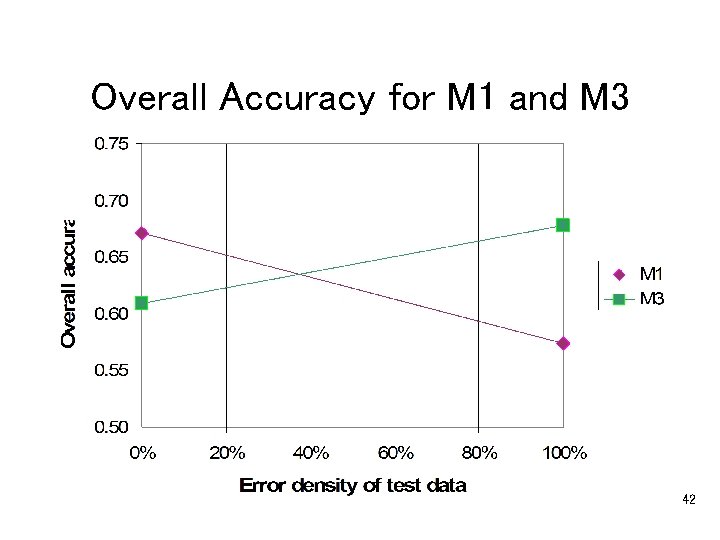

Overall Accuracy for M 1 and M 3 42

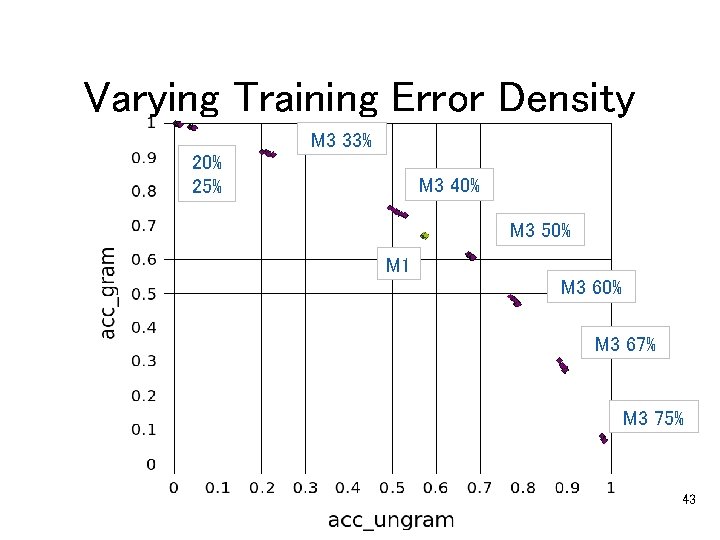

Varying Training Error Density M 3 33% 20% 25% M 3 40% M 3 50% M 1 M 3 60% M 3 67% M 3 75% 43

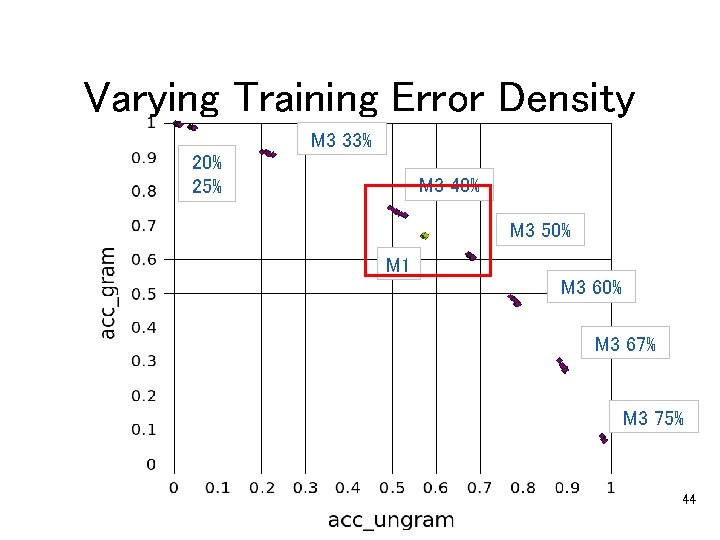

Varying Training Error Density M 3 33% 20% 25% M 3 40% M 3 50% M 1 M 3 60% M 3 67% M 3 75% 44

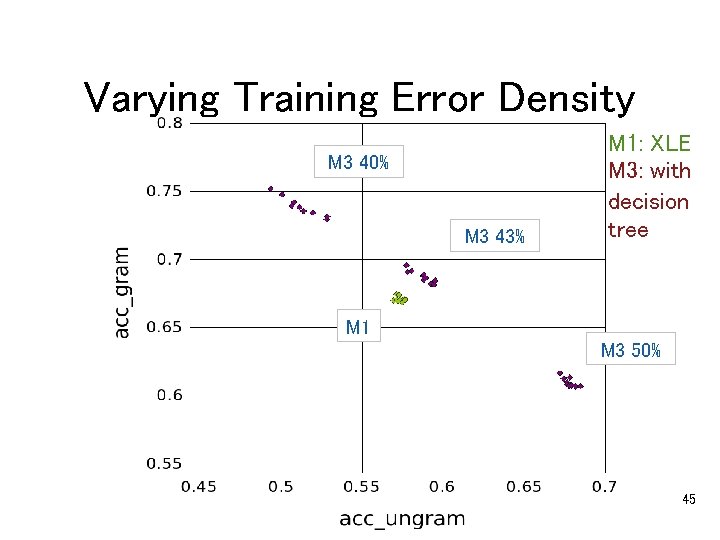

Varying Training Error Density M 3 40% M 3 43% M 1: XLE M 3: with decision tree M 1 M 3 50% 45

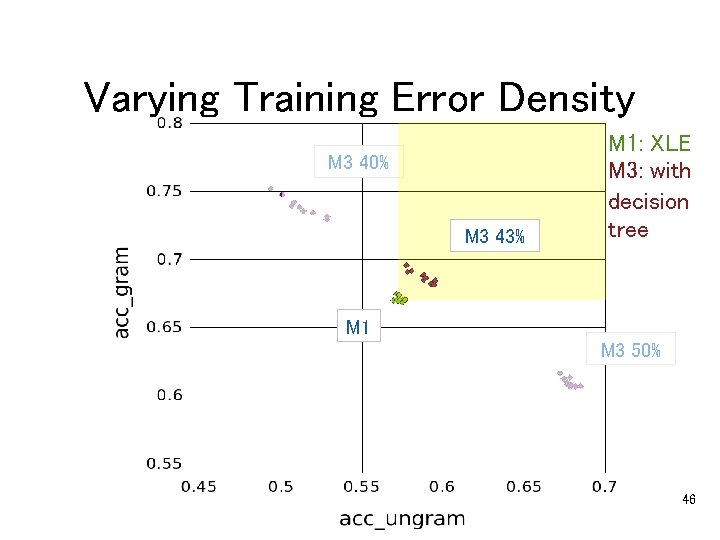

Varying Training Error Density M 3 40% M 3 43% M 1: XLE M 3: with decision tree M 1 M 3 50% 46

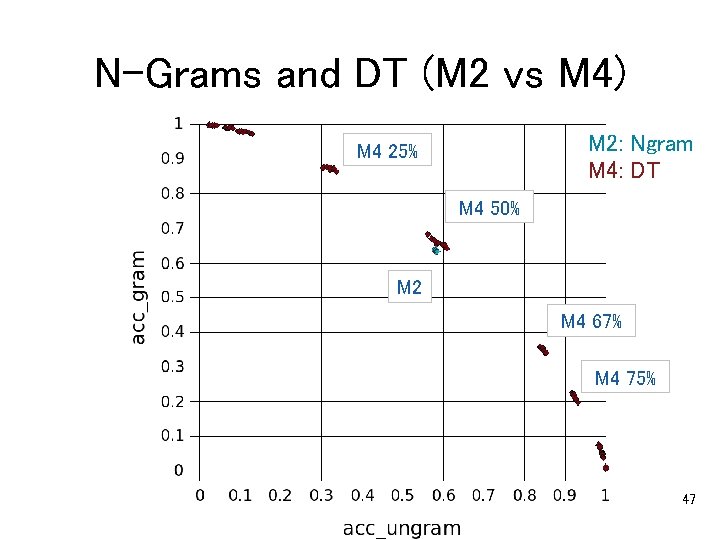

N-Grams and DT (M 2 vs M 4) M 2: Ngram M 4: DT M 4 25% M 4 50% M 2 M 4 67% M 4 75% 47

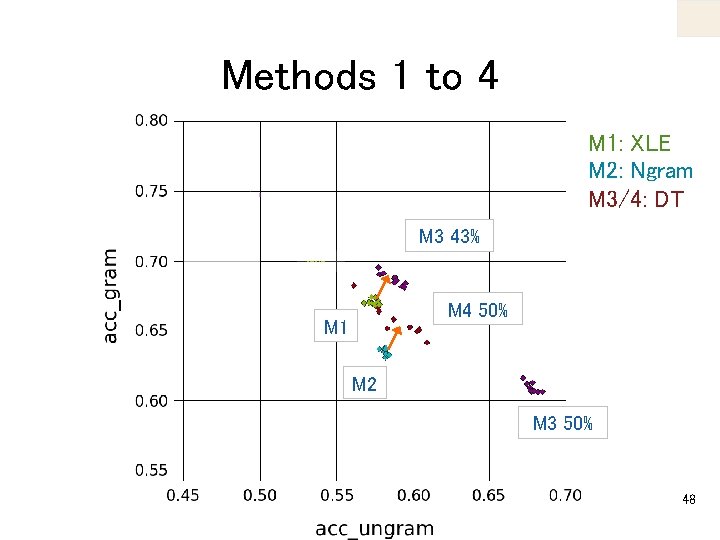

Methods 1 to 4 M 1: XLE M 2: Ngram M 3/4: DT M 3 43% M 4 50% M 1 M 2 M 3 50% 48

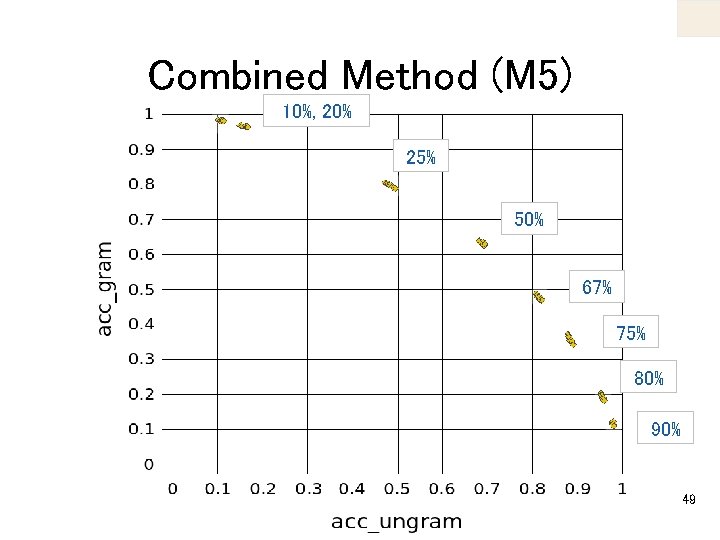

Combined Method (M 5) 10%, 20% 25% 50% 67% 75% 80% 90% 49

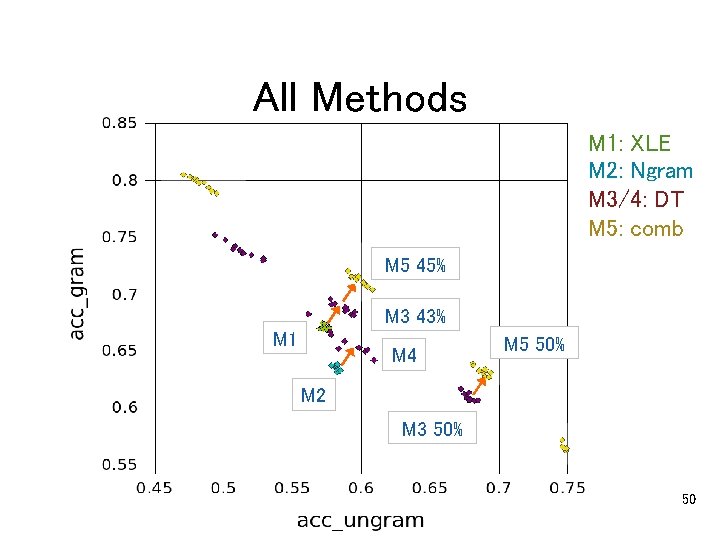

All Methods M 1: XLE M 2: Ngram M 3/4: DT M 5: comb M 5 45% M 3 43% M 1 M 4 M 5 50% M 2 M 3 50% 50

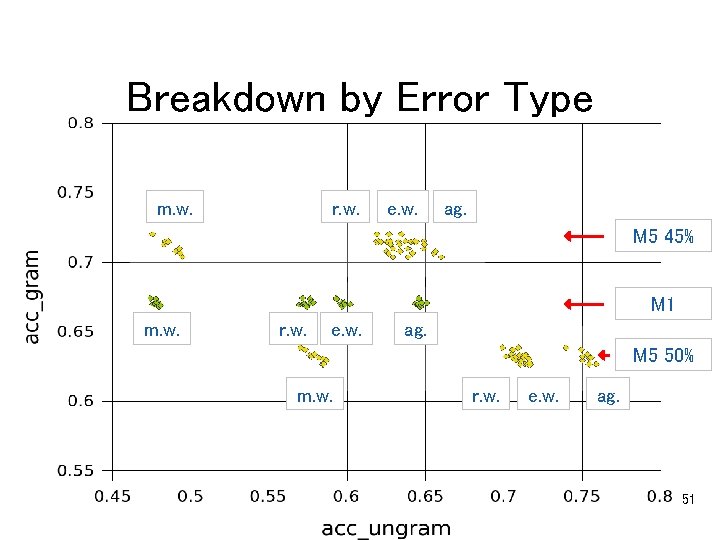

Breakdown by Error Type m. w. r. w. e. w. ag. M 5 45% M 1 m. w. r. w. e. w. ag. M 5 50% m. w. r. w. e. w. ag. 51

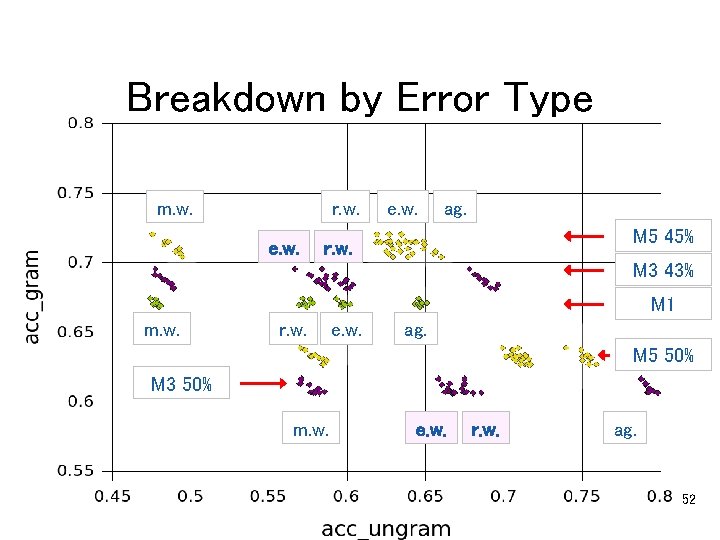

Breakdown by Error Type m. w. r. w. e. w. ag. M 5 45% r. w. M 3 43% M 1 m. w. r. w. e. w. ag. M 5 50% M 3 50% m. w. e. w. r. w. ag. 52

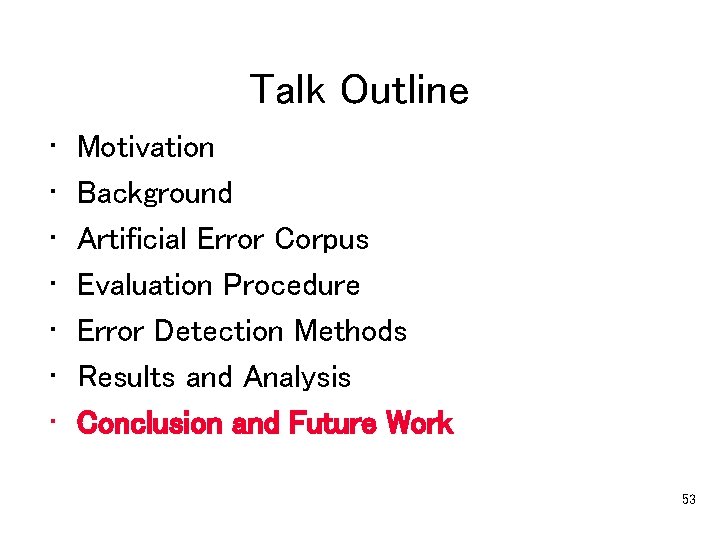

Talk Outline • • Motivation Background Artificial Error Corpus Evaluation Procedure Error Detection Methods Results and Analysis Conclusion and Future Work 53

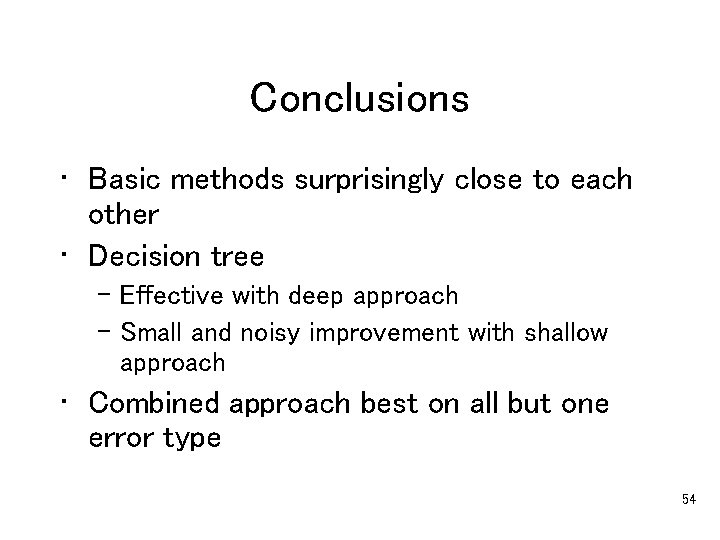

Conclusions • Basic methods surprisingly close to each other • Decision tree – Effective with deep approach – Small and noisy improvement with shallow approach • Combined approach best on all but one error type 54

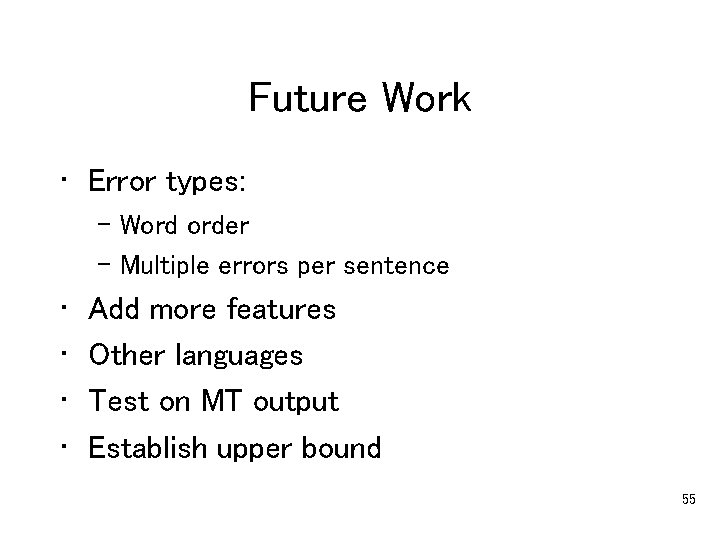

Future Work • Error types: – Word order – Multiple errors per sentence • • Add more features Other languages Test on MT output Establish upper bound 55

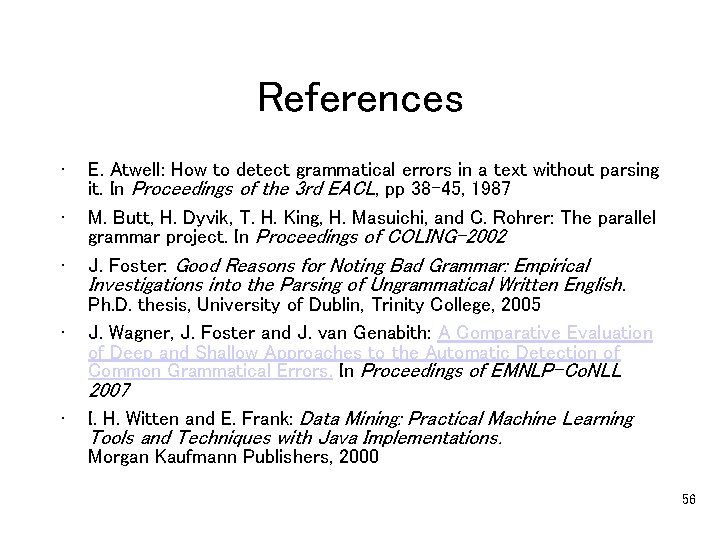

References • • E. Atwell: How to detect grammatical errors in a text without parsing it. In Proceedings of the 3 rd EACL, pp 38 -45, 1987 M. Butt, H. Dyvik, T. H. King, H. Masuichi, and C. Rohrer: The parallel grammar project. In Proceedings of COLING-2002 J. Foster: Good Reasons for Noting Bad Grammar: Empirical Investigations into the Parsing of Ungrammatical Written English. Ph. D. thesis, University of Dublin, Trinity College, 2005 J. Wagner, J. Foster and J. van Genabith: A Comparative Evaluation of Deep and Shallow Approaches to the Automatic Detection of Common Grammatical Errors. In Proceedings of EMNLP-Co. NLL 2007 • I. H. Witten and E. Frank: Data Mining: Practical Machine Learning Tools and Techniques with Java Implementations. Morgan Kaufmann Publishers, 2000 56

Thank You! Djamé Seddah (La Sorbonne University) National Centre for Language Technology School of Computing, Dublin City University 57

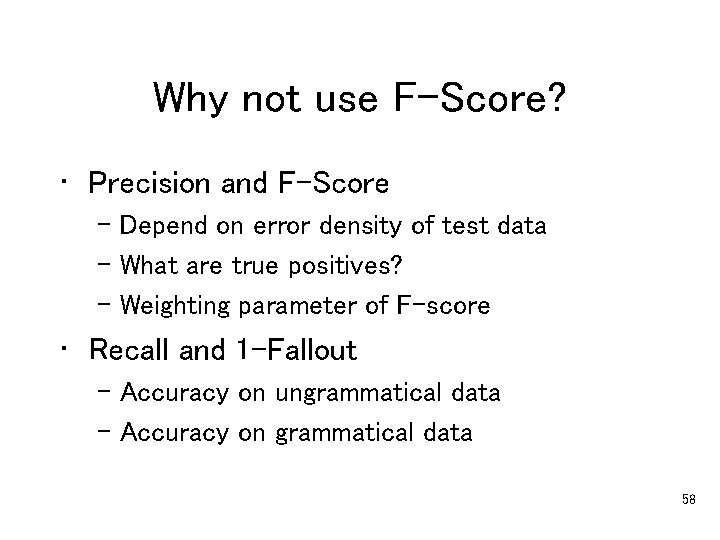

Why not use F-Score? • Precision and F-Score – Depend on error density of test data – What are true positives? – Weighting parameter of F-score • Recall and 1 -Fallout – Accuracy on ungrammatical data – Accuracy on grammatical data 58

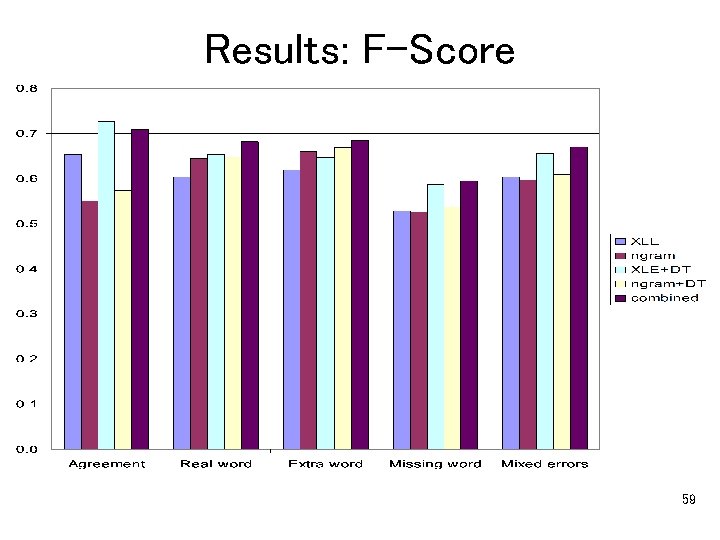

Results: F-Score 59

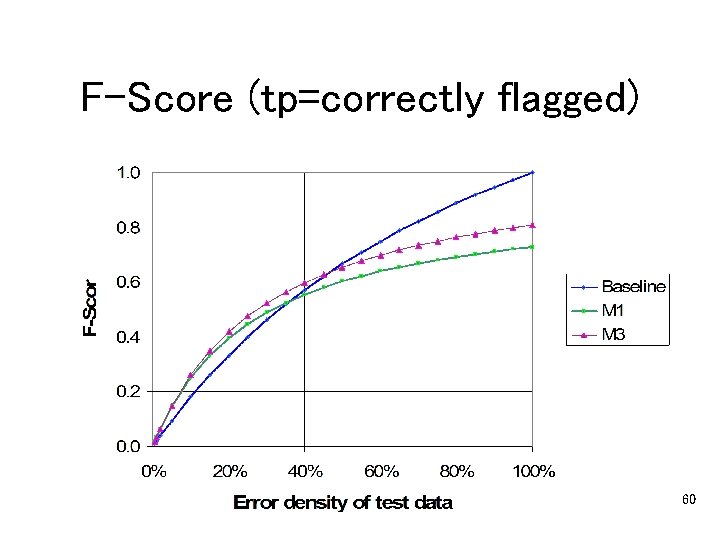

F-Score (tp=correctly flagged) 60

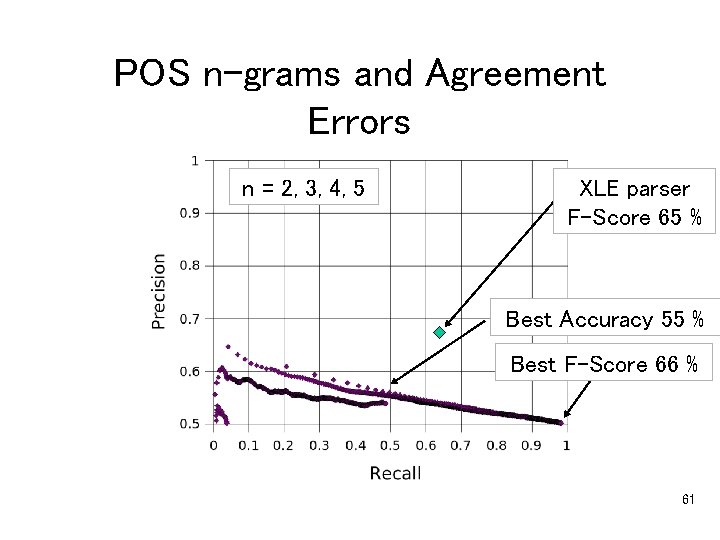

POS n-grams and Agreement Errors n = 2, 3, 4, 5 XLE parser F-Score 65 % Best Accuracy 55 % Best F-Score 66 % 61

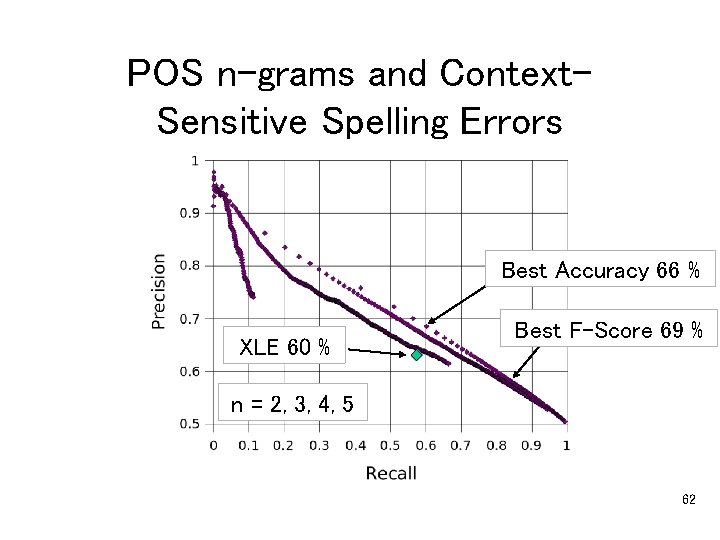

POS n-grams and Context. Sensitive Spelling Errors Best Accuracy 66 % XLE 60 % Best F-Score 69 % n = 2, 3, 4, 5 62

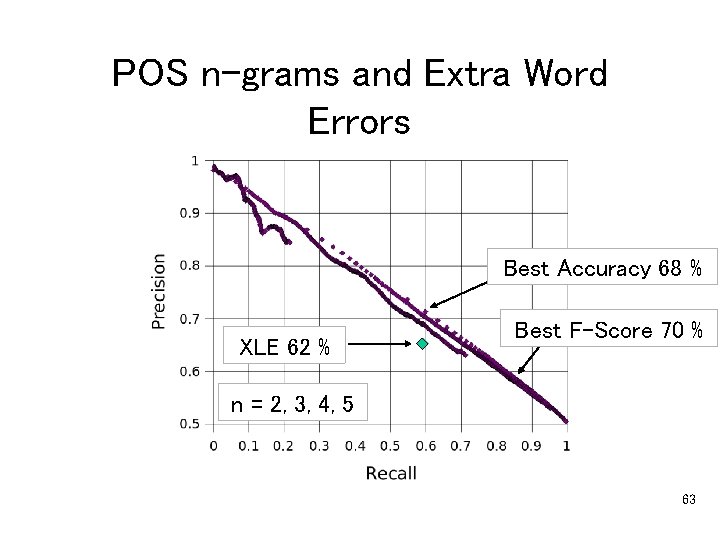

POS n-grams and Extra Word Errors Best Accuracy 68 % XLE 62 % Best F-Score 70 % n = 2, 3, 4, 5 63

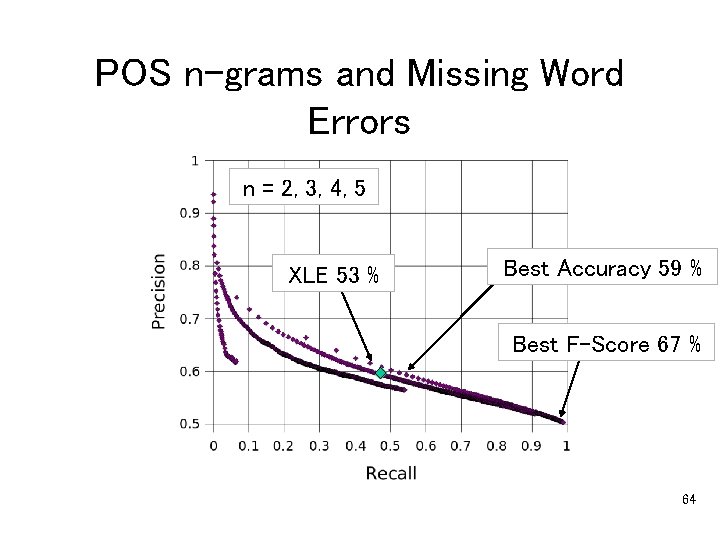

POS n-grams and Missing Word Errors n = 2, 3, 4, 5 XLE 53 % Best Accuracy 59 % Best F-Score 67 % 64

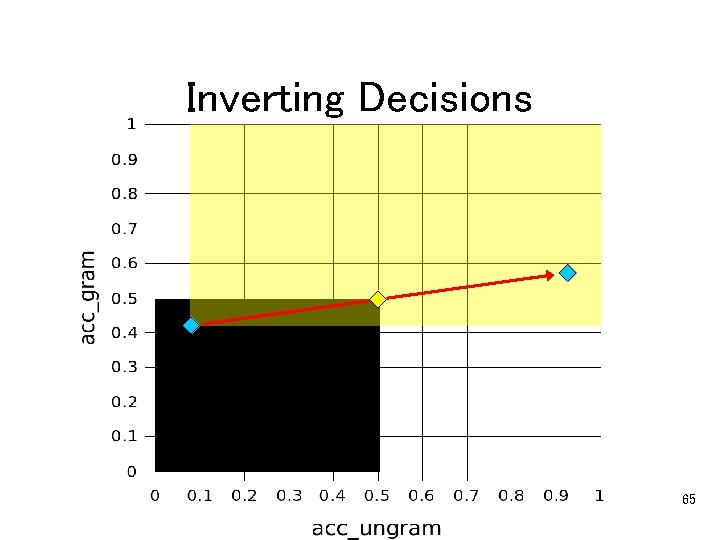

Inverting Decisions 65

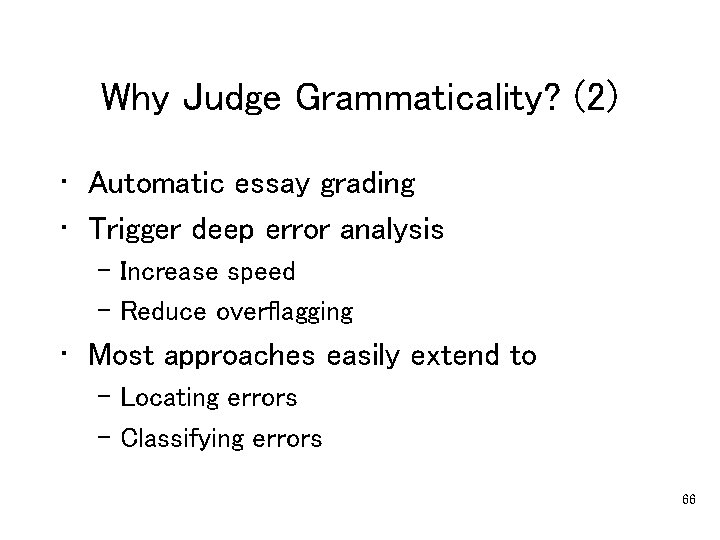

Why Judge Grammaticality? (2) • Automatic essay grading • Trigger deep error analysis – Increase speed – Reduce overflagging • Most approaches easily extend to – Locating errors – Classifying errors 66

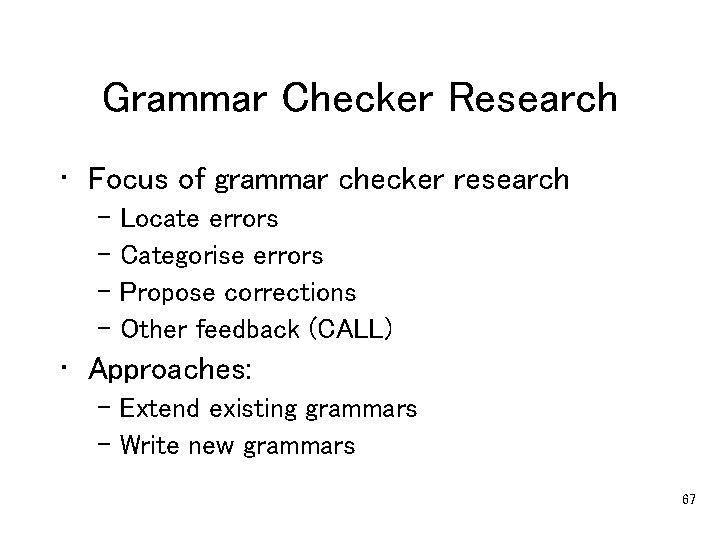

Grammar Checker Research • Focus of grammar checker research – Locate errors – Categorise errors – Propose corrections – Other feedback (CALL) • Approaches: – Extend existing grammars – Write new grammars 67

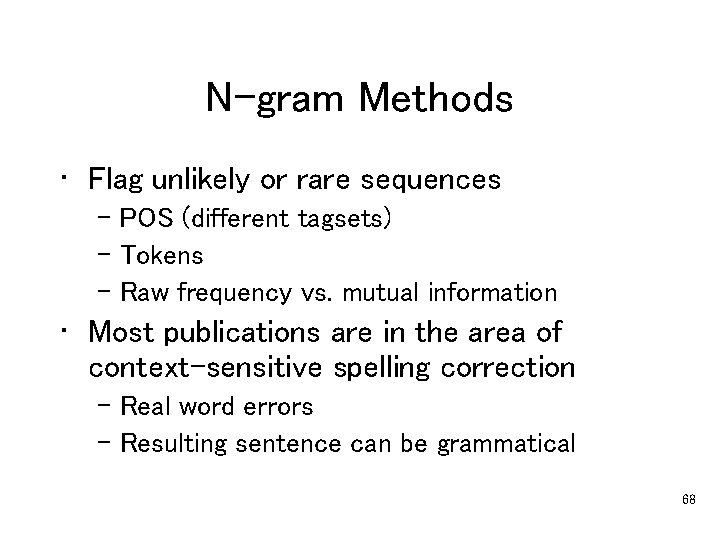

N-gram Methods • Flag unlikely or rare sequences – POS (different tagsets) – Tokens – Raw frequency vs. mutual information • Most publications are in the area of context-sensitive spelling correction – Real word errors – Resulting sentence can be grammatical 68

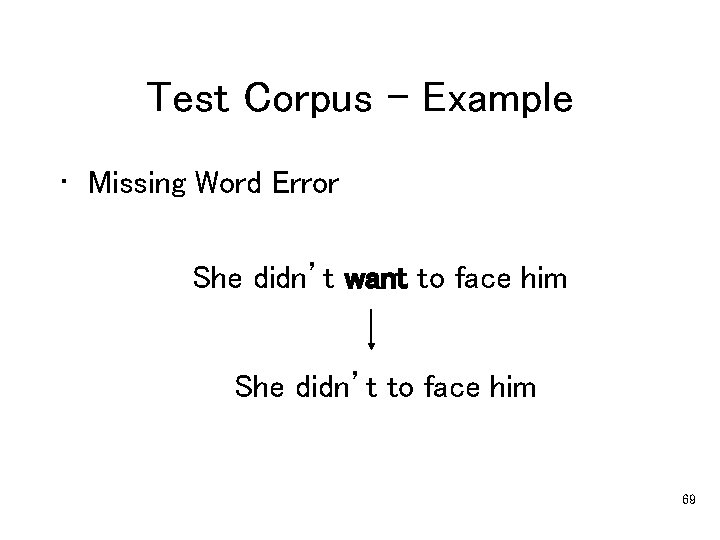

Test Corpus - Example • Missing Word Error She didn’t want to face him She didn’t to face him 69

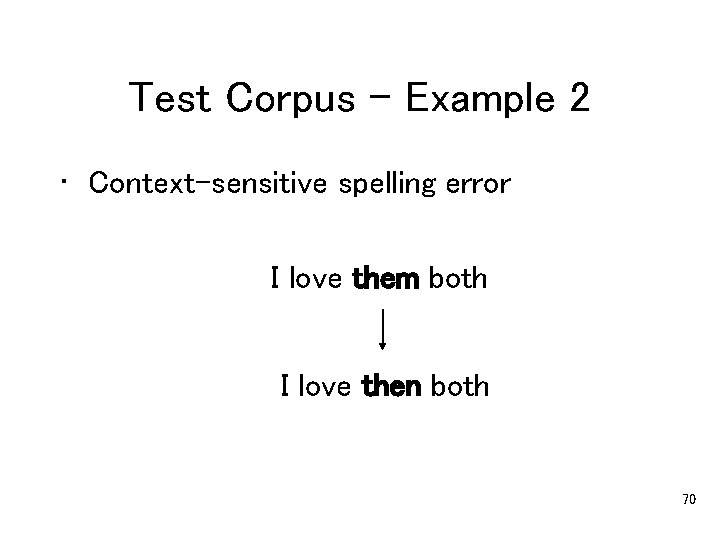

Test Corpus – Example 2 • Context-sensitive spelling error I love them both I love then both 70

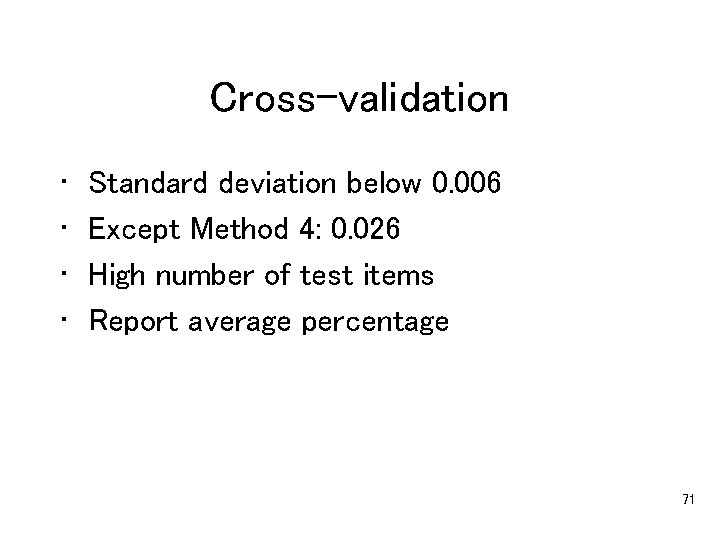

Cross-validation • • Standard deviation below 0. 006 Except Method 4: 0. 026 High number of test items Report average percentage 71

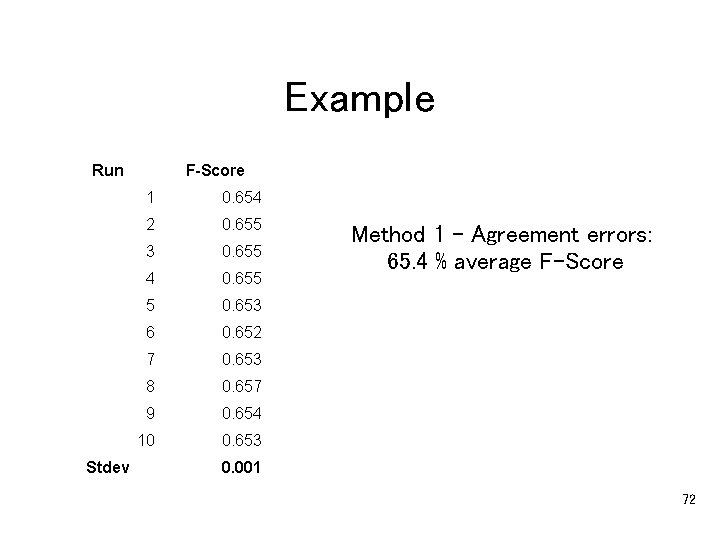

Example Run Stdev F-Score 1 0. 654 2 0. 655 3 0. 655 4 0. 655 5 0. 653 6 0. 652 7 0. 653 8 0. 657 9 0. 654 10 0. 653 Method 1 – Agreement errors: 65. 4 % average F-Score 0. 001 72
