A Brief Tour of The History of Computers Presented by Kevin Nichols KA 7 OFR

The History of Computers ► About me ► What I’ll be talking about § Primarily information on selected computers from the 1930 s - 1950 s § A few details of how specific computers worked § Such a vast field, I can do no more than touch briefly on what’s out there

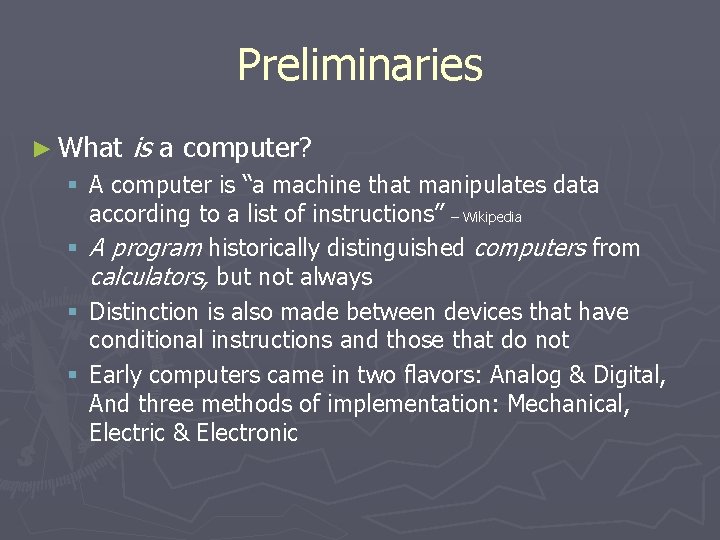

Preliminaries ► What is a computer? § A computer is “a machine that manipulates data according to a list of instructions” – Wikipedia § A program historically distinguished computers from calculators, but not always § Distinction is also made between devices that have conditional instructions and those that do not § Early computers came in two flavors: Analog & Digital, And three methods of implementation: Mechanical, Electric & Electronic

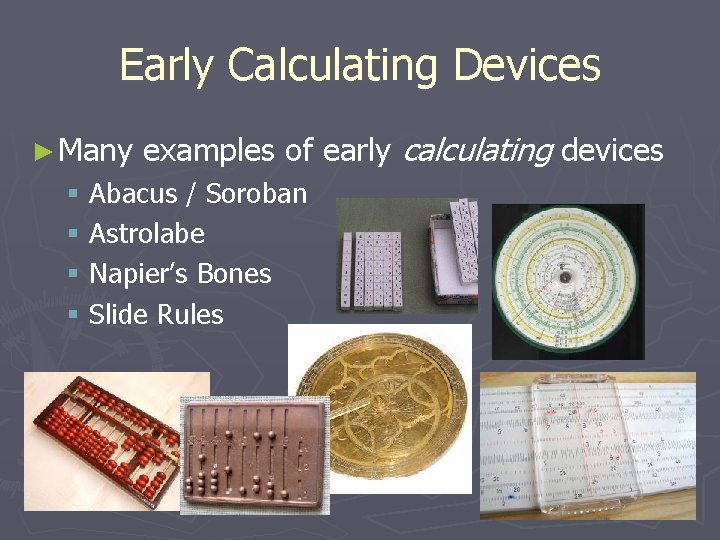

Early Calculating Devices ► Many examples of early calculating devices § Abacus / Soroban § Astrolabe § Napier’s Bones § Slide Rules

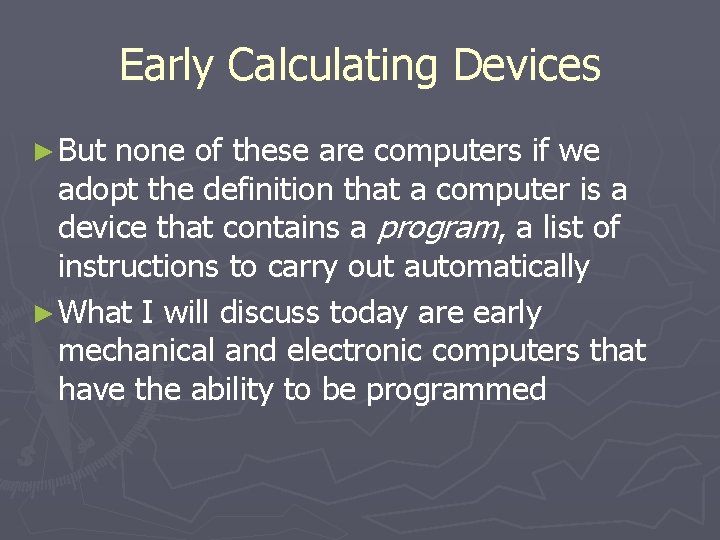

Early Calculating Devices ► But none of these are computers if we adopt the definition that a computer is a device that contains a program, a list of instructions to carry out automatically ► What I will discuss today are early mechanical and electronic computers that have the ability to be programmed

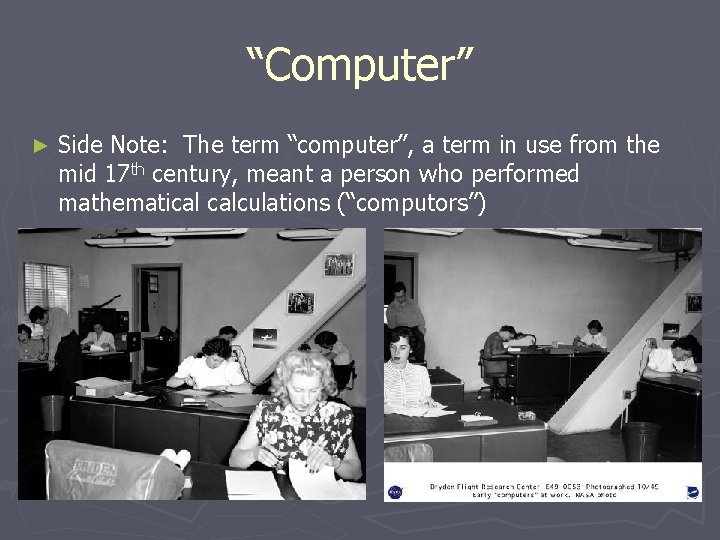

“Computer” ► Side Note: The term “computer”, a term in use from the mid 17 th century, meant a person who performed mathematical calculations (“computors”)

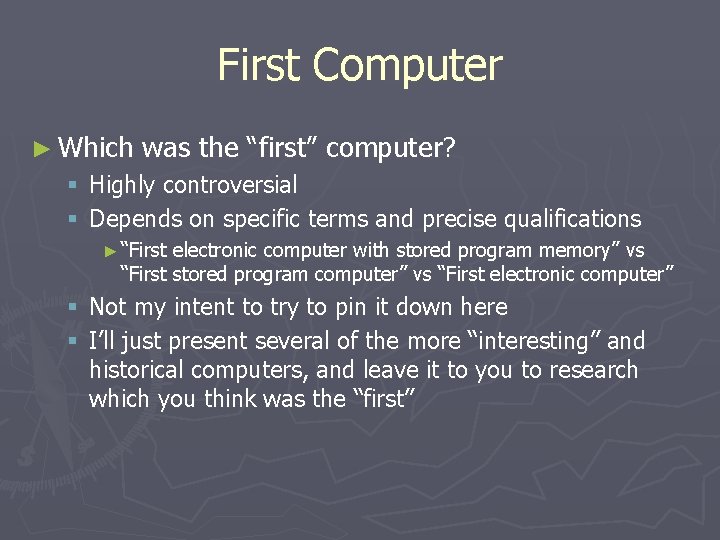

First Computer ► Which was the “first” computer? § Highly controversial § Depends on specific terms and precise qualifications ► “First electronic computer with stored program memory” vs “First stored program computer” vs “First electronic computer” § Not my intent to try to pin it down here § I’ll just present several of the more “interesting” and historical computers, and leave it to you to research which you think was the “first”

Computer Categories ► Categorizing computers § Initially computers were human, then mechanical, then electric, and finally electronic § Differentiated by the calculating “medium” used ► Mechanical § Gears, shafts, pulleys ► Electrically § Relays operated ► Electronic § Vacuum tubes, Transistors, ICs § Differentiated by the method of computing ► Analog was initially faster, but less accurate ► Digital was initially slower but more precise

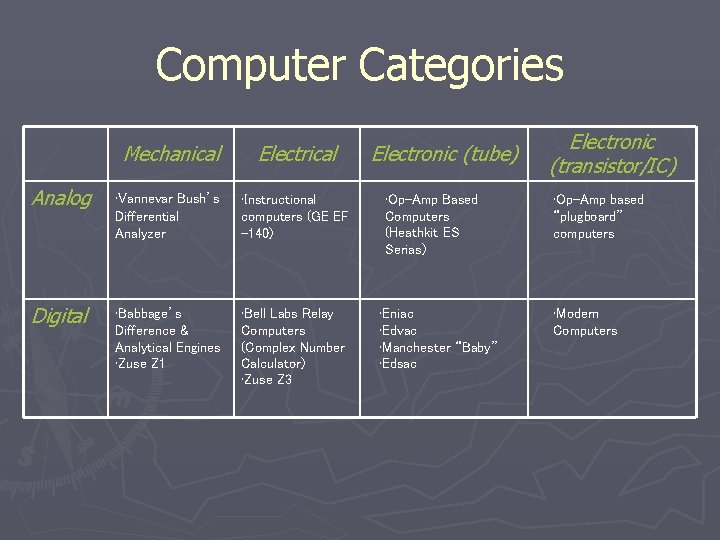

Computer Categories Analog Digital Mechanical Electrical • Vannevar Bush’s Differential Analyzer • Instructional computers (GE EF -140) • Babbage’s Difference & Analytical Engines • Zuse Z 1 • Bell Labs Relay Computers (Complex Number Calculator) • Zuse Z 3 Electronic (tube) • Op-Amp Based Computers (Heathkit ES Serias) • Eniac • Edvac • Manchester “Baby” • Edsac Electronic (transistor/IC) • Op-Amp based “plugboard” computers • Modern Computers

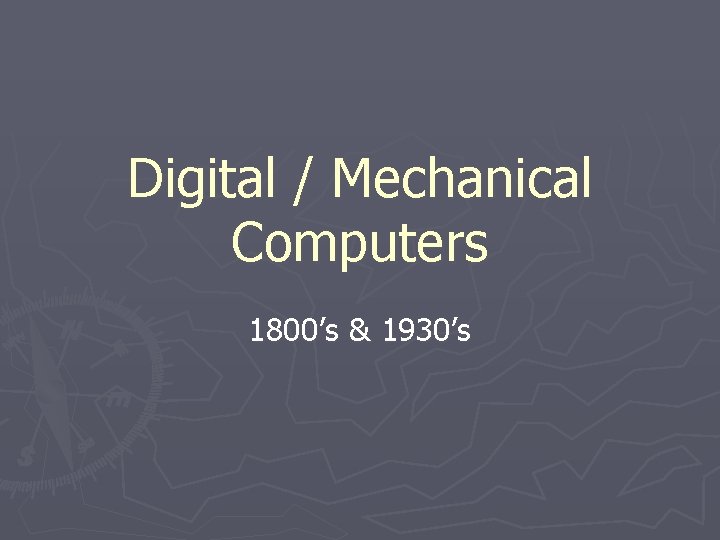

Digital / Mechanical Computers 1800’s & 1930’s

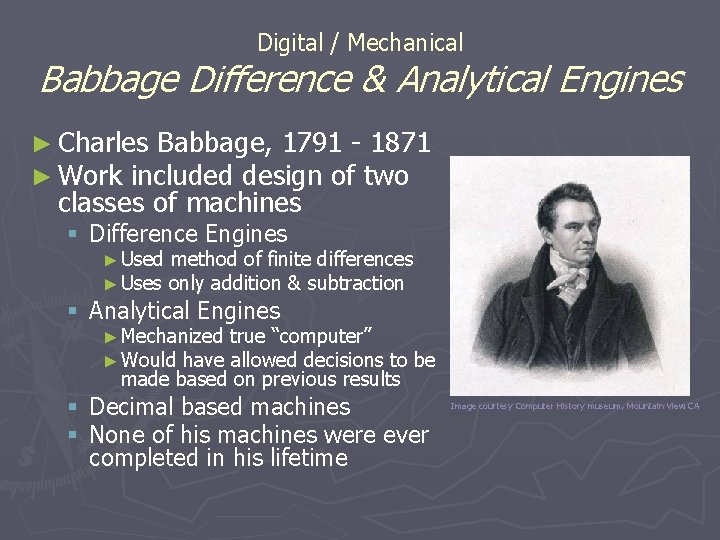

Digital / Mechanical Babbage Difference & Analytical Engines ► Charles Babbage, 1791 - 1871 ► Work included design of two classes of machines § Difference Engines ► Used method of finite differences ► Uses only addition & subtraction § Analytical Engines ► Mechanized true “computer” ► Would have allowed decisions to be made based on previous results § Decimal based machines § None of his machines were ever completed in his lifetime Image courtesy Computer History museum, Mountain View CA

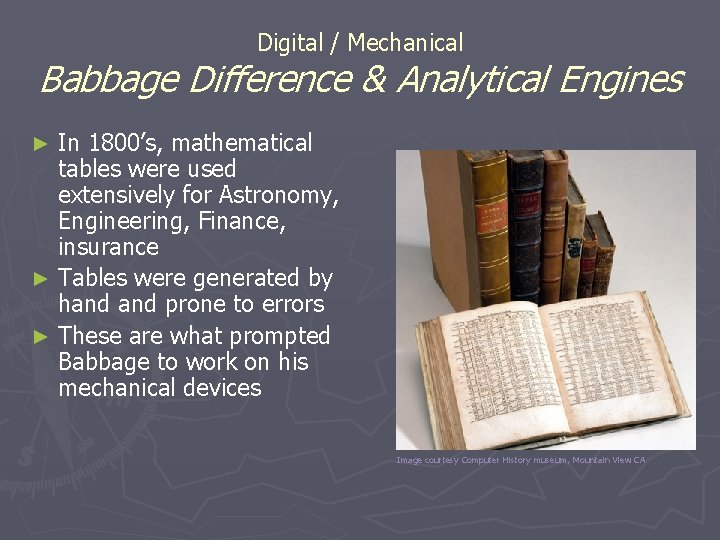

Digital / Mechanical Babbage Difference & Analytical Engines In 1800’s, mathematical tables were used extensively for Astronomy, Engineering, Finance, insurance ► Tables were generated by hand prone to errors ► These are what prompted Babbage to work on his mechanical devices ► Image courtesy Computer History museum, Mountain View CA

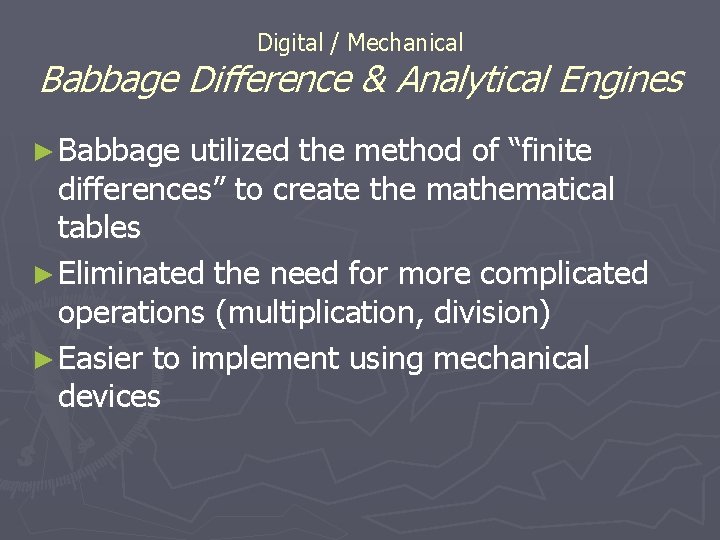

Digital / Mechanical Babbage Difference & Analytical Engines ► Babbage utilized the method of “finite differences” to create the mathematical tables ► Eliminated the need for more complicated operations (multiplication, division) ► Easier to implement using mechanical devices

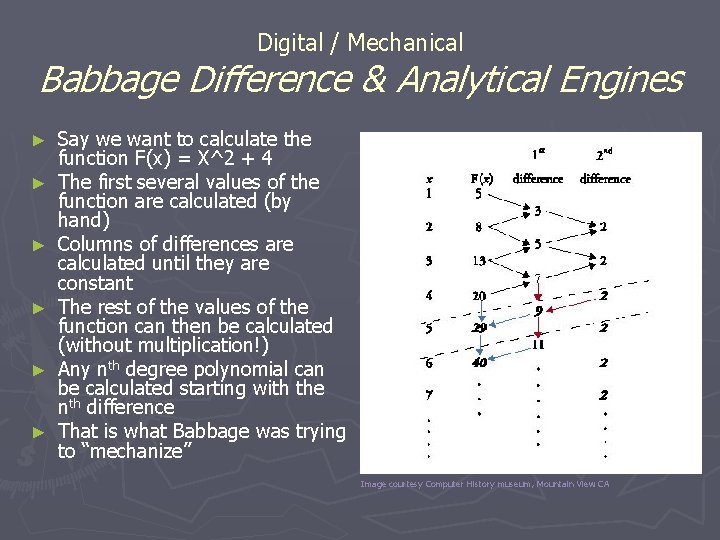

Digital / Mechanical Babbage Difference & Analytical Engines ► ► ► Say we want to calculate the function F(x) = X^2 + 4 The first several values of the function are calculated (by hand) Columns of differences are calculated until they are constant The rest of the values of the function can then be calculated (without multiplication!) Any nth degree polynomial can be calculated starting with the nth difference That is what Babbage was trying to “mechanize” Image courtesy Computer History museum, Mountain View CA

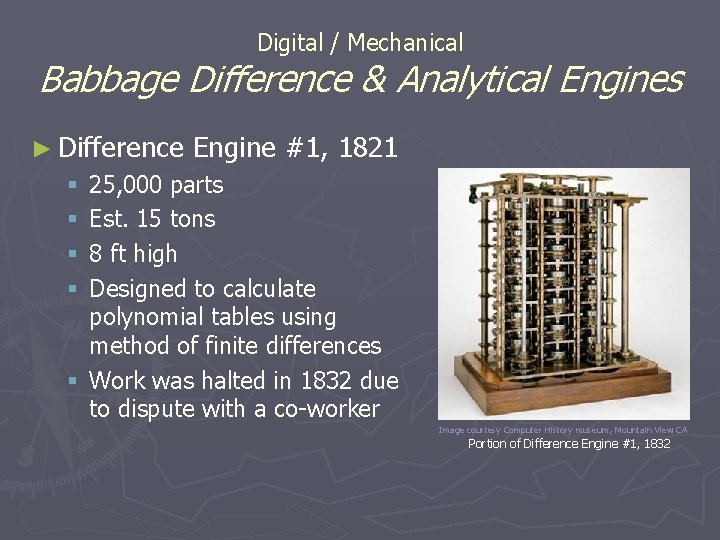

Digital / Mechanical Babbage Difference & Analytical Engines ► Difference Engine #1, 1821 25, 000 parts Est. 15 tons 8 ft high Designed to calculate polynomial tables using method of finite differences § Work was halted in 1832 due to dispute with a co-worker § § Image courtesy Computer History museum, Mountain View CA Portion of Difference Engine #1, 1832

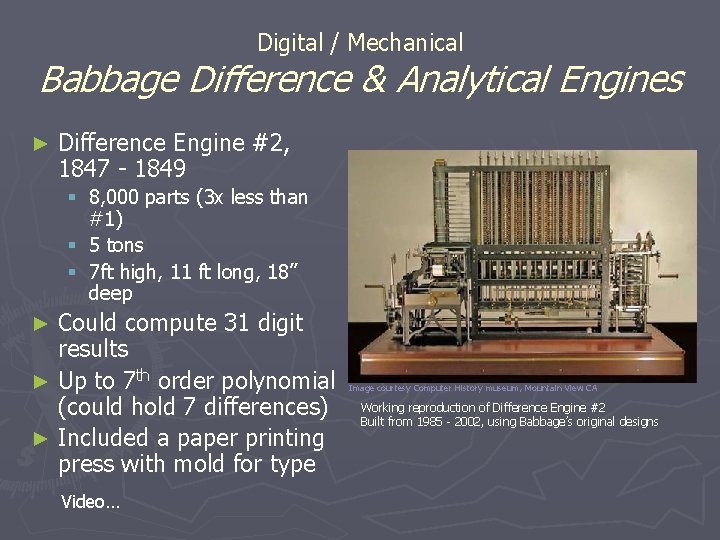

Digital / Mechanical Babbage Difference & Analytical Engines ► Difference Engine #2, 1847 - 1849 § 8, 000 parts (3 x less than #1) § 5 tons § 7 ft high, 11 ft long, 18” deep Could compute 31 digit results ► Up to 7 th order polynomial (could hold 7 differences) ► Included a paper printing press with mold for type ► Video… Image courtesy Computer History museum, Mountain View CA Working reproduction of Difference Engine #2 Built from 1985 - 2002, using Babbage’s original designs

Digital / Mechanical Babbage Difference & Analytical Engines Video courtesy: Computer History Museum, Mountain View CA

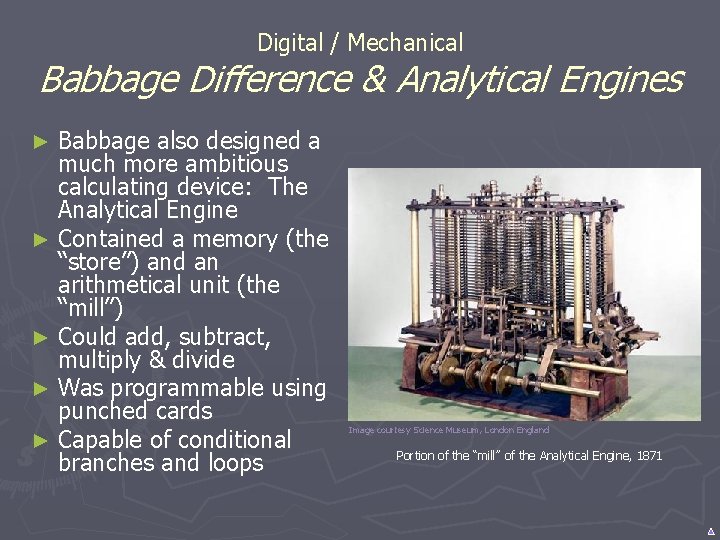

Digital / Mechanical Babbage Difference & Analytical Engines Babbage also designed a much more ambitious calculating device: The Analytical Engine ► Contained a memory (the “store”) and an arithmetical unit (the “mill”) ► Could add, subtract, multiply & divide ► Was programmable using punched cards ► Capable of conditional branches and loops ► Image courtesy Science Museum, London England Portion of the “mill” of the Analytical Engine, 1871

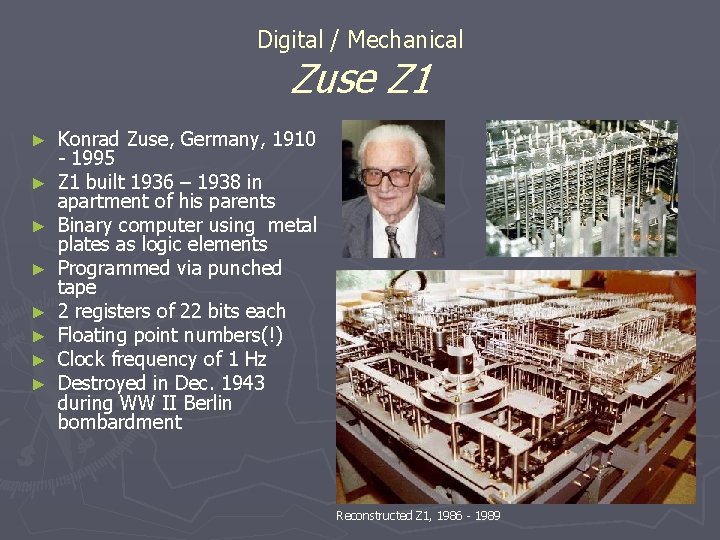

Digital / Mechanical Zuse Z 1 ► ► ► ► Konrad Zuse, Germany, 1910 - 1995 Z 1 built 1936 – 1938 in apartment of his parents Binary computer using metal plates as logic elements Programmed via punched tape 2 registers of 22 bits each Floating point numbers(!) Clock frequency of 1 Hz Destroyed in Dec. 1943 during WW II Berlin bombardment Reconstructed Z 1, 1986 - 1989

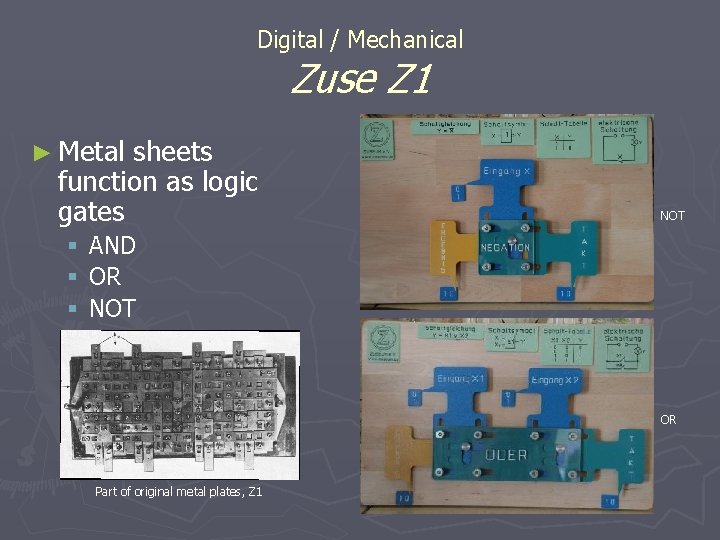

Digital / Mechanical Zuse Z 1 ► Metal sheets function as logic gates NOT § AND § OR § NOT OR Part of original metal plates, Z 1

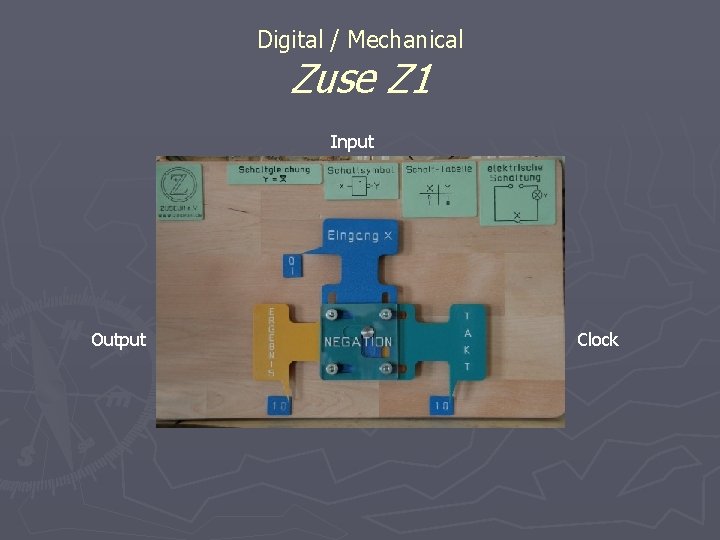

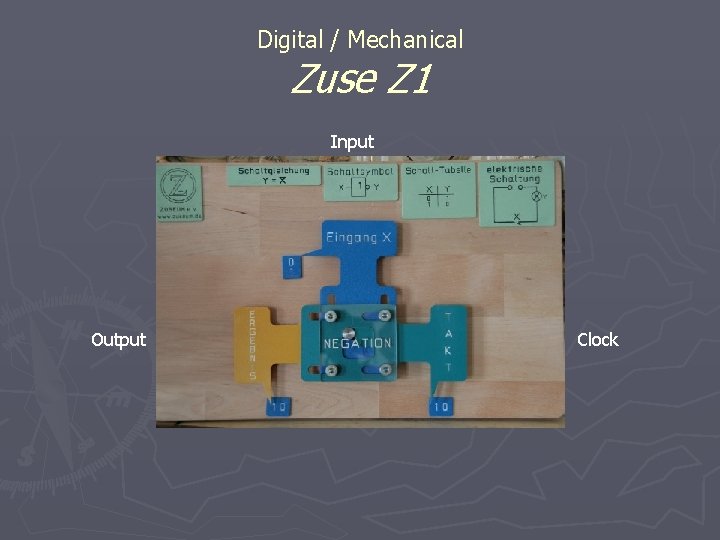

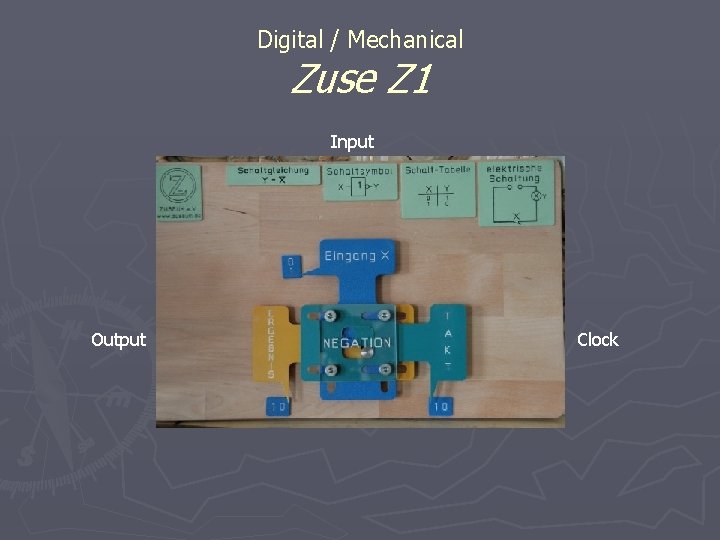

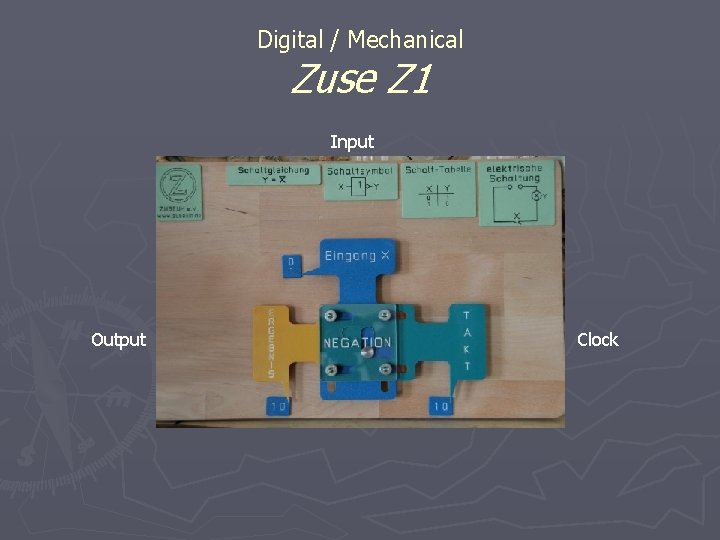

Digital / Mechanical Zuse Z 1 Input Output Clock

Analog / Mechanical Computers Early 1900 s

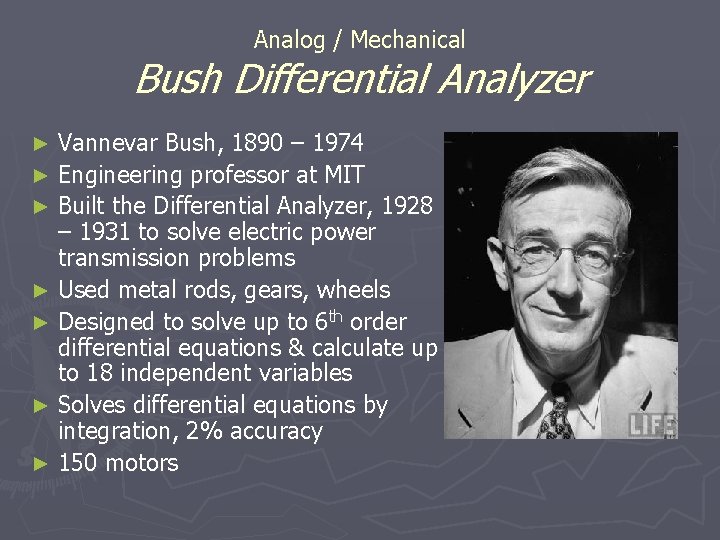

Analog / Mechanical Bush Differential Analyzer Vannevar Bush, 1890 – 1974 ► Engineering professor at MIT ► Built the Differential Analyzer, 1928 – 1931 to solve electric power transmission problems ► Used metal rods, gears, wheels ► Designed to solve up to 6 th order differential equations & calculate up to 18 independent variables ► Solves differential equations by integration, 2% accuracy ► 150 motors ►

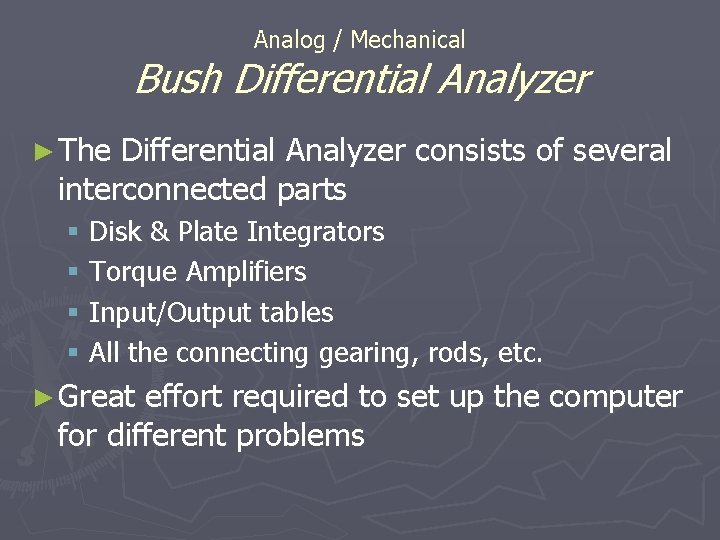

Analog / Mechanical Bush Differential Analyzer ► The Differential Analyzer consists of several interconnected parts § Disk & Plate Integrators § Torque Amplifiers § Input/Output tables § All the connecting gearing, rods, etc. ► Great effort required to set up the computer for different problems

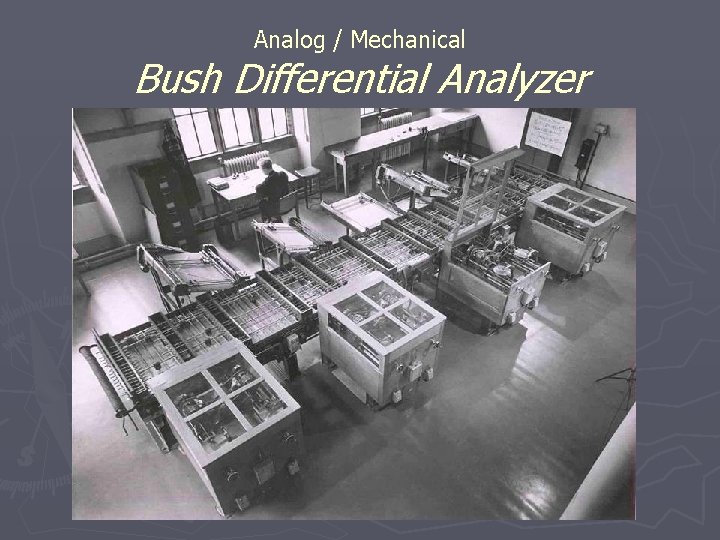

Analog / Mechanical Bush Differential Analyzer

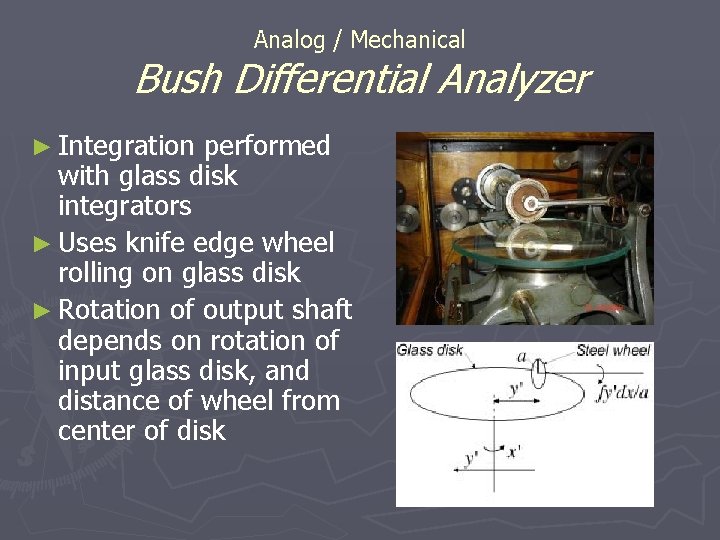

Analog / Mechanical Bush Differential Analyzer ► Integration performed with glass disk integrators ► Uses knife edge wheel rolling on glass disk ► Rotation of output shaft depends on rotation of input glass disk, and distance of wheel from center of disk

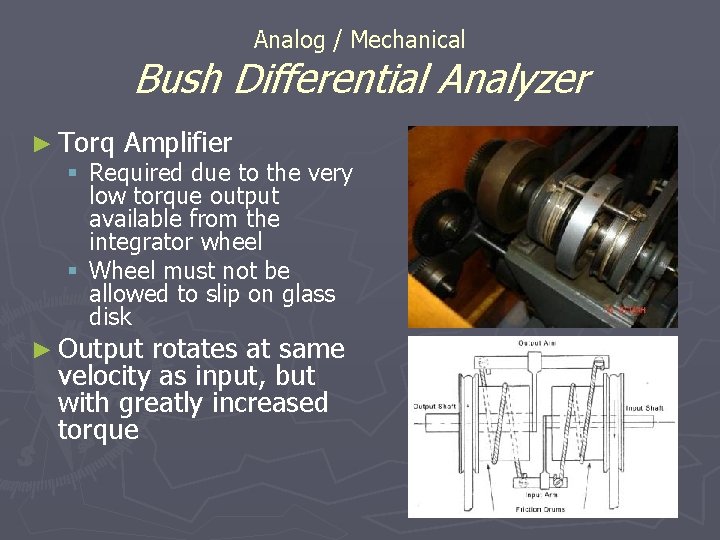

Analog / Mechanical Bush Differential Analyzer ► Torq Amplifier § Required due to the very low torque output available from the integrator wheel § Wheel must not be allowed to slip on glass disk ► Output rotates at same velocity as input, but with greatly increased torque

Analog / Mechanical Bush Differential Analyzer ► Input/Output Tables § Input table ► Provide arbitrary input as computer runs ► Computer drives ‘X’ direction, human turns knob to make pen follow curve § Output table ► Computer drives pen in ‘X’ and ‘Y’ coordinates to draw curve on paper

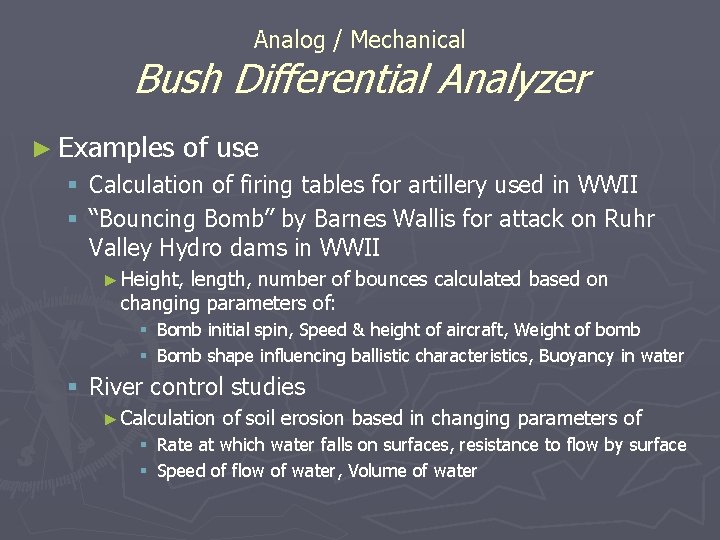

Analog / Mechanical Bush Differential Analyzer ► Examples of use § Calculation of firing tables for artillery used in WWII § “Bouncing Bomb” by Barnes Wallis for attack on Ruhr Valley Hydro dams in WWII ► Height, length, number of bounces calculated based on changing parameters of: § Bomb initial spin, Speed & height of aircraft, Weight of bomb § Bomb shape influencing ballistic characteristics, Buoyancy in water § River control studies ► Calculation of soil erosion based in changing parameters of § Rate at which water falls on surfaces, resistance to flow by surface § Speed of flow of water, Volume of water

Analog / Mechanical Bush Differential Analyzer ►A “home made” differential analyzer was built in 1934 by Hartree & Porter ► Built at the University of Manchester ► Made primarily of Meccano parts § Was actually used for military purposes § Cost 20 pounds § Said to have Achieved 2% accuracy

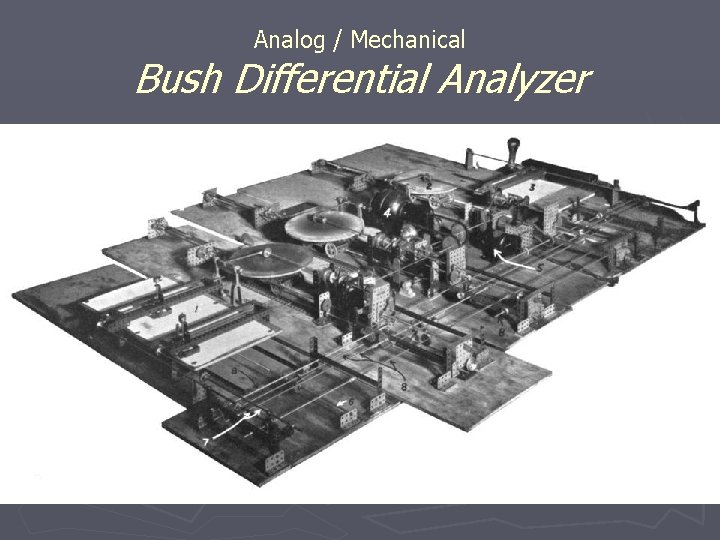

Analog / Mechanical Bush Differential Analyzer

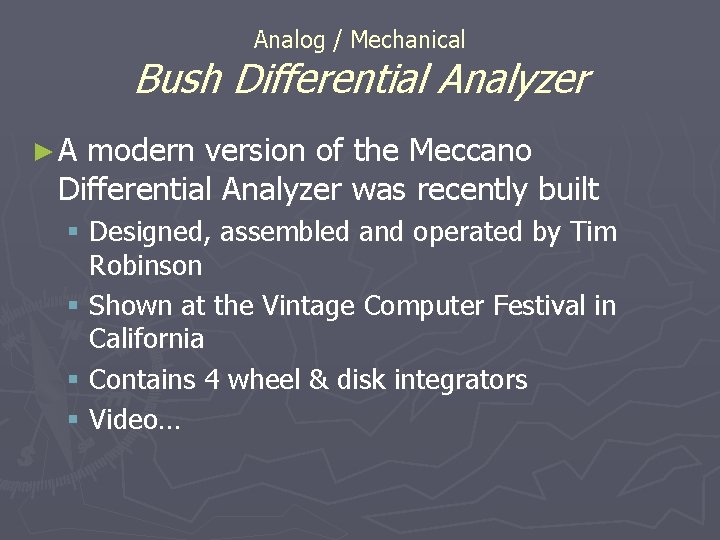

Analog / Mechanical Bush Differential Analyzer ►A modern version of the Meccano Differential Analyzer was recently built § Designed, assembled and operated by Tim Robinson § Shown at the Vintage Computer Festival in California § Contains 4 wheel & disk integrators § Video…

Digital / Electric (Relay) Computers 1930 s - 1940 s

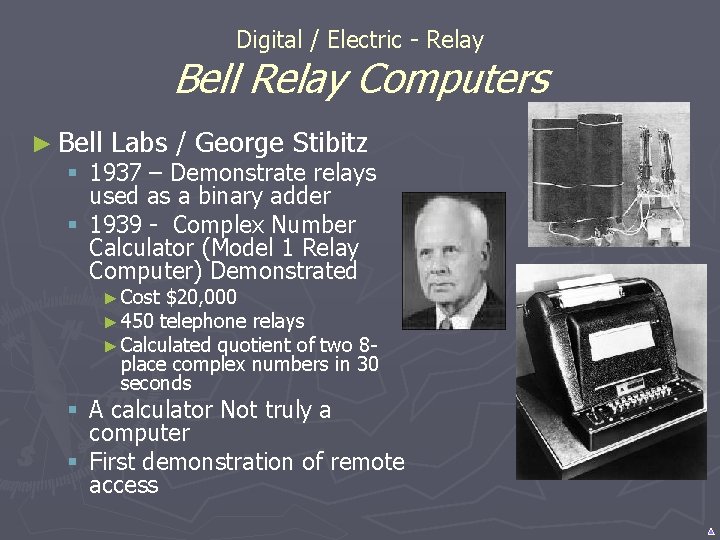

Digital / Electric - Relay Bell Relay Computers ► Bell Labs / George Stibitz § 1937 – Demonstrate relays used as a binary adder § 1939 - Complex Number Calculator (Model 1 Relay Computer) Demonstrated ► Cost $20, 000 ► 450 telephone relays ► Calculated quotient of two 8 place complex numbers in 30 seconds § A calculator Not truly a computer § First demonstration of remote access

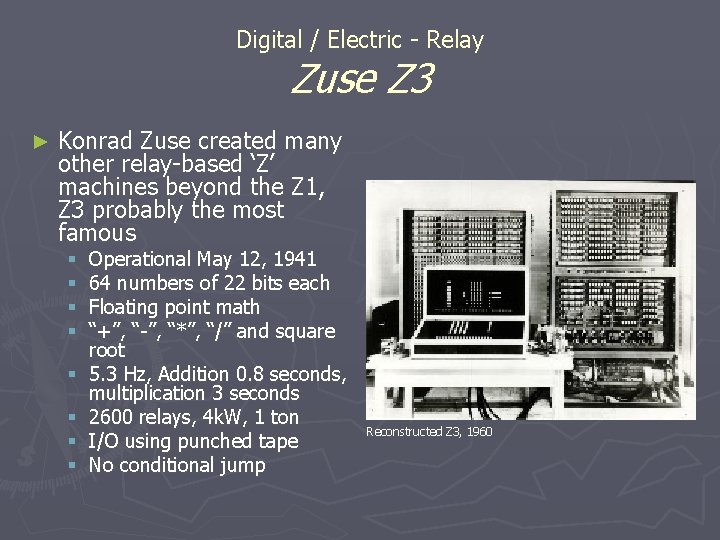

Digital / Electric - Relay Zuse Z 3 ► Konrad Zuse created many other relay-based ‘Z’ machines beyond the Z 1, Z 3 probably the most famous § § § § Operational May 12, 1941 64 numbers of 22 bits each Floating point math “+”, “-”, “*”, “/” and square root 5. 3 Hz, Addition 0. 8 seconds, multiplication 3 seconds 2600 relays, 4 k. W, 1 ton I/O using punched tape No conditional jump Reconstructed Z 3, 1960

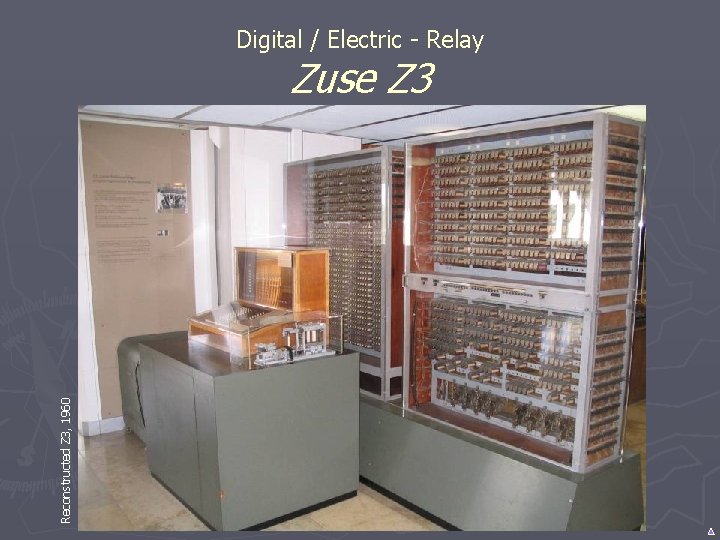

Digital / Electric - Relay Reconstructed Z 3, 1960 Zuse Z 3

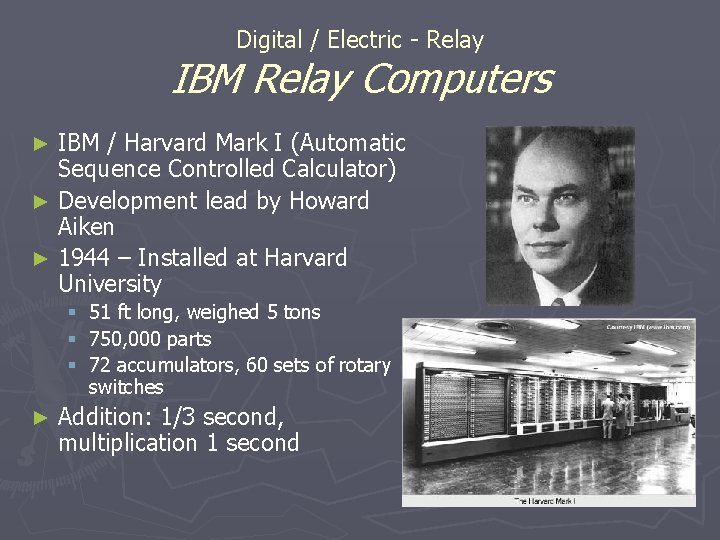

Digital / Electric - Relay IBM Relay Computers IBM / Harvard Mark I (Automatic Sequence Controlled Calculator) ► Development lead by Howard Aiken ► 1944 – Installed at Harvard University ► § § § ► 51 ft long, weighed 5 tons 750, 000 parts 72 accumulators, 60 sets of rotary switches Addition: 1/3 second, multiplication 1 second

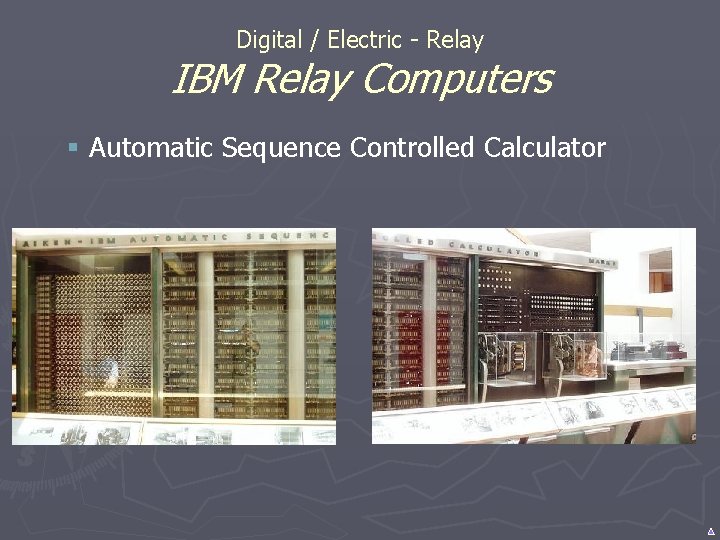

Digital / Electric - Relay IBM Relay Computers § Automatic Sequence Controlled Calculator

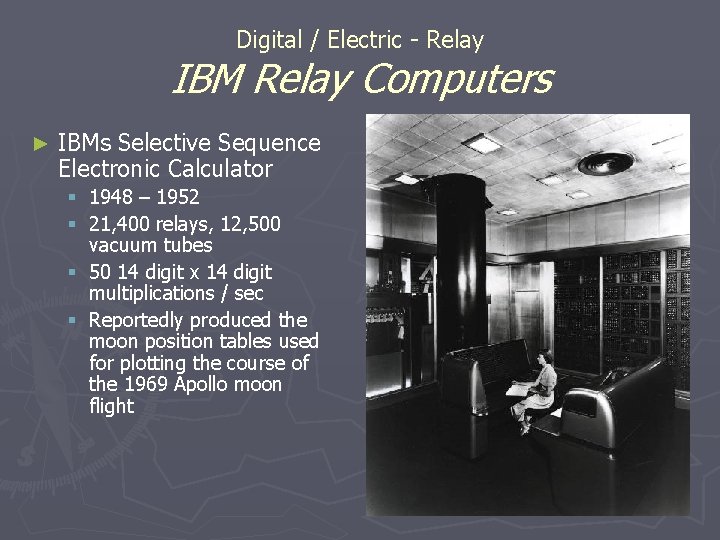

Digital / Electric - Relay IBM Relay Computers ► IBMs Selective Sequence Electronic Calculator § 1948 – 1952 § 21, 400 relays, 12, 500 vacuum tubes § 50 14 digit x 14 digit multiplications / sec § Reportedly produced the moon position tables used for plotting the course of the 1969 Apollo moon flight

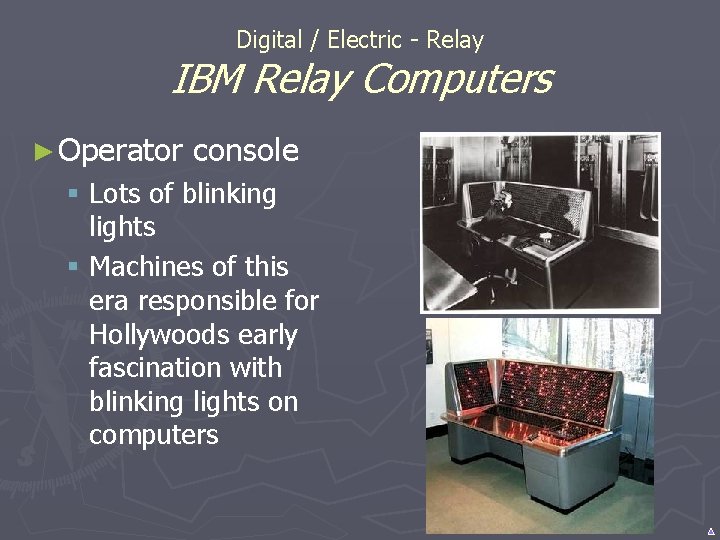

Digital / Electric - Relay IBM Relay Computers ► Operator console § Lots of blinking lights § Machines of this era responsible for Hollywoods early fascination with blinking lights on computers

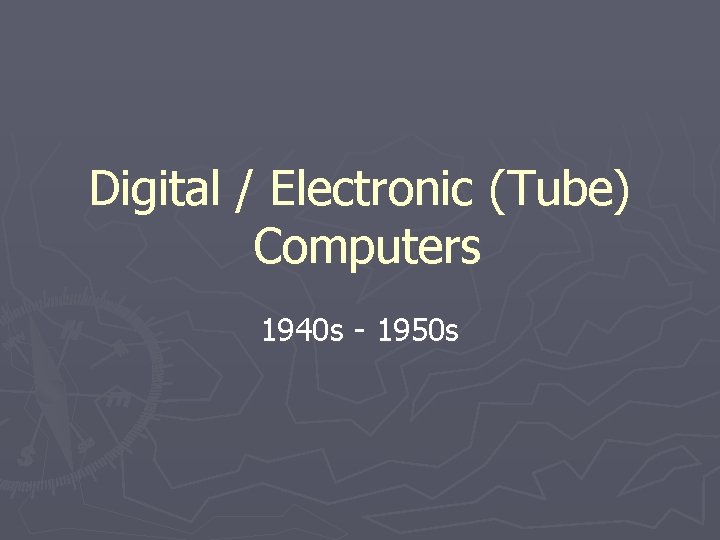

Digital / Electronic (Tube) Computers 1940 s - 1950 s

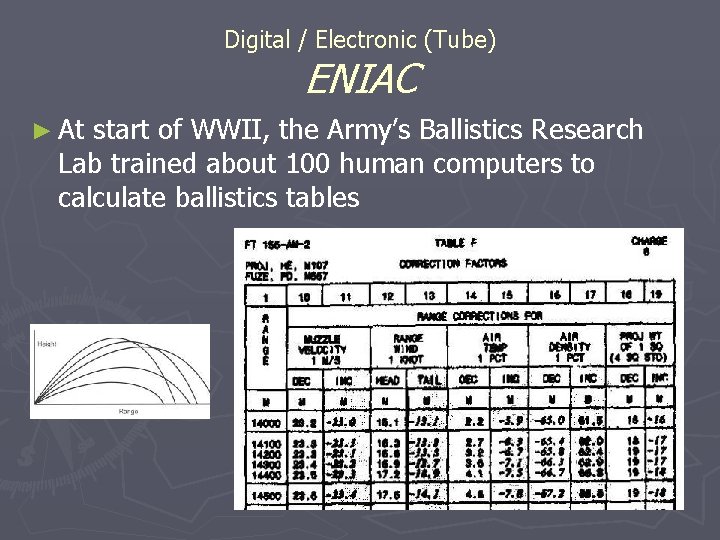

Digital / Electronic (Tube) ENIAC ► At start of WWII, the Army’s Ballistics Research Lab trained about 100 human computers to calculate ballistics tables

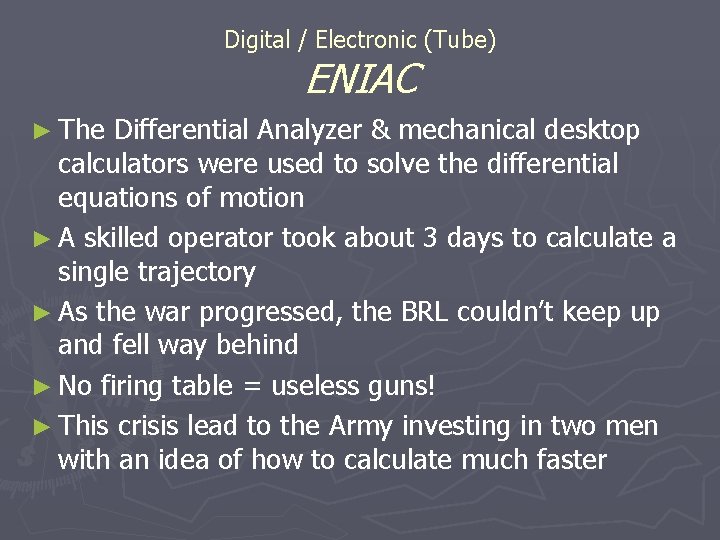

Digital / Electronic (Tube) ENIAC ► The Differential Analyzer & mechanical desktop calculators were used to solve the differential equations of motion ► A skilled operator took about 3 days to calculate a single trajectory ► As the war progressed, the BRL couldn’t keep up and fell way behind ► No firing table = useless guns! ► This crisis lead to the Army investing in two men with an idea of how to calculate much faster

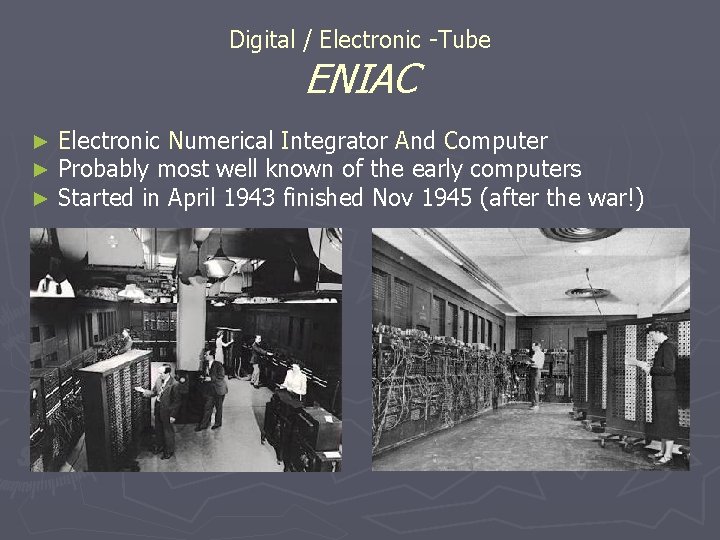

Digital / Electronic -Tube ENIAC ► ► ► Electronic Numerical Integrator And Computer Probably most well known of the early computers Started in April 1943 finished Nov 1945 (after the war!)

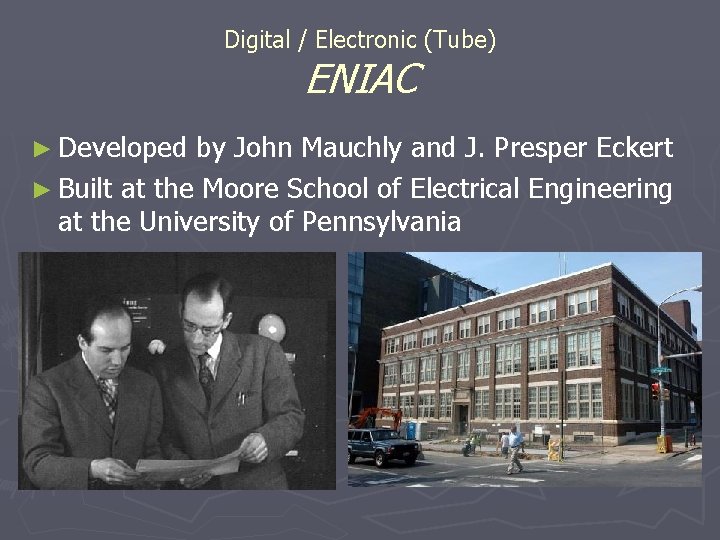

Digital / Electronic (Tube) ENIAC ► Developed by John Mauchly and J. Presper Eckert ► Built at the Moore School of Electrical Engineering at the University of Pennsylvania

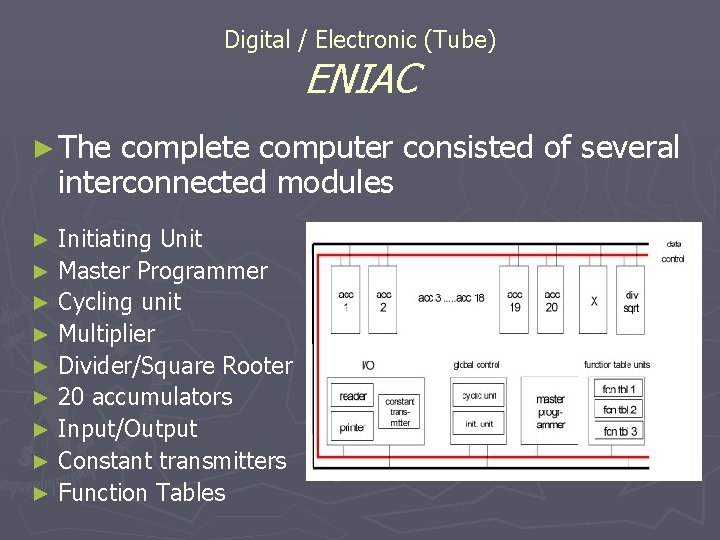

Digital / Electronic (Tube) ENIAC ► The complete computer consisted of several interconnected modules Initiating Unit ► Master Programmer ► Cycling unit ► Multiplier ► Divider/Square Rooter ► 20 accumulators ► Input/Output ► Constant transmitters ► Function Tables ►

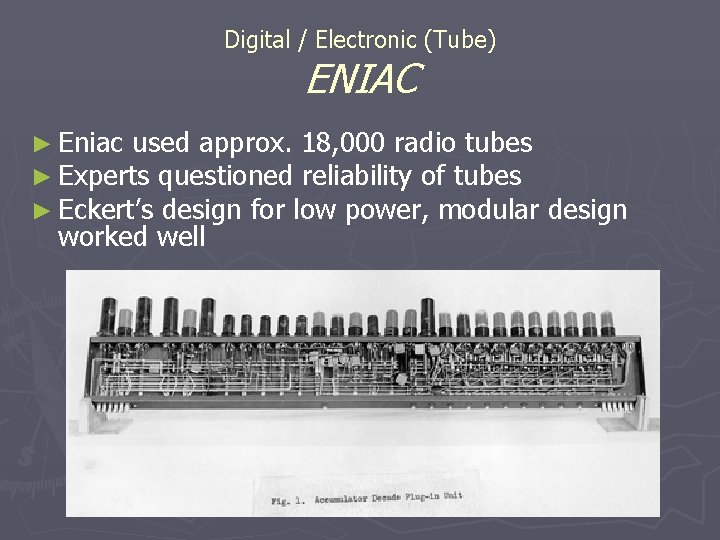

Digital / Electronic (Tube) ENIAC ► Eniac used approx. 18, 000 radio tubes ► Experts questioned reliability of tubes ► Eckert’s design for low power, modular worked well design

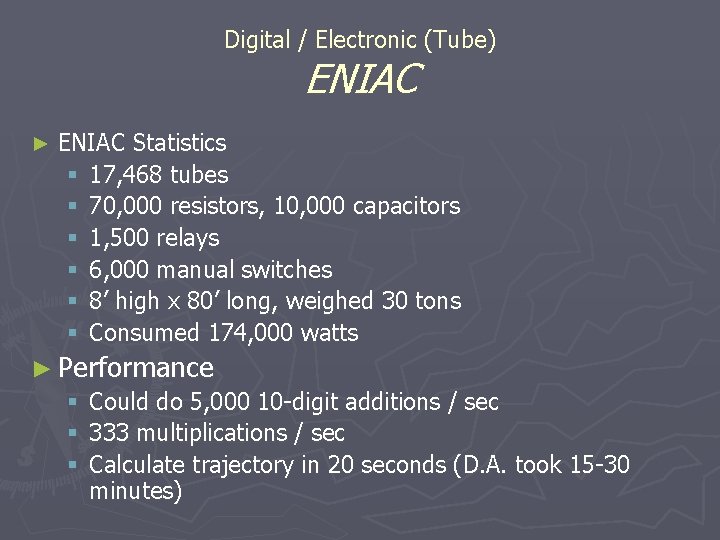

Digital / Electronic (Tube) ENIAC ► ENIAC Statistics § 17, 468 tubes § 70, 000 resistors, 10, 000 capacitors § 1, 500 relays § 6, 000 manual switches § 8’ high x 80’ long, weighed 30 tons § Consumed 174, 000 watts ► Performance § Could do 5, 000 10 -digit additions / sec § 333 multiplications / sec § Calculate trajectory in 20 seconds (D. A. took 15 -30 minutes)

Digital / Electronic (Tube) ENIAC ► ► ► Computed by counting pulses using base-10 rather than base-2 Eniac’s primary calculating modules were the 20 Accumulators Each accumulator consisted of 10 ring counters of 10 digits each

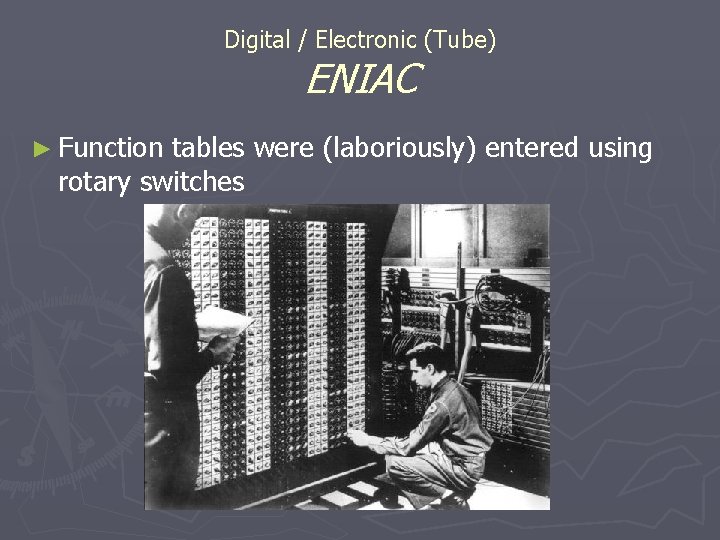

Digital / Electronic (Tube) ENIAC ► Function tables were (laboriously) entered using rotary switches

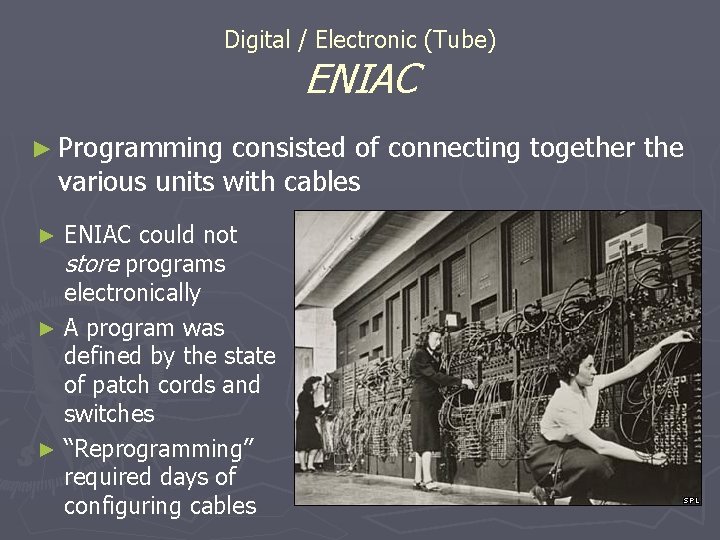

Digital / Electronic (Tube) ENIAC ► Programming consisted of connecting together the various units with cables ENIAC could not store programs electronically ► A program was defined by the state of patch cords and switches ► “Reprogramming” required days of configuring cables ►

Digital / Electronic -Tube ENIAC ► Eniac was even used as a recruiting tool ► Army’s 1940’s version of “Be all you can be” ad! Video…

Digital / Electronic (Tube) ENIAC

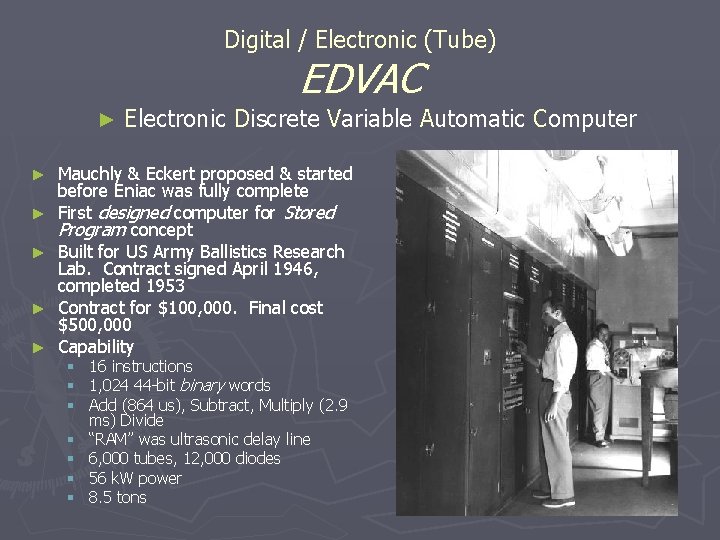

Digital / Electronic (Tube) EDVAC ► ► ► Electronic Discrete Variable Automatic Computer Mauchly & Eckert proposed & started before Eniac was fully complete First designed computer for Stored Program concept Built for US Army Ballistics Research Lab. Contract signed April 1946, completed 1953 Contract for $100, 000. Final cost $500, 000 Capability § § § § 16 instructions 1, 024 44 -bit binary words Add (864 us), Subtract, Multiply (2. 9 ms) Divide “RAM” was ultrasonic delay line 6, 000 tubes, 12, 000 diodes 56 k. W power 8. 5 tons

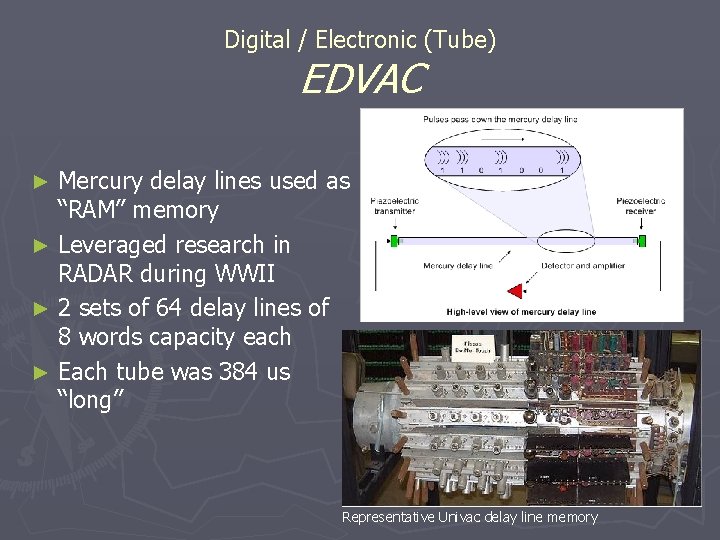

Digital / Electronic (Tube) EDVAC Mercury delay lines used as “RAM” memory ► Leveraged research in RADAR during WWII ► 2 sets of 64 delay lines of 8 words capacity each ► Each tube was 384 us “long” ► Representative Univac delay line memory

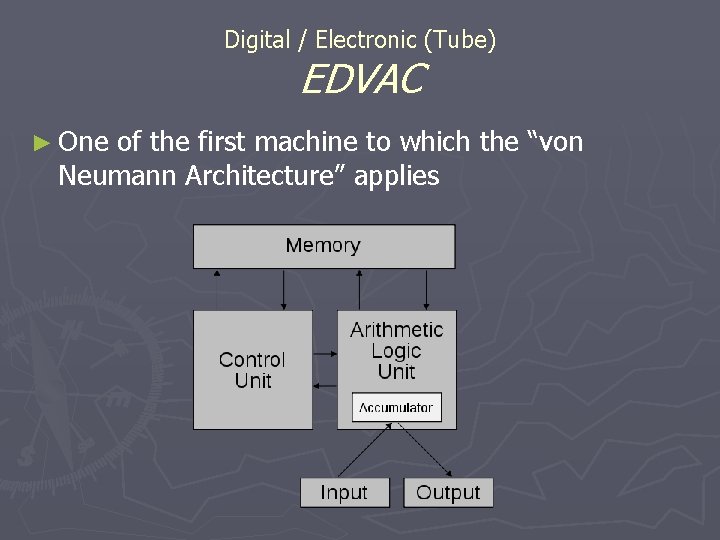

Digital / Electronic (Tube) EDVAC ► One of the first machine to which the “von Neumann Architecture” applies

Digital / Electronic (Tube) EDVAC ► Eckert & Mauchly left the EDVAC project prior to completion, so it was not the first computer to operate with a stored program ► The Manchester “Baby” computer (above) therefore was the first computer to operate with the stored-program concept in June 1948

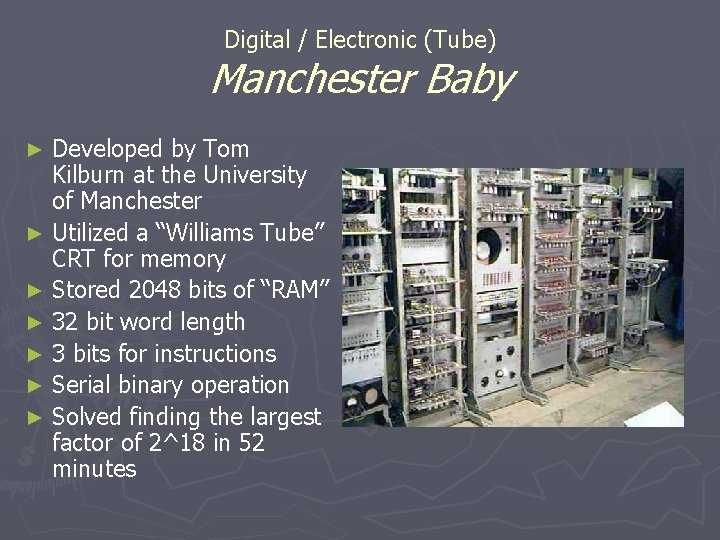

Digital / Electronic (Tube) Manchester Baby Developed by Tom Kilburn at the University of Manchester ► Utilized a “Williams Tube” CRT for memory ► Stored 2048 bits of “RAM” ► 32 bit word length ► 3 bits for instructions ► Serial binary operation ► Solved finding the largest factor of 2^18 in 52 minutes ►

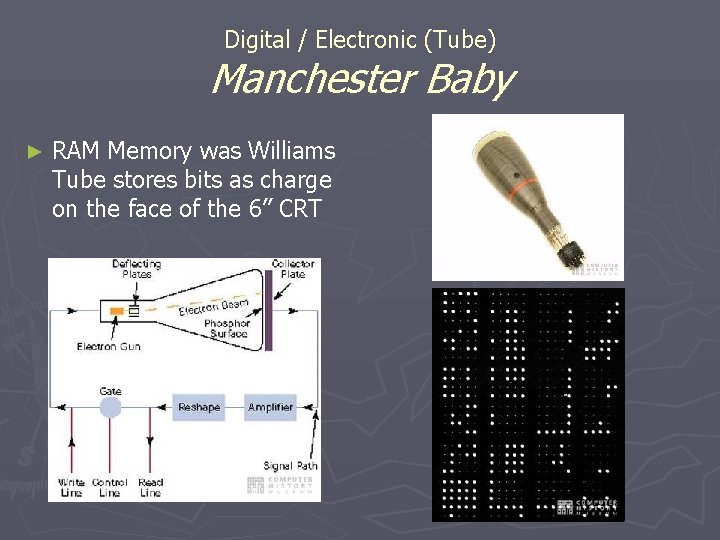

Digital / Electronic (Tube) Manchester Baby ► RAM Memory was Williams Tube stores bits as charge on the face of the 6” CRT

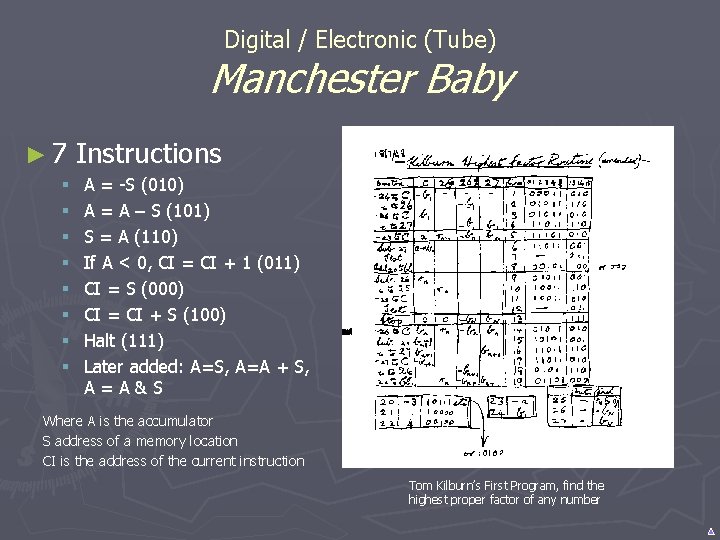

Digital / Electronic (Tube) Manchester Baby ► 7 § § § § Instructions A = -S (010) A = A – S (101) S = A (110) If A < 0, CI = CI + 1 (011) CI = S (000) CI = CI + S (100) Halt (111) Later added: A=S, A=A + S, A=A&S Where A is the accumulator S address of a memory location CI is the address of the current instruction Tom Kilburn’s First Program, find the highest proper factor of any number

Digital / Electronic (Tube) EDSAC Electronic Delay Storage Automatic Calculator EDSAC was developed by Maurice Wilkes at Cambridge University ► Work started in 1947 after Wilkes attended the 1946 Moore School lectures ► Patterned after EDVAC ► Contained 3000 tubes, 600 operations / sec ► First program executed May 1949 ►

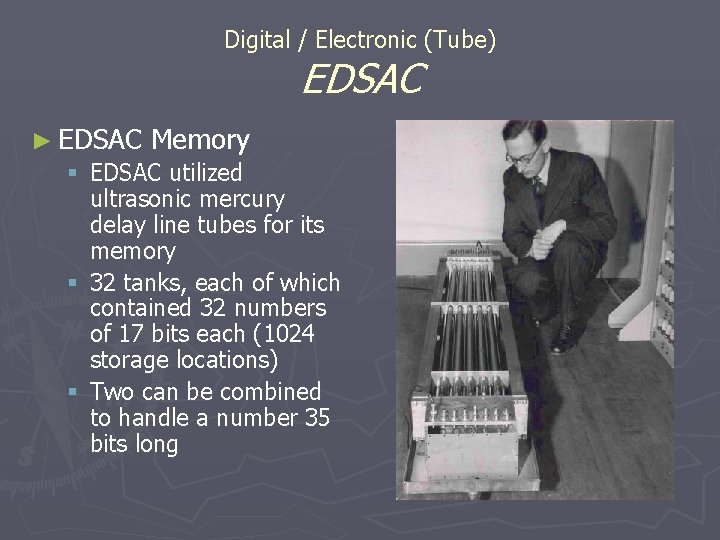

Digital / Electronic (Tube) EDSAC ► EDSAC Memory § EDSAC utilized ultrasonic mercury delay line tubes for its memory § 32 tanks, each of which contained 32 numbers of 17 bits each (1024 storage locations) § Two can be combined to handle a number 35 bits long

Digital / Electronic (Tube) EDSAC ► Control Desk § Contained 6 CRTs used to monitor the contents of memory § 5 -hole punched tape for input § Output was to a teleprinter § Used a telephonetype dial to input single decimal digits

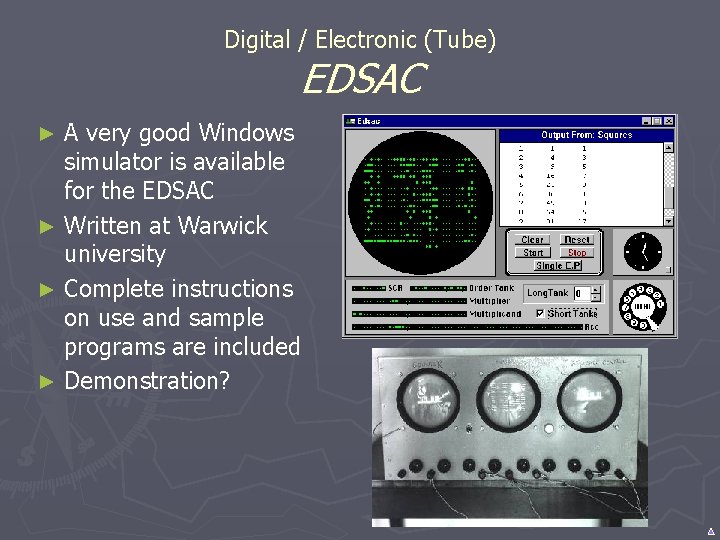

Digital / Electronic (Tube) EDSAC A very good Windows simulator is available for the EDSAC ► Written at Warwick university ► Complete instructions on use and sample programs are included ► Demonstration? ►

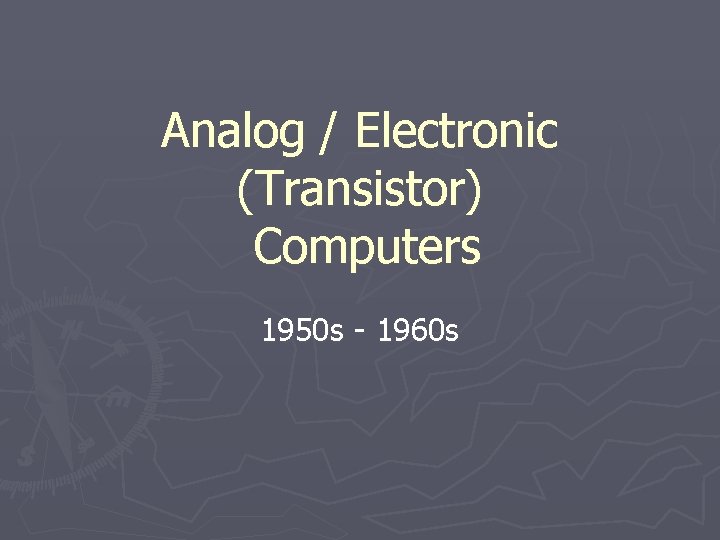

Analog / Electronic (Transistor) Computers 1950 s - 1960 s

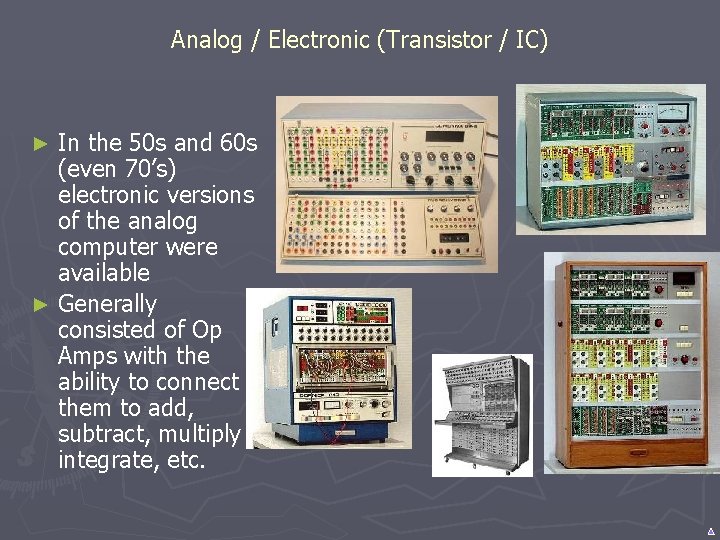

Analog / Electronic (Transistor / IC) In the 50 s and 60 s (even 70’s) electronic versions of the analog computer were available ► Generally consisted of Op Amps with the ability to connect them to add, subtract, multiply integrate, etc. ►

Hobby / Training Computers 1950 s - 1960 s

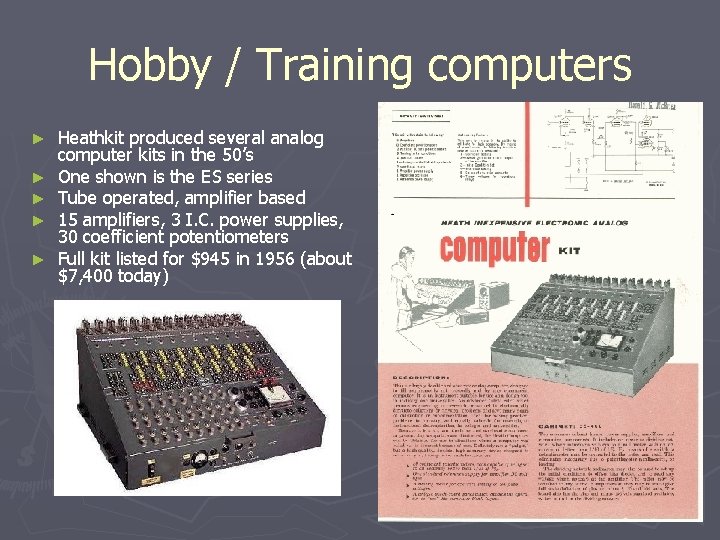

Hobby / Training computers ► ► ► Heathkit produced several analog computer kits in the 50’s One shown is the ES series Tube operated, amplifier based 15 amplifiers, 3 I. C. power supplies, 30 coefficient potentiometers Full kit listed for $945 in 1956 (about $7, 400 today)

Hobby / Training computers GE produced a simple educational analog computer ► Model EF-140 shown ► Used potentiometers and cardboard dials with scale markings ► Solved equations like Y = 3 X, or Z = X / Y ► $29. 29, used 4 ‘D’ batteries ► Used transistors for amplifier / oscillator / null indicator ►

Hobby / Training computers Digicomp 1 ► Produced in 1965 by ESR Inc. for $5. 95 (about $40 today) ► Taught basics of boolean algebra, writing “programs”, binary addition ► Possible to play game of “nim” ► 50 page instruction manual included ►

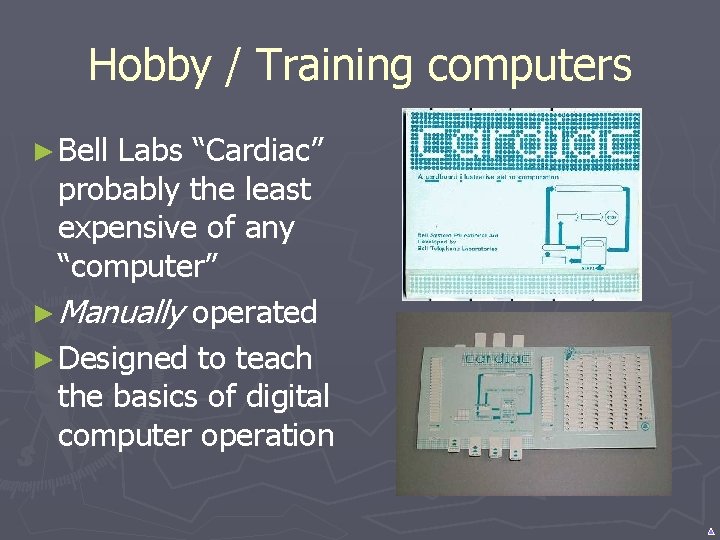

Hobby / Training computers ► Bell Labs “Cardiac” probably the least expensive of any “computer” ► Manually operated ► Designed to teach the basics of digital computer operation

The End Thanks!

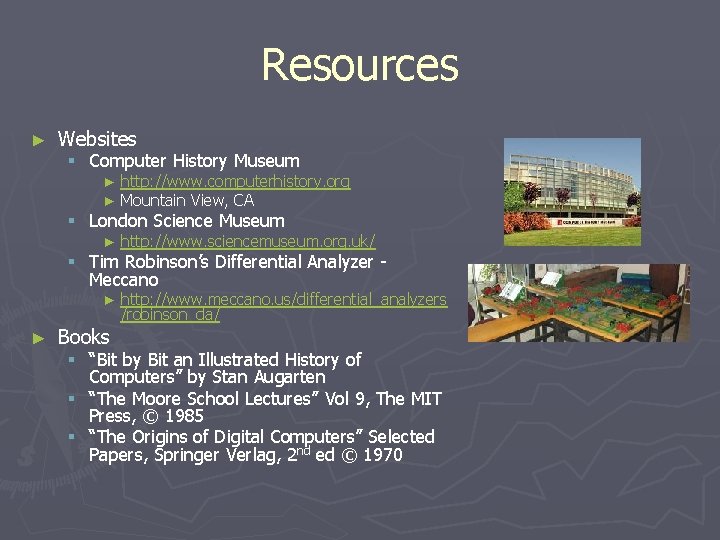

Resources ► Websites § Computer History Museum ► ► http: //www. computerhistory. org Mountain View, CA ► http: //www. sciencemuseum. org. uk/ ► http: //www. meccano. us/differential_analyzers /robinson_da/ § London Science Museum § Tim Robinson’s Differential Analyzer Meccano ► Books § “Bit by Bit an Illustrated History of Computers” by Stan Augarten § “The Moore School Lectures” Vol 9, The MIT Press, © 1985 § “The Origins of Digital Computers” Selected Papers, Springer Verlag, 2 nd ed © 1970
