A Brief Survey on Crosslanguage Information Retrieval CLIR
A Brief Survey on Cross-language Information Retrieval (CLIR) - Text Retrieval Perspective by Ying Alvarado (24401693) CSE 8337 Lecturer : Dr. Margaret Dunham April 26, 2007
Outline n Introduction n n n n Concept Why important Approach n CLIR problems n Resource n Approaches n Example Techniques A CLIR application system CLIR effectiveness CLIR future tasks CLIR communities References 2
Cross Language IR n Definition: Users enter their query in one language and the system retrieves relevant documents in other languages. n n For example, a user may pose their query in English but retrieve relevant documents written in French. Example CLIR applications n n Cross-Language retrieval from texts Cross-Language retrieval from audio and images In this presentation, we focus on text IR only! [1] Wikipedia, http: //en. wikipedia. org/wiki/Cross-language_information_retrieval [2] Paul Clough, Bridging the language gap: making digital collections available to a multilingual society, presentation, 2005 3

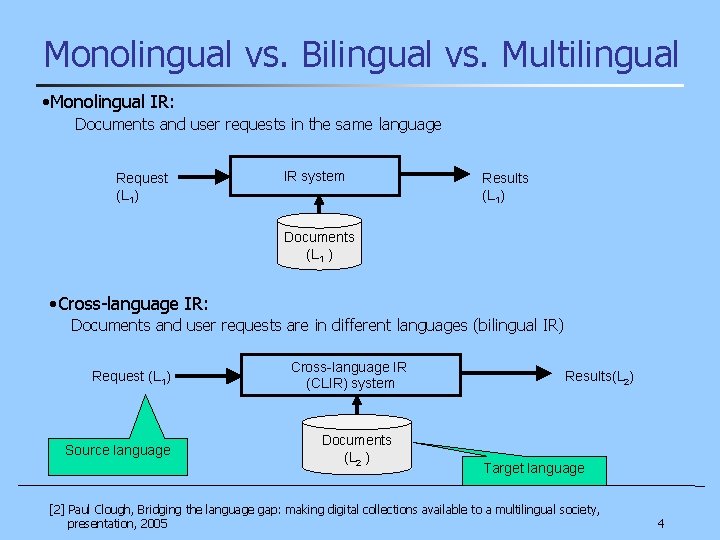

Monolingual vs. Bilingual vs. Multilingual • Monolingual IR: Documents and user requests in the same language Request (L 1) IR system Results (L 1) Documents (L 1 ) • Cross-language IR: Documents and user requests are in different languages (bilingual IR) Request (L 1) Source language Cross-language IR (CLIR) system Documents (L 2 ) Results(L 2) Target language [2] Paul Clough, Bridging the language gap: making digital collections available to a multilingual society, presentation, 2005 4
Monolingual vs. Bilingual vs. Multilingual (con. ) • Multilingual IR: Documents in collection in different languages, search requests in any language Multilingual IR (MLIR) system Request (L? ) Documents (L 2 ) Documents (L 3) Results (L 2, L 3 or L 4) Documents (L 4 ) e. g. the Web 5
Why CLIR? Top Ten Languages Used in the Web ( Number of Internet Users by Language ) TOP TEN LANGUAGES IN THE INTERNET % of all Internet Users by Language Mar. 10, 2007 Internet Penetration by Language Internet Growth for Language ( 2000 - 2007 ) 2007 Estimate World Population for the Language English 29. 5 % 328, 666, 386 28. 7 % 139. 6 % 1, 143, 218, 916 Chinese 14. 3 % 159, 001, 513 11. 8 % 392. 2 % 1, 351, 737, 925 Spanish 8. 0 % 88, 920, 232 20. 2 % 260. 3 % 439, 284, 783 Japanese 7. 7 % 86, 300, 000 67. 1 % 83. 3 % 128, 646, 345 German 5. 3 % 58, 711, 687 61. 1 % 113. 2 % 96, 025, 053 French 5. 0 % 55, 521, 294 14. 3 % 355. 2 % 387, 820, 873 Portuguese 3. 6 % 40, 216, 760 17. 2 % 430. 8 % 234, 099, 347 Korean 3. 1 % 34, 120, 000 45. 6 % 79. 2 % 74, 811, 368 Italian 2. 8 % 30, 763, 940 51. 7 % 133. 1 % 59, 546, 696 Arabic 2. 6 % 28, 540, 700 8. 4 % 931. 8 % 340, 548, 157 TOP TEN LANGUAGES 81. 7 % 910, 762, 512 21. 4 % 181. 4 % 4, 255, 739, 462 Rest of World Languages 18. 3 % 203, 511, 914 8. 8 % 444. 5 % 2, 318, 926, 955 100. 0 % 1, 114, 274, 426 16. 9 % 208. 7 % 6, 574, 666, 417 WORLD TOTAL [3] Internet World Stats, http: //www. internetworldstats. com/stats 7. htm 6
Why CLIR? (con. ) n n A collection may contains documents in many different languages, e. g. the Web. It would be impractical to form a query in each language. The documents may be expressed in more than one languages. For example, n n Technical documents in which English jargon appears intermixed with narrative text in another language. Academic works which cite the titles of documents in different languages. The user is not sufficiently fluent to express a query in a language, but is able to make use of the documents that are identified. The user is monolingual and wants to query in their native language. Because he n n can judge relevance even if results not translated have access to document translation [2] Paul Clough, Bridging the language gap: making digital collections available to a multilingual society, presentation, 2005 [4] D. W. Oard, A Survey of Multilingual Text Retrieval. Computer Science Technical Report Series; Vol. CS-TR 3615. 1996 7

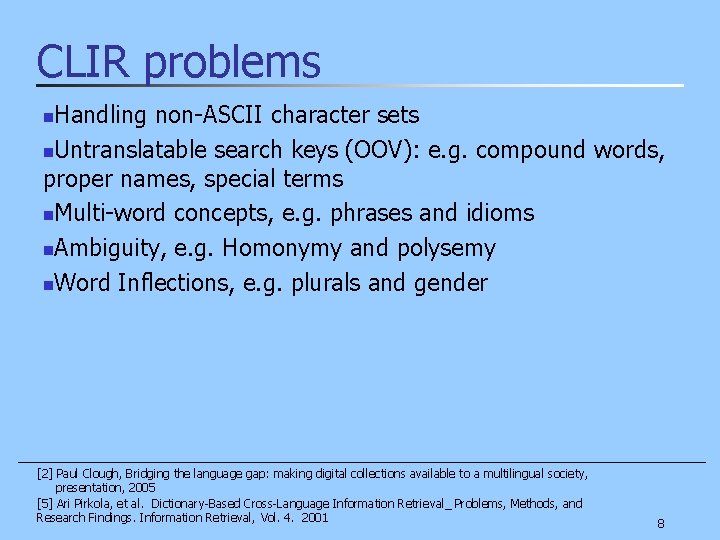

CLIR problems Handling non-ASCII character sets n. Untranslatable search keys (OOV): e. g. compound words, proper names, special terms n. Multi-word concepts, e. g. phrases and idioms n. Ambiguity, e. g. Homonymy and polysemy n. Word Inflections, e. g. plurals and gender n [2] Paul Clough, Bridging the language gap: making digital collections available to a multilingual society, presentation, 2005 [5] Ari Pirkola, et al. Dictionary-Based Cross-Language Information Retrieval_ Problems, Methods, and Research Findings. Information Retrieval, Vol. 4. 2001 8

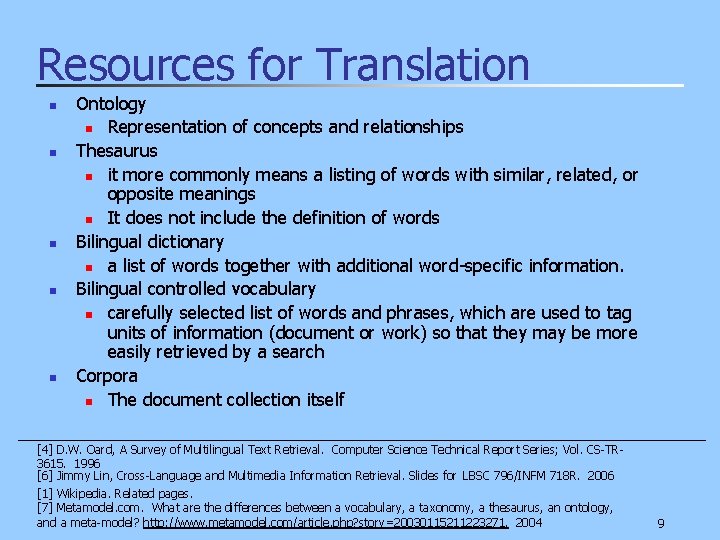

Resources for Translation n n Ontology n Representation of concepts and relationships Thesaurus n it more commonly means a listing of words with similar, related, or opposite meanings n It does not include the definition of words Bilingual dictionary n a list of words together with additional word-specific information. Bilingual controlled vocabulary n carefully selected list of words and phrases, which are used to tag units of information (document or work) so that they may be more easily retrieved by a search Corpora n The document collection itself [4] D. W. Oard, A Survey of Multilingual Text Retrieval. Computer Science Technical Report Series; Vol. CS-TR 3615. 1996 [6] Jimmy Lin, Cross-Language and Multimedia Information Retrieval. Slides for LBSC 796/INFM 718 R. 2006 [1] Wikipedia. Related pages. [7] Metamodel. com. What are the differences between a vocabulary, a taxonomy, a thesaurus, an ontology, and a meta-model? http: //www. metamodel. com/article. php? story=20030115211223271. 2004 9
An example of controlled vocabulary The hierarchical relationships The equivalence relationship Women’s Pants: BT Pants NT Casual Pants NT Dress Pants NT Sports Pants [14] Boxes and Arrows, http: //www. boxesandarrows. com/view/what_is_a_controlled_vocabulary 10
What to translate? n Document translation n Text translation n E. g. , translate entire document collection into English → search collection in English Vector translation Query translation n E. g. , translate English query into Chinese query → search Chinese document collection [6] Jimmy Lin, Cross-Language and Multimedia Information Retrieval. Slides for LBSC 796/INFM 718 R. 2006 11
Tradeoffs n Document Translation n n Documents can be translate and stored offline Dependent on high quality automatic machine translation (MT) system Does not easily deal with changing document sets Query Translation n n Often easier Disambiguation of query terms may be difficult with short queries [4] D. W. Oard, A Survey of Multilingual Text Retrieval. Computer Science Technical Report Series; Vol. CS-TR 3615. 1996 [6] Jimmy Lin, Cross-Language and Multimedia Information Retrieval. Slides for LBSC 796/INFM 718 R. 2006 12
Approaches to query translation n Knowledge-based: Several aspects of domain knowledge is manually encoded in to a lexicon. n n n Ontology-based (concept driven) Thesaurus-based Dictionary-based Expensive to construct lexicons; Lag behind the common use of terminology. n Corpus-based: directly exploit statistical information about term usage in a corpora; automatically construct lexicon. n n n Parallel corpora: document pairs, sentence pairs, term pairs Comparable corpora: document pairs, similar content Unaligned corpora: documents from the same domain, not translations of one another, not linked in any other way [4] D. W. Oard, A Survey of Multilingual Text Retrieval. Computer Science Technical Report Series; Vol. CS-TR-3615. 1996 [8] Miguel E. Ruiz, CLIR. Slides for school seminars. 2001 [9] Rada Mihalcea, Information Retrieval and Web Search. Class slides. 2007 13

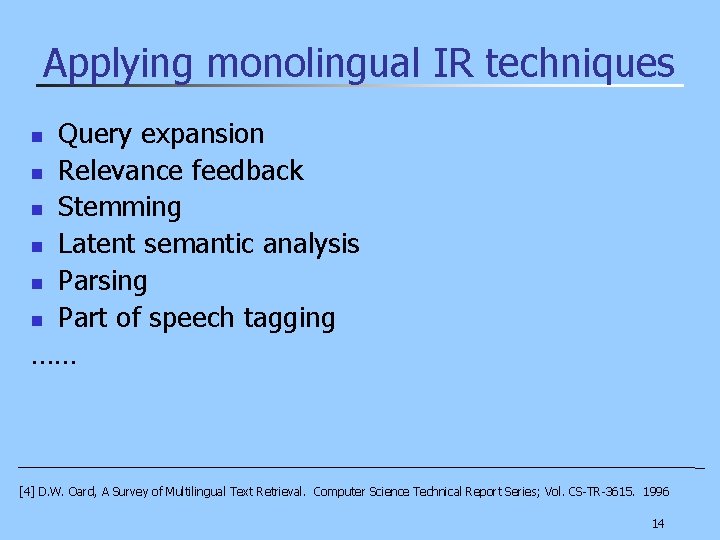

Applying monolingual IR techniques Query expansion n Relevance feedback n Stemming n Latent semantic analysis n Parsing n Part of speech tagging …… n [4] D. W. Oard, A Survey of Multilingual Text Retrieval. Computer Science Technical Report Series; Vol. CS-TR-3615. 1996 14
Multilingual Thesauri n Three construction techniques n n Build it from scratch Translate an existing thesaurus Merge monolingual thesauri For example Euro. Word. Net n n n 7 languages Built from existing lexical resources Has the same structure as Princeton Word. Net [8] Miguel E. Ruiz, CLIR. Slides for school seminars. 2001 [9] Rada Mihalcea, Information Retrieval and Web Search. Class slides. 2007 15

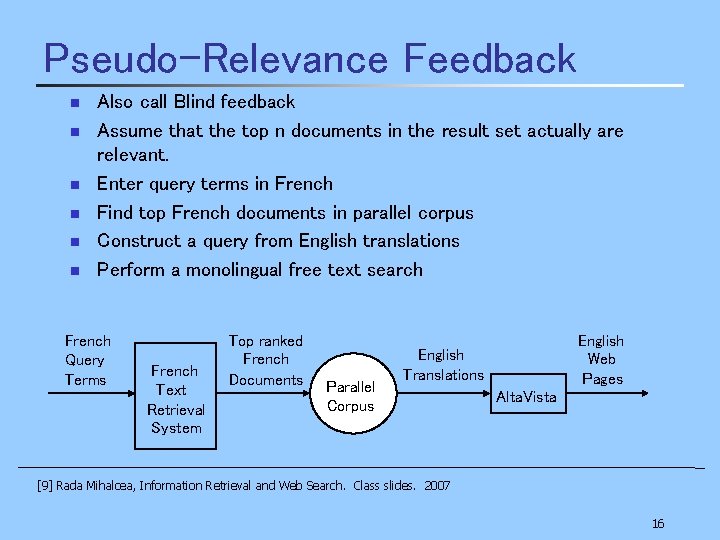

Pseudo-Relevance Feedback n n n Also call Blind feedback Assume that the top n documents in the result set actually are relevant. Enter query terms in French Find top French documents in parallel corpus Construct a query from English translations Perform a monolingual free text search French Query Terms French Text Retrieval System Top ranked French Documents Parallel Corpus English Web Pages English Translations Alta. Vista [9] Rada Mihalcea, Information Retrieval and Web Search. Class slides. 2007 16
Different level alignment in parallel corpora n Document alignment n n Already exists Collected from existing corpora n n n Sentence alignment n n Examine document external features Examine document internal features Easily constructed from aligned documents Match pattern of relative sentence lengths Good first step for term alignment Term alignment n Using co-occurrence-based translation [9] Rada Mihalcea, Information Retrieval and Web Search. Class slides. 2007 17
Example of term alignment CSE 8337是一门关于信息存储和检索的课程。 CSE 8337 is a class about information storage and retrieval. 18

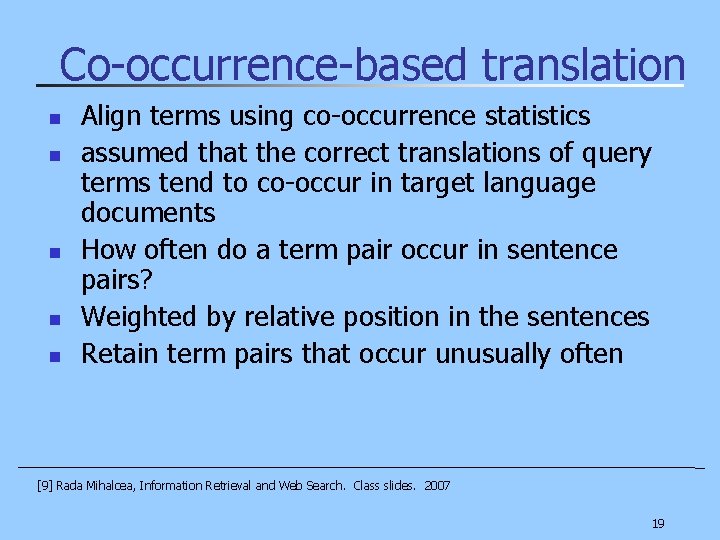

Co-occurrence-based translation n n Align terms using co-occurrence statistics assumed that the correct translations of query terms tend to co-occur in target language documents How often do a term pair occur in sentence pairs? Weighted by relative position in the sentences Retain term pairs that occur unusually often [9] Rada Mihalcea, Information Retrieval and Web Search. Class slides. 2007 19
Exploiting Unaligned Corpora n Example approach: category-based translation n n Extract a large number of terms from unaligned coprora of the first and second languages Assign a category to each extracted term by accessing monolingual thesauri of the first and second languages Estimate category-to-category translation probabilities Estimate term-to-term translation probabilities using said category-to-category translation probabilities [15] David Hull, Terminology translation for unaligned comparable corpora using category based translation probabilities. United States Patent 6885985. Filing date: Dec 18, 2000. Issue date: Apr 26, 2005 20
In Summary Cross-Language Text Retrieval Query Translation Document Translation Text Translation Vector Translation Controlled Vocabulary Free Text Knowledge-based Corpus-based Ontology-based Dictionary-based Term-aligned Sentence-aligned Document-aligned Unaligned Thesaurus-based Parallel Comparable [8] Miguel E. Ruiz, CLIR. Slides for school seminars. 2001 21
An experimental system Automatic construction of parallel English-Chinese corpus for CLIR n n n A parallel text mining system- PTMiner Finds parallel text from web Parallel Text Mining Algorithm 1. 2. 3. 4. 5. Search for candidate sites - Using existing Web search engines, search for the candidate sites that may contain parallel pages; (by using text anchor) File name fetching - For each candidate site, fetch the URLs of Web pages that are indexed by the search engines; Host crawling - Starting from the URLs collected in the previous step, search through each candidate site separately for more URLs; Pair scan - From the obtained URLs of each site, scan for possible parallel pairs; (by analyzing document external features) Download and verifying - Download the parallel pages, determine file size, language and character set, text length, HTML structure, and filter out nonparallel pairs. [10] Jiang Chen, et al. Automatic construction of parallel English-Chinese corpus for cross-language information retrieval. Proceedings of the sixth conference on Applied natural language processin. 2000 22
The workflow of the mining process n n n Sample anchor texts: “english version” [“in english”, ……] Sample document external features: “file-ch. html” vs. “file-en. html” “…/chinese/…/file. html” vs. “…/english/…file. html” Sample document internal features: Character set, HTML structure [10] Jiang Chen, et al. Automatic construction of parallel English-Chinese corpus for cross-language information retrieval. Proceedings of the sixth conference on Applied natural language processin. 2000 23
An alignment example [10] Jiang Chen, et al. Automatic construction of parallel English-Chinese corpus for cross-language information retrieval. Proceedings of the sixth conference on Applied natural language processin. 2000 24
Part of the lexicons n n t: ture f: false Other techniques and tools used: • Encoding scheme transformation (for Chinese) • Sentence level segmentation • Chinese word segmentation • English expression extraction • SILC: language and encoding identification system [10] Jiang Chen, et al. Automatic construction of parallel English-Chinese corpus for cross-language information retrieval. Proceedings of the sixth conference on Applied natural language processin. 2000 25
Results n n 14820 pairs of texts (lexicon) C-E has a precision of 77% E-C has a precision of 81. 5% CLIR results n Test corpus: TREC 5 and TREC 6 Chinese track [10] Jiang Chen, et al. Automatic construction of parallel English-Chinese corpus for cross-language information retrieval. Proceedings of the sixth conference on Applied natural language processin. 2000 26
Does CLIR work? n Best systems at TREC-6 (1997): n n n Best systems at CLEF (2002): n n n English-French: 49% of highest French monolingual English-German: 64% of highest German monolingual English-French: 83% of highest French monolingual English-German: 86% of highest German monolingual Best systems at CLEF (2006): n n English-French: 93. 82% of best French monolingual English-Portuguese: 90. 91% of best Portuguese monolingual [2]Paul Clough, Bridging the language gap: making digital collections available to a multilingual society, presentation, 2005 [16] Giorgio M. Di Nunzio, CLEF 2006: Ad Hoc Track Overview. 2006 27
Future tasks n n n Extend study scope: n Web pages, medical literature, USENET newsgroup articles, records of legislative and legal proceedings… Lower cost, improve efficiency n Pay more attention on indexing-time optimizations to improve query-time efficiency Consider user’s perspective n Improve the utility of ranked lists Define suitable criteria for the construction of a valid multilingual Web corpus Get resources for resource-poor languages [11] D. W. Oard, When You Come to a Fork in the Road, Take It: Multiple Futures for CLIR Research. SIGIR 2002 CLIR [12] Fredric Gey, et al, CROSS LANGUAGE INFORMATION RETRIEVAL: A RESEARCH ROADMAP. SIGIR 2002 CLIR 28
CLIR Communities n TREC Cross Language Track currently focuses on the Arabic language, n Cross-Language Evaluation Forum (CLEF) – a spinoff from TREC - covering many European languages, n NTCIR Asian Language Evaluation (covering Chinese, Japanese and Korean). [12] Fredric Gey, et al, CROSS LANGUAGE INFORMATION RETRIEVAL: A RESEARCH ROADMAP. SIGIR 2002 CLIR 29

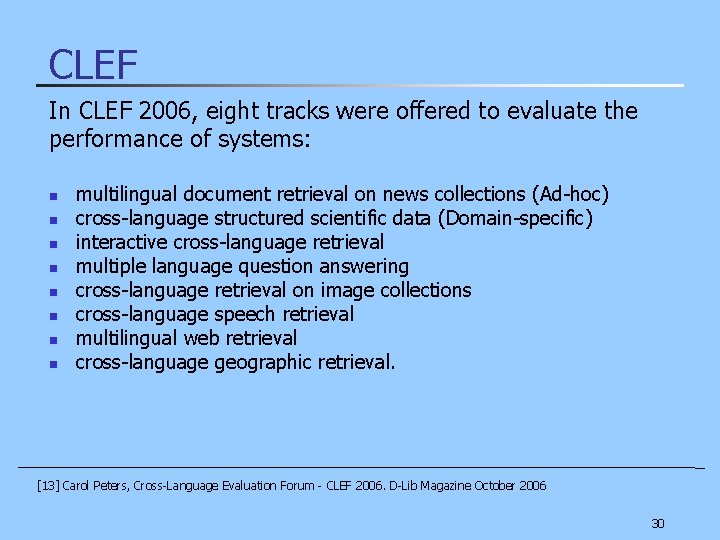

CLEF In CLEF 2006, eight tracks were offered to evaluate the performance of systems: n n n n multilingual document retrieval on news collections (Ad-hoc) cross-language structured scientific data (Domain-specific) interactive cross-language retrieval multiple language question answering cross-language retrieval on image collections cross-language speech retrieval multilingual web retrieval cross-language geographic retrieval. [13] Carol Peters, Cross-Language Evaluation Forum - CLEF 2006. D-Lib Magazine October 2006 30

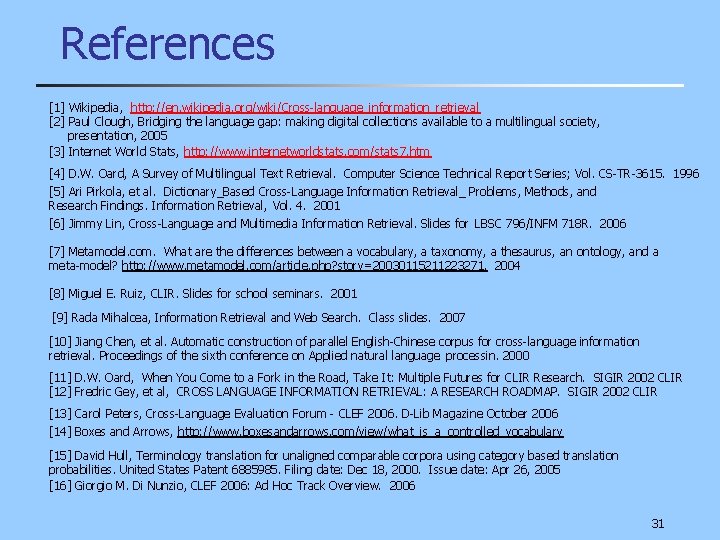

References [1] Wikipedia, http: //en. wikipedia. org/wiki/Cross-language_information_retrieval [2] Paul Clough, Bridging the language gap: making digital collections available to a multilingual society, presentation, 2005 [3] Internet World Stats, http: //www. internetworldstats. com/stats 7. htm [4] D. W. Oard, A Survey of Multilingual Text Retrieval. Computer Science Technical Report Series; Vol. CS-TR-3615. 1996 [5] Ari Pirkola, et al. Dictionary_Based Cross-Language Information Retrieval_ Problems, Methods, and Research Findings. Information Retrieval, Vol. 4. 2001 [6] Jimmy Lin, Cross-Language and Multimedia Information Retrieval. Slides for LBSC 796/INFM 718 R. 2006 [7] Metamodel. com. What are the differences between a vocabulary, a taxonomy, a thesaurus, an ontology, and a meta-model? http: //www. metamodel. com/article. php? story=20030115211223271. 2004 [8] Miguel E. Ruiz, CLIR. Slides for school seminars. 2001 [9] Rada Mihalcea, Information Retrieval and Web Search. Class slides. 2007 [10] Jiang Chen, et al. Automatic construction of parallel English-Chinese corpus for cross-language information retrieval. Proceedings of the sixth conference on Applied natural language processin. 2000 [11] D. W. Oard, When You Come to a Fork in the Road, Take It: Multiple Futures for CLIR Research. SIGIR 2002 CLIR [12] Fredric Gey, et al, CROSS LANGUAGE INFORMATION RETRIEVAL: A RESEARCH ROADMAP. SIGIR 2002 CLIR [13] Carol Peters, Cross-Language Evaluation Forum - CLEF 2006. D-Lib Magazine October 2006 [14] Boxes and Arrows, http: //www. boxesandarrows. com/view/what_is_a_controlled_vocabulary [15] David Hull, Terminology translation for unaligned comparable corpora using category based translation probabilities. United States Patent 6885985. Filing date: Dec 18, 2000. Issue date: Apr 26, 2005 [16] Giorgio M. Di Nunzio, CLEF 2006: Ad Hoc Track Overview. 2006 31
Thank you! 32
