A 100 COMPACT True compact automatic sliding glass

A 100 COMPACT True compact automatic sliding glass door operator

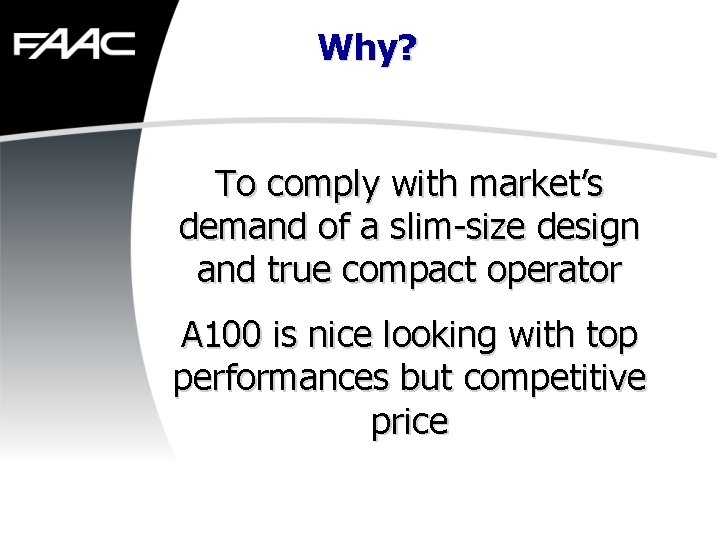

Why? To comply with market’s demand of a slim-size design and true compact operator A 100 is nice looking with top performances but competitive price

Technical specifications Free passages: 1 Leaf: 700 -3000 mm / 2 Leaves: 800 -3000 mm Max Carrying Weights: 1 Leaf: 110 Kg / 2 Leaves: 70+70 Kg. Max thickness framed leaf: 60 mm Switching Power supply: 115 V-230 V 50/60 Hz with selector Max absorbed power: 100 W Drive unit: 24 VDC with encoder Frequency of use: 100% Temperature range: - 20°C a 55°C

Technical specifications Opening speed adjustment: 5 -70 cm/sec / 10 -140 cm/sec (2 leaves) Closing speed adjustment: 5 -70 cm/sec / 10 -140 cm/sec Partial opening adjustment : from 10% to 90% of total opening Protection class: IP 23 (indoor use) Battery backup (optional): max 20 minutes (continuous use) Dimensions : 150 x 100 mm

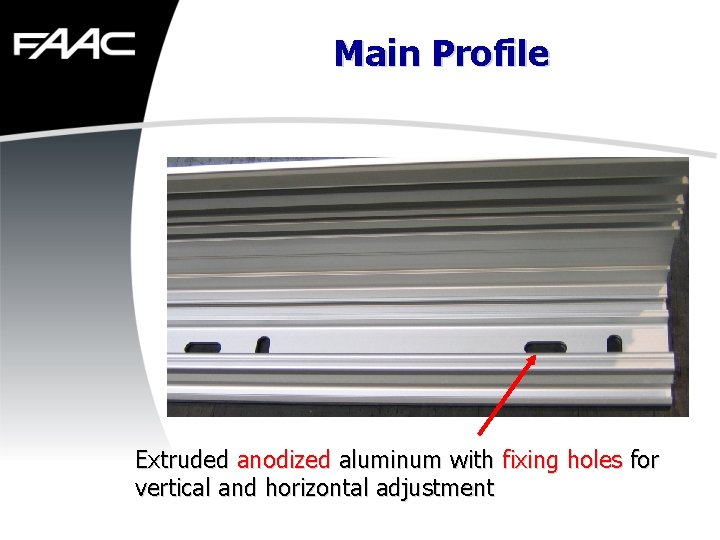

Main Profile Extruded anodized aluminum with fixing holes for vertical and horizontal adjustment

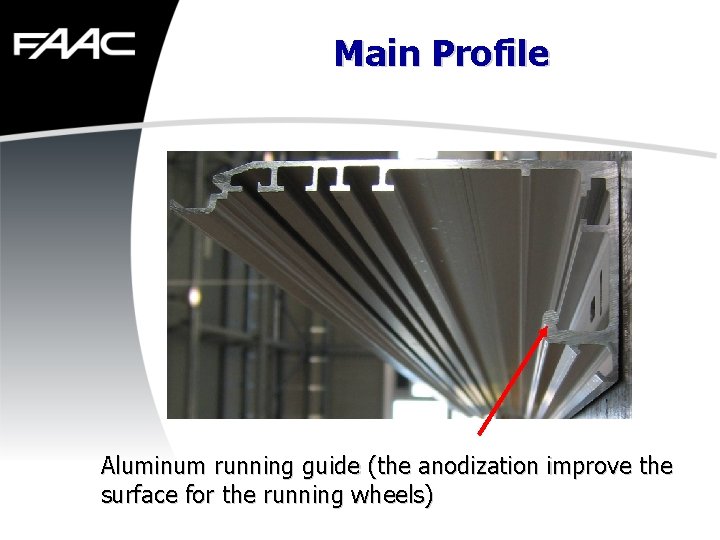

Main Profile Aluminum running guide (the anodization improve the surface for the running wheels)

Front cover profile Same “hooking” system used in 940 to keep the front cover in open position for service

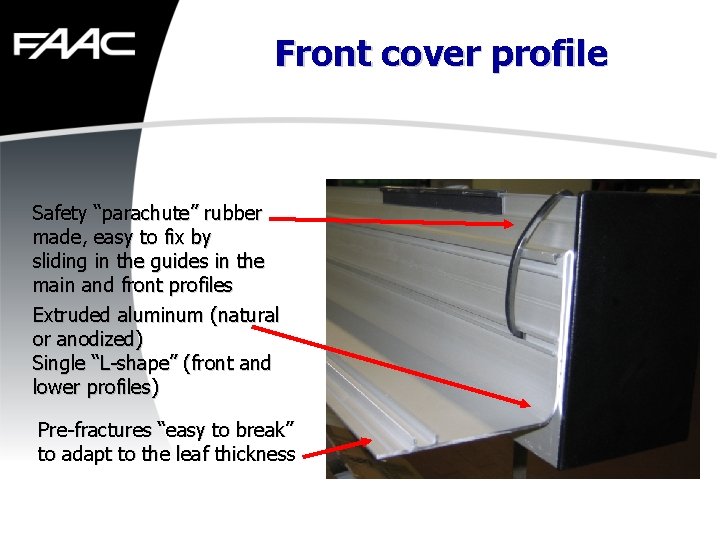

Front cover profile Safety “parachute” rubber made, easy to fix by sliding in the guides in the main and front profiles Extruded aluminum (natural or anodized) Single “L-shape” (front and lower profiles) Pre-fractures “easy to break” to adapt to the leaf thickness

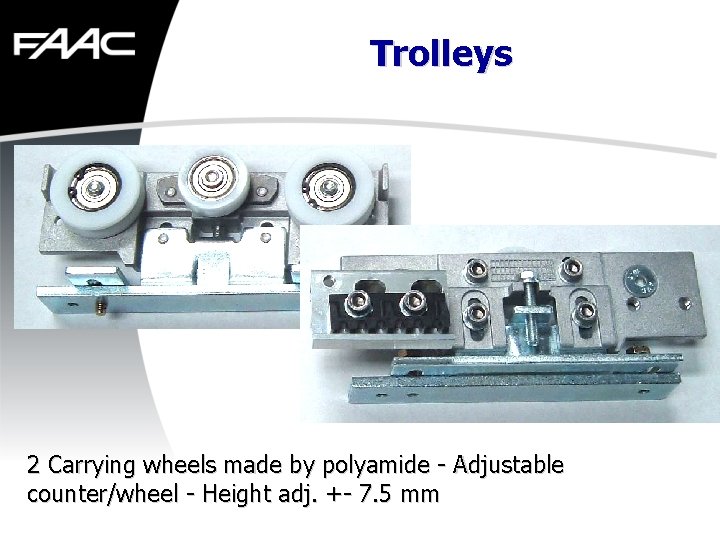

Trolleys 2 Carrying wheels made by polyamide - Adjustable counter/wheel - Height adj. +- 7. 5 mm

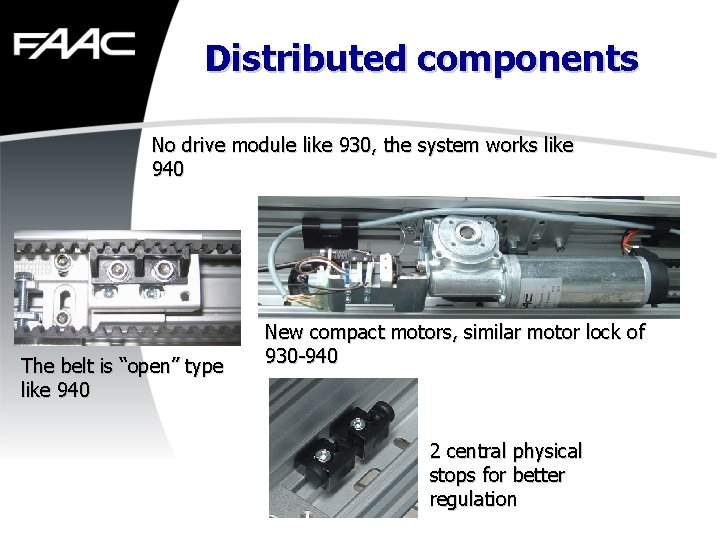

Distributed components No drive module like 930, the system works like 940 The belt is “open” type like 940 New compact motors, similar motor lock of 930 -940 2 central physical stops for better regulation

Side covers Fixed by M 6 screws on main profile accessible frontally (not laterally like 940) With pins for front profile fixation

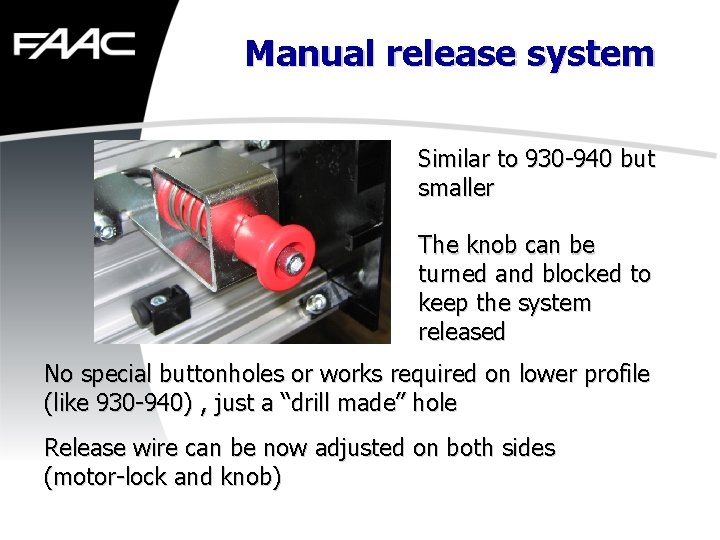

Manual release system Similar to 930 -940 but smaller The knob can be turned and blocked to keep the system released No special buttonholes or works required on lower profile (like 930 -940) , just a “drill made” hole Release wire can be now adjusted on both sides (motor-lock and knob)

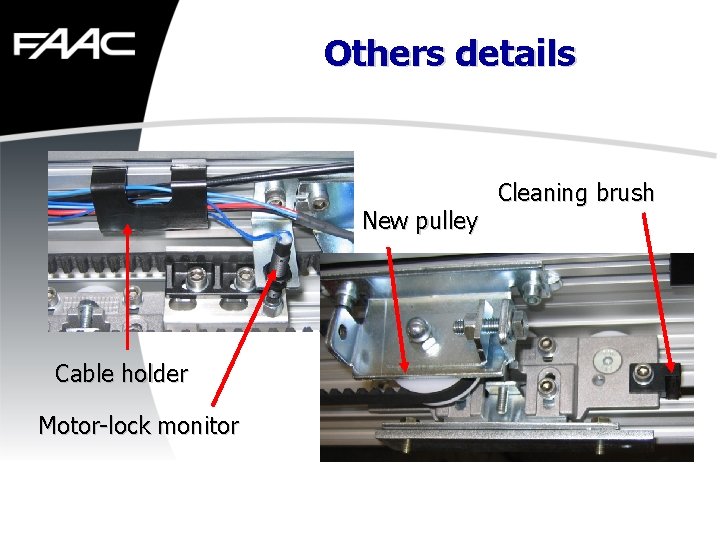

Others details New pulley Cable holder Motor-lock monitor Cleaning brush

E 100 control board New generation control board based on 32 bit RISC “Coldfire” micro-controller

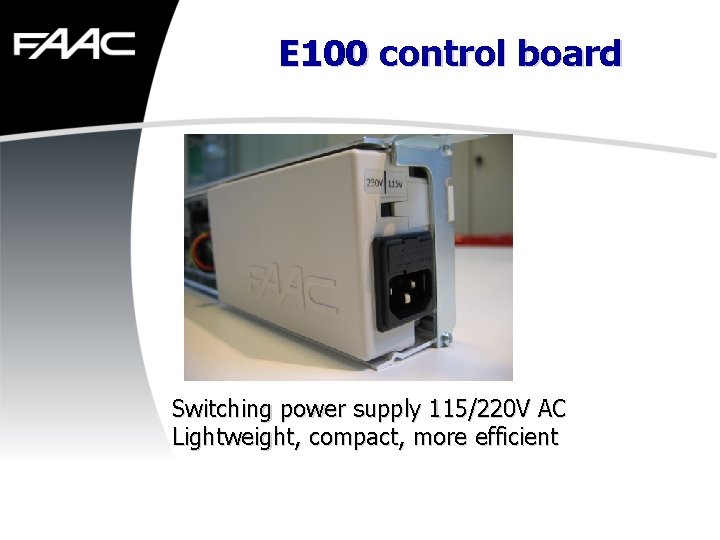

E 100 control board Switching power supply 115/220 V AC Lightweight, compact, more efficient

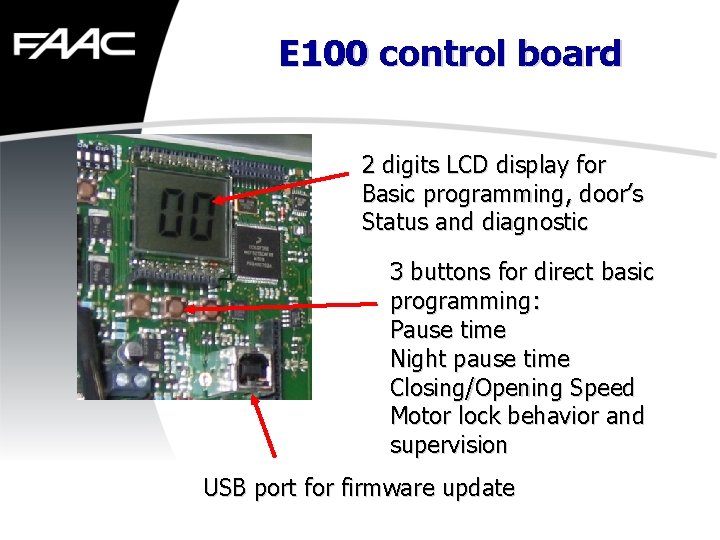

E 100 control board 2 digits LCD display for Basic programming, door’s Status and diagnostic 3 buttons for direct basic programming: Pause time Night pause time Closing/Opening Speed Motor lock behavior and supervision USB port for firmware update

E 100 control board XCOM card for wireless control/networking (under development)

E 100 control board E 100 integrates 3 control cards previously external in 930/940 • Integrated Ni-Mh battery control card • Integrated motor-lock control card • Integrated “button type” photocells electronics

Backup batteries AA type Ni-Mh batteries pack lighter and smaller than Pb for 20 min continuous duty

SDK-light In addition to SDK programmer used for 930/940 a simplified version is coming to select basic functioning modes easily and quickly (BUS connected) Expected in January 2008

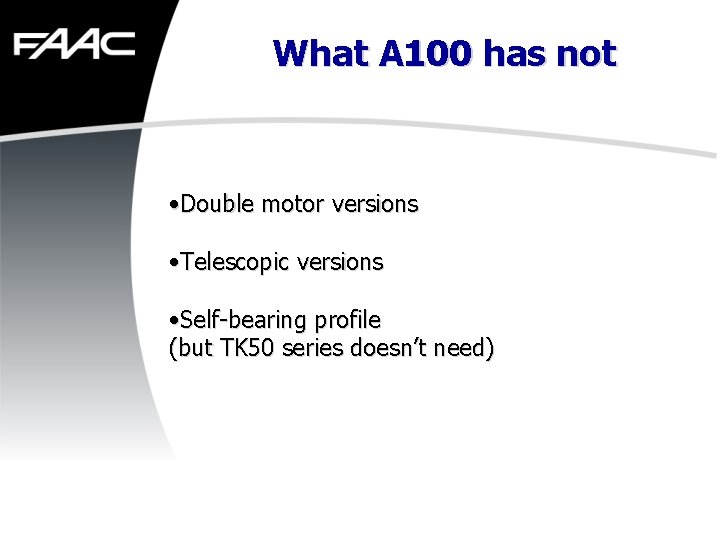

What A 100 has not • Double motor versions • Telescopic versions • Self-bearing profile (but TK 50 series doesn’t need)

What A 100 has • Full compatibility with TK 20 and TK 50 profiles series and new break-out system APN • Together with 930 and 940 is listed in NEMKO certificate for use with APN according to DIN 18650 (powered doors with break out) and DMnr 64 -98 (Italian ministerial decree on emergency way-out)

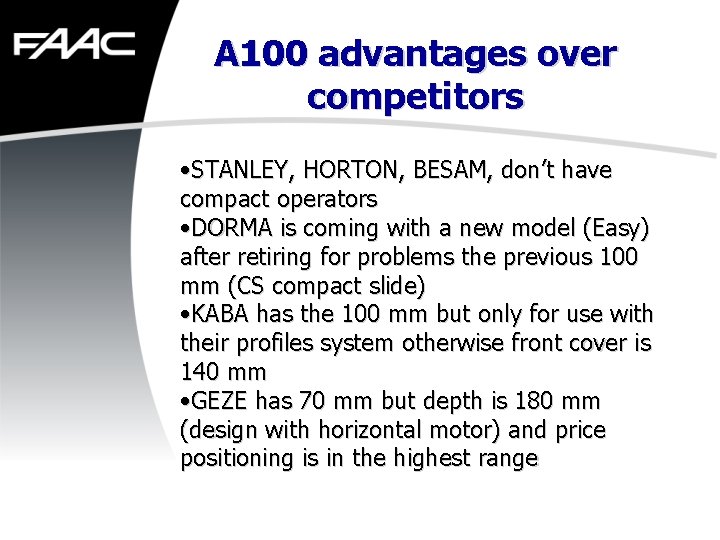

A 100 advantages over competitors • STANLEY, HORTON, BESAM, don’t have compact operators • DORMA is coming with a new model (Easy) after retiring for problems the previous 100 mm (CS compact slide) • KABA has the 100 mm but only for use with their profiles system otherwise front cover is 140 mm • GEZE has 70 mm but depth is 180 mm (design with horizontal motor) and price positioning is in the highest range

A 100 advantages over competitors • DITEC has 100 mm but depth is 225 mm (design with horizontal motor)!! • TORMAX and RECORD have similar sizes to A 100 but the price positioning is in the highest level of their offer. • 20 min of battery backup with continuous duty is not for every competitor (DORMA, GEZE, MANUSA, BESAM don’t have) many offer only assisted opening in case of blackout

Price list - Preassembled

Price list - KIT

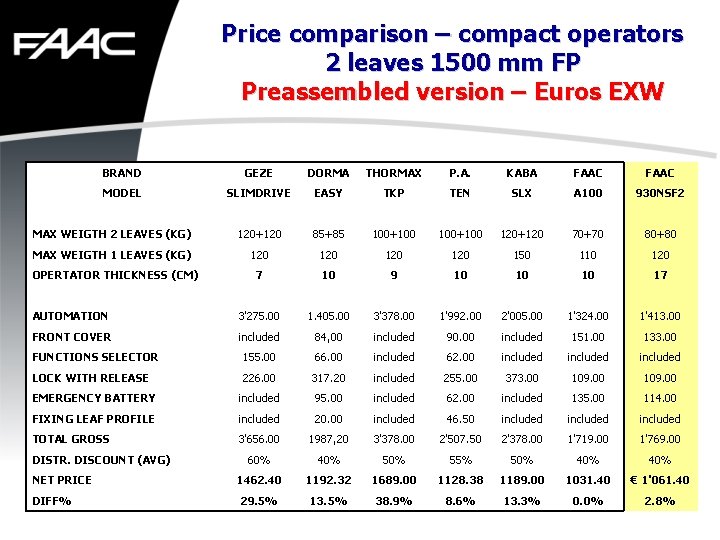

Price comparison – compact operators 2 leaves 1500 mm FP Preassembled version – Euros EXW BRAND GEZE DORMA THORMAX P. A. KABA FAAC MODEL SLIMDRIVE EASY TKP TEN SLX A 100 930 NSF 2 MAX WEIGTH 2 LEAVES (KG) 120+120 85+85 100+100 120+120 70+70 80+80 MAX WEIGTH 1 LEAVES (KG) 120 120 150 110 120 OPERTATOR THICKNESS (CM) 7 10 9 10 10 10 17 AUTOMATION 3'275. 00 1. 405. 00 3'378. 00 1'992. 00 2'005. 00 1'324. 00 1'413. 00 FRONT COVER included 84, 00 included 90. 00 included 151. 00 133. 00 FUNCTIONS SELECTOR 155. 00 66. 00 included 62. 00 included LOCK WITH RELEASE 226. 00 317. 20 included 255. 00 373. 00 109. 00 EMERGENCY BATTERY included 95. 00 included 62. 00 included 135. 00 114. 00 FIXING LEAF PROFILE included 20. 00 included 46. 50 included TOTAL GROSS 3'656. 00 1987, 20 3'378. 00 2'507. 50 2'378. 00 1'719. 00 1'769. 00 60% 40% 55% 50% 40% 1462. 40 1192. 32 1689. 00 1128. 38 1189. 00 1031. 40 € 1'061. 40 29. 5% 13. 5% 38. 9% 8. 6% 13. 3% 0. 0% 2. 8% DISTR. DISCOUNT (AVG) NET PRICE DIFF%

Price comparison FAAC A 100 – 930 NSF 2 leaves 800 -2100 mm FP KIT version – Euros EXW 930 NSF 2 Package GROSS SUBT MIN QTY 222. 00 4 CODE QTY 105308 1 SF HEAD SECTION W/PLASTIC TRACK PROFILE 105491 1 FIXING KIT GUIDE-COVER 930 N SF 41. 00 4 105324 1 CABLE SUPPORT PROFILE 10. 00 4 105342 1 SD-KEEPER PROGRAMMING UNIT 94. 00 4 105490 2 TWO TROLLEYS PACKAGE W/ACCESSORIES 930 N 100. 00 200. 00 4 105493 1 TROLLEY FIXING ACCESORIES 2 LEAVES 930 N SF 20. 00 4 105307 1 SUPPORT PROFILE FOR PANEL (3 M BAR) 27. 00 4 105494 1 DRIVE MODULE (L=1500) 930 N SF 580. 00 4 105311 1 NATURAL ALUM. PROFILE FASCIA ASS. (4, 3 M) 117. 00 4 105332 1 BAND ASSEMBLY ACCESSORIES STANDARD 20. 00 4 105334 1 PAIR OF SIDE PANELS FOR 930 3. 00 4 TOT 1'334. 00 40. 00 533. 60 TOT NET 800. 40 DESCRIPTION DISCOUNT %

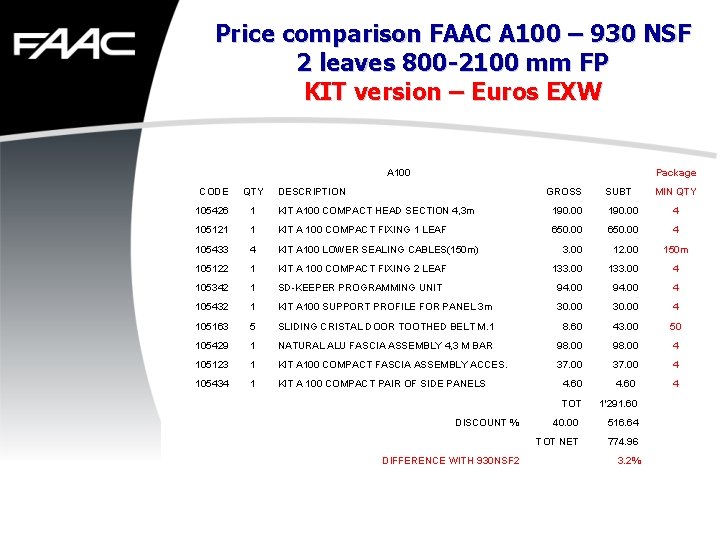

Price comparison FAAC A 100 – 930 NSF 2 leaves 800 -2100 mm FP KIT version – Euros EXW CODE QTY 105426 1 105121 A 100 DESCRIPTION Package GROSS SUBT MIN QTY KIT A 100 COMPACT HEAD SECTION 4, 3 m 190. 00 4 1 KIT A 100 COMPACT FIXING 1 LEAF 650. 00 4 105433 4 KIT A 100 LOWER SEALING CABLES(150 m) 3. 00 12. 00 150 m 105122 1 KIT A 100 COMPACT FIXING 2 LEAF 133. 00 4 105342 1 SD-KEEPER PROGRAMMING UNIT 94. 00 4 105432 1 KIT A 100 SUPPORT PROFILE FOR PANEL 3 m 30. 00 4 105163 5 SLIDING CRISTAL DOOR TOOTHED BELT M. 1 8. 60 43. 00 50 105429 1 NATURAL ALU FASCIA ASSEMBLY 4, 3 M BAR 98. 00 4 105123 1 KIT A 100 COMPACT FASCIA ASSEMBLY ACCES. 37. 00 4 105434 1 KIT A 100 COMPACT PAIR OF SIDE PANELS 4. 60 4 TOT 1'291. 60 40. 00 516. 64 TOT NET 774. 96 3. 2% DISCOUNT % DIFFERENCE WITH 930 NSF 2
