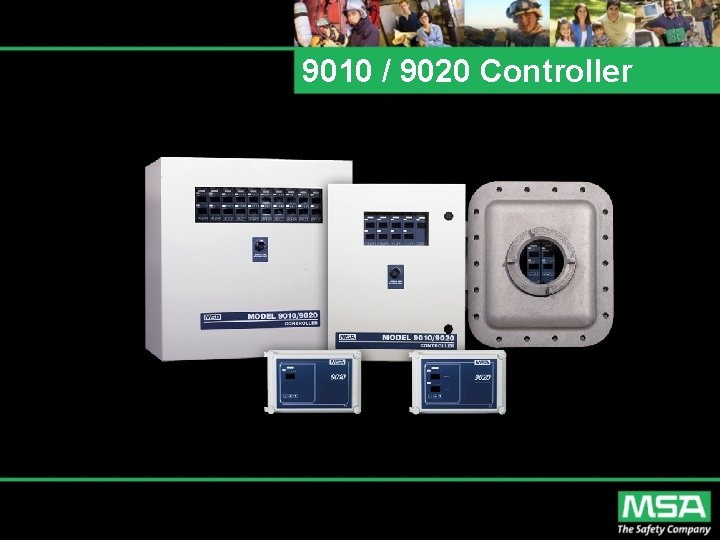

9010 / 9020 Controller

9010 / 9020 Controller § Target Markets § General Industry § Oil, Gas & Petrochemical § Water & Wastewater § LPG

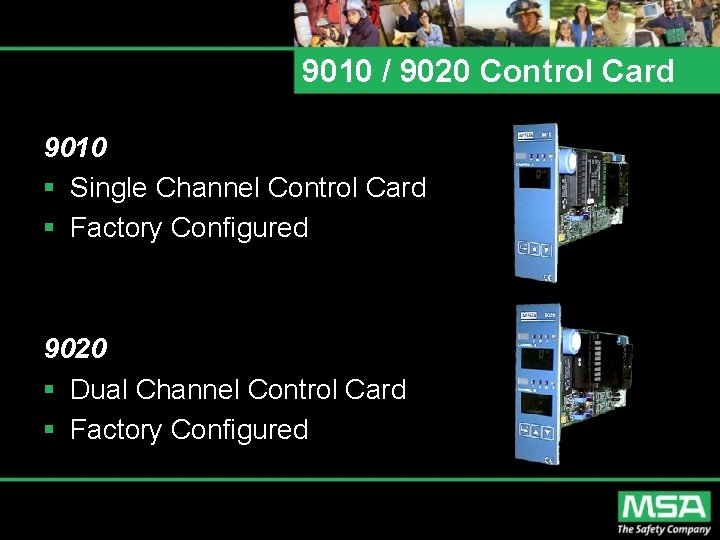

9010 / 9020 Control Card 9010 § Single Channel Control Card § Factory Configured 9020 § Dual Channel Control Card § Factory Configured

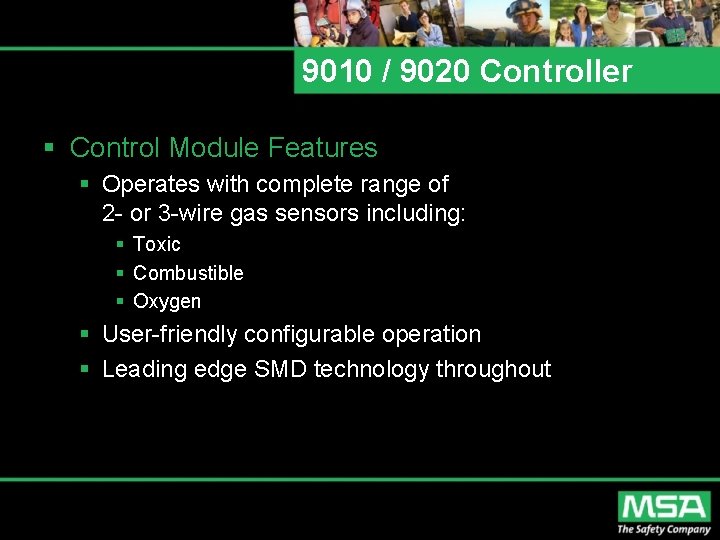

9010 / 9020 Controller § Control Module Features § Operates with complete range of 2 - or 3 -wire gas sensors including: § Toxic § Combustible § Oxygen § User-friendly configurable operation § Leading edge SMD technology throughout

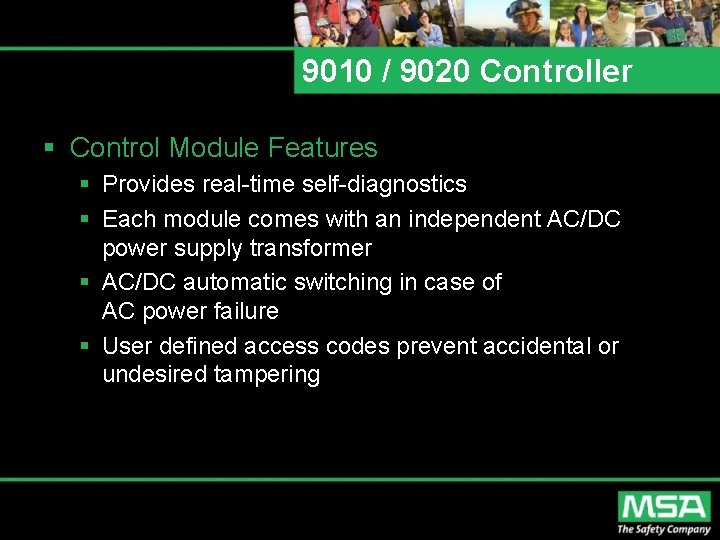

9010 / 9020 Controller § Control Module Features § Provides real-time self-diagnostics § Each module comes with an independent AC/DC power supply transformer § AC/DC automatic switching in case of AC power failure § User defined access codes prevent accidental or undesired tampering

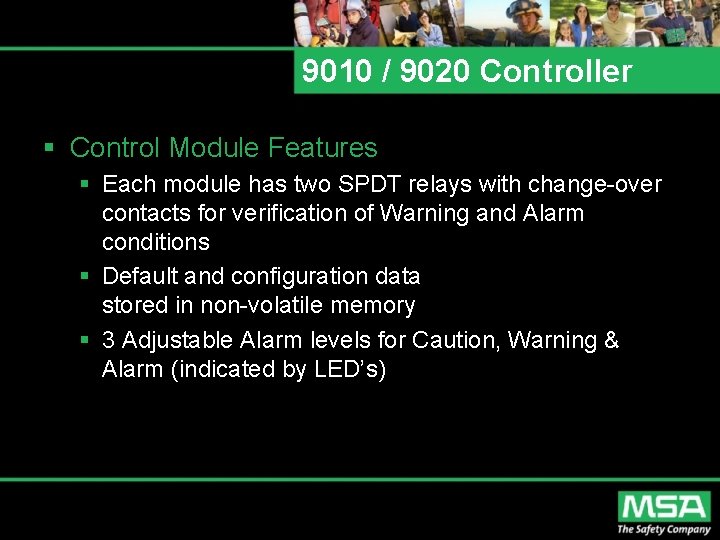

9010 / 9020 Controller § Control Module Features § Each module has two SPDT relays with change-over contacts for verification of Warning and Alarm conditions § Default and configuration data stored in non-volatile memory § 3 Adjustable Alarm levels for Caution, Warning & Alarm (indicated by LED’s)

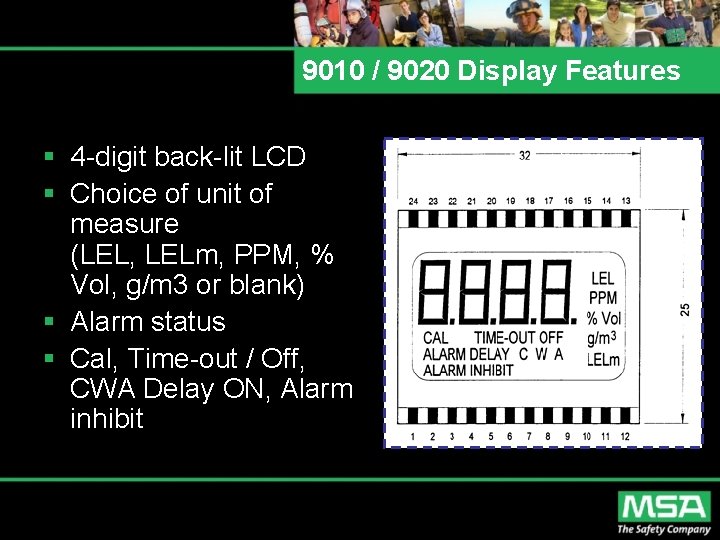

9010 / 9020 Display Features § 4 -digit back-lit LCD § Choice of unit of measure (LEL, LELm, PPM, % Vol, g/m 3 or blank) § Alarm status § Cal, Time-out / Off, CWA Delay ON, Alarm inhibit

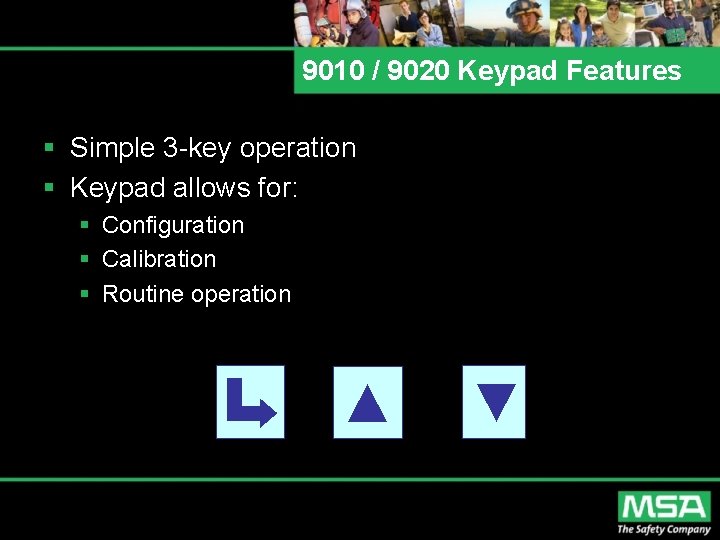

9010 / 9020 Keypad Features § Simple 3 -key operation § Keypad allows for: § Configuration § Calibration § Routine operation ▲ ▼

9010 / 9020 Output Signals § Analog (normal) - 0 -20, 4 -20 m. A (selectable) isolated § Analog (fault) - 0, 2, 4, 20 m. A / frozen (selectable) § RS 485 for connection to a printer

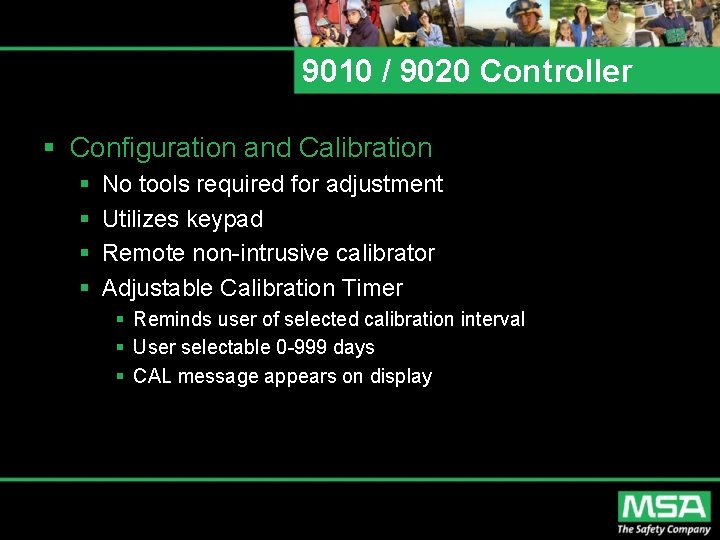

9010 / 9020 Controller § Configuration and Calibration § § No tools required for adjustment Utilizes keypad Remote non-intrusive calibrator Adjustable Calibration Timer § Reminds user of selected calibration interval § User selectable 0 -999 days § CAL message appears on display

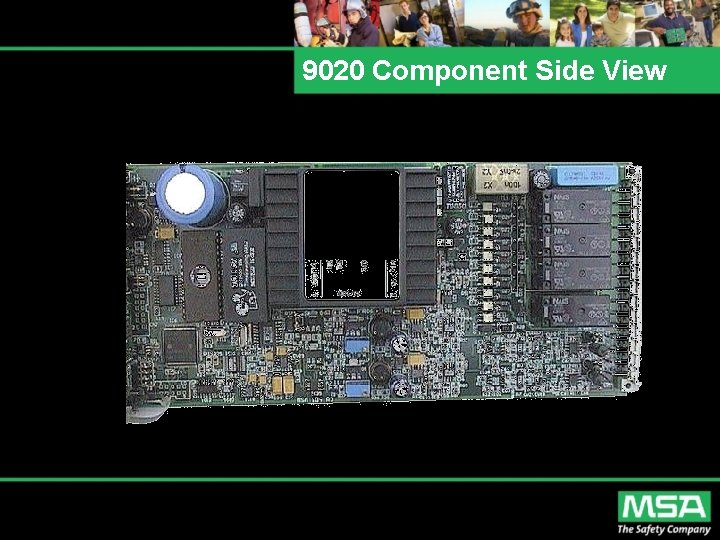

9020 Component Side View

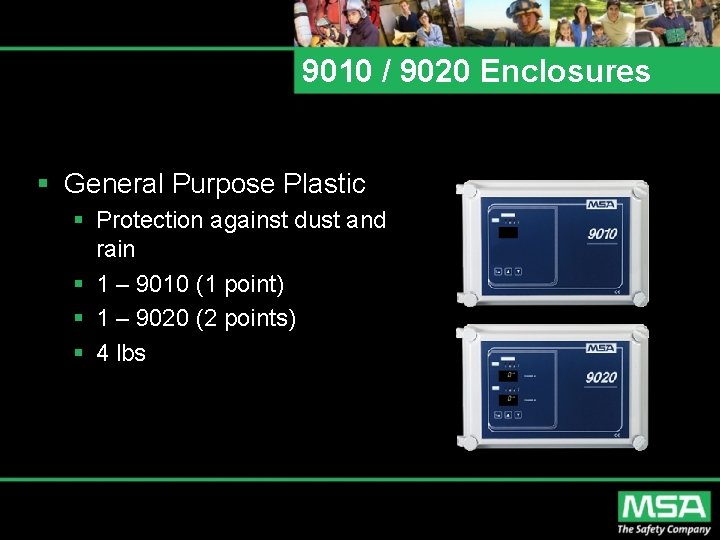

9010 / 9020 Enclosures § General Purpose Plastic § Protection against dust and rain § 1 – 9010 (1 point) § 1 – 9020 (2 points) § 4 lbs

9010 / 9020 Enclosures § Nema 4 X Metal § Protection against dust and rain § External Horn Acknowledge Button § 5 -10 – 9010 (up-to 10 points) § 5 -10 – 9020 (up-to 20 points) § 67 -100 lbs § Also Available in Stainless Steel

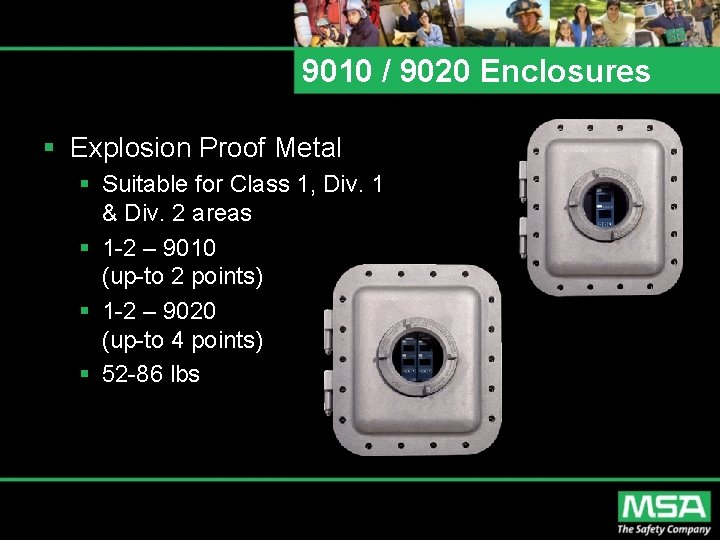

9010 / 9020 Enclosures § Explosion Proof Metal § Suitable for Class 1, Div. 1 & Div. 2 areas § 1 -2 – 9010 (up-to 2 points) § 1 -2 – 9020 (up-to 4 points) § 52 -86 lbs

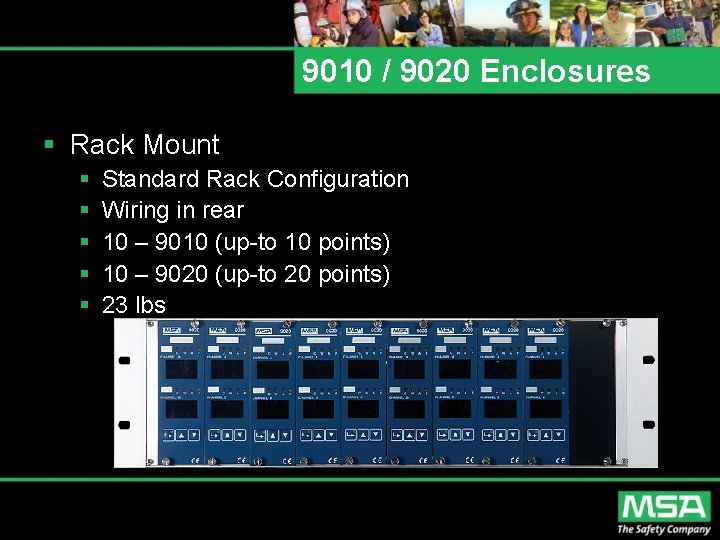

9010 / 9020 Enclosures § Rack Mount § § § Standard Rack Configuration Wiring in rear 10 – 9010 (up-to 10 points) 10 – 9020 (up-to 20 points) 23 lbs

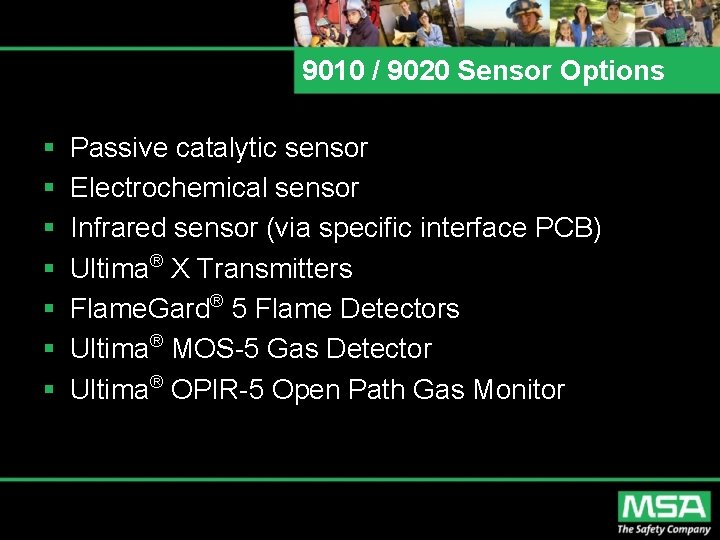

9010 / 9020 Sensor Options § § § § Passive catalytic sensor Electrochemical sensor Infrared sensor (via specific interface PCB) Ultima® X Transmitters Flame. Gard® 5 Flame Detectors Ultima® MOS-5 Gas Detector Ultima® OPIR-5 Open Path Gas Monitor
