9 GAS LAWS AND ENGINE POWER NAZARIN B

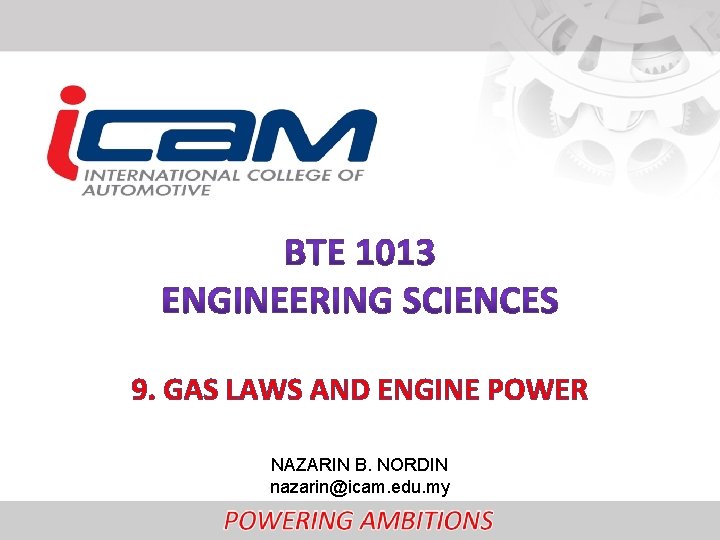

9. GAS LAWS AND ENGINE POWER NAZARIN B. NORDIN nazarin@icam. edu. my

GAS LAWS Ideal Gases are fluids, differing from liquids in that while liquids are practically incompressible and possess a definite volume, gases are readily compressible and can change their volume. The following are three laws which are found to be reasonably obeyed by the so-called permanent gases, e. g. oxygen and nitrogen, at temperatures in the region of room temperature. A gas which is considered to obey these laws exactly is called an ideal gas.

Ideal Gas Law PV = n. RT R – Universal Gas Constant = 8. 315 J/(mol K) n (mol) = mass (g) / molecular mass (g/mol) Avogadro’s Number – number of molecules per mole NA = 6. 02 x 1023 PV = Nk. T k – Boltzmann’s Constant k = 1. 38 x 10 -23 J/K NA = 6. 02 x 1023/mole

Boyle’s law – the volume of a gas is inversely proportional to the pressure applied to it when the temperature is kept constant Va 1 P Charles’s law – the volume of a given amount of gas is directly proportional to the absolute temperature when the pressure is kept constant Va. T T -absolute temperature Pressure law – the pressure of a given amount of gas is directly proportional to the absolute temperature when the pressure is kept constant Pa. T

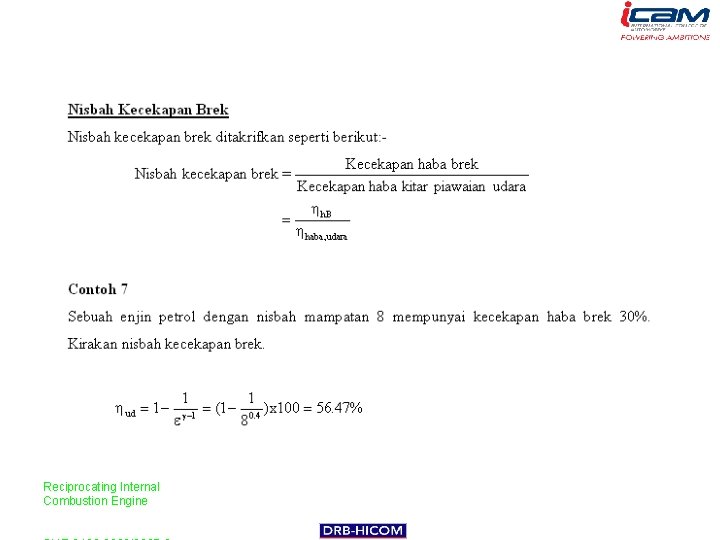

Engine Performance Criteria Indicated Mean Effective Pressure, Pi or i. m. e. p. , Pi = = i. m. e. p. Reciprocating Internal Combustion Engine

Performance Factors Volumetric Efficiency

1 a. Indicated Power (IP) : Power obtained at the cylinder. Obtained from the indicator diagram. Given by: I. P. = Pi. LANn/60 x in Watts where Pi is the indicated mean effective pressure, in N/m 2, L is the stroke length, in m A is the area of cross section of the piston, m 2, N is the engine speed in rev/min, n is the number of cylinders and x =1 for 2 stroke and 2 for 4 stroke engine.

1 b. Brake Power (BP) : Power obtained at the shaft. Obtained from the engine dynamometer. Given by: BP = 2 NT/60 in Watts where T is the brake torque, in Nm, given by T = W. L where W is the load applied on the shaft by the dynamometer, in N and L is the length of the arm where the load is applied, in m N is the engine speed, in rev/min

1 c. Friction Power (FP) : Power dissipated as friction. Obtained by various methods like Morse test for multi-cylinder engine, Willan’s line method for a diesel engine, and Retardation test and Motoring test for all types of engines. Given in terms of IP and BP by: FP = IP – BP in Watts

2. Mean Effective Pressure. Indicated Mean Effective Pressure (IMEP). This is also denoted by Pi and is given by Pi = (Net work of cycle)/Swept Volume in N/m 2 The net work of cycle is the area under the P-V diagram. Brake Mean Effective Pressure (BMEP). This is also denoted by Pb and is given by Pb = 60. BPx/(LANn) N/m 2 This is also the brake power per unit swept volume of the engine. Friction Mean Effective Pressure (FMEP). This is also denoted by Pf and is given by Pf = Pi - Pb N/m 2

3. Efficiencies. Indicated Thermal Efficiency ( i) given by i = IP/(mf. Qcv) mf is the mass of fuel taken into the engine in kg/s Qcv is the calorific value of the fuel in J/kg Brake Thermal Efficiency ( b) given by b = BP/(mf. Qcv) Indicated Relative Efficiency ( i, r) given by i, r = i/ASE is the efficiency of the corresponding air standard cycle Brake Relative Efficiency ( b, r) given by b, r = b/ASE Mechanical Efficiency ( m) given by m = BP/IP = Pb/Pi = b/ i = b, r/ I, r

Specific Fuel Consumption (sfc or SFC) This is the fuel consumed per unit power. Brake Specific Fuel Consumption (bsfc). This is given by bsfc = mf/BP kg/J if BP is in W and mf is in kg/s bsfc is usually quoted in kg/k. Wh. This is possible if BP is in k. W and mf is in kg/h. Indicated Specific Fuel Consumption (isfc). This is given by isfc = mf/IP kg/J if IP is in W and mf is in kg/s isfc is also usually quoted in kg/k. Wh. This is possible if IP is in k. W and mf is in kg/h. Mechanical Efficiency in terms of the sfc values is given by m = isfc/bsfc

Specific Energy Consumption (sec or SEC). This is the energy consumed per unit power. Brake Specific Energy Consumption (bsec). This is given by bsec = bsfc. Qcv We can similarly define indicated specific energy consumption (isec) and based on the two quantities also we can define mechanical efficiency.

Air Capacity of Four-stroke cycle Engines • The power, P, developed by an engine is given by • Power will depend on air capacity if the quantity in the bracket is maximized. • Plot of power versus air flow rate is normally a straight line.

Volumetric Efficiency Indicates air capacity of a 4 stroke engine. Given by Mi is the mass flow rate of fresh mixture. N is the engine speed in rev/unit time. Vs is the piston displacement (swept volume). ρi is the inlet density.

Volumetric Efficiency Can be measured: At the inlet port Intake of the engine Any suitable location in the intake manifold If measured at the intake of the engine, it is also called the overall volumetric efficiency.

Volumetric Efficiency Based on Dry Air Since there is a linear relationship between indicated output (power) and air capacity (airflow rate), it is more appropriate to express volumetric efficiency in terms of airflow rate (which is the mass of dry air per unit time). Since fuel, air and water vapor occupy the same volume Va = Vf = Vw = Vi Thus we have:

Here ρa is the density of dry air or the mass of dry air per unit volume of fresh mixture. Thus, since

Also Vd = Ap. L s = 2 LN L is the piston stroke and s is the piston speed.

Measurement of Volumetric Efficiency in Engines The volumetric efficiency of an engine can be evaluated at any given set of operating conditions provided and ρa can be accurately measured. Measurement of Air Flow Airflow into the engine can be measured with the help of a suitable airflow meter. The fluctuations in the airflow can be reduced with the help of surge tanks placed between the engine and the airflow meter.

Measurement of Inlet Air Density By Dalton’s Law of partial pressures: pi = pa + pf + pw In this case pi is the total pressure of the fresh mixture, pa is the partial pressure of air in the mixture, pf is the partial pressure of fuel in the mixture, pw is the partial pressure of water vapor in the air. Since each constituent is assumed to behave as a perfect gas, we can write

M indicates mass of the substance, 29 is the molecular weight of air, mf is the molecular weight of the fuel, and 18 is the molecular weight of water vapor.

Fi is the ratio of mass of fuel vapor to that of dry air and h is the ratio of mass of water vapor to that of dry air at the point where pi and Ti are measured. This indicates that the density of air in the mixture is equal to the density of air at pi and Ti multiplied by a correction factor, that is, the quantity in the parentheses.

The value of h depends on the humidity ratio of the air and is obtained from psychrometric charts. For conventional hydrocarbon fuels, the correction factor is usually around 0. 98, which is within experimental error. For diesel engines and GDI engines, Fi is zero. In practice, with spark ignition engines using gasoline and with diesel engines the volumetric efficiency, neglecting the terms in the parentheses, is given by

If we do not neglect the terms in the parentheses we get the following relation for volumetric efficiency: If the humidity is high or a low molecular weight fuel is used in a carbureted engine, the correction factor cannot be ignored. For example, with methanol at stoichiometric conditions and h = 0. 02, the correction factor is 0. 85.

Volumetric Efficiency, Power and Mean Effective Pressure Since and

For an engine, the mean effective pressure, mep, is given by

Ways to increase power and mep • The mean effective pressure may be indicated or brake, depending on whether η is indicated or brake thermal efficiency. Thus, the mean effective pressure is proportional to the product of the inlet density and volumetric efficiency when the product of thermal efficiency, the fuel-air ratio, and the heat of combustion of the fuel is constant. • From the preceding two expressions we can figure out ways to increase the power and mep of an engine.
