9 4 Absolute Value Functions and Graphs Graphing

9. 4 Absolute Value Functions and Graphs Graphing Absolute Value Functions

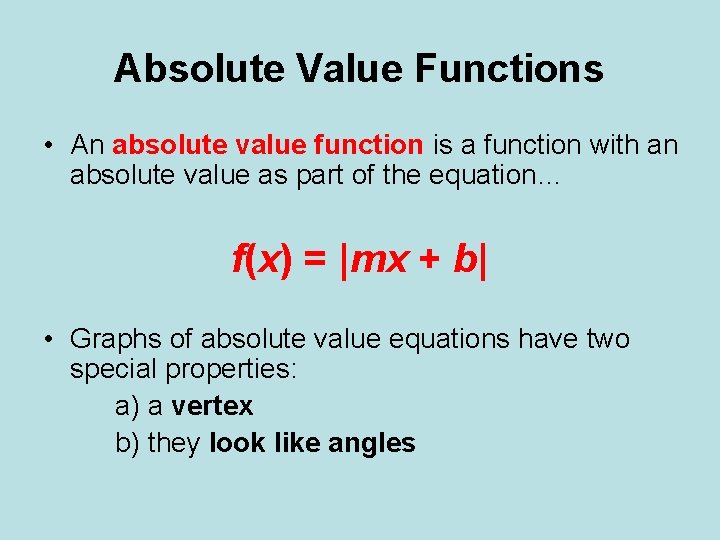

Absolute Value Functions • An absolute value function is a function with an absolute value as part of the equation… f(x) = |mx + b| • Graphs of absolute value equations have two special properties: a) a vertex b) they look like angles

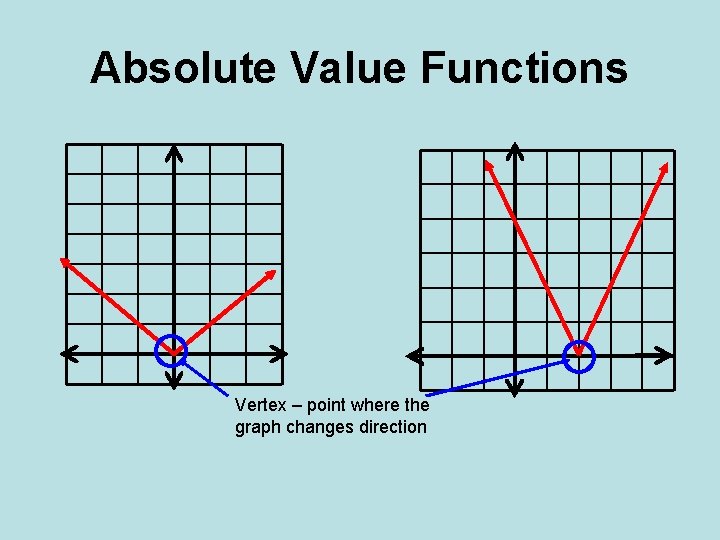

Absolute Value Functions Vertex – point where the graph changes direction

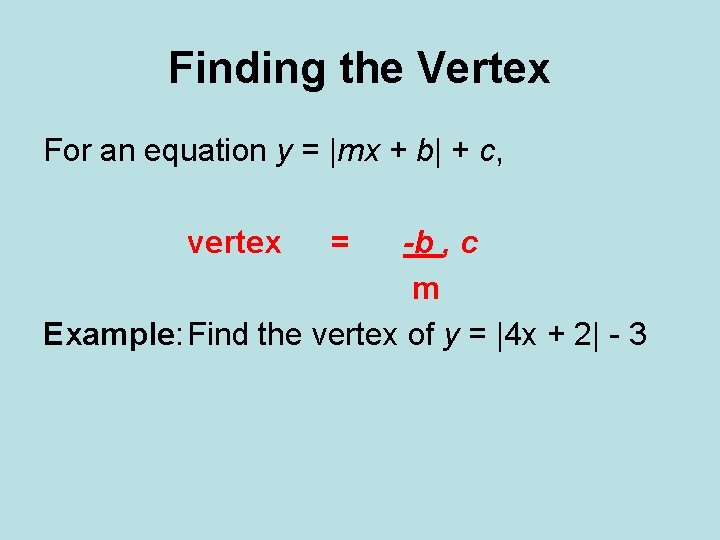

Finding the Vertex For an equation y = |mx + b| + c, vertex = -b , c m Example: Find the vertex of y = |4 x + 2| - 3

Finding the Vertex For an equation y = |mx + b| + c, vertex = -b , c m Example: Find the vertex of y = |4 x + 2| - 3 Answer: = -2 , -3 4 = -1 , -3 2

Absolute Value Functions Steps to graphing an absolute value function… 1. Find the vertex 2. Write two linear equations and find slope 3. Use slope to plot points, connect the dots

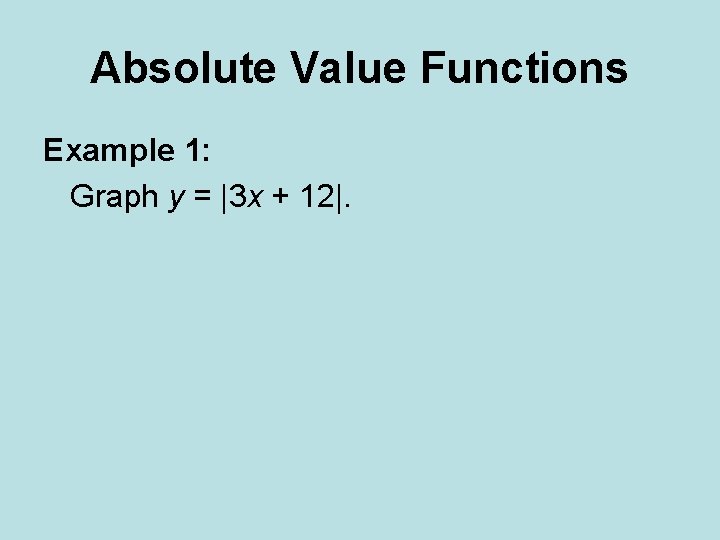

Absolute Value Functions Example 1: Graph y = |3 x + 12|.

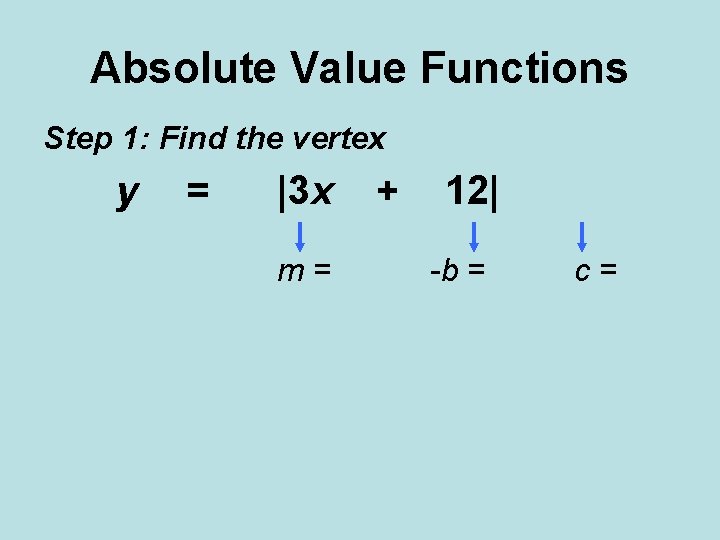

Absolute Value Functions Step 1: Find the vertex y = |3 x m= + 12| -b = c=

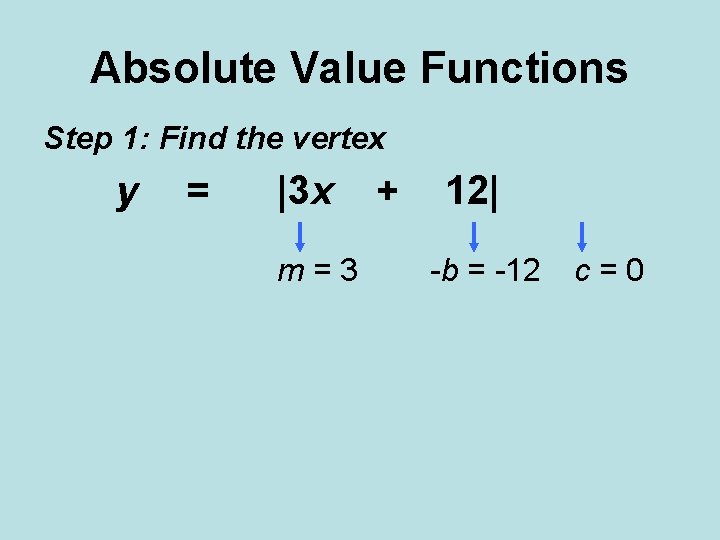

Absolute Value Functions Step 1: Find the vertex y = |3 x m=3 + 12| -b = -12 c=0

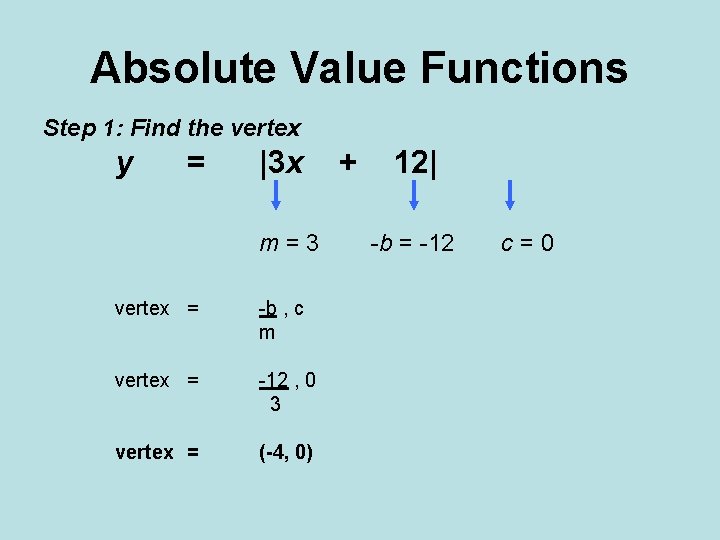

Absolute Value Functions Step 1: Find the vertex y = |3 x m=3 vertex = -b , c m vertex = -12 , 0 3 vertex = (-4, 0) + 12| -b = -12 c=0

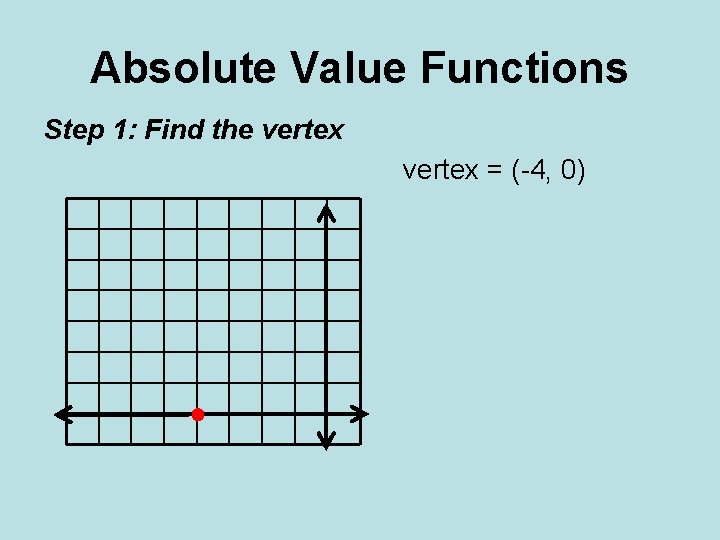

Absolute Value Functions Step 1: Find the vertex = (-4, 0)

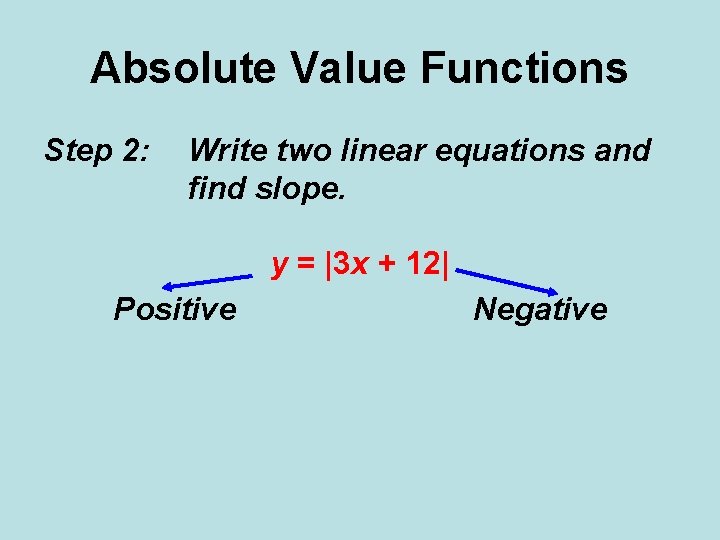

Absolute Value Functions Step 2: Write two linear equations and find slope. y = |3 x + 12| Positive Negative

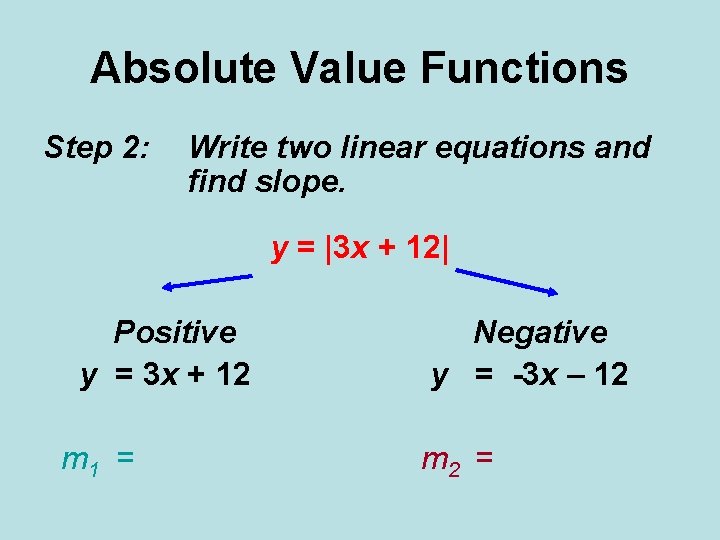

Absolute Value Functions Step 2: Write two linear equations and find slope. y = |3 x + 12| Positive y = 3 x + 12 m 1 = Negative y = -3 x – 12 m 2 =

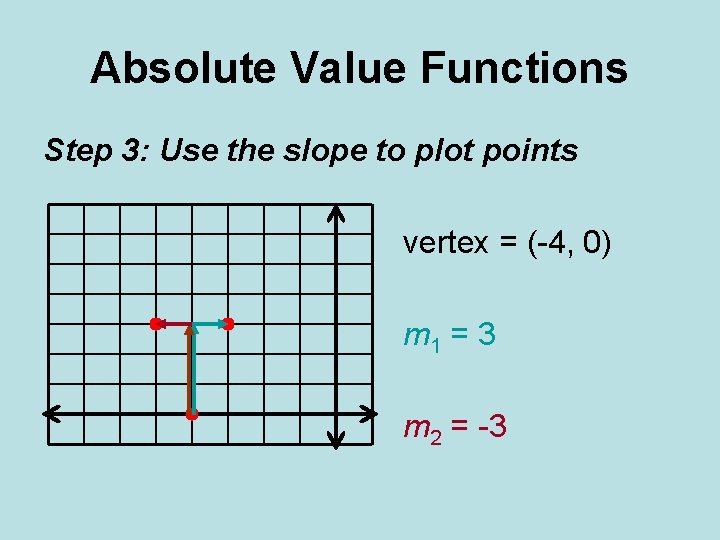

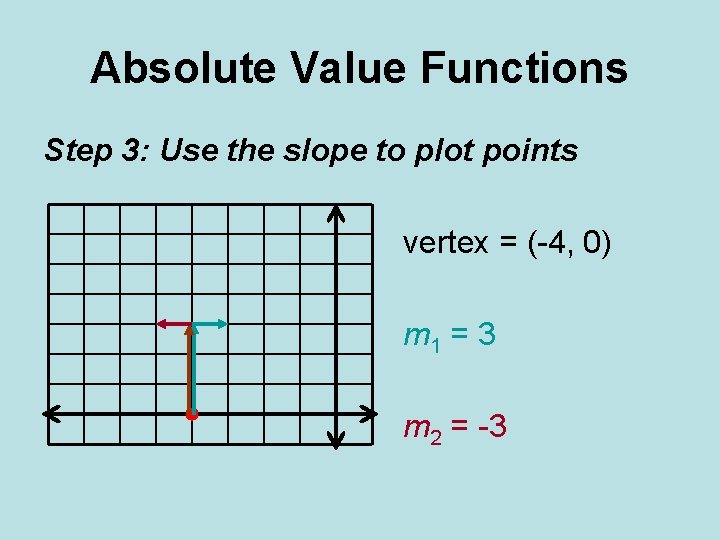

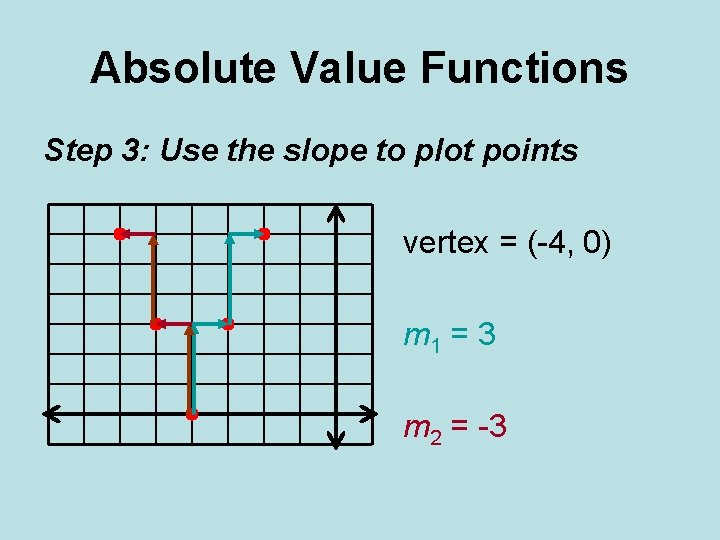

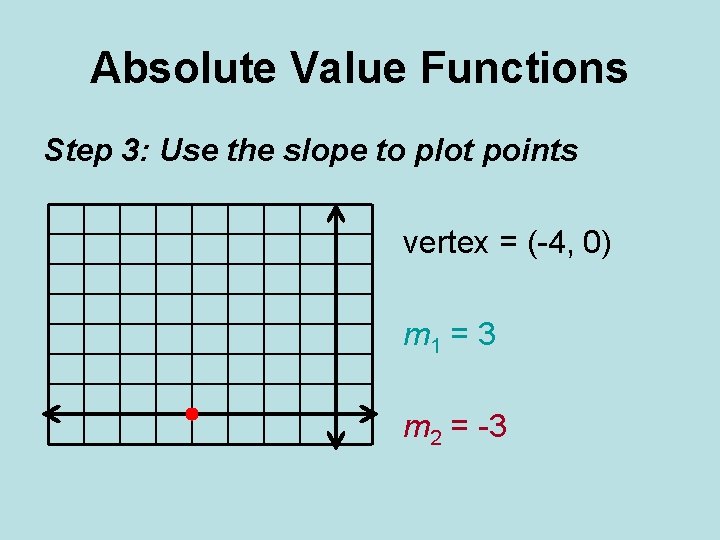

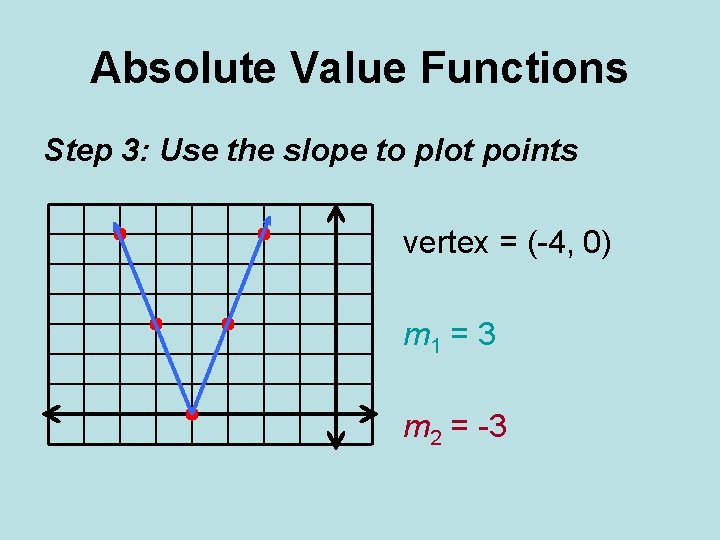

Absolute Value Functions Step 3: Use the slope to plot points vertex = (-4, 0) m 1 = 3 m 2 = -3

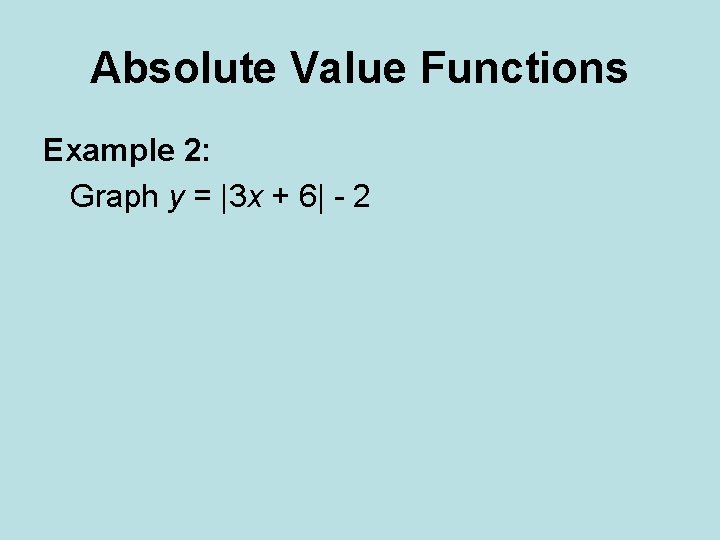

Absolute Value Functions Example 2: Graph y = |3 x + 6| - 2

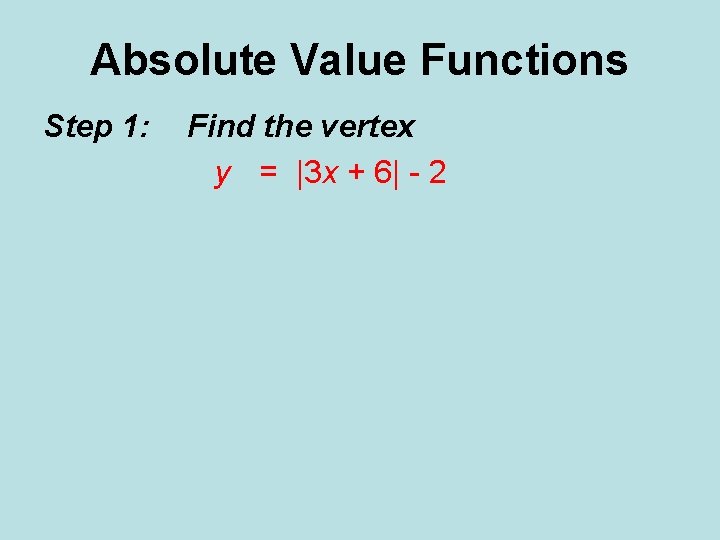

Absolute Value Functions Step 1: Find the vertex y = |3 x + 6| - 2

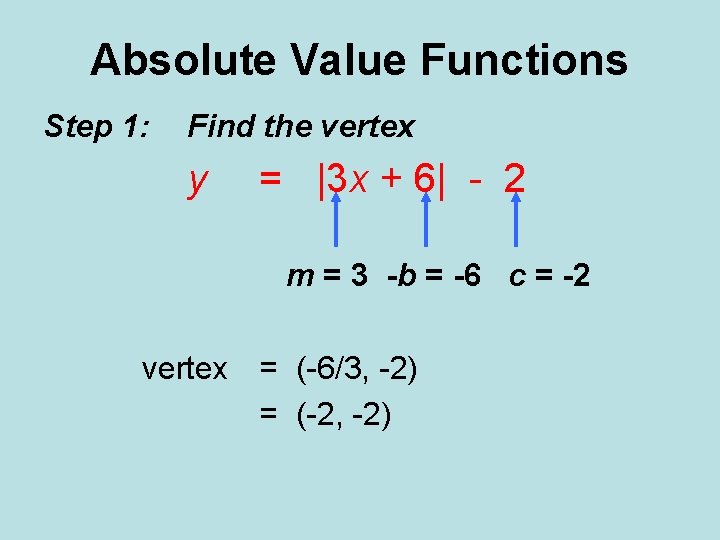

Absolute Value Functions Step 1: Find the vertex y = |3 x + 6| - 2 m = 3 -b = -6 c = -2 vertex = (-6/3, -2) = (-2, -2)

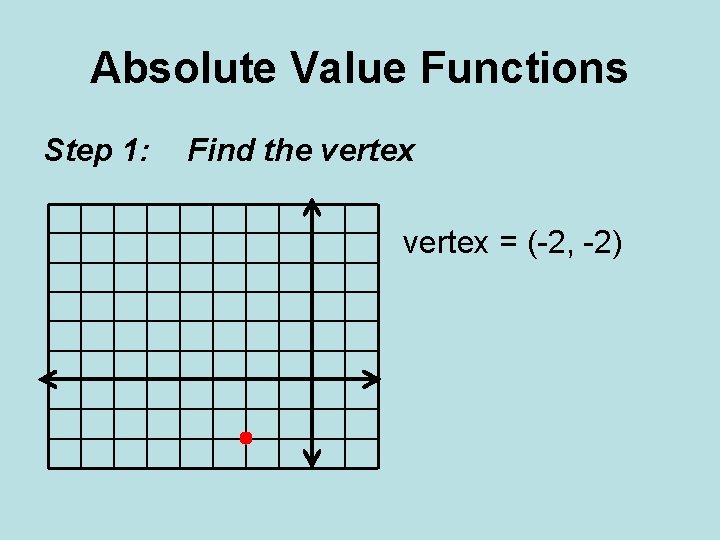

Absolute Value Functions Step 1: Find the vertex = (-2, -2)

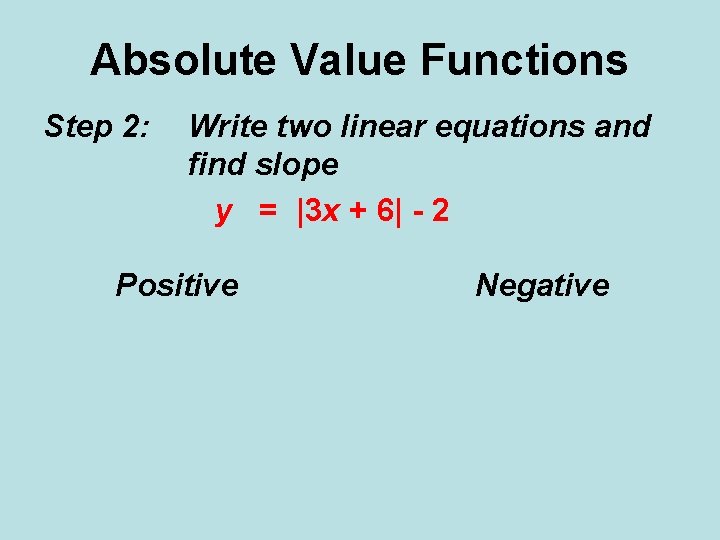

Absolute Value Functions Step 2: Write two linear equations and find slope y = |3 x + 6| - 2 Positive Negative

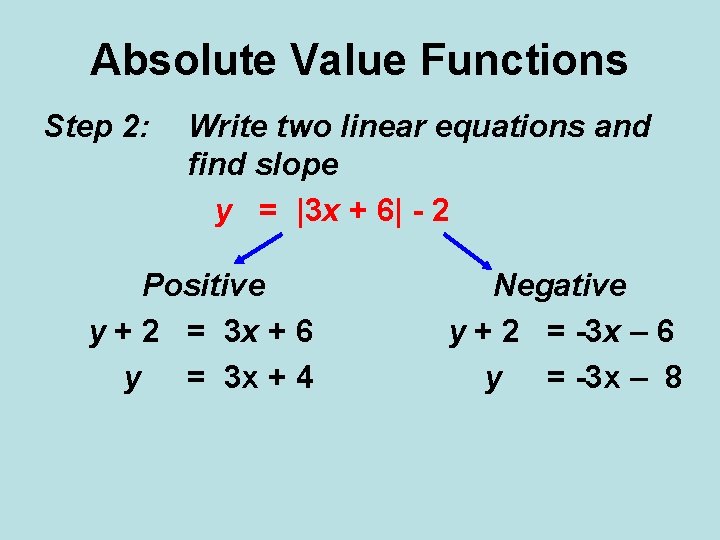

Absolute Value Functions Step 2: Write two linear equations and find slope y = |3 x + 6| - 2 Positive y + 2 = 3 x + 6 y = 3 x + 4 Negative y + 2 = -3 x – 6 y = -3 x – 8

Absolute Value Functions Step 2: Write two linear equations and find slope y = |3 x + 6| - 2 Positive y + 2 = 3 x + 6 y = 3 x + 4 m = 3 Negative y + 2 = -3 x – 6 y = -3 x – 8 m = -3

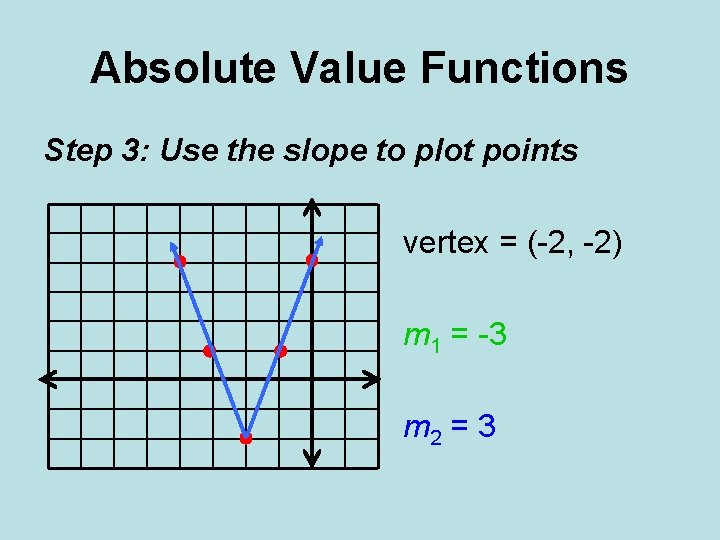

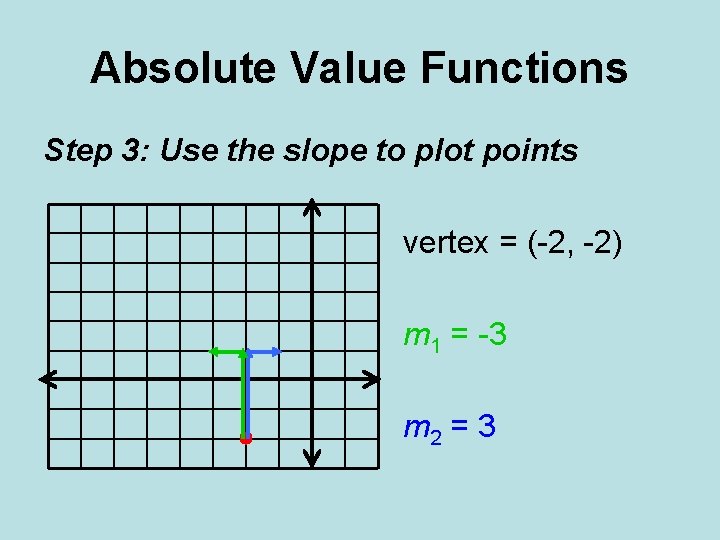

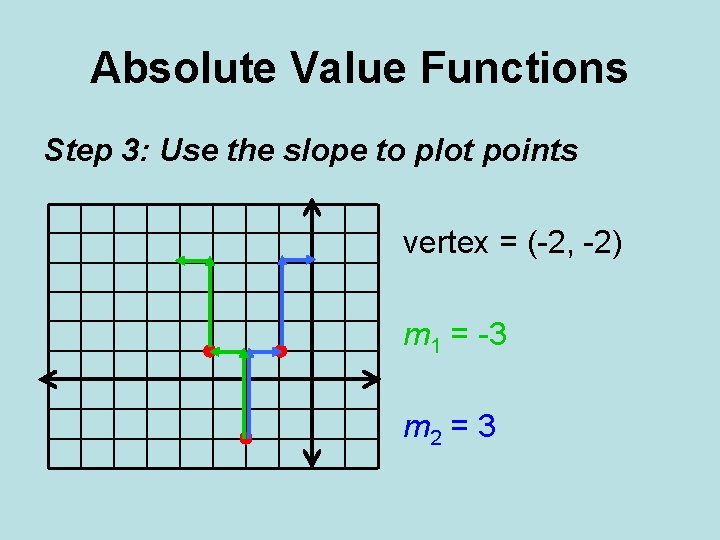

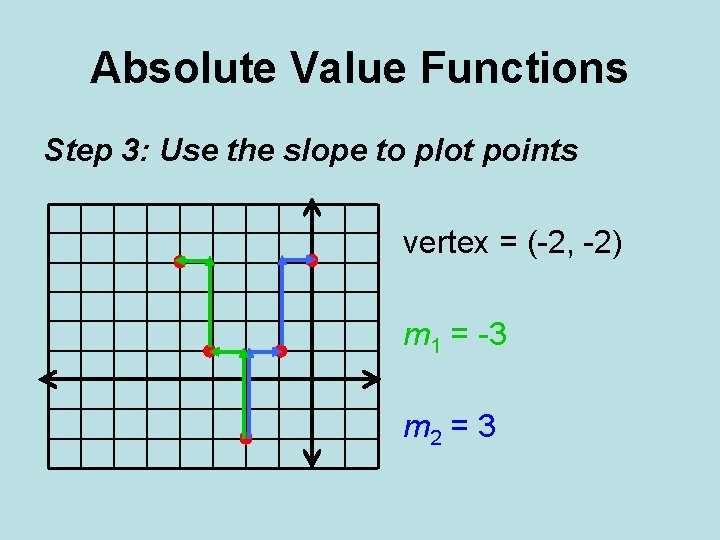

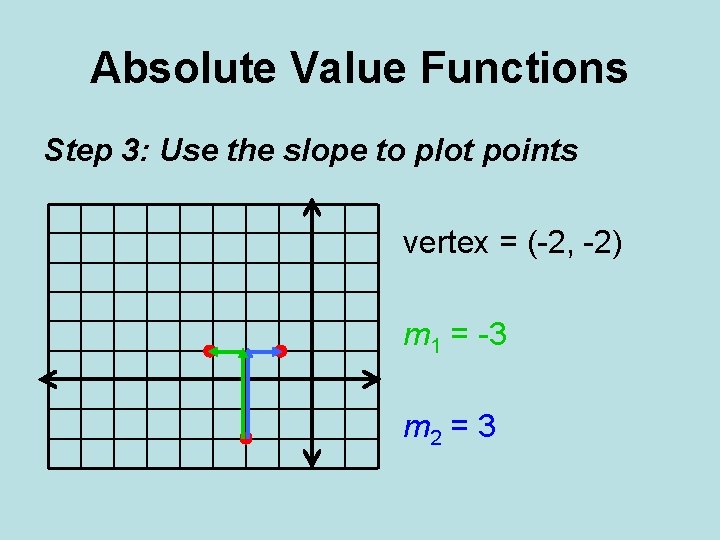

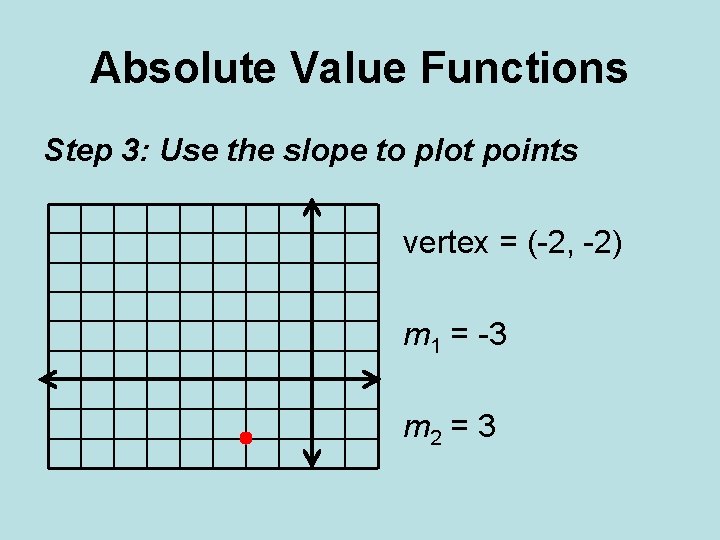

Absolute Value Functions Step 3: Use the slope to plot points vertex = (-2, -2) m 1 = -3 m 2 = 3
