841 1 Drop bolt Basic drop bolt suitable

841 -1 Drop bolt Basic drop bolt suitable for a versatile range of applications NFO I H C N U A L T KE R A M RE P T F A DR ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience 1

, 841 -1 Drop bolt Basic drop bolt + short strike plate Fail unlocked DRAFT FO CH IN N U A L ARKET PRE M 2

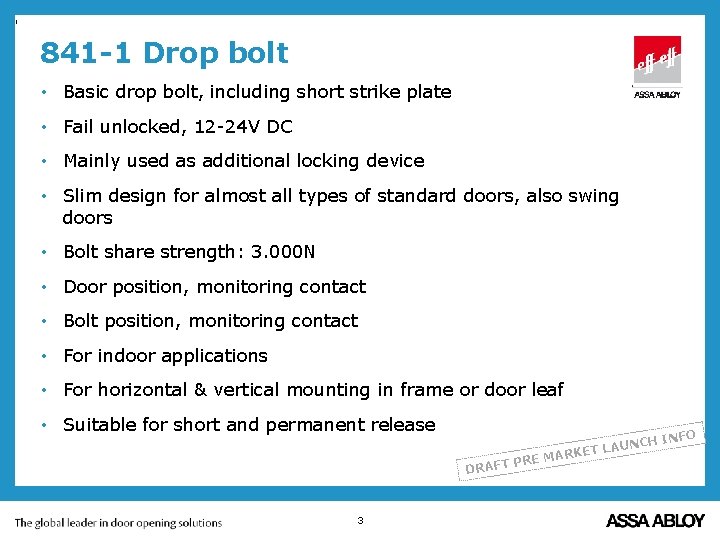

, 841 -1 Drop bolt • Basic drop bolt, including short strike plate • Fail unlocked, 12 -24 V DC • Mainly used as additional locking device • Slim design for almost all types of standard doors, also swing doors • Bolt share strength: 3. 000 N • Door position, monitoring contact • Bolt position, monitoring contact • For indoor applications • For horizontal & vertical mounting in frame or door leaf • Suitable for short and permanent release 3 H LAUNC T E K R A PRE M DRAFT INFO

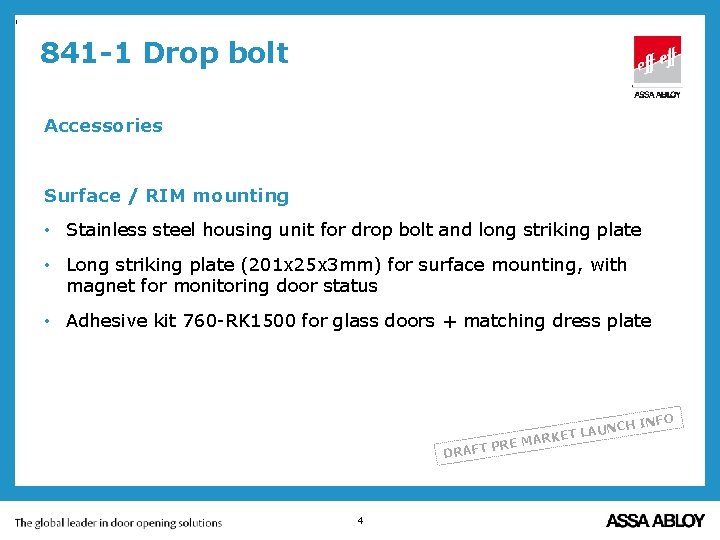

, 841 -1 Drop bolt Accessories Surface / RIM mounting • Stainless steel housing unit for drop bolt and long striking plate • Long striking plate (201 x 25 x 3 mm) for surface mounting, with magnet for monitoring door status • Adhesive kit 760 -RK 1500 for glass doors + matching dress plate DRAFT 4 PRE M NFO NCH I U A L T ARKE

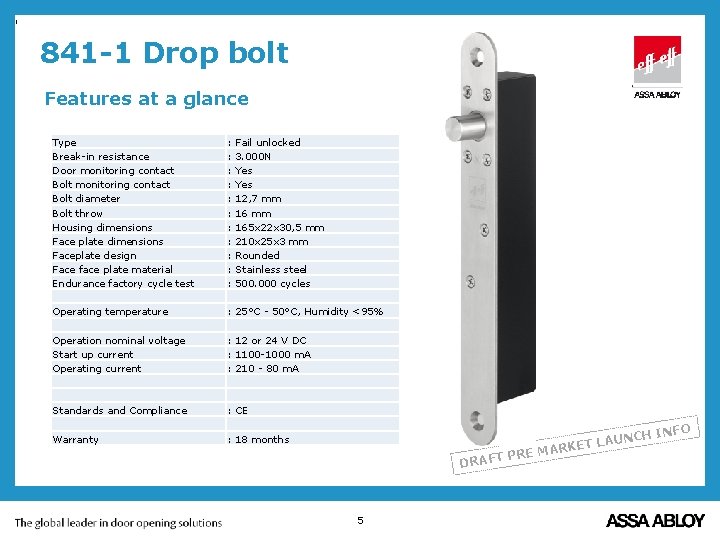

, 841 -1 Drop bolt Features at a glance Type Break-in resistance Door monitoring contact Bolt diameter Bolt throw Housing dimensions Face plate dimensions Faceplate design Face face plate material Endurance factory cycle test : : : Fail unlocked 3. 000 N Yes 12, 7 mm 165 x 22 x 30, 5 mm 210 x 25 x 3 mm Rounded Stainless steel 500. 000 cycles Operating temperature : 25°C - 50°C, Humidity <95% Operation nominal voltage Start up current Operating current : 12 or 24 V DC : 1100 -1000 m. A : 210 - 80 m. A Standards and Compliance : CE Warranty : 18 months DRAFT 5 PRE M AUNCH L T E K AR INFO
