802. 11 b/g/n Wireless LAN Outdoor AP WNAP-6306 Icon 2 Icon 3 Icon 4

802. 11 b/g/n Wireless LAN Outdoor AP WNAP-6306 Icon 2 Icon 3 Icon 4 Icon 5

Presentation Outline u Product Position u Product Overview u Product Benefit u Product Features

Presentation Outline u Product Position u Product Overview u Product Benefit u Product Features u Management – Web UI u Applications u Product Comparison u Appendix ü Outdoor Antennas ü Antenna Connection ü Accessories 2

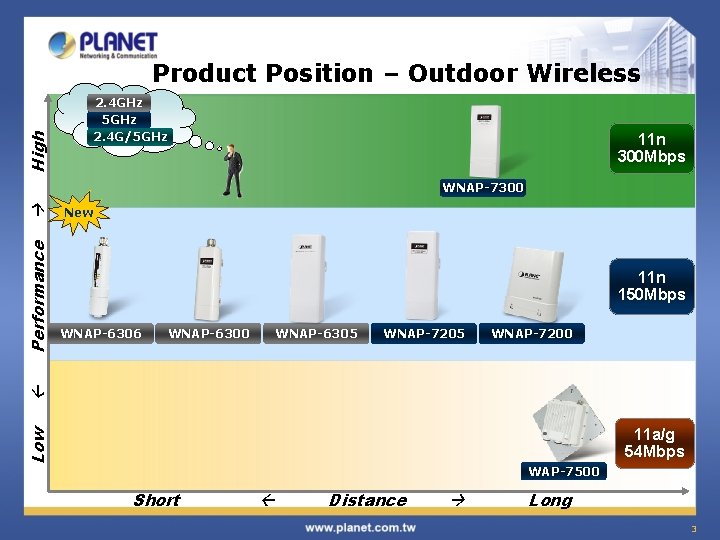

High Product Position – Outdoor Wireless 2. 4 GHz 5 GHz 2. 4 G/5

High Product Position – Outdoor Wireless 2. 4 GHz 5 GHz 2. 4 G/5 GHz 11 n 300 Mbps New 11 n 150 Mbps WNAP-6306 WNAP-6305 WNAP-6300 WNAP-7205 WNAP-7200 Performance WNAP-7300 Low 11 a/g 54 Mbps WAP-7500 Short Distance Long 3

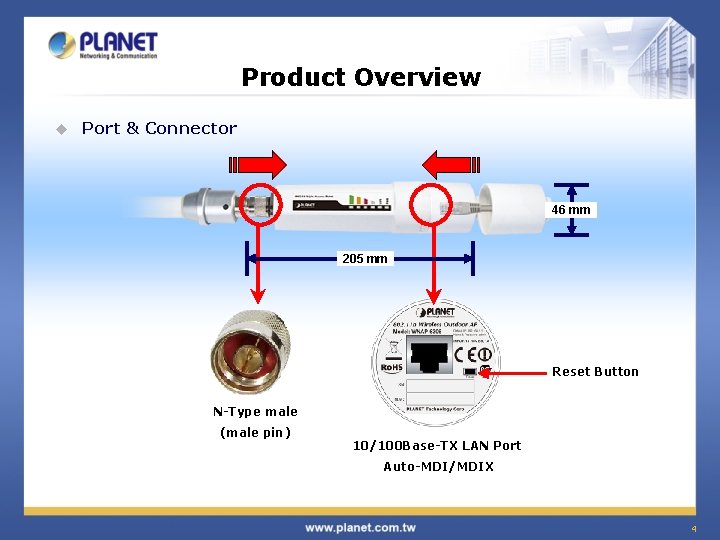

Product Overview u Port & Connector 46 mm 205 mm Reset Button N-Type male

Product Overview u Port & Connector 46 mm 205 mm Reset Button N-Type male (male pin) 10/100 Base-TX LAN Port Auto-MDI/MDIX 4

Product Overview u LED Power Signal Indicator LAN 5

Product Overview u LED Power Signal Indicator LAN 5

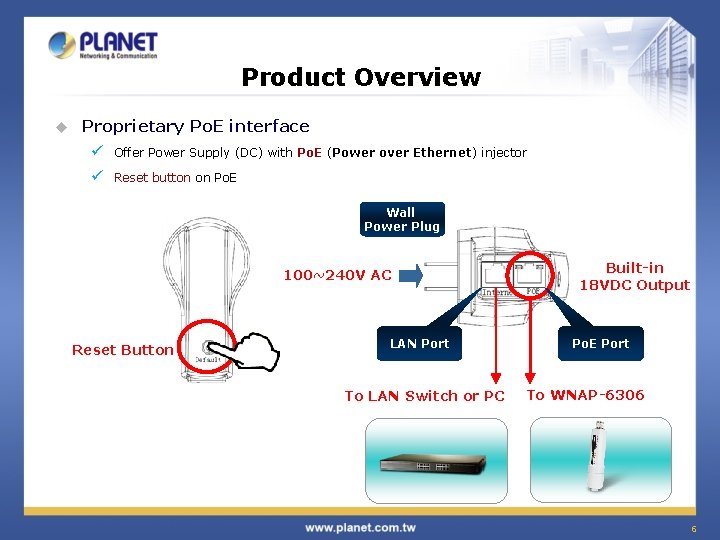

Product Overview u Proprietary Po. E interface ü Offer Power Supply (DC) with Po.

Product Overview u Proprietary Po. E interface ü Offer Power Supply (DC) with Po. E (Power over Ethernet) injector ü Reset button on Po. E Wall Power Plug 100~240 V AC Reset Button LAN Port To LAN Switch or PC Built-in 18 VDC Output Po. E Port To WNAP-6306 6

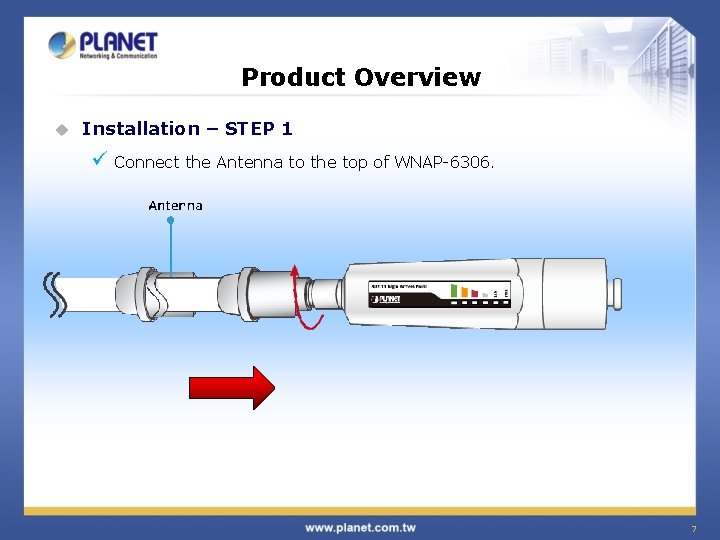

Product Overview u Installation – STEP 1 ü Connect the Antenna to the top

Product Overview u Installation – STEP 1 ü Connect the Antenna to the top of WNAP-6306. 7

Product Overview u Installation – STEP 2 ü Open the bottom of WNAP-6306. ü

Product Overview u Installation – STEP 2 ü Open the bottom of WNAP-6306. ü Plug the RJ-45 Ethernet cable into the LAN Port through the Cap and Gasket. Then seal the bottom of the WNAP-6306 with the Cap and Gasket. 8

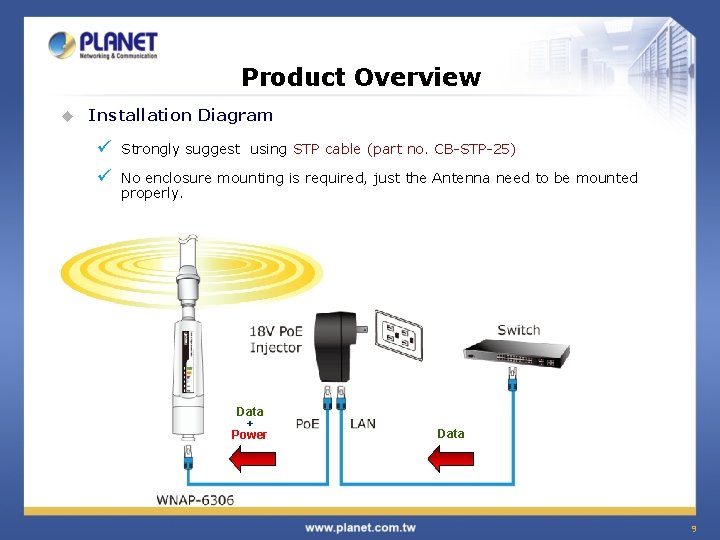

Product Overview u Installation Diagram ü Strongly suggest using STP cable (part no. CB-STP-25)

Product Overview u Installation Diagram ü Strongly suggest using STP cable (part no. CB-STP-25) ü No enclosure mounting is required, just the Antenna need to be mounted properly. Data + Power Data 9

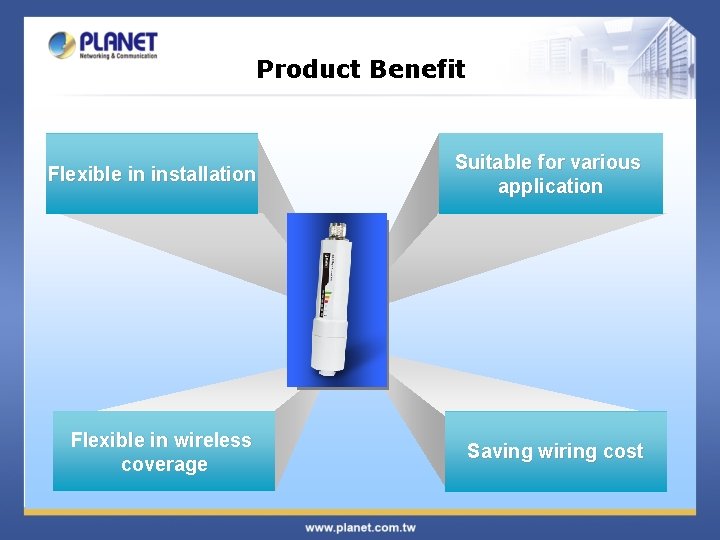

Product Benefit Flexible in installation Suitable for various application Flexible in wireless coverage Saving

Product Benefit Flexible in installation Suitable for various application Flexible in wireless coverage Saving wiring cost

Product Benefit - Antenna Connection Direct Attach 11

Product Benefit - Antenna Connection Direct Attach 11

Product Features u Hardware Design ü IP 65 , Water-proof Enclosure ü -20~70 Degree

Product Features u Hardware Design ü IP 65 , Water-proof Enclosure ü -20~70 Degree C wide range of operating temperature ü Power over Ethernet design (with proprietary injector) ü Reset Button on Po. E Injector & Device ü Mounting-free design u RF interface ü IEEE 802. 11 b/g/n standards compliant ü High output power up to 200 m. W with multiple adjustable transmit power control ü Data rate up to 150 Mbps with 802. 11 n mode ü Built-in N-Type Connector 12

Product Features u Wireless ü Operation Mode • AP, Client CPE (WISP), WDS Pt.

Product Features u Wireless ü Operation Mode • AP, Client CPE (WISP), WDS Pt. P, WDS Pt. MP, Repeater (AP+WDS), Universal Repeater (AP+Client) ü WDS up to 4 remote APs ü SSID Broadcast & Hide ü Supported Dual-SSID ü Wireless Security • 64/128 -bit WEP, WPA 2, WPA-PSK(TKIP), WPA 2 PSK(AES) Authentication ü Max. Wireless Client up to 25 STAs ü Output Power Control (Range 1~100, default: 100 ) 13

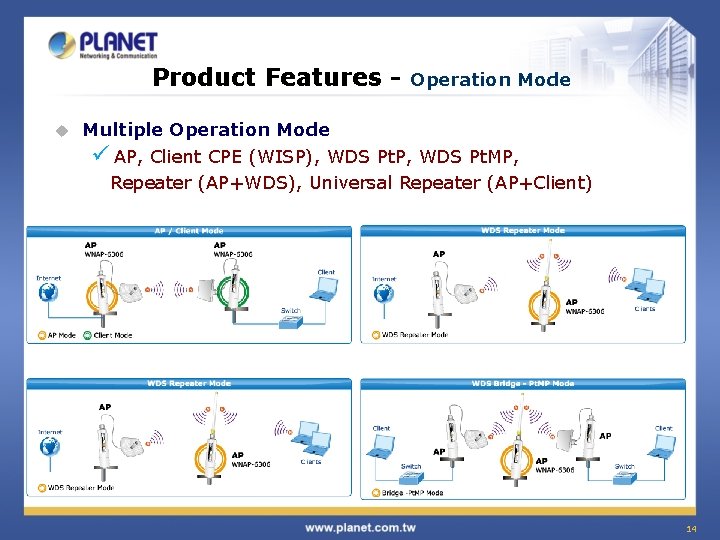

Product Features u Operation Mode Multiple Operation Mode ü AP, Client CPE (WISP), WDS

Product Features u Operation Mode Multiple Operation Mode ü AP, Client CPE (WISP), WDS Pt. P, WDS Pt. MP, Repeater (AP+WDS), Universal Repeater (AP+Client) 14

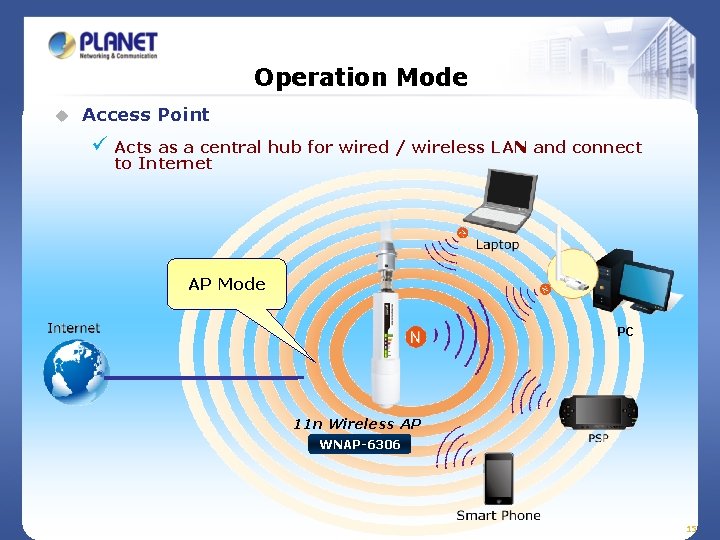

Operation Mode u Access Point ü Acts as a central hub for wired /

Operation Mode u Access Point ü Acts as a central hub for wired / wireless LAN and connect to Internet AP Mode PC 11 n Wireless AP WNAP-6306 15

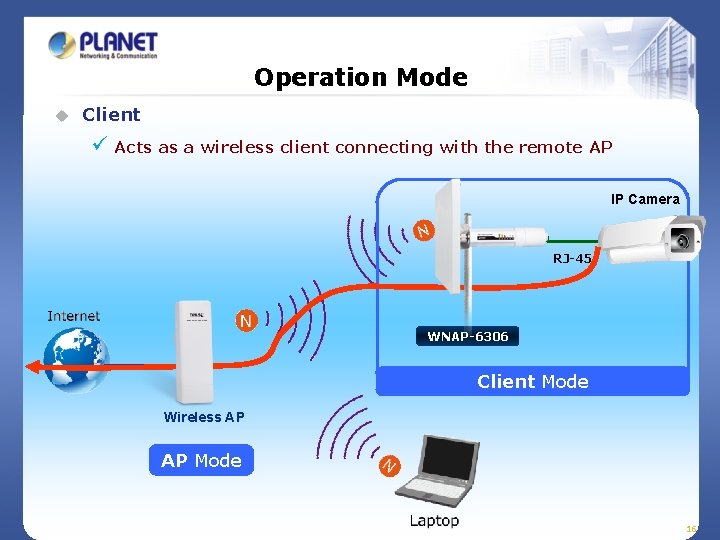

Operation Mode u Client ü Acts as a wireless client connecting with the remote

Operation Mode u Client ü Acts as a wireless client connecting with the remote AP IP Camera RJ-45 WNAP-6306 Client Mode Wireless AP AP Mode 16

Operation Mode u WDS Mode (Bridge) ü Two APs in two remote locations connect

Operation Mode u WDS Mode (Bridge) ü Two APs in two remote locations connect to each other wirelessly PC WDS Mode WNAP-6306 PC 17

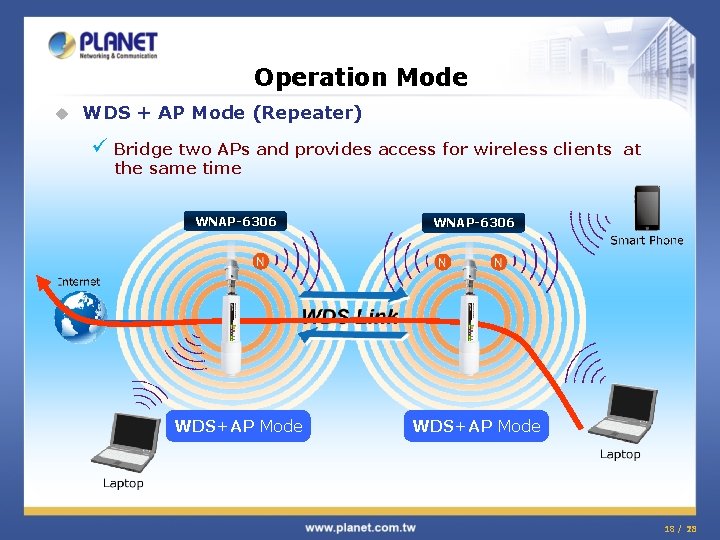

Operation Mode u WDS + AP Mode (Repeater) ü Bridge two APs and provides

Operation Mode u WDS + AP Mode (Repeater) ü Bridge two APs and provides access for wireless clients the same time WNAP-6306 WDS+AP Mode at 18 / 25 18

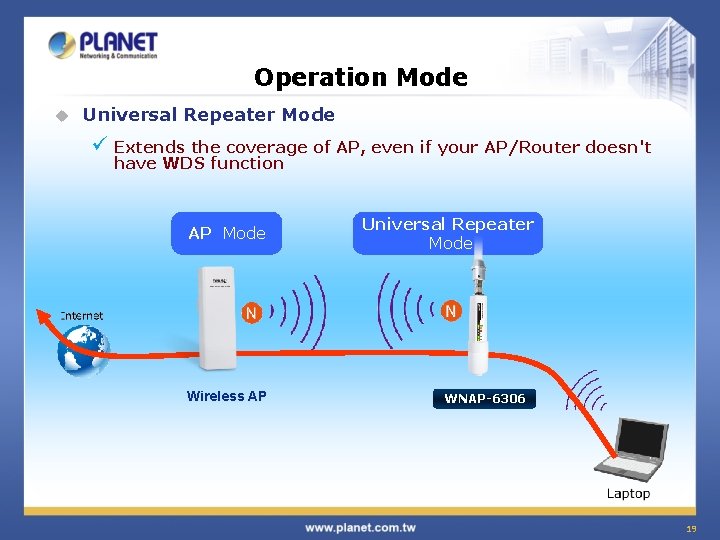

Operation Mode u Universal Repeater Mode ü Extends the coverage of AP, even if

Operation Mode u Universal Repeater Mode ü Extends the coverage of AP, even if your AP/Router doesn't have WDS function AP Mode Wireless AP Universal Repeater Mode WNAP-6306 19

Operation Mode u WISP (Client Router) ü Acts as a WISP client router and

Operation Mode u WISP (Client Router) ü Acts as a WISP client router and the WISP subscriber can easily share the WISP connection with only a simple switch. WNAP-6306 WISP mode System: Router mode Wireless RF: Client mode WISP Provider No cable implement Wireless connection for Internet access 20

Product Features u Management ü WAN Connection Types for WISP: • Static IP •

Product Features u Management ü WAN Connection Types for WISP: • Static IP • DHCP (Dynamic IP) • PPPo. E ü Support MAC Filtering up to 20 clients ü Support DHCP Server, UPn. P ü User Friendly Web-based UI, On-line Help and WOL (Wake. On-LAN) ü System status monitoring includes DHCP Client, Association List, System Log ü Wireless LED Thresholds for antenna alignment 21

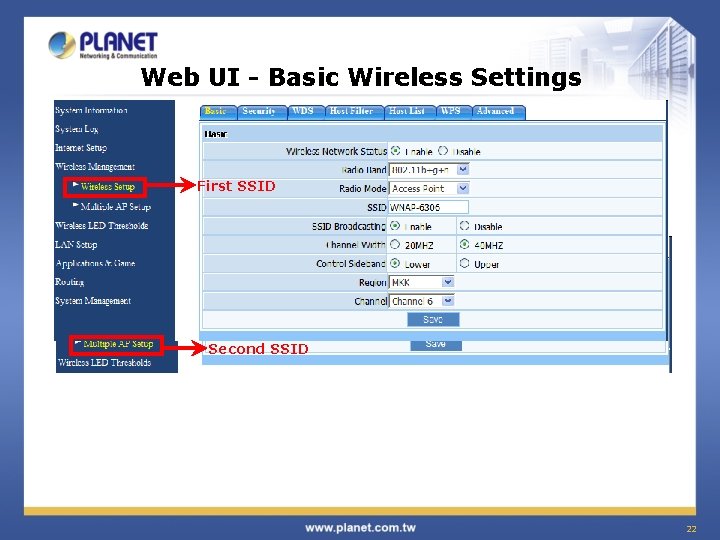

Web UI - Basic Wireless Settings First SSID Second SSID 22

Web UI - Basic Wireless Settings First SSID Second SSID 22

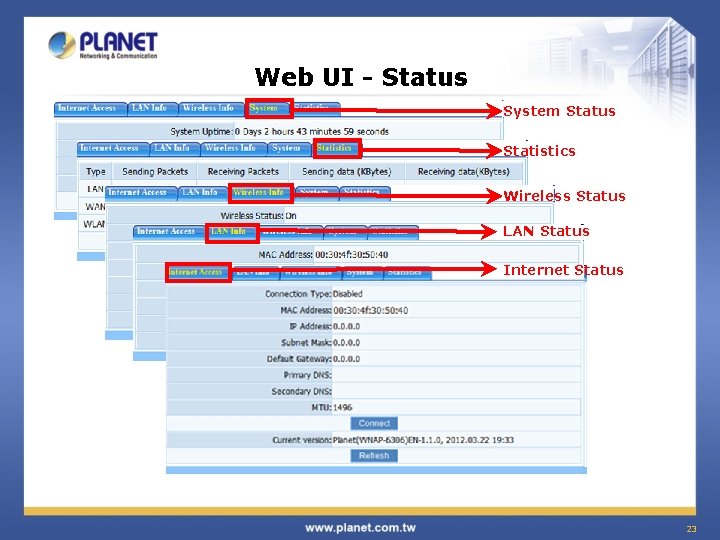

Web UI - Status System Status Statistics Wireless Status LAN Status Internet Status 23

Web UI - Status System Status Statistics Wireless Status LAN Status Internet Status 23

Applications u Typical Application - Enterprise 24

Applications u Typical Application - Enterprise 24

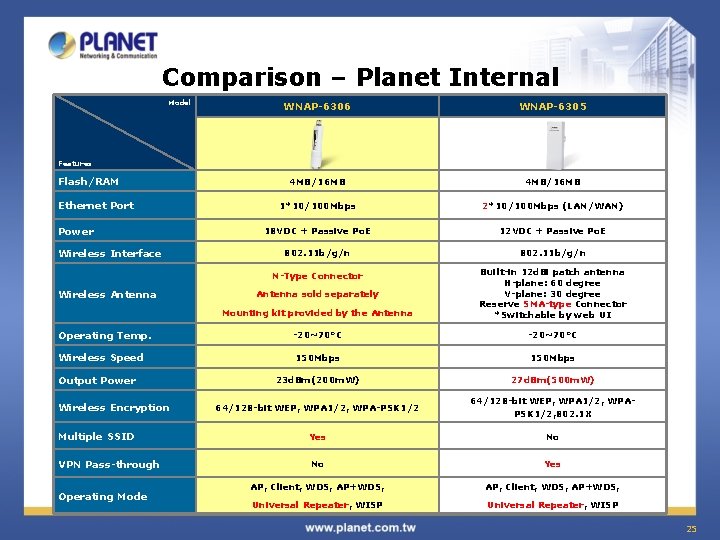

Comparison – Planet Internal Model WNAP-6306 WNAP-6305 4 MB/16 MB 1*10/100 Mbps 2*10/100 Mbps

Comparison – Planet Internal Model WNAP-6306 WNAP-6305 4 MB/16 MB 1*10/100 Mbps 2*10/100 Mbps (LAN/WAN) 18 VDC + Passive Po. E 12 VDC + Passive Po. E 802. 11 b/g/n N-Type Connector Mounting kit provided by the Antenna Built-in 12 d. Bi patch antenna H-plane: 60 degree V-plane: 30 degree Reserve SMA-type Connector *Switchable by web UI Operating Temp. -20~70°C Wireless Speed 150 Mbps 23 d. Bm(200 m. W) 27 d. Bm(500 m. W) 64/128 -bit WEP, WPA 1/2, WPA-PSK 1/2 64/128 -bit WEP, WPA 1/2, WPAPSK 1/2, 802. 1 X Multiple SSID Yes No VPN Pass-through No Yes AP, Client, WDS, AP+WDS, Universal Repeater, WISP Features Flash/RAM Ethernet Port Power Wireless Interface Wireless Antenna Output Power Wireless Encryption Operating Mode Antenna sold separately 25

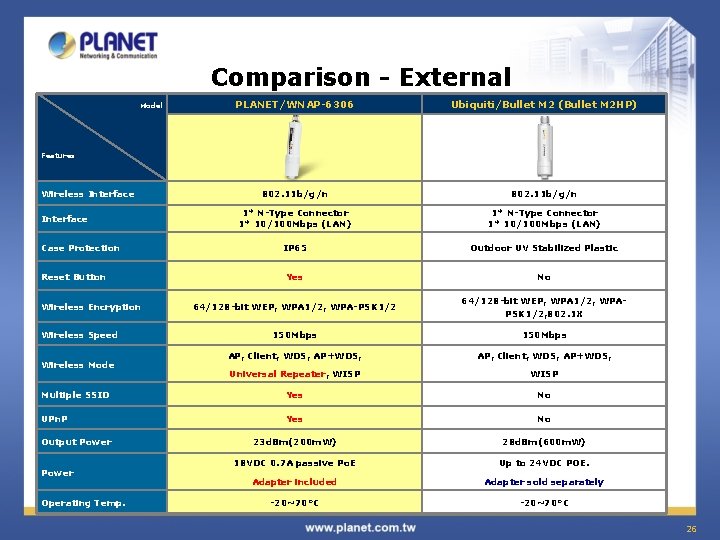

Comparison - External PLANET/WNAP-6306 Ubiquiti/Bullet M 2 (Bullet M 2 HP) 802. 11 b/g/n

Comparison - External PLANET/WNAP-6306 Ubiquiti/Bullet M 2 (Bullet M 2 HP) 802. 11 b/g/n 1* N-Type Connector 1* 10/100 Mbps (LAN) IP 65 Outdoor UV Stabilized Plastic Yes No 64/128 -bit WEP, WPA 1/2, WPA-PSK 1/2 64/128 -bit WEP, WPA 1/2, WPAPSK 1/2, 802. 1 X 150 Mbps AP, Client, WDS, AP+WDS, Universal Repeater, WISP Multiple SSID Yes No UPn. P Yes No 23 d. Bm(200 m. W) 28 d. Bm(600 m. W) 18 VDC 0. 7 A passive Po. E Up to 24 VDC POE. Adapter included Adapter sold separately -20~70°C Model Features Wireless Interface Case Protection Reset Button Wireless Encryption Wireless Speed Wireless Mode Output Power Operating Temp. 26

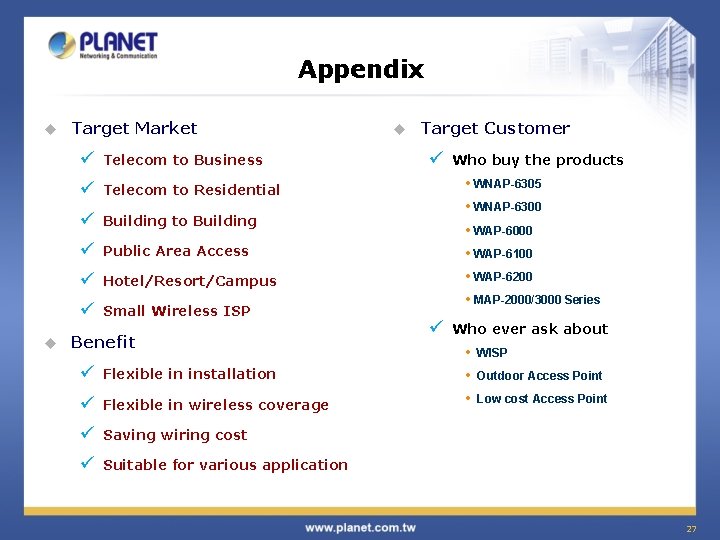

Appendix u u Target Market ü Telecom to Business ü Telecom to Residential ü

Appendix u u Target Market ü Telecom to Business ü Telecom to Residential ü Building to Building ü Public Area Access ü Hotel/Resort/Campus ü Small Wireless ISP Benefit ü Flexible in installation ü Flexible in wireless coverage ü Saving wiring cost ü Suitable for various application u Target Customer ü Who buy the products • WNAP-6305 • WNAP-6300 • WAP-6000 • WAP-6100 • WAP-6200 • MAP-2000/3000 Series ü Who ever ask about • • • WISP Outdoor Access Point Low cost Access Point 27

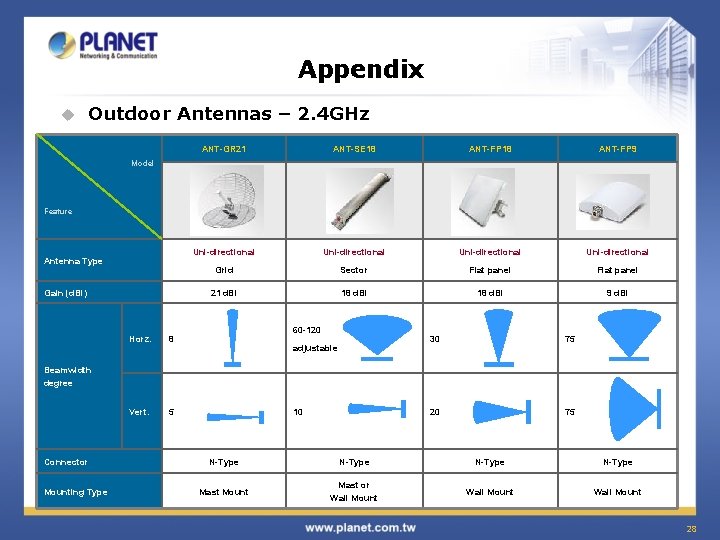

Appendix u Outdoor Antennas – 2. 4 GHz ANT-GR 21 ANT-SE 18 ANT-FP 9

Appendix u Outdoor Antennas – 2. 4 GHz ANT-GR 21 ANT-SE 18 ANT-FP 9 Uni-directional Grid Sector Flat panel 21 d. Bi 18 d. Bi 9 d. Bi Model Feature Antenna Type Gain (d. Bi) Horz. 8 Vert. 5 60 -120 adjustable 30 75 20 75 Beamwidth degree Connector Mounting Type 10 N-Type Mast Mount Mast or Wall Mount 28

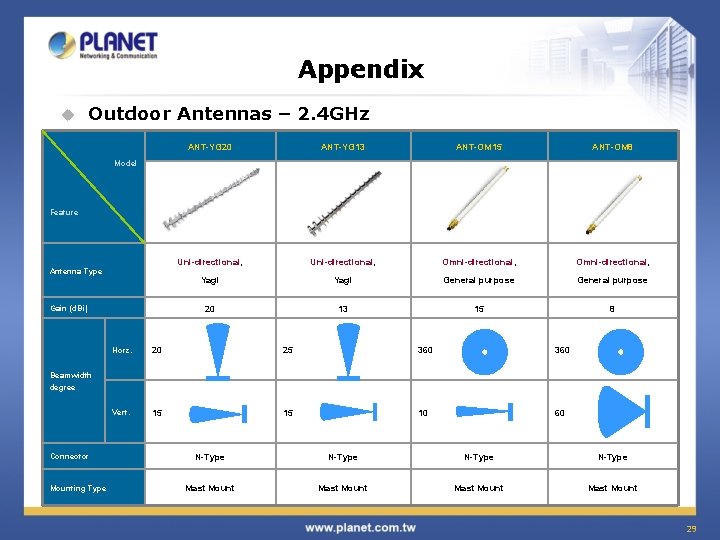

Appendix u Outdoor Antennas – 2. 4 GHz ANT-YG 20 ANT-YG 13 ANT-OM 15

Appendix u Outdoor Antennas – 2. 4 GHz ANT-YG 20 ANT-YG 13 ANT-OM 15 ANT-OM 8 Uni-directional, Omni-directional, Yagi General purpose 20 13 15 8 Model Feature Antenna Type Gain (d. Bi) Horz. 20 25 360 Vert. 15 15 10 60 Beamwidth degree Connector Mounting Type N-Type Mast Mount 29

Appendix u Accessories For WNAP-6306 WL-SMA-0. 6 WL-SMA-6 WL-NM-0. 6 WL-MF-0. 6 RP-SMA (Male)

Appendix u Accessories For WNAP-6306 WL-SMA-0. 6 WL-SMA-6 WL-NM-0. 6 WL-MF-0. 6 RP-SMA (Male) to N-male (male pin) N-male (male pin) N-female (female pin) 0. 6 m 6 m 0. 6 m Model Feature Type Length Side-1 Connector Side-2 30

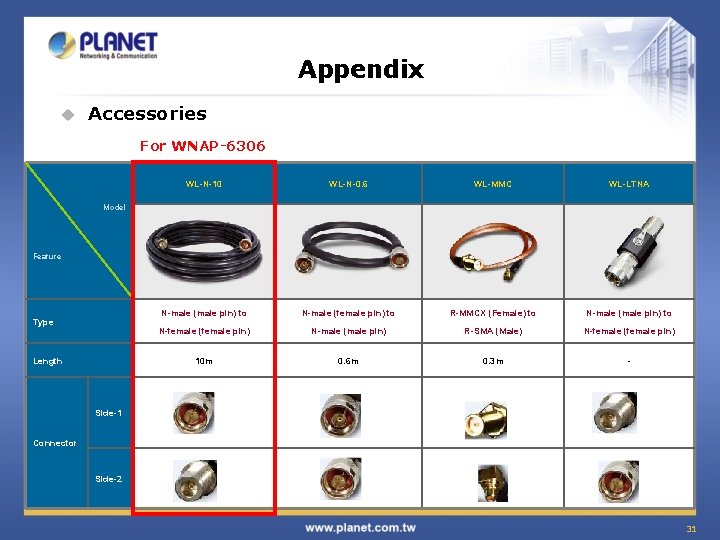

Appendix u Accessories For WNAP-6306 WL-N-10 WL-N-0. 6 WL-MMC WL-LTNA N-male (male pin) to

Appendix u Accessories For WNAP-6306 WL-N-10 WL-N-0. 6 WL-MMC WL-LTNA N-male (male pin) to N-male (female pin) to R-MMCX (Female) to N-male (male pin) to N-female (female pin) N-male (male pin) R-SMA (Male) N-female (female pin) 10 m 0. 6 m 0. 3 m - Model Feature Type Length Side-1 Connector Side-2 31

Appendix u Related Products & Accessories ü CB-STP-25 (25 M STP Cat 5 Cable)

Appendix u Related Products & Accessories ü CB-STP-25 (25 M STP Cat 5 Cable) ü WL-LTNA (Lightning Arrester) CB-STP-25 ü WL-MF-0. 6 or WL-N-10 (RF Cable) ü 2. 4 GHz Outdoor Antenna • • ANT-OM 8 WL-LTNA ANT-OM 15 ANT-FP 9 ANT-FP 18 WL-MF-0. 6 ANT-SE 18 ANT-YG 13 ANT-YG 20 ANT-GR 21 WL-N-10 32
