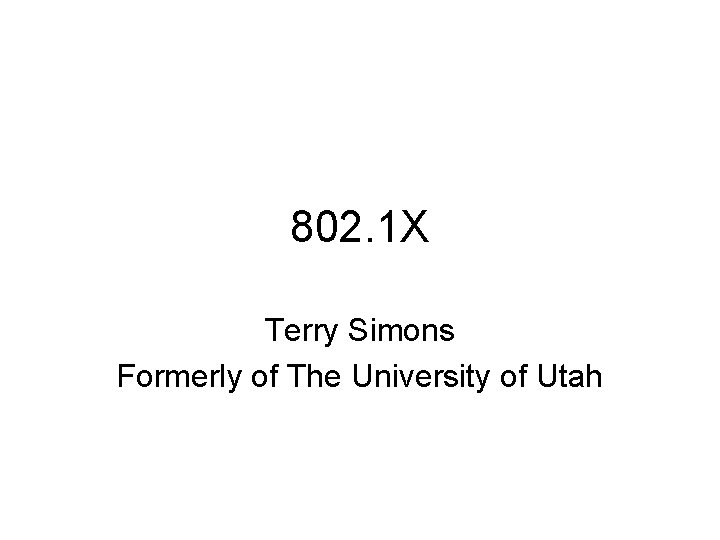

802. 1 X Terry Simons Formerly of The University of Utah

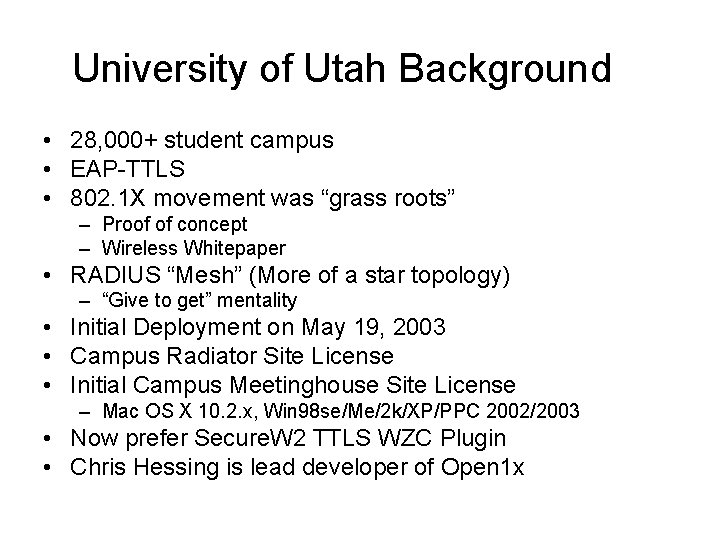

University of Utah Background • 28, 000+ student campus • EAP-TTLS • 802. 1 X movement was “grass roots” – Proof of concept – Wireless Whitepaper • RADIUS “Mesh” (More of a star topology) – “Give to get” mentality • Initial Deployment on May 19, 2003 • Campus Radiator Site License • Initial Campus Meetinghouse Site License – Mac OS X 10. 2. x, Win 98 se/Me/2 k/XP/PPC 2002/2003 • Now prefer Secure. W 2 TTLS WZC Plugin • Chris Hessing is lead developer of Open 1 x

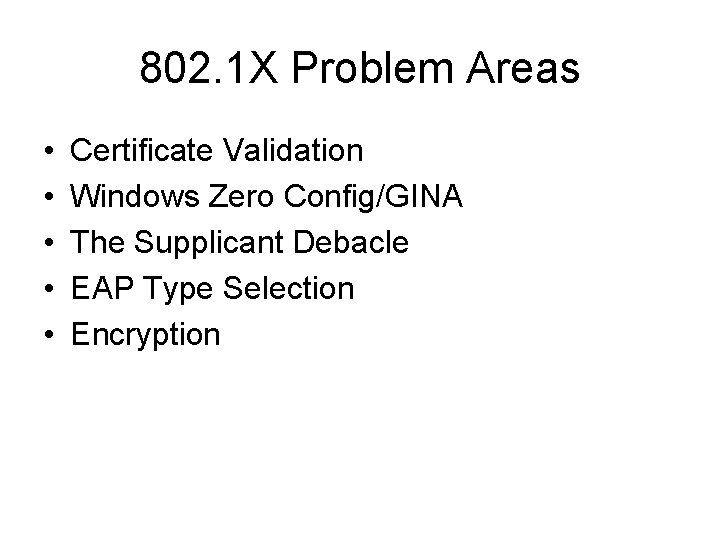

802. 1 X Problem Areas • • • Certificate Validation Windows Zero Config/GINA The Supplicant Debacle EAP Type Selection Encryption

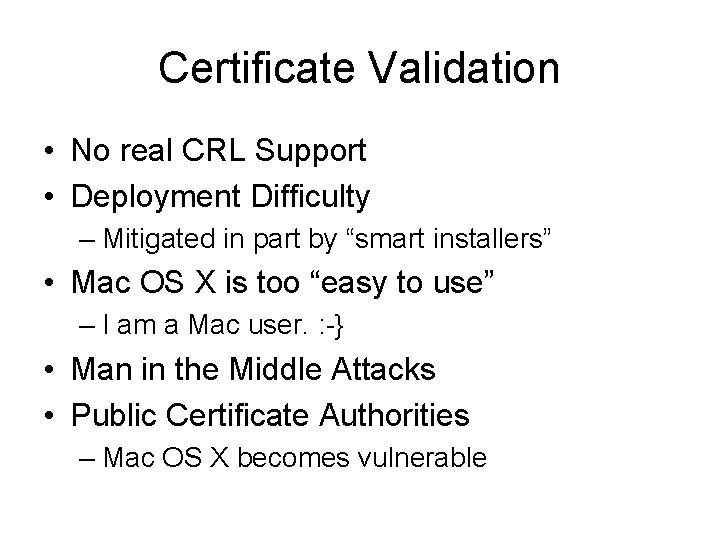

Certificate Validation • No real CRL Support • Deployment Difficulty – Mitigated in part by “smart installers” • Mac OS X is too “easy to use” – I am a Mac user. : -} • Man in the Middle Attacks • Public Certificate Authorities – Mac OS X becomes vulnerable

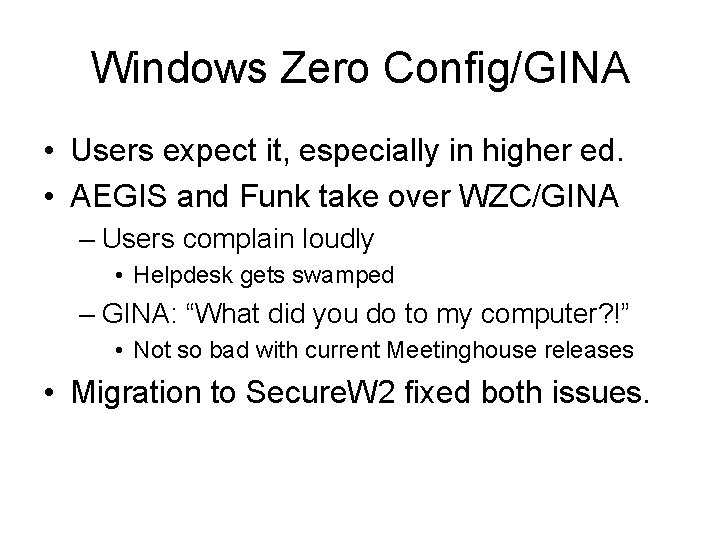

Windows Zero Config/GINA • Users expect it, especially in higher ed. • AEGIS and Funk take over WZC/GINA – Users complain loudly • Helpdesk gets swamped – GINA: “What did you do to my computer? !” • Not so bad with current Meetinghouse releases • Migration to Secure. W 2 fixed both issues.

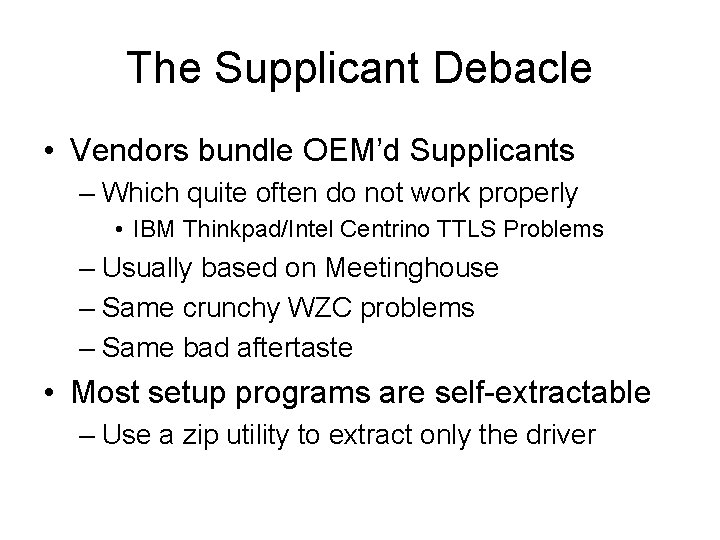

The Supplicant Debacle • Vendors bundle OEM’d Supplicants – Which quite often do not work properly • IBM Thinkpad/Intel Centrino TTLS Problems – Usually based on Meetinghouse – Same crunchy WZC problems – Same bad aftertaste • Most setup programs are self-extractable – Use a zip utility to extract only the driver

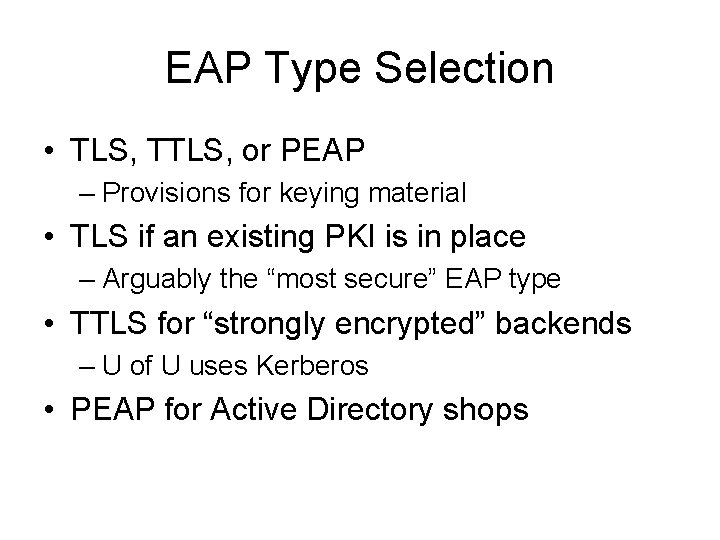

EAP Type Selection • TLS, TTLS, or PEAP – Provisions for keying material • TLS if an existing PKI is in place – Arguably the “most secure” EAP type • TTLS for “strongly encrypted” backends – U of U uses Kerberos • PEAP for Active Directory shops

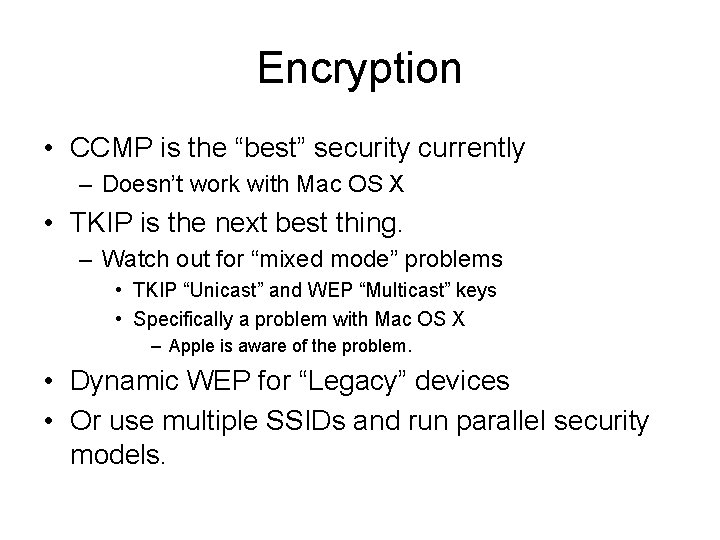

Encryption • CCMP is the “best” security currently – Doesn’t work with Mac OS X • TKIP is the next best thing. – Watch out for “mixed mode” problems • TKIP “Unicast” and WEP “Multicast” keys • Specifically a problem with Mac OS X – Apple is aware of the problem. • Dynamic WEP for “Legacy” devices • Or use multiple SSIDs and run parallel security models.

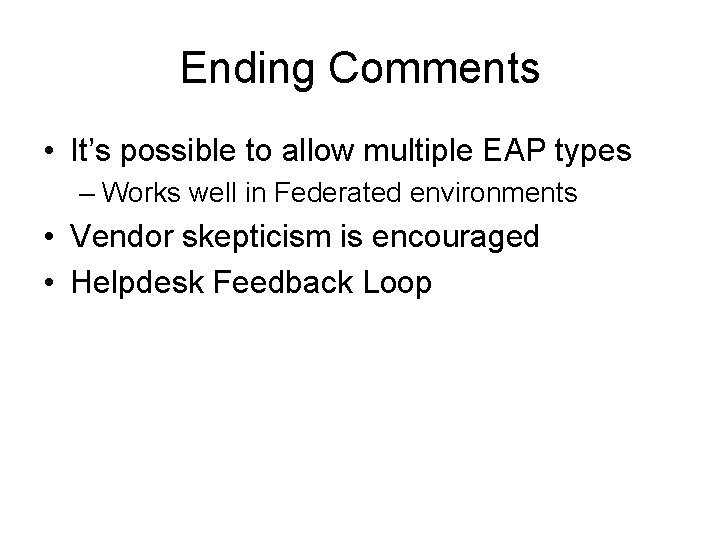

Ending Comments • It’s possible to allow multiple EAP types – Works well in Federated environments • Vendor skepticism is encouraged • Helpdesk Feedback Loop

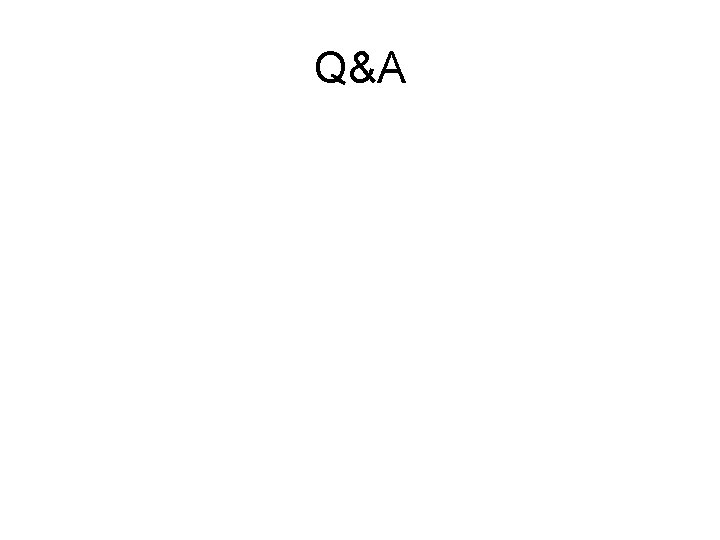

Q&A

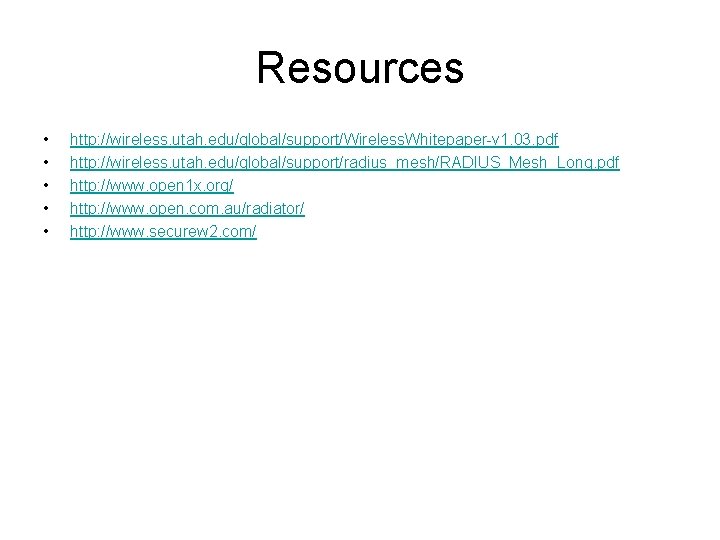

Resources • • • http: //wireless. utah. edu/global/support/Wireless. Whitepaper-v 1. 03. pdf http: //wireless. utah. edu/global/support/radius_mesh/RADIUS_Mesh_Long. pdf http: //www. open 1 x. org/ http: //www. open. com. au/radiator/ http: //www. securew 2. com/
