8 Production schedule and associated Resources Tomoo Chiba

8. Production schedule and associated Resources Tomoo Chiba Fusion and Accelerators Department Hitachi, Ltd. PRR, TV meeting, 09/10/2019

Contents § 1. Manufacturing schedule § 2. Manufacturer’s organization To edit speaker name go to Insert > Header & Footer and apply to all slides except title page 2

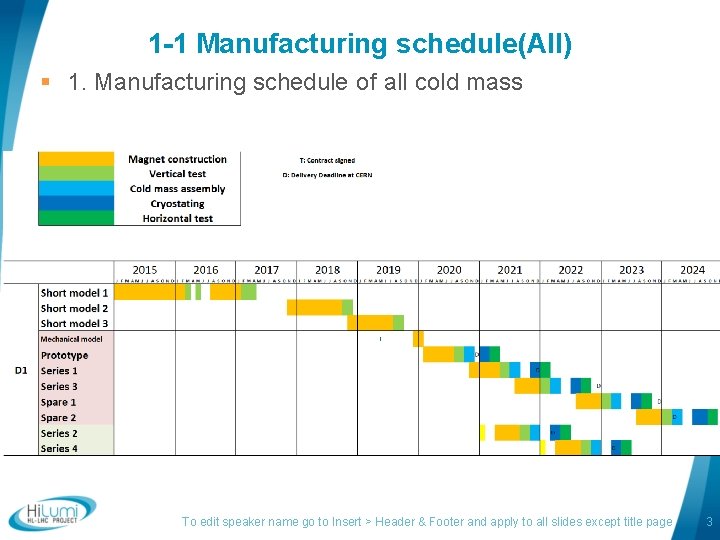

1 -1 Manufacturing schedule(All) § 1. Manufacturing schedule of all cold mass To edit speaker name go to Insert > Header & Footer and apply to all slides except title page 3

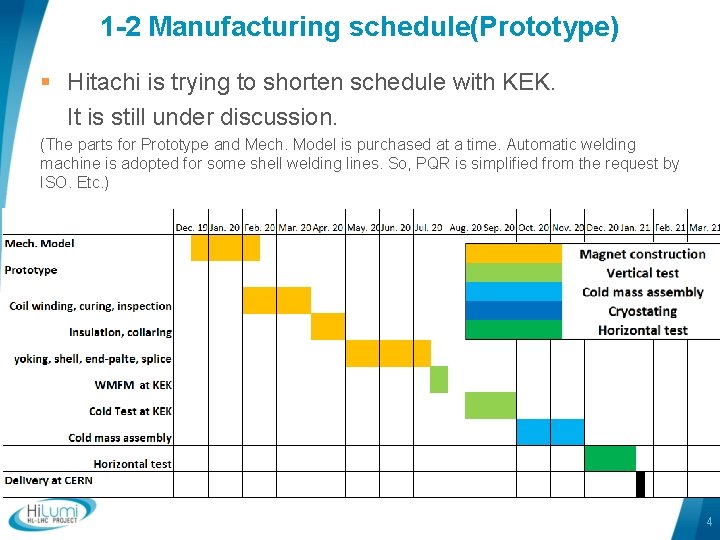

1 -2 Manufacturing schedule(Prototype) § Hitachi is trying to shorten schedule with KEK. It is still under discussion. (The parts for Prototype and Mech. Model is purchased at a time. Automatic welding machine is adopted for some shell welding lines. So, PQR is simplified from the request by ISO. Etc. ) To edit speaker name go to Insert > Header & Footer and apply to all slides except title page 4

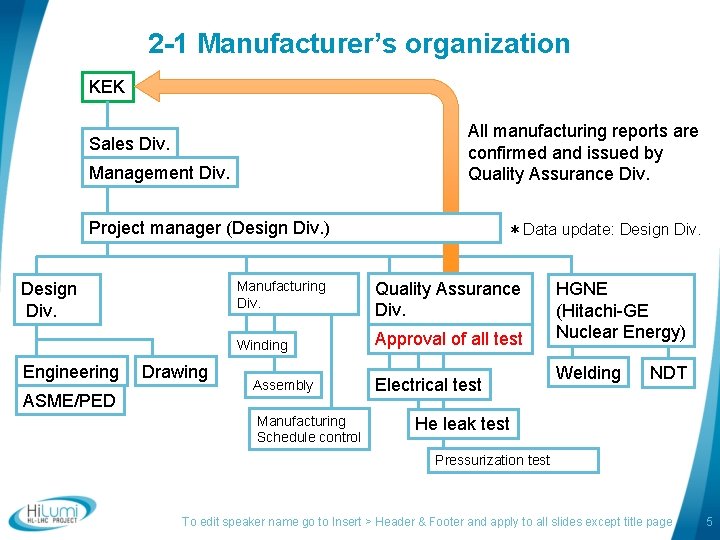

2 -1 Manufacturer’s organization KEK All manufacturing reports are confirmed and issued by Quality Assurance Div. Sales Div. Management Div. Project manager (Design Div. ) Design Div. Engineering ASME/PED Drawing ＊Data update: Design Div. Manufacturing Div. Quality Assurance Div. Winding Approval of all test Assembly Manufacturing Schedule control Electrical test HGNE (Hitachi-GE Nuclear Energy) Welding NDT He leak test Pressurization test To edit speaker name go to Insert > Header & Footer and apply to all slides except title page 5

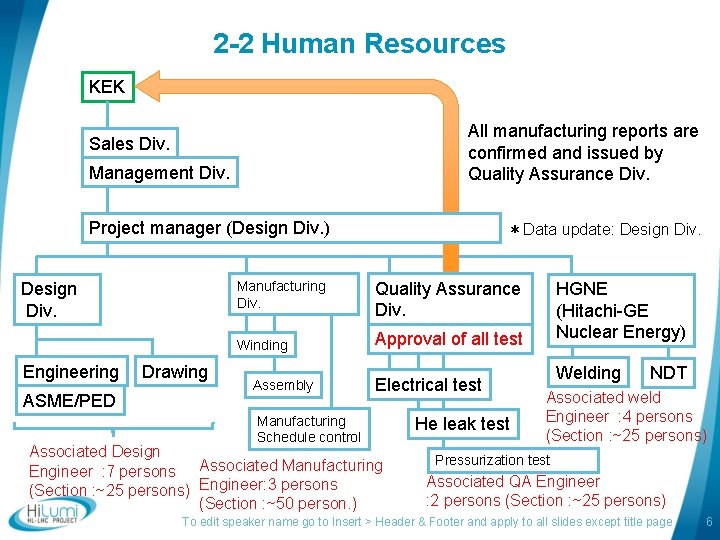

2 -2 Human Resources KEK All manufacturing reports are confirmed and issued by Quality Assurance Div. Sales Div. Management Div. Project manager (Design Div. ) Design Div. Engineering ASME/PED Drawing ＊Data update: Design Div. Manufacturing Div. Quality Assurance Div. Winding Approval of all test Assembly Manufacturing Schedule control Electrical test Associated Design Engineer : 7 persons Associated Manufacturing (Section : ~25 persons) Engineer: 3 persons (Section : ~50 person. ) He leak test HGNE (Hitachi-GE Nuclear Energy) Welding NDT Associated weld Engineer : 4 persons (Section : ~25 persons) Pressurization test Associated QA Engineer : 2 persons (Section : ~25 persons) To edit speaker name go to Insert > Header & Footer and apply to all slides except title page 6
