8 4 Bond Polarity Bonding Ionic Covalent Polar

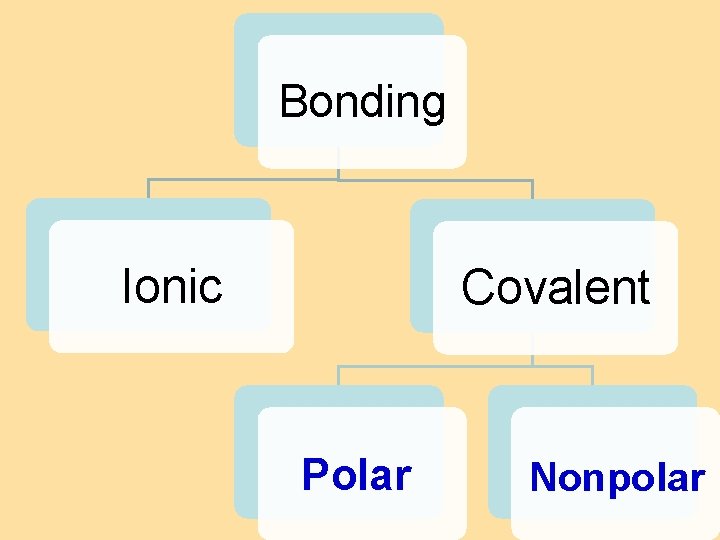

8. 4 Bond Polarity Bonding Ionic Covalent Polar Nonpolar

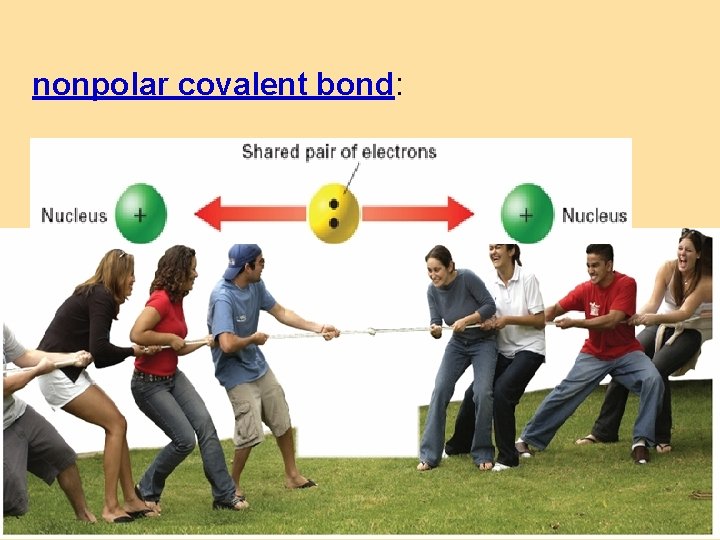

nonpolar covalent bond:

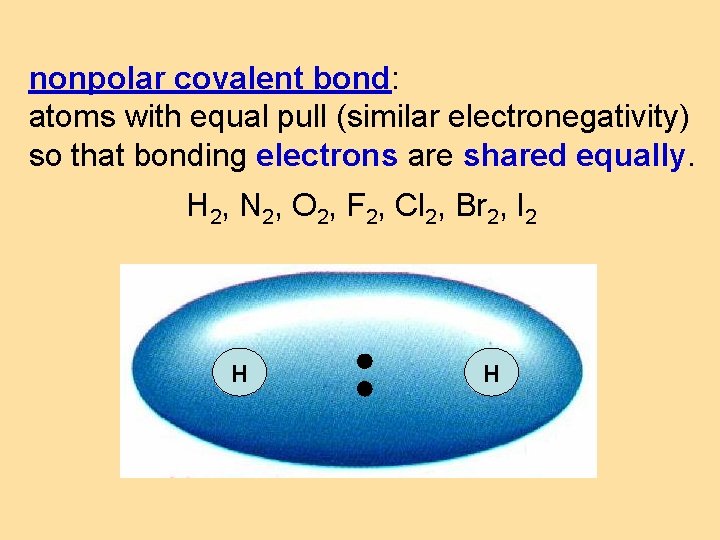

nonpolar covalent bond: atoms with equal pull (similar electronegativity) so that bonding electrons are shared equally. H 2, N 2, O 2, F 2, Cl 2, Br 2, I 2 + H

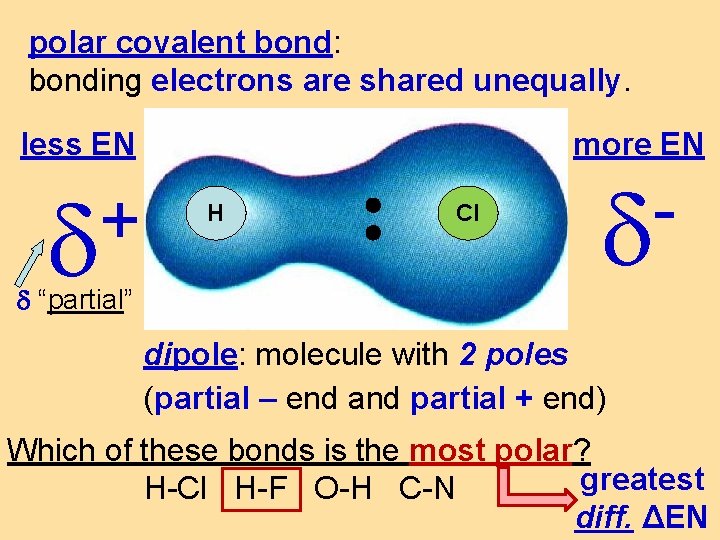

polar covalent bond: bonding electrons are shared unequally. less EN + “partial” more EN H Cl dipole: molecule with 2 poles (partial – end and partial + end) Which of these bonds is the most polar? greatest H-Cl H-F O-H C-N diff. ΔEN

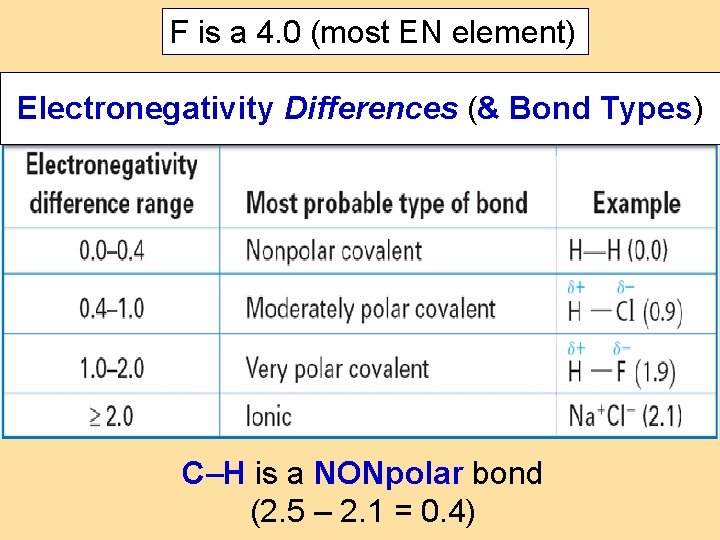

F is a 4. 0 (most EN element) Electronegativity Differences (& Bond Types) C–H is a NONpolar bond (2. 5 – 2. 1 = 0. 4)

Bonding Summary Nonpolar Covalent (e– equally shared) Polar Covalent (e– unequally shared) (ΔEN) Ionic (e– transferred)

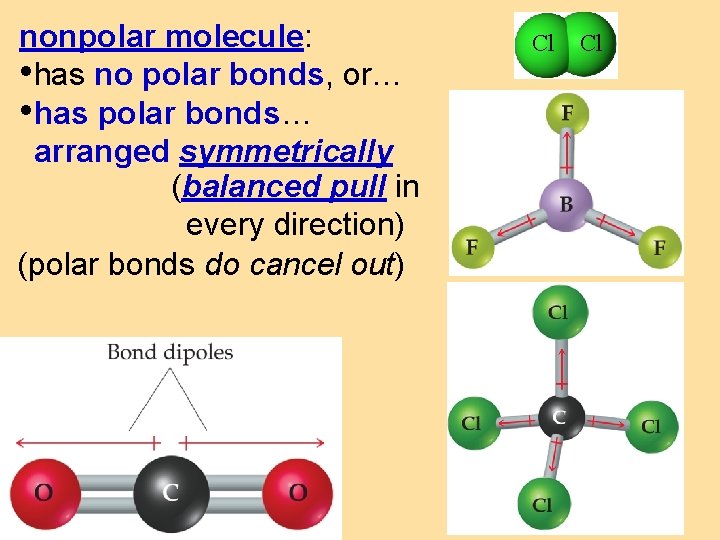

nonpolar molecule: • has no polar bonds, or… • has polar bonds… arranged symmetrically (balanced pull in every direction) (polar bonds do cancel out) Cl Cl

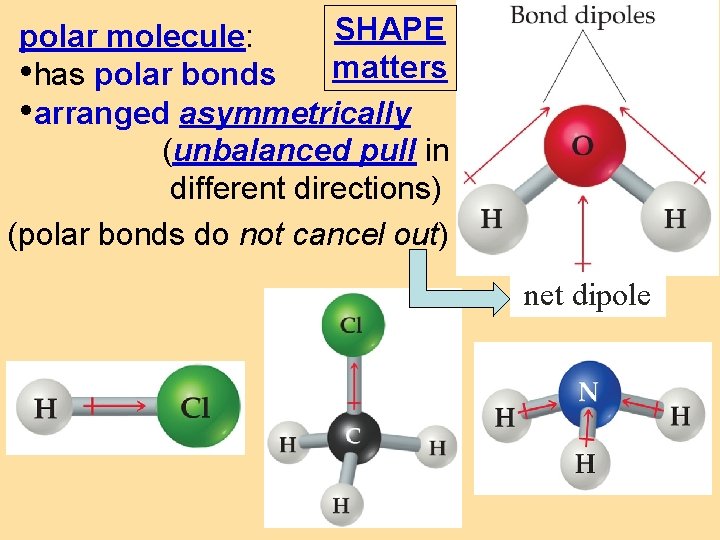

SHAPE polar molecule: • has polar bonds matters • arranged asymmetrically (unbalanced pull in different directions) (polar bonds do not cancel out) net dipole

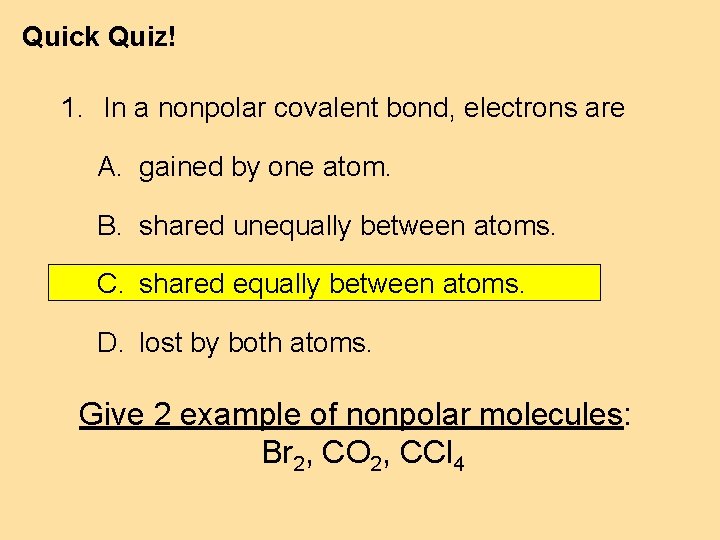

Quick Quiz! 1. In a nonpolar covalent bond, electrons are A. gained by one atom. B. shared unequally between atoms. C. shared equally between atoms. D. lost by both atoms. Give 2 example of nonpolar molecules: Br 2, CO 2, CCl 4

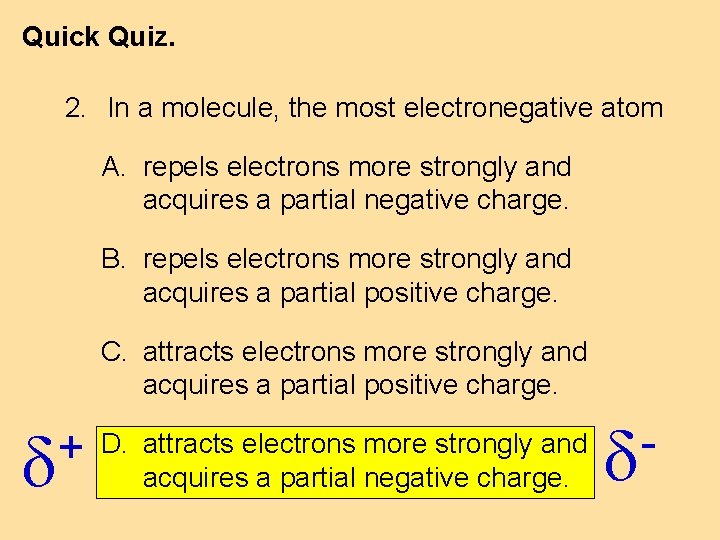

Quick Quiz. 2. In a molecule, the most electronegative atom A. repels electrons more strongly and acquires a partial negative charge. B. repels electrons more strongly and acquires a partial positive charge. C. attracts electrons more strongly and acquires a partial positive charge. + D. attracts electrons more strongly and acquires a partial negative charge.

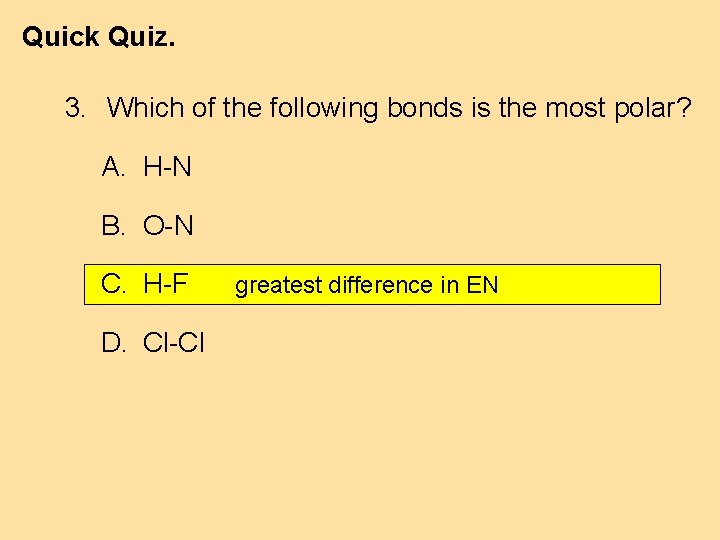

Quick Quiz. 3. Which of the following bonds is the most polar? A. H-N B. O-N C. H-F D. Cl-Cl greatest difference in EN

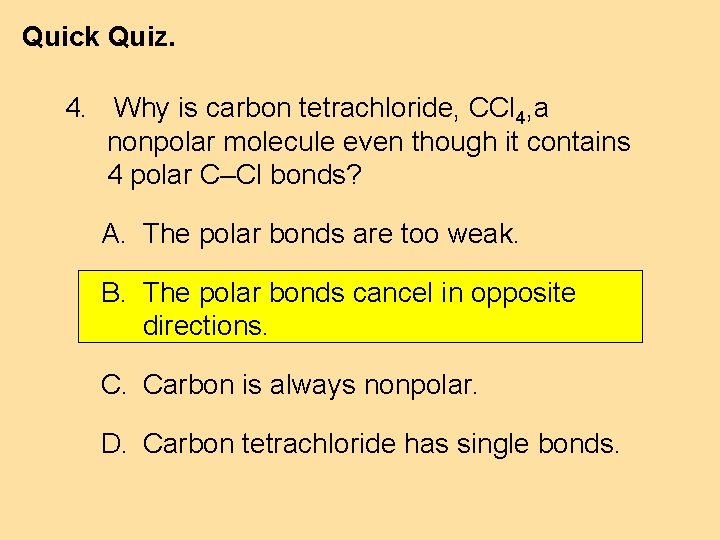

Quick Quiz. 4. Why is carbon tetrachloride, CCl 4, a nonpolar molecule even though it contains 4 polar C–Cl bonds? A. The polar bonds are too weak. B. The polar bonds cancel in opposite directions. C. Carbon is always nonpolar. D. Carbon tetrachloride has single bonds.

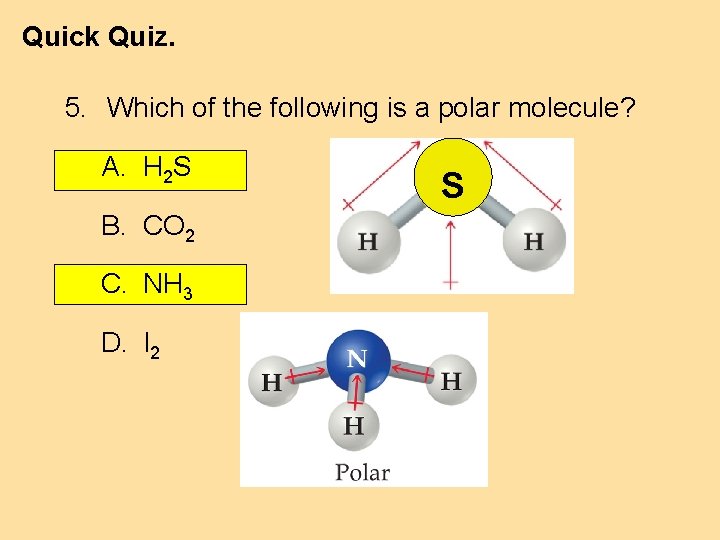

Quick Quiz. 5. Which of the following is a polar molecule? A. H 2 S B. CO 2 C. NH 3 D. I 2 S

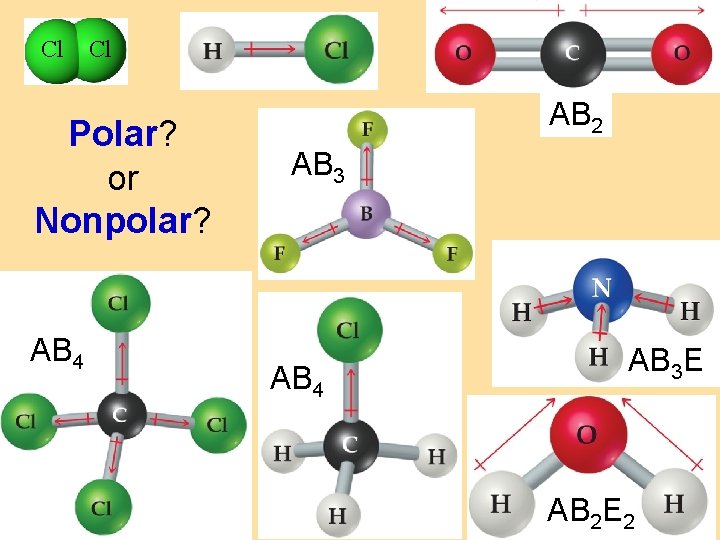

Cl Cl Polar? or Nonpolar? AB 4 AB 2 AB 3 AB 4 AB 3 E AB 2 E 2
